Free-Arm Embroidery on Finished Purses: Baby Lock Valiant + Durkee Frame Workflow That Won’t Ruin Your Bag

When you’re staring at a tiny finished purse and thinking, “There’s no way this can go in a hoop without ripping seams,” you’re not being dramatic—you’re being realistic. Finished goods fight back: seams are bulky, openings are small, and the moment the needle starts, the item wants to twist, bounce, or pucker.

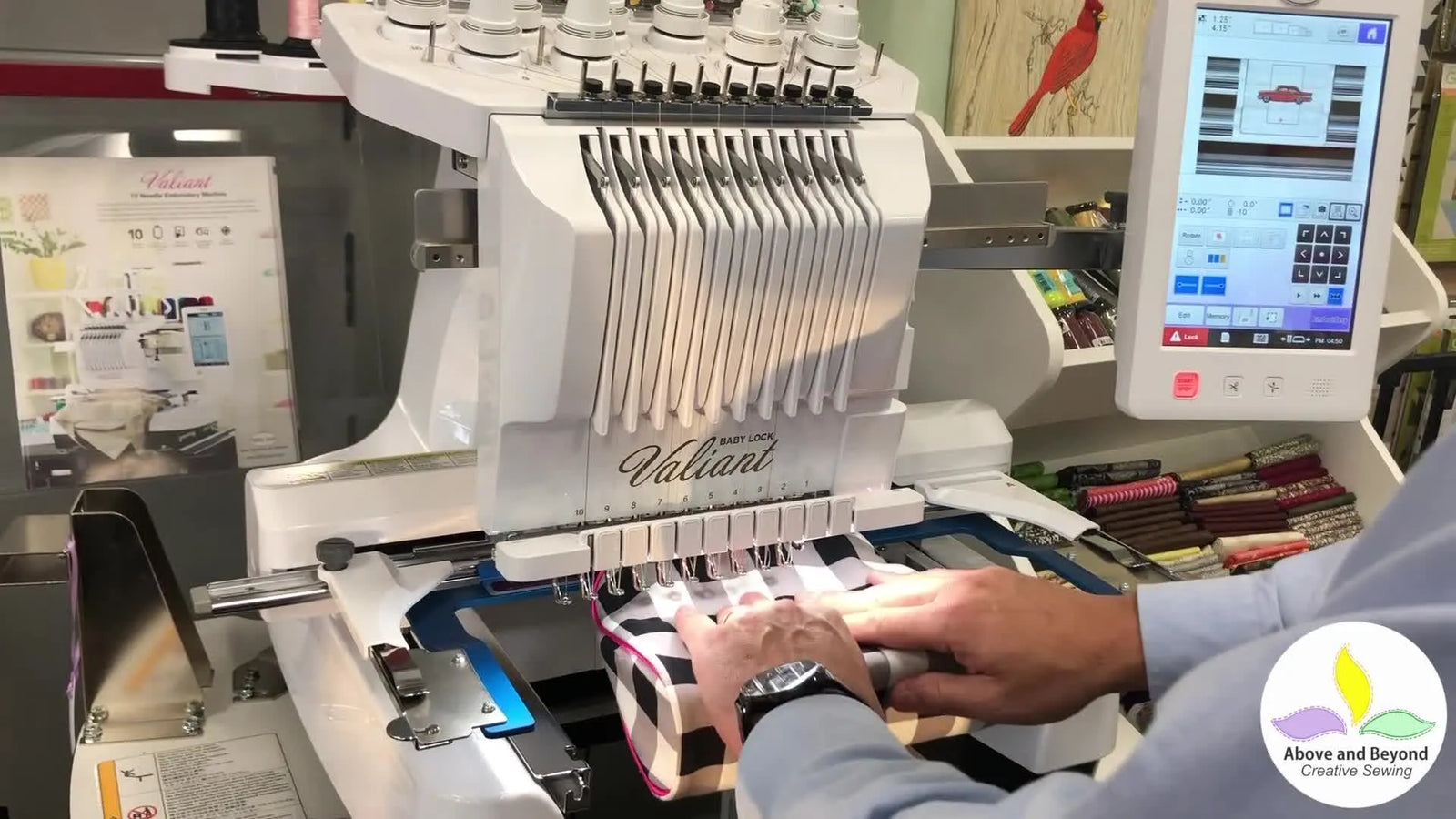

In the video, Al demonstrates a clean, production-minded workaround on a 10-needle Baby Lock Valiant: use a free-arm setup, build a sticky “window” on a Durkee-style frame, float the purse onto it, lock it down with a basting box, and let the machine run without constant thread changes.

The “Finished Purse Problem”: Why Standard Hoops Fail on Small Bags (and Why You’re Not Doing Anything Wrong)

A purse this size (approx 6-8 inches wide) is hard for one simple reason: physics. Once it’s assembled, you can’t lay it flat inside a traditional inner/outer ring hoop without either distorting the shape or stressing the zippers. That’s why so many people either abandon the job or waste hours unpicking seams to lay it flat—a profit killer.

The free-arm approach flips the logic. Instead of forcing the item into a hoop sandwich, you bring the item to a stabilized stitching field and let the machine’s arm pass through the small opening. This is exactly the kind of workflow that makes finished goods (purses, caps, umbrellas) commercially viable.

If you are currently researching a floating embroidery hoop technique, the key concept to grasp is that "floating" is not just laying fabric on top. It is a calculated adhesion process. Without the correct prep, the first few needle penetrations will push the fabric, causing "registration drift" (where the outline doesn't match the fill).

The “Hidden Prep” Pros Never Skip: Durkee Frame + Sticky Stabilizer Setup That Actually Holds

Al’s method starts before the machine ever stitches. He prepares the Durkee frame by applying a pre-cut piece of Perfect Stick (sticky tear-away) stabilizer to the underside of the metal frame.

What the video does (exactly)

• Turnt the bare metal Durkee frame upside down.
• Peel the backing off a pre-cut piece of stabilizer.
• Press the stabilizer onto the back/underside of the frame so the sticky “window” faces up toward the needle when the frame is flipped back over.


Why this prep matters (The "Sensory Check")

Sticky stabilizer does two jobs: Friction and Surface Tension.

• The Touch Test: When you touch the sticky window, it should feel aggressive, like fresh duct tape. If it feels weak (like a post-it note), it will not hold a leather or canvas purse.
• The Visual Check: Ensure the stabilizer is drum-tight across the metal arms. Ripples in the stabilizer equal ripples in your embroidery.

Hidden Consumables You Need Needed:
* Adhesive Spray (Temporary): If your sticky backing isn't sticky enough for heavy canvas, a light mist of 505 spray adds insurance.
* Titanium Needles (75/11): Thick purses dull needles fast. Titanium coatings reduce friction and heat.
* Goo Gone/Alcohol: To clean the adhesive residue off the metal frame after the job.

Warning: Keep fingers well away from the needle path when you’re pressing or steadying a floating item. A multi-needle head moves at 600-1000 stitches per minute. A moment of “just holding it here” can turn into a severe needle injury.

Prep Checklist (Don't start until you check these)

• Stabilizer is pre-cut directly to the frame size (excess hanging off the sides will catch on the machine bed).
• Sticky surface is free of air bubbles; bubbles cause fabric to bounce.
• You have verified the purse opens wide enough to slide over the machine's free arm without straining the zipper.
• You have pre-marked the center point on the purse with a water-soluble pen or chalk.


Locking the Durkee Hoop Arms onto the Baby Lock Valiant: The “Click Test” That Prevents a Bad Day

In the video, Al slides the blue hoop arms into the Baby Lock Valiant’s embroidery arm holder until it engages.

This sounds basic, but on free-arm jobs, it’s critical: the item is not clamped by a top ring, so the frame connection becomes your only rigid reference. If you don't hear the mechanical SNAP or CLICK, the frame is vibrating.

If you’re shopping around for babylock valiant hoops or compatible aftermarket frames, treat “positive lock-in” as a non-negotiable feature. Any "play" or wiggle at the mount will show up as jagged lines in your satin stitches.

Setup Checklist (The "Shake Test")

• Frame arms are inserted fully; you heard the distinct "Click".
• The Wiggle Test: Gently try to rock the frame up and down. It should be rigid. If it moves, re-seat it.
• The free-arm area is clear. Specifically, check that the back of the purse won't get caught on the bobbin plate cover.


Camera Scan Placement on the Baby Lock Valiant: Stop Guessing and Start Landing Designs Precisely

Al selects the “57 Chevy” design, resizes it, and uses the Baby Lock's camera function. The machine moves the hoop to scan the stabilizer area and displays a live view on the screen.

What the video sets (exactly)

• Design resized to about 4.00" wide by 1.50" tall.
• Speed Limit: For floating dense items, do not run at max speed. Sweet Spot: Set your machine to 600-700 SPM. High speed increases the chance of the bag shifting.
• Camera scan runs to visualize the sticky field.


The "Why": Reducing the "Eyeball Tax"

On finished goods, you often can't mark perfect crosshairs. Camera placement allows you to drag and drop the design onto the bag's visual center.

If your shop is already using hooping stations for flat garments (like t-shirts), think of the camera scan as the digital equivalent for irregular items. It standardizes the starting point so you don't have to guess.

Floating the Purse on Sticky Stabilizer: The Press-Down Technique That Prevents Wrinkles and Bounce

This is the heart of the method: Al opens the purse, slides it over the free arm, aligns the target area over the sticky stabilizer window, and presses down firmly.

What to watch with your hands (The Tactile Feedback)

You want firm contact, not “stretched tight.”

• Step 1: Slide the bag over the arm.
• Step 2: "Walk" your fingers from the center of the design area outward.
• Step 3: The fabric should lay flat. If you pull it too tight, the fabric will snap back (relaxed) after you peel it off, causing puckering.

The Danger Zone: Ensure the lining of the purse isn't bunching up underneath. You should feel a smooth, single thickness between the sticky paper and the top fabric.

The On-Screen Thread Reassignment Trick: Run Multi-Needle Jobs Without Rethreading Every Time

Al avoids physically moving thread spools by reassigning design colors to the needle numbers where those colors are already loaded.

In the video’s example:

• Black is assigned to Needle 10.
• Red is assigned to Needle 3.
• Gray is assigned to Needle 2.


He uses the wand tool to map colors. This is a massive time-saver.

Production Efficiency Insight

On a multi-needle machine, rethreading takes 2-3 minutes. Digital reassignment takes 10 seconds. If you’re currently researching a hooping station for machine embroidery to improve physical workflow speed, don't ignore this software-side efficiency. Standardize your needle bar (e.g., Needle 1 is always White, Needle 10 is always Black) and remap your designs to match your machine, not the other way around.

Basting Stitch + Start Sequence on the Baby Lock Valiant: The 30 Seconds That Decide Whether It Shifts

Al turns on a basting stitch (a loose running stitch box around the design), locks the machine, and starts.

Critical Safety Step: Keep your hand on the "Stop" button during the basting phase. This is when the bag is most likely to shift or hit the presser foot.

Then, the machine proceeds to stitch the design.

Operation Checklist (The "Pilot's Check")

• Basting Stitch function is turned ON.
• Speed is reduced to 600-700 SPM.
• Visual Clearance: You have verified that the presser foot will not hit the zipper pull or thick seams.
• You monitored the basting box completion implies the bag is now mechanically locked to the stabilizer.

Why This Works (and How to Avoid the Two Most Common “Floating” Failures)

Al’s workflow utilizes a "Stack of Security":

1. Frame: Rigid foundation.
2. Adhesive: Horizontal friction control.
3. Basting: Mechanical lockdown.

However, things can still go wrong. Here is how to diagnose failures using a sticky hoop for embroidery machine setup:

Failure Mode 1: The "Flagging" Purse

• Symptom: You hear a loud thump-thump sound. The bag is bouncing up and down with the needle.
• Cause: The bag isn't stuck down well enough, or the machine speed is too high.
• Fix: Use fresh stabilizer, add spray adhesive, or slow the machine down to 500 SPM.

Failure Mode 2: The "Slanted" Logo

• Symptom: The logo looks straight on screen but stitches crooked.
• Cause: You stretched the fabric diagonally when pressing it onto the sticky paper.
• Fix: Press gently from the center out. Do not pull the corners.

Troubleshooting Finished-Goods Embroidery: Symptom → Cause → Fix

A Simple Stabilizer Decision Tree for Finished Goods

Use this logic flow to stop guessing which method to use:

Q1: Can the item open and slide over the machine arm?

• YES: Go to Q2.
• NO: You must rip the side seam or appliqué the design onto a patch first.

Q2: Is the material sensitive to "Hoop Burn" (crushing)?

• YES (Leather, Vinyl, Velvet):
  • Option A: Float on Sticky Stabilizer (as per video).
  • Option B: Use Magnetic Hoops (Magna-Hoop/SEWTECH).
• NO (Canvas, Denim):
  • You can use standard clamps or magnetic frames.

Q3: Is the item heavy (e.g., a thick Carhartt jacket)?

• YES: Sticky stabilizer alone is not enough. You must use a strong magnetic hoop or pin the item securely to the stabilizer.

The Upgrade Path: Faster, Cleaner Production

Al closes by showing other difficult items—an embroidered umbrella and a baseball cap—highlighting that the free-arm concept expands your catalog.

However, sticky paper has limits. It is messy, single-use, and can gum up your needles. When you are ready to move from "Hobby" to "Production," consider these tool upgrades:

1. The Speed Upgrade: Magnetic Hoops

If you are tired of sticky residue and buying stabilizer rolls, Magnetic Hoops are the industry standard for finished goods. They hold the bag firmly without clamping rings that leave marks.

• Why update: Zero "hoop burn," faster changeovers, no sticky mess.
• Compatibility: Look for magnetic embroidery hoops for babylock (or your specific machine brand) to ensure the brackets fit.

2. The Consistency Upgrade: Hooping Stations

If you struggle to get the design straight every time, the "eyeball method" is your bottleneck.

• Why update: Repeatability. If a customer orders 50 bags, they all need to look identical.
• Keywords to research: Professionals often look for a hoop master embroidery hooping station to standardize placement off the machine.

3. The Hardware Upgrade: Specialized Clamps

For items like shoes or very stiff bags, "Durkee EZ Frames" or durkee fast frames offer specific window sizes that standard hoops can't match.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength magnets (neodymium).
* Pinch Hazard: They can snap together with enough force to injure fingers. Handle with respect.
* Interference: Keep them away from pacemakers, credit cards, and machine LCD screens.

Final Reality Check: What You Should Be Able to Do Now

After following Al’s sequence—sticky window prep, mechanical lock-in, camera scan, careful floating, thread reassignment, and basting—you should be able to embroider a small finished purse without ruining it.

If you are comparing systems like durkee ez frames versus traditional hooping, remember the goal: Stress-Free Holding. Whether you stick it, magnetize it, or clamp it, the fabric must not move. Start with the sticky method shown here—it’s the cheapest way to learn—and upgrade to magnetic frames when your production volume demands it.

FAQ

• Q: How do I float a finished purse on a Durkee-style free-arm frame without the purse shifting on a Baby Lock Valiant?
  A: Use a “stack of security”: fresh sticky stabilizer + firm press-down + a basting box at reduced speed.
  • Apply pre-cut sticky tear-away to the underside of the metal frame so the sticky window faces up when flipped.
  • Slide the purse over the Valiant free arm, align the target area, and press from the center outward without stretching.
  • Turn ON a basting stitch box and run at about 600–700 SPM for the first lock-in.
  • Success check: the basting box finishes cleanly and the purse does not “walk” or wrinkle when stitching starts.
  • If it still fails, replace the stabilizer with a fresh piece and add a light mist of temporary adhesive spray for heavy canvas.
• Q: What is the “Touch Test” and “Visual Check” for sticky stabilizer when floating a thick canvas or leather purse on a Durkee frame?
  A: The sticky field must feel aggressive and look drum-tight, or the purse will drift and bounce.
  • Touch the sticky window: it should grab like fresh duct tape, not like a weak post-it note.
  • Inspect the stabilizer across the frame arms: eliminate ripples and air bubbles before stitching.
  • Keep stabilizer trimmed to the frame size so nothing catches on the machine bed.
  • Success check: the stabilizer surface is flat (no bubbles) and the purse stays flat when you “walk” fingers outward.
  • If it still fails, add a light mist of temporary adhesive spray and re-press the purse down without diagonal pulling.
• Q: How do I confirm a Durkee-style frame is fully locked into the Baby Lock Valiant embroidery arm to prevent vibration and jagged satin stitches?
  A: Seat the hoop arms until a positive mechanical click, then do a gentle wiggle test before starting.
  • Slide the frame arms into the Valiant holder until you hear/feel the distinct “CLICK.”
  • Rock the frame gently up/down to confirm there is no play at the mount.
  • Clear the free-arm area so the back of the purse cannot snag near the bobbin plate cover.
  • Success check: the frame feels rigid and does not wiggle; stitching lines look smooth instead of jagged.
  • If it still fails, remove and re-seat the arms until the click is repeatable and the mount feels tight.
• Q: What speed should a Baby Lock Valiant run when floating a dense finished purse on sticky stabilizer to reduce shifting and registration drift?
  A: Do not run max speed; a safe production-minded range for this floating method is about 600–700 SPM.
  • Set the speed limit to 600–700 SPM before the first stitches, especially on dense designs and bulky seams.
  • Start with the basting box ON so the purse is mechanically locked before the design stitches.
  • Keep a finger ready on Stop during the basting phase to catch movement early.
  • Success check: the first outline and the fill stay aligned with no visible drift.
  • If it still fails, slow further (often around 500 SPM) and improve adhesion with fresh sticky stabilizer and/or temporary spray.
• Q: How do I prevent needle breaks on a Baby Lock Valiant when embroidering near purse seams or zippers using a free-arm floating setup?
  A: Verify physical clearance before running, because zipper pulls and thick seams can strike the presser foot or needle path.
  • Manually check that the presser foot will not hit the zipper pull, seam bulk, or hardware in the design area.
  • Reposition the purse so the thickest seam is outside the stitching field whenever possible.
  • Reduce speed and monitor the basting box closely, because that’s when contact issues show up first.
  • Success check: the basting box completes without foot strikes or sudden snapping sounds.
  • If it still fails, choose a different placement or edit the design to remove hidden stitches that run into bulky areas.
• Q: What should I do when a floating finished purse makes a loud “thump-thump” sound (flagging) on a Baby Lock Valiant during stitching?
  A: Treat the thump as loss of hold-down: increase adhesion and slow the machine before continuing.
  • Stop the machine and press the purse back down firmly onto the sticky window (do not stretch it tight).
  • Replace the sticky stabilizer if it feels weak, and add a light mist of temporary adhesive spray for heavy materials.
  • Reduce speed; if needed, slow to around 500 SPM to cut bounce.
  • Success check: the purse stops bouncing and the needle penetration sounds become even and consistent.
  • If it still fails, re-run with a basting box enabled and confirm the stabilizer has no bubbles or ripples.
• Q: What safety steps should be followed when pressing and steadying a floating purse near a Baby Lock Valiant multi-needle head during basting?
  A: Keep hands completely out of the needle path and stay ready to stop, because the head runs 600–1000 stitches per minute.
  • Use finger pressure only on areas well away from the needle travel zone while aligning the purse on the sticky field.
  • Keep a hand on (or immediately next to) the Stop control during the entire basting box.
  • Confirm the purse lining is not bunched underneath before starting, so you are not tempted to “hold it” mid-stitch.
  • Success check: you never need to place fingers near the needle area during motion; the basting box locks the item down cleanly.
  • If it still fails, stop and re-prep the float (fresh sticky stabilizer + better press-down) rather than trying to stabilize by hand.
• Q: When should a shop upgrade from sticky-stabilizer floating on a Durkee-style frame to magnetic embroidery hoops or a multi-needle production workflow for finished purses?
  A: Start with sticky floating to learn control, then upgrade when residue, repeat orders, or changeover time becomes the real bottleneck.
  • Level 1 (Technique): keep using sticky + basting if results are stable and volume is low.
  • Level 2 (Tool): move to magnetic hoops when hoop burn risk is high (leather/vinyl) or when sticky residue and single-use cost become annoying.
  • Level 3 (Production): lean into multi-needle efficiency by standardizing needle colors and reassigning colors on-screen instead of rethreading each job.
  • Success check: changeovers are fast, designs land consistently, and you are not cleaning adhesive off frames after every item.
  • If it still fails, audit the process step-by-step (frame lock-in click, stabilizer tack, basting box on, and reduced speed) before changing hardware.
