FortePD Basic Lettering That Actually Stitches Clean: 9 Settings (Font, Baseline, Density, Underlay) Without the Usual Surprises

Lettering is the precise moment where embroidery reveals its true nature: it either looks "high-end expert" or "homemade hobbyist" in about two seconds.

If you’ve ever stitched a name that looked crisp on your computer screen but came out wavy, bulletproof-stiff, or with white underlay poking out from the sides, you aren't doing anything "wrong." You are just experiencing the Screen-to-Stitch Gap. Most issues aren't caused by big mistakes; they are caused by a mismatch between the digital geometry (software settings) and the physical reality (fabric tension).

This guide rebuilds the standard FortePD "Basic Lettering" workflow into a production-grade protocol. We will move beyond "how to click buttons" and focus on "how to guarantee results," integrating the sensory checks and safety margins used in professional shops.

Calm the Panic: FortePD “Basic Lettering” Is Simple—Until One Setting Snowballs

The software process is straightforward: enter text, pick a font, shape the line, and dial in the physics (size, density, underlay).

However, you must understand the Golden Rule of Embroidery Lettering: Lettering is small geometry. Unlike a large floral design, a letter has nowhere to hide. A 1mm shift in a large flower is invisible; a 1mm shift in text makes an "E" look like a blob.

We will follow the exact video workflow, but we will add the "Safety Layers" that software manuals don't teach you:

1. Sensory Anchors: What you should see and feel.
2. Safety Zones: Numerical ranges that keep you out of trouble.


The “Three-Doors” Start: Opening the FortePD Lettering Tool Without Hunting Menus

Efficiency starts with muscle memory. The video highlights three entry points:

1. Menu Dive: Tools > Lettering.
2. The Pro Shortcut: Press the “5” hotkey. (Memorize this).
3. Visual Click: The lettering icon in the work area.

Once active, click anywhere on the grid.

The "Live Wire" Check:

• Visual Anchor: Do not just look at the text box. Look at the workspace preview. As you type "Team," the preview should update instantly. If it doesn't, your render settings may be off, and you are flying blind.


Phase 1: The Pre-Flight Preparation Checklist

Stop. Do not pick a font yet. Answer these three physical questions:

• [ ] The Distance Test: Is this text for a hat (viewed from 3 feet away) or a cuff (viewed from 12 inches)? This determines your minimum size.
• [ ] The Fabric Reality: Are you stitching on stable denim (forgiving) or stretchy performance knit (unforgiving)?
• [ ] The "Hidden" Consumables: Do you have a fresh 75/11 sharp needle (for crisp text) and the correct stabilizer? (Hint: If it stretches, use Cutaway. No exceptions for beginners.)

Font Choice in FortePD: 250 Options, but Only a Few Behave Well at Small Sizes

In Step 2, you select from 250 fonts in the Settings tab.

The Expert's Filter: Fonts are not just "styles"; they are structural architecture.

• Block/San-Serif Fonts: These are your "Safety Fonts." They have consistent column widths. They stitch reliably on towels, polos, and unstable fabrics.
• Script/Serif Fonts: These are "High Risk." The thin tails of a serif font or the hairline curves of a script require perfect stabilization.

The "Sweet Spot" Rule: If your target letter height is under 0.5 inches (12mm), avoid fancy scripts. The column width will drop below 1mm, and your needle will struggle to place thread without chopping a hole in the fabric.

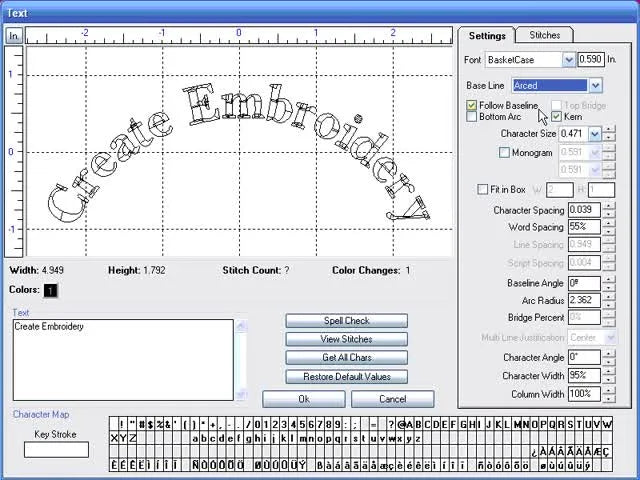

Baseline Control in FortePD: Straight, Arced, Bridged, Bezier—And the One Checkbox People Miss

Step 3 controls the shape of your text line.

• Straight: Standard.
• Arced: Perfect for hat fronts or chest logos.
• Bridged: Limits text to a specific shape envelope.
• Bezier: Manual node editing for custom waves.










The Physics of "Follow Baseline"

The video emphasizes the "Follow Baseline" checkbox.

• Unchecked: Letters stand strictly vertical (like soldiers covering a hill).
• Checked: Letters rotate to match the curve (perpendicular to the line).

Sensory Check: Look at the bottom of letters like "H" or "E" on an arc. If "Follow Baseline" is OFF, the corners of the letters will look like a "sawtooth" or broken zipper against the curve. Turn it ON for a smooth, professional flow.

Character Size in FortePD: The 20% Rule That Saves You From Ugly Satin Columns

Step 4 is Character Size. The example shows 0.591 in.

The 20% Safety Zone: FortePD allows you to resize any font, but physics limits you.

• Rule: Try to keep the size within ±20% of the default digitizing size.
• Why? If you shrink a standard font by 50%, the stitches get too close together (density overcrowding). The result is a stiff, bulletproof patch that breaks needles.
• The Fix: If you need tiny text (0.25 inch), do not shrink a big font. Select a "Small" or "Micro" font designed specifically with wider spacing to accommodate the thread.

Character Spacing in FortePD: Kerning vs Bounding Boxes (and Why Your “o” Looks Lonely)

Step 5 adjusts the air between letters.

• Standard Spacing: Uses a box around the letter.
• Kern Checkbox: Uses the actual shape of the letter to tuck them closer (e.g., tucking an "o" under a "T").




The "Squint Test": Do not trust the numbers (e.g., 0.039 in). Trust your eyes. Lean back and verify pairs like "Av", "Te", or "Ly".

• If it looks tight on screen: It will overlap on fabric due to Push/Pull compensation (satin stitches tend to expand slightly).
• Action: For small text (< 6mm), increase spacing slightly (add 10-15%). The thread adds bulk that the screen doesn't show.

The “Stitches” Tab Reality Check: Density in FortePD Controls Coverage, Not Just ‘Thickness’

Steps 6-9 are under the Stitches tab. Step 6 is Density. The video shows 65.633 lines/in (roughly 0.4mm spacing).

The Density Trap: Beginners often crank up density to make letters look "rich."

• The Reality: High density = Stiff fabric + Thread breaks + Puckering.
• The Sweet Spot: For standard 40wt thread, a density of 0.40mm to 0.45mm (approx 60-63 lines/in) covers well without stressing the fabric.
• Tactile Check: Rub your thumb over the test stitch. It should feel like a flexible patch, not a hard piece of plastic.

Underlay Stitch Length in FortePD: The Setting That Causes Underlay to Peek Out

Step 7 is Underlay Stitch Length. The video adjusts to 0.047 in.

The "Hairy Edge" Problem: If your underlay stitch length is too long, or if the underlay is too close to the edge, you will see white "specks" or loops poking out from the side of your satin column.

• The Logic: Underlay is the foundation (rebar in concrete). It must be hidden.
• The Safety Margin: Ensure your Pull Compensation is set correctly so the top satin stitch is wide enough to cover the underlay completely.

Warning: Needle Safety. When running test stitches for density, keep hands clear of the needle bar. Modern machines move at 600-1000 SPM. One distracted second adjusting fabric while the machine is active can result in a serious puncture injury.

Lock Stitch & Trim in FortePD: Letter vs Word vs Line—Choose Like You’re Paying for Thread

Step 8: Lock Stitch (tie-in/tie-off) and Trim.

The Production Trade-off:

• Line: Trims only at the end of the line. Faster, but leaves jump stitches (connection threads) between letters you must trim by hand.
• Letter: Trims after every letter. Looks cleaner instantly, but slows the machine down significantly (the distinct "Ka-chunk... whirrr... Ka-chunk" sound).

Recommendation: For commercial orders, use "Letter" trim settings. The machine time costs less than the manual labor time of hand-trimming 50 shirts with scissors.

Underlay Types in FortePD: Center Walk vs Edge Walk vs Narrow Column (and When to Stack Them)

Step 9: Underlay Type.

The Structural Decision Tree: Do not guess. Use this logic based on your letter size.

• Tiny Text (< 6mm): Use Center Walk only. (Adding Edge Walk here will cause the letters to explode with too much thread).
• Medium Text (6mm - 25mm): Use Center Walk + Edge Walk. (Edge walk creates a "rail" for crisp edges).
• Large Text (> 25mm): Use Narrow Column (Zigzag). (You need a mesh foundation to prevent the top threads from sinking).

The Lettering Decision Tree: Match Fabric Stability to Underlay + Density

Use this to make your final settings decisions before you stitch.

Two Fast Fixes When Lettering Looks Bad: Symptom vs. Solution

Even with perfect settings, things go wrong. Here is your structured troubleshooting guide.

Symptom A: "The letters look thin and the fabric shows through."

• Likely Cause: The thread tension is too tight, pulling the satin column narrow.
• Quick Fix: Do not increase density yet. First, increase Pull Compensation in the software. This artificially widens the column to account for the tension.

Symptom B: "There are loops of thread on the top of the letters."

• Likely Cause: No tension on the top thread, or the machine speed is too high for the intricate turns of small text.
• Quick Fix: Re-thread the machine (floss the tension discs!). Slow appropriate machine speed down to 600-700 SPM for detail work.

The “Hidden” Production Prep: Hooping and Stabilizer Choices Still Decide Whether Your FortePD Text Wins

You can have the perfect FortePD file, but if your hooping is sloppy, the text will be crooked. This is the #1 frustration for new embroiderers.

The "Hoop Burn" & Distortion Pain Point: Traditional plastic hoops require you to pull and crank a screw. This often leaves a permanent ring ("hoop burn") on delicate fabrics or stretches the knit so tight that the letters shrink when unhooped.

The Professional Upgrade Path: When you are ready to move from "struggling with alignment" to "consistent production," consider upgrading your holding tools:

1. Magnetic Solutions: Many professionals search for magnetic embroidery hoops because they clamp fabric without forcing it into a distortion. They prevent hoop burn and drastically reduce wrist strain.
2. Alignment Systems: If you find yourself re-hooping a shirt three times to get it straight, a dedicated hoop master embroidery hooping station or similar machine embroidery hooping station ensures your placement is identical on every single shirt, instantly doubling your hourly output.

Warning: Magnet Hazard. If you upgrade to embroidery hoops magnetic systems, be aware they use powerful Neodymium magnets. keep fingers clear of the pinch zone when snapping them shut, and strictly keep them away from pacemakers or sensitive medical electronics.

The Upgrade Path: When Better Tools Pay for Themselves

If you are a hobbyist doing one gift a month, manual hooping is fine. But if you are doing runs of 10, 20, or 50 items:

• Level 1 (Technique): Use spray adhesive and float the fabric to minimize distortion.
• Level 2 (Tooling): Use a hooping station for brother embroidery machine (or your specific brand) to guarantee straight text every time.
• Level 3 (Scale): If your single-needle machine is taking 45 minutes to stitch a 3-color school logo because of thread changes, this is the trigger to look at SEWTECH multi-needle solutions. Moving to a multi-needle machine isn't just about speed; it's about not having to babysit the machine for every color change.

Operation Checklist (Your Final “Export-Ready” Sanity Pass)

• Perspective: View percentage matches Font size (20% rule obeyed).
• Flow: "Follow Baseline" is checked for arcs; unchecked for straight lines.
• Air: Spacing passes the "Squint Test" (not too tight).
• Foundation: Underlay type matches letter size (Center for small; Edge/Column for large).
• Physics: Density is sensible (not bulletproof).
• Hardware: Fabric is secured with the correct stabilizer (Cutaway for knits!).
• Safety: Hands clear, correct needle installed (75/11).

Make these checks a habit, and your lettering will stop being a gamble and start being a guarantee.

FAQ

• Q: In FortePD Basic Lettering, why does the workspace preview not update while typing text in the lettering tool?
  A: Turn the live preview back on before changing any font or stitch settings, because working without an updating preview makes spacing and curves guesswork.
  • Re-open the lettering tool (Tools > Lettering, the “5” hotkey, or the lettering icon) and click on the grid again.
  • Watch the workspace (not just the text box) while typing and confirm the letters render instantly.
  • Avoid fine kerning/baseline edits until the preview is responsive again.
  • Success check: Each character appears immediately in the workspace as you type (no delay, no missing redraw).
  • If it still fails… close and re-open the file/software and verify display/render settings so the workspace is not “flying blind.”
• Q: In FortePD lettering, what stabilizer and needle setup is a safe starting point to prevent wavy or distorted text on stretchy knit T-shirts?
  A: Use Cutaway stabilizer with a fresh 75/11 sharp needle as a safe starting point for crisp lettering on knits.
  • Install a fresh 75/11 sharp needle before running the lettering test.
  • Hoop with Cutaway stabilizer (for beginners on stretch fabrics, treat this as non-negotiable).
  • Keep density sensible (do not “over-pack” stitches to compensate for instability).
  • Success check: After unhooping, the lettering baseline stays straight and the fabric does not snap back and shrink the letters.
  • If it still fails… lighten density slightly and prioritize correct underlay (Center Walk for small text) before adding more stitches.
• Q: In FortePD, how do you stop arced hat or chest lettering from looking like a sawtooth zipper along the curve?
  A: Enable the “Follow Baseline” checkbox for arced text so letters rotate with the curve instead of staying rigidly vertical.
  • Select the arced baseline option for the text line.
  • Turn ON “Follow Baseline” for curved layouts (leave it OFF for straight baselines).
  • Visually inspect square-corner letters (H, E) along the arc before stitching.
  • Success check: The bottoms of H/E look smooth against the curve, not jagged or “broken zipper” shaped.
  • If it still fails… reduce the arc severity or switch to a sturdier block/sans-serif font that tolerates small geometry better.
• Q: In FortePD lettering, why do satin letters become “bulletproof stiff,” pucker, or break needles after shrinking the font size?
  A: Keep font resizing within ±20% of the font’s default digitizing size; shrinking a standard font too much overcrowds density and makes stiff, failure-prone satin.
  • Verify the requested letter height and compare it to the font’s default size.
  • Stay within the ±20% resize safety zone whenever possible.
  • If tiny text is required (for example ~0.25 in), choose a Small/Micro font designed for that scale instead of shrinking a large font.
  • Success check: A test stitch feels flexible under the thumb, not like hard plastic.
  • If it still fails… reduce stitch density toward a sane range (often ~0.40–0.45 mm for 40wt thread) rather than forcing coverage with more stitches.
• Q: In FortePD satin lettering, how do you stop white underlay specks or loops from peeking out along the edges?
  A: Keep underlay properly covered by ensuring Pull Compensation is sufficient and underlay stitch length is not set in a way that exposes the foundation.
  • Check the Underlay Stitch Length setting and avoid making it so long that it creates visible “hairy edge” artifacts.
  • Increase Pull Compensation before increasing density so the top satin column widens to cover the underlay.
  • Run a small test stitch on the actual fabric + stabilizer combo before production.
  • Success check: Edges look clean with no underlay dots/loops visible along the satin sides.
  • If it still fails… re-check letter size vs underlay type (tiny text should use Center Walk only to avoid thread overload).
• Q: In FortePD lettering, what underlay type should be used for tiny vs medium vs large letters to avoid messy edges or sinking?
  A: Match underlay to letter size: Center Walk for tiny, Center+Edge Walk for medium, and Narrow Column (zigzag) for large letters.
  • Use Center Walk only for tiny text (< 6 mm) to prevent “exploding” with too much thread.
  • Use Center Walk + Edge Walk for medium text (6–25 mm) to build crisp rails.
  • Use Narrow Column (zigzag) for large text (> 25 mm) to create a supportive mesh foundation.
  • Success check: Edges stay crisp on medium text, and large letters do not sink into the fabric texture.
  • If it still fails… address fabric type: add top soluble stabilizer for towels/fleece where sinking is the main risk.
• Q: What is the safe way to run FortePD lettering density test stitches at 600–1000 SPM to avoid needle injuries during troubleshooting?
  A: Keep hands completely clear of the needle bar while the machine is running, and make adjustments only when the machine is stopped.
  • Stop the machine before touching fabric, hoop, or thread paths—do not “nudge” alignment during stitching.
  • Slow down for detailed small text (often 600–700 SPM) if the machine is struggling on tight turns.
  • Use the tactile test after stitching (rub the sample) instead of trying to “feel” it mid-run.
  • Success check: No near-misses—hands never enter the needle area while the machine is moving, and the sample finishes without emergency stops.
  • If it still fails… re-thread the machine (including flossing the tension discs) and then re-test at the slower speed.
• Q: How can machine embroidery hooping reduce hoop burn and crooked lettering, and when should an embroiderer upgrade from technique fixes to magnetic hoops or a hooping station for production runs?
  A: Start with technique (spray adhesive/float), then move to magnetic hoops for less distortion and hoop burn, and add a hooping station when repeatable alignment becomes the bottleneck.
  • Level 1 (Technique): Use spray adhesive and float fabric to minimize distortion before tightening any hoop.
  • Level 2 (Tooling): Switch to magnetic hoops when traditional hoops leave rings, stretch knits, or cause frequent re-hooping.
  • Level 3 (Efficiency): Add a hooping station when placement consistency (not digitizing) is slowing down runs of 10–50 items.
  • Success check: The lettering stays straight after unhooping, and first-pass placement accuracy improves (fewer re-hoops).
  • If it still fails… treat it as a stabilization/holding issue: re-evaluate stabilizer choice (Cutaway for knits) before changing lettering density or underlay.
