Forte PD Steil Stitch + Appliqué: The Click-by-Click Settings That Stop Ugly Satin, Gaps, and Rework

If you’ve ever watched a satin border look perfect on-screen and then sew out with gaps, wobbly edges, or a "bulletproof" stiffness that breaks needles, you’re not alone. The screen lies. Fabric tells the truth.

Forte PD’s Steil Stitch is a deceptive tool. It feels simple—just drawing a line—but under the hood, it is a complex engine calculating stitch angles, density, and pull compensation. As a digitizer and embroiderer with two years of finding the "sweet spot" between software theory and machine reality, I’m walking you through rebuilding the workflow shown in the video.

We will cover drawing the objects (Straight, Arc, Bezier), dialing in the critical parameters (the "Pilot’s Cockpit"), and converting shapes into fail-safe appliqué sequences.

Steil Stitch in Forte PD: The “Uniform-Width Satin” That Behaves Like a Running Path

In the video, Steil Stitch is described as a satin stitch relative, but think of it as a "Satin Worm." Unlike a complex column where you must manually define every angle, a Steil Stitch takes a single center spine (the path you draw) and generates a uniform-width satin column around it.

This makes it the fastest tool for borders, patch edges, and simple lettering. However, because the software automates the stitch angles, your path quality dictates the sew-out quality.

The "Physics of Embroidery" Rule: Because Steil Stitch is path-driven, the machine follows your nodes blindly. If you place nodes too close together, you create "stitch bunching"—a density spike that sounds like a jackhammer (thump-thump-thump) and snaps needles. If your nodes are too far apart on a curve, the satin becomes blocky and segmented.

Straight Line Steil Stitch (2 Clicks + a Right-Click): The Fastest Way to Build a Clean Satin Column

The video’s straight-line method is the foundation. This is your "bread and butter" for borders and geometric shapes.

Action-First Workflow:

1. Select: Click the Steil Stitch icon > Straight Line tool.
2. Anchor: Left-click your starting point. Sensory Cue: Imagine pinning the fabric down.
3. Aim: Move your mouse to the end position.
4. Set: Left-click your second point.
5. Execute: Right-click to generate the stitches.

The Visual Check:

• Step 1: You see a thin wireframe line.
• Step 2: After the right-click, it instantly blooms into a solid red, satin-like column.

Expert Tip: If the column looks jagged on screen, zoom in. In embroidery software, screen rendering often looks worse than reality. Trust the wireframe path more than the 3D preview.

Arc Line Steil Stitch (3 Points): The Curve Tool That Saves You From “Too Many Nodes”

Curves are where beginners ruin designs by clicking 20 times to make a circle. The machine hates this because every click is a potential hesitation mark. The Arc tool forces you to use the "Three-Point Geometry" rule, creating the smoothest possible sewing path.

Action-First Workflow:

1. Select: Steil Stitch tool > Arc Line icon.
2. Start: Left-click point A (the beginning).
3. Height: Left-click point B (the peak of the arc). This defines the curve's belly.
4. End: Left-click point C (the landing).
5. Execute: Right-click to finish.

The Tactile Difference: When this sews out, a 3-point arc sounds like a smooth hummmmm on the machine. A curve made of 20 short clicks sounds like zip-zip-zip-zip. The smooth hum produces a cleaner sheen on the thread because the light reflects off the satin stitches evenly.

Bezier Steil Stitch: When You Need a “Designer Curve” (and Why Wireframe Matters)

For organic shapes—like a flower petal or a flowing logo script—geometric arcs aren't enough. The Bezier tool gives you "handles" to sculpt the line.

Action-First Workflow:

1. Select: Steil Stitch – Bezier.
2. Plot: Left-click your anchor points (Start, Curve Definition, End).
3. Generate: Right-click to finish.
4. Refine: Switch to Wireframe View. Click a node and drag the "handlebars" to shape the curve.

Why Wireframe is Mandatory: You cannot judge a curve in 3D view because the stitch texture masks the underlying geometry. In wireframe, you can see if a loop is too tight. If a curve is tighter than the width of your needle (approx 0.8mm), you are creating a "needle strike zone" where the needle might hit the previous stitch, causing thread shredding.

Warning: Mechanical Safety First.
Embroidery machines move at 600-1000 stitches per minute. When testing your new Steil Stitch designs, keep hands at least 6 inches away from the needle bar. If you hear a loud CRACK or a grinding noise, hit the Emergency Stop immediately. This usually means a "bird's nest" (thread tangle) works its way into the bobbin case, often caused by digitizing density that is too high for the fabric.

The “Hidden” Prep Pros Do Before Touching Steil Settings: Fabric Reality, Not Screen Reality

The video focuses on software, but 90% of "digitizing errors" are actually "stabilizer errors." A Steil Stitch is a columnar satin; it pulls fabric inward from both sides. This creates the "hour-glassing" effect where your rectangle turns into a bowtie.

The Commercial Reality: If you are tired of hoop burn (those shiny rings left on dark shirts) or struggling to hoop thick appliqué items, this is where tool selection matters. Many shops minimize fabric trauma by switching to magnetic embroidery hoops. These hold the fabric with magnetic force rather than friction, allowing the Steil Stitch to lay flat without the fabric being distorted by the hoop itself.

Prep Checklist (The "Pre-Flight" Routine)

• Fabric ID: Is it unstable (T-shirt/Knit) or Stable (Denim/Twill)?
• Stabilizer Match:
  • Knits: Must use Cutaway (Mesh). Tearaway will blow out under a satin border.
  • Wovens: Tearaway is acceptable, but Cutaway is safer for dense Steil Stitches.
• Needle Check: Are using a standard 75/11? If sewing on thick canvas or using metallic thread, consider a Topstitch 80/12.
• Hoop Tension: Tap the fabric. It should sound like a tight drum skin (thump), not a loose paper (flap). If it's loose, your Steil Stitch will pucker.

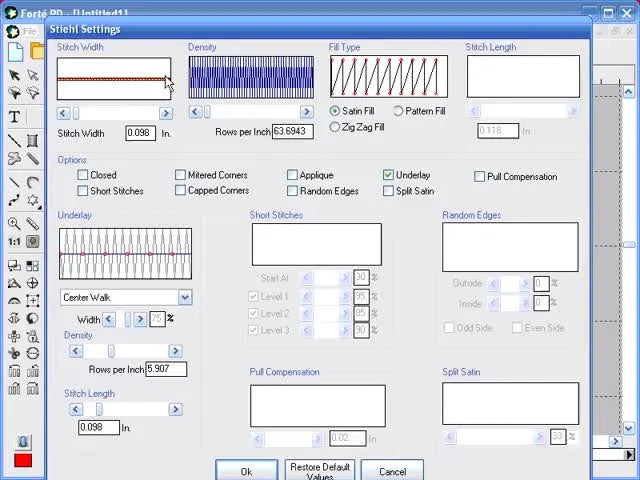

Forte PD Steil Settings Window: The Few Controls That Decide Whether Satin Looks “Pro” or “Puffy and Wavy”

The Settings menu is the "Cockpit" of the Steil Stitch. This is where you tell the software how to handle the physics of the thread.

To access it, select your object and open Properties. You will see a dashboard containing Width, Density, Underlay, and Pull Compensation.

The "Default Trap": Beginners often leave these settings on default. Defaults are designed for "average" conditions (medium cotton, standard thread). If you are sewing on anything else, defaults will likely fail.

Start with what the video shows on-screen (baseline values)

The video displays these values. Let's translate them into "Embroidery Speak":

• Stitch Width: 0.098 in (~2.5mm). Verdict: Very narrow. Good for small details, risky for heavy borders.
• Density: 63.5943 rows per inch. Verdict: This is the sweet spot. (This equates to roughly 0.40mm spacing).
• Stitch Length: 0.118 in (3mm). Standard.
• Underlay: Center Walk, Edge Walk, Narrow Zigzag.


The practical logic behind each setting (so you stop guessing)

1. Stitch Width (The Coverage):
   • Range: 1.5mm is the minimum for a clean satin. 7mm is the max before it should be a fill.
   • Risk: Below 1.5mm, thread breaks increase. Above 7mm, loops snag on buttons and jewelry.
2. Density (Rows Per Inch / Spacing):
   • The Beginner Sweet Spot: 60 to 65 rows per inch.
   • If you go higher (e.g., 85 rows/inch), you are hammering the fabric. You will see perforations (cutting the fabric) or feel the embroidery is "bulletproof" stiff.
   • If you go lower (e.g., 40 rows/inch), the fabric color will show through the thread.
3. Corner Handling (Mitered vs. Capped):
   • Mitered (45-degree angle): Looks like a picture frame. Professional, but sharp points can peel up.
   • Capped: The stitching runs perpendicular to the end. Better for textends.
4. Pull Compensation (The Anti-Shrink):
   • Theory: Fabric shrinks when stitched.
   • Action: Set Pull Comp to 0.010 - 0.020 in. This makes the column slightly wider on screen so it sews out at the correct width.


Underlay Choices in Forte PD (Center Walk, Edge Walk, Narrow Zigzag): Pick the One That Matches the Job

Underlay is the stitching that happens before the visible top stitch. It tacks the fabric to the stabilizer.

The Menu Decoded:

• Center Walk: A single line down the middle. Use for: Very thin columns (2mm or less).
• Edge Walk: Two lines running parallel to the edges. Use for: Crisp definition on lettering or borders.
• Narrow Zigzag: A loose zigzag to mash down the fabric nap. Use for: Towels, fleece, or piquè polo shirts.

The Appliqué Context: If you are building an appliqué border (sewing fabric over fabric), you are sewing through a thick stack. You need Edge Walk + Zigzag. The Edge Walk creates a "rail" to keep the edge crisp, and the Zigzag prevents the raw edge of the appliqué fabric from poking through the satin.

Convert a Preset Oval to Appliqué in Forte PD: The Right-Click Move That Unlocks the Whole Sequence

The video unlocks a massive productivity hack here: automatic Appliqué conversion. Instead of manually drawing a placement line, then a tack down, then a cover stitch, Forte PD calculates it all from one shape.

Action-First Workflow:

1. Draw: Select Steil Stitch preset > Oval > Drag to size.
2. Open Brain: Select shape > Right-click > Steil Stitch Properties.
3. Activate: Check the Applique box.

This single checkbox tells the machine: "Stop three times."

1. Sew Placement -> STOP (Machine waits for you to place fabric).
2. Sew Tack Down -> STOP (Machine waits for you to trim fabric).
3. Sew Cover Stitch (Finish).


Setup Checklist (Before You Commit to Appliqué Production)

• Stop Command Check: Does your machine actually read the "Stop" commands? (Check machine settings).
• Trimming Access: Is the shape simple enough to cut around with scissors? Complex stars or scripts are nightmares for appliqué trimming.
• Fabric Color Contrast: Use a high-contrast thread for the Placement and Tack Down lines so you can see where to cut.
• Hooping Strategy:
  • Appliqué requires you to remove the hoop to trim the fabric (usually).
  • The Risk: Pops out of the hoop or shifts alignment.
  • The Solution: Use a magnetic hooping station or a robust hoop to ensure the fabric stays drum-tight even when you are handling it during the trim phase.

Warning: Magnet Safety.
If you upgrade to magnetic frames for embroidery machine to speed up your appliqué workflow, be careful. These magnets are industrial strength. They can pinch fingers severely. Never place them near pacemakers, laptops, or credit cards. Sliding them apart is safer than prying them apart.

Slow Draw in Forte PD: The “Truth Serum” That Shows the Appliqué Order Before You Waste Fabric

Never run a new file on a garment without testing. The "Slow Draw" feature is your Flight Simulator.

Action-First Workflow:

1. Go to Display > Slow Draw.
2. Hit Refresh or F5.
3. Watch closely.

What to verify in the animation:

1. Placement Line (Run Stitch): Does it complete a full loop?
2. Tack Down (Run/Zigzag): Does it happen inside the placement line slightly?
3. Satin Finish: Does it cover both the placement and tack down lines?


Why this matters (the expert reason)

If your Satin Finish is narrower than your Tack Down, the raw edge of your appliqué fabric will be visible. This is called "peeking," and it ruins the commercial value of the garment.

• Rule of Thumb: Your Satin Border should be at least 3.5mm wide for manual trimming. If you are very skilled with scissors, you can get away with 2.5mm, but 3.5mm is the safety zone to hide raw edges.


The “Why” Behind Steil Stitch Problems: Density, Width, and Pull Compensation Are a Three-Legged Stool

The video mentions adjusting density, width, and pull comp. Here is the interaction model you need to understand:

• Width creates the Canvas.
• Density fills the Canvas.
• Pull Comp protects the Canvas.

The Failure Cascade: If stitches are gapping, beginners usually increase Density.

• The Trap: Increasing density adds more thread, which increases the "pull" on the fabric, which makes the column narrower, which creates more gaps.
• The Fix: Increase Underlay first (to steady the fabric), then increase Pull Compensation (to widen the shape). Only touch Density last.

Production Tip: If you are doing batch runs (e.g., 50 corporate polos), consistent tension is key to keeping these settings valid. magnetic hoops help standardize the tension across different operators, reducing the variables you have to fight with software settings.

Troubleshooting Forte PD Steil Stitch & Appliqué: Symptom → Likely Cause → Fix

The video shows the "Happy Path." Here is the "Reality Path" when things go wrong.

Decision Tree: Stabilizer + Hooping Choices for Appliqué

Use this logic flow to stop guessing.

1. What is the Base Fabric?

• Performance Knit / T-Shirt / Stretchy:
  • Stabilizer: Fusible No-Show Mesh (Cutaway) x 2 layers.
  • Hooping: Critical. Do not stretch the shirt. This is where a hooping station for machine embroidery pays for itself by holding the hoop while you gently lay the shirt, rather than pulling it.
• Canvas / Denim / Cap:
  • Stabilizer: Tearaway (Medium weight).
  • Hooping: Standard friction hoop is usually fine.
• Towel / Fleece:
  • Stabilizer: Tearaway (Back) + Water Soluble Topping (Front).
  • Hooping: magnetic hoops are superior here to avoid crushing the nap of the towel (hoop burn).

2. Is this high volume?

• One-off: Manual hooping is fine.
• Production Run (20+): Manual hooping will cause wrist fatigue and alignment drift. Look into hooping stations to ensure every logo lands in the exact same spot.

The Upgrade Path: When Better Hooping and Better Machines Turn “Appliqué Practice” Into Paid Output

Once you master the Steil Stitch in Forte PD, the bottleneck shifts from your digitizing to your production capacity.

• Level 1 (Skill): You optimize settings (Density 63, Width 3.5mm) and get clean sew-outs on scrap fabric.
• Level 2 (Tools): You move to real garments. You encounter hooping marks and alignment issues. You upgrade to Magnetic Frames and a Hooping Station to professionalize the finish.
• Level 3 (Capacity): You get an order for 50 patches. A single-needle machine stops for every color change, adding hours to the job. This is the trigger to look at SEWTECH Multi-Needle Machines, which automate color changes, hold industrial tension better, and turn your Forte PD designs into profit significantly faster.

Operation Checklist (Your "Go-No-Go" before hitting Start)

• [ ] Bobbin Check: Is there enough bobbin thread for the solid satin stitch? (Satins eat thread fast).
• [ ] Slow Draw Verification: Did you verify the Appliqué stop sequence?
• [ ] Path Inspection: Did you remove any double-nodes in Wireframe view?
• [ ] Stabilizer: Is the item hooped with the correct backing for the fabric weight?
• [ ] Zone Clear: Are the hoop arms clear of walls/obstacles for the full range of motion?

FAQ

• Q: In Forte PD Steil Stitch, why does a satin border sew out with gaps or fabric color showing through even though the preview looks solid?
  A: Fix the foundation first—stabilizer/underlay/pull compensation usually solve “screen-perfect but gapping” before increasing density.
  • Match stabilizer: Use Cutaway (Mesh) for knits; Tearaway can fail under a satin border on T-shirts.
  • Add control: Increase underlay first (often Edge Walk helps borders), then add Pull Compensation around 0.010–0.020 in to counter column narrowing.
  • Adjust last: Only after the above, move Density toward the 60–65 rows/inch range if coverage is still light.
  • Success check: The satin edge looks evenly filled with no base fabric “peeking” when viewed in normal room light.
  • If it still fails: Check bobbin tension and consider using a matching bobbin color to reduce show-through.
• Q: In Forte PD Steil Stitch Wireframe editing, how do extra nodes on curves cause needle breaks, shredding, or a “jackhammer” sound during sewing?
  A: Too many close nodes create short-stitch clusters (a density spike), which can sound like thump-thump-thump and break needles.
  • Simplify the path: Redraw curves with the Arc Line (3 points) instead of many clicks.
  • Sculpt properly: Use Bezier handles in Wireframe to smooth tight loops rather than adding nodes.
  • Inspect corners: Remove double-nodes and overly tight turns that force rapid direction changes.
  • Success check: The machine sound changes from choppy “zip-zip-zip” impacts to a smoother, steady hum on curves.
  • If it still fails: Reduce density back toward ~60 rows/inch and re-check the curve radius in Wireframe view.
• Q: In Forte PD Steil Stitch, what is the quickest way to tell if hooping tension is correct before sewing a satin border to avoid waviness and distortion?
  A: Use the “drum test”—most wavy satin borders start with loose hooping, not software settings.
  • Tap the fabric: Hoop so the fabric feels firm and sounds like a tight drum skin (thump), not loose paper (flap).
  • Re-hoop correctly: Keep knits relaxed (do not stretch the shirt), then stabilize with appropriate backing.
  • Standardize pressure: If hoop marks or shifting keep happening, switching to a magnetic hoop can help hold fabric with less distortion.
  • Success check: The satin border sews flat with consistent width and no ripple along straight segments.
  • If it still fails: Verify stabilizer choice (knits typically need Cutaway) and confirm underlay includes Edge Walk for definition.
• Q: In Forte PD Steil Stitch, how do I stop a bird’s nest (thread tangle) under the needle plate during a dense satin border test run?
  A: Stop immediately and reduce the causes—bird’s nests are commonly triggered by excessive density or node clusters.
  • Hit Emergency Stop: If grinding or a loud crack happens, stop the machine before more thread packs into the bobbin area.
  • Reduce stress: Lower density if it’s above ~70 rows/inch and clean up tight node clusters in Wireframe.
  • Re-test safely: Run a controlled test after edits rather than jumping back to full speed.
  • Success check: The underside shows a normal, even bobbin stitch pattern without a thread wad forming at the start.
  • If it still fails: Re-check threading and bobbin area cleanliness per the machine manual, then re-test on scrap fabric.
• Q: In Forte PD appliqué conversion (checking the Applique box), how do I verify the placement/tack-down/cover sequence before wasting garments?
  A: Use Slow Draw to confirm the exact stop order and stitch coverage before stitching a real item.
  • Preview order: Go to Display > Slow Draw, then Refresh/F5 and watch the full sequence.
  • Confirm three stages: Placement line completes a full loop → Tack down runs slightly inside → Satin finish fully covers both.
  • Build trimming margin: Keep the satin border wide enough for manual trimming; 3.5 mm is a safe zone for hiding raw edges.
  • Success check: The simulated satin finish visibly overlaps the tack-down path all the way around (no exposed edge zones).
  • If it still fails: Increase Steil Stitch width slightly (e.g., +0.5 mm) and simplify shapes that are hard to trim cleanly.
• Q: What mechanical safety rules should be followed when test-sewing Forte PD Steil Stitch and appliqué files on an embroidery machine running 600–1000 stitches per minute?
  A: Keep clear and be ready to stop—fast motion plus high-density satin can turn mistakes into damage quickly.
  • Keep distance: Maintain at least 6 inches between hands and the needle bar during stitching and tests.
  • Listen for danger: If a loud CRACK or grinding starts, hit Emergency Stop immediately (often a bird’s nest or overload).
  • Test smart: Always run a new file on scrap first, especially dense satins and appliqué stop sequences.
  • Success check: The machine runs with a steady sound and no sudden impacts, grinding, or repeated needle deflections.
  • If it still fails: Re-check density, node clusters, and corner handling settings before restarting.
• Q: What magnet safety precautions are required when using magnetic embroidery hoops or magnetic frames for appliqué and high-volume hooping?
  A: Treat the magnets as industrial tools—pinch injuries and device damage are common if handled casually.
  • Separate safely: Slide magnets apart instead of prying them apart to reduce sudden snap-back.
  • Protect people/devices: Keep magnetic frames away from pacemakers, laptops, and credit cards.
  • Control handling: Keep fingers out of pinch zones when seating the frame on the hoop.
  • Success check: The frame closes smoothly without finger pinches, and fabric remains securely held during handling/trim steps.
  • If it still fails: Slow down the workflow and use a hooping station to stabilize the hoop while positioning fabric.
