Forte PD Cap Lettering That Actually Sews Clean: Center-Out Underlines, Steil Stitch Settings, and a Question Mark That Won’t Distort

Caps are unforgiving.

If you’ve ever watched a beautiful lettering file turn into a wavy underline, a shifted baseline, or a “why is the center puckering?” moment on a hat, you already know the feeling. The design looked perfect on-screen, but the cap—with its curved structure and center seam—said “nope.”

This tutorial is built around one of the most reliable cap habits I’ve learned in 20 years of production: build critical elements from the center out. We will apply this to two specific elements that love to misbehave on caps: underlines and punctuation.

The cap height limit in Forte PD (2.0–2.2")—the quiet rule that saves your stitchout

Before you touch underlay or density, you must confirm your design lives in the “cap-safe” zone.

In the video, the design height is shown in the bottom status bar as H: 1.52 in. The instructor reminds you to keep cap designs close to 2.0–2.2 inches max.

The Expert Reality: While the machine can physically move 2.5 inches or more, the safe embroidery area is smaller. As you stitch closer to the crown (top) or the bill (bottom), the cap fabric starts to "flag" (bounce up and down). This flagging causes needle deflections and bird-nesting.

• Beginner Sweet Spot: If you are new to caps, stay under 2.0 inches. This leaves you a safety margin against the curvature distortion.

Your Action Step:

• Checkpoint: Glance at the bottom-right status bar.
• Visual Check: Ensure your design leaves at least 15mm (about 0.6 inch) of space from the metal bill clamp and the top structure of the cap frame.
• Success Metric: Height reads between 2.0–2.2" (or safer yet, <2.0").


Warning: Mechanical Hazard. Never trace your cap design with the machine running at full speed. Always do a "Trace" or "Contour Check" at slow speed to ensure the needle bar does not hit the metal cap driver or hoop. A collision here will break the reciprocating bar—an expensive repair.

Tighten kerning in Forte PD without wrecking the whole text object

The video starts by bringing the top line (“What’s Your”) closer to “Forté.” On a flat shirt, loose spacing is fine. On a cap, loose spacing forces you to shrink the letters to fit the width, reducing legibility.

Here’s the exact workflow shown:

1. Choose Select Object.
2. Click a character.
3. Prompt: “Select Just This Character?” → Choose No (selects the whole line).
4. Use keyboard Up/Down arrow keys to nudge the line closer.

Why this matters: Reducing vertical gap (Leading) allows you to make the actual letters taller and more readable while staying within that 2.2-inch height limit.

Tooling Grade: If you are building cap lettering for production, precise digitizing is only half the battle. The other half is hooping alignment. When shops scale from 10 caps to 100, they pair consistent digitizing with tools like a hooping station for embroidery to ensure every cap lands in the exact same spot before the first stitch.

The hidden prep pros do before “center-out” cap digitizing (so the underline doesn’t drift)

The video jumps into building the underline. However, in a real shop, we perform a "sanity check" first. This prevents the "mystery drift" where the underline ends up crooked despite perfect software settings.

Prep Checklist (before you draw the underline):

• Center Alignment: Confirm the design is centered on the X-axis (X=0).
• Fabric Check: Are you stitching on a structured (stiff) cap or unstructured (floppy) cap? (Unstructured caps require heavier stabilizer).
• Consumable Check: Have you loaded a new 75/11 sharp titanium needle? (Caps have thick buckram; dull needles cause deflection).
• Plan the Overlap: You will create two segments. Plan for a 1-2mm overlap in the center to prevent a gap.
• Strategy: Use Running Stitch for placement + Steil Stitch for coverage.


The center-out underline method for cap embroidery—Running Stitch first, then Steil Stitch for coverage

We build the underline in two halves: Center-to-Left, then Center-to-Right. This is not busywork; it is physics. It creates a "snowplow effect" that pushes fabric away from the center, smoothing the cap as it sews, rather than pushing a wave of loose fabric across the front.

Part A: Left underline (center → left) using Running Stitch

In the video:

1. Select Running Stitch → Straight Line.
2. Position cursor directly under "Forté" in the center.
3. Click to start.
4. Hold Shift (constrains to horizontal).
5. Drag left to the start of "F," click.
6. Right-click to finish.

Part B: Thicken the left underline with Steil Stitch (left → center)

Now, convert or trace that line with the visible stitch:

1. Select Steil Stitch.
2. Trace over the running stitch from the left end back toward the center.
3. Hold Shift.
4. Right-click to end.

Sensory Success Check: You should see a bold line that starts thin (run) and returns thick (steil).

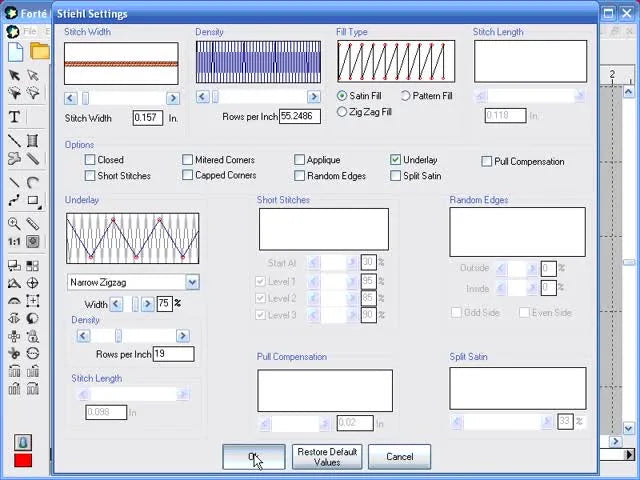

Steil Stitch Properties in Forte PD: the exact width, density, underlay, and rows-per-inch used in the video

This is the "recipe" for the stitch. The values below are specific to the video, but here is the logic behind them.

To match the video:

1. Select the Steil object.
2. Right-click → Steil Stitch Properties.


The Data:

• Width: 0.157 in (4 mm) — Standard visual weight.
• Density: 55 (2.17 mm) — Note: This density value is specific to Forte's calculation. In other software, standard satin density is ~0.4mm spacing. Trust your software's default relative scale.
• Fill Type: Satin Fill
• Underlay: Narrow Zigzag — Crucial for loft.
• Rows per inch: 19 (0.8 mm)


Why these settings work on caps: Caps are rough and textured. A standard "flat" stitch will sink into the canvas. The Narrow Zigzag Underlay acts like a foundation (like rebar in concrete), lifting the 4mm Satin top stitches up so they sit proudly on the surface.

Wireframe mode + center overlap: the clean way to build the right underline without a visible seam

Now we handle the right side. The danger here is a visible gap or "crater" where the two lines meet.

1. Toggle Wireframe Mode: You need X-ray vision here.
2. The Lap Join: Start the right segment slightly on top of the end of the left segment.


Right underline (center → right) using Running Stitch

• Select Running Stitch. Start at center (overlapped). Hold Shift. Draw right. Right-click.

Right underline coverage using Steil Stitch

• Select Steil Stitch. Trace back or cover appropriately. Ensure overlap matches.


Consistency Rule: Apply the exact same properties as the left side:

• Width 0.157
• Density 55
• Underlay Narrow Zigzag
• Rows per inch 19

The micro-alignment trick: arrow-key nudging the right segment until the underline reads as one piece

Even with the math correct, the screen appearance might be off.

1. Zoom in to 400% on the center join.
2. Select the right underline segment.
3. Use Up/Down arrow keys to nudge it vertically.


• Visual Check: In wireframe mode, the top and bottom rails of the satin stitch should form a continuous, unbroken line.
• The "Fingernail Test": When stitched, if you run your fingernail across the join, it should feel smooth. If it catches, the alignment is off.

Add a question mark in Forte PD (BasketCase font) and keep it stable on a cap curve

Punctuation is the first thing to fail on caps because the columns are narrow. A narrow column on a curved cap tends to "roll over" or bury itself.

Steps shown:

1. Click Lettering.
2. Click right of "Forté."
3. Type “?”
4. Size: 1.25 in (31.8 mm).
5. Font: BasketCase.


Configure the question mark stitches (Stitches tab)

• Stitch Length: 0.1575 in (4 mm)
• Underlay: Enabled
• Underlay Type: Narrow Column (Center Run)
• Underlay Width: 70%




Expert Insight: The Narrow Column underlay places a distinct running stitch down the center of the satin column. This prevents the "sawtooth" effect where stitches collapse inward on the cap curve.

Setup choices that prevent cap lettering headaches (and when a hooping upgrade is the real fix)

You can follow every digitizing step above perfectly and still get a bad result if your hooping is sloppy. Caps move. They have a gap between the fabric and the needle plate (the "flagging" issue mentioned earlier).

The Production Reality:

• Level 1 (Technique): Use "Tear Away" backing, but add a layer of stiff cap backing to reduce movement.
• Level 2 (Tooling): If you struggle with "hoop burn" (the circular ring mark left on the cap forehead) or slipping, professional shops upgrade to a cap hoop for embroidery machine designed for high-tension grip without fabric damage.
• Level 3 (Scale): For bulk orders, manual hooping is too slow. Systems like the hoop master embroidery hooping station standardize the process so every operator gets the same result, regardless of experience level.

Setup Checklist (The "Pre-Flight"):

• Verify Height: Still under 2.2" (preferably 2.0").
• Verify Overlap: Is the center join overlapped by 1mm?
• Underlay Check: Does the question mark have Narrow Column underlay?
• Hoop Tension: Cap is tight against the gauge. You should simulate a drum sound when tapping the cap front.

Warning: Magnetic Field Safety. If you upgrade to magnetic hoops for easier clamping, be aware they use powerful Neodymium magnets. Keep them away from pacemakers and watch your fingers—they can pinch severely!

The “why” behind center-out digitizing on caps (and how it connects to hooping physics)

Why not just stitch left-to-right?

The Physics: Think of the cap fabric like a wave. If you stitch left-to-right, you push a small "wave" of fabric in front of the presser foot. By the time you reach the right side, that wave has accumulated, causing the right edge of the design to be registered incorrectly (often lower or further right than intended).

The Solution: Center-out digitizing pushes that instability outward in both directions, neutralizing the error.

However, if your machine struggles with cap clearance, no amount of digitizing will fix the flagging. Dedicated multi-needle machines (like SEWTECH models) offer a tubular arm specifically designed to fit inside caps, unlike the flatbed limitations of domestic single-needle machines.

If you are setting up a professional workflow, a consistent hoopmaster station ensures that the physical center of the cap matches the digital center of your file every single time.

Decision tree: pick a stabilizing/holding path based on your cap volume and pain points

Your solution depends on your volume.

Decision Tree (Do I need new gear or just better skills?)

• Scenario A: The Hobbyist (1-5 caps/month)
  • Issue: Underline misalignment.
  • Solution: Use the center-out digitizing technique in this tutorial. Double-check your manual hooping tension.
  • Tool: Standard cap driver.
• Scenario B: The Side Hustle (20-50 caps/month)
  • Issue: Setup time takes longer than sewing; inconsistent placement.
  • Solution: Standardize backing. Implement hooping stations to reduce setup time by 50%.
• Scenario C: The Professional (100+ caps/month)
  • Issue: Hand fatigue, Hoop Burn, Reject rate > 2%.
  • Solution: Upgrade to hooping station for machine embroidery systems for speed. Consider Magnetic Hoops to eliminate hoop burn. Verify your machine's SPM (keep caps around 600-750 SPM for quality).

Common “it looked fine in software” cap problems—and the fixes that match this tutorial

Software is perfect; reality is messy. Here is your quick troubleshooting guide.

The final review in Forte PD: what “done” should look like before you export

Before you export to DST or PES, compare your screen to the "Gold Standard."

• Spacing: "What's Your Forté" is tight and legible.
• Structure: Underline is split (Center-Out), bold (4mm), and stabilized (Zigzag).
• Punctuation: Question mark has distinct center-run underlay.


Operation Checklist (Run this before pressing Start):

• Wireframe Final Check: Look closely at the center join.
• Steil Properties: Width 0.157, Underlay Narrow Zigzag.
• Speed Limit: Set machine to 600-700 SPM (Speed Per Minute). Do not run caps at 1000+ SPM unless you have industrial-grade stable framing.
• Test Sew: Always run on a scrap cap or stiff backing first.

By combining the Center-Out Logic with robust specific settings (Underlay/Density), you remove the randomness from cap embroidery. Add in professional holding tools, and you have a repeatable, profitable process.

FAQ

• Q: How do I keep a Forte PD cap design within the safe 2.0–2.2 inch height limit to prevent cap flagging and bird-nesting?
  A: Keep the cap design height under 2.2" (safer: under 2.0") and leave physical clearance from the cap frame hardware.
  • Check: Look at the bottom-right status bar and confirm the height reads 2.0–2.2" (or <2.0" if new to caps).
  • Verify: Leave at least 15 mm (0.6") space from the metal bill clamp and the top structure of the cap frame.
  • Run: Do a slow Trace/Contour Check before stitching to confirm needle path clearance.
  • Success check: The cap front does not bounce (“flag”) during stitching and there is no thread looping/bird-nesting near the bill or crown.
  • If it still fails: Reduce design height further and slow the machine speed toward 600–700 SPM for caps.
• Q: How do I digitize a cap underline in Forte PD so the center join does not show a gap or “crater” on hats?
  A: Build the underline in two halves from the center outward and overlap the join by 1–2 mm in wireframe mode.
  • Draw: Create the left half first (center → left) with Running Stitch, then cover with Steil Stitch.
  • Repeat: Create the right half starting slightly on top of the left half’s center end (overlap), then cover with Steil Stitch.
  • Match: Apply identical Steil settings on both halves (Width 0.157 in / 4 mm, Density 55, Underlay Narrow Zigzag, Rows per inch 19).
  • Success check: In wireframe mode, the satin rails look continuous at the center, and the stitched join feels smooth with a fingernail.
  • If it still fails: Increase the center overlap slightly and re-check alignment at 400% zoom before exporting.
• Q: What Forte PD Steil Stitch Properties were used in the cap underline recipe (width, density, underlay, rows per inch) to keep the line sitting on top of cap fabric?
  A: Use the same Steil recipe shown: 0.157 in (4 mm) width with Narrow Zigzag underlay to prevent the satin from sinking into textured cap material.
  • Set: Width = 0.157 in (4 mm).
  • Set: Density = 55 (Forte PD scale) and Rows per inch = 19.
  • Enable: Underlay = Narrow Zigzag.
  • Success check: The underline stitches look bold and “proud” on the surface instead of disappearing into the cap canvas.
  • If it still fails: Confirm the Steil object (not just the running stitch) is being sewn and both halves share the exact same properties.
• Q: How do I micro-align the right underline segment in Forte PD so the cap underline reads as one continuous piece?
  A: Nudge only the right underline segment with arrow keys while zoomed in until the center rails align perfectly.
  • Zoom: Go to ~400% at the center join.
  • Select: Click the right underline segment only.
  • Nudge: Use Up/Down arrow keys to align the top and bottom rails in wireframe view.
  • Success check: The wireframe rails form an unbroken line, and the stitched join does not “catch” under a fingernail.
  • If it still fails: Re-check that the center overlap exists and that both halves share the same Steil width/density/underlay.
• Q: How do I keep a BasketCase font question mark stable on a cap in Forte PD when narrow columns look thin or wobbly?
  A: Turn on underlay and use the Narrow Column (center run) style so the satin column does not collapse on the cap curve.
  • Create: Add “?” with Lettering, set size to 1.25 in (31.8 mm), font BasketCase.
  • Enable: Underlay ON, Underlay Type = Narrow Column (Center Run).
  • Set: Underlay Width = 70% and Stitch Length = 0.1575 in (4 mm).
  • Success check: The question mark column stays upright and looks even (not “sawtooth,” not buried).
  • If it still fails: Re-check the underlay type is Narrow Column (Center Run), not a generic underlay, and confirm the cap is hooped tightly.
• Q: What pre-checklist should be done before drawing a center-out underline for cap embroidery to prevent underline drift even with correct Forte PD settings?
  A: Do a quick “shop sanity check” on centering, cap structure, needle condition, and planned overlap before digitizing the underline.
  • Confirm: Design is centered on the X-axis (X = 0).
  • Identify: Cap type is structured vs unstructured (unstructured often needs heavier stabilizer).
  • Replace: Install a new 75/11 sharp titanium needle if deflection is suspected.
  • Plan: Build two underline segments with a 1–2 mm center overlap; use Running Stitch for placement + Steil Stitch for coverage.
  • Success check: The underline lands straight on the cap with no mystery slant/shift after stitching.
  • If it still fails: Re-check hoop tension and ensure the design height stays in the cap-safe zone (<2.2", preferably <2.0").
• Q: What mechanical safety rule should be followed when tracing a cap design on an embroidery machine to avoid needle bar collision with cap driver hardware?
  A: Never trace a cap design at full speed—always run Trace/Contour Check slowly to prevent the needle bar from hitting the metal cap driver or frame.
  • Slow: Set the machine to a slow tracing speed before any contour/trace operation.
  • Watch: Observe clearance near the metal bill clamp and cap driver during the trace.
  • Stop: Abort immediately if any part of the motion approaches metal hardware.
  • Success check: The full trace completes with safe clearance and no contact risk points.
  • If it still fails: Reposition the design for more clearance and reduce height/placement before attempting to sew.
• Q: What is the tiered fix path for cap embroidery problems like hoop burn, slipping, and inconsistent placement (technique vs hooping tools vs machine upgrade)?
  A: Start with stabilization and speed discipline, then upgrade holding tools if consistency is the bottleneck, and consider a multi-needle cap-capable setup for high-volume production.
  • Level 1 (Technique): Use tear-away backing and add a stiff cap backing layer; keep caps around 600–750 SPM for quality.
  • Level 2 (Tooling): If hoop burn or slipping keeps happening, move to higher-control holding solutions such as magnetic hooping (powerful magnets can pinch; keep away from pacemakers).
  • Level 3 (Scale): For 100+ caps/month, standardize placement with a hooping station and consider a dedicated multi-needle tubular-arm machine if cap clearance/flagging limits results.
  • Success check: Reject rate drops (fewer center gaps, fewer wavy underlines, fewer hoop marks) and placement repeatability improves cap-to-cap.
  • If it still fails: Re-check height limits, center overlap, and underlay choices before changing additional variables.
