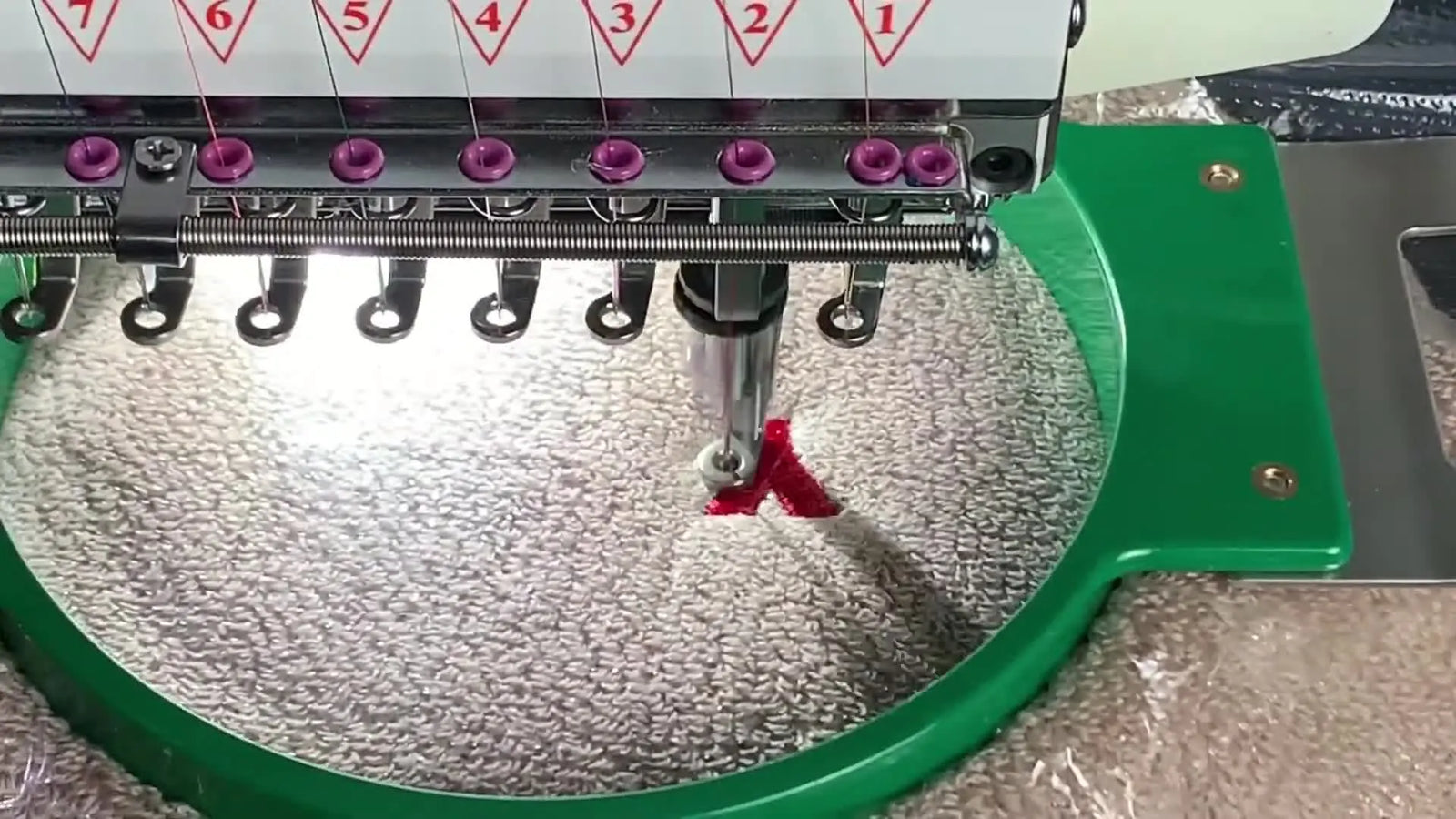

Fluffy Towel, Crisp Logo: A YunFu 12-Needle Setup That Stops Stitches From Sinking

Towel embroidery is the ultimate "expectation vs. reality" trap. It looks deceptively simple—it’s just a logo on a rectangle, right?—until your first design disappears into the loops, the hoop pops open mid-stitch, and you realize you’re about to sacrifice a high-cost blank to the embroidery gods.

Embroidery is not just about pressing start; it is an engineering challenge of managing three variables: Friction, Tension, and loop Height.

If you are operating a YunFu single-head industrial machine (or similar) with the standard Dahao A15 panel, the difference between a "gift-worthy" towel and a "rag bin" reject isn't magic. It is preparation. The secret lies in controlling the chaotic surface of the towel so your stitches can sit royally on top, rather than sinking into the abyss.

Don’t Panic: “Sinking Stitches” on a Thick Cotton Towel Is Normal—And Fixable

Let's calibrate your expectations. Towels are essentially thousands of tiny loops standing upright. In the world of physics, that pile acts like a sponge for thread. It swallows satin columns, rounds off sharp typography, and makes intricate details look like a blurry mess.

This is not a machine error. It is a material characteristic.

The methodology we will break down today is the "Stabilizer Sandwich." This is the industry-standard counter-measure that supports the towel from below (structural integrity) and smooths it from above (surface tension). If you are new to this, treat the following steps as a rigid protocol. Once you master the rules, you can break them—but not today.

A critical mindset shift for profitability: Towels are hydraulic, not static. If you hoop them with the same force you use for a stiff denim jacket, you will crush the fibers and leave permanent "hoop burn" marks. We need to hold the fabric gently but firmly—a balance that requires specific techniques.

The Supply Table That Prevents Rework: Kingshore Towel + Backing + Water-Soluble Topping

In the studio, success is determined before the machine is even turned on. The video demonstration uses a classic setup: a thick Kingshore cotton towel, standard white backing, and a clear water-soluble topping film.

Here is why this specific combination is the "Gold Standard" for towel production:

1. Tear-Away Stabilizer (The Foundation): Placed underneath. It provides the rigidity the towel lacks. Pro Tip: For extremely heavy bath towels, I recommend a medium-weight (2.5oz) tear-away.
2. Water-Soluble Topping (The Shield): This is the secret weapon. It creates a temporary "glass floor" over the towel loops. The stitches land on this film, not the loops. When dissolved, the stitches remain suspended high above the pile.
3. Process Integrity: If you cut corners on the topping, you will spend hours with tweezers trying to pick loops out of your satin stitch. Don't do it.

Hidden Consumables Strategy:

• Adhesive Spray (e.g., 505): A very light mist on the backing can prevent the towel from shifting, though for towels, friction is often enough.
• New Needle: Start with a fresh 75/11 Ballpoint Needle. Sharp needles can cut the terry loops, causing bald spots. Ballpoints slide between them.

For those setting up a dedicated workspace, this is where investment in workflow matters. If you are constantly fighting to keep layers aligned, looking into a proper hooping station for machine embroidery can be a game-changer. These stations allow you to lock the backing and hoop in place, leaving both hands free to smooth the towel and topping—critical for avoiding wrinkles.

Prep Checklist (do this before you touch the hoop)

• The Blank: Towel is clean, dry, and pre-shrunk (if possible). Laid flat to relax fibers.
• The Foundation: Stabilizer (Backing) is cut at least 1-2 inches larger than the hoop on all sides.
• The Shield: Water-Soluble Topping is cut to cover the entire sewing field with margin.
• The Hardware: Correct tubular frame (Green hoop in video) chosen. Ensure it is not too big; excess space equals vibration.
• The Tool: Flathead screwdriver is within reach (mandatory for thick textiles).

Warning: Industrial Safety Protocol
Keep long hair tied back, and remove loose jewelry or dangling sleeves. Industrial embroidery heads accelerate to 800-1000 stitches per minute (SPM) instantly. The thickness of a towel can obscure the needle bar—never place fingers near the presser foot while the machine is live.

The “Sandwich” That Makes Towel Embroidery Look Sharp (Backing → Towel → Topping)

The layering process is a ritual. Do not rush this. The video demonstrates the stack, but here is the tactile feedback you should look for:

1. Layer 1 (Bottom): Place the white backing on your table or hooping station. Smooth it out; any wrinkle here becomes a permanent crease later.
2. Layer 2 (Middle): Lay the towel on top. Align the grain of the towel visually with the edges of your stabilizer.
3. Layer 3 (Top): Place the clear water-soluble topping strictly over the area to be stitched.
4. The Smooth-Out: Use the flat of your hand to sweep from the center outward. You are removing trapped air.

The "Why" Behind the Physics: The goal is compression without distortion. The topping must be taut enough to hold the loops down, but not so tight that it puckers the towel. If you see mountains and valleys in your topping effectively before you hoop, you have already failed. The topping must look like a calm lake surface.

Hooping a Thick Towel in a Green Tubular T-Shirt Frame Without Warping the Pile

This is the step where 80% of beginners fail. They try to shove a thick towel into a hoop set for a thin T-shirt. Result: Broken hoop screws, popped inner rings, or bruised wrists.

The video highlights the critical mechanical adjustment: Widen the hoop first.

The "Pre-Loosen" Technique

1. Loosen the Adjustment Screw: Use your screwdriver. Open the outer ring until it looks visibly larger than the inner ring plus the towel thickness.
2. The Test Fit: Place the outer ring over the sandwich. It should slide down with moderate resistance.
   • Too Loose: The towel moves. (Registration errors).
   • Too Tight: You have to hammer it in. (Hoop burn/Fiber crush).
3. The Tighten: Once the ring is seated, then tighten the screw.

Expert Sensory Check (The "Drum" Test)

On a T-shirt, we teach you to look for a "drum skin" tension. Forget that for towels. You cannot stretch a towel like a drum; it is too stable.

• Tactile Check: Run your hand over the hooped area. It should feel firm and immovable, but the towel loops generally should not look distorted or pulled open.
• Visual Check: The topping should be glass-smooth. If the topping is wrinkly, the stitches will be wrinkly.

If you find yourself sweating or struggling physically during this step, your equipment might be fighting you. This struggle is exactly why professionals searching for efficient hooping for embroidery machine workflows often move away from standard tubular hoops for thick items, seeking alternatives that rely on magnetic force rather than friction.

Setup Checklist (right after hooping)

• Mechanics: Hoop screw is tight enough that the outer ring won't pop off, but not stripped.
• Surface: Topping is glass-smooth with zero bubbles over the embroidery center.
• Support: Backing is fully captured by the hoop on all sides (no floating edges).
• Orientation: Towel grain runs straight (vertical loops run vertical).
• Security: Lift the hoop by the inner ring only—the outer ring should not slip off.


Locking the Green Tubular Hoop Into the YunFu Pantograph So It Doesn’t Creep Mid-Run

Precision meets brute force. The hoop must be married to the machine's pantograph (the moving X-Y arm).

In the video, observe the operator sliding the metal brackets under the clips. The Auditory Anchor: Listen for a sharp, metallic "CLICK" or "SNAP". If you do not hear/feel that click on both sides, the hoop is floating.

The Risk of "Floating Hoops": Heavy towels have high inertia. When the pantograph jerks at 800 speeds to move from the letter 'A' to 'B', a heavy towel wants to stay put. If the hoop isn't locked, the pantograph moves, but the hoop slips. The result? Your design outline will be offset from the fill by 2mm, ruining the job.

Industry Insight: Dealing with bracket clips and screws is the friction point of single-needle and basic multi-needle work. This is the stage where many growing shops transition to magnetic embroidery hoops. The magnetic systems eliminate the "did it clip in?" anxiety because the magnets self-align and clamp with immense force, securing heavy loads like bath sheets effortlessly.

Dahao A15 Control Panel: Rotate the Design 180° So the Logo Stitches Right-Side Up

Geometric orientation is the silent killer of profits. Most tubular hoops require the towel to be loaded "upside down" (hanging towards the operator) regarding the machine's perspective.

The Digital Workflow:

1. Access Design: Go to the edit/operations menu on the A15 touchscreen.
2. The "F" Icon: Locate the geometric manipulation tools.
3. Rotate: Select 180°.
4. Visual Confirmation: Do not trust your button press. Look at the preview screen. Is the lettering now upside down relative to the screen, matching the towel?

The "Rule of Thumb": Literally, use your thumb. Point your thumb at the top of the logo on the screen, and rotate your hand to match the towel. If they don't align, do not press start.

For those running high-volume production on a 12 needle embroidery machine, this rotation step is usually set in the digitizing software before the file is even sent to the machine, removing the risk of operator error at the panel.

Match the Digital Frame Preset to the Physical Hoop (Dahao Frame Selection)

Your machine is blind. It doesn't know you put a 15cm round hoop on it; it assumes you might have the giant jacket back frame loaded. You must tell it the boundaries.

The Consequence of Neglect: If the machine thinks it has a 30x30cm area, but you have a 15x15cm hoop, it will happily drive the needle bar straight into the plastic hoop frame at full speed. This breaks needle bars and reciprocating shafts.

Action: Select the hoop icon that visually matches your mounted frame (Green Tubular).

This is also where knowing your tools pays off. The video references accessories; if you invest in an 8 in 1 embroidery hoop kit, you gain the versatility of having the exact right size frame for a pocket, a cuff, or a beach towel, minimizing the excess space that causes flagging (bouncing) fabric.

The Border Trace That Saves Towels: Jog, Center, and “Check Border” Before You Press Start

This is your final "Pre-Flight Check." Never skip the trace.

1. Jog (Positioning): Use the arrow keys to move the pantograph. Center the red laser dot where you want the design center.
2. Interaction: Press Check Border / Trace (usually a square icon).
3. Observation: The machine will drive the hoop around the extreme perimeter of the design.

What to Watch For:

• Clearance: Does the laser dot stay at least 10mm away from the inner edge of the plastic hoop?
• Placement: Is the design centered on the visual features of the towel (e.g., the dobby border)?
• Obstructions: Will the needle hit a thick hem?

If the machine screams or refuses to trace, it means your design is physically too large for the selected digital frame presets. Fix the settings, don't force the machine.

Stitching the Logo on the YunFu Single-Head Machine: What “Normal” Looks Like on Thick Pile

Deep breath. Press Start.

Speed Control (The Sweet Spot): While your machine can go 1000 SPM, do not run towels at max speed. The friction of the thick pile creates heat and drag.

• Safe Range: 600 - 750 SPM.
• Why: Lower speeds reduce thread breakage and allow the rotary hook more time to capture the loop, preventing "bird nesting."

Sensory Monitoring:

• Visual: Watch the topping. It should look like cling wrap over a bowl—taut.
• Auditory: Listen for a rhythmic "thump-thump-thump." A sharp "clack" usually means the needle is hitting the needle plate or hoop.
• Status: Watch the first few colors. The satin stitches should sit proud (elevated) on the topping. If they look buried, your top tension is too high, or your topping has failed.

If you are struggling with hoop burn or consistency, you might be considering a magnetic frame for embroidery machine. Towels are the ultimate test case for these frames. The magnetic clamping force is uniform around the entire perimeter, unlike screw hoops which pinch at one point, reducing the "pull" on the fabric and keeping stitch registration tighter.

Operation Checklist (before and during the first 30 seconds of stitching)

• Orientation: Design is Rotated 180° (Double-check standard: Top of design is closest to the user).
• Color Assignment: Needle 1 (or chosen color) is threaded correctly.
• Clearance: Trace completed successfully with no hoop collision warnings.
• Tension: The first few stitches look plump, not tight and thin.
• Physics: The hoop is not bouncing. If it vibrates violently, lower your speed.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, treat them with respect. These use industrial Neodymium magnets. They can pinch fingers severely (blood blister risk) and must be kept away from pacemakers, credit cards, and machine control panels. Never let two magnets snap together without a separator.

Clean Removal, Clean Result: Tear Away Backing + Peel Off Water-Soluble Topping

The run is done. The machine sings its "Finished" song. Now, the reveal.

1. Un-hoop: Loosen the screw and remove all rings.
2. Backing Removal: Tear the white backing away. Place your thumb over the embroidery stitches to support them while you tear the paper away. Do not yank; you can distort the lettering.
3. Topping Removal: Tear away the large chunks of the clear film.
4. Fine Detail Cleanup: For the tiny bits of film stuck inside letters like 'O' or 'A', use tweezers, or better yet—a damp paper towel or a quick steam. The moisture dissolves them instantly.

Visual Success Metric: The embroidery should look like a patch sitting on top of the towel. The edges should be crisp. If you see terry loops poking through the embroidery, your density was too low, or you skipped the topping.

Why This Works (So You Can Repeat It on Any Towel, Not Just This One)

We are not just following instructions; we are applying material science.

• Variable 1: Pile Control. The water-soluble topping neutralizes the texture variable.
• Variable 2: Stability. The backing neutralizes the stretch variable.
• Variable 3: Pressure. Opening the hoop screw allows us to contain the volume of the towel without crushing its spirit (or fibers).

Quick Decision Tree: Pick Stabilizer Strategy by Towel Type

Don't guess. Use this logic flow for every towel job.

• 1. Is the pile deep (loops taller than 2mm)?
  • YES: Use Medium Backing + Heavy Topping (or double layer topping).
  • NO: Go to next.
• 2. Is it a Velour/Shaved Towel (smooth surface)?
  • YES: Use Standard Backing + Light Topping (Solvy). You still need topping to keep edges crisp!
  • NO: Go to next.
• 3. Is the design fine lettering (< 5mm height)?
  • YES: STOP. fine text sinks in towels. Increase font boldness in software, use topping, and slow down machine.
  • NO: Standard setup applies.

Troubleshooting the Two Problems Everyone Hits on Towels

Symptom 1: "The embroidery looks buried / I can see towel color through the stitches."

• Likely Cause: No topping used, or stitch density is too low (standard is 0.4mm spacing; for towels, try 0.35mm).
• Quick Fix: Add a layer of topping.
• Prevention: Always use topping on pile fabrics.

Symptom 2: "Hoop Burn (Ring marks) won't go away."

• Likely Cause: You hooped it like a drum (too tight). The fibers are crushed.
• Quick Fix: Steam the area / wash the towel. The fibers might rebound.
• Prevention: Loosen the hoop screw more next time, or switch to magnetic frames.

The Upgrade Path I’d Use in a Real Shop: Faster Hooping, Fewer Marks, More Towels per Hour

The method shown in the video works perfectly for 1 to 10 towels. But if you land a contract for 100 gym towels, the "Screw and Un-screw" method will destroy your wrists and your profit margin.

The "Pain thresholds" for upgrading:

• Pain Level 1 (Wrist Fatigue/Hoop Burn):
  • Solution: Magnetic Hoops/Frames.
  • Why: They snap on in 2 seconds. No screws. No friction burns on the fabric. If you are searching for embroidery hoops magnetic, you are likely already feeling this pain. The ROI is usually recovered in the first 2 large orders simply by reducing hooping time from 2 minutes to 30 seconds per item.
• Pain Level 2 (Production Bottleneck):
  • Solution: Multi-Needle Machines (e.g., SEWTECH).
  • Why: Single-head machines require constant thread changes. If your towel design has 4 colors, a single-needle machine stops 3 times for you to re-thread. A multi-needle machine just keeps running.


The Professional Finish Standard: What I Look For Before I Hand a Towel to a Customer

You are the Chief Quality Officer. Before bagging the order, perform the "Three-Second Scan":

1. Legibility: Can I read the text from 5 feet away? (If not, the pile swallowed it).
2. Tactile: Is the back rough? (Trim long jump threads).
3. Residue: Is there shiny plastic film stuck in the corners? (Steam it off).

Embroidery is permanent. Make sure it's perfect.

FAQ

• Q: How do I prevent sinking satin stitches when embroidering a thick cotton terry towel on a YunFu single-head industrial embroidery machine with a Dahao A15 control panel?
  A: Use a stabilizer sandwich: tear-away backing under the towel and water-soluble topping over the stitch area.
  • Cut tear-away backing 1–2 inches larger than the hoop on all sides, then lay the towel flat on top.
  • Cover only the embroidery field with water-soluble topping, then smooth from center outward to remove trapped air.
  • Slow the machine to a safe starting range of 600–750 SPM to reduce drag and help stitch formation on thick pile.
  • Success check: satin stitches look “proud” and crisp on top of the topping, not visually buried into towel loops.
  • If it still fails: add a heavier or double layer of topping, or review stitch density in digitizing (fine details often need bolder lettering on towels).
• Q: What needle should I start with to reduce loop damage and bald spots when embroidering terry towels on a YunFu industrial embroidery machine?
  A: Start with a fresh 75/11 ballpoint needle to slide between terry loops instead of cutting them.
  • Install a new 75/11 ballpoint needle before the run, especially for paid towel orders.
  • Avoid “pushing through” with speed; run towels around 600–750 SPM to reduce friction and snagging.
  • Success check: the towel surface around the design shows no cut loops or “bald” tracks after stitching.
  • If it still fails: re-check hooping pressure (over-tight hooping can crush fibers) and confirm topping is used to control the pile.
• Q: How do I hoop a thick towel in a green tubular T-shirt frame without hoop burn or the inner ring popping out?
  A: Pre-loosen the hoop screw wide first, seat the hoop with moderate resistance, then tighten only after the ring is fully seated.
  • Loosen the adjustment screw until the outer ring is visibly larger than the towel “sandwich” thickness.
  • Slide the outer ring down over backing → towel → topping with moderate resistance (do not hammer it in).
  • Tighten the screw only after seating, aiming for firm hold without crushing the pile.
  • Success check: topping looks glass-smooth and the towel loops do not look stretched open or bruised in a ring.
  • If it still fails: steam or wash to help fibers rebound, then hoop looser next time or consider switching to a magnetic frame to reduce pressure points.
• Q: How do I lock a green tubular hoop into a YunFu pantograph so the hoop does not creep and cause 2mm registration shifts on heavy towels?
  A: Slide the metal brackets fully under the clips until a clear “CLICK/SNAP” is felt and heard on both sides.
  • Insert the hoop brackets under the pantograph clips evenly; do not leave one side “half caught.”
  • Tug-test gently before stitching to confirm the hoop is not floating.
  • Reduce speed if the towel mass causes aggressive starts/stops; 600–750 SPM is a safer starting point on towels.
  • Success check: during the first color, outlines and fills stay aligned with no visible offset as the pantograph changes direction.
  • If it still fails: stop immediately, re-seat both clips, and re-run the border trace before restarting.
• Q: How do I rotate a towel logo 180 degrees on the Dahao A15 control panel so embroidery stitches right-side up in a tubular hoop?
  A: Use the A15 edit/operations geometry tools to rotate the design 180° and verify on the preview screen before starting.
  • Open the design editing/operations menu on the Dahao A15 touchscreen.
  • Select the geometry tool (the “F” icon) and apply a 180° rotation.
  • Confirm the preview orientation matches how the towel sits in the tubular hoop (use the “thumb rule” to compare top-of-logo direction).
  • Success check: after the first visible letters stitch, the text reads correctly from the customer’s viewing side.
  • If it still fails: stop and re-check the on-screen preview versus towel loading direction before continuing.
• Q: How do I prevent hoop collisions by matching the Dahao A15 frame preset to the physical green tubular hoop before running a towel?
  A: Select the frame/hoop preset that visually matches the mounted green tubular hoop, then run a border trace.
  • Choose the hoop icon/preset that corresponds to the physical frame size and type currently mounted.
  • Jog to position the design center with the arrow keys and laser dot.
  • Run “Check Border/Trace” to confirm clearance before stitching at full speed.
  • Success check: the trace path stays at least about 10 mm away from the inner edge of the hoop and avoids thick hems.
  • If it still fails: correct the selected digital frame preset or reduce/relocate the design—do not force the run.
• Q: What are the key safety rules when running thick towels at 800–1000 SPM on a YunFu single-head industrial embroidery machine, and what extra safety applies to magnetic hoops?
  A: Treat towel embroidery as an industrial hazard zone: secure hair/jewelry, keep hands away from the presser foot, and respect magnet pinch force if using magnetic frames.
  • Tie back long hair, remove loose jewelry, and avoid dangling sleeves before pressing Start.
  • Keep fingers away from the needle area; thick towels can obscure the needle bar and presser foot.
  • Handle magnetic hoops as pinch hazards; keep magnets away from pacemakers, credit cards, and control panels, and never let magnets snap together without a separator.
  • Success check: hands never enter the needle zone while the machine is live, and magnets are separated/controlled during hooping.
  • If it still fails: stop the machine, power down before adjustments, and follow the machine manual’s safety guidance for the specific setup.
