Floriani Total Control U: Wave Color Blend Gradients + Create Outlines Ripples (and a Quilt Block That Actually Stitches Clean)

When you’re digitizing in Floriani Total Control U (FTCU), the fastest way to level up isn’t buying a new “fancy fill.” It’s learning the difference between what looks good on a monitor and what actually survives physical stitching. You need to know which settings are visual only, which settings dictate thread physics, and how to build a design that stitches cleanly in the hoop—without surprise gaps, crunchy outlines, or a background that looks thin.

In this deep-dive session, we analyze Kathy Quinn’s method for using two tools that are easy to overlook but incredibly powerful once you understand them:

• Wave Color Blend for gradient-style fills (plus a critical safety tweak for Mylar).
• Create Outlines for ripple/echo lines that turn into bold bean stitches.

Then, we turn those ideas into a practical “Project of the Week”: a Medallion Quilt Block layout. We will bridge the gap between software settings and physical reality, ensuring your alignment is ready for professional in-the-hoop stitching.

Artwork Pen Width vs. Real Stitches in Floriani Total Control U (Stop Letting the Screen Lie to You)

The first “aha” moment is simple but saves hours of frustration: the artwork pen width is a visual hallucination. It is just for visibility on screen.

Kathy selects a butterfly from the Custom Shapes library and points out that the pen width (shown as 2.0 in the Properties box) only affects how bold the vector outline looks while you’re working. Whether it’s 2.0 or 0.5, it does not determine satin width, run thickness, or how the final stitch file behaves.

Why this matters physically: Novices often thicken the line on screen thinking they are creating a bolder stitch. They aren't. They are just making the drawing thicker. When you stitch it out, you get a thin, weak line that disappears into the fabric nap.

Practical takeaway:

• Action: proper thickness is set in the Stitch Properties tab, not the artwork tab.
• Visual Check: Use a thick pen width (2.0+) only to help you select nodes/edges easily.
• Mental Shift: Ignore the artwork thickness. Trust the "3D Stitch View" or the Stich Simulator.


Warning: Mechanical Safety Hazard. When transitioning from software to the machine for test stitch-outs, keep fingers clear of the needle bar and moving pantograph. Never reach under a running presser foot to “help” fabric feed—this is a common cause of severe finger injuries and broken needles.

The Wave Color Blend Tool: Build a Gradient Fill That Doesn’t Turn Into a Thread-Eating Brick

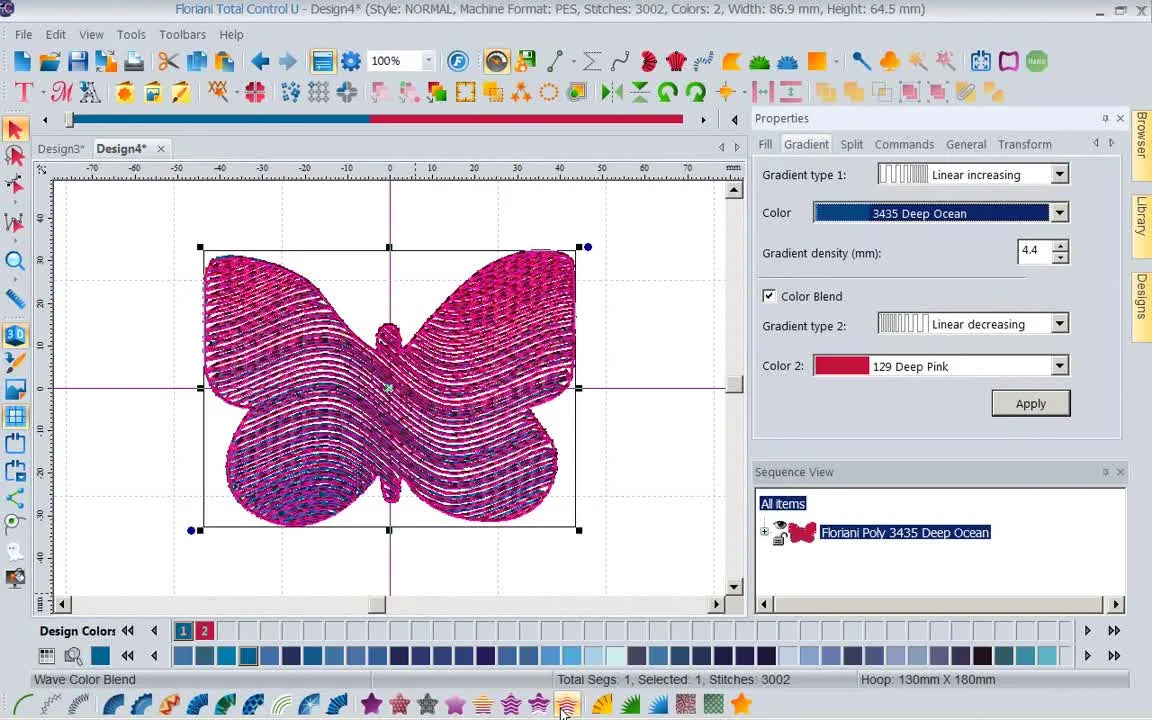

Kathy converts the butterfly into a fill stitch and chooses Wave Color Blend, which immediately opens gradient fill controls in the Properties box.

The key concept: Wave Color Blend uses two thread colors (Color 1 + Color Blend 2) and blends them across the shape. You can pick any second color from the palette, apply it, and preview the effect.

Choose your second color (Color Blend 2)

She scrolls the palette and selects a yellow tone to blend with the primary color, then applies it so the preview updates.

Control how the blend flows: Linear vs. Convex/Concave

Kathy demonstrates how changing the gradient type changes the “story” of the fill. This isn't just aesthetic; it affects how the thread pushes the fabric.

• Linear Increasing / Linear Decreasing: One color becomes more dominant as the other fades. Best for directional light.
• Convex / Concave: The blend shifts from the middle outward (or the reverse), creating a domed 3D illusion.




The Veteran Mindset: Don’t hunt for the “best” setting—hunt for the setting that matches the shape’s physics.

• If the shape implies motion (like a wing sweep), Linear flows with the grain.
• If the shape implies volume (like a sun or a ball), Convex sells the highlight.

Density: The Mylar-Friendly Move (CRITICAL)

Kathy points out the default Gradient Density is 4.4. She shows that you can "open it up"—changing it to 6.0—when you want a lighter fill that works well with Mylar behind the embroidery.

Expert Elevation: The Physics of Mylar Standard density covers fabric. Mylar density must reveal the sparkle.

• The Risk: If you stitch standard density (4.4 or 0.4mm depending on unit settings) over Mylar, you are effectively perforating it like a stamp. The Mylar will shred, and the "sparkle" turns into a dull grey mess.
• The Fix: A density of 6.0 (more open) creates a "cage" that holds the Mylar down without obliterating it.
• Sensory Check: When handling the finished Mylar stitch-out, it should crinkle slightly but feel smooth. If it feels "crunchy" or sharp, your density was too high.

Commercial Reality Check: Gradients and Mylar are "high-risk" stitch-outs. They punish sloppy stabilization instantly. If you are fighting shifting fabric or registration errors where the colors don't blend smoothly, you likely have a physical holding problem. Revisiting your technique for hooping for embroidery machine is essential here. The design must stay registered while the blend transitions, or you will see gaps.

Create Outlines in Floriani: Turn One Shape into Ripple Echo Lines (Without Manual Copy-Paste Pain)

Next, Kathy switches to Create Outlines. This tool generates texture automatically, saving you from manual vector drawing.

She opens Create Outlines and sets:

• 4 Ripples
• 1.5 mm Spacing
• Units: Millimeters (Pro Tip: Use mm for spacing. It is much easier to visualize "1.5mm" than "0.06 inches").


This generates multiple outline paths around the butterfly—note that these are still artwork outlines at this stage. You must convert them to stitches next.

Bean Stitch Echo Lines: The “Top-Stitch” Look Using 5 Repeats and 3.5 mm Length

With the ripple outlines selected, Kathy converts them into stitches and chooses a Bean Stitch (also known as Triple Run).

She sets:

• Repeats: 5 (This is very heavy; standard is often 3)
• Run/Bean Stitch Length: 3.5 mm (Longer length prevents thread buildup knots)


Physical Analysis: A 5-ply bean stitch is a rope. It sits on top of the fabric.

• Audible Check: When stitching this, you will hear a rhythmic thump-thump-thump. It is intense.
• Visual Check: The line should look like hand-embroidery floss, not standard sewing thread.
• Safety Constraint: Do not go shorter than 3.0mm length with 5 repeats. If you do, the needle will penetrate the same spot 5 times too closely, leading to heat buildup, thread shredding, and birdnesting.

The “Clean Edge” Habit: Copy/Paste the Butterfly to Add a Dedicated Run Stitch Outline

Kathy resets and builds the quilt block version. She wants a full run stitch around the butterfly edge for a cleaner finish.

Her Method:

1. Select the butterfly.
2. Right-click Copy, then Right-click Paste (stacking two butterflies).
3. Select the second butterfly and convert it to a Run Stitch.

This creates a "dam" that contains the fill stitches. It hides the tiny jagged edges of the gradient fill and makes the motif pop against the background.

Combine Tool (Paper Clip Icon): Build a Stipple-Ready Negative Space Without Guesswork

Now she creates the quilt block structure.

1) Create an offset outline around the butterfly

She uses Create Outlines again:

• Ripples: 1
• Distance: 6 mm (approx. 1/4 inch safety margin).

2) Draw a 5" x 5" rectangle around the butterfly

She uses the rectangle shape tool and sets Transform to 5 x 5 inches.

3) Select both pieces of artwork and Combine

She selects the butterfly outline and the rectangle (Ctrl + Click), then clicks the Combine tool (paper clip icon). The result is a single complex shape representing the negative space—perfect for stippling.

Why do this? You aren't stippling a rectangle. You are stippling the air around the butterfly. If you don't use "Combine," the stipple would stitch over your lovely butterfly gradient.

Auto Stipple Settings: Why She Bumps Density from 2.5 to 4.0

With the combined shape ready, Kathy applies Auto Stipple. She notes the default density is 2.5, and increases it to 4.0 for better coverage.

Expert Interpretation: Stippling is functional texture. It holds the layers of the quilt block (top, batting, backing) together.

• Low Density (e.g., 2.5): Tighter curves, more thread, stiffer block.
• High Density (e.g., 4.0): More open, loftier block, softer feel.
• The Physics of Puckering: Stippling pushes fabric. If your hoop tension is weak, the block will shrink like a raisin.

Commercial Solution: Traditional hoop rings often struggle to hold thick quilt sandwiches (fabric + batting + backing) tight enough to prevent the stippling from distorting the block. Furthermore, squeezing a thick quilt sandwich into a friction hoop often causes "hoop burn" (shiny crushed fibers) that ruins the project.

This is a scenario where Magnetic Hoops become a necessary tool, not just a luxury. They clamp the quilt sandwich flat without friction burn, allowing for distortion-free stippling. If you are doing volume production, a reliable embroidery hooping station ensures every block is hooped at the exact same tension.

Warning: Magnetic Safety. Powerful magnetic hoops (like those used on multi-needle machines) carry a pinch hazard. Keep fingers clear when snapping magnets together. Persons with pacemakers should maintain a safe distance from high-strength industrial magnets.

The Finishing Touch: Add a Run Stitch Right on the Butterfly Edge for a Sharper Quilt Block

Kathy feels the block needs a defined border. She adds another outline run stitch right at the butterfly edge using Create Outlines again, converting it to a Run Stitch.

This gives you:

1. Motif: Even gradient.
2. Dam: Run stitch containing the motif.
3. Moat: 6mm negative space (unstitched).
4. Texture: Stippled background.

Two Rectangles, Two Jobs: Sewing Line vs. Cutting Line (5x5 and 6x6) for In-the-Hoop Planning

Kathy adds a rectangle run stitch around the block as a clean border. Then she creates a larger outer rectangle:

• 6 x 6 inches

The Logic:

• Inner Line (5x5): Your "Seam Allowance" or visual border.
• Outer Line (6x6): Your "Cutting Line." It gives you room to trim the block square later.


The Alignment Ritual: Sequence View “Select All Items” + Center Both Ways

Finally, she ensures perfection:

1. In Sequence View, Select All Items.
2. Use Align icons: Align Horizontal Centers and Align Vertical Centers.


The Trap: If your design is 0.5mm off-center in the software, it will be 0.5mm off-center in the hoop. When you sew 20 blocks together, those errors compound into a crooked quilt.

Production Note: Software centering is useless if your physical hooping is crooked. The key to profitable quilting is repeatability. Standardizing your workflow—using quality machine embroidery hoops and potentially upgrading to a multi-needle machine for speed—ensures that the 50th block looks identical to the first.

The “Fault Line” in 3D View: Don’t Panic—It’s a Preview Artifact

Kathy calls out a common scare: in 3D view, you may see a white gap or “fault line” in the fill.

• Verdict: It is a screen rendering artifact.
• Action: Ignore it. It will not stitch out.

The Hidden Prep Pros Do Before They Ever Hit “Stitch”

Software is theory. Embroidery is physics. Here is the operational framework to ensure success.

Prep Checklist: The "Flight Safety" Pre-Check

• Unit Sync: Ensure software is in mm if you are spacing in mm.
• Mylar Test: If using Mylar, did you change fill density to ~6.0? (Standard 4.4 will shred it).
• Needle Check: Use a Sharp 75/11 needle for quilt cottons (Ballpoint is for knits).
• Bobbin Check: Use a matching bobbin weight (usually 60wt).
• Consumables: Have temporary spray adhesive (like Odif 505) ready to hold the batting to the stabilizer.

A Simple Decision Tree: Stabilizer Choices for Stipple Quilt Blocks

Choosing the wrong stabilizer is the #1 cause of distorted blocks.

Decision Tree (Fabric + Batting → Stabilizer):

• Scenario A: High-Loft Batting (Fluffy)
  • Action: Use Medium Cutaway.
  • Why: The fluff creates drag; cutaway prevents the block from shrinking.
• Scenario B: Low-Loft Batting (Flat) or No Batting
  • Action: Firm Tearaway can work, but heavy stippling may perforate it. Mesh Cutaway is safer.
• Scenario C: Mylar Element Involved
  • Action: Cutaway is mandatory.
  • Why: You need absolute rigidity so the Mylar doesn't shift during the gradient fill.

Setup That Saves Your Wrists (and Your Time): Hoops, Magnetic Frames, and When to Upgrade

Embroidery is a physical sport. If you are doing one block, any hoop works. If you are doing 20 blocks for a quilt:

1. Level 1 (Technique): Use a hooping station for machine embroidery (or mark your table with tape) to ensure every fabric square is loaded at the same angle.
2. Level 2 (Tool Upgrade): If you struggle with tightening screws or getting thick sandwich layers flat, Magnetic Hoops are the industry solution. They snap shut using magnets, eliminating the "tug and screw" motion that causes wrist strain and fabric burn. Ideally, check compatability for magnetics with your machine.
3. Level 3 (Capacity Upgrade): If you find yourself waiting 45 minutes for a single block to finish, you have outgrown the hobby pace. This is the "Pain Point" where upgrading to a multi-needle machine (like the SEWTECH ecosystem) changes the math. Multi-needle machines offer larger stitch fields and faster speeds (up to 1000 SPM safely), turning a week-long project into a weekend one.

Operation Checklist: Final Verify Before Stitching

Do not press "Start" until you verify these points in Sequence View:

• Gradient Logic: Are Color 1 and Color 2 distinct enough to show the blend?
• Outline Type: Are your ripple lines converted to Stitches (Beans/Runs) and not left as Artwork?
• Bean Specs: Is the Bean Stitch length at least 3.0mm to prevent knotting?
• Stipple Safety: Is the stipple density open enough (e.g., 4.0) to keep the block soft?
• Placement: Is the entire design centered?
• Hoop Clearance: Does the 6x6 outer line fit within your hoop's actual safety margin?

By mastering the "Screen vs. Reality" settings—like knowing when to ignore pen width and when to open up density for Mylar—you stop hoping for good results and start engineering them.
