Floriani Total Control U TrueType Text That Actually Stitches Clean: Kerning, Circle Layouts, and the “Don’t Convert Yet” Rule

Master Class: Converting TrueType Fonts to Professional Embroidery (The Floriani Workflow)

Creating lettering that looks "store-bought" rather than "homemade" is the single biggest hurdle for embroidery professionals. We have all been there: you type a name using a computer font, stitch it out, and the result is a puckered, unreadable mess with gaps between the letters.

The difference isn't usually your machine; it's the translation from Ink (TrueType fonts designed for paper) to Thread (physical objects with tension and thickness).

This guide captures the "Brad" workflow from Floriani Total Control U, but helps you look at it through the lens of a production manager. We will move beyond just clicking buttons to understanding the physics of why this method works, and how to stabilize your physical workflow to match your new digital skills.

Phase 1: The Foundation Check

Before we touch the design, we must ensure your software engine is running on the right fuel. The specific "Text Tool" workflow requires the latest patch of Floriani Total Control U. Without this, you are looking for buttons that do not exist.

Step 1: Force the Update

1. Navigate to the top menu bar and select Help.
2. Click Check for Updates.
3. Sensory Check: Watch the progress bar. Do not disconnect until the software restarts.


Warning: Software updates can reset your default preferences. If you are in the middle of a rush order week, back up your settings and current design files to a USB drive or cloud folder before patching. Never update on a Friday afternoon.

Prep Checklist: The "Pre-Flight" Inspection

• Software Version: Confirmed updated via Help menu.
• Font Availability: The TrueType font you want is installed on your Windows/Mac OS (not just inside the software).
• Canvas Clean: Start a New Design page. Troubleshooting inside an old, cluttered file is a recipe for corruption.
• Consumables Check: Do you have Cutaway stabilizer (for knits) or Tearaway (for wovens) ready? Software cannot fix poor stabilization.

Phase 2: The "Old Way" Trap (Import TTX)

Stop using File -> Import TTX.

For years, this was the standard method. However, commercially, it is a nightmare. It imports text as individual "puzzle pieces"—every letter is a separate object.

• The Pain: To curve text, you have to drag each letter manually.
• The Result: "Jittery" text that looks uneven.
• The Risk: Small misalignments turn into gaps where the fabric shows through.




If your badge text looks like a wobbly tire instead of a perfect wheel, "Import TTX" is the likely culprit.

Phase 3: The "New Way" – Text Tool Workflow

This workflow keeps your text as a single, editable artwork object until the very last second. This is the secret to perfect alignment.

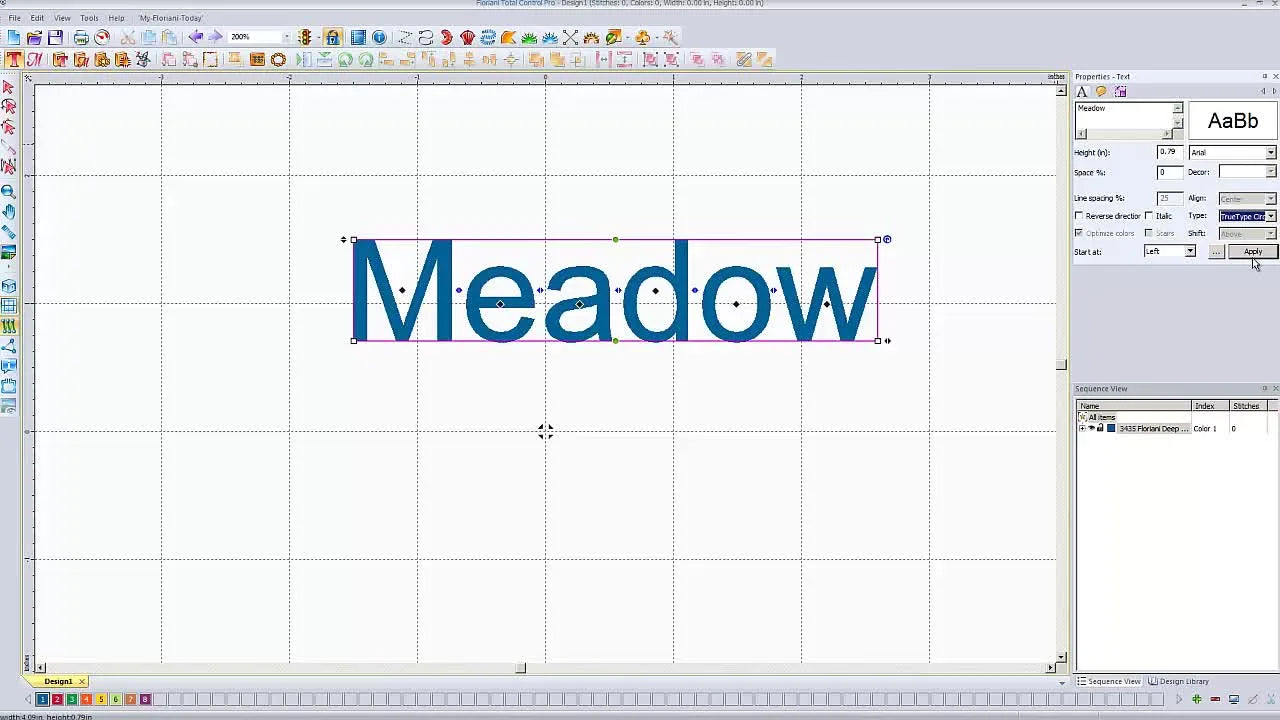

Step 1: Activate the Text Tool

1. Locate the large "T" icon on the left vertical toolbar.
2. Click once on your grid workspace. You will see a blinking cursor or a placeholder.
3. In the Properties Panel (usually on the right), type your text (e.g., "Meadow").


Step 2: Switch the Engine to True Type

By default, the software may select a pre-digitized embroidery font. We need to tell it to use your computer's system fonts.

1. In the Properties Panel, find the Type dropdown menu.
2. Change selection from "Font" (or Embroidery Font) to True Type.


The "Why": This bridge connects your embroidery software to the thousands of fonts installed on your computer. Expert Note: Not all TrueType fonts sew well. Avoid fonts with "distressed" edges or extremely thin serifs (like Times New Roman at small sizes). Thick, consistent fonts yield the safest results for beginners.

Phase 4: The Art of Kerning (Triangle Handles)

This is where the "Brad methodology" shines. Computer fonts are spaced for reading on screen ("Kerning"). When converting to thread, letters often need more space because thread has physical volume.

The Symptom: In script fonts, the tail of an "o" might crash into the "d," creating a hard lump of thread that breaks needles.

The Fix:

1. Zoom in to 200%.
2. Locate the small Triangle Handles sitting on the baseline between the letters.
3. Action: Click and drag a triangle left or right.
4. Visual Check: Look for a tiny gap of "breathing room" between letters. If they touch on screen, they will crowd on fabric.




Phase 5: Geometric Shaping (The "Circle" Trick)

Do not manually move letters to make an arc. Use the algorithmic path.

1. In the Properties Panel, look for Layout or Path.
2. Change from Line to Circle (or Arc).
3. Click Apply.
4. Use the corner handles of the selection box to resize the circle.




Pro Tip: If you are creating a logo for a chest pocket or a hat, circular text often distorts when stitched because the fabric stretches on the bias. We will address how to solve this physically in Phase 7.

Phase 6: The Conversion (The One-Way Door)

This is the most critical concept in this tutorial.

• Before Conversion: It is Reference Artwork (editable text, un-stitchable).
• After Conversion: It is Stitch Data (sewable, but hard to edit text).

Step 1: Setup Checklist (Do NOT Skip)

• Spelling: Check it three times. "Maddow" instead of "Meadow" is expensive to fix later.
• Spacing: Are the letters breathing?
• Centering: Is the design centered in the hoop area?

Step 2: Convert to Satin

1. Switch to the Select Tool (Arrow icon).
2. Right-Click on your text object.
3. Hover over Convert To...
4. Select Satin (for standard text) or Complex Fill (for giant letters).




Warning: Once you convert to stitches, the software no longer knows this is the letter "A". It only knows it is a "column of stitches." You cannot fix a typo after this step without deleting and starting over.

Satin vs. Complex Fill: The Decision Matrix

How do you know which one to pick?

Empirical Data for New Users: If dragging a satin column manually, aim for a density between 0.40mm and 0.45mm. Anything lower (e.g., 0.30mm) packs stitches too tightly, causing thread breaks and holes in the fabric.

Phase 7: The Physical Reality – Stabilizers & Hooping

You have perfectly digitized text. Now, you must transfer it to reality. TrueType lettering is unforgiving; if your fabric shifts one millimeter, your crisp font will look drunk.

The #1 reason computerized lettering fails is not the software—it is movement in the hoop.

Decision Tree: Fabric Strategy for Lettering

1. Is the fabric stretchy (T-shirt, Hoodie, Polo)?
   • YES: You MUST use Cutaway Stabilizer. No exceptions. Tearaway will allow the knit to distort, ruining the letters.
   • NO (Denim, Canvas): You can use Tearaway, but a layer of stiffener helps.
2. Is the fabric "slippery" or difficult to clamp (Performance wear, Silks)?
   • The Issue: Traditional hoops require you to pull and tighten, which creates "Hoop Burn" (permanent rings) or distortion.
   • The Fix: This is where professionals switch to magnetic embroidery hoop systems.
   • Why: The magnets clamp straight down. There is no friction dragging the fabric, so your perfectly circular text stays circular.

Solving the "Hoop Burn" & Fatigue Problem

If you are doing a production run (e.g., 20 shirts), standard hoops will hurt your wrists and slow you down.

• Level 1 Fix: Use a hooping station for embroidery. This rigid board ensures every shirt is loaded in the exact same spot.
• Level 2 Fix: Upgrade to magnetic hoops for babylock embroidery machines (or your specific brand).
  • Efficiency: You just "snap" the top frame on.
  • Quality: It creates a "drum-skin" tension (listen for the thump-thump sound when you tap the fabric) without stretching the knit fibers.

Safety Warning (Magnets): Industrial magnetic hoops use Neodymium magnets. They are incredibly strong.
1. Pinch Hazard: Keep fingers clear of the snap zone.
2. Medical Threat: Keep at least 6 inches away from pacemakers or insulin pumps.

For difficult locations like shirt cuffs or pant legs, trying to jam a standard hoop inside is frustrating. A specialized sleeve hoop combined with a magnetic grip allows you to isolate that small area without wrestling the garment.

Phase 8: Troubleshooting the Stitch-Out

If your screen looks good but your sew-out looks bad, use this diagnostic table. Always check physical causes first.

Phase 9: Commercial Scaling Logic

Brad’s video teaches you the skill of digitizing. But if you want to run a business, you must optimize the workflow.

The Trap: Spending 15 minutes hooping a shirt for a 2-minute stitch job. The Solution:

1. Digitize Efficiently: Create a "Master File" of your favorite TrueType fonts (e.g., Block, Script, Sergeant). Fix the kerning once in this master file. Copy and paste from there so you don't have to re-fix the triangles every time.
2. Hooping Efficiency: If you are hooping hooping for embroidery machine production runs, the bottleneck is your hands. Magnetic frames reduce hooping time by 40-50%.
3. Machine Capacity: If you are constantly changing thread colors for these text designs, a single-needle machine is costing you money. Moving to a SEWTECH multi-needle ecosystem allows you to set up 6-10 colors at once, letting the machine work while you hoop the next garment.

Final Operation Checklist

• Text converted to Satin/Fill?
• Density checked? (Sweet spot: 0.40mm - 0.45mm).
• Underlay applied? (Edge run + zigzag is standard for text).
• Fabric Stabilized? (Cutaway for knits!).
• Hoop Tension: Drum-skin tight, no wrinkles.

By combining Floriani's precision Text Tool with professional stabilization and hooping techniques, you bridge the gap between "hobbyist" and "professional factory."

FAQ

• Q: In Floriani Total Control U, why are the buttons for the Text Tool workflow missing after selecting Help → Check for Updates?
  A: The Text Tool workflow features may not appear until Floriani Total Control U is fully patched and restarted.
  • Force the update: Go to Help → Check for Updates, then let the program finish and restart (do not disconnect mid-update).
  • Start clean: Open a New Design page instead of troubleshooting inside an older, cluttered file.
  • Protect settings: Back up preferences and active design files before patching (updates can reset defaults).
  • Success check: The T (Text Tool) and True Type option are visible in the Properties panel when a text object is active.
  • If it still fails: Re-run the update check and confirm the TrueType font is installed in the computer OS (not only inside embroidery software).
• Q: In Floriani Total Control U, why should embroidery professionals stop using File → Import TTX for TrueType lettering?
  A: File → Import TTX often imports each letter as separate objects, which causes uneven spacing and “jittery” curved text in production.
  • Switch tools: Use the Text Tool (T icon) to keep text as a single editable object.
  • Curve correctly: Apply Layout/Path → Circle (or Arc) instead of manually dragging letters into an arc.
  • Fine-tune spacing: Adjust letter spacing using the triangle kerning handles on the baseline.
  • Success check: Curved text looks like a smooth, consistent circle (not a “wobbly tire”) before conversion.
  • If it still fails: Zoom to 200% and re-check triangle handle spacing—if letters touch on screen, they will crowd in thread.
• Q: In Floriani Total Control U, how do embroidery professionals use triangle kerning handles to prevent script letters from crashing and causing thread lumps?
  A: Add “breathing room” by dragging the triangle kerning handles so script connections do not crowd when converted to thread.
  • Zoom in: Set view to 200% to see spacing clearly.
  • Drag handles: Move the triangle handle left/right between problem letters (common in script fonts).
  • Re-check joins: Look for a small visible gap—thread has thickness, so screen-touching often becomes fabric-crowding.
  • Success check: Letters have slight separation on screen and stitch without hard raised lumps where letters meet.
  • If it still fails: Choose a thicker, more consistent TrueType font (avoid distressed edges and ultra-thin serifs at small sizes).
• Q: In Floriani Total Control U, when should embroidery lettering be converted to Satin versus Complex Fill, and what density is a safe starting point for satin columns?
  A: Use Satin for standard lettering around 4–10 mm tall, and use Complex Fill for very large or wide lettering (often >12 mm); a safe starting density for manual satin columns is 0.40–0.45 mm.
  • Verify before converting: Triple-check spelling, spacing, and centering—conversion is a one-way door for easy text edits.
  • Convert correctly: Right-click text → Convert To… → Satin (or Complex Fill for oversized letters).
  • Avoid overpacking: Do not push density too tight (example risk noted at 0.30 mm causing breaks/holes).
  • Success check: Satin lettering looks glossy and clean without holes, thread breaks, or “bulletproof” stiffness.
  • If it still fails: Re-check stabilization/hooping first—physical movement causes many “software-looking” problems.
• Q: For embroidery TrueType lettering on T-shirts and hoodies, why must Cutaway stabilizer be used instead of Tearaway stabilizer?
  A: For stretchy knits (T-shirts, hoodies, polos), Cutaway stabilizer is required because Tearaway allows distortion that ruins crisp lettering.
  • Identify fabric: Treat any knit or stretchy garment as “YES, stretchy.”
  • Stabilize properly: Hoop with Cutaway so the fabric cannot rebound and shift during stitching.
  • Prioritize movement control: Focus on preventing even 1 mm of shift—TrueType lettering is unforgiving.
  • Success check: Letters stitch straight and readable with consistent spacing, without waviness or “drunk-looking” alignment.
  • If it still fails: Improve hooping method (hooping station or magnetic clamping) before changing digitizing settings.
• Q: During embroidery lettering stitch-outs, how can embroidery professionals diagnose and stop bird nests underneath caused by top tension issues?
  A: Bird nests underneath are usually a physical threading/top tension problem, so rethreading is the fix—not a software setting.
  • Stop and inspect: Pause the machine as soon as nesting starts to prevent worse tangles.
  • Rethread: Completely rethread the top path carefully (common and fixable—don’t worry).
  • Check tension behavior: Confirm the top thread seats correctly through guides and tension points.
  • Success check: The underside shows controlled bobbin lines without large thread clumps forming during the next test stitch-out.
  • If it still fails: Re-check for a threading error again and verify the issue is not coming from a loose setup that encourages looping.
• Q: What safety precautions should embroidery professionals follow when using industrial magnetic embroidery hoops for garment hooping?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from sensitive medical devices because neodymium magnets clamp with extreme force.
  • Protect fingers: Keep fingertips clear of the “snap zone” when bringing the frames together.
  • Control the close: Lower the top frame straight down—do not let it slam.
  • Follow medical clearance: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop closes smoothly with no finger pinch incidents, and the fabric stays flat without being dragged.
  • If it still fails: Slow down the loading motion and reposition hands—most incidents happen during rushed snap-down.
