Floriani FTCU Environment Tab: The Small Preference Tweaks That Save Hours (and Prevent Costly Digitizing Mistakes)

If you have ever lost 30 minutes of intricate digitizing to a sudden crash, fought a cluttered toolbar that feels like a cockpit with too many switches, or wondered why your start and end points keep “helpfully” shifting on their own, you are not alone. The Floriani FTCU Program Preferences > Environment tab looks harmless—boring, even—but it quietly controls the rhythm of your work, the safety of your data, and the sensory feedback of your tools.

This isn’t just about checking boxes; it is about calibrating your digital workspace to match your physical reality. This guide rebuilds the workflow from the video into a production-grade protocol. We will move beyond "what does this button do" to "why does this setting save me money and sanity," integrating the same logic we use when setting up a commercial machine for a 500-piece run.

Calm the Panic First: Floriani FTCU Program Preferences > Environment Tab Won’t Break Your Designs

Preferences can feel intimidating to the novice. There is a fear that one wrong click will "break" the software globally. Let me offer you some psychological safety: The Environment tab manages interface behavior, not file corruption.

Think of these settings like adjusting the driver's seat and mirrors in your car. Changing the seat position doesn't change the engine (your stitch objects); it changes how comfortably you can drive (digitize).

What changes immediately:

• Visual Feedback: How rulers and units appear.
• Safety Nets: How often the software saves your bacon (Auto-Save).
• Tactile Flow: Whether tools stay in your hand or drop after use.

What does not change:

• The fundamental density or underlay of existing files.
• The stitch count of your previous designs.

If you digitize in focused "sprints," these settings remove dozens of micro-interruptions per hour. If you run a shop, standardizing these preferences ensures that Operator A and Operator B see the same workspace, reducing friction when files move down the line.

The “Hidden” Prep Pros Do: Set a Baseline Before You Touch Anything in Floriani FTCU

Before you toggle a single switch, we need to perform a "Pre-Flight Check." Experienced digitizers treat this like threading a machine—you don't skip it.

1. Define Your "Rhythm": Are you a "Machine Gunner" (laying down rapid-fire run stitches back-to-back) or a "Sculptor" (create one object, tweak its density, adjust its pull compensation, then move to the next)? Your answer dictates your Auto-Select settings.
2. Assess Your Hardware Tolerance: If you are running a high-end gaming PC, aggressive auto-saving is fine. If you are on an older laptop, frequent saves will cause a rhythmic "hiccup" that breaks your concentration.

Hidden Consumables:

• Blue Light Filters: If you are staring at these menus for hours, turn on your OS night light.
• High-DPI Mouse: Preference settings are useless if your mouse isn't precise enough to hit the buttons.

Prep Checklist (Environment Audit):

• Access Check: Locate the Program Preferences icon on the top toolbar.
• Unit Consensus: Decide if your shop speaks Inches or Metric (mm). (Matches your machine hoops).
• Risk Profile: Determine acceptable data loss (e.g., "I can afford to redo 5 minutes of work, but not 15").
• External Links: Locate your preferred image editor (e.g., Paint, Photoshop) executable file.
• Module Audit: Know exactly which Floriani modules (Total Quilter, Lettering Master) you own versus which you actually use.


Lock In Units of Measure (Inches vs Metric) So Your Rulers Stop Lying to You

In Program Preferences > Environment, the video highlights the Units of Measure dropdown.

• Inches: Standard for US garment sizing and hoop labels (e.g., 4x4, 5x7).
• Metric: The native language of embroidery machines (e.g., density is measured in mm, hoop limits in mm).

Checkpoint: When you switch to Metric, your ruler grid should instantly update from 1/4 inch marks to millimeter gradients.

Expected Outcome: Every time you launch FTCU, the rulers respect this choice.

Expert Note (The Cognitive Anchor): I strongly recommend learning to think in Metric for digitizing, even if you live in the US. Why? Because stitch density, stitch length, and pull compensation are universally discussed in millimeters (e.g., a standard satin stitch density is 0.4mm). If your ruler is in inches, your brain has to constantly convert "0.015 inches" to "0.4mm." That cognitive friction slows you down.

Set Floriani FTCU Auto Save Interval to Protect Your Time Without Making the Software Sluggish

The video details the Auto Save dropdown options: Off, 1, 3, 5, 10 minutes. The instructor suggests 3 minutes as the equilibrium point.

Checkpoint: Verify the interval is selected. Do not leave this on "Off" unless you are diagnosing a crash.

Expected Outcome: You will notice a split-second "hourglass" or pause at the set interval. This is the heartbeat of your safety net.

Warning: Auto-Save is not a Backup Strategy. It overwrites a temporary recovery file. It does not create incremental versions (v1, v2, v3). If you delete a section and Auto-Save kicks in, that deletion is now permanent in the recovery file. Always use "Save As" manually for major design milestones.

Expert Note (The Sweet Spot):

• 1 Minute: Safe, but can cause lag on complex designs (50,000+ stitches) or older PCs.
• 10 Minutes: Too risky. You can do a lot of complex pathing in 10 minutes that is painful to redo.
• Recommendation: Set to 3 or 5 minutes. It forces a rhythm without breaking your flow.

Choose an Image Editing Program (and Why You Should Edit Before Import)

The Environment tab allows you to link an external Image Editing Program (like MS Paint or Photoshop).

Checkpoint: Ensure the path points to a valid .exe file.

Expected Outcome: When you use a wizard that requires bitmap editing, clicking "Edit" opens your chosen software automatically.

Expert Note (Source Quality): Garbage in, garbage out. The instructor wisely notes you should edit images before import. Digitizing software is not Photoshop. If your artwork has fuzzy edges or low contrast, "auto-digitizing" tools will generate jagged, chaotic stitches. Clean the image externally to define crisp borders; your digitizing pathing will be faster and cleaner.

Use the Floriani FTCU Navigator Tool Like a Mini-Map (It’s a Speed Tool, Not a Gimmick)

The video demonstrates enabling the Navigator:

• View > Navigator.
• It creates a "picture-in-picture" window showing the full design.
• A Red Box indicates your current zoom level.




Checkpoint: Dock the Navigator window to the side of your workspace so it doesn't float over your canvas.

Expected Outcome: When zoomed in at 600% to fix a tiny locking stitch, dragging the Red Box in the Navigator instantly pans your view to the other side of the logo.

Expert Note (Context Awareness): Tunnel vision causes mistakes. When working on a 12-inch jacket back design, zooming in to fix a letter makes you lose sight of the overall balance. The Navigator is your "peripheral vision." It prevents the common error of accidentally moving an object miles away from the center without realizing it.

The Make-or-Break Toggle: “Automatically Select Created Paths” in Floriani FTCU

This setting partitions users into two distinct camps. It fundamentally changes the "feel" of the software.

The "Sculptor" Method (Setting ON)

• Action: You draw a Running Stitch and right-click to end.
• Result: The object is immediately Selected (highlighted with nodes visible). The digitizing tool is dropped (your cursor becomes a pointer).
• Use Case: You want to draw a shape, then immediately change its color, density, or start point.




The "Production" Method (Setting OFF - Instructor Preference)

• Action: You draw a Running Stitch and right-click to end.
• Result: The object is created, but Deselected. The digitizing tool remains Active in your hand.
• Use Case: You are tracing a complex flower with 20 petals. You want to click-click-click generate, click-click-click generate, without stopping to pick up the tool again 20 times.


Expert Note (Optimization): For high-volume digitizing, I recommend keeping this OFF. It reduces mouse clicks by 50% during the drafting phase. You can always select objects later to refine them.

Make Toolbar Flyouts Faster: “Show Drop Down Menus on Hover”

The video highlights Show drop down menus on Hover.

• Enabled: Hovering over a tool with a small arrow expands the menu instantly.
• Disabled: You must physically click the tiny arrow to see options.


Checkpoint: Move your mouse over the "Run Stitch" tool. Does the flyout cascade down automatically?

Expected Outcome: Faster tool selection for steady hands; potential frustration for "twitchy" mouse users.

Watch Out: If you work on a laptop trackpad or have a high-sensitivity mouse, this can feel "jumpy," creating visual clutter as menus pop open unintentionally. If you find it distracting, turn it off. Precision beats speed.

Test Auto Scrolling (and Don’t Panic If It Fails While Recording)

Auto scrolling pans the canvas when your cursor pushes against the edge of the screen while drawing a shape.

Checkpoint: Select a drawing tool, click a point, and push your mouse to the far right edge of the workspace.

Expected Outcome: The canvas should slide (pan) to reveal more space.

Expert Note (Ergonomics): This is a wrist-saver. Without auto-scroll, you have to stop, zoom out, pan, zoom in, and resume. Over a 4-hour digitizing session, that repetitive motion adds up. If it feels glitchy, check your mouse polling rate or background apps, but keep it enabled for flow state.

The Fusion “Demo Mode” Trick: Load Only the Floriani Modules You Want (and Keep Your Workspace Clean)

The video moves to Enable Demo Mode (Fusion). This sounds counter-intuitive—why "Demo"? In Floriani land, this allows you to simulate having different software levels or modules active.

• Action: Check Enable Demo Mode > Restart.

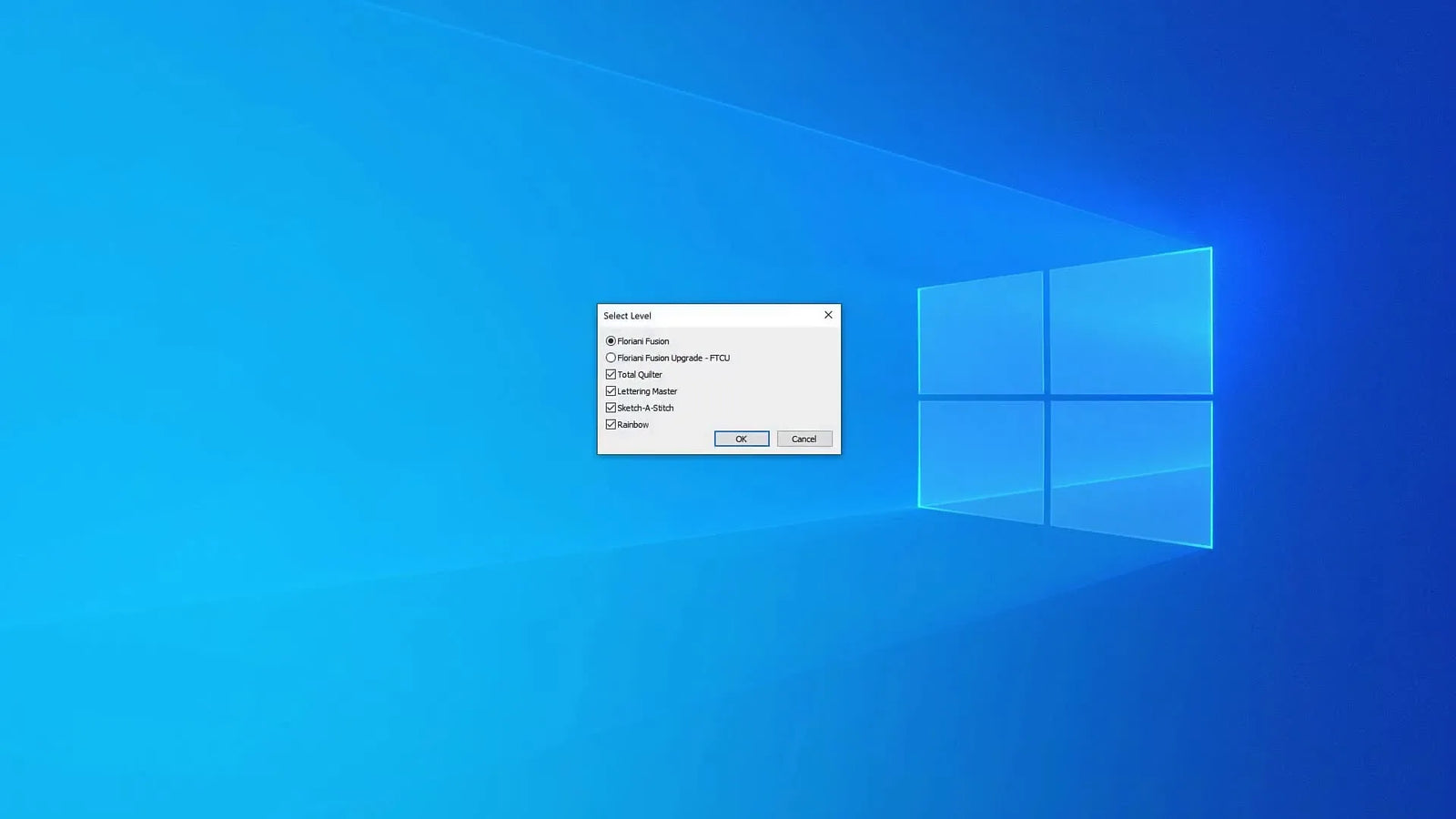

• Result: A Select My Level dialog appears on boot.








Checkpoint: You can check/uncheck modules like Total Quilter, Lettering Master, or Sketch A Stitch.

The Critical "Total Quilter" Warning: The instructor notes that loading Total Quilter can fundamentally alter how FTCU handles Start and End points. It may "optimize" them for continuous line quilting (where the needle never jumps), which is disastrous for standard embroidery digitizing where you need jumps and trims.

Expert Note (Software Hygiene): Just because you own a module doesn't mean you should load it every session. A cluttered interface with 500 icons increases cognitive load and the risk of mis-clicking. Run lean. Load only standard FTCU for 95% of your work.

Revert Back to a Lean Floriani FTCU Workspace (Uncheck Modules in Select My Level)

To clean up the mess:

1. Restart FTCU.
2. In the Select My Level box, Uncheck everything except FTCU.
3. Click OK.




Expected Outcome: Your toolbars return to the factory standard. Icons for quilting or sketching disappear. Tools behave predictably again. This "Sanity Check" is the first step in troubleshooting if your software starts behaving strangely.

The "Why" Behind These Settings: Predictability Is a Quality Control Tool

Why obsess over an auto-save timer or a ruler unit? Because in embroidery, variability is the enemy.

When your software environment is stable, your digitizing becomes muscle memory. You stop looking for buttons and start focusing on stitch angles and density. This software stability is the precursor to hardware stability.

Consider your physical workflow. If you are constantly fighting hoop burn or struggling to align logos straight, no amount of software tweaking will fix that. This is where professional shops look at their "physical preferences."

For example, inconsistent hooping is a major bottleneck. Many of our commercial clients transition to a machine embroidery hooping station to ensure every left-chest logo lands in the exact same spot, creating a physical "grid" that matches the digital one.

Similarly, if you are battling "hoop burn" (those shiny rings left on dark fabrics) or struggling to hoop thick Carhartt jackets, the solution often isn't a software setting—it's a magnetic embroidery hoop. These frames use powerful magnets to float the fabric, eliminating the friction and force that causes burn, much like how optimizing your software settings eliminates the friction in your design process.

A Practical Decision Tree: Clean FTCU vs Fusion Modules vs Hardware Upgrades

Use this logic flow to solve bottlenecks in your studio.

Decision Tree: The Efficiency Diagnosis

1. Is your software crashing or losing data?
   • Yes → Set Auto-Save to 3 mins. Check PC RAM.
   • No → Go to #2.
2. Are your start/end points moving unexpectedly?
   • Yes → Disable Total Quilter in the "Select My Level" startup.
   • No → Go to #3.
3. Are you fighting the interface (too many clicks)?
   • Yes → Turn Automatic Path Selection OFF (for batch creation) and Enable Hover Menus.
   • No → Go to #4.
4. Is your bottleneck physical (hooping takes longer than stitching)?
   • Yes → Evaluate your tooling. A magnetic embroidery frame can reduce hooping time by 40% on difficult items.
   • No → Focus on digitizing techniques (pathing and density).
5. Do you need to scale production significantly?
   • Yes → Software tweaks have diminishing returns here. Look into SEWTECH multi-needle embroidery machines to run jobs in parallel.

Setup Checklist: My “Production-Safe” Floriani FTCU Environment Tab Defaults

Configure your shop with these "Safe Mode" defaults to minimize errors.

Setup Checklist (Environment Tab):

• Units: Metric (mm) (strongly recommended for accuracy) or Inches (if you strictly follow US stabilizer recipes).
• Auto Save: 3 Minutes.
• Image Editor: Linked to your preferred software.
• Navigator: Enabled and docked.
• Auto-Select Paths: OFF (Drafting Mode) or ON (Editing Mode).
• Hover Menus: ON (unless you have a jittery mouse).
• Auto-Scroll: ON.
• Startup Mode: FTCU Only (Fusion modules unchecked).

Troubleshooting the Two Most Common “What Just Happened?” Moments

Software "gremlins" are usually just preferences working exactly as told.

Symptom 1: "My canvas won't move when I push the mouse to the edge!"

• Likely Cause: A background app (like screen recording or chat overlays) is stealing focus, or Auto-Scroll is unchecked.
• Quick Fix: Toggle F11 (Full Screen) or minimize background apps. Check the box in Environment tab.

Symptom 2: "I simply cannot find the standard Run Stitch tool!"

• Likely Cause: You are in a specific "Fusion" mode (like Sketch A Stitch) that hides standard tools to simplify the view.
• Quick Fix: Restart software, uncheck all "Demo Mode" modules, select FTCU.

The Upgrade Path (When Software Tweaks Aren’t Enough Anymore)

Once your Floriani FTCU environment is optimized, you will hit a speed limit. That limit is usually physical.

If you have standardized your auto-save and tool behaviors, but you are still missing deadlines, look at your mechanical workflow.

• The Hooping Bottleneck: If standard hoops are physically painful to use or leave marks, magnetic embroidery hoops are the industry standard for upgrading single-needle and multi-needle efficiency. They allow you to "slap and sew" without loosening screws.
• The Throughput Bottleneck: If your digitizing is fast but your machine is slow, consider the hardware leap. Moving from a flatbed to a multi-needle machine (like reliable SEWTECH solutions) allows you to stage the next hoop while the current one runs.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware they carry a pinch hazard. Keep them away from pacemakers and sensitive electronics. They are industrial tools, not toys.

Operation Checklist: A 60-Second Routine Before Every Digitizing Session

Perform this "sanity check" before starting any paid job.

Operation Checklist:

• Unit Verify: Glance at the ruler. Are you seeing mm or inches?
• Module Check: Are there extra "Quilting" icons on the toolbar? If yes, restart and strip them out.
• Zoom Test: Zoom in/out to ensure the Navigator box tracks correctly.
• Tool Behavior: Draw one line. Does the tool drop? Does that match your intention for this session?
• Auto-Save Verify: Ensure it wasn't turned "Off" during a previous troubleshooting session.

By locking down your environment, you stop fighting the software and start mastering the craft. Consistent inputs yield consistent outputs—both in your .waf files and on your embroidery machine.

FAQ

• Q: Will changing settings in Floriani FTCU Program Preferences > Environment corrupt existing embroidery design files?
  A: No—Floriani FTCU Environment settings change interface behavior (units, auto-save, tool behavior), not stitch objects or existing file density/stitch counts.
  • Confirm you are in Program Preferences > Environment (not editing object properties).
  • Change one item at a time (Units or Auto Save), then close and re-open the design.
  • Success check: Existing objects keep the same stitch look/count; only rulers, tool feel, or save timing changes.
  • If it still feels “different”: Restart Floriani FTCU and verify only FTCU is loaded at startup (no extra modules).
• Q: How do I stop Floriani FTCU rulers from showing the “wrong” scale after switching Units of Measure (Inches vs Metric)?
  A: Set Units of Measure once in Floriani FTCU Environment and verify the ruler grid updates immediately to match the choice.
  • Open Program Preferences > Environment and select Metric (mm) or Inches.
  • Re-check the workspace ruler right away after switching.
  • Success check: Metric shows millimeter-style graduations (not 1/4-inch marks); Inches shows inch-style divisions.
  • If it still fails: Close and relaunch Floriani FTCU to confirm the setting persists on startup.
• Q: What is the safest Floriani FTCU Auto Save interval to prevent data loss without making the software lag?
  A: Use 3 minutes (or 5 minutes) as a safe balance; avoid leaving Auto Save Off unless troubleshooting a crash.
  • Go to Program Preferences > Environment > Auto Save and choose 3 (or 5) minutes.
  • Manually use Save As at major milestones because Auto Save is not versioned backup.
  • Success check: A brief pause/hourglass appears at the chosen interval, and work continues normally afterward.
  • If it still fails: Increase the interval to reduce “hiccups,” especially on older PCs or very complex designs.
• Q: Why do Floriani FTCU start and end points move unexpectedly after enabling Fusion Demo Mode modules like Total Quilter?
  A: Disable extra Fusion modules—Total Quilter can change start/end point behavior to suit continuous-line quilting, which can disrupt standard embroidery digitizing.
  • Enable the Select My Level dialog (via Demo Mode) only if needed, then restart Floriani FTCU.
  • In Select My Level, uncheck everything except FTCU.
  • Success check: Toolbars return to the standard FTCU layout and start/end points behave predictably again.
  • If it still fails: Restart again and confirm no quilting/sketching icons load at startup.
• Q: In Floriani FTCU, should “Automatically Select Created Paths” be ON or OFF for fast digitizing of many objects?
  A: Turn Automatically Select Created Paths OFF for faster batch creation; turn it ON only if immediate editing after each object is the priority.
  • Set OFF to keep the digitizing tool active after finishing an object (less re-clicking tools).
  • Set ON if the workflow requires instant node editing/color/density changes after each object.
  • Success check: After right-click ending a path, OFF keeps the tool “in hand,” ON drops to pointer and shows nodes selected.
  • If it still fails: Match the setting to the session goal (drafting phase vs editing phase) and re-test by drawing one run stitch.
• Q: How do I fix Floriani FTCU Auto Scrolling when the canvas will not pan as the cursor hits the screen edge?
  A: Keep Auto-Scroll enabled and remove focus-stealing background apps—this is commonly caused by Auto-Scroll being unchecked or overlays interfering.
  • Verify Auto Scrolling is enabled in Program Preferences > Environment.
  • Minimize background overlays (screen recording, chat heads) and re-test the pan behavior.
  • Tap F11 (Full Screen) and test again to reduce interference.
  • Success check: While drawing, pushing the cursor against the workspace edge smoothly pans the canvas.
  • If it still fails: Test with a different mouse/input method to rule out device-related glitches.
• Q: What safety precautions should I follow when using magnetic embroidery hoops/frames for production speed upgrades?
  A: Treat magnetic hoops as industrial tools—avoid pinch injuries and keep magnetic hoops away from pacemakers and sensitive electronics.
  • Keep fingers clear when closing magnets; expect strong snap force.
  • Store magnetic hoops away from devices that can be affected by magnets.
  • Follow the embroidery machine and hoop manufacturer guidance for handling and placement.
  • Success check: Hooping feels controlled (no finger pinches) and the work area stays free of magnet-related incidents.
  • If it still fails: Pause use and switch back to standard hoops until safe handling and storage are fully in place.
