Floriani FTCU Cloud Word Art (High Heel Template): Edit Text, Fonts, and Colors Online—Then Export WAF to PES Without Losing Your Work

The Floriani Cloud Workflow: From Browser to Stitch Without the Headache

First, Breathe: Floriani FTCU Cloud Word Art Won’t “Trap” Your Design—If You Respect the WAF Workflow

If you have ever edited a design in a web browser only to scream, "Where did my file go?" you are not alone. The Floriani Total Control Universe (FTCU) Cloud is a powerful tool, but it operates on a strict logic that beginners often miss: The Cloud creates a Working File (.WAF) first; your machine needs a Stitch File (PES/DST) later.

Think of the .WAF file as your digital negative—it contains all the editable DNA of your design. The machine file is just the printed photo. If you lose the negative, you can never change the fonts or colors again.

In this guide, based on Kathy Quinn’s methodology, we will walk through a clean, repeatable workflow:

1. Access: Log into MyFloriani.Club.
2. Create: Edit Word Art templates in the browser.
3. Preserve: Save as a .WAF master file.
4. Convert: Open in desktop software to generate the machine language.

Mastering this protects you from the "version nightmare" where you stitch the wrong edit on a $20 garment.

MyFloriani.Club Login: The One Gate That Stops Most Beginners Cold

Kathy starts at the MyFloriani.Club portal. This is a gated community—you must have a registered Floriani software serial number to enter.

Troubleshooting Access:

• Browser Cache: If the login page loops, clear your browser cache (Ctrl+F5).
• Credentials: Your Club login may differ from your software activation key. Ensure you are using the email registered to your account.

If you can't pass this gate, do not proceed to design planning. Solve the access issue first.

The “Hidden” Prep Before You Click Anything (So You Don’t Lose Files Later)

Amateurs rush to the design; professionals prepare the environment. Before you open a single template, take 60 seconds to "sanitize" your workspace. This prevents file loss and confusion.

Prep Checklist (do this before entering the Cloud):

• Connectivity Check: Ensure your internet is stable (Cloud features require active data).
• Destination Folder: Create a folder on your desktop named [Year]-[Month]-Floriani_Projects. Do not dump files into "Downloads."
• USB Hygiene: Insert your USB drive now. Check that it is formatted (FAT32 is standard for most machines) and free of debris.
• Hidden Consumables: Have your thread chart and a notepad ready. You will need to record the exact font names you use.
• Naming Convention: Decide on a naming rule. Example: ProjectName_HoopSize_v1.WAF.


Enter the Total Control Universe Cloud: Click the Cloud Icon and Expect a Second Login

From the dashboard, click the Cloud Icon. It is common for the system to request a second login verification. This is a security feature, not a glitch. Enter your credentials again without panic.

• Sensory Check: You should see the interface load with a grid of options. If the screen hangs on a white page for more than 30 seconds, refresh the browser.


Word Art Templates in the “New” Category: Find the High Heel Design Without Hunting for Hours

Navigate to the "New" category in the dropdown menu. Kathy selects the High Heel Word Art template.

Critical Size Note: The High Heel design often comes in distinct sizes.

• Visual Check: Look at the dimensions displayed on the screen before you edit.
• Hoop Math: If the design height is 7.89", it will not fit a standard 5x7 hoop. You need an 8x12 hoop or larger. Do not assume you can shrink a text-heavy design by 20% later without ruining the lettering quality.

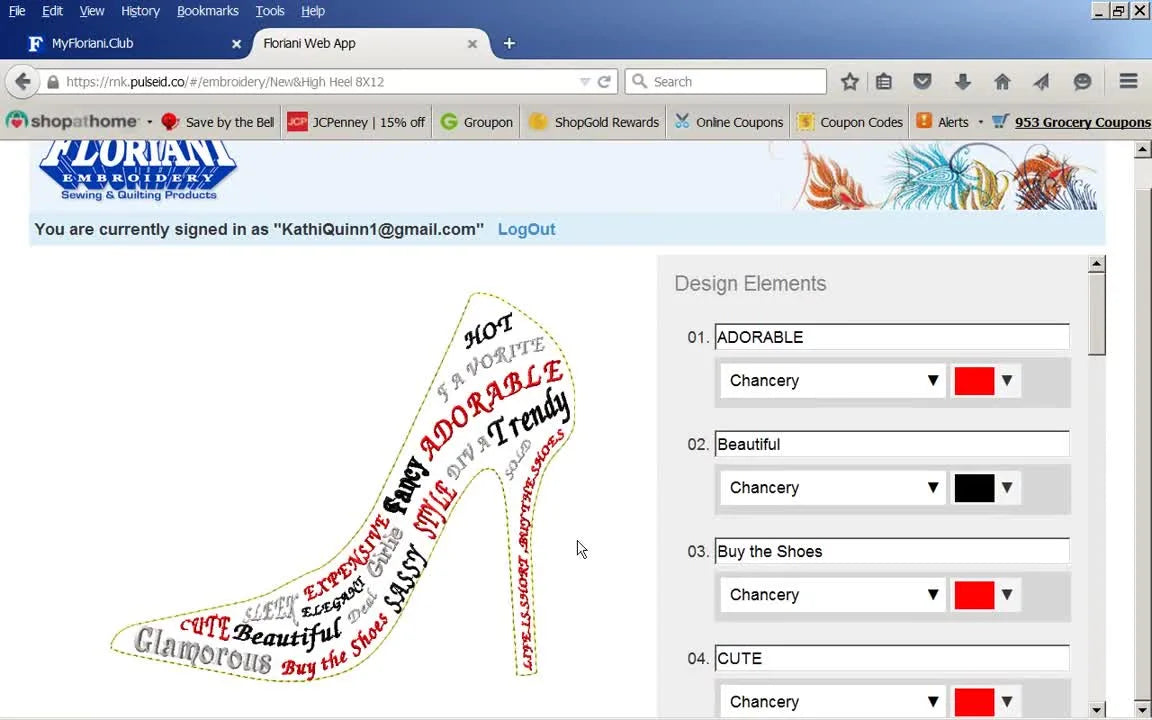

Editing the High Heel Word Art: Change “Buy the shoes” to “Try the shoes” (and Make It Bold)

The power of Word Art is that the image is built from text. You aren't just changing a caption; you are restructuring the graphic.

The Process:

1. Select: Click the line "Buy the shoes" in the properties panel.
2. Edit: Type "Try the shoes".
3. Refine: Change the font. Kathy switches from Chancery to Billboard.

Expert Insight: When you type new text, watch the character spacing. If the letters touch, they may overlap when stitched, creating a "birdnest" of thread. Ensure there is visible daylight between characters.

The “Why” Behind Font Choices (So Your Word Art Stitches Cleanly)

Kathy's switch to Billboard (a blocky, bold font) over Chancery (a thin script) is a masterstroke for reliability.

The Physics of Embroidery Fonts:

• Thin Fonts (Risk): Delicate scripts often have columns narrower than 1mm. On knits or pile fabrics (like towels), these stitches sink into the texture and disappear.
• Bold Fonts (Safe): Fonts like Billboard provide a sturdy "platform" of thread. They sit on top of the fabric and remain legible.

Guideline: If you are stitching on anything with texture (pique, fleece, terry), avoid serif or thin script fonts. Stick to bold sans-serifs or thick structural scripts. If you must stitch small, use Floriani’s "Micro Fonts" (specifically engineered for 3mm-6mm heights) rather than shrinking a standard font.

Color Palette Control in Floriani Cloud: Swap to Floriani Poly and Make the Message Pop

Kathy selects the Floriani Poly palette. This ensures the colors on screen match the physical thread cones you likely own.

• Visual Anchor: Don't trust your monitor 100%. Use the thread code (e.g., PF0800) and hold the physical cone against your fabric to verify contrast.
• Contrast Rule: Text needs high contrast. If your fabric is dark, go 3 shades lighter than you think you need.


Setup Checklist (before you save): make sure the design is “export-ready”

You are about to freeze your design into a file. Perform this "Pre-Flight Check" to ensure you don't bake in a mistake.

Setup Checklist (right before saving to WAF):

• Spelling Check: Read every word backward. (Our brains often auto-correct typos when reading forward).
• Hoop Constraint: Does the final size (W 5.44" x H 7.89") fit your actual available hoops?
• Font Verify: Did you unintentionally use a thin font on a design meant for a fluffy towel?
• Version Control: Append _v1 to your filename. Never overwrite your only copy.


Saving to WAF in the Cloud: The Working File That Protects Your Editability

Kathy clicks "Save to WAF".

Concept: WAF = Editable Source Code. If you save only as DST/PES, the text turns into "dumb stitches." You can no longer backspace to fix a typo; you have to delete the stitches and start over. Always save the WAF.

“Open With” vs “Save File”: Choose Based on Where You’re Sitting (Computer vs iPad)

The browser gives you two choices based on your device:

1. Computer: Select "Open With... Floriani Total Control". This seamlessly launches your desktop software with the design loaded.
2. Mobile/Tablet: Select "Save File". This allows you to save the WAF to a cloud drive (Dropbox, Google Drive) to access later on your PC.

Key Takeaway: You cannot send a file from an iPad directly to an embroidery machine via USB in most setups. You need the PC as the bridge.

Warning: Safety First. When moving between computer planning and machine operation, never place your fingers near the needle bar while the machine is active. A distraction caused by a "bad file" can lead to injury if you try to adjust a hoop while the machine is running.

Moving a WAF from iPad to PC: The Clean Transfer Path Kathy Recommends

For the mobile designer:

1. Save the WAF on the iPad to a shared cloud folder (e.g., iCloud Drive).
2. Open that folder on your Production PC.
3. Launch FTCU on the desktop and open the WAF.

This workflow allows you to design while waiting in the car, yet maintain the powerful export capabilities of the desktop station.

Desktop FTCU Export: File > Save As to PES, DST, JEF (Whatever Your Machine Needs)

Now that the design is in the desktop software, you convert it for the machine. Go to File > Save As.

• Brother/Baby Lock: Select .PES
• Janome: Select .JEF
• Commercial/Multi-Needle (SEWTECH/Tajima): Select .DST

Note on DST: DST files do not save color information. The machine will see "Stop 1, Stop 2." You must print a color worksheet to know which spool to put on which needle.

Operation Checklist (after export): prevent the “wrong file on the USB” disaster

Operation Checklist (after you Save As the machine file):

• File Extension: Verify you exported the machine format (e.g., .PES), not another .WAF.
• Drive Check: Ensure you saved to the root directory of the USB drive (or a strictly named folder). Some machines cannot read deep sub-folders.
• Clean Up: Eject the USB drive safely from Windows/Mac. Yanking the drive can corrupt the file header, causing the machine to crash or skip stitches.
• Machine Verify: Plug into the machine. Load the file. Check the stitch count. Does it match the software? If it says "0 stitches," the file is corrupt.

The Size Reality Check: High Heel Word Art Dimensions and Hoop Planning

Kathy notes the design is 5.44" x 7.89".

The Trap: A standard "5x7" hoop usually has a sewing field of exactly 5x7 inches (approx 130x180mm). This design will not fit.

• Solution 1: Use a larger hoop (e.g., 6x10 or 8x12).
• Solution 2: Scale down in software (risky for text integrity).

Production Reality: If you are forcing a large design into a barely-there hoop, you risk needle strikes on the frame. Always leave a 10mm safety margin.

Picking Other Cloud Categories (Sports, Occasions, Baby): Same Editing Logic, Faster Results

The logic applies everywhere. Whether it is a football helmet or a baby onesie, the Cloud allows you to customize templates.

• Commercial Value: Customization is the highest margin service. Taking a stock "Football Mom" design and adding "Jersey #12" takes 2 minutes in the Cloud but adds $10 to the retail price.

A Practical Decision Tree: Stabilizer + Hooping Choices for Word Art (So Letters Stay Crisp)

Software is only half the battle. Word Art is dense. If your stabilization fails, the letters will warp into illegible squiggles.

Decision Tree: Consumables & Hooping

1. Is the fabric stretchy (T-shirt, Performance Knit)?
   • Yes: Must use Cutaway Stabilizer. (No tearaway). Spray with temporary adhesive (like 505) to bond fabric to stabilizer.
   • No: Proceed to step 2.
2. Is the fabric textured (Pique, Towel, Velvet)?
   • Yes: Use a Water Soluble Topper (Solvy) to keep stitches sitting high. Use a Medium Tearaway or Cutaway backing.
   • No: Standard backing apply.
3. Is the hooping process causing "Hoop Burn" (shiny rings)?
   • Yes: This is a mechanical pressure issue. Terms like magnetic embroidery hoop are your gateway to solving this. These frames use magnetic force rather than friction to hold fabric, eliminating the burn marks that ruin velvet and dark cottons.
   • No: Verify tension is "taut like a drum skin," not stretched.

Warning: Magnet Safety. Powerful magnetic embroidery frame systems use industrial-strength neodymium magnets. They represent a severe pinch hazard. Keep fingers clear when snapping them shut. Individuals with pacemakers should maintain a safe distance as recommended by the manufacturer.

The Hooping Bottleneck Nobody Talks About: When Word Art Turns Into Production

If you are doing a single "High Heel" tote bag for a friend, a standard plastic hoop is fine. But if you have an order for 20 bags, standard hooping becomes a nightmare of wrist fatigue and alignment errors.

The Production Threshold: If you spend more than 2 minutes hooping a garment that takes 5 minutes to stitch, your business is losing money.

The Upgrade Path:

• Level 1 (Better Tools): Use a embroidery hooping station to guarantee the design lands in the exact same spot on every shirt (e.g., 3 inches down from the collar).
• Level 2 (Better Frames): Switch to machine embroidery hoops that utilize magnets. A magnetic embroidery hoop allows you to "slap and go," drastically reducing setup time on thick items like Carhartt jackets or towels where plastic hoops pop open.
• Level 3 (Scaling Up): For high-volume repeats, look for a hoop master embroidery hooping station style setup compatible with your machine. Consistency creates repeat customers.

The “Why It Went Wrong” Corner: Common Word Art Stitch Issues and How to Prevent Them

Even with perfect software files, physics can ruin the day.

The Upgrade Result: Faster Design Creation Is Great—But Faster Hooping Is What Makes You Money

Kathy’s Cloud workflow solves the software bottleneck—you can design anywhere. But to turn that design into a profitable product, you must solve the hardware bottleneck.

By combining the editable intelligence of .WAF files with efficient physical tools like hooping station for machine embroidery setups and proper stabilization, you transform from a hobbyist who struggles with every shirt into a producer who delivers perfect results, repeatably.

Remember: The software creates the potential; the stabilizer and hoop deliver the reality.

FAQ

• Q: In Floriani FTCU Cloud Word Art, why does the download give a .WAF file instead of a PES/DST stitch file for an embroidery machine?
  A: This is normal—the Floriani FTCU Cloud saves a .WAF working file first, and the embroidery machine file (PES/DST/JEF) must be created later in desktop FTCU.
  • Save: Click Save to WAF in the Cloud to preserve editability (fonts, spacing, colors).
  • Convert: Open the WAF in Floriani Total Control (desktop), then use File > Save As to export PES/DST/JEF.
  • Label: Add version text like _v1 so the correct edit is always traceable.
  • Success check: The USB contains a file ending in .PES / .DST / .JEF (not .WAF) and the machine shows a real stitch count (not “0 stitches”).
  • If it still fails… Re-export from desktop FTCU and safely eject the USB to avoid file header corruption.
• Q: On MyFloriani.Club, why does the Floriani FTCU Cloud login loop or ask for a second login when clicking the Cloud icon?
  A: A second login prompt can be normal security behavior, and a looping login is often a browser cache issue.
  • Refresh: Do a hard refresh (Ctrl+F5) and try again.
  • Clear: Clear browser cache if the page keeps looping back to login.
  • Verify: Use the email/credentials registered to the Club account (this may differ from the software activation key).
  • Success check: The Cloud interface loads to a grid/options screen instead of a white page or repeated login screen.
  • If it still fails… Stop and resolve access first before editing templates, because file saving and exporting will not be reliable without a stable login.
• Q: In Floriani Word Art (High Heel template), how can changing text create overlapping letters and “birdnest” thread issues during stitching?
  A: Overlaps often start in the software—tight character spacing in Floriani Word Art can turn into dense, tangled stitches on the machine.
  • Watch: After typing new text (e.g., “Try the shoes”), visually check for “daylight” between characters.
  • Switch: Choose a bolder, more stable font (e.g., Billboard) if the script font crowds or thins out.
  • Re-check: Confirm the edited line didn’t compress or collide with surrounding elements.
  • Success check: Letters look clearly separated on-screen and the stitched sample does not form thread nests at letter joins.
  • If it still fails… Re-thread the machine completely and confirm the presser foot is UP while threading so thread seats in the tension discs.
• Q: Floriani High Heel Word Art size is 5.44" x 7.89"—why will it not fit a standard 5x7 embroidery hoop, and what is the safest fix?
  A: A standard 5x7 hoop sewing field is about 5x7 inches, so a 7.89" height will exceed it; the safest fix is using a larger hoop rather than forcing a tight fit.
  • Check: Read the on-screen dimensions before editing and again before saving/exporting.
  • Choose: Use a larger hoop (e.g., 6x10 or 8x12) instead of squeezing it into 5x7.
  • Protect: Leave a safety margin (a safe starting point is about 10 mm) to reduce frame strikes.
  • Success check: The design preview sits fully inside the hoop boundary with visible margin and no “out of bounds” warning behavior.
  • If it still fails… Scale down in software cautiously (text-heavy designs may lose quality when reduced).
• Q: In Floriani FTCU Cloud Word Art, what stabilizer setup prevents warped or illegible letters on stretchy knits and textured towels?
  A: Match stabilizer to fabric first—dense Word Art needs firm support, and textured fabrics often need a topper to keep stitches from sinking.
  • Use: On stretchy T-shirts/performance knits, choose cutaway stabilizer (not tearaway) and add temporary adhesive spray to bond fabric to backing.
  • Add: On towels/pique/velvet, place a water-soluble topper on top, plus appropriate backing (medium tearaway or cutaway depending on stretch).
  • Record: Keep a thread chart/notepad handy so color and font choices stay consistent from test to production.
  • Success check: Letter edges stitch crisp without waviness, and small details remain readable instead of sinking into the nap.
  • If it still fails… Re-evaluate font choice (avoid thin scripts on texture) and confirm hooping is taut but not stretched.
• Q: During machine embroidery setup, how can thread looping on top or white bobbin showing on top be fixed without changing design settings?
  A: Start with the fastest mechanical reset—re-threading and cleaning—because many “tension problems” are actually threading or lint issues.
  • Re-thread: Completely re-thread the top path and make sure the presser foot is UP while threading so thread enters the tension discs.
  • Clean: Clean lint from the bobbin case area before making tension judgments.
  • Observe: If white bobbin shows on top, treat it as a tension balance/cleanliness check before editing the design.
  • Success check: Stitches look balanced—no top loops, and bobbin thread is not pulled to the surface across large areas.
  • If it still fails… Verify the thread is correctly seated in the tension path and consider checking the machine manual for tension specs for the chosen thread type.
• Q: What safety steps prevent injury when moving a Floriani FTCU Cloud design from computer planning to running an embroidery machine, and what is the magnetic hoop pinch hazard?
  A: Keep hands away from the needle area during operation, and treat magnetic frames as industrial pinch points.
  • Stop: Never place fingers near the needle bar while the machine is active—pause/stop before adjusting hoop or fabric.
  • Handle: When closing a magnetic embroidery frame, keep fingertips out of the closing path; magnets can snap shut suddenly.
  • Separate: Keep strong magnets away from individuals with pacemakers per manufacturer guidance.
  • Success check: Adjustments are made only when the machine is stopped, and the hoop/frame closes without catching fabric or pinching skin.
  • If it still fails… Slow the process down—most accidents happen when troubleshooting a “bad file” while the machine is still running.
• Q: For production orders of Floriani Word Art (e.g., 20 tote bags), when should the workflow upgrade from standard hoops to a hooping station, magnetic hoop, or a multi-needle machine?
  A: Use time as the trigger—if hooping takes more than 2 minutes for a job that stitches in about 5 minutes, hooping is the bottleneck and an upgrade is justified.
  • Level 1: Add an embroidery hooping station to improve placement consistency and reduce alignment redo.
  • Level 2: Switch to a magnetic hoop to reduce hoop burn and speed thick-item hooping that makes plastic hoops pop open.
  • Level 3: Consider a multi-needle machine when repeat volume demands faster changeovers and consistent output.
  • Success check: Hooping time drops measurably and placement becomes repeatable without re-hooping due to drift or marks.
  • If it still fails… Re-check stabilizer choice and hoop size planning first—tool upgrades work best when the foundation setup is correct.
