If you’ve ever built a motif fill that looked perfect in preview—then stitched like a tangled “spirograph” mess—you’re not alone. The good news: in Floriani Total Control U (FTCU) Build 3749, the difference between “cute and sellable” and “what happened to my design?” is usually just a simple set of logical decisions you make before you ever hit Save.

In this FTCU Club lesson (Feb 2021), Jeff Vogel demonstrates a clean workflow: take an online image (a four-leaf clover), convert it to vector artwork, save it as a reusable Custom Shape, then convert the stitched outline into a Motif Fill pattern you can apply to larger shapes—finished with a satin-style border.

But as any veteran embroiderer knows, software is only half the battle. The best digitizing in the world won't save you if your hooping technique is loose or your stabilizer is weak. We are going to walk through Jeff's digital process, but we will also layer in the physical production realities—the "shop floor" secrets—that ensure your machine runs these motifs smoothly without bird-nesting or breaking needles.

The Calm-Down Primer: What Machine Is This For, and What’s Actually Being Taught?

A viewer asked, “Of which machine are you speaking?” That’s a fair question—because Jeff is teaching digitizing inside software, not a specific embroidery machine model.

This lesson is about building assets in Floriani Total Control U (FTCU) Build 3749—Custom Shapes and Motif Fills—so you can export and stitch them on whatever embroidery machine you own. Whether you run bernina embroidery machines, a Brother single-needle, or a commercial multi-needle workhorse, the software logic here stays the same. Your stitch-out success will depend more on stabilization, hooping tension, and sensible density than on the brand logo on your machine head.

What you’re learning here is a high-leve production skill: once you save a clean motif pattern, you can reuse it across dozens of designs without digitizing from scratch. Think of it as building your own library of "digital rubber stamps."

Pick the Right Image First: Auto Artwork Wizard Rewards High Contrast (and Punishes “Pretty”)

Jeff’s first “old hand” tip is simple: start with an image that the wizard can understand.

He notes that icons that are almost all black on a light/white background convert cleanly. The clover used in class is harder (green fill with a black outline), but still workable.

Why this matters (Expert Reality Check): Auto-conversion is basically edge detection plus simplification. When the image has soft gradients, fuzzy edges, or multiple similar tones (like light green next to dark green), the wizard tends to panic. It creates hundreds of extra tiny vector segments (nodes).

• The Trap: Those extra nodes become extra stitch travel points later.
• The Consequence: Your machine will sound like a jackhammer, accelerating and decelerating for tiny movements, creating the dreaded "bullet hole" effect in your fabric and leading to thread breaks.

If you’re building a library of motifs for repeat use, treat image selection like sourcing raw material: the cleaner the input, the less cleanup (and machine wear) you’ll pay for later.

The “4-Inch Rule” in Auto Artwork Wizard: Resize Early So Your Vector Stays Manageable

Inside Auto Artwork Wizard, Jeff imports the image and immediately sets the Image Height to 4.00 inches.

That one move does two things:

1. Cognitive Load: It keeps the resulting vector at a practical scale for your eyes to edit.
2. Node Control: It reduces the chance you’ll end up with a huge, overly-detailed vector that’s painful to clean.

He then proceeds through the wizard with a simpler color selection approach (deselecting two colors rather than keeping all three), and he doesn’t change tolerance settings in this demonstration.

Expected outcome at this stage: You should see the clover artwork converted into vector-style artwork on the grid.

Prep Checklist (Do this *before* you convert anything)

• Software Version: Confirm you’re working in FTCU Build 3749 (or your latest installed build).
• Image Audit: Choose an image with high contrast; reject gradients or fuzzy JPEGs.
• Scale Strategy: Decide your target size now (Jeff uses 4.00" height on import).
• File Hygiene: Create a dedicated folder for source images and a naming system (e.g., Motifs_Nature_01) so you don’t overwrite your own library.
• Hidden Consumable: Have a water-soluble marking pen ready to mark the center of your test fabric—motifs are unforgiving if they aren't centered.

Save a Clean Outline as a Custom Shape: Deselect Fill, Then “Save Custom Shape”

After the wizard produces artwork, Jeff deselects the Fill box so he’s left with a clean outline. This is crucial—we want the path, not a block of density. Then he selects the vector object and saves it:

• Go to Tools
• Choose Save Custom Shape
• Name it carefully (Jeff uses “clover9” because he has multiple versions)
• Save it into the Custom Shapes library

This is the moment you’re building a reusable asset. A Custom Shape is valuable even before it becomes a motif—because you can reuse it for appliqué die-lines, placement stitches, or basting boxes later.

Pro tip: Don’t casually reuse names. Jeff warns that naming something the same as an existing item can create confusion later. Use version numbers (v1, v2) or dates.

Turn the Shape into Stitches Without Getting Fooled by Background Artwork

Next, Jeff applies stitches to the outline:

• Select the outline.
• Apply a Run Stitch (he demonstrates adding a run stitch around the shape).

Then he does a critical visibility move: he turns off the artwork layer using the eyeball icon so the background artwork doesn’t distract or interfere with stitch selection.

Sensory Check: This feels minor until it ruins your day. When you use the "Lasso" tool to select stitches, your brain will try to follow the colorful artwork. By hiding the artwork, you force yourself to look only at the stitch path.

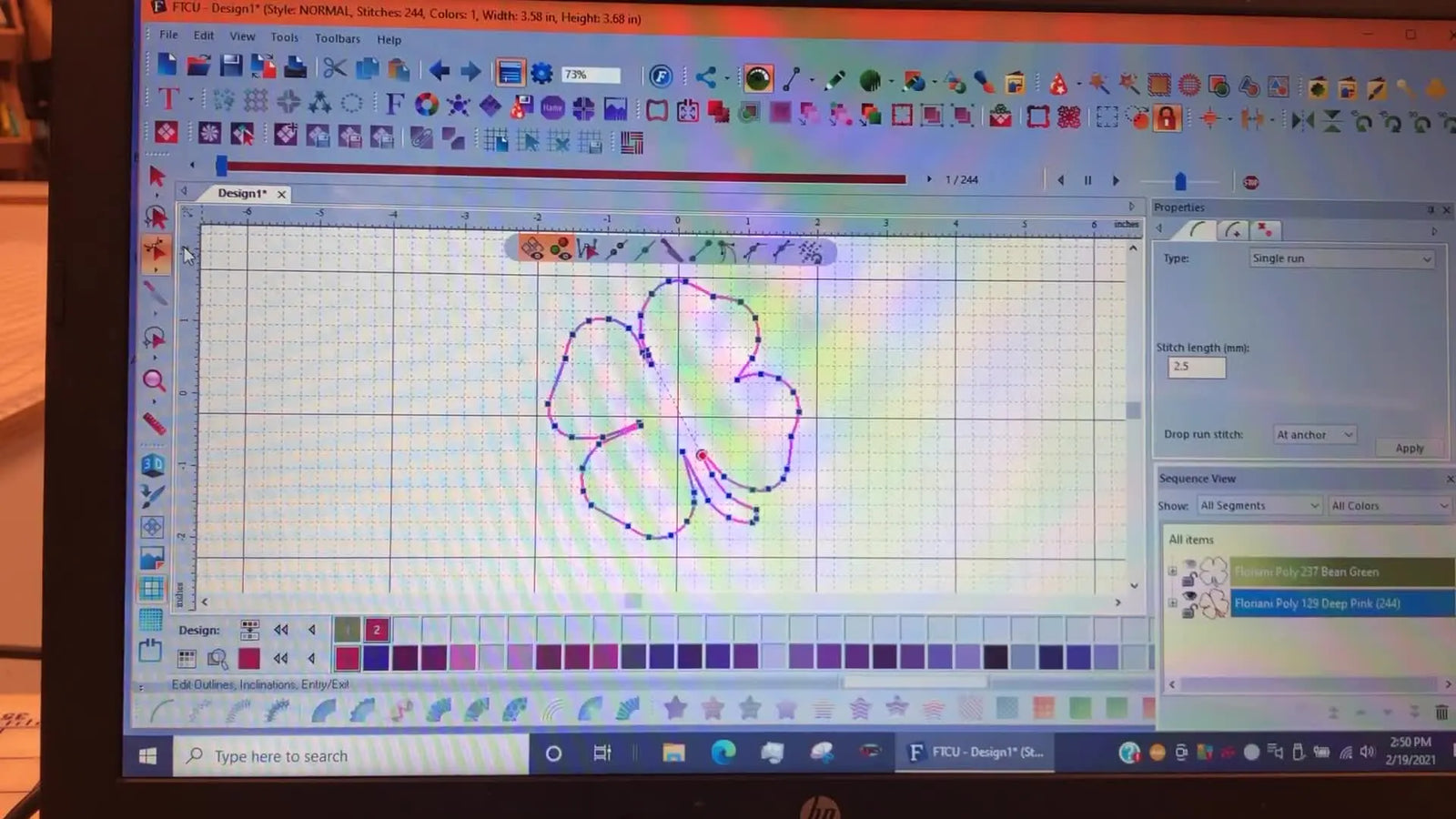

Expected outcome: You should see the run stitches clearly on the grid with the artwork hidden. It should look like a skeletal drawing.

The Selection That Makes or Breaks Motif Creation: Lasso Only the Stitches You Want to Repeat

Jeff uses the stitch tool and the Lasso selection to select the stitches that will become the motif.

This is where many intermediate digitizers accidentally include:

• Stray travel stitches (the thin lines connecting objects).
• Tiny “junk” segments created by auto-vector conversion.
• Overlapping lines that don’t matter for a single outline but become chaos when tiled.

Jeff mentions there are “funny stitches” and that if you’re particular, you’d erase extra stitches—but he doesn’t go into that cleanup in this class.

Expert Production Note: If you plan to sell designs or run production on these files, you must be particular. A motif fill repeats your mistakes hundreds of times. If there is a tiny 1mm jump stitch in your motif, your machine will trim or jump hundreds of times in a 4x4 fill. That adds massive time to your production run. Clean it up now.

Setup Checklist (Before you touch the start/stop nodes)

• Stitch Type: Confirm the outline is a Run Stitch (standard length 2.5mm - 3.0mm).
• Visual Isolation: Hide the artwork layer (eyeball off) so you’re judging stitches, not pixels.
• Zoom Inspection: Zoom in to 400% and scan for "floaters" (stray segments).
• Lasso Precision: Lasso-select only the stitches that should repeat.
• Travel Check: If you see a straight line cutting through the middle of your pretty shape, deselect it or delete it.

The “Right for Red” Ritual: Set Start/Stop Nodes So the Motif Tiles Seamlessly

This is the heart of the lesson and the #1 reason for "bad" motifs.

Jeff opens the logic controls using the Shape Tool (node editor). He then moves:

• The Green dot (Start) to the far left.
• The Red dot (Stop) to the far right.

His memory hook: “Right for Red.” Left is the beginning.

The Physics of the Machine: Why does this matter? A motif fill is a tiling pattern. The software needs to know: "Where does one clover end and the next start?" If the Green is on top and Red is on the bottom, the machine will stitch down, then have to "jump" back up to stitch the next clover beside it. This creates ugly travel lines or drag threads. By forcing Left-to-Right, you mimic the natural movement of the pantograph, ensuring a continuous, flowing line of stitching.

Warning: Mechanical Hazard. When testing dense motif fills, keep your fingers clear of the needle zone. If a motif is poorly digitized (causing the machine to stitch in one spot repeatedly), the thread can build up, deflect the needle, and cause it to shatter. Always watch the first few repeats at 50% speed.

Save the Motif Pattern in Motif Pattern Editor (and Name It Like You’ll Need It Next Month)

With stitches selected and start/stop nodes set, Jeff goes to:

• Tools → Motif Pattern Editor
• Save Motif Pattern
• Names it (he uses “clover nine”)

He notes two practical points:

1. It can take a little while for the software to process the save.
2. Sloppy naming leads to lost files.

If you’re building a motif library for a studio, treat naming like inventory control. A good pattern name includes a visual cue and a version. Example: Clover_3Leaf_Open_v1.

Apply the New Motif Fill to a 4" x 4" Shape and Tune Motif Height (11 mm in the Demo)

Jeff creates a target shape and sets it to 4.00 x 4.00 inches. Then:

• Changes the fill type to Motif.
• Selects the newly created clover motif.
• Sets Motif Height to 11 mm.
• Applies it to evaluate density and appearance.

Sensory Sweet Spot: Jeff uses 11mm. For most standard 40wt embroidery thread, 8mm to 12mm is a "safe zone" for motifs.

• Too Small (<6mm): The motif turns into a blob of thread.
• Too Large (>20mm): The pattern becomes too sparse and fails to cover the fabric, making it look cheap.

If the motif doesn’t read clearly, Jeff shows the practical reality: sometimes the motif you just made isn’t the best version. He swaps to a clover motif he made earlier, and the result instantly improves.

When Motif Fills Go Ugly: The “Spirograph” Symptom and the Two Fixes That Actually Work

Jeff calls out the classic failure mode: some motifs “turn out like a spirograph” where you can’t even tell what they’re doing.

Symptom: The fill looks like a child scribbled on the fabric. You see loops, crossing lines, and zero definition.

Most Likely Causes (Diagnostics):

1. Dirty Vectors: Extra vector lines or double-stitched segments inside the original shape.
2. Bad Logic: Start/Stop points are vertical or diagonal, forcing the software to create "bridge" stitches between repeats.

The Fix:

• Software Level: Go back to the vector art. Erase everything except the single outline.
• Logic Level: Ensure Green is Left, Red is Right. They must be parallel on the horizontal axis.


Add a Matching Border: Duplicate the Custom Shape and Finish with a Satin-Style Edge

To finish the design, Jeff adds a border so “the whole thing is the same.” He:

• Goes back to Custom Shapes.
• Selects the same clover shape.
• Rotates it to fit on top of the filled shape.
• Deselects fill and applies so it duplicates right on top.
• Makes a Steel (Steil) / Satin Run style border.

The Danger Zone: This border step is where stitch-out quality becomes very sensitive. A Motif Fill pulls the fabric inward as it stitches. A Satin Border tries to outline that shape. If your stabilization is weak, the fabric will shrink during the fill, and the border will miss the edge, leaving a gap (white fabric showing). This is called a "registration error."

The “Hidden” Stitch-Out Prep Nobody Mentions: Stabilizer + Hooping Decide Whether Your Motif Looks Premium

The video focuses on digitizing, but your customers judge the physical stitch-out. Dense motif fills plus a satin border place massive stress on the fabric.

The Problem: Traditional hoop rings require you to pull the fabric tight (like a drum skin). However, pulling too tight distorts the weave. When you unhoop, the fabric relaxes, and your nice clover shape puckers. If you don't pull tight enough, the fabric slips, and the border doesn't line up.

The Solution Ladder:

1. Stabilizer: Use a Cutaway stabilizer for anything with this much stitch count, even on stable cotton. It acts as a permanent foundation.
2. Hooping: This is where tools matter. If you are struggling to keep even tension without "hoop burn" (those shiny ring marks that ruin delicate items), many pros switch to magnetic embroidery hoops.
   • Unlike friction hoops, magnetic frames clamp straight down. They hold fabric firmly without dragging or distorting the fibers.
   • This reduction in fabric distortion often fixes the "gap" between the fill and the border.

Warning: Magnetic Safety. Powerful magnetic frames can pinch fingers severely. If you have a pacemaker or implanted medical device, check with your doctor before using high-strength magnetic hoops. Always store them with the spacers provided to prevent them from snapping together dangerously.

A Simple Stabilizer Decision Tree for Motif Fills (Use This Before You Blame the Software)

Use this logic to avoid the "puckered mess" result.

Decision Tree (Fabric + Motif → Stabilizer):

1. Is the fabric stable woven (denim, canvas, heavy cotton)?
   • Yes: One layer of medium Tear-away is usually fine IF the motif is open/airy.
   • No: Go to step 2.
2. Is the fabric a knit (T-shirt, Polo) or does the motif have a heavy Satin Border?
   • Yes: You MUST use Cutaway (2.5oz or 3.0oz). A motif fill will chew a hole in a tear-away stabilizer, causing the design to drift.
   • No: Go to step 3.
3. Is the fabric delicate or slippery (Silk, Rayon)?
   • Yes: Use No-Show Mesh (Polymesh) cutaway to keep it soft, but float a layer of tear-away underneath for stiffness during the actual stitching.
   • No: Proceed with standard medium weight stabilizer.

Production Reality: If Hooping Is Your Bottleneck, Fix the Workflow (Not Your Hands)

Digitizing skill is only half the business. The other half is repeatability.

If you’re doing one-off gifts, you can tolerate slow hooping. If you’re doing 25 logo patches or left-chest motifs, you can't afford to wrestle with screw-tightened hoops for 5 minutes per shirt.

Symptoms of a Broken Workflow:

• Inconsistent hoop tension (Shirt #1 is tight, Shirt #5 is loose).
• Crooked placement (The motif looks tilted).
• Physical pain (Sore wrists from tightening hoop screws).

This is where professional tools like hooping stations or a specific machine embroidery hooping station pay for themselves. They standardize the placement so every clover lands in the exact same spot.

If you are currently doing hooping for embroidery machine projects by "eyeballing it" on a table, you are losing money on labor. Pairing a station with a magnetic embroidery hoop changes the game from "wrestling" to "clicking." It turns a 3-minute struggle into a 30-second latch.

The Upgrade Path I’d Recommend After This Lesson (So Your Motifs Actually Make Money)

Once you can reliably create/save motifs in FTCU, the challenge becomes efficiency.

The "Get Serious" Ladder:

1. Level 1 (Software): Master the "Right for Red" node logic to prevent thread breaks.
2. Level 2 (Consumables): Upgrade to quality threads and specific stabilizers (don't use the cheap starter pack stuff).
3. Level 3 (Frames): Switch to Magnetic Hoops to eliminate hoop burn and speed up the "load/unload" cycle.
4. Level 4 (Hardware): If you find you are turning away orders because your single-needle machine is too slow, look at the ecosystem of SEWTECH multi-needle machines. A dedicated multi-needle machine allows you to set up the next run while the current one stitches, doubling your throughput.


Operation Checklist (Your first stitch-out of a new motif fill)

• Test Drive: Stitch a test on muslin/cotton first (never the distinct customer garment).
• Auditory Check: Listen to the machine. A consistent "hum" is good. A rhythmic "thump-thump" means the machine is fighting drag—check your stitch density.
• Visual Travel Check: Watch the first few motif repeats. If you see long jump threads, Stop. Go back to FTCU and fix the Start/Stop nodes.
• Scale Response: If the motif looks like a blob, increase Motif Height in software (try 12mm or 14mm).
• Border Alignment: Add the border last. If there is a gap between fill and border, check your stabilization (you likely need cutaway).


One Last “Rabbit Hole” Tip: Build a Motif Library on Purpose, Not by Accident

Jeff says it best: once you start pulling icons from the internet and running them through the wizard, it becomes a rabbit hole.

Make it a profitable rabbit hole:

1. Curate: Save only the motifs that stitch cleanly. Delete the failures.
2. Document: Keep a physical binder with a stitch-out of your Custom Shapes. Write the settings (Height: 11mm, Density: 0.45) next to the sample.
3. Backup: Export your Custom Shape library to a cloud drive or USB stick.

That’s how you turn a fun afternoon of "playing with software" into a professional asset library that serves your business for years. Now, go create something beautiful—and stable!

FAQ

• Q: Which embroidery machine models can stitch Floriani Total Control U (FTCU) Build 3749 Motif Fill designs exported from Custom Shapes?
  A: Any embroidery machine that can read your chosen export format can stitch FTCU Build 3749 motif fills; the stitch-out result depends more on stabilization, hooping tension, and sensible density than on the machine brand.
  • Export: Save the motif fill in FTCU, then export in the file type your machine uses.
  • Stabilize: Choose stabilizer based on fabric and stitch count (cutaway is often the safer choice for dense motif + satin border).
  • Hoop: Keep fabric held firmly without distortion to prevent registration gaps.
  • Success check: The motif repeats without long jump threads and the border lands cleanly on the edge without showing fabric.
  • If it still fails: Re-check motif Start/Stop node direction and inspect the motif for stray “junk” stitches before blaming the machine.
• Q: What is the Floriani Total Control U (FTCU) Auto Artwork Wizard “4.00 inch image height” rule, and why does it prevent messy motif fills?
  A: Set the imported image height to 4.00 inches early to keep the vector manageable and reduce excessive node/detail that later turns into ugly stitch travel and thread breaks.
  • Resize: Set Image Height to 4.00" immediately on import in Auto Artwork Wizard.
  • Simplify: Prefer high-contrast artwork (nearly black on white) to avoid hundreds of tiny segments.
  • Inspect: Zoom in and remove unnecessary vector/stitch segments before turning it into a motif.
  • Success check: The resulting outline looks clean and smooth (not jagged or overly “busy”) before any motif repetition.
  • If it still fails: Pick a cleaner source image (avoid gradients/fuzzy edges) and re-run the wizard with fewer colors selected.
• Q: How do you prevent “spirograph” chaos when creating a Floriani Total Control U (FTCU) Build 3749 Motif Fill from a Run Stitch outline?
  A: Fix the motif logic first: set the Green Start on the far left and the Red Stop on the far right (“Right for Red”) and remove stray travel/junk stitches before saving the motif.
  • Hide: Turn off the artwork layer (eyeball icon) so selection follows stitches, not pixels.
  • Lasso: Select only the stitches that should repeat (exclude travel lines cutting through the shape).
  • Set nodes: Move Green (Start) to far left and Red (Stop) to far right using the Shape Tool.
  • Success check: The motif tiles left-to-right with no ugly bridging lines between repeats.
  • If it still fails: Go back to the vector art and erase everything except the single clean outline, then rebuild the run stitch and re-save the motif pattern.
• Q: What Motif Height settings are a safe starting point for Floriani Total Control U (FTCU) motif fills, and how do you tell if the motif is too small or too large?
  A: A safe starting zone is generally 8–12 mm (the demo uses 11 mm); below that motifs can blob, and far above that motifs may look cheap and sparse.
  • Start: Set Motif Height to 11 mm for the first test.
  • Adjust up: Increase to 12–14 mm if the motif becomes a thread “blob” and loses detail.
  • Adjust down: Reduce if the motif looks overly open for the fabric and you see too much background.
  • Success check: The motif reads clearly at normal viewing distance with even coverage and no heavy build-up.
  • If it still fails: Try a different saved motif version (a cleaner earlier motif can stitch better than the one just created).
• Q: How do you prevent satin border registration gaps around a Floriani Total Control U (FTCU) Motif Fill when the fabric pulls inward during stitching?
  A: Stabilize and hoop for distortion control: dense motif fill plus satin-style border usually needs cutaway stabilizer and firm, even hooping to keep the border aligned.
  • Use cutaway: Choose cutaway for knits (T-shirts, polos) and for designs with heavy satin borders; it acts as a permanent foundation.
  • Hoop evenly: Hold fabric firm without over-stretching (over-tight hooping can distort weave and relax after unhooping).
  • Stitch order: Stitch the motif fill, then add the border last as shown.
  • Success check: The satin border lands on the edge with no visible “white gap” and the shape stays true after unhooping.
  • If it still fails: Upgrade the holding method—magnetic embroidery hoops often reduce distortion that causes border mis-registration.
• Q: What stabilizer should be used for dense Floriani Total Control U (FTCU) Motif Fill designs on knits, delicate fabrics, and stable woven fabrics?
  A: Match stabilizer to fabric and stress: stable woven may handle tear-away for open motifs, but knits and satin-border-heavy motifs should use cutaway; delicate fabrics often do best with no-show mesh cutaway plus a floated tear-away for stiffness.
  • Stable woven (denim/canvas/heavy cotton): Use medium tear-away only if the motif is open/airy.
  • Knits (T-shirt/polo) or heavy satin border: Use cutaway (often 2.5 oz or 3.0 oz) to prevent drift.
  • Delicate/slippery (silk/rayon): Use no-show mesh (polymesh) cutaway, and float a layer of tear-away underneath during stitching.
  • Success check: The stitch-out lies flat without puckering, and the design does not “walk” or shift during the run.
  • If it still fails: Re-check hoop tension and consider reducing stitch density or motif complexity before changing machines.
• Q: What needle-zone safety steps should be used when test-stitching a new, dense Floriani Total Control U (FTCU) Motif Fill pattern that might stack stitches in one spot?
  A: Treat first stitch-outs as a hazard test: run at reduced speed, keep fingers out of the needle zone, and stop immediately if the design repeatedly penetrates one point and builds thread.
  • Slow down: Run the first repeats at about 50% speed while watching closely.
  • Keep clear: Keep fingers away from the needle area; stacked thread can deflect the needle.
  • Stop early: Stop if you see repeated punching in one spot, long jump threads, or abnormal drag lines.
  • Success check: The machine runs with a consistent hum (not rhythmic thumping) and the motif repeats smoothly without heavy pile-up.
  • If it still fails: Return to FTCU and correct motif Start/Stop nodes and remove stray stitches before attempting another run.
• Q: What magnetic embroidery hoop safety precautions are required when using strong magnetic frames to reduce hoop burn and improve motif border registration?
  A: Use magnetic frames with respect: magnets can pinch fingers severely, and users with pacemakers or implanted devices should seek medical guidance before use.
  • Handle carefully: Keep fingers clear when magnets close; use spacers for storage to prevent snapping together.
  • Store safely: Keep frames separated with provided spacers and away from children and sensitive devices.
  • Hoop method: Clamp straight down to hold fabric firmly without dragging fibers (often reduces hoop burn and distortion).
  • Success check: Fabric holds evenly with less distortion, and the motif fill + satin border alignment improves compared to friction hoops.
  • If it still fails: Combine magnetic hooping with correct stabilizer choice (cutaway for high-stitch designs) and re-test on scrap fabric before customer garments.
