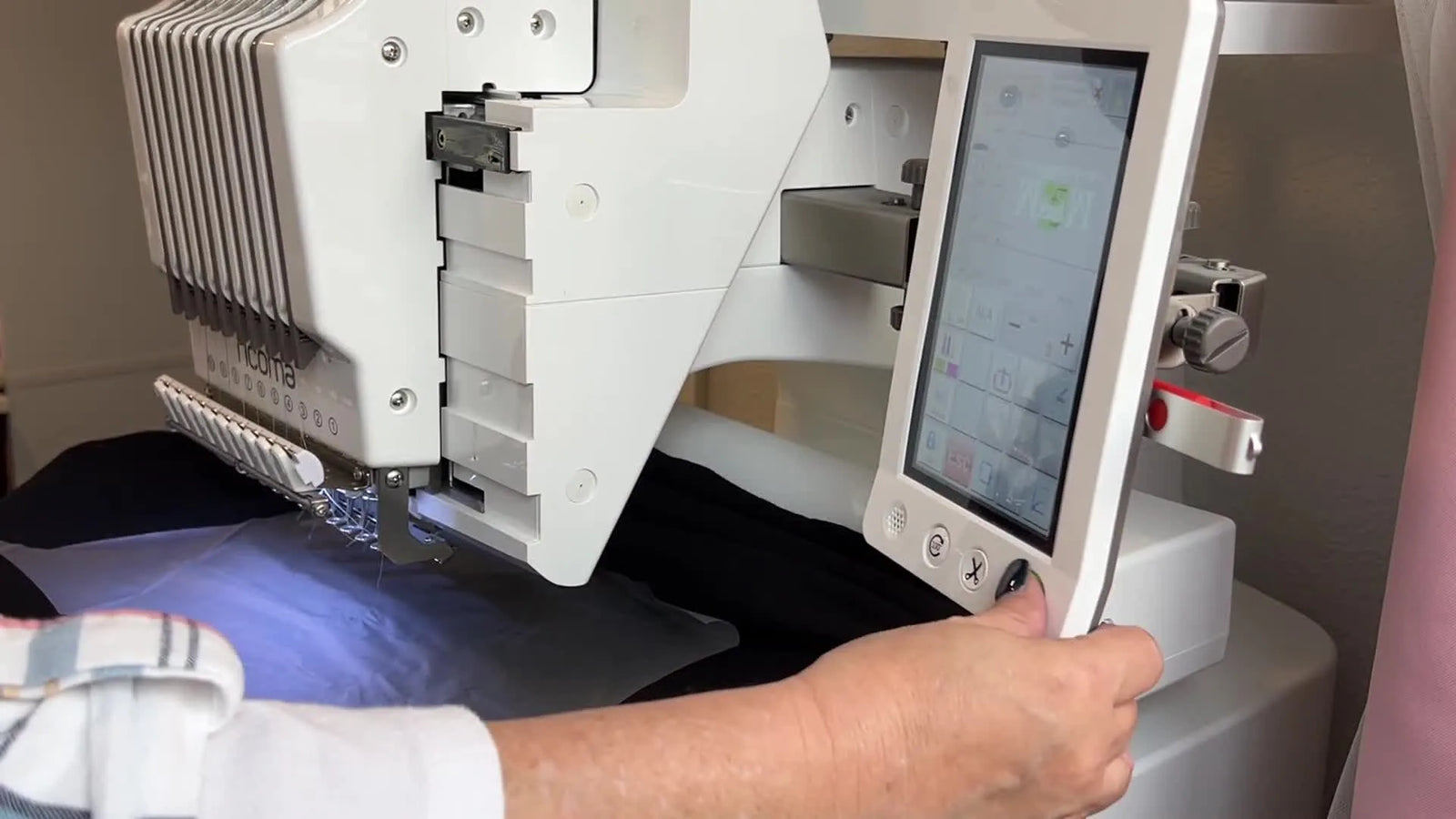

Float-Embroidering a Thick Hoodie on the Ricoma EM-1010: Clean Placement, Fewer Headaches, Better Stitching

The "Don't Panic" Guide to Hoodie Embroidery: Mastering the Float Method on a Multi-Needle Machine

If a thick, spongy hoodie has ever made you feel like your embroidery machine is suddenly "too small" for the job, you are not alone. Heavy sweatshirts fight back. They have bulky seams, stretchy knits that distort designs, and—the ultimate fear—that pocket of air where you might accidentally stitch the front of the garment to the back.

As an embroidery educator, I see people avoiding hoodies because they are afraid of the "Hoop Burn" or the dreaded "Design Shift." But the truth is, stitching on a hoodie doesn't require magic; it requires physics management.

One of the cleanest ways to win—especially on a multi-needle machine like the Ricoma EM-1010—is the Floating Method. Instead of wrestling the thick fabric into the rings, you hoop the stabilizer drum-tight, and then adhere the hoodie on top. It changes the hoodie from a "stretchy enemy" into a "stable surface."

Below is your stress-free, step-by-step white paper on getting this right. We will cover the specific physics of stabilization, the sensory checks you need to perform, and knowing when it's time to upgrade your tools.

The "Don’t Panic" Primer: Why Hoodies Are Hard (And How We Fix It)

A thick hoodie is one of the most unforgiving garments to hoop traditionally. When you force a thick knit into a standard plastic hoop, you stretch the fibers. You stitch the design on stretched fabric, and when you unhoop it, the fabric relaxes, causing the design to pucker or warp.

That’s why this project uses a floating embroidery hoop mindset: strict separation of duties. The hoop holds the stabilizer; the adhesive holds the hoodie.

If you’ve never embroidered a hoodie before, start here. This method reduces the number of variables you’re fighting at once. You aren't crushing the zipper, you aren't over-stretching the chest area, and you aren't leaving permanent friction marks on dark fabric.

Materials for a Thick Black Hoodie: The "No-Regrets" Toolkit

You cannot cheat on consumables with thick knits. Cheap stabilizer results in wobbly outlines. Here is the professional standard for a secure stitch-out.

Core Equipment & Consumables

• The Machine: Ricoma EM-1010 (or similar multi-needle machine).
• The Hoop: Large standard tubular hoop (standard issue).
• Stabilizer (Backing): Medium weight Cutaway (2.5oz or 3.0oz). Physics Note: Tearaway is forbidden here. Knits stretch; tearaway dissolves under stress. Only cutaway provides the permanent skeleton your design needs.
• Top Layer: Water-soluble topping (solvy). This prevents stitches from sinking into the hoodie fleece.
• Adhesive: 505 Temporary Spray Adhesive.
• Marking: Tailor’s chalk or a water-soluble pen (white or yellow for black fabric).

"Hidden" Consumables (The Pro List)

• Needles: Ballpoint 75/11. Critical: Standard "Sharp" needles can cut the knit fibers of a hoodie, leading to holes that appear after the first wash. Ballpoint needles slide between the fibers.
• Pink Embroidery Tape: For securing templates without residue.
• Curved Trimming Scissors: For snipping jump stitches flush to the fabric.
• Lint Roller: A black hoodie will show every speck of stabilizer dust; clean it before you deliver it.


The "Hidden" Prep Pros Do Before Any Stitch-Out (System Check)

Before you touch the fabric, we need to calibrate the machine physics. Standard settings often fail on heavy garments.

1. Speed Calibration (The "Sweet Spot")

Standard 1000 stitch-per-minute (SPM) speeds are risky for thick hoodies. The inertia of the heavy garment swinging around can cause registration errors.

• Beginner Recommendation: Cap your speed at 600–700 SPM. Consistency beats speed.

2. Design Orientation Check

Hoodies are often loaded "upside down" relative to the machine body to prevent the heavy hood from dragging on the needle plate.

• Action: Verify if your design needs to be rotated 180 degrees via the control panel. Do this before you trace.

Prep Checklist (Do this first)

• Needle Check: Run your fingernail down the needle tip. If you feel a burr/scratch, replace it immediately. A burred needle will shred your hoodie.
• Bobbin Check: Ensure you have a full bobbin (preferably black for a black hoodie) to avoid mid-run changes.
• Consumable Match: Verify you are using Cutaway, not Tearaway.
• Topping Ready: Have your water-soluble topping cut and within arm's reach.


Step 1: Hooping the Stabilizer (The "Drum-Tight" Law)

This is the foundation of the floating method. Since the hoop isn't holding the fabric, the stabilizer must do all the work.

1. Cut the Cutaway: Use a piece of medium-weight cutaway stabilizer that is at least 1-2 inches larger than your hoop on all sides.
2. Separate the Hoop: Place the stabilizer over the bottom ring.
3. The Press: Push the top ring down.
4. The Tighten: Tighten the screw firmly.
5. The Sensory Check (Tactile & Auditory):
   • Touch: Run your finger across the stabilizer. It should have zero ripples.
   • Sound: Flick the stabilizer with your finger. It should make a sharp "thump" sound, like a snare drum. If it sounds dull or loose, re-hoop it. If the stabilizer is loose, the adhesive cannot hold the weighty hoodie, and your design will drift.


Step 2: Placement Geometry (The Fold-and-Mark Method)

Placement anxiety is real. We solve it with math, not guessing.

1. The Vertical Center: Fold the hoodie vertically in half (shoulder to shoulder). Press firmly to create a crease or use pins to mark the centerline.
2. The " Sweet Spot" Height: Measure 2.5 inches (approx. 6-7 cm) down from the neck seam along that center line. Mark this point with your chalk.
   • Why 2.5 inches? Any higher, and the hood strings or neck seam might hit the presser foot. Any lower, and the design sits on the stomach rather than the chest.
3. Visualization: This mark represents the center top or absolute center of your design (depending on how you set your machine origin). Know which one you are using!

Pro Tip: On pitch-black garments, ensure your lighting is adequate. Struggling to find a faint mark leads to over-handling the garment, which ruins the adhesive bond later.

Step 3: Floating with Adhesive (The "Goldilocks" Zone)

This is the moment where most people either fall in love with floating—or swear it off forever due to the mess. The secret is containment.

1. Contain the Spray: Move the hoop away from your machine. Never spray near the electronics!
2. Apply Adhesive: Lightly spray 505 adhesive onto the stabilizer only. hold the can 8-10 inches away. You want a light mist, not a snowdrift.
3. The Insertion: Insert the hoop inside the body of the sweatshirt. The hoodie body hangs around the hoop.
4. The Marriage: Align your chalk mark on the hoodie with the center marks on the hoop.
5. The Smooth: Press the fabric down from the center outwards.
   • Critical Technique: Do not stretch the hoodie. Just pet it down flat. If you stretch it now, it will snap back later, distorting your letters.

Warning: The Adhesive Danger
Adhesive overspray is the enemy of rotary hooks. It builds up a gummy residue that causes friction and thread breaks.
* symptom: Your needle getting "gummy" or thread shredding.
* Prevention: Use a light coat. Clean your needles with alcohol if you notice drag.

Step 4: The Paper Template Verification (Catching Mistakes Early)

Before stitching, we use an analog check.

1. Print & Cut: Print your design on paper at 100% scale. Cut it out.
2. Tape: Use pink embroidery tape to stick this paper template onto the hoodie where you think it should go.
3. The Mirror Check: Look at the hoodie in a mirror. Does it looked centered? Does it look straight?
4. The Measurement: Measure from the edge of the design to the sleeve seam on both sides. Are they equal?

This is standard hooping for embroidery machine discipline. It is much cheaper to move a piece of paper tape than it is to remove 5,000 stitches from a $30 hoodie.

Step 5: Machine Setup & The Essential "Trace"

Now we move to the Ricoma.

1. Load the Hoop: Attach the hoop arm. Ensure the rest of the hoodie is falling freely and not bunched up behind the hoop.
2. Apply Topping: Place your water-soluble topping over the design area. You can float this too (tape corners or just clear water dab).
3. The Trace (Border Check): This is non-negotiable. Run the "Trace" function on your screen.
   • Watch for: Does the presser foot hit the plastic hoop? Does it hit the thick neck seam?
   • The "Pinch" Check: Put your hand under the hoop (carefully, while stopped) to confirm you haven't caught the back of the hoodie in the hoop assembly.

Warning: Mechanical Safety
Keep fingers, drawstrings, and loose sleeves away from the needle bar area during the trace and stitch-out. A multi-needle machine moves the pantograph rapidly. Getting a drawstring caught can snap the needle bar or damage the garment instantly.

Step 6: The Stitch-Out (Monitoring "good" vs "Bad" Sounds)

Press Start. But don't walk away yet.

Sensory Monitoring:

• Sight: Watch the first 200 stitches. Is the topping lifting? Is the hoodie shifting?
• Sound: A healthy machine has a rhythmic, humming "chug-chug."
  • Bad Sound: A sharp "CRACK" (needle break).
  • Bad Sound: A dull, laboring "THUMP-THUMP" (needle struggling to penetrate usually means adhesive buildup or too many layers).

The "Ricoma Advantage": On a ricoma em 1010 embroidery machine or similar device, you have distinct needles. If you are doing a white design on a black hoodie, ensure your tension is dialed in so the black bobbin thread doesn't pull up to the top (which looks like pepper grains on salt).

Step 7: Post-Production & Cleanup

1. Remove Hoop: Take the whole assembly off.
2. Tear Away Stabilizer: Cutaway stabilizer is permanent, but you trim the excess. Lift the hoodie, cut the stabilizer about 0.5 inches away from the stitches.
   • Safety Move: When cutting the stabilizer, hold the hoodie fabric folded back in your other hand. Never cut blindly.
3. Remove Topping: Tear off the large chunks of water-soluble topping. Use tweezers for the small bits inside letters (like 'O' or 'A'). Remove final residue with a damp cloth or steam.


Troubleshooting Guide: Symptoms & Fixes

If things go wrong, use this logic flow (Cheapest Fix → Most Expensive Fix).

Decision Matrix: When to Float vs. When to Upgrade

The method described above is perfect for custom one-offs. But what if you have an order for 50 team hoodies?

Use this Decision Tree to choose your workflow:

Scenario A: The Hobbyist / One-Off Custom

• Volume: 1–5 Hoodies.
• Method: Floating with Spray.
• Why: Minimal investment needed. You already have hoops and spray. It takes time, but it works.

Scenario B: The Small Business / Repeat Orders

• Volume: 10–50 Hoodies a week.
• Pain Point: Spraying 50 hoodies creates a toxic mess. Hooping thick fabric 50 times hurts your wrists ("Carpal Tunnel Zone").
• Solution: Determine if you need magnetic embroidery hoops.
  • The Upgrade: Magnetic hoops clamp the fabric using powerful magnets instead of friction. They eliminate the need for spray (mostly) and prevent "hoop burn" completely because they don't crush the fibers. They automatically adjust to the thickness of the hoodie pocket or seam.

Warning: Magnetic Kit Safety
Professional magnetic hoops (like MaggieFrame or similar industrial compatible brands) use high-power neodymium magnets.
* Pinch Hazard: They can snap together with immense force. Keep fingers clear.
* Electronics: Keep them away from pacemakers and magnetic storage media.

Scenario C: The Scaling Production

• Volume: 100+ Hoodies.
• Pain Point: Single-needle machines are too slow; color changes take forever.
• Solution: This is where efficient machines like SEWTECH multi-needle setups maximize profit. You load the next hoop while the current one runs.


Final Operational Checklists

Setup Checklist (Pre-Start)

• Stabilizer is hooped drum-tight (Flick test passed).
• Hoodie center mark aligns with hoop center.
• Design is oriented correctly (rotated 180° if needed).
• Water-soluble topping is in place.
• Trace function completed with no collisions.
• "Under-Sweep" Check: Confirmed no extra fabric is under the needle plate.

Operation Checklist (During Run)

• Listen for the rhythmic "thump-thump" (Good) vs "sharp crack" (Bad).
• Monitor fabric for "flagging" (bouncing up and down with the needle—indicates loose hooping).
• Keep hands clear of the moving pantograph.

By following this protocol, you move from "hoping it works" to "knowing it will work." Stick to the physics—tight backing, ballpoint needles, and secure adhesion—and that thick hoodie will stitch out just as cleanly as a flat piece of cotton.

FAQ

• Q: On a Ricoma EM-1010 multi-needle embroidery machine, what is the safest starting speed for embroidering a thick hoodie using the floating method?
  A: Set the Ricoma EM-1010 to about 600–700 SPM to reduce garment swing and registration errors.
  • Lower speed before the first trace, especially if the hoodie is heavy and bulky.
  • Monitor the first 200 stitches and only increase speed if the fabric stays stable.
  • Success check: The stitch-out sounds like a steady, rhythmic hum (not a laboring “thump-thump”) and outlines stay aligned.
  • If it still fails, re-check stabilizer tightness and adhesive amount before changing other settings.
• Q: How can a user confirm cutaway stabilizer is hooped correctly for floating hoodie embroidery on a multi-needle embroidery machine?
  A: Hoop only the cutaway stabilizer “drum-tight,” because the stabilizer—not the fabric—must carry the stability.
  • Cut stabilizer 1–2 inches larger than the hoop on all sides and tighten the screw firmly.
  • Flick the hooped stabilizer and re-hoop immediately if it sounds dull.
  • Success check: The stabilizer has zero ripples to the touch and makes a sharp “thump” sound like a snare drum.
  • If it still fails, do not proceed to spraying—re-hoop until the flick test passes.
• Q: When floating a hoodie with 505 temporary spray adhesive, how can a user prevent adhesive overspray from causing needle gum and thread shredding on a Ricoma EM-1010?
  A: Spray a light mist onto the stabilizer only—never near the machine—to avoid gummy buildup that increases friction.
  • Move the hoop away from the Ricoma EM-1010 electronics before spraying.
  • Hold the can 8–10 inches away and apply a light coat (avoid heavy “snowdrift” coverage).
  • Success check: The needle does not feel sticky, and thread runs smoothly without shredding.
  • If it still fails, clean adhesive residue off the needle with alcohol and reduce spray amount on the next hoop.
• Q: On hoodie embroidery, should a multi-needle embroidery machine user choose a ballpoint 75/11 needle or a sharp needle, and why?
  A: Use a ballpoint 75/11 needle for hoodies to avoid cutting knit fibers that can later form holes after washing.
  • Install a fresh ballpoint needle before starting a hoodie run.
  • Replace the needle immediately if a fingernail test detects a burr or scratch.
  • Success check: No skipped damage marks around penetrations, and the hoodie knit does not show sliced fibers.
  • If it still fails, re-check for adhesive gum on the needle and adjust top tension slightly looser if shredding continues.
• Q: On a Ricoma EM-1010 multi-needle embroidery machine, how can a user avoid stitching the front of a hoodie to the back during a trace and stitch-out?
  A: Always perform a trace and an “under-sweep” check so no extra hoodie layers are trapped under the hoop/needle plate area.
  • Load the hoop with the hoodie fabric falling freely, not bunched behind the hoop.
  • Run the Trace (border check) and watch for collisions with the hoop or thick seams.
  • Success check: During trace, the presser foot clears the hoop and seams, and the hoodie back layer stays completely free.
  • If it still fails, clip or secure excess fabric and repeat the under-sweep before pressing start.
• Q: What causes registration gaps (outline misalignment) when floating a thick hoodie on a multi-needle embroidery machine, and how can a user fix it?
  A: Registration gaps usually come from fabric shifting—fix stability first, then slow down.
  • Re-hoop the cutaway stabilizer drum-tight (do the flick test).
  • Re-apply fresh 505 spray lightly so the hoodie bonds to the stabilizer without sliding.
  • Reduce speed to around 600 SPM for thick garments.
  • Success check: Outlines land cleanly on previous stitches with no visible offset, especially in corners and satin edges.
  • If it still fails, stop and re-float the hoodie rather than trying to “push through” the shift.
• Q: When should an embroidery business switch from floating hoodies with spray to magnetic embroidery hoops or a multi-needle production workflow?
  A: Use floating with spray for low volume; upgrade tools when speed, mess, or operator strain becomes the real bottleneck.
  • Start with floating for 1–5 hoodies when investment needs to stay minimal.
  • Consider magnetic embroidery hoops when doing 10–50 hoodies weekly and spray mess or wrist fatigue becomes constant.
  • Consider a multi-needle production workflow when volume reaches 100+ hoodies and single-needle color changes slow delivery.
  • Success check: The chosen method reduces re-hoops, reduces rejects (shift/hoop burn), and keeps run time predictable.
  • If it still fails, track the top failure mode (shift, shredding, hoop marks) and address that specific constraint first before changing everything at once.
• Q: What magnetic embroidery hoop safety precautions should operators follow when using high-power neodymium magnetic hoops for hoodie embroidery?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from sensitive electronics and medical devices.
  • Keep fingers clear when magnets snap together; close magnets slowly and deliberately.
  • Keep magnetic hoops away from pacemakers and magnetic storage media.
  • Success check: No pinched fingers, magnets seat evenly, and the hoop clamps without sudden snapping or misalignment.
  • If it still fails, stop and reposition with a controlled grip—never “fight” magnets near the machine head area.
