Flip, Stitch, Press: A Clean ITH Knitting Quilt Block on a Brother-Style 5x7 Hoop (Without Fabric Drift)

If you’ve ever watched an ITH (In-The-Hoop) quilt block stitch out beautifully—the machine humming a perfect rhythm—only to pull it from the hoop and discover a wavy edge, a shifted strip, or a block that transforms into a trapezoid when you try to trim it, you are not alone.

Piecing-in-the-hoop is fast, satisfying, and addictive. But it is also technically unforgiving. The hoop is your sewing table, your stabilizer is your foundation, and every "flip-and-fold" seam operates on physics that can either lock your block into a perfect square or slowly push it off-grain with every pass of the needle.

This project is an intermediate-friendly ITH quilt block with a knitting theme: a sketch-stitch yarn ball, knitting needles, and the phrase “All you knit is love.” The finished block trims to a standard 6" x 6", making it perfect for coasters, mug rugs, or larger quilt assemblies.

Below is the specific workflow shown in the video, deconstructed and rebuilt into a shop-ready process. We have added sensory checkpoints, safety protocols, and the "invisible" habits that prevent the most common points of failure in ITH production.

Don’t Panic: The Brother-Style 5x7 Hoop Can Make a Crisp ITH Quilt Block (If You Respect the Layers)

The biggest mental shift required for beginners is this: in ITH piecing, your stabilizer isn’t just a "helper"—it is the structural chassis of your vehicle. It keeps your batting and fabric from engaging in "creep" (micro-movements) while the machine stitches seams and tack-downs.

When people struggle with this block, it is almost never because they followed the PDF instructions incorrectly. It is because the physics of the hoop environment defeated them in one of three ways:

1. The "Drift": The batting/fabric stack wasn't under tension, so it moved 1-2mm during the tack-down.
2. The "Skew": The flip-and-fold strip wasn't perfectly perpendicular to the seam line before stitching.
3. The "Catch": Loose edges lifted near the presser foot and got snagged, ruining the alignment.

If you are currently working with a smaller setup or considering a brother 4x4 embroidery hoop for a miniaturized version of this project, be aware that the margin for error decreases as the hoop gets smaller. A 4x4 area leaves very little room for your fingers to maneuver during the "flip" stage without risking a needle strike, so your tool management becomes even more critical.

The “Hidden” Prep Pros Do Before the First Stitch: Stabilizer, Batting, and Strip Control

Preparation in embroidery is 90% of the success. The actual stitching is just the execution of your prep work. The video utilizes a sandwich method: stabilizer hooped first, then batting and base fabric bolted down, followed by side strips added via flip-and-fold.

What to prep (The Material Stack)

• Stabilizer: The project uses tear-away, but experienced digitizers often debate this.
  • Decision: Tear-away is convenient for quilt blocks because you want the back clean. However, Cut-away (Poly mesh) provides superior stability if your machine tends to distort dense lettering. If you choose Cut-away, simply trim it close to the seam allowance later.
• Batting: Cotton or poly-blend batting. Crucial: Cut this piece at least 1 inch larger than your finished size on all sides.
• Base fabric (center): Cut 1 inch larger than the placement rectangle.
• Side strips: Cut these with generous overage—at least 1 inch longer than the vertical height and 1 inch wider than the finished width. "Just enough" leads to tragedy when fabric shrinks during stitching.
• Thread & Needle:
  • Needle: A 75/11 Sharp or Embroidery needle. Avoid Ballpoint needles for quilting cotton; they push fibers aside rather than piercing them, which can cause slight deflection.
  • Colors: Teal (yarn), Brown (needles), Red/Pink (text).

Why this prep matters (the physics, in plain English)

Batting is essentially a sponge. It compresses under the presser foot (the metal foot on the machine). As the foot travels, it squishes the batting down, and as it moves away, the batting rebounds. This "squish-rebound" cycle acts like a conveyor belt, microscopically walking your top fabric away from center.

This is why hoop tension is a non-negotiable variable.

If you do a moderate to high volume of ITH piecing, you might notice that tightening the screw on a standard plastic hoop eventually causes hand strain, or worse, "hoop burn" (shiny, crushed fibers) on your fabric. This is a common trigger point where professionals upgrade to magnetic embroidery hoops. These tools use magnetic force rather than friction to hold the sandwich. On thick stacks (stabilizer + batting + fabric), they eliminate the "tug of war" required to force the inner ring into the outer ring, preventing the distortion that often makes blocks wonky before you even press start.

Prep Checklist (Do this once, prevent ten failures)

• New Needle Check: Is your needle fresh? A burred needle creates "bird nests" on the bottom.
• Bobbin Check: Is the bobbin at least 50% full? Running out mid-tack-down creates alignment shifts.
• Stabilizer Tension: Tap the hooped stabilizer. It should sound like a tight drum skin ("thrummm") but not be stretched so tight that the weave is distorted.
• Hidden Consumable: Have a Purple Thang (stiletto tool) or a chopstick ready. Never use fingers near a moving needle.
• Batting Sizing: Verify batting extends past the placement line by 0.5" minimum.
• Rotary Station: Ensure the cutting mat is clean and the blade is sharp for the final trim.

Stitch the Red Placement Rectangle on Stabilizer (and Treat It Like a Contract)

The first action your machine takes is stitching a red rectangular outline directly onto the naked stabilizer. Do not skip this or gloss over it. This line is a binding contract between you and the machine.

What you do (The Action):

1. Load the hoop with stabilizer only.
2. Press Start.
3. Watch the machine trace the box.

Sensory Verification:

• Visual: Look closely at the lines. Are they straight? If the rectangle looks bowed (curved sides), your stabilizer is hooped too loosely or unevenly.
• Tactile: Run your finger over the line. It should feel flat. If the stabilizer is tunneling (pulling up) under the stitches, tighten your hoop (or check your magnetic clamping) before proceeding.

Expected outcome: A geographically precise map on the stabilizer indicating exactly where the batting must live.

Tack Down the Batting + Base Fabric Without Wrinkles (This Is Where Most Blocks Start Going Crooked)

This step "bolts" your quilt sandwich to the stabilizer foundation. The machine will stitch the same rectangle again to secure the batting and the center fabric.

The Expert Workflow:

1. Spray (Optional but recommended): A very light mist of temporary adhesive (like Odif 505) on the back of the batting helps prevent the "sponge creep" effect described earlier.
2. Placement: Center the batting over the red box. Center the yellow dotted base fabric on top of the batting.
3. The Smooth-Out: Smooth the fabric from the center toward the edges with your palms.

Checkpoint (The "Pinch" Test): Try to pinch the fabric in the center. If you can easily pinch up a large bubble of fabric, it's too loose. It should feel relatively flat against the stabilizer.

Expected outcome: A secured "island" of fabric. The fabric must cover the red placement lines entirely. If a red line peeks out, stop. Rip the stitches and reposition.

Warning: Physical Safety
Never smooth fabric while the machine is running. It takes less than 0.1 seconds for a standard 600 stitches-per-minute (SPM) needle to traverse from "safe zone" to "finger zone." Always stop the machine completely before adjusting layers.

The Flip-and-Fold Seam That Makes or Breaks ITH Piecing: Left Strip Placement

The "Flip-and-Fold" technique requires you to think backwards/upside down. You are stitching the seam inside out so that when you flip the fabric, the raw edges are hidden.

The Process:

1. Align: Take your left strip fabric. Place it Right Side Facing Down (pretty side touching the yellow fabric).
2. Edge Match: Align the raw edge of the strip with the left raw edge of the center block.
3. Stitch: Run the straight seam stitch.

Checkpoint (The Alignment verification): Look at the seam line before you flip. Is it straight? Is the stitch tension balanced? If the thread looks loose or looped, check your top tension path. Loose seams here result in "gaps" in the quilt block later.

Expected outcome: The strip is attached, looking like a flap hinged on the left side of the center block.

Finger-Pressing in the Hoop: Fast, Yes—But Do It Like a Quilter, Not Like a Rush Job

In traditional quilting, you use an iron. In ITH, you use your finger (or a specialized tool). The goal is to maximize the crispness of the fold without stretching the fabric on the bias.

Best practice technique:

1. Fold the strip open.
2. Use your fingernail or a hard smooth tool (like a wallpaper seam roller) to crease the fold.
3. Sensory Cue: You should feel the resistance of the fabric fold. It must be sharp. If it feels "spongy" or rounded, the seam allowance underneath isn't lying flat.
4. Do NOT Drag: Press down and slide gently. Aggressive dragging can warp the stabilizer foundation underneath.

Expected outcome: The strip lies flat, extending outward, with no bubbles or fabric "buckling" along the seam line.

Mirror the Flip-and-Fold on the Right Side (and Keep the Block Square)

Repeat the exact physics on the right side.

The Process:

1. Place the right strip Right Side Down, aligned with the right edge of the center block.
2. Stitch the seam.
3. Flip open.
4. Finger press firmly.

Checkpoint (The T-Square Check): Step back and look at the block. Does the center yellow panel look like a rectangle, or does it look skewed? If the left and right strips aren't parallel, your fabric moved during the seam stitch. This is often caused by the foot dragging the fabric as it engages.

Why this happens: Standard embroidery feet are designed to glide over stitches, not climb over bulky seams. If you encounter consistent dragging here, you are seeing the limitations of friction-based hooping. This is another scenario where users researching embroidery hoops magnetic find relief—the magnetic frame holds the perimeter so securely that the inner stabilizer creates a tighter surface tension, reducing drag.

Stop Fabric Drift at the Presser Foot: Pins + a Stiletto Tool Are Your Insurance Policy

Loose edges are the enemy. As the machine moves to tack down the outside edges of your strips, the presser foot acts like a snowplow—it wants to push that loose fabric up into a pile.

The Defense Strategy:

1. Pinning: Use fine applique pins. Pin the raw outer edges of the strips to the batting/stabilizer.
   • Critical: Keep pins far away from the stitch path. The danger zone is usually 0.5 inches from the edge.
2. The Stiletto: As the machine stitches, use a purple stiletto (or similar tool) to hold the fabric down in front of the foot. Act as a traffic controller, ensuring the fabric enters under the foot smoothly.

Comment-driven reality check: New users often ask, "Can I use tape instead?" Yes, masking tape or painter's tape works, but it leaves residue on the needle if stitched through (gunking up the eye). Water-soluble tape is the safer alternative.

Why this works (expert insight): Fabric is fluid. It doesn't just "shift"; it flows away from pressure. The pins anchor the far edge, and the stiletto manages the near edge. This dual-control method is standard in professional shops.

If you are producing these blocks in batches—say, 20 for a charity quilt—hooping speed becomes a factor. The repetitive motion of unscrewing, re-sandwiching, and tightening circles is a known cause of repetitive strain injury (RSI) for embroiderers. magnetic embroidery hoops for brother machines are frequently adopted here not just for quality, but for ergonomics. The "snap-and-go" mechanism reduces wrist torque significantly.

Setup Checklist (Pre-Flight for Decorative Stitching)

• Coverage Check: Do both side strips fully cover the batting area?
• Flatness Check: Is the entire surface flat? No ripples?
• Pin Safety: Are all pins visibly clear of the travel path of the needle?
• Thread Color: Have you switched to Teal for the yarn ball?
• Machine Speed: Consider lowering speed to 600 SPM for the dense sketch stitching.

Stitch the Decorative Yarn Ball in Teal (and Don’t Let “Sketch Stitch” Fool You)

The machine will now embroider the "sketch style" yarn ball. Sketch stitching is low density but involves many rapid directional changes.

The Sensory Cue: Listen to the machine. A rhythmic, soft "chug-chug-chug" is good. If you hear a sharp, loud "THWACK-THWACK," your needle is struggling to penetrate the layers (stabilizer + batting + fabric + fabric). This usually means your needle is dull or the hoop is bouncing.

Checkpoint: Watch the registration. Sketch stitching is intentionally loose, but the outline shouldn't detach from the fill. If it creates a gap, your stabilizer is too light for the job.

Expected outcome: A stylized, artistic yarn ball centered perfectly on the yellow panel.

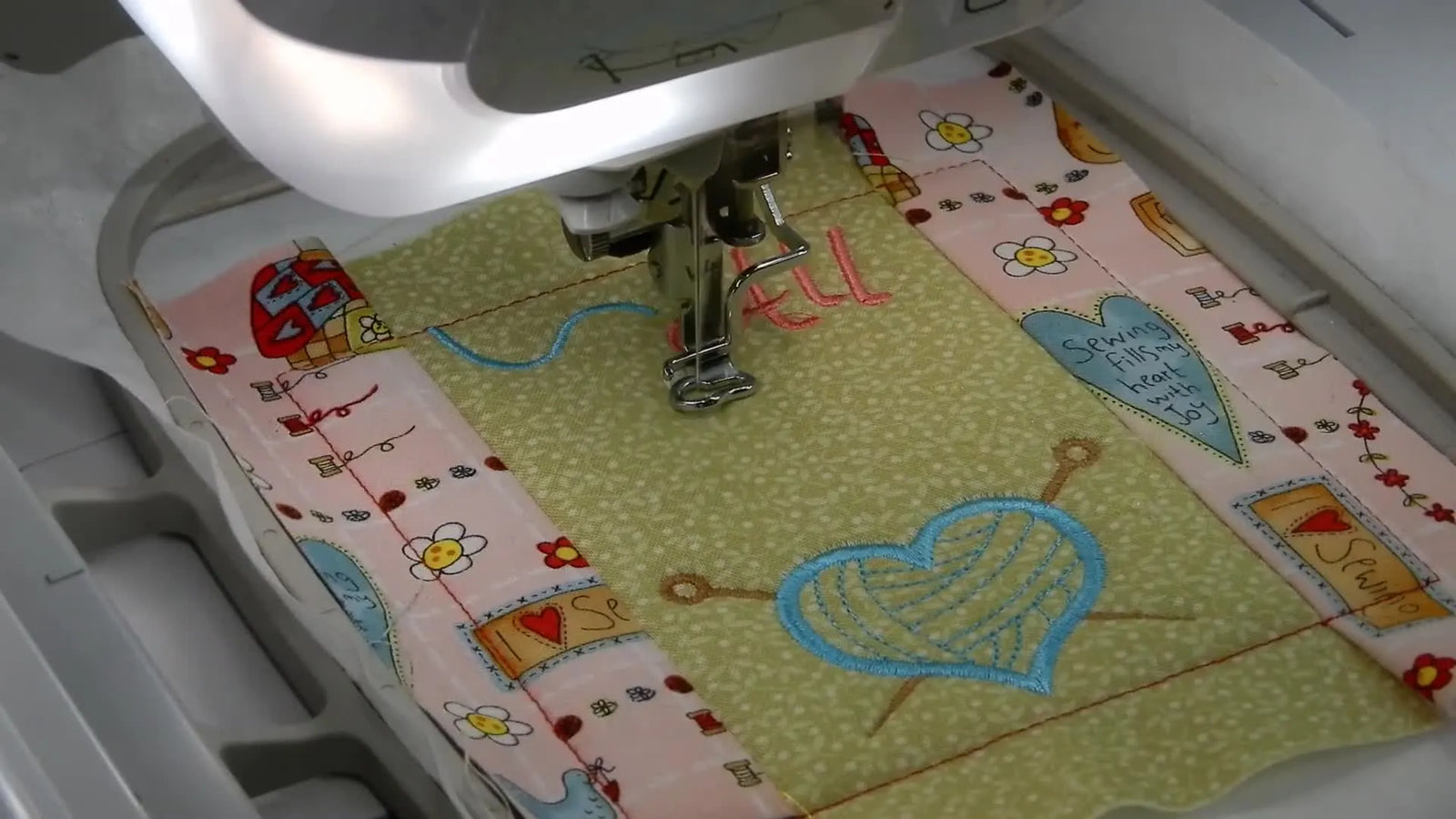

Add the Knitting Needles and the “All You Knit Is Love” Text (Lettering Punishes Sloppy Stabilization)

Here lies the final boss of embroidery: Small Lettering on Top of Quilt Batting.

The Workflow:

1. Change thread to Brown (Needles). Stitch.
2. Change thread to Red/Pink (Text). Stitch.

The Risk: Small text sinks into batting. It disappears. Or, if the fabric shifts, the letters become italicized accidentally. The Fix:

• Topping: Placing a layer of Water Soluble Topping (Solvy) over the text area before stitching helps keep the letters sitting on top of the fabric rather than burying inside it.
• Stability: If your text comes out wavy, your hoop didn't hold the fabric tight enough against the pull of the satin stitches.

This is the definitive test of your clamping method. If you are using a magnetic hoop for brother pe800 or similar consumer machine, the continuous heavy clamping force ensures that the fabric cannot be pulled inward by the thread tension, resulting in crisp, legible text even on squishy batting.

Expected outcome: Readable text, sharp needle graphics, no puckering around the words.

The Clean Reveal: Check the Finished Design in the Hoop Before You Unhoop

Do not remove the hoop yet.

Take the hoop off the machine but leave the project in the hoop. Inspect the back.

• Are there bird nests?
• Did the bobbin thread pull to the top?
• Is the design centered?

Once you pop that hoop, there is no going back. If you need to repair a few stitches, you can sometimes do it carefully now. Once unhooped, realignment is mathematically impossible.

Trim to a True 6" x 6" Square with a Rotary Cutter (Professional Edges Are a Skill)

The finishing school. You aren't done until the geometry is perfect.

The Trim Process:

1. Unhoop the project. Tear away the excess stabilizer gently.
2. Place on a self-healing cutting mat.
3. Find the Center: Use your clear acrylic ruler to find the center of the design (the yarn ball).
4. Calculate: For a 6x6 square, you need 3 inches from the center to each edge.
5. The Cut: Stand up. Apply downward pressure on the ruler with your non-dominant hand (fingers spidered, away from edge). Slice firmly with the rotary cutter.


Checkpoint: Do not "saw" back and forth. One confident, firm slice creates a clean edge.

Expected outcome: A perfect square where the design is mathematically centered.

Warning: Sharp Tool Safety
Rotary cutters are razor blades on wheels. They will slice through skin faster than you can react.
1. Always engage the safety lock immediately after cutting.
2. Keep your stabilizing hand flat on the ruler, never hanging over the edge.
3. Cut away from your body.

The Finished Block (and What It Tells You About Your Process)

Hold up your finished block. It serves as a diagnostic tool for your skills:

• Result: One side has less fabric margin than the other.
  • Diagnosis: Your flip-and-fold strip placement was crooked.
• Result: The block is trapezoidal, not square.
  • Diagnosis: The fabric was dragged/stretched during finger pressing.
• Result: Ripples or puckers near the inner seams.
  • Diagnosis: The batting wasn't tacked down flat enough (hoop tension issue).

Quick Decision Tree: Stabilizer Choice for ITH Quilt Blocks

If you are confused about which stabilizer to use, follow this logic path:

1. Is the design extremely dense (heavy fills, lots of text)?
   • YES: Use Cut-away (Poly Mesh). It provides maximum support. You will just leave it inside the quilt block (it adds softness anyway).
   • NO: Go to step 2.
2. Is the base fabric stretchy (knit/jersey)?
   • YES: Use Cut-away + fusible backing.
   • NO (Standard Cotton): Use Tear-away.
3. Will the back of the project be visible (e.g., a coaster)?
   • YES: Use Tear-away or Wash-away to keep the back clean.
   • NO (Quilt Pillow): Stabilizer type matters less visually.

Troubleshooting the One Problem Everyone Hits: Fabric Lifting Near the Presser Foot

If you ignored the stiletto advice, you likely encountered the "fabric lift."

Symptom → Cause → Fix Protocol

• Symptom: The machine foot gets caught under a fold of fabric, jamming the machine or ruining the stitch line.
• Likely Cause: The tack-down stitch came too close to an un-secured loose edge.
• Quick Fix: Stop immediately. Use small embroidery scissors to trim the fraying threads. If the fabric is folded over perfectly, use the stiletto to hold it down and stitch slowly (low speed).
• Prevention: Use tape or pins on every loose edge. Don't trust gravity.

The Upgrade Path When You’re Doing More Than One Block: Faster Hooping, Less Strain, Fewer Re-dos

If you make one block a month, standard gear is sufficient. However, if you are batching gifts, creating full quilts, or running a small business, the bottleneck in your workflow is the physical act of hooping.

Upgrading your tools changes the economics of your hobby or business:

• For Ergonomics: If "hooping hurts," a magnetic frame solves the wrist-torque problem instantly.
• For Quality: If layers drift, magnetic frames provide even, rim-to-rim vertical pressure that screws cannot replicate.
• For Scale: A hoop master embroidery hooping station allows for consistent placement across 100 shirts or blocks without measuring each one. Systems like this and other hooping stations standardize your output so Block #1 looks identical to Block #50.

For Brother users specifically, finding the right fit is key. A brother 5x7 magnetic hoop is often the "sweet spot" upgrade—it matches the popular 5x7 field size of machines like the PE800/PE900 but brings industrial-style ease of use to the home studio.

Warning: Magnet Safety
Magnetic hoops utilize powerful neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the rim.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Store away from credit cards, phones, and computerized machine screens.

Operation Checklist (The "Run It Like a Shop" Standard)

• Foundation: Placement line is square; batting/base fabric fully covers the "contract" area.
• Seams: Strips were placed Right Side Down, stitched, flipped, and pressed firmly.
• Safety: Edges taped/pinned; Stiletto used for near-needle control.
• Quality: Text is legible (topping used if needed); block is flat.
• Finish: Block trimmed to precise 6.0" x 6.0" square.

If you repeat this sequence—respecting the layers and using the correct tools for stabilization—you will produce blocks that are structurally sound, square, and ready for assembly. The machine does the stitching; you provide the engineering.

FAQ

• Q: How do I hoop stabilizer correctly for an ITH quilt block in a Brother-style 5x7 embroidery hoop so the red placement rectangle stitches square?
  A: Hoop stabilizer drum-tight and even before sewing the first red rectangle, because that rectangle is the alignment “contract.”
  • Re-hoop stabilizer only (no batting/fabric yet) and tighten evenly so the stabilizer is flat, not skewed.
  • Stitch the red placement rectangle and stop to inspect it before continuing to tack-down layers.
  • Success check: Tap the hooped stabilizer—it should sound like a tight drum (“thrummm”), and the rectangle sides should look straight (not bowed).
  • If it still fails: Re-hoop again and confirm the stabilizer is not distorted by over-stretching or clamped unevenly (magnetic clamping can help keep tension uniform).
• Q: What causes ITH quilt blocks to turn wavy or trapezoid-shaped after unhooping when using batting + flip-and-fold seams in a Brother-style 5x7 hoop?
  A: The most common cause is fabric/batting “drift” or skew during tack-down and finger-pressing, not the PDF instructions.
  • Anchor the sandwich: Lightly mist temporary adhesive on batting (optional) and smooth from center outward before the tack-down stitch.
  • Place strips square: Align strips right-sides-down and keep the strip edge perpendicular before stitching the seam.
  • Finger-press correctly: Press down to crease; do not aggressively drag across the surface.
  • Success check: Before trimming, the center panel should look rectangular and the left/right strips should look parallel when viewed in the hoop.
  • If it still fails: Add pins/tape to control loose edges and slow the machine for dense or high-direction-change areas.
• Q: How can I prevent fabric lifting and the presser foot “catching” loose edges during ITH tack-down stitches on side strips?
  A: Secure every loose edge before the tack-down pass and control the near-needle area with a stiletto tool—this is common and very fixable.
  • Pin outer strip edges to the batting/stabilizer (keep pins well away from the stitch path).
  • Hold fabric down in front of the presser foot with a Purple Thang/stiletto as the machine stitches.
  • Use tape only if needed; avoid stitching through masking tape because residue can gunk the needle (water-soluble tape is safer).
  • Success check: The presser foot glides without pushing fabric into a fold or “snowplowing” an edge upward.
  • If it still fails: Stop immediately, trim frayed threads with small scissors, then restart at lower speed while controlling the edge with the stiletto.
• Q: What pre-stitch checklist prevents bird nests and mid-run alignment shifts in ITH quilt blocks (needle, bobbin, and handling)?
  A: Do a 60-second consumables check before stitching—most “mystery” failures start with needle or bobbin issues.
  • Change to a fresh 75/11 Sharp or Embroidery needle (a burred needle often creates bird nests on the bottom).
  • Verify the bobbin is at least 50% full to avoid running out during tack-down or seams.
  • Stage tools: Keep small scissors and a stiletto/chopstick ready so hands never go near the moving needle.
  • Success check: The underside after stitching should be free of big thread tangles, and seams should look tight (not loose/looped).
  • If it still fails: Re-check the top thread path and tension if the seam line looks loose before flipping the strip.
• Q: When should I use tear-away stabilizer vs cut-away poly mesh for ITH quilt blocks with text stitched on top of batting?
  A: Use tear-away for clean backs on typical cotton blocks, and switch to cut-away poly mesh when stability is the priority (often for dense areas like lettering).
  • Choose cut-away (poly mesh) when the design is very dense or lettering distorts easily; trim close to seam allowance later.
  • Choose tear-away for standard cotton when you want a cleaner back (e.g., coasters/mug rugs).
  • Add water-soluble topping over the text area to prevent small letters sinking into batting.
  • Success check: Lettering should be legible and not wavy/italicized-looking, with minimal puckering around words.
  • If it still fails: Improve hoop hold (tighter, more even clamping) because text is highly sensitive to stabilization and fabric pull-in.
• Q: What needle-area safety rule prevents finger injuries during ITH smoothing and flip-and-fold steps on home embroidery machines running around 600 SPM?
  A: Never adjust, smooth, or finger-press fabric while the machine is running—stop completely and use a tool instead of fingers near the needle.
  • Press stop and wait for full needle stop before touching any layer in the hoop.
  • Use a stiletto/Purple Thang/chopstick to position edges close to the presser foot.
  • Lower speed (a safe starting point is around 600 SPM) for dense sketch stitching or when learning fabric control.
  • Success check: Hands stay out of the needle travel zone during motion; adjustments happen only at a full stop.
  • If it still fails: Re-plan the workflow—pin/tape edges before stitching so fewer “mid-run” interventions are needed.
• Q: What are the magnetic hoop safety precautions for strong neodymium magnetic embroidery frames used for thick ITH quilt sandwiches?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear of the rim when closing—magnets can snap together instantly.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Store away from phones, credit cards, and computerized machine screens.
  • Success check: The frame closes without finger pinches and stays securely clamped without repeated re-seating.
  • If it still fails: Slow down the closing motion and reposition hands to the outer edges before letting magnets engage.
• Q: If ITH quilt blocks keep drifting or hooping causes wrist strain, what is a practical upgrade path from technique fixes to magnetic hoops to higher-capacity multi-needle embroidery machines?
  A: Start with technique (Level 1), upgrade clamping (Level 2 magnetic hoops) when friction hooping becomes the bottleneck, and consider production equipment (Level 3 multi-needle) when volume demands it.
  • Level 1 (Technique): Add adhesive mist, pin/tape loose edges, use a stiletto, and verify the placement rectangle is square before continuing.
  • Level 2 (Tool): Move to magnetic hoops when thick stacks distort during hooping or when repetitive screw-tightening causes strain and re-dos.
  • Level 3 (Capacity): Consider a multi-needle machine when batching work makes hooping/time-per-block the limiting factor rather than skill.
  • Success check: Blocks stay square with fewer re-hoops, text is crisp, and hooping no longer feels like the slowest or most painful step.
  • If it still fails: Standardize placement and handling (consistent prep checklist, consistent clamping method) before scaling output further.
