Flip Motif Stitches in Digitizer MBX (Even on Circles): The Vertical Mirror Trick That Stops Blanket-Stitch Frustration

If you have ever stared at a “perfectly fine” motif border on your screen and still felt in your gut that something was wrong, trust that instinct—you are not imagining it. Motif direction changes the entire visual physics of a blanket-style edge.

In the world of embroidery digitizing, specifically within Digitizer MBX, flipping the orientation of a motif is usually as simple as drawing the object in the opposite direction. It’s intuitive, like drawing a line in the sand. That is, until you try to apply that logic to a circle. Then, the logic breaks.

One viewer of the original tutorial summed it up perfectly: a small, simple thing can cause a ridiculous amount of frustration. In my 20 years of floor management and digitizing, I’ve watched that exact frustration cost operators hours of downtime. Whether you are trying to match an existing sample, keep a border consistent across different jersey sizes, or deliver a clean logo edge for a paying corporate customer, "almost correct" is just another way of saying "rejected."

This guide rebuilds the workflow for Digitizer MBX (v5 and v4.5), but more importantly, it adds the empirical constraints and sensory checkpoints you need to stop guessing. We are going to move from "hoping it works" to "knowing it will print."

The “Why Won’t It Flip?!” Moment in Digitizer MBX Motif Stitches (You’re Not Doing It Wrong)

Motif stitches—specifically the blanket-style motif shown here—have a visible “handedness.” In the industry, we call this directionality. In the tutorial graphics, you will see little “fingers” or heart shapes. These are your visual anchors. They can face inward (towards the fill) or outward (towards the raw edge).

In Digitizer MBX version 5, there is a dedicated blanket stitch category. However, the software architecture dictates a specific rule: motif orientation is controlled by object creation direction on open shapes, but often ignores this rule on closed complex shapes like circles.

If you are following a project where the blanket edge needs to face outward—which is standard for appliqué patches, photo frames, and decorative quilt blocks—you need a repeatable method. You cannot rely on "glitching" the software into submission.

Just as you would not start a production run without a reliable hooping station for machine embroidery to ensure physical alignment, you must build a digital workflow that behaves the same way every time. Predictability is the key to scalability.

The Hidden Prep in Digitizer MBX: Set Your Motif “Baseline” Before You Try to Flip Anything

Before you test direction changes, you must lock down the motif settings. If you change the geometry and the parameters at the same time, you are comparing apples to oranges.

In the Object Properties panel, use these specific "Sweet Spot" values for testing. These are safe ranges that work on most medium-weight cottons and felts:

• Stitch Type: Motif
• Motif Pattern: Blanket (or similar directional pattern)
• Size (Width): 3.50mm
  • Expert Note: Keep this between 3.0mm and 4.0mm for testing. Anything smaller than 2.0mm makes the "fingers" hard to see; anything larger than 5.0mm distorts the turn radius.
• Spacing: 3.00mm
  • Expert Note: Safety Floor: Never go below 1.5mm spacing on a blanket stitch without checking your fabric. Dense motif spacing acts like a perforation blade and can cut your fabric out entirely.


Prep Checklist (Pre-Flight Protocol)

Do this once per file before you start experimenting.

• Selection Check: Verify you are editing the correct object in Object Properties (click it and wiggle it to ensure you haven't selected the background).
• Pattern Load: Set the Motif Pattern to Blanket.
• Parameter Lock: input Width 3.50mm and Spacing 3.00mm. Write these down.
• Control Group: Duplicate a simple test object (a straight line) on the side of the canvas. This is your "control" to prove the software is working.
• Visual Zoom: Zoom in to at least 200%. You need to clearly see the "fingers" of the stitch.

The Line Rule in Digitizer MBX: Flip Motif Orientation by Drawing Direction (Open Line)

We start with the simplest case: an open line. This represents the software working correctly.

Using the Digitize Open Line tool:

1. Draft 1: Click left, drag right, click to finish. → Motif appears standard (e.g., fingers down).
2. Draft 2: Click right, drag left, click to finish. → Motif flips structure (e.g., fingers up).

This confirms the core logic: Vector direction controls Stitch orientation.

Expected Sensory Outcome:

• Visual: You should see the scallops/fingers invert immediately upon generating stitches.
• Mental: This confirms you have control over the tool.

Pro tip (Production Floor Rule): When building borders for a set of uniforms, decide your “House Rule” early. For example: “All horizontal borders are digitized Left-to-Right; all vertical borders Top-to-Bottom.” Write this on your production sheet. Consistency beats cleverness every day.

The Rectangle/Square Rule in Digitizer MBX: Drag Direction Flips Motif on Closed Corners

Next, the workflow moves to closed linear shapes using the Rectangle / Square tool.

Key Input Detail:

• Hold Control (Ctrl) while dragging to constrain the shape to a perfect square. This removes variables.

The Test:

1. Square A: Drag cursor from Top-Left to Bottom-Right.
2. Square B: Drag cursor from Top-Right to Bottom-Left.






Expected Outcome: Side-by-side squares will show opposite motif directions. One will face inward (framing the center), and one will face outward (radiating away).

This is where many intermediate digitizers get a false sense of confidence. "Great," you think, "I control the direction." That is true… until the geometry gets curved.

The Circle/Oval Trap in Digitizer MBX: Why Your Motif Direction Won’t Flip (No Matter How You Drag)

This is the friction point. Using the Circle / Oval tool in MBX (Legacy v4.5 through v5.5), the standard creation method involves:

1. Drawing a line for width.
2. Dragging a line for height.
3. Pressing Enter.

The presenter demonstrates trying to "trick" the software by reversing the drag directions—Right-to-Left, Bottom-to-Top, Diagonally.

The Result: consistently failure. The hearts/fingers keep pointing inward.

The Technical Why: Unlike a square, which is calculated as four linear vectors with defined start/stop nodes, a circle in this software layer is calculated as a mathematical primitive based on a center point and radius. The "winding direction" (clockwise vs. counter-clockwise) is often hard-coded or reset by the tool properties, ignoring your hand movements.

If you have ever felt like the program is “ignoring you,” you are correct. It is maximizing mathematical efficiency at the cost of user intent.

The Fix That Actually Works in Digitizer MBX: Single Run → Vertical Mirror Image → Convert to Motif

Here is the "Cheat Code." This works because it forces the software to treat the object as a raw path first, breaks the primitive geometry, and then reapplies the motif property.

The Logic (The "Why")

You are going to trick the system. By creating a Single Run (a simple path), you strip away the "Smart Shape" rules. You then Mirror that path, which mathematically inverts its winding order. Then, you apply the Motif, which reads that new winding order and generates the stitches outward.

Step-by-Step Execution

1. Property Reset: In Object Properties, switch the Stitch Type from Motif to Single Run.
2. Tool Select: Select the Circle / Oval tool.
3. Draw: Draw your circle normally (drag out right, drag down).


4. Select: Click to select your new Single Run circle.

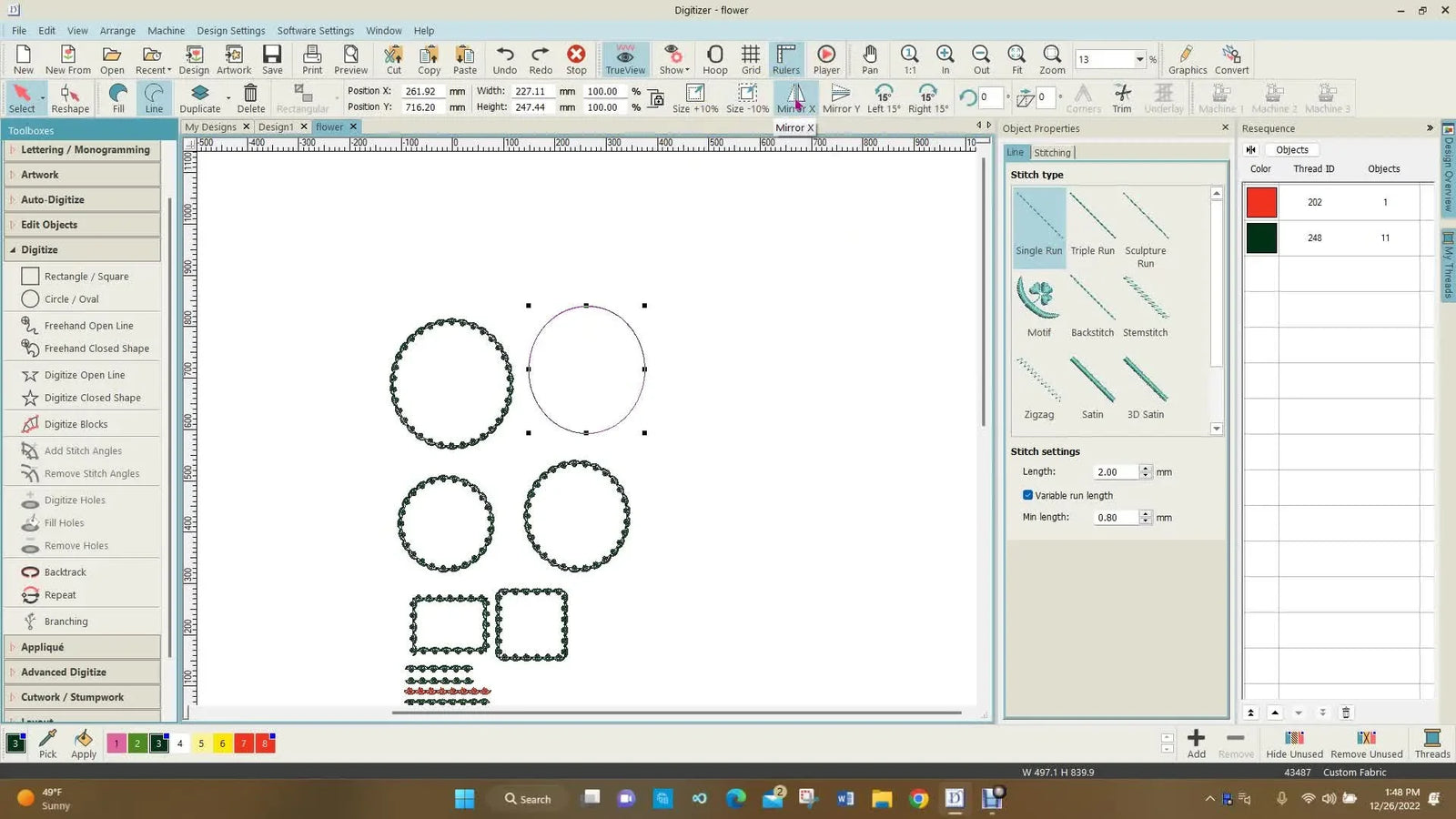

5. The Magic Button: Click the Vertical Mirror Image icon on the top toolbar.
   • Visual Anchor: Look for the icon showing two triangles separated by a vertical line.
   • Sensory Check: You will likely see NO CHANGE on screen. This is normal. The path flipped, but a single line looks the same mirrored. Do not panic.


6. Convert: Now, go back to Object Properties and click the Motif fill icon.


Expected Outcome: The motif generates instantly, but this time, the hearts/fingers are pointing outward.

Setup Checklist (The "Flip" Protocol)

• Type Check: Confirm object is Single Run before mirroring. (If you mirror a motif, it often recalculates back to default).
• Action: Click Vertical Mirror Image.
• Verification: Did the screen blink? Good. Even if the line looks the same, the data changed.
• Conversion: Click Motif.
• Visual Confirmation: Do the fingers point out?
  • If YES: Save immediately.
  • If NO: Delete and retry. Do not try to fix a "broken" circle; it is faster to redraw.

Why the Vertical Mirror Trick Works (And Why You Don’t See Anything Until You Convert)

The confusion stems from the lack of visual feedback during step 5.

When you mirror a circle, it looks identical. Imagine spinning a dinner plate 180 degrees. It looks the same. But to the computer, the "Start Point" and "End Point" just swapped positions on the clock face. The Motif engine relies on looking at the path and saying, "I put the pattern to the Left of the path." By mirroring the path, "Left" effectively becomes "Right," forcing the pattern outward.

Troubleshooting Digitizer MBX Motif Orientation: Symptom → Cause → Fix

Use this matrix when you are stuck. Always troubleshoot in this order to save time.

The Production Mindset: Keep Motif Direction Consistent Across Sizes, Sets, and Customer Orders

This is where we leave the software and enter the shop floor.

If you are digitizing a single gift, you can afford to experiment. If you are running a job for a client with 50 polo shirts, consistency is your currency.

The "Golden Sample" Rule:

1. Test Strip: Every new file should have a "Test Strip" off to the side—one line, one square, one circle. Verify direction there first.
2. Visual Scan: Before sending to the machine, zoom to 100%. Scan the border. Does it flow like a river, or is there a dam?
3. Hooping: A perfect digital file is useless if the physical hoop is crooked.

This is where your workflow integration matters. If you are building a system around hooping stations to standardize placement on the garment, you must treat your digital file with the same rigidity. A hooping station ensures the logo is always 4 inches down from the collar; your digitizing rule ensures the border always faces out. Both reduce decision fatigue.

Decision Tree: Choosing a Border Strategy

Don't guess. Follow this logic path.

START: What shape is your border?

• A. Open Line / Curve
  • Action: Use Digitize Open Line.
  • Control: Flip by changing drawing direction (Left-to-Right vs Right-to-Left).
• B. Rectangle / Square
  • Action: Use Rectangle/Square Tool.
  • Control: Flip by changing drag direction (Top-Left to Bottom-Right vs opposite).
• C. Circle / Oval
  • Action: Use the Mirror Workaround.
  • Control: Draw as Single Run → Vertical Mirror → Convert to Motif.
• D. Complex Irregular Shape (e.g., a shield or star)
  • Action: Test direction first.
  • Fail Safe: If direction fails, explode the shape to Single Run, mirror stitch order, and re-apply Motif.

Operation Checklist (Final Verification)

Hidden Consumables Alert: Have you checked your Spray Adhesive or Fusible Interfacing? For motif borders on knits, float a layer of fusible behind the hoop area to prevent the heavy border from rippling the fabric (the dreaded "bacon neck").

• Zoom Check: View at 100%. Are fingers pointing correctly?
• Reference Check: Compare against your "Control" circle.
• Stabilizer Selection: For blanket stitch motifs:
  • Stretchy Fabric: Must use Cutaway. Tearaway will perforate and separate.
  • Stable Fabric: Tearaway is acceptable, typically 2 layers.
• Safety Zone: confirm the design fits within the standard hoop limits (leave 1/2 inch buffer).

Warning (Physical Safety): Digitizing is safe, but production is kinetic. Keep fingers clear of needles and moving pantographs. Never reach into an embroidery machine frame while it is running to trim a thread tail—pause the machine first.

The Upgrade Path: When Software Fixes Meet Real-World Embroidery

You have fixed the file. Now, can you execute it profitably?

Motif direction mistakes are insidious because you often don't see them until the embroidery is finished. You stitch a full border, trim the jump threads, unhoop the item... and only then notice the "fingers" are facing the wrong way.

That is wasted thread, wasted backing, ruined garment, and lost time.

If you are doing repeat runs—patches, frames, or appliqué outlines—your biggest bottleneck is usually not the software. It’s the physical setup.

• The Pain: Traditional hoops leave "hoop burn" (shiny rings) on delicate fabrics, requiring time-consuming steaming to remove. They are also hard to align perfectly on thick items.
• The Fix: A magnetic embroidery hoop is the industry standard upgrade here. Because it uses magnetic force rather than friction, it reduces hoop burn significantly.
• The Speed: If you are juggling sizes (S, M, L, XL), standard magnetic embroidery frames allow you to adjust placement faster, reducing the physical strain on your wrists and cutting seconds off every cycle.

Warning (Magnet Safety): Industrial magnetic hoops use N52 Neodymium magnets. They are incredibly powerful. Keep them away from pacemakers, ICDs, and other implanted medical devices. Watch for "pinch hazards"—do not get your fingers caught between the magnets, as they can snap together with enough force to cause injury.

The Commercial Scale-Up: If you find yourself spending more time changing thread colors than digitizing, or if your single-needle machine is running 6+ hours a day, you have hit a "Hardware Ceiling." Moving to a multi-needle platform (like SEWTECH’s high-value multi-needle ecosystem) allows you to set up the next job while the current one runs.

Final Thought: If you are building a professional workflow around a hooping station for embroidery, treat this "Single Run → Mirror" software trick as part of that same toolkit. It is a standard operating procedure designed to turn variables into constants.

Master the software "why," invest in the hardware "how," and your production line will run smooth, fast, and profitable.
