Flip It, Puff It, Quilt It: Mirror Imaging on a Janome Horizon + a Clean Trapunto Dove Block (Without the Usual Headaches)

Mastering Trapunto & Machine Logic: A Field Guide to the Janome Horizon Workflow

If you’ve ever watched your embroidery machine stitch a design perfectly… only to realize the bird is facing the wrong way, you’re not alone. And if you’ve tried Trapunto once and ended up with a lumpy "puff," shifting fabric, or a scary near-miss with the scissors—same story.

Machine embroidery is an "empirical science"—it relies on the collision of physics (hoop tension), chemistry (stabilizers), and geometry (digitizing). When you try a technique like Trapunto (raised quilting), you are increasing the variables: thicker stacks, higher drag, and higher risk of deflection.

In this white-paper style walkthrough, we will deconstruct Sharon’s workflow: mirroring a built-in dove design on a Janome Horizon, and then stitching it as a specialized Trapunto block. We will move beyond simple steps and provide the "Sweet Spot" data, sensory checks, and safety boundaries that turn a risky experiment into a repeatable production process.

Calm the Panic: What the Janome Horizon Edit Screen Can Fix (Even After You Hit "Ready to Sew")

The Janome Horizon interface looks friendly, but it can induce "cockpit panic" when you are mid-project. The good news is that we can categorize the editing tools into three functional safety nets that cover 90% of real-world mistakes:

1. Hoop Selection (The Boundary): Ensuring your digital map matches your physical terrain.
2. Mirror Image (The Orientation): Flipping geometry horizontally or vertically.
3. Stitch Navigation (The Time Machine): Jumping distinct color blocks or specific stitch counts to recover from errors.

Psychological Safety Note: If you are coming from other Janome models (like the 550e, 500e, or 400e), the button locations may shift, but the iconography (visual language) remains consistent. Look for the triangles and grid symbols—they do the same job.

However, in Trapunto, "Digital" decisions have "Physical" consequences. A wrong flip isn't just a visual error; it can misalign your carefully stacked wadding, leading to waste.

The "Hidden" Prep Pros Do Before Mirroring or Trapunto (Hoop, Layers, and a No-Regrets Trim Plan)

Before you touch the Edit screen, you must stabilize the physical environment. Trapunto works by controlled compression: we build height with wadding, then use dense stippling to smash the background flat, making the subject "pop."

The "Hidden Consumables" List

A standard manual won't tell you this, but you need these within arm's reach:

• Curved Appliqué Scissors: (Crucial) The "duckbill" or curved tip prevents snagging the base layer.
• Temporary Spray Adhesive (Optional but Recommended): To hold wadding layers if you lack a magnetic frame.
• New Needles: Size 75/11 or 90/14 Topstitch (sharp point to penetrate thick wadding).

The Physics of Hooping for Trapunto

This is where 80% of beginners fail. You are hooping a thick stack. If you use a standard method, the inner ring creates a "trampoline" effect—tight on edges, loose in the middle.

When researching hooping for embroidery machine techniques, remember the goal isn't just tightness; it's neutral tension. The fabric should feel like a drum skin, but not stretched so tight that the fibers distort.

Commercial Logic: The "Pain Point" Trigger

• The Trigger: You are struggling to close the hoop over the batting/backing stack. Your wrists hurt, or you see "hoop burn" (white friction marks) on the fabric.
• The Criteria: If you are doing a quilt with 20+ blocks, and re-hooping takes you 3 minutes per block, you are losing an hour of production time just to mechanics.
• The Upgrade (Level 2): This is the specific scenario where a Magnetic Hoop solves the problem. The magnets clamp straight down (vertical force) rather than pulling sideways, securing thick Trapunto stacks instantly without "burn" or wrist strain.

Warning: Physical Safety
Curved appliqué scissors are surgical tools. They are sharp enough to slice through your backing stabilizer in a millisecond. Always keep the hoop flat on a table when trimming—never trim "in the air" where the stabilizer can flex up into the blades.

Prep Checklist (The "Must-Haves")

• Hoop Check: SQ14 hoop is clean (check inner ring for lint buildup).
• Base Stability: Backing fabric cut 2 inches larger than the hoop on all sides.
• Loft Material: Lightweight wadding pre-cut: 1 base layer + 2 extra "puff" layers.
• Clearance: Curved scissors are on the table (not buried under fabric).
• Thread: Bobbin is at least 50% full (running out during stippling is a nightmare).


Lock the Workspace First: Selecting the SQ14 Hoop So Your Boundary Is Real

Sharon’s sequence is technically vital: Select the Hoop Size First.

On the screen, select SQ14. This sets a digital boundary of 5.5 x 5.5 inches. Why this matters: The machine calculates "Check Size" (trace) based on this selection. If you physically use an SQ14 but leave the machine set to a larger hoop, the needle bar could slam into the plastic frame, causing timing issues or breakage.

When you look into janome embroidery machine hoops, you aren't just buying plastic rings; you are buying specific "digital permissions" that your machine recognizes. Always sync the digital selection to the physical object immediately.

Mirror Image on Janome Horizon: The Two Flip Icons That Save You From "Wrong-Facing" Designs

Sharon loads the dove (Design #59). Here is the cognitive trap: "Mirroring" is not one button. It is two distinct geometric operations:

1. Horizontal Flip (Left/Right arrow icon): Flips the design over a central vertical axis. Use this to make a bird look Left vs. Right.
2. Vertical Flip (Up/Down arrow icon): Flips the design over a horizontal axis. Use this to turn a design upside down.

Sharon uses the Vertical Flip to change the dove's orientation.

Sensory Check: Watch the screen preview closely. Does the bird's beak point exactly where you expect? Don't rely on the icon label—rely on the visual change in the preview window.

Pick the Dove Design (#59) and Confirm It Fits: The 14 cm Reality Check

Sharon confirms the design is approximately 14 cm (5.5 inches).

Expert Note: The SQ14 hoop is nominally 14cm. Stitching right up to the limit is dangerous for beginners. A "safe zone" is keeping the design 10mm away from the absolute edge to prevent the presser foot from rubbing against the hoop clamp, which can cause registration errors (layer shifting).

The "Ready to Sew" Screen Audit: Speed, Colors, and Stitches

Before commitment to stitch, perform a "Data Audit" on the Ready to Sew screen:

• Hoop: SQ14 (Confirmed)
• Speed: 400 SPM (Stitches Per Minute)
• Colors: 2
• Stitches: 2609

The "Sweet Spot" for Speed

Sharon sets the speed to 400 SPM.

• Beginner Safe Zone: 400-500 SPM.
• Expert Zone: 600-700 SPM.
• Why slow down? You are stitching through multiple layers (Backing + Wadding x3 + Top Fabric). High speed creates friction, heats the needle, and increases "flagging" (fabric bouncing), which can ruin the Trapunto outline. Stick to 400-500 SPM for the cleanest outline execution.


Skip Color 1 (or Don't): Using Stitch Navigation to Toggle Trapunto Modes

The design has two color steps. This is a common digitization strategy for Trapunto:

• Color 1 (Blue): The "Tack Down" line. Used to secure the extra wadding layers.
• Color 2 (Red): The visible satin stitching/stippling.

Sharon explains that if you wanted a flat design, you would skip Color 1. Since we want puff, we keep it.

Action: Look at the Stitch Counter. Color 1 is 153 stitches. This knowledge is power. If you accidentally skip it, you know exactly where to go back to (Stitch 0). Understanding how machine embroidery hoops interact with digitizing files allows you to manipulate the machine: the hoop holds the canvas, but you choose which paint to apply.

The "Undo Button": Navigating Backward/Forward Through Stitches

If your thread breaks at stitch 50, Sharon demonstrates using the (+/-) keys to move the needle.

Troubleshooting Logic:

• Thread Break: Go back 10-15 stitches before the break to ensure the new thread overlaps and locks with the old thread.
• Bobbin Runout: Go back 20-30 stitches to be safe.


Trapunto Layering: The "Sandwich" Technique

Now, the physical engineering. Sharon’s specific stack order is:

1. Bottom: Backing fabric (hooped).
2. Middle: 1 full sheet of lightweight wadding.
3. Top: 2 extra small pieces of wadding (just under the dove area).

Why this works: Stacking 3 thin layers is better than 1 thick layer. Thin layers are easier for the needle to penetrate and easier for your scissors to trim cleanly.

If you find yourself doing this production-style, a hooping station for embroidery machine is a valuable addition to your shop. It holds the hoop in a fixed jig, freeing up both of your hands to align these slippery wadding layers perfectly before you clamp them.

The Blue Tack-Down Pass: The "Permission to Trim"

Press Start. The machine runs Color 1 (Blue). It stitches a simple outline of the dove. Crucially, it stops automatically after this color change.

Sensory Check: Ensure the wadding didn't bunch up under the foot. It should look flat and securely pinned by the thread.

Trim Like a Surgeon: The High-Stakes Cut

Sharon removes the hoop from the machine (do not un-hoop the fabric!). She uses her curved scissors to trim the top 2 layers of extra wadding, cutting extremely close to the stitch line.

Technique:

1. Pull the excess wadding gently up and away from the stitches.
2. Glide the curved scissor blade flat against the base layer.
3. Snip small bites.

The Goal: Leave the wadding inside the dove line, but remove everything outside it.

Lay the Top Fabric & The "Perimeter Box" Risk

Place your final "Top Fabric" (the pretty fabric) over the entire hoop. Smooth it out with your hands.

The Danger Zone: The next stitch is the "Perimeter Box" which anchors this top fabric.

• Risk: The presser foot can push a "wave" of fabric ahead of it.
• Correction: Sharon advises you to "Babysit" the machine. Keep your fingers (safely away from the needle!) on the fabric to guide it, or use a chopstick/stylus to hold the fabric down as the foot approaches corners.

If you struggle with fabric slippage here, this is a prime use case for magnetic embroidery hoops. Their strong magnetic grip prevents the base layers from creeping inward ("trampolining") while you manipulate the top layer, offering superior stability for multi-layer sandwiches.

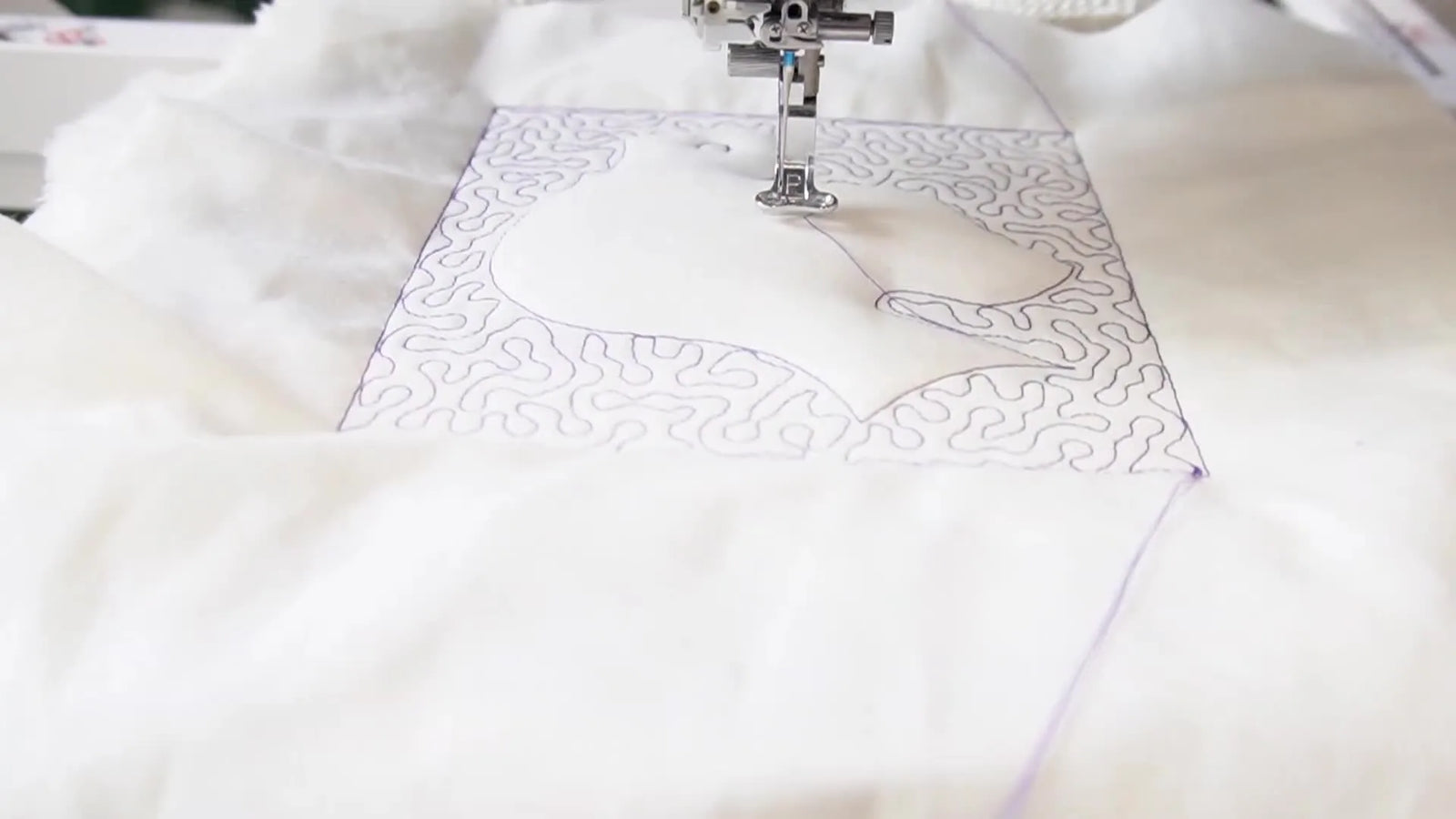

The Stipple Finish: Creating the Illusion

Once the box anchor is done, the machine begins the heavy stippling (meandering stitches). This creates the Trapunto magic:

• The Stippling compresses the wadding outside the dove.
• The Dove remains un-stitched internally, retaining the full loft of 3 layers of wadding.
• Result: 3D relief texture.


Structured Troubleshooting: When Things Go Wrong

Even experts face issues. Here is a diagnostic table for the most common faults in this workflow.

The Commercial Upgrade Path: Scaling Your Production

Making one square is a craft project. Making 50 squares for a quilt is production. As you repeat this process, you will identify specific bottlenecks.

1. The Hooping Bottleneck: If re-hooping takes longer than stitching, investigate a janome 550e magnetic hoop (or the size matching your machine). The magnetic "snap-and-go" mechanism is the industry standard for speed.
2. The Compatibility Check: Before buying, always cross-reference your specific machine model. Users searching for janome 500e hoops generally find that aftermarket magnetic frames offer better stability for Trapunto than the stock plastic hoops provided in the box.
3. The Trim/Change Bottleneck: If stopping to trim and change threads manually is killing your profit margin, you have outgrown the single-needle platform. This is the criteria for moving to a SEWTECH Multi-Needle Machine, where color changes are automatic, and production speeds are sustained without shaking the table.

Warning: Magnet Safety
Commercial magnetic hoops use high-powered Neodymium magnets.
* Pinch Hazard: They snap shut with incredible force. Keep fingers clear.
* interference: Keep away from pacemakers, credit cards, and mechanical watches.

Final Operational Checklist: The "Go/No-Go" Decision

Setup (Pre-Flight)

• Dove Design mirrored correctly (Beak pointing correct direction).
• Speed limited to 400 SPM.
• Stitch Navigation understood (Plan B for mistakes).
• Wadding stack is strictly positioned.

Operation (In-Flight)

• Pass 1: Blue Tack-down completed perfectly.
• Trim: Scissors angled correctly? NO cuts in backing?
• Cover: Top fabric is smooth.
• Pass 2: Perimeter box monitored ("Babysat") for drag.
• Pass 3: Stippling completed.

Decision Tree: To Stabilize or Not?

• Fabric A (Stable Cotton/Quilting):
  • System: 1 Backing Layer + Wadding.
  • Hoop: Standard SQ14 or Magnetic Hoop.
• Fabric B (Stretchy/Knit/Jersey):
  • System: Must use Iron-on Stabilizer (Fusible) on the back of the knit first + Cutaway Stabilizer clamped in hoop.
  • Hoop: Magnetic Hoop highly recommended (prevents stretching during hooping).

By following this calibrated workflow, you stop "hoping" for a good result and start "manufacturing" one. Master the layering, respect the speed limits, and let the physics of the machine do the work for you.

FAQ

• Q: What “hidden consumables” should be on the table before starting Trapunto on a Janome Horizon embroidery machine?
  A: Set up the right small tools first, because Trapunto fails fast when trimming or penetration goes wrong.
  • Gather curved appliqué scissors (duckbill/curved tip), optional temporary spray adhesive, and fresh needles (75/11 or 90/14 Topstitch).
  • Place scissors on the table (not under fabric) and keep the hoop flat when trimming.
  • Success check: the wadding layers stay flat during the tack-down pass, and trimming feels controlled without snagging the base layer.
  • If it still fails… switch to a new needle and reduce speed before attempting the next block.
• Q: How do I judge correct hooping tension for thick Trapunto layers to avoid “hoop burn” on a Janome Horizon SQ14 hoop?
  A: Aim for neutral, drum-skin tension—tight enough to resist bounce, not stretched hard enough to whiten or distort fabric.
  • Hoop the stack so the surface feels firm and even across the center (avoid the “tight edges, loose middle” trampoline feel).
  • Stop tightening if you see friction marks (“hoop burn”) or the fabric grain looks pulled.
  • Success check: the hooped area feels evenly firm when tapped, with no center sag and no visible distortion lines.
  • If it still fails… consider a magnetic hoop for thick stacks, because magnets clamp vertically instead of grinding fabric sideways.
• Q: Why must the Janome Horizon embroidery machine select the SQ14 hoop on-screen before stitching, and what happens if the hoop selection is wrong?
  A: Select SQ14 first so the digital boundary matches the physical hoop and the trace/check-size path stays safe.
  • Select SQ14 (5.5" × 5.5") before pressing “Ready to Sew.”
  • Run the machine’s check-size/trace after hoop selection changes.
  • Success check: the traced path stays inside the hoop opening with clear clearance from the frame and clamps.
  • If it still fails… stop immediately and re-check the on-screen hoop setting before restarting to avoid frame strikes.
• Q: Which Janome Horizon mirror icon flips a built-in dove design left/right versus upside down, and how can I prevent a wrong-facing bird?
  A: Use the correct flip icon and verify with the preview—do not trust labels alone.
  • Use Horizontal Flip (left/right arrows) to reverse facing direction; use Vertical Flip (up/down arrows) to flip top-to-bottom.
  • Watch the preview and confirm the beak points exactly where expected before stitching.
  • Success check: the on-screen design orientation matches the intended “real-world” direction before hitting Start.
  • If it still fails… return to Edit and apply only one flip at a time, confirming the preview after each change.
• Q: What is a safe Janome Horizon stitch speed for Trapunto layers, and how do I know the speed is causing problems?
  A: Start at 400–500 SPM for Trapunto to reduce heat, drag, and fabric flagging on thick stacks.
  • Set speed to 400 SPM as a safe baseline for multi-layer outlines and stippling.
  • Slow to 350–400 SPM if the top fabric wrinkles during the perimeter box or the stack starts bouncing.
  • Success check: the outline stitches look steady and the fabric does not “flutter” (flag) under the presser foot.
  • If it still fails… re-check hooping tension and needle condition before increasing speed.
• Q: How do I use stitch navigation on a Janome Horizon after a thread break or bobbin runout during Trapunto stippling?
  A: Back up and overlap stitches so the restart locks cleanly into existing stitching.
  • For a top thread break, move back 10–15 stitches before the break point, then restart.
  • For bobbin runout, move back 20–30 stitches, then restart to avoid a visible gap.
  • Success check: the restart area blends in with no open gap or obvious “restart line.”
  • If it still fails… slow the machine and rethread completely, then repeat the backup-and-overlap restart.
• Q: What is the safest way to trim wadding after the Janome Horizon Trapunto tack-down pass without cutting the backing stabilizer?
  A: Remove the hoop from the machine but keep the fabric hooped, then trim flat on a table using curved appliqué scissors.
  • Stop after Color 1 (tack-down), remove the hoop from the machine, and keep the fabric clamped.
  • Pull excess wadding gently up and away, then glide the curved blade flat against the base layer and take small snips.
  • Success check: only the extra top wadding outside the outline is removed, and the backing layer shows no nicks or sliced spots.
  • If it still fails… stop trimming “in the air” and reset the hoop flat; curved scissors can cut the backing in a millisecond.
• Q: When does upgrading to a magnetic embroidery hoop or a SEWTECH multi-needle embroidery machine make sense for Trapunto production?
  A: Upgrade when hooping and manual handling—not stitching—becomes the bottleneck.
  • Level 1 (technique): optimize hooping tension, slow to ~400 SPM, and use spray adhesive if wadding shifts.
  • Level 2 (tool): choose a magnetic hoop if closing standard hoops hurts wrists, leaves hoop burn, or re-hooping time is costing real production minutes.
  • Level 3 (capacity): move to a SEWTECH multi-needle machine if frequent stops for trimming and manual thread/color changes are limiting throughput.
  • Success check: setup time drops (faster hooping, fewer re-hoops) and layer shifting/hoop marks noticeably decrease.
  • If it still fails… verify machine model compatibility before purchasing any hoop system, and treat high-powered magnets as a pinch hazard (keep fingers clear and away from pacemakers/cards/watches).
