Flawless Left-Chest Appliqué on a Kids’ T-Shirt: The Armhole Math, the Inside-Out Stabilizer Trick, and How to Beat Hoop Burn

If you have ever stared at a freshly hooped knit T-shirt and thought, “Please don’t pucker… please don’t leave a ring… please don’t sew the shirt shut,” you are not alone. This is the physiological "fight or flight" response of the embroiderer. Left-chest embroidery on a child’s tee is one of those jobs that looks deceivingly simple—until you are three minutes in and realize you have stabilized it wrong.

In this industry-grade guide, we are analyzing Christie Burcham’s method (Embroidery Online) for a painted sports appliqué on a kid’s T-shirt. We will move beyond just how to do it, and explain why it works, adding necessary safety parameters and professional tool recommendations to ensure your success rate moves from 50% to 100%.

The workflow is specific: resize logically, calculate placement mathematically, stabilize internally, hoop safely, and finish cleanly.

Choose the Design Size First (Art Sizer) so Your Left-Chest Appliqué Doesn’t Look “Adult-Sized”

The video starts with a foundational truth: scale matters. A 3.5-inch design looks standard on an adult XL, but on a toddler size 4T, it looks like a dinner plate. Christie reduces the design using the free Art Sizer program from Embroidery Online/OESD.

Why this matters (The Physics of Density): When you shrink a design significantly (more than 10-20%) directly on some machines, the stitch count might not adjust, causing the stitches to crowd together. This creates a "bulletproof" stiff patch that feels terrible on a kid's skin. Software like Art Sizer recalculates the density.

Operational Steps:

• Open Art Sizer: Import your design.
• Scale Down: Reduce the size to fit the intended garment (e.g., 2.5" to 3" width for toddlers).
• Check Stitch Count: Ensure the stitch count drops as the size drops.
• Save/Export: Save in your machine's format (PES, DST, etc.).

Pro tip from the shop floor: If you are producing team shirts, stop guessing. Keep a "Master Spreadsheet" of dimensions. For example: Toddler (2T-5T): Max 2.5" width. Youth (S-L): Max 3" width. This turns a 20-minute guessing game into a 30-second decision.

The Armhole Formula for Left-Chest Placement on a Crew Neck T-Shirt (7" ÷ 2 = 3.5")

Left-chest placement is where novices lose confidence. "Eyeballing it" is how you end up with a logo in the armpit. To professionally tackle placement, we use a fixed anatomical reference point: the armhole seam.

1) Mark the vertical guideline from the shoulder/neck seam

• Visual Anchor: Start exactly where the shoulder seam intersects with the ribbed collar.
• Action: Draw a straight vertical line downwards.
• Tool: Use a Frixion Pen (heat erase) or water-soluble pen. Do not use chalk; it rubs off too easily on knits.


2) Measure the armhole depth and divide by two

In the video, the armhole depth (from shoulder seam to the bottom of the armpit seam) measures 7 inches.

• The Formula: Total Depth ÷ 2 = Center Point.
• Calculation: 7" ÷ 2 = 3.5".
• Action: Measure 3.5 inches down your vertical line and make a mark.


3) Draw the perpendicular line to create a crosshair

From that 3.5" mark, draw a horizontal line perpendicular to your vertical line. This crosshair (+) is your absolute center.

The Twist Check (Crucial): Before marking, run your hand over the shirt. If the side seams are twisting toward the front, your "straight" line will look crooked when worn.

Sensory Check: The fabric should look calm and flat. If you see ripples, lift the shirt and lay it down again. Do not force it flat with your hand; let gravity do the work.

The Inside-Out Stabilizer Move: Two Layers of Mesh Cutaway Without Fighting the Tube

Here is the trick that saves time and prevents you from fighting gravity: turn the shirt completely inside out.

Often beginners try to stuff stabilizer inside a right-side-out shirt. This is a mistake. By turning it inside out, the smooth "wrong side" is exposed and flat, while your placement marks are still visible (ghosting) through the fabric.

The Stabilizer Recipe:

• Base: Two layers of Mesh Cutaway (also known as No-Show Mesh).
• Adhesion: Temporary Spray Adhesive (e.g., 505 Spray).


Why Mesh Cutaway? (Material Science): T-shirt knits are unstable; they stretch in four directions. Tear-away stabilizer will disintegrate after one wash, leaving the heavy embroidery to sag and distort the shirt (the "bacon neck" effect). Cutaway stabilizer acts as a permanent suspension bridge for the stitches. Mesh is chosen because it is soft against the skin and translucent, preventing the "white square badge" look.

Warning: Use spray adhesive in a ventilated area, away from your machine. Spray from 8-10 inches away. If you spray too close, the stabilizer becomes gummy, which can gum up your needle and cause thread breaks.

Prep Checklist (Pre-Flight Safety Check)

Before you even touch the hoop, verify the following:

• Design Density: File is resized and density is appropriate (not a bulletproof patch).
• Marking Visibility: Crosshair is clearly visible through the fabric from the inside.
• Stabilizer Bond: Two layers of mesh cutaway are adhered firmly without wrinkles.
• Needle Check: A fresh Ballpoint Needle (Size 75/11) is installed. (Run your finger gently over the tip—if it scratches you, it will scratch the shirt).
• Tool Hygiene: The adhesive spray can is stored away from the embroidery machine.


Hooping a Tubular T-Shirt with a Standard 4x4 Hoop—Without Sewing the Shirt Closed

This is the exact moment where 90% of beginners fail. They accidentally hoop the back of the shirt to the front, or they stretch the fabric so tight it puckers later.

We follow the "Bottom-Up" approach.

Warning: Never go through the neck hole when hooping a T-shirt for left-chest. The neck hole is too small, and you risk stretching the collar. Always enter from the bottom hem.

The hooping sequence shown in the video

1. Invert & Insert: Leave the shirt inside out. Slide the outer hoop (the bottom piece) inside the shirt, entering from the waist hem.
2. Align: Position the outer hoop under your marked area.
3. Insert Inner Hoop: Place the inner hoop on top. Align the hoop’s grid marks with your drawn crosshair.
4. Press: Press the inner hoop down firmly but gently.

Christie uses a standard number 4x4 hoop, which is ideal for children's wear as it fits inside small garments easily.

Expert Insight (The Physics of Friction): Hoop burn—those shiny, crushed rings on the fabric—is caused by excessive friction and pressure. The "Finger-Tight" Rule: Loosen the hoop screw significantly before pushing the inner ring in. It should slide in with a moderate push, not a struggle. Once it is in, tighten the screw. The fabric should feel taut like a drum skin, but not stretched like a rubber band. Sensory Check: Tap the fabric in the hoop. It should make a dull thump, not a hollow ringing sound.

Tool Upgrade Path (Solving the Wrist Pain): If you are doing one shirt, a standard screw hoop is fine. If you are doing 50 shirts for a little league team, manual twisting will destroy your wrists and slow you down. This is where magnetic embroidery hoops create a massive efficiency jump. Magnetic frames snap together automatically, adjusting to the fabric thickness without manual screw adjustments, drastically reducing hoop burn and setup time.

The “It’s Okay If It’s Not Centered” Rule—Then Fix It on the Machine Screen

Perfection is the enemy of done. It is incredibly difficult to hoop a shirt so that the crosshair is exactly in the dead center of the hoop grid.

Christie’s advice: Do not re-hoop just for alignment.

As long as the fabric is straight (grain is vertical) and taut, you can accept an off-center hoop. Load the hoop into the machine, and use the machine's touchscreen interface to jog the needle until it sits exactly over your drawn crosshair center.

Pro Tip: Most modern machines have a "Trace" or "Check Size" function. Always run this trace to ensure your design doesn't hit the plastic frame, especially if you have offset the center.

Setup Checklist (Ready to Stitch)

• Clearance: Check under the hoop—ensure the back of the shirt is pushed away and not bunched under the needle.
• Alignment: The needle is centered over your crosshair mark (adjusted via screen).
• Thread Path: Upper thread is seated correctly in tension disks; bobbin area is clear of lint.
• Speed Control: Reduce machine speed to 600-700 SPM for knits to reduce friction.

Ballpoint Needle on Knits: The Small Choice That Prevents Big Holes

Christie explicitly recommends a ballpoint needle (Style: SUK or BP).

The Mechanics: Standard "Sharp" needles cut through fibers. On woven fabric (like denim), this is fine. On knits (like tees), cutting a fiber breaks the loop structure, causing a run or a hole that expands after washing. A ballpoint needle has a rounded tip that slides between the fibers without cutting them.

Video troubleshooting recap:

• Symptom: Small holes appearing around the embroidery border.
• Cause: Sharp needle severing knit loops.
• Fix: Switch to size 75/11 Ballpoint.

Expert Add-on: If you are stitching through heavy stabilizer and appliqué layers, a standard ballpoint might struggle. In specialized cases, a "Light Ballpoint" or "Universal" is a middle ground. But for standard soft tees, stick to Ballpoint.

Clean Appliqué on a T-Shirt: Placement Stitch → Fabric → Tack-Down → Trim (Off the Machine)

Appliqué is excellent for kids' wear because it reduces stitch count (making the design lighter and softer).

1) Stitch the placement outline

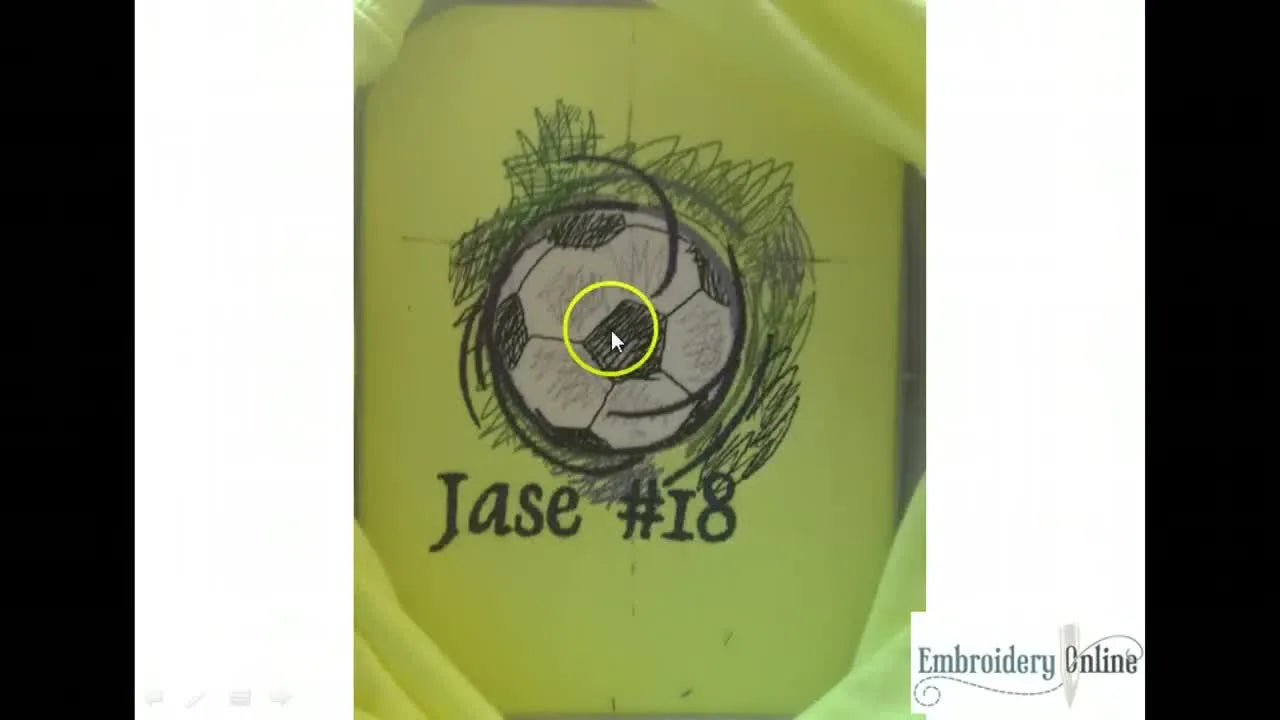

The machine runs a single running stitch showing you where the soccer ball goes.

2) Adhere the appliqué fabric

Spray the back of your appliqué fabric (the white patch) lightly with adhesive. Place it over the outline. Crucial: Ensure it covers the stitch line entirely.

3) Stitch the tack-down run

The machine stitches the fabric down.

4) Remove the hoop to trim

Do not trim on the machine. This is dangerous for two reasons: you might cut the shirt, and accurate trimming requires good angles. Remove the hoop (keep fabric in it!), place it on a flat table, and use double-curved appliqué scissors.

Warning: Standard straight scissors will fail here. You need curved scissors that lift the fabric slightly as they cut. Keep the blades parallel to the stabilizer. One slip with straight scissors can puncture the T-shirt fabric, ruining the garment instantly.

The Trim Goal: You want to trim close to the stitches (about 1-2mm away), but not through the stitches. Think of it like a very close haircut, not a shave.

After trimming, return the hoop to the machine to finish the satin stitching (the final border).

Operation Checklist (During Stitch-out)

• Placement: Appliqué fabric fully covers the placement line.
• Adhesion: Fabric is flat and not bubbling before the tack-down stitch.
• Safety: Hoop removed from machine before scissors touch the fabric.
• Trim Quality: Fabric trimmed to 1-2mm from the stitch line (no "whiskers" sticking out).
• Visual Check: No shirt fabric is caught underneath the hoop before re-attaching.

Hoop Burn on T-Shirts: Loosen the Screw First, Then Use Water + Pressing (Steam Alone Isn’t Enough)

Hoop burn is the "ghost ring" left by the pressure. On dark cotton tees, it can look permanent.

The Cure:

1. Release Tension: Do not be afraid. The fibers are just crushed, not broken.
2. Hydrate: Water is key. Steam is gas; water is liquid. Lightly spritz the ring with water or a spray starch alternative.
3. Heat: Use a pressing cloth or iron face-down into a fluffy towel. The towel prevents the embroidery stitches from being flattened while the steam relaxes the shirt fibers.


Finish Quality: If you send a shirt to a customer with a hoop ring, it screams "amateur." This finishing step is mandatory for professional results.

A Simple Stabilizer Decision Tree for Knit T-Shirts (So You Don’t Overbuild or Underbuild)

Confusion about stabilizers ruins more projects than bad needles. Use this logic gate for your next project.

Decision Tree: Knit T-shirt → Stabilizer Choice

1. Is the fabric a standard everyday T-shirt (Cotton/Poly Blend)?
   • Yes: Use 2 layers of Mesh Cutaway. (Why 2? One provides structure; the second prevents density tunneling).
   • No: See below.
2. Is the fabric extremely thin/sheer (Burnout tee, high-end lightweight)?
   • Yes: Use 1 layer of No-Show Mesh + 1 layer of Water Soluble Topper (to keep stitches floating).
   • No: See below.
3. Is the design extremely dense (heavy fill, 15,000+ stitches)?
   • Yes: You need 1 layer of Medium Cutaway (not mesh). Mesh is great for soft shirts, but heavy designs need a rigid foundation.
   • No: Stick to the Mesh Cutaway standard.

When Hooping Becomes the Business Problem: Faster, Cleaner Setups for Team Shirts

Christie mentions custom team shirts. This is the pivot point where "Hobbies" become "Business."

If you are making 20 shirts for a soccer team using a standard screw-tighten hoop:

1. Your wrist will ache.
2. Your consistency will drift (Shirt #1 placement vs. Shirt #20).
3. You will fight hoop burn on every single unit.

The Production Solution Hierarchy:

• Level 1 (The struggle): Standard hoops. Great for learning, slow for volume.
• Level 2 (The upgrade): embroidery hoops magnetic. These engage instantly. Top and bottom frames snap together with magnets. There is no screw to tighten, significantly reducing hoop burn because the pressure is vertical, not dragged.
• Level 3 (The workflow): A dedicated embroidery hooping station. This tool holds the garment and hoop in a fixed position, ensuring that the logo on Shirt #50 is in the exact same spot as Shirt #1.
• Level 4 (The Scalability): If single-needle setups are bottlenecking your sales, look into multi-needle machines (like SEWTECH models). These allow you to preset multiple threads, run faster, and often utilize specialized totally tubular hooping station setups designed for rapid reloading.

Warning: Magnetic Safety. If you upgrade to magnetic frames, be aware they are powerful industrial tools. Keep fingers clear of the snap zone to avoid pinching. Do not place them near pacemakers or magnetic storage media.

The Last 2% That Makes It Look Professional: Remove Marks, Protect Stitches, Deliver Clean

An embroidered shirt is not "done" when the machine stops. It is done when it is clean.

• Mark Removal: Use a heat press or iron to clear Frixion marks. Use water for blue pens.
• Thread Trimming: Snip jump stitches on the front and the connecting tails on the back.
• The "Soft Touch" Test: Rub the back of the embroidery against your cheek. If it feels like sandpaper, consider fusing a layer of "Cloud Cover" or "Tender Touch" over the back stitches. This protects the child's skin and is a premium touch parents notice.

Investing in the right setup, whether it is a simple magnetic hooping station for your home studio or ensuring you have the right brother 4x4 embroidery hoop adapters for your specific machine, turns embroidery from a stressful gamble into a repeatable science.

Master the prep, respect the physics of the fabric, and your shirts will look like they came from a factory—but with the heart of a handmade gift.

FAQ

• Q: How do I resize a left-chest appliqué embroidery design for a toddler T-shirt using Embroidery Online Art Sizer without creating a stiff “bulletproof” patch?
  A: Resize in Art Sizer and confirm the stitch count drops with the size change to keep density from crowding.
  • Open Art Sizer and import the file, then scale down to a toddler-appropriate width (often 2.5"–3").
  • Check the new stitch count after resizing; it should decrease as the design shrinks.
  • Export in the correct machine format (PES, DST, etc.) and stitch a quick test if the design was reduced heavily.
  • Success check: The finished embroidery feels flexible on the shirt, not like a hard badge.
  • If it still fails… re-evaluate density in software (some machines don’t recalculate density well when shrinking).
• Q: What is the armhole seam placement formula for left-chest embroidery on a crew-neck knit T-shirt (7" ÷ 2 = 3.5")?
  A: Use the armhole depth divided by two to find the center point, using the shoulder/neck seam intersection as the vertical anchor.
  • Draw a vertical guideline starting where the shoulder seam meets the ribbed collar.
  • Measure from that point down to the bottom of the armpit seam (armhole depth), then divide by 2.
  • Mark that halfway point on the vertical line and draw a horizontal line to create a crosshair center.
  • Success check: When the shirt is laid naturally, the crosshair looks straight and not twisted toward the side seam.
  • If it still fails… redo the “twist check” by letting the shirt relax flat (don’t force it) before marking.
• Q: How do I apply two layers of mesh cutaway stabilizer with 505 temporary spray to a knit T-shirt without wrinkles or gummy adhesive buildup?
  A: Turn the T-shirt fully inside out and lightly spray from a distance so the stabilizer bonds flat without becoming sticky.
  • Turn the shirt inside out so the inside surface is smooth and placement marks show through.
  • Spray 505 lightly from about 8–10 inches away in a ventilated area, away from the embroidery machine.
  • Press the first mesh cutaway layer in place, then add the second layer, smoothing outward to remove bubbles.
  • Success check: The stabilizer stack is firmly bonded and lies flat with no ripples or tacky “gummy” spots.
  • If it still fails… reduce spray amount/distance and replace any stabilizer that has become overly saturated.
• Q: How do I hoop a tubular knit T-shirt for left-chest embroidery using a standard 4x4 screw hoop without sewing the front and back together?
  A: Hoop from the bottom hem (not the neck) and physically clear the back layer before stitching.
  • Keep the shirt inside out and insert the outer hoop through the bottom hem to sit under the marked area.
  • Align hoop grid lines to the crosshair, then press the inner hoop in gently.
  • Push the back of the shirt away from the hoop opening so only one layer is under the needle area.
  • Success check: Looking under the hoop, there is no extra shirt layer trapped; the needle area has clear access to only the hooped layer.
  • If it still fails… stop, remove the hoop, and re-hoop from the bottom hem again—don’t try to “pull it free” while mounted.
• Q: What is the “finger-tight” screw-hoop rule to prevent hoop burn rings on knit T-shirts during left-chest embroidery?
  A: Loosen the screw first so the inner ring seats without excessive force, then tighten only to “taut, not stretched.”
  • Loosen the hoop screw significantly before pressing the inner hoop in.
  • Press the inner hoop in with a moderate push (not a struggle), then tighten the screw after seating.
  • Avoid stretching the knit like a rubber band; aim for drum-tight support only.
  • Success check: Tap the hooped fabric—it gives a dull “thump,” and the fabric surface is smooth without shiny crushed rings.
  • If it still fails… reduce hoop pressure and focus on stabilizer support (two layers of mesh cutaway) rather than over-tight hooping.
• Q: Why does a sharp embroidery needle cause small holes around satin borders on knit T-shirts, and what ballpoint needle size is recommended for this left-chest appliqué workflow?
  A: Switch to a size 75/11 ballpoint needle because sharp needles can cut knit loops and create holes that worsen after washing.
  • Install a fresh ballpoint needle (Style SUK/BP) in size 75/11 for standard knit tees.
  • Stitch at a controlled speed (a safe starting point is 600–700 SPM on many machines) to reduce friction on knits.
  • Inspect early—if holes appear, stop immediately and change the needle rather than “pushing through.”
  • Success check: After a few hundred stitches, the knit surface shows no puncture holes or runs forming along the border.
  • If it still fails… review fabric/stabilizer stack and consider that thicker appliqué stacks may need a different needle style; follow the machine manual.
• Q: When producing 20–50 team T-shirts, how do I decide between standard screw hoops, magnetic embroidery hoops, a hooping station, and a multi-needle SEWTECH embroidery machine to reduce hoop burn and setup time?
  A: Use a step-up approach: optimize technique first, then upgrade hooping tools, then upgrade workflow equipment if volume is the real bottleneck.
  • Level 1: Improve fundamentals—bottom-up hooping, finger-tight rule, two layers of mesh cutaway, and speed control for knits.
  • Level 2: Upgrade to magnetic embroidery hoops when repetitive screw-tightening causes wrist pain or inconsistent pressure/hoop burn.
  • Level 3: Add a hooping station when placement consistency drifts from Shirt #1 to Shirt #50.
  • Level 4: Consider a multi-needle SEWTECH embroidery machine when single-needle changeovers limit throughput for team orders.
  • Success check: Setup time per shirt becomes consistent and hoop burn incidents drop noticeably across the batch.
  • If it still fails… verify magnetic hoop safety practices (keep fingers clear of the snap zone; avoid pacemakers/magnetic-sensitive items) and standardize placement with a repeatable marking routine.
