Flat Table to Cap Mode on a YunFu Embroidery Machine: The “Gap 4” Setup That Saves Hats (and Needles)

The Field Manual for Cap Embroidery: Converting YunFu Machines from Flats to Hats (Without the Headache)

Cap embroidery is the "final boss" for many machine operators. It is where physics gets tricky: you are asking a needle to dance over a curved, structured surface that is moving rapidly on a specialized driver. One wrong setting in the Dahao control panel, or one loose screw on the driver, can turn a clean hat into a "bird’s nest," a broken needle, or a scratched driver.

If you are switching a YunFu commercial embroidery machine (or similar multi-needle platforms) from flat/t-shirt mode to cap mode, the workflow is absolutely repeatable. However, it requires a mindset shift from "textile worker" to "precision mechanic."

This guide rebuilds the full process—removing the flat support, installing the cap driver, selecting the correct frame, hooping, tracing, and stitching. More importantly, we are adding the "Shop-Floor Safety Margins"—the expert details that prevent the most common disasters.

1. Calm the Panic: The Mechanics of the Switch

On a YunFu machine, cap embroidery isn’t just "flat embroidery on a curved surface." You are fundamentally changing the machine's anatomy.

• Mechanical Change: You are swapping the flat table support for a rotary cap driver. This allows the cap ring to rotate 270 degrees while staying stable under the needle.
• Digital Change: The Dahao control system must be told you are using a cap frame (specifically the J Frame, often shown as C90(360×75)).

The Golden Rule: If you only remember one thing, make it this: Select the cap frame in the software BEFORE you physically mount the cap. The machine uses this setting to orient the design correctly. If you skip this, your machine thinks it is still doing a flat shirt, and it will try to sew your logo sideways or upside down—often right into the metal frame.

Warning: Mechanical Safety Check. Before you touch screws, rails, or the driver, ensure the machine is in a stopped state. Keep hands clear of pinch points, especially around the pantograph rail system. The clearances on a cap driver are tight (millimeters matter); an accidental start signal while your hands are installing the driver can result in severe injury or bent mechanics.

2. The "Hidden" Prep Pros Do First: Assessment & Clearance

The video jumps straight into removal, but in a real shop, "Prep" is where you save time. You need to clear the deck and check your tools.

The 60-Second Stability Check:

1. Clear the Bed: Remove any flat hoops, thread trimmings, or loose bobbins from the machine bed. The flat support frame needs to slide out smoothly.
2. Tool Check: Have your Phillips head screwdriver (or Allen key, depending on your specific model year) ready.
3. Visual Inspection: Look at the linear guide rail under the bed. You will see a scale with tick marks. Locate the "Number 4" gap/mark. This is your target alignment for installation.

The "Wiggle" Diagnostic: Before removing the old setup, grab the current bracket and give it a gentle wiggle. Does it move? If yes, your screws were loose during the last run. This is a good reminder that vibration loosens everything. We will prevent this on the new setup by using proper torque.

Prep Checklist (Do this before touching a screw)

• Needle area is clear; machine status is "Stop."
• Screwdrivers are in hand (correct size to prevent stripping heads).
• Rail area is free of lint and debris.
• You have visually located the "Number 4" scale mark on the rail.
• Hidden Consumable Check: Do you have your Stabilizer/Backing cut and ready? (Cap embroidery always requires backing).


3. Disassembly: Removing the Flat Supporting Frame

You cannot mount the cap driver until the flat bed support is gone. This is the aluminum bar or plate that supports standard shirt hoops.

1. Locate Fasteners: Find the four connecting screws (usually two on the left, two on the right) holding the flat table support frame to the pantograph rail.
2. Unscrew & Remove: Loosen them completely. Lift the support frame off the machine bed carefully—it can be heavier than it looks.
3. Rail Adjustment: Once the frame is off, you will likely need to adjust the width of the main rail arms to fit the cap driver. Slide them to approximate the width of your cap driver unit.

Expert Tip: Do not force the rail arms. They should slide with smooth resistance. If they are stuck, check for thread jams in the tracks.

4. The "Gap 4" Rule: Installing the Cap Driver for Rigidity

This is the most critical mechanical step. If the driver is loose, your design will have gaps, and you might break needles.

The Installation Sequence:

1. Seat the Driver: Place the cap driver unit onto the rail guide bridge. It should sit flat without rocking.
2. Align to "Gap 4": Slide the driver so its mounting edge aligns with the Number 4 gap/mark on the rail scale. This is the manufacturer's calibrated "Sweet Spot" for the YunFu/Dahao geometry.
3. The "One-Two" Tightening Method:
   • Step A: insert the first screw on the side aligned with the scale. Tighten it just enough to hold position (finger tight + 1 turn).
   • Step B: Insert the second screw on the opposite side.
   • Step C: Now, torque them down adequately.
4. The Stability Wiggle: Once tightened, grab the driver with your hand and try to rock it. It should feel solid, like part of the machine chassis. If it clicks or shifts, loosen and reseat.

Why Rigidity Matters: Caps are heavy and unbalanced. As the driver spins 800 times a minute, centrifugal force tries to wobble the cap. A stable driver prevents the dreaded "flagging" (bouncing fabric) that causes bird nesting.

Note on Equipment: This variability is why high-volume shops often standardize their tools. Operators often look for a specialized cap hoop for embroidery machine setup that locks rigidly to prevent vibration. The more rigid your hoop and driver connection, the faster you can run without losing quality.

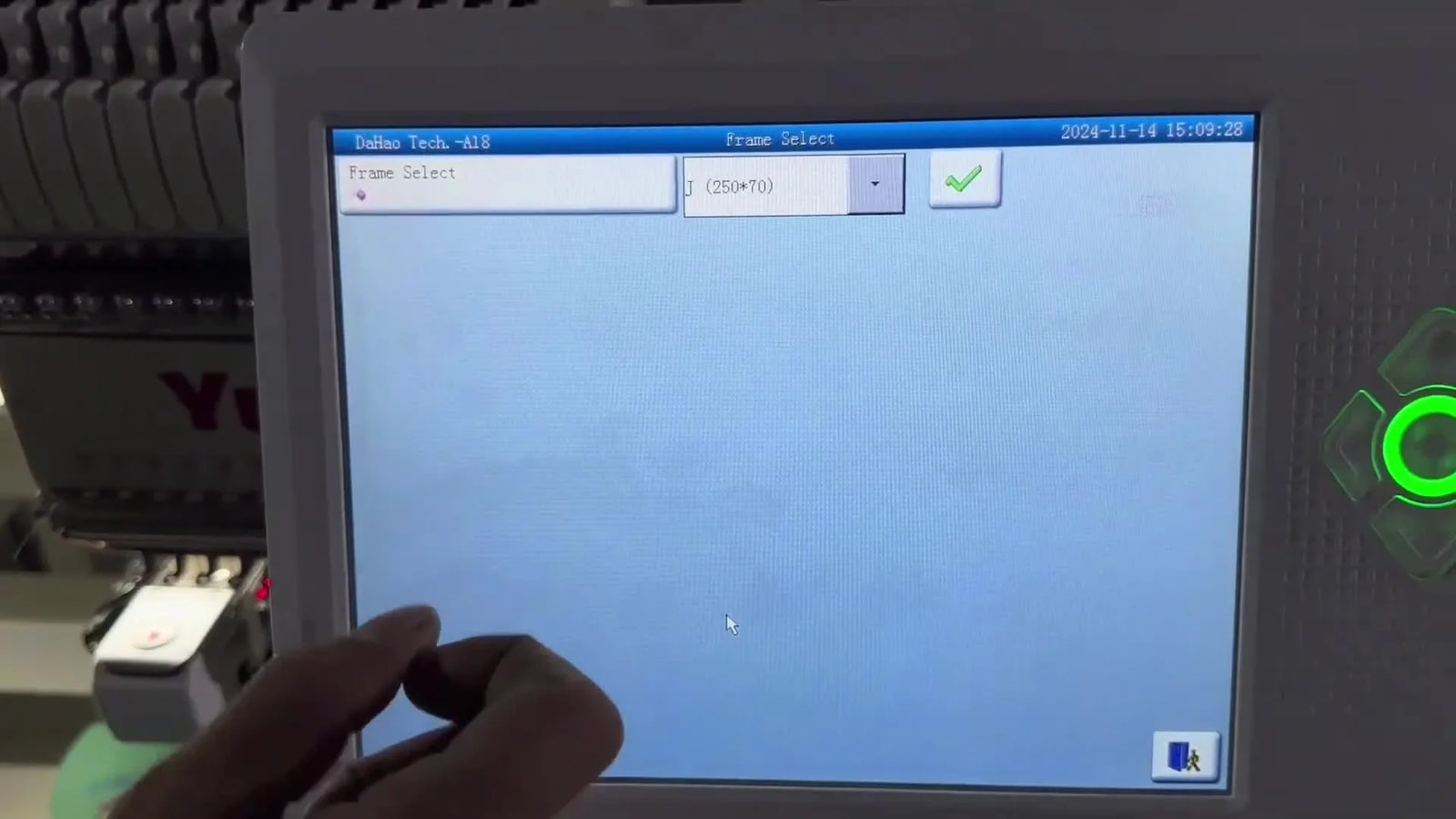

5. Software Setup: Dahao "J Frame" Selection

Now that the hardware is safe, we tell the brain what to do. The Dahao A15 (and similar) computers need to know the physical limit has changed to a cylinder.

The "Do It First" Command:

1. On the screen, navigate to Aux Helper Functions.
2. Select Frame Select (or "Hoop Select").
3. Scroll through the list until you find J Frame (usually labeled C90 or 360×75).
4. Press OK/Confirm. You should see the orientation icon on the screen change (often flipping 180 degrees).

Why J Frame? "C90" stands for Cylinder 90mm (radius/diameter logic) or Cap 90 degrees. It sets a "Soft Limit" in the software. If your design tries to go wider than the cap allows, the machine will refuse to start, saving you from smashing the hoop into the needle plate.

6. The Art of Hooping at the Station

Bad hooping causes 90% of "bad embroidery" issues. You cannot fix a bad hoop job with software settings.

The Setup:

1. Mount the Ring: Place your cap ring (the hoop) onto the Cap Hooping Station (the heavy metal gauge clamped to your table).
2. Stabilizer: Never skip this. Slide a piece of tearaway or cutaway backing (depending on cap structure) into the strap, behind where the cap front will sit.
3. Load the Cap: Slide the cap onto the station, over the ring. The sweatband should flip out or sit under the locator, depending on your specific ring style.

The Alignment Triad (Visual Anchors):

1. The Red Line: Align the cap's center seam exactly with the red index mark on the station and hoop.
2. The Vertical Axis: Look from the top down. The center of the cap bill, the center seam, and the center of the hoop driver connection should form one perfect straight line.
3. The "Drum Skin" Feel (Sensory Check): Pull the strap tight and lock the buckle. Rub your thumb over the front of the cap. It should feel taut/firm, but not stretched to the point of warping the mesh. If it ripples, it's too loose.

Commercial Insight - The Upgrade Path: If you struggle with hand pain or inconsistent alignment across different employees, this is a hardware bottleneck. Many professionals eventually upgrade to a hooping station for machine embroidery designed for ergonomics, or they switch to Magnetic Hoops. Magnetic systems reduce the physical force needed to clamp thick structured caps.

7. Mounting: The "Click-Lock" Confirmation

You are transporting the hooped cap to the machine.

1. Orientation: The bill of the cap should be facing generally upward (or towards you, depending on loading style), but the ring connects to the driver.
2. The Snap: Slide the ring onto the driver.
3. The Rotate & Lock (Audible Anchor): Rotate the cap ring until the bill is facing Straight Up (12 o'clock). You must hear and feel a distinct "CLICK" or "SNAP".
   • Sensory Check: Try to rotate the cap gently left or right. It should be locked in place. If it spins, you haven't engaged the lock, and the needle will hit the metal bar immediately.


8. The "Walk Border" Safety Trace

Never press "Start" on a cap without tracing. Never.

1. Load Design: Select your file (e.g., "Punta Cana").
2. Position: Use the arrow keys to move the pantograph/cap driver. Center the needle over your desired start point (usually the center seam, about 1-1.5 inches up from the bill).
3. Trace: Press the Border or Walk button (icon usually looks like a square with a dashed line).
4. Watch the Needle: As the cap moves, watch the gap between the needle (number 1) and the metal rim of the hoop. You want at least a few millimeters of clearance.
5. Success Metric: The screen should display "No Frame Limit!" (or just finish the trace silently). If it beeps and says "Limit Error," your design is physically too large for the cap frame or positioned too close to the edge.


9. Stitching: Finding the Sweet Spot (RPM)

The video runs at 800 RPM with a target of 1000. For a commercial machine, this is standard. However, for a new operator or a difficult hat, speed is the enemy.

The "Beginner Sweet Spot": I recommend creating your first batches at 600 - 700 RPM.

• Why? Caps vibrate. Slower speeds reduce flagging (bouncing fabric) and give the thread more time to recover tension, resulting in sharper text and fewer thread breaks.
• Production Reality: Once you are confident, bump it to 850+. But a hat finished cleanly at 600 RPM is faster than a hat ruined at 1000 RPM.

Action:

1. Confirm colors on the screen.
2. Press the Green Start Button.
3. Listen: The sound should be a rhythmic rapid tapping. If you hear a loud "THUNK" or grinding, hit the Emergency Stop immediately.

Setup Checklist (Pre-Flight)

• J Frame is selected on the panel.
• Cap ring is mounted and Click-Locked (cannot rotate).
• Walk Border trace completed without hitting limits.
• Needle 1 is positioned correctly over the center seam.
• Speed is set to a safe range (600-750 RPM for first run).


10. Unloading

1. Wait for the machine to stop completely and the pantograph to return to center (if set to auto-return).
2. Find the release tabs/levers on the cap driver (usually at the 4 o'clock and 8 o'clock positions).
3. Press them to unlock the rotation.
4. Slide the cap ring off the driver.
5. Unclip the cap from the hoop station.


11. Stabilizer Strategy: The Decision Tree

What goes inside the cap is just as important as the settings. Use this logic to choose your consumables.

Hidden Essential: Keep a can of excessive adhesive (spray glue) or, better yet, use specific cap backing that is pre-cut to size (often 4" x 12"). This saves time cutting rolls.

12. Troubleshooting: The "Why Did It Fail?" Guide

Even with perfect steps, things happen. Here is how to diagnose based on Symptoms, not guesses.

Symptom A: "The design is crooked, but the file is straight."

• Cause: Hooping error. The center seam was not aligned with the station's index mark, OR the sweatband was pulled unevenly.
• Fix: Do not rotate the design in software to fix a bad hoop. Re-hoop the cap. Ensure the bill center and hoop center form a vertical line.

Symptom B: "Needle broke immediately upon starting."

• Cause: The cap ring was not Click-Locked into the correct orientation. The needle came down and hit the metal bar of the hoop.
• Fix: Replace needle. Check driver for burrs/scratches (sand them smooth if minor). Ensure you hear the audible click when mounting.

Symptom C: "Thread breaks constantly on the center seam."

• Cause: The center seam is thick and hard. The needle deflects or heats up.
• Fix: Use a larger needle (Size 75/11 or 80/12 Titanium). Slow the machine down to 550 RPM for the seam area.

Symptom D: "Machine says 'Frame Limit' even though the design fits."

• Cause: Center point is off. You positioned the start point too high or too low.
• Fix: Move the pantograph so the needle is centered in the stitchable area of the cap. Re-run Walk Border.




13. The Commercial Growth Logic: When to Upgrade?

At some point, you will master the YunFu single-head workflow. But "mastery" often reveals "bottlenecks." Here is how to know when it is time to upgrade your toolkit or machine.

Trigger 1: "My wrists hurt from clamping caps all day."

• Diagnosis: Hooping fatigue. This leads to crooked hats and slow production.
• Solution (Safety & Speed): Magnetic Hoops.
  Terms like magnetic embroidery hoop are becoming standard in shops. Why? They snap together using magnetic force rather than manual muscle power. They hold thick caps firmly without leaving "hoop burn" marks.
  • We offer magnetic frames compatible with both home and commercial machines.

Warning: Magnetic Safety. Powerful commercial magnets can pinch skin severely and interfere with pacemakers. Handle with respect. Slide them apart; do not try to pry them.

Trigger 2: "I'm spending more time changing thread than stitching."

• Diagnosis: Capacity bottleneck. If you are doing complex 5-color logos on 50 hats, a single-head machine or a machine with fewer needles is costing you profit.
• Solution (Scale): SEWTECH Multi-Needle Machines.
  Moving to a dedicated 15-needle commercial platform allows you to set up the entire job once and run continuously.

Trigger 3: "I need to hoop faster to keep the machine running."

• Diagnosis: Production flow issue. The machine is waiting for you.
• Solution: Get a second set of cap rings and a dedicated hoop master embroidery hooping station style setup. You can hoop Cap #2 while Cap #1 is stitching.


14. Operation Checklist: The "Run Sheet"

Print this and tape it to your machine stand.

The Pilot’s Pre-Stitch Routine:

1. Hardware: Cap Driver mounted securely (Gap 4, Wiggle passed).
2. Software: "J Frame" selected.
3. Hooping: Cap hooped with backing; seam aligned to Red Index Mark.
4. Mounting: Ring snapped and clicked into 12 o'clock position.
5. Trace: Walk Border completed -> "No Frame Limit."
6. Scan: Check under the cap—is the backing flat? Is the sweatband out of the way?
7. GO: Start at a manageable speed (650-750 RPM).


Summary

Converting a YunFu machine to cap mode is a scary process exactly once. After that, it is just a sequence of mechanical steps. Respect the Gap 4 alignment, respect the J Frame selection, and respect the trace.

If you carry out these checks and still find yourself fighting the machine, look at your consumables (backing/needles) or your tools (hooping station/magnetic frames). Often, the difference between a struggle and a profit is just a better setup.

FAQ

• Q: On a YunFu commercial embroidery machine with a Dahao A15 controller, what must be done first when switching from flat embroidery to cap embroidery using the J Frame (C90 360×75)?
  A: Select the Dahao “J Frame / C90 (360×75)” in the control panel before mounting the cap ring on the cap driver.
  • Go to Aux Helper Functions → Frame Select (Hoop Select) → choose J Frame (C90/360×75) → OK/Confirm.
  • Only after that, install the cap driver and mount the cap ring.
  • Success check: the on-screen frame/orientation icon changes (often flips), and the machine allows a border trace without immediate limit alarms.
  • If it still fails: re-run Walk Border and re-center the needle start point before pressing Start.
• Q: On a YunFu cap driver installation, what does the “Number 4 gap/mark” alignment rule mean, and how can a YunFu operator confirm the cap driver is rigid enough?
  A: Align the cap driver mounting edge to the rail scale “Number 4” mark, then tighten using a controlled sequence so the driver cannot rock.
  • Seat the cap driver flat on the rail guide bridge (no rocking before tightening).
  • Slide the driver to align with the “Number 4” gap/mark, then use the “one-two” tightening method (hold position first, then torque both sides).
  • Success check: perform the “wiggle” test—grab the driver and try to rock it; it should feel solid with no click or shift.
  • If it still fails: loosen, reseat the driver flat again, and re-tighten; do not force stuck rails—clear thread/lint from tracks first.
• Q: During cap hooping on a cap hooping station, how can a YunFu operator tell the cap is hooped straight and tight enough before mounting on the cap driver?
  A: Use the center seam + station index marks plus a tactile tightness check before moving the cap to the machine.
  • Align the cap center seam exactly to the red index mark on the hooping station/ring.
  • Confirm the “vertical axis”: cap bill center + center seam + driver connection line up in one straight line.
  • Pull and lock the strap so the front panel feels firm without warping.
  • Success check: the front of the cap feels like a “drum skin” (taut/firm) and does not ripple when rubbed with a thumb.
  • If it still fails: re-hoop instead of rotating the design in software—crooked hooping almost always stays crooked.
• Q: On a YunFu machine running cap embroidery, how should a Dahao operator use Walk Border (trace) to prevent the needle hitting the cap ring and triggering frame limit problems?
  A: Always run Walk Border (Border/Trace) and watch physical clearance before pressing Start.
  • Load the design, then use arrow keys to position Needle 1 over the intended start point (commonly near the center seam, about 1–1.5 inches above the bill).
  • Press Border/Walk and watch the needle-to-hoop rim gap as the cap driver moves.
  • Stop immediately if the trace approaches the metal rim or the machine alarms.
  • Success check: the trace completes with “No Frame Limit!” (or finishes silently) and maintains a few millimeters of clearance from the hoop rim.
  • If it still fails: reposition the start point (center the design better on the cap area) and re-run Walk Border; if limits persist, the design is too large for the J Frame cap area.
• Q: On a YunFu cap driver setup, what causes a needle to break immediately at start, and how can the YunFu operator prevent the needle from striking the cap frame metal?
  A: A needle often breaks immediately when the cap ring is not click-locked at the correct orientation on the cap driver.
  • Mount the cap ring onto the driver, rotate to the 12 o’clock bill-up position, and confirm the lock engages.
  • Gently try to rotate the ring left/right after mounting to verify it cannot spin.
  • Run Walk Border before Start to confirm clearance.
  • Success check: a distinct “CLICK/SNAP” is felt/heard and the ring cannot rotate by hand.
  • If it still fails: replace the needle, inspect the driver/ring for burrs or scratches, and do not continue until the ring locks consistently.
• Q: On a YunFu cap embroidery job, what should be changed when thread breaks constantly on the cap center seam?
  A: Treat the center seam as a heavy spot: use a larger needle and slow the RPM to reduce deflection and heat.
  • Switch to a larger needle size (75/11 or 80/12 titanium is a common shop choice).
  • Reduce speed around the seam area (a safe starting point is slowing down to about 550 RPM for that section).
  • Confirm the cap is hooped firmly with backing so the seam does not bounce (flag).
  • Success check: stitches cross the center seam without repeated snapping, and the sound stays rhythmic (no harsh “thunk”).
  • If it still fails: re-check driver rigidity (wiggle test) and backing choice, then consult the machine manual for thread path/tension checks.
• Q: For YunFu cap embroidery, how should stabilizer/backing be chosen for structured caps vs unstructured “dad hats,” and what is the fastest way to avoid wasting time cutting backing?
  A: Match backing to cap structure: tearaway for structured caps, cutaway for unstructured caps; keep backing prepared in cap-sized pieces.
  • Use tearaway (about 2–3 oz) for structured/stiff-front caps where the cap supports itself.
  • Use cutaway (about 2.5–3 oz) for unstructured/floppy caps that need backing to hold shape during stitching.
  • For heavy detail/small text, use a stiffer cap backing and slow down rather than forcing high RPM.
  • Success check: the cap front stays stable during stitching (less flagging), and small text edges look cleaner instead of wavy.
  • If it still fails: change only one variable at a time (backing type first, then speed), and verify hooping tension and Walk Border clearance before restarting.
• Q: When cap hooping fatigue slows production on a YunFu multi-needle embroidery workflow, what is the step-by-step upgrade path from technique fixes to Magnetic Hoops to a SEWTECH multi-needle machine?
  A: Start with setup discipline, then reduce manual clamping force with Magnetic Hoops, then scale capacity with a multi-needle platform when thread changes become the bottleneck.
  • Level 1 (Technique): slow to ~600–700 RPM for learning, hoop using the red index mark + “drum skin” tightness, and always Walk Border.
  • Level 2 (Tool): move to Magnetic Hoops/frames to reduce wrist strain and improve consistency across operators (this is common in production shops).
  • Level 3 (Capacity): upgrade to a SEWTECH multi-needle machine when the job is dominated by thread/color changes rather than stitch time.
  • Success check: less re-hooping/rework, fewer crooked hats, and the machine spends more time stitching than waiting for hooping.
  • If it still fails: audit where time is lost (hooping, tracing/positioning, thread breaks) and address that single bottleneck first instead of changing everything at once.
