Fixing Dahao “Frame Auto Center” on a Single-Head Embroidery Machine: Measure, Edit the Frame, and Re-Calibrate the True Center

Identify the Auto Center Problem

When a Dahao-controlled single head embroidery machine throws a “Frame Auto Center” error or physically crashes into the limit switches, it is experiencing a cognitive dissonance. There is a conflict between:

1. The Physical Reality: The actual safe stitching area inside your metal or plastic hoop.
2. The Digital Map: The coordinates the motherboard thinks are safe, based on saved dimensions.

If these don't match, the pantograph (the moving arm) will try to travel to a "center" that might actually be the far left edge of your table. The result? A loud, rhythmic grinding sound (stepper motors skipping), a ruined garment, or a bent needle bar.

In the tutorial video, the operator resolves this via a strict calibration ritual:

1. Physical Proof: Measuring and marking the true center on fabric.
2. Digital Correction: Inputting the correct boundary geometry (e.g., 800 × 400).
3. Synchronization: Running the “Seek Frame Center” command.
4. Fine-tuning: Manually jogging the needle to the chalk mark and saving the new "Zero" point.

A Safety Note from the Floor: This procedure involves the machine moving automatically. Treat this like a CNC operation—keep hands clear and be ready to hit the Emergency Stop if the machine moves erratically.

Step 1: Measuring Your Physical Frame Limits

We never trust the screen until we verify the tooling. The video demonstrates the critical first step: establishing physical truth.

What you do (Action Sequence)

1. Hoop your test fabric: Ensure it is drum-tight (listen for a dull thump when tapped).
2. Measure the Field: Use a flexible measuring tape to find the inner width and height of the hoop.
3. Mark the Anchor: Find the exact center intersection and mark a crosshair with tailor’s chalk.
4. Verify Symmetry: Measure from your chalk mark to the left edge and right edge. They must be identical.

Why this works (The Physics)

Digital calibration is useless if your physical hooping is inconsistent. If your fabric is loose or skewed, the "center" you mark today won't be the center tomorrow.

Pro-Tip on Stability: If you find the fabric slipping while you try to measure, or if you struggle to get consistent tension without leaving "hoop burn" (shiny marks on dark fabric), your hooping tools might be the bottleneck. In high-volume production settings, many operators switch to magnetic hoops/frames. The strong magnetic hold prevents the "micro-slippage" that often confuses operators into thinking their machine calibration is off.

Step 2: Accessing the Dahao Frame Menu (Password Included)

Once physical reality is marked, we enter the machine's brain.

Navigate to the frame settings

1. Exit Embroidery Mode: You cannot change specs while the machine is "Locked" or in "EMB Status." Disengage it first.
2. Find the Icon: Navigate to the 4th tab (Frame Settings / Param Icon).
3. Enter Management: Select Frame to access the geometry settings.

Technician access

The Dahao controller protects these core settings to prevent accidental wipes. The video demonstrates using a Service Password:

• Password: 823456

Operator Note: While 823456 is a common default for many builds, manufacturers often change this. If this code fails, do not guess randomly—check your machine's manual or ask your dealer. Entering the wrong code too many times can lock the interface.

Step 3: Calculating and Entering Correct Coordinates

This is the root cause of 90% of centering errors: The machine thinks it has a different frame size than it actually does.

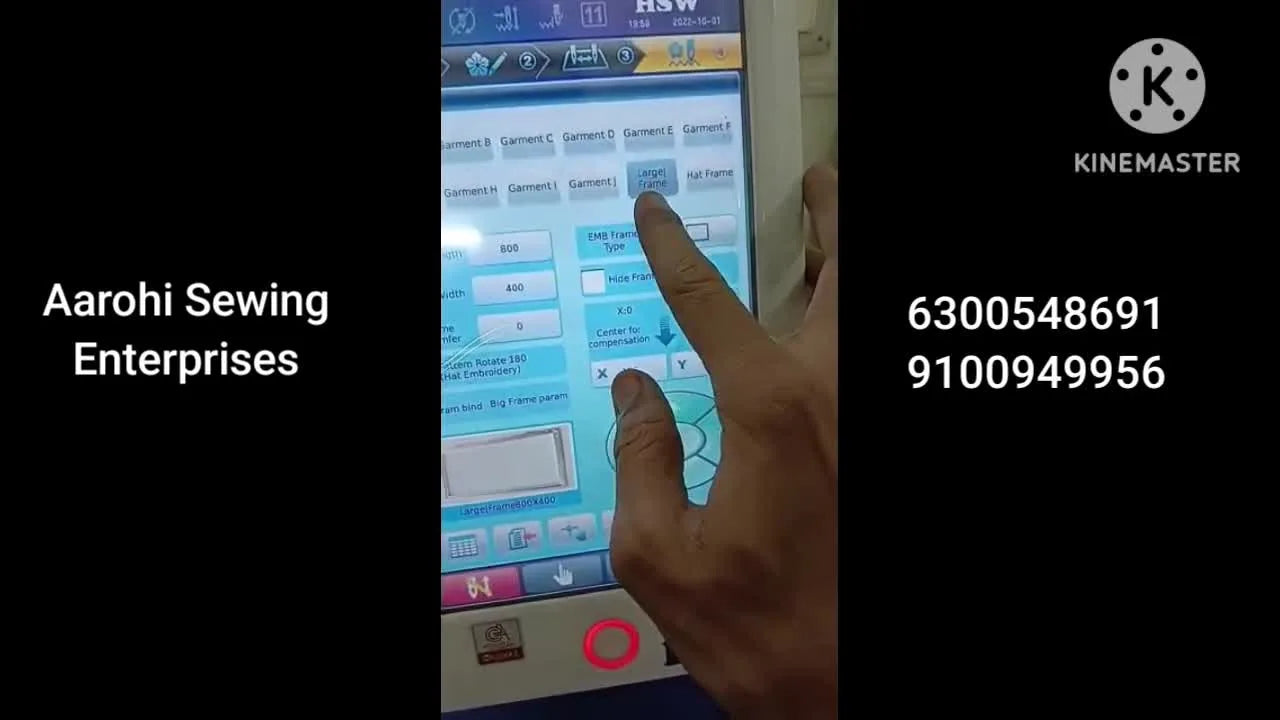

Enter the frame type and dimensions

1. Select Type: Choose Large Frame (often used for border frames or sash frames).
2. Input Length (X): Tap the field and enter 800 (or your measured length).
3. Input Width (Y): Tap the field and enter 400 (or your measured width).

Note: The values 800/400 are specific to the machine in the video. You must input the numbers you obtained in Step 1.

Reset center compensation (The "Clean Slate")

The operator performs a crucial step:

• Set X: 0, Y: 0 (Reset)

This wipes out any previous "temporary" centers or offsets. It ensures you are calibrating from a true mechanical zero, not a previous job's modification.

Decision tree: Stabilizer Choice for Calibration

Calibration relies on the fabric staying still. Use this logic flow to ensure your test fabric doesn't lie to you:

• Is your test fabric woven (e.g., Denim/Twill)?
  • YES: Use standard Tear-away bonding. It is sufficient for marking.
  • NO (Knits/Performance Wear): Use Cut-away stabilizer. Stretchy fabrics will distort when the pantograph moves, moving your chalk mark and ruining the calibration.
• Is it a massive calibration run (300mm+ Frame)?
  • YES: Use spray adhesive plus clips/magnets. The sheer weight of the fabric causes drag.
  • NO: Standard hooping is fine.

Expert Insight: Standardizing your hooping for embroidery machine process is vital. If two operators hoop with different tensions, the "center" will effectively behave differently, leading to phantom software issues.

Step 4: Manual Calibration and Saving

Now we synchronize the Digital Map with the Physical Mark.

Run “Seek Frame Center” (Auditory Check)

1. Press the Save (Floppy Disk) icon.
2. Press the Plus (+) icon. This commands the machine to find the center based on the numbers you just typed (800x400).
3. Listen: The motors should hum smoothly. If you hear a loud "Grrrr-Click-Click," the frame has hit a physical limit—your dimensions are set wrong (too big).

Warning: Pinch Hazard. When you press "+", the frame will move rapidly to the X/Y midpoint. Ensure no screwdrivers, scissors, or fingers are resting on the table or near the pantograph rails.

Fine-tune with arrow keys (Visual Check)

The machine will stop. Look down the needle (use the needle tip like a gun sigh).

• Is it perfectly over the chalk crosshair?
  • No: Use the control panel arrows to jog the frame gently. Tap, don't hold.
  • Yes: Proceed.
• Action: Once the needle tip hovers directly over the chalk intersection, Save again.

Verify the result

Move the frame away, then press the "Auto Center" button again. The needle should snap back instantly to your chalk mark.

Workflow Upgrade: If you find yourself constantly re-calibrating because designs are off-center, the issue might be fatigue. Production shops often install a hooping station for machine embroidery to ensure every garment is loaded geometrically identical, removing human error from the equation.

Primer

This guide is designed for operators facing one of the most annoying errors in industrial embroidery: "Frame Auto Center Error."

You have learned to:

1. Verify the physical reality of your setup (Step 1).
2. Unlock the Technician Menu (Step 2).
3. Create a clean digital map (Step 3).
4. Synchronize the two worlds safely (Step 4).

Mastering this ensures your designs are placed exactly where you want them, every time. A solid embroidery hooping system, combined with accurate software data, creates the perfect production environment.

Prep

Before touching the digital panel, we must clear the physical runway.

Hidden Consumables & Tools

• Tailor's Chalk: For high-contrast marking.
• Tension Gauge (Optional): To check bobbin case tension (unrelated to centering, but good hygiene).
• Compressed Air: To blow dust off the limit sensors (often the silent killer of alignment).

Warning: Tool Clearance. Remove all magnetic trays, scissors, and phones from the machine table. A moving pantograph has enough torque to fling these objects across the room.

Prep Checklist

• Sensor Cleaning: X/Y limit sensors are blown clean of dust and lint.
• Hooping: Fabric is hooped drum-tight with center marked.
• Clearance: Table surface is 100% empty of tools.
• Hoop Type: If using machine embroidery hoops that rely on magnets, ensure the magnets are fully seated to prevent frame movement.

Setup

This phase is purely digital input. Precision here saves hardware later.

Workflow Logic

1. Unlock: Exit EMB status.
2. Input: 800 (X) / 400 (Y).
3. Reset: Clear X/0 Y/0 offsets.
4. Save: Lock it in.

Business Context - The "Fatigue Factor": If you are doing this calibration because your team complains about "drifting centers," look at their hands. Are they struggling with screw-tension hoops? Hand fatigue leads to loose hooping, which leads to fabric shifting.

• Solution: Magnetic Hoops. They snap on instantly with consistent pressure.
• Benefit: No screw tightening means no variation between operators. The physical center stays the physical center.

Setup Checklist

• Mode: Machine is in "Un-locked" / Setup mode.
• Dimensions: Correct values (800x400) entered and double-checked.
• Offset: Center Compensation reads 0 / 0.
• Safety: Password entered correctly without multiple failed attempts.

Operation

The moment of truth.

Step-by-Step with Sensory Anchors

1. Initiate Seek: Press the (+) icon.
   • Sensory: Watch the frame. It should travel confidently. It should not creep or stutter.
2. Visual Alignment: Stand directly in front of the needle head. Parallax error (looking from the side) causes bad calibration.
3. The Jog: Tap the arrows.
   • Sensory: Listen for the motor engagement. It should be instant.
4. The Save: Lock the new coordinates.

Warning: Magnetic Safety. For shops upgrading to magnetic clamping systems, keep these high-power magnets away from the machine's LCD screen and any staff with pacemakers. The field strength is industrial-grade.

Operation Checklist

• Movement: Frame traveled without hitting physical limits.
• Alignment: Needle point is precisely over the chalk crosshair.
• Jogging: Arrow keys successfully moved the frame (verifies motor control).
• Confirmation: "Save" was pressed after manual alignment.
• Test: Running "Seek Center" again returns exactly to the chalk mark.

Pro-Tip: If using specialized gear, ensure your hoops for embroidery machines (standard or magnetic) are compatible with the specific arms of your Dahao unit. Improper fitment causes vibration, which kills sensor accuracy over time.

Quality Checks

Don't assume it's fixed just because you saved it.

Verification Routine

• The "Box Test": Manually jog the frame to its four extreme corners (Top Left, Top Right, Bottom Right, Bottom Left). Ensure the frame does not hit the pantograph arm at any point.
• The "Return Test": Press the "Origin" button. Does it go back to your chalk mark?

Consistency Note: If you swap out your embroidery frame for a different size (e.g., swapping a sash frame for a cap driver), you must repeat this calibration procedure. The "Center" is relative to the frame attached.

Troubleshooting

If the procedure fails, use this logic path (Cheapest Fix -> Expensive Fix).

Final thought: Machine embroidery is a game of precision. Your machine can only be as accurate as the physical setup you provide it. Calibrate your frame, standardize your hooping, and trust your measurements.
