How to Fix the "Bite-Out" Glitch in Embrilliance Enthusiast: A Masterclass in Stitch Repair

You know the feeling: You’ve spent twenty minutes selecting threads and hooping your fabric, only to watch the preview and see a jagged "bite" missing from a heart or filled shape. It looks like a corruption error, but it’s usually physics meeting digitization—specifically, when an object is extracted from a larger design where another element overlapped it.

The amateur move is to panic and re-digitize the entire object. The veteran move? Use Embrilliance Enthusiast to surgically rebuild the missing area.

This guide isn't just about clicking buttons; it's about understanding stitch flow so your repair is invisible to the eye and safe for your machine.

The Anatomy of a "Bite-Out": Why Good Fills Go Bad

When a design looks like a shark took a chunk out of it, the software isn't glitching randomly. It is faithfully rendering a void that existed in the original file because something else—a flower, a letter, a border—used to sit on top of it.

In our case study, we are looking at a heart within a standard 100 x 100 mm (4x4 inch) hoop area. The design is roughly 3.54" x 3.25".

The Scale Warning: At this size, a "missing bite" is massive. On fabric, a gap of even 2mm will show the garment color underneath. If you are stitching on high-contrast fabric (e.g., red heart on a black shirt), that gap will scream at you like a neon sign.

Phase 1: Preparation & "Pre-Flight" Checks

Before you touch the "Insert" tool, you must strip away the illusions the software creates.

The "Lying" 3D View

The instructor’s first move is legally required for precision: Disable the 3D View.

• The Problem: 3D view simulates thread volume (the fluffiness). It hides the ugly truth of where the needle actually penetrates.
• The Fix: Click the 3D button to toggle it off.
• The Sensory Check: Watch the solid, fluffy heart turn into a cold, hard wireframe grid. This grid is your map.


The Digital Microscope

Next, enter Stitch Editing Mode.

• Action: Select the Stitch Edit tool (node icon).
• Detail: Zoom in until you see individual nodes (dots).
• The Sensory Anchor: You are looking for the "constellation" of points. If you can't distinguish one dot from its neighbor, you are not zoomed in enough.


PREP CHECKLIST: Do This Before Clicking "Insert"

• Identify the Flow: Trace the stitch path with your eyes. Does the thread travel clockwise or counter-clockwise?
• Check Scale: Is the gap wider than 5mm? (If yes, you need fill stitches, not just satin columns).
• Hidden Consumable Check: Do you have a steady mouse or trackball? Precision work requires a stable hand.
• File Version: Save a copy as Design_v2_Repair.BE so you don't destroy the original.

Phase 2: The Surgical Repair (Stitch Insertion)

This is where beginners create "spikes" and pros create "curves."

The Anchor-Stitch Habit

You cannot just click into the void. You must anchor your repair to an existing stitch.

• The Rule: Click a node right on the edge of the gap.
• The Mental Trace: Ask yourself, "Where did the thread come from?" and "Where is it going?" You must continue that river, not build a dam.

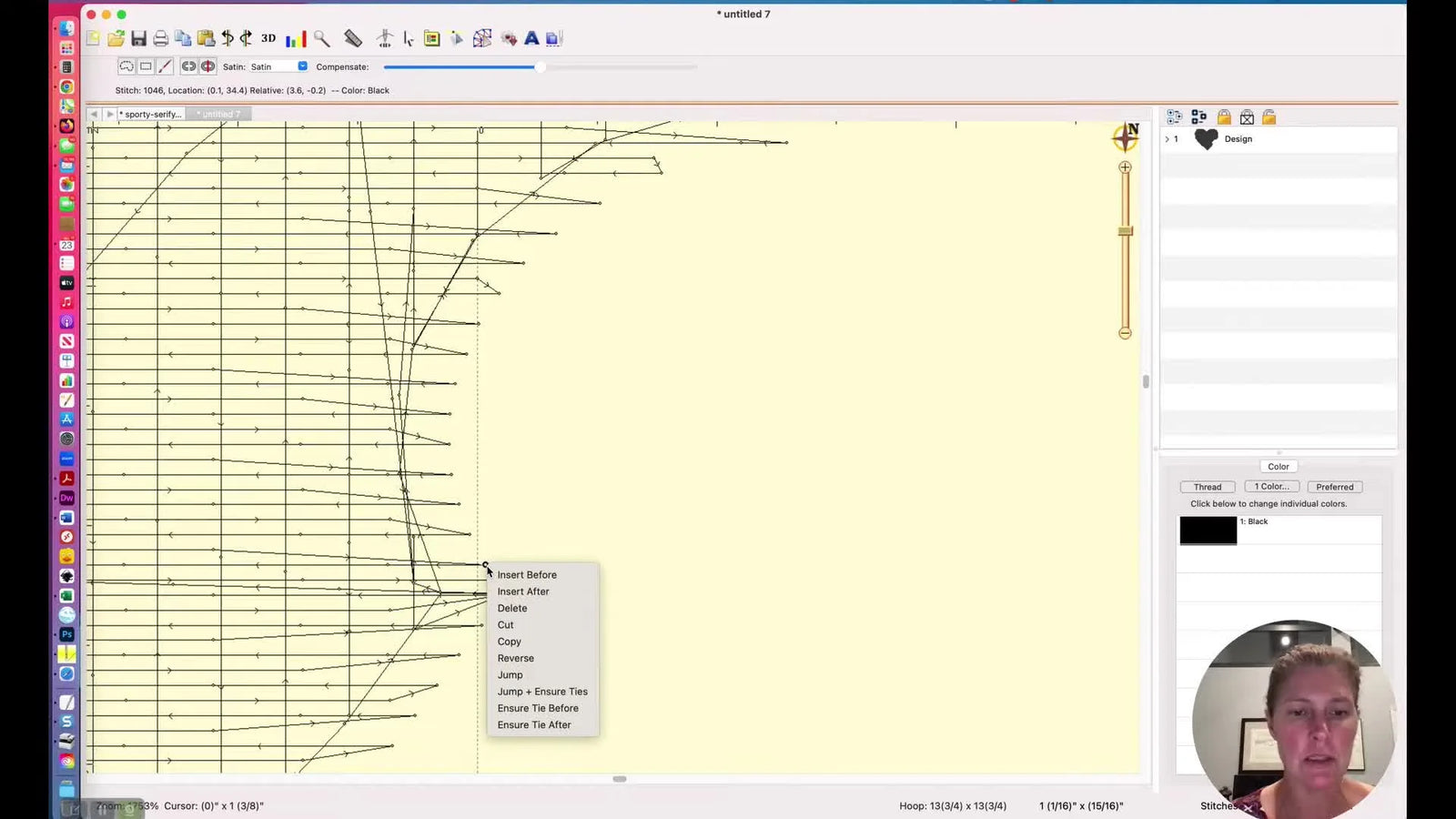

The Tool: Insert Before vs. Insert After

• Right-Click the selected node.
• Choose Insert Before or Insert After.
• Left-Click on the canvas to place new points.


Expert Insight: If the thread is traveling away from your node, use Insert After. If it is traveling toward your node, use Insert Before. Getting this wrong creates a "jump stitch" hidden inside your fill that can snag or create a visible ridge.

Sculpting, Not Just Filling

At first, your repair will look jagged. This is normal.

1. Bridge the Gap: Place raw points to cover the hole.
2. Soften the Edge: Click and drag the nodes to form a gentle curve.
3. Density Check: Visually compare the distance between your new lines and the old lines. They should look like identical siblings.






Warning: Physical Safety
Avoid placing stitch points closer than 0.3mm to each other. When stitches are too dense (piled up), the needle will strike the same spot repeatedly. This causes friction heat, thread shredding, and can even snap the needle, sending a metal shard flying. Always leave breathing room for the thread.

Phase 3: The Production Reality Check

You fixed the file. Now, will it actually sew?

The Fabric Factor

Software assumes your fabric is a slab of concrete—immovable. Reality is different.

• T-Shirts/Knits: They stretch. Your repair needs Cutaway stabilizer.
• Towels/Fleece: They have nap. Your repair needs a water-soluble topping, or the stitches will sink.

The 3D Reality Check

Toggle 3D View back on.

• Visual Anchor: Look for "scars." Does the texture direction change abruptly? Does the light hit the thread differently?
• Action: If you see a scar, go back to wireframe and adjust the angle of your connector lines.




Troubleshooting: The "Why Does It Still Look Bad?" Matrix

Phase 4: Decision Tree - Repair or Redo?

Don't fall into the "Sunk Cost Fallacy." Use this logic to decide your next move.

Decision Tree: The 5-Minute Rule

1. Is the "bite" on a critical contour (like a face or logo text)?
   • Yes: Re-digitize. Manual repair creates subtle distortions that ruin high-value logos.
   • No: Proceed to step 2.
2. Is the gap larger than 20% of the object?
   • Yes: Re-digitize. You are effectively hand-punching a new design.
   • No: Proceed to step 3.
3. Are you producing 1 item or 100 items?
   • 1 Item: Stitch Edit Repair. It’s faster.
   • 100 Items: Re-digitize. A clean file runs smoother and breaks fewer needles over a long production run.

The "Hardware" Solution to "Software" Problems

We focus heavily on software, but 60% of "bad file" issues are actually hooping issues. If you repair the file perfectly, but your fabric slips in the hoop, you will still get gaps and registration errors (the dreaded "white space" between borders).

If you find yourself constantly editing files to compensate for shifting fabric, the problem isn't the file—it's your grip.

The Upgrade Path: From Frustration to Flow

1. Level 1: Stability: If you are dealing with "hoop burn" (those ugly shiny rings on delicate fabric), standard plastic hoops are the culprit.
2. Level 2: Efficiency: To solve slippage without crushing the fabric fibers, professionals switch to a magnetic embroidery hoop.
   • Why? They clamp the fabric with even, downward pressure rather than "pulling" it taut like a drum, which distorts the weave.
   • The Result: The fabric stays relaxed, meaning the stitch-out matches your screen preview perfectly.
3. Level 3: Production: For those scaling up a business, fighting with single-needle hoop limitations is a profit killer. This is where researching terms like embroidery magnetic hoop often leads to the realization that a multi-needle machine (like the SEWTECH series) paired with magnetic frames is the only way to handle bulk orders of hoodies or thick jackets efficiently.

Warning: Magnetic Safety
Embroidery hoops magnetic systems use industrial-strength neodymium magnets.
* Pinch Hazard: Never let the two frames snap together on your fingers.
* Medical Safety: Keep them at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Keep them away from credit cards and machine screens.

Operation Checklist: The Final 60 Seconds

Do not hit "Save" until you pass this list.

• Wireframe Scan: Are there any long "jump stitches" accidentally created inside the fill?
• Density Safety: Are any nodes stacked on top of each other? (Fix: Separate them).
• Silhouette Check: Toggle 3D. Does the heart look like a heart, or a potato?
• Hooping Plan: Have you selected the right stabilizer? (e.g., No-Show Mesh for knits, Tearaway for woven).
• Machine Prep: Is your bobbin full? A bobbin run-out in the middle of a repair section is a nightmare to fix.

File repair is a superpower. It saves you from re-buying designs and missing deadlines. But remember: the software is just the blueprint. The hoop, the stabilizer, and the machine are the construction crew. You need both to build something that lasts.

FAQ

• Q: In Embrilliance Enthusiast Stitch Edit, why does a fill shape show a jagged “bite-out” missing area after extracting an overlapped object?
  A: This is usually not file corruption—Embrilliance Enthusiast is accurately showing a void that existed because another element previously overlapped that area.
  • Disable 3D View and switch to wireframe so the true needle penetrations are visible.
  • Zoom into Stitch Editing Mode until individual stitch nodes are clearly separated.
  • Trace the stitch travel direction around the gap to confirm where the missing area begins and ends.
  • Success check: In wireframe, the “hole” is clearly defined by stitch endpoints rather than being “hidden” by thread volume.
  • If it still fails… assume it is a design-structure issue and move to stitch insertion (Insert Before/After) instead of resizing or re-hooping.
• Q: In Embrilliance Enthusiast, how do I decide between “Insert Before” and “Insert After” when repairing a bite-out in a fill stitch area?
  A: Match the stitch travel direction—use Insert After if the thread is traveling away from the selected node, and Insert Before if the thread is traveling toward the selected node.
  • Select a node exactly on the edge of the gap (do not click in the empty area first).
  • Right-click and choose Insert Before or Insert After based on the stitch flow you traced.
  • Place a few points to bridge the gap, then drag points to soften the curve.
  • Success check: The repair does not create a hidden jump stitch inside the fill and the wireframe flow looks continuous.
  • If it still fails… undo and re-anchor on a different edge node; a wrong anchor point commonly creates internal jumps or ridges.
• Q: In Embrilliance Enthusiast stitch insertion, how do I stop “spikes” and jagged edges after fixing a missing bite in a heart fill?
  A: Treat the repair like sculpting—insert rough points first, then drag nodes into a smooth curve with consistent spacing.
  • Insert only enough points to bridge the hole, then adjust by dragging nodes rather than adding more and more points.
  • Compare spacing between new stitch lines and existing stitch lines so the density visually matches.
  • Delete obviously chaotic points and re-insert with a steadier rhythm if the edge gets “hairy.”
  • Success check: In 3D View, the repaired edge looks like a continuous curve with no sharp protrusions catching the light.
  • If it still fails… return to wireframe and reduce the number of inserted points; too many points often creates the spike problem.
• Q: In Embrilliance Enthusiast, what is the safe minimum spacing when inserting stitch points so the repair does not over-densify and break needles?
  A: Avoid placing stitch points closer than 0.3 mm to prevent friction heat, thread shredding, and potential needle breakage.
  • Zoom in and visually check that nodes are not stacked on top of each other.
  • Delete every other node in any area that looks “piled up” or overly tight.
  • Re-check the repaired section for accidental double-stitching behavior.
  • Success check: The machine sound stays steady during the repaired area and the thread does not start shredding or fuzzing at the needle.
  • If it still fails… stop immediately and verify you did not duplicate the object or create multiple layers of stitches in the same path.
• Q: After repairing a bite-out in Embrilliance Enthusiast, why does the hole still show on fabric even though the preview looks filled?
  A: The file can be correct but fabric movement can open the gap—improve stabilization and add overlap only if needed.
  • Switch knits/T-shirts to Cutaway stabilizer to reduce stretch-related registration shift.
  • Add a water-soluble topping on towels/fleece so stitches do not sink into the nap.
  • Toggle 3D View back on and look for a “scar” (texture direction change) that signals the repair path needs angle adjustment.
  • Success check: The stitched area covers the garment color with no visible gap when viewed at normal wearing distance.
  • If it still fails… treat it as a hooping/grip issue rather than a software issue; slipping fabric will defeat perfect digitizing.
• Q: In Embrilliance Enthusiast repair work, what final pre-save checklist prevents hidden jump stitches and ugly shape changes in the repaired fill?
  A: Do a 60-second wireframe-and-3D scan before saving to catch internal jumps, density stacks, and silhouette distortion.
  • Scan wireframe for any long jump stitches accidentally created inside the fill.
  • Separate any nodes that are stacked or nearly stacked to avoid thread buildup.
  • Toggle 3D View and confirm the silhouette still reads correctly (heart looks like a heart, not a distorted blob).
  • Success check: In 3D View, thread texture looks consistent with no abrupt direction change line (“scar”).
  • If it still fails… revert to the saved copy version and redo the repair more minimally; over-editing often makes the shape worse.
• Q: When fixing registration gaps and hoop burn, how do I choose between technique optimization, switching to a magnetic hoop, or upgrading to a multi-needle SEWTECH machine?
  A: Use a tiered decision: optimize stability first, use magnetic hoops when slippage/hoop burn persists, and consider a multi-needle machine when production volume makes repeated fixes too costly.
  • Level 1 (Technique): Improve stabilization and hooping so the fabric does not shift and create “white space” between borders.
  • Level 2 (Tool): Move to magnetic hoops when standard plastic hoops cause hoop burn or cannot hold fabric securely without over-tightening.
  • Level 3 (Production): Consider a multi-needle SEWTECH machine when running bulk orders where cleaner runs and fewer stoppages matter more than single-item speed.
  • Success check: The stitch-out matches the screen preview without constant file edits to “compensate” for shifting fabric.
  • If it still fails… treat it like a process issue: verify hoop grip first, then stabilization, then revisit whether the file needs re-digitizing for large gaps or critical contours.
• Q: What magnetic hoop safety rules prevent finger pinches and device interference when using industrial-strength magnetic embroidery hoops?
  A: Handle magnetic hoops like a clamp—control the snap, protect fingers, and keep magnets away from medical devices and sensitive electronics.
  • Keep fingers out of the closing path and lower frames together slowly to avoid pinch injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Keep magnets away from credit cards and machine screens to reduce interference risk.
  • Success check: Frames come together under control with no sudden slam and no finger contact in the closing zone.
  • If it still fails… stop using the hoop until handling technique is corrected; uncontrolled snapping is a repeatable hazard.
