Fix Portrait Layering in Threads Embroidery Software: Cut a Clean Mouth with Fill Hole, Then Build Eyes That Actually Stitch Out

Portrait digitizing is the ultimate "lie detector" of machine embroidery. Faces don't forgive sloppy layering. If your beard fill swallows the mouth, or your eye whites look like chaotic scribbles (or turn black on the screen), you aren't just battling software—you are battling the physics of thread and tension.

In this "White Paper" grade walkthrough, we will rebuild two critical portrait features inside Threads Embroidery Software: (1) surgically cutting a clean mouth opening out of a beard fill using the Fill Hole tool, and (2) digitizing the whites of the eyes with stable, empirically tested settings (lock-down stitches and underlay) so they stitch out crisp, not wavy.

The Panic Moment: When the Beard Fill Covers the Mouth in Threads Embroidery Software—and Why It’s Fixable

The video starts with a classic "rookie nightmare": the mouth area has been stitched over by the beard. In the physical world, this results in a "bulletproof patch" on the face—a dense, stiff area where the beard fill stacks on top of the mouth stitches.

The Physics of the Error: When you layer a complex fill (beard) over another fill (mouth), you risk needle deflection and thread breaks. The density becomes too high for the needle to penetrate cleanly.

The good news: You don’t have to delete and re-digitize the whole beard. In Threads Embroidery Software, you can subtract the mouth shape directly from the beard object using Fill Hole. Think of this not as erasing, but as "digital excavation"—creating a negative space where the mouth can live safely.

Before you touch a single node, stop.

• In 3D stitch view: Overlaps look deceptively fine until you zoom in.
• In Wireframe: This is your X-Ray. You can see the skeleton of the design.


The “Hidden” Prep Pros Do First: Background Image, Zoom Control, and Wireframe Discipline

The narrator immediately toggles views and brings up the background reference. This is the "Pre-Flight Check" of digitizing.

Most beginners try to digitize at 100% zoom. This is a mistake. You need to be at 400-600% zoom to place nodes that respect the organic curve of a lip. If your nodes are jagged, your machine will stutter, creating a robotic, unnatural stitch path.

The Professional Setup Workflow:

1. Toggle to Wireframe (Key: S): Strip away the "pretty" texture. You need to see the geometry.
2. Engage Background Reference: You cannot guess a lip line. You must trace it.
3. Zoom to the Pixel Level: Place nodes on the edge of the pixel blur, not the center.


Prep Checklist: The "Zero-Failure" Protocol

Before you cut, verify these four states. If one is "No," stop.

• Visual Clarity: Can you toggle instantly between 3D (Simulation) and Wireframe (Structure)? (Shortcut: S)
• Source Fidelity: Is the background image locked and visible? (Shortcut: Ctrl+F)
• Node Precision: Are you zoomed in enough to see individual millimeters?
• Hidden Consumable Check: Do you have a clean microfiber cloth for your screen? visual distortion from dust can lead to misplaced manual nodes.

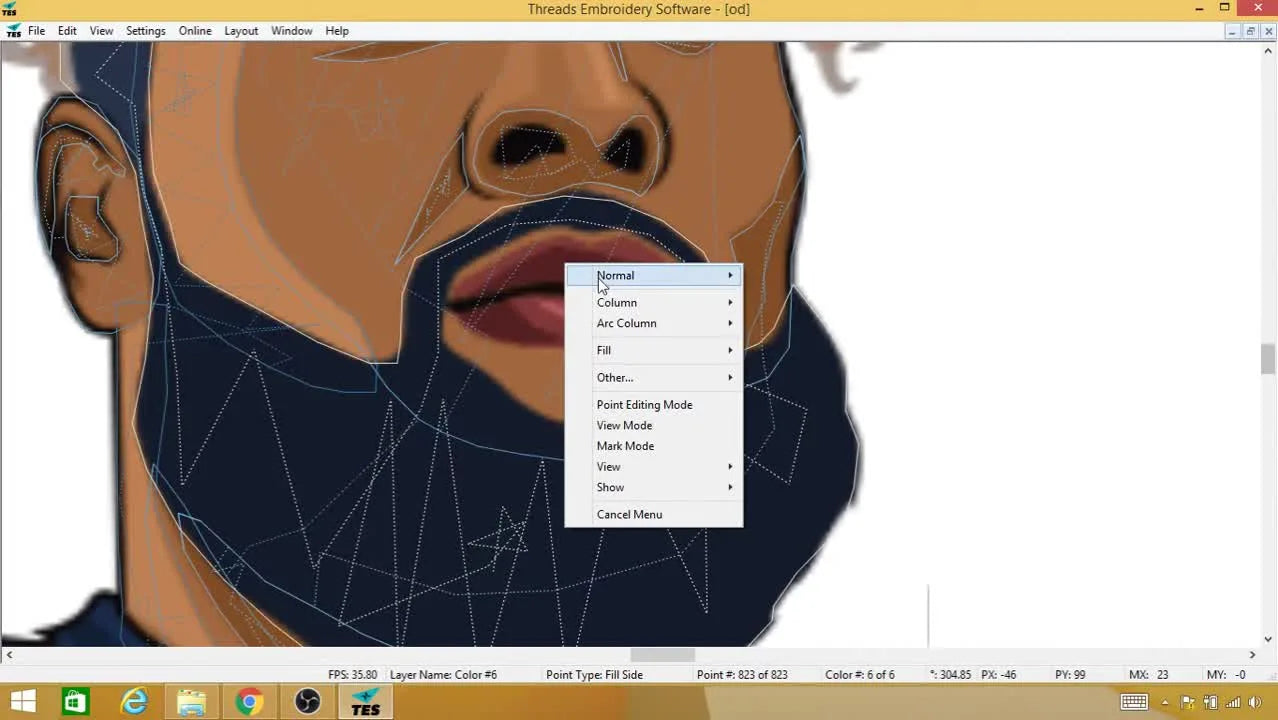

The Clean Cut: Using Fill Hole on the Beard Fill Without Destroying Your Design

Here is the core operation. We are going to tell the software: "Keep the beard, but carve out a specific zone for the mouth."

The sequence must be precise to avoid "object confusion" (where the software thinks you are editing the mouth, not the beard).

1. Select the Beard Object: Click strictly on the fill lines of the beard.
2. Right-Click Context Menu: Navigate to Fill.
3. Execute: Choose Fill Hole.
4. The Surgical Path: Plot nodes around the perimeter of the lips.
   • Sensory Tip: Left-click for straight lines, Right-click (or hold Ctrl depending on settings) for curves. You want the path to flow like liquid.
5. Commit: Press Enter.


Checkpoints (The "Pilot Light" confirmation)

The video highlights a subtle cue: look at the Status Bar. It should read something like “Point 823 of 823”.

• What this tells you: You are modifying the existing fill sequence.
• Why it matters: If you don't see this, you might be accidentally creating a new object instead of cutting a hole in the old one.

If you are following an embroidery digitizing tutorial regarding portraits, this status bar check is the difference between a 30-second fix and a 30-minute repair job.

Warning (Physical Safety): Digitizing is safe; testing is dangerous. If you run a test stitch immediately after this edit, keep your hands clear of the needle bar. When a machine jumps from a beard fill to a mouth contour, it often makes a rapid X-Y movement (a "trim jump"). Never reach under the presser foot while the machine is powered or jogging.

Expected Outcome

The wireframe will update instantly. You should see a clean "void" in the beard mesh. Toggle to 3D. The mouth should now sit inside the beard, not under it.

The “Why” Behind Fill Hole: Layering Logic That Prevents Rework (and Ugly Stitch-Outs)

Why use "Fill Hole" instead of just moving the beard nodes?

The Physics of Push/Pull Compensation: Fabric is fluid. When you stitch a dense beard, the fabric shrinks (pulls) in the direction of the stitches and expands (pushes) perpendicular to them.

• The "Donut" Effect: If you digitize the beard as two separate shapes (Left Beard/Right Beard) to avoid the mouth, you create a seam. As the fabric pulls, that seam will gap open, revealing the fabric underneath.
• The "Fill Hole" Advantage: By keeping the beard as one solid object with a hole, the software maintains a consistent stitch angle and density calculation across the entire face. The tension remains uniform.

Commercial Reality: In a production shop, efficiency is king. Editing a hole takes 45 seconds. Re-digitizing takes 10 minutes. If you are billing $50/hour, "Fill Hole" just saved you $8.

The Eye Upgrade: Digitizing the Whites with Manual Nodes and a Realistic Shape

Eyes are the "Uncanny Valley" of embroidery. If they are slightly wrong, the portrait looks alien. The narrator switches to manual node entry here.

Why Manual? Auto-digitizing tools often mistake the contrast of an eye for a circle. Eyes are almost never perfect circles—they are almond-shaped, partially covered by lids. You must "sculpt" this shape manualy.

The Procedure

1. Create New Object: Do not add to the face fill. This is a separate layer.
2. Trace the Sclera (White): Click to place nodes.
   • Expert Tip: Use fewer nodes. 3 nodes make a smoother curve than 10.
3. Color Assignment: Right-click -> Other Color Change -> White.


Don’t Let the Screen Lie: Why White Thread Looks Black in Wireframe (and When to Ignore It)

Beginners often panic here. You select "White," but the wireframe turns Black.

The Logic: This is "High Contrast Mode." White lines on a white background are invisible. The software automatically inverts the wireframe color to Black so you can see your work.

• The Truth: Rely on the Color Palette assignment, not the wireframe color.
• The Check: Toggle to 3D View. If it looks white there, you are safe.


Many users flood embroidery software help forums with this exact issue. Trust your settings, not the raw wireframe.

The Stitch Properties That Make Eyes Behave: Fill vs Satin, Lock-Down Stitches, and Underlay

This is the most critical section for quality. The default settings in most software are designed for large logos, not tiny eyes. We need to tighten the clearanace.

The narrator engages:

1. Stitch Type: Fill (Tatami).
2. Lock Down Stitch: Enabled (Star pattern).
3. Underlay: Enabled.


Expert Data: The "Sweet Spot" Settings

The video gives the "what," but here is the "how much" based on empirical experience with standard 40wt Rayon/Polyester thread:

Sensory Check: When stitching the eye underlay, listen to your machine. It should sound like a rhythmic, soft tik-tik-tik. If it sounds like a heavy THUD, your density is too high or your needle is dull.

Setup Checklist (The Eye Protocol)

• Type: Fill (for wide eyes) or Satin (for narrow/cartoon eyes).
• Lock Down: ON. (Crucial. Without this, the thread tail will pop out after the trim).
• Underlay: ON. (This is the foundation; do not skip it).
• Speed Limit: Cap your machine speed to 600 SPM for the facial features.

Repeat Without Drifting: Building the Second Eye and Keeping Symmetry Under Control

The narrator repeats the process for the second eye.

The Trap of Symmetry: Do not simply "Copy/Paste/Mirror" unless the face is perfectly straight on. Most portraits have a slight tilt.

• Best Practice: Manually trace the second eye to match the photo reference.
• Visual Check: Zoom out to 100%. Does the gaze look focused? If one eye is 1mm lower, the subject will look like they are having a stroke.


Troubleshooting Threads Embroidery Software Portrait Fixes: Symptoms → Causes → Fast Corrections

When things go wrong, don't guess. Use this diagnostic table. Always start with the "Low Cost" fix (Mechanical) before moving to the "High Cost" fix (Re-digitizing).

A Practical Decision Tree: When to Adjust Digitizing vs When to Upgrade Hooping and Stabilization

You cannot software-patch a hardware problem. If your digitizing is perfect but the result is bad, use this logic flow:

Decision Tree (The "Fix or Upgrade" Logic):

1. Is the Preview Perfect?
   • NO: Fix the nodes/layers in Threads Software.
   • YES: Go to Step 2.
2. Is the Outline "Off-Register" (Gaps between black outline and white eye)?
   • YES, in direction of hoop movement: This is slippage. Your hoop is not holding the fabric tight enough.
   • YES, Randomly: Use more Spray Adhesive (Temporary) or floating stabilizer.
3. Are you fighting this problem on 50+ shirts?
   • YES: Stop. You have a workflow bottleneck. Traditional plastic hoops struggle with consistency on bulk runs.
   • Solution: Upgrade to a hooping station for machine embroidery to ensure every shirt is placed identically.

Terms like magnetic embroidery hoop are your gateways to understanding efficient production. If you are seeing "hoop burn" (shiny rings on the fabric) or slippage, a magnetic frame distributes tension more evenly than a screw-tightened plastic frame.

The Upgrade Path That Actually Makes Sense: From “One-Off Hobby” to Repeatable Production

Nothing in the video discusses hardware, but hardware is often the silent killer of portrait work.

Level 1: The Hobbyist (Software Discipline) If youstitch one portrait a month, master the Fill Hole and Underlay techniques in this guide. Use fresh needles (75/11 Sharp) and slow your machine down.

Level 2: The Side Hustle (Tool Upgrade) If you are selling these portraits, time is money. Fighting with hoop screws and misaligned shirts destroys profit.

• The Upgrade: A SEWTECH Magnetic Hoop.
• The Benefit: Snaps on instantly. No screw tightening. Holds thick adjustables or delicate performance wear without forcing it. It solves the "shifting eye" problem by gripping the fabric like a vise, not a pinch.

Level 3: The Production Shop (Capacity Upgrade) If you are doing team portraits or batches:

• The Pain: Changing thread colors for every eye, lip, and beard shade manually.
• The Fix: SEWTECH Multi-Needle Machines. Set the colors once, press start, and walk away.
• The Logic: A single-needle machine requires your attention every 2 minutes. A multi-needle machine buys you time.

Warning (Magnet Safety): Powerful tools require respect. SEWTECH and other industrial-grade magnetic frames use Neodymium magnets. They create massive pinch force.
* Keep away from pacemakers and implanted medical devices (ICD).
* Watch your fingers: Do not place fingers between the rings when closing.
* Electronics: Store away from phones and credit cards.

If you are comparing options, a magnetic frame for embroidery machine is usually the most immediate “feel it today” upgrade: less hooping struggle, more consistent tension, and fewer garments wasted from mis-hooping.

Operation Checklist: The 60-Second Final Pass Before You Export and Stitch

Do not press "Start" until you verify these five points.

• Hole Verification: Toggle Wireframe. Is the mouth cut cleanly? (No stray stitches crossing the lips).
• Feature Order: Are the Eye Whites stitched before the Eye Outlines/Pupils? (Always stitch "Background to Foreground").
• Stabilizer Match: For a portrait with high stitch count (beard + face), are you using Cutaway stabilizer? (Tearaway will disintegrate and ruin the face alignment).
• Bobbin Check: Do you have enough bobbin thread to finish the face without a splice?
• Safety Save: Save the file as Portrait_Final_v2.PES (or your machine format) before exporting.


When you combine the surgical precision of Fill Hole with the stability of proper Underlay—and back it up with the right stabilizing hardware—you stop crossing your fingers and hoping for the best. You start producing portraits that look like art, not accidents.

FAQ

• Q: In Threads Embroidery Software, how do I use the Fill Hole tool to stop a beard fill from stitching over a mouth in a portrait design?
  A: Use Fill Hole on the existing beard object to carve a clean mouth opening without re-digitizing the beard.
  • Select: Click only the beard fill lines to make sure the beard object is active.
  • Execute: Right-click → Fill → Fill Hole, then plot nodes around the lip perimeter and press Enter to commit.
  • Verify: Check the Status Bar for a message like “Point ___ of ___” to confirm the hole is being cut into the existing fill, not drawn as a new object.
  • Success check: In Wireframe, a clear “void” appears in the beard mesh and no stitches cross the lip line; in 3D view, the mouth area is visibly open.
  • If it still fails: Open the Object List and confirm the mouth stitches are sequenced after the beard, then repeat Fill Hole carefully on the beard object.
• Q: In Threads Embroidery Software portrait digitizing, what zoom level and view mode prevent jagged lip curves and “stuttering” stitch paths when placing manual nodes?
  A: Work in Wireframe at roughly 400–600% zoom so node placement follows the real curve instead of creating jagged geometry.
  • Toggle: Press S to switch to Wireframe before editing shapes.
  • Zoom: Increase zoom to the pixel level before placing or adjusting nodes on lips and small facial features.
  • Trace: Turn on and use the background reference image instead of guessing the lip boundary.
  • Success check: The lip outline looks smooth with fewer, cleaner nodes, and the stitch path preview does not show sharp “corners” along curves.
  • If it still fails: Reduce node count and re-place nodes on the edge of the pixel blur rather than the center of the blur.
• Q: In Threads Embroidery Software, why does white thread sometimes display as black in Wireframe, and how can I confirm the eye white color is actually correct?
  A: This is normal high-contrast Wireframe behavior—trust the color assignment and confirm in 3D view.
  • Check: Confirm the object is assigned to White in the color palette (not by the wireframe line color).
  • Toggle: Switch to 3D view to confirm the simulated stitches show as white.
  • Keep working: Continue digitizing the sclera shape; the wireframe color inversion is only for visibility.
  • Success check: The object shows white in 3D simulation and the color change is correctly listed in the palette/sequence.
  • If it still fails: Re-assign the object color using the software’s color change command (e.g., right-click color change) and re-check in 3D view.
• Q: In Threads Embroidery Software portrait eye digitizing, what stitch properties stop eye whites from stitching “wavy,” and what safe settings should beginners start with?
  A: Use Fill (Tatami) with Lock Down Stitch ON and Underlay ON, and slow the machine for facial features.
  • Set: Choose Fill (Tatami) for the eye white (use Satin only when the eye is very narrow/cartoon-like).
  • Enable: Turn Lock Down Stitch ON (star pattern) and turn Underlay ON.
  • Start safe: Use density about 0.42–0.45 mm and cap speed around 500–700 SPM for eyes.
  • Success check: The eye area stitches flat and crisp (not rippling), and the underlay sounds like a light, rhythmic “tik-tik-tik,” not a heavy “THUD.”
  • If it still fails: Increase stabilization (often switching from Tearaway to Cutaway) and re-check hoop grip to reduce fabric shifting (flagging).
• Q: During portrait embroidery, how do I troubleshoot birdnesting on the eye whites when density is very tight in Threads Embroidery Software?
  A: Treat birdnesting as a tension/density interaction—back off extreme density and verify bobbin tension before re-digitizing.
  • Inspect: Confirm density is not excessively tight (the blog flags very tight values like < 0.35 mm as risky).
  • Check: Test bobbin tension by pulling bobbin thread; it should feel like pulling a mostly-loose tooth—some resistance, but it slides.
  • Adjust: Reduce stitch aggressiveness first (often easing density into a safer range and slowing speed on facial features).
  • Success check: The underside no longer forms a tangled “nest,” and stitches form cleanly without repeated thread jams in the eye area.
  • If it still fails: Re-check stabilization and hoop holding strength, because fabric movement can amplify nesting even when tension is close.
• Q: What machine safety steps prevent finger injuries when test-stitching a portrait after a trim jump from beard fill to mouth contour?
  A: Keep hands completely clear of the needle area during test runs because rapid X-Y trim jumps can happen immediately after edits.
  • Position: Keep fingers away from the presser foot and needle bar area before pressing start.
  • Avoid: Never reach under the presser foot while the machine is powered or jogging.
  • Monitor: Watch the first transition from beard fill to mouth/contour especially closely.
  • Success check: The machine completes the trim/jump cleanly without you needing to “steady” fabric by hand near the needle zone.
  • If it still fails: Stop the machine, re-check sequencing and travel stitches in preview, then re-run at a reduced speed for facial features.
• Q: When portrait embroidery has perfect preview but stitches go off-register, when should I adjust digitizing versus upgrade to SEWTECH Magnetic Hoops or move to SEWTECH multi-needle machines?
  A: If the preview is correct but the stitch-out shifts, fix hooping/stabilization first, then consider magnetic hoops for consistency, and multi-needle machines for production efficiency.
  • Diagnose: If preview is NOT perfect, correct nodes/layers in Threads Embroidery Software first; if preview IS perfect, treat the issue as physical setup.
  • Stabilize: Use Cutaway for high stitch-count portraits (beard + face) to reduce shifting; add temporary spray adhesive if appropriate for your workflow.
  • Upgrade (Level 2): If slippage/hoop burn and placement inconsistency keep recurring, a SEWTECH Magnetic Hoop often improves grip consistency compared with screw-tightened hoops.
  • Upgrade (Level 3): If batching portraits causes constant manual color changes and attention every few minutes on single-needle workflows, SEWTECH multi-needle machines can reduce stops and improve throughput.
  • Success check: Eye outlines stay aligned to eye whites and gaps do not appear in the direction of hoop movement across repeated garments.
  • If it still fails: Re-check for random shifting (often points to stabilization/adhesive) versus directional shifting (often points to hoop slippage and placement repeatability).
