Curved lettering is the hallmark of professional embroidery. It is the difference between a flat, amateur hobby project and a sellable custom uniform, a structured cap front, or a high-end badge. However, for many users of Brother PE-Design, mastering the "Text on Path" function is a source of immense frustration. You visualize a perfect arc, but the software delivers a zigzag line through your letters, or worse, the keyboard refuses to type at all.

This guide bridges the gap between the digital clicks and the physical stitch-out. Drawing on two decades of production experience, we will walk through the specific workflow from the tutorial, verified against current industry standards, and augmented with the physical safeguards necessary to protect your machine and your garments.

Calm First: Why the "Fit Text" Button Seems to Vanish

If you are panicking because your screen does not match the tutorial, pause. The most common anxiety trigger in embroidery software is Context Sensitivity. Unlike a word processor where the "Bold" button is always visible, digitizing software hides tools until they are mathematically relevant.

In PE-Design (versions Next, 9, 10, and 11), the "Fit Text to Outline" command often lives under the Arrange tab, but it—and this is critical—will not light up until two specific objects are selected simultaneously.

From a production standpoint, curved text is rarely used on flat, easy-to-hoop fabric. You are likely designing for a cap, a tote bag, or a jacket back. These are difficult items to frame using traditional screw-tightened hoops. This is where the friction begins: you fight the software, then you fight the hoop. While we fix the software steps below, seasoned embroiderers often bypass the physical struggle by upgrading to magnetic embroidery hoops, which allow you to secure thick or uneven items without the hand strain or "hoop burn" caused by traditional rings.

The "Hidden" Prep: Keyboard Hygiene and Focus

The video jumps straight into typing, but 30% of beginners get stuck before a single letter appears. The comment section is filled with "The typing did not work." This is a Windows Focus Issue, not a software bug.

Before you touch the keyboard, you must tell the software where to listen.

The Sensory Check:

1. Select the Text Tool ("A").
2. Click definitively in the white workspace.
3. Look for the cursor: You should see a flashing vertical bar. If you don't see the flash, you aren't typing.

Why this matters: If an object is still selected from a previous step, your keystrokes might trigger "Hotkeys" (moving the object, changing tools) rather than typing letters.

Prep Checklist: The Protocol

Perform these checks before every text session to prevent software lock-up.

• Tool Hygiene: distinct click on the Text Tool ("A").
• Focus Lock: Single left-click on the workspace; verify the flashing cursor.
• Input Check: Confirm your keyboard is active (toggle Caps Lock light if unsure).
• Consumable Check: For curved text, ensure you have 40wt Rayon or Polyester thread and a 75/11 Ballpoint needle (for knits) or Sharps (for wovens).
• Stability Plan: Curved text exerts multi-directional pull. Have you selected a Cutaway stabilizer? (Tearaway is risky for text).


Step 1: Create the Text Object

In the lesson, the workflow is:

1. Select Text Tool.
2. Type "testing".
3. Press Enter to generate stitches.

Expert Calibration - Density & Pull Compensation: Text generated at default settings is often too dense for modern sportswear.

• The Risk: If you hear a rhythmic thump-thump-thump from your machine, your density is too high (stitching too closely).
• The Fix: For standard text (height 10mm-25mm), aim for a density of 4.5 points (0.45mm). If shrinking text below 8mm, increase spacing to 0.5mm to prevent thread breaks.


Step 2: Draw the "Invisible Ruler" (The Bezier Curve)

You cannot simply "bend" text in a vacuum; you must give it a spine.

1. Select the Line Tool.
2. Choose Curved Line / Open Path.
3. Click 1: Start point (left).
4. Click 2: Peak of the arc (middle).
5. Double-Click: End point (right).

The "Double-Click" Discipline: Beginners often single-click the end, leaving the line "sticky" (it follows the mouse). You must Double-Click to terminate the path. Listen for the distinct click-click of your mouse button. If the line is still following your cursor, the software is waiting for you to finish the command.

The Physics of the Path

Why does a smooth path matter? A jagged path forces the needle to make micro-jumps. On the screen, it looks like a glitch; on the machine, it sounds like erratic grinding and leads to birdnesting (thread tangling under the plate). Keep your anchor points minimal—three points (Start, Peak, End) are sufficient for 90% of text arcs.

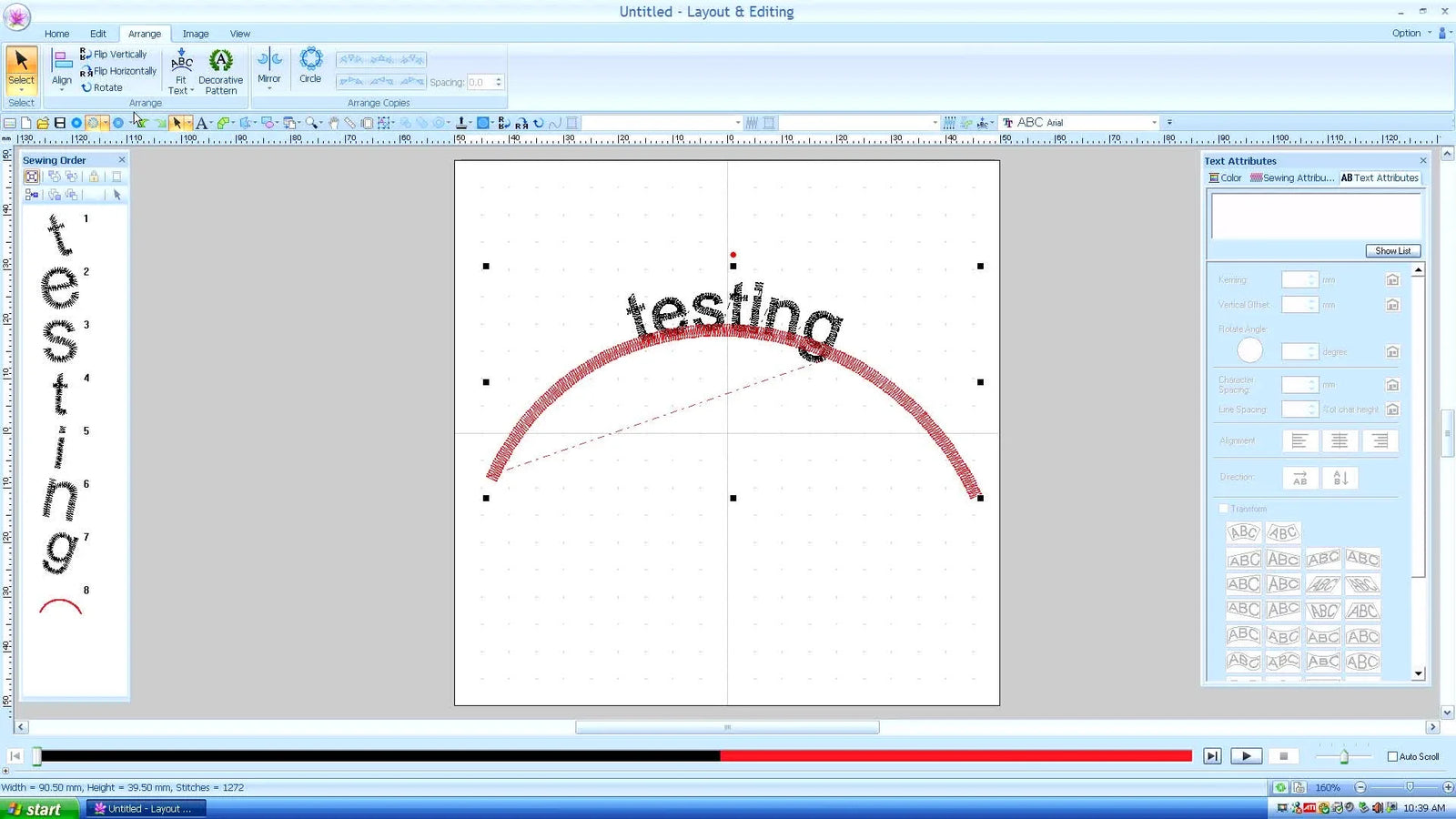

Step 3: The "Fit" Command (The Critical Order of Operations)

This is the specific sequence that trips up most users. You must weave the text onto the spine.

The Action Protocol:

1. Switch to the Select Tool (Arrow).
2. Click the Line/Path first. (It gets a bounding box).
3. Hold the CONTROL key.
4. Click the Text. (Now both are highlighted).
5. Navigate to Arrange tab $\rightarrow$ Fit Text to Outline.

The Production Reality: Once the text snaps to the line, the relationship is locked. If you are using a standard hoop, and you realize the text is slightly off-center, you often have to un-hoop and start over. This is a massive labor cost. Users who switch to magnetic embroidery frames find this stage forgiving: you can simply slide the powerful magnets to adjust the fabric slightly instead of rebuilding the design or fighting hoop screws.

Setup Checklist: The "Merge" Phase

Do not proceed until these criteria are met.

• Selection Order: Path first, then Text (using Ctrl).
• Visual Confirmation: Both objects show selection handles.
• Command Execution: Applied "Fit Text to Outline" (Top/Middle/Bottom alignment).
• Legibility: Letters are not crashing into each other (overlap = broken needles).


Step 4: The "Mystery Zigzag" (Troubleshooting the Line)

The most dangerous trap in this workflow is leaving the guide line active. If you send the design to the machine now, it will stitch the text and a zigzag line straight through your letters.

The Fix:

1. Select only the line (click carefully away from the text).
2. Look at the Sew Attributes or Line Sew tab.
3. Set the Line Sew Type to "Not Sewn" or toggle the "Sew" icon off.

Warning: Mechanical Hazard
Never "test stitch" a file without verifying the guide line is deleted or disabled. A heavy running stitch cutting through a satin column can deflect the needle, causing it to strike the needle plate. This can burr the hook assembly (expensive repair) or shatter the needle toward your eyes. Always run the simulator on-screen first.

Step 5: Sliding and Kerning (The "A" Handle)

Once fitted, you will see a small "A" icon with arrows on the path.

• Drag the "A": Slides the entire sentence along the rainbow.
• The Production Check: Ensure the text is centered not just visibly, but regarding the hoop's center of gravity.


Step 6: Individual Letter Control

The lesson demonstrates clicking a second time on a specific letter to isolate it. You can move, rotate, or resize single characters.

Expert Tip - Kerning: Use this to fix the optical gaps between letters like "T" and "A" or "A" and "V". On a curve, the tops of letters fan out. You may need to manually rotate them inward slightly so the text reads as a cohesive word, not independent islands of thread.

Operation Checklist: Pre-Stitch Verification

Run this mental flight check before pressing "Start" on the machine.

• Ghost Line: The guide path is set to "Not Sewn."
• Center Point: The design center matches your marked fabric center.
• Speed Limit: Machine set to 600-700 SPM (Stitches Per Minute) for the first run. High speeds on curves cause centrifugal distortion.
• Underlay: Ensure "Edge Run" or "Center Run" underlay is active to stabilize the fabric before the satin top-stitch hits.
• Needle: Fresh needle installed? (A burred needle ruins curved satin text instantly).

The Production Gap: Stabilizers and Hooping

The software is perfect math; fabric is unstable chaos. A digital arc will distort into a wave if the fabric shifts.

Decision Tree: Stabilizer & Hooping Strategy

Follow this logic path to ensure your arc stays true.

1. Is the fabric stretchy (T-shirt, Hoodie, Pique Knit)?

• YES: You must use Cutaway Stabilizer (2.5oz or 3.0oz). Tearaway will fail, and the arc will distort after the first wash. Do not "float" the item; hoop it partially or fully.
• NO: Proceed to step 2.

2. Is the item physically difficult to hoop (Backpack, Cap, Thick Jacket)?

• YES: Standard hoops often pop off or leave "hoop burn" (crushed fibers).
  • Solution A: Use a sticky stabilizer (PSA) and float.
  • Solution B (Pro): Use a magnetic embroidery hoop. The sheer force of the magnets holds thick seams flat without forcing you to wrench a screw, keeping the fabric tension consistent for the text arc.
• NO: Use standard hoops with Tearaway (for wovens/denim) or Cutaway.

3. Application: Production Run vs. One-Off?

• One-Off: Manual marking and hooping is acceptable.
• Production (10+ items): Manual hooping kills profit. Consider a hoopmaster station to ensure every curved text lands at the exact same height on every shirt.

Warning: Magnetic Safety
If you utilize Magnetic Hoops for production, handle them with respect. The magnets are industrial strength.
* Do not place fingers between the rings (Pinch Hazard).
* Keep away from pacemakers and medical implants.
* Keep clear of computerized machine screens and credit cards.

Comment-Proof Troubleshooting (Symptom $\rightarrow$ Fix)

The "Make It Sellable" Upgrade Path

Mastering distinct software skills like curved text is what transitions a hobbyist into a commercial embroiderer. However, as your software skills improve, your hardware often becomes the bottleneck.

1. The "Hoop Burn" Bottleneck: If you are spending more time steaming marks out of fabric than stitching, it is time to look at magnetic embroidery hoop systems. They reduce post-processing time to zero.
2. The "Consistency" Bottleneck: If you can digitize a perfect logo but can't place it straight twice in a row, investigate hooping stations.
3. The "Thread Change" Bottleneck: Curved text often involves multiple colors (borders vs. fill). If you are using a single-needle machine, you are the tool changer. Moving to a SEWTECH multi-needle machine automates this, allowing you to walk away while the machine runs complex, multi-color curved text perfectly.

Embroidery is a harmony of good digitizing and stable physics. Master the "Fit to Path" tool today, but respect the stabilizer and hooping requirements that make that digital path a reality.

FAQ

• Q: In Brother PE-Design (Next/9/10/11), why is “Fit Text to Outline” greyed out or missing under the Arrange tab?
  A: “Fit Text to Outline” only activates when both the path and the text are selected at the same time.
  • Select the Arrow/Select tool first.
  • Click the curved line/path first, then hold CTRL and click the text object.
  • Open Arrange → Fit Text to Outline and choose the alignment (Top/Middle/Bottom).
  • Success check: both objects show selection handles before clicking the command, and the text snaps onto the curve immediately.
  • If it still fails: right-click with both objects selected and look for a “Fit to Outline” option, because the menu location can vary by PE-Design version.
• Q: In Brother PE-Design, why can’t I type in the Text Tool and no letters appear in the workspace?
  A: This is usually a Windows focus/cursor issue—PE-Design is not “listening” to the keyboard yet.
  • Click the Text Tool (A).
  • Click firmly once in the white workspace to place the insertion point.
  • Look for the flashing vertical cursor before typing, then press Enter to generate stitches.
  • Success check: a blinking cursor appears and typed letters show on-screen instead of triggering shortcuts.
  • If it still fails: click the Select tool, then click the Text tool again to reset focus and try the workspace click one more time.
• Q: In Brother PE-Design “Text on Path,” why do I get a zigzag or straight stitch line running through the letters after stitching?
  A: The guide line/path is still set to sew—disable the line sewing before exporting/sending to the machine.
  • Click carefully to select only the line (not the text).
  • Open Sew Attributes / Line Sew and set Line Sew Type to Not Sewn (or toggle Sew off).
  • Run the on-screen simulator before any test stitch-out.
  • Success check: the color/object list (or preview) shows no stitched line under/through the text, and the simulator runs only the lettering stitches.
  • If it still fails: zoom in and re-select the line away from the letters—most mistakes come from accidentally selecting the text instead.
• Q: In Brother PE-Design, why won’t the curved line/path stop drawing and keeps “sticking” to the mouse cursor?
  A: The open path was not terminated—end the curve with a double-click to finish the command.
  • Choose Line Tool → Curved Line / Open Path.
  • Click Start, click Peak, then double-click the End point.
  • Keep anchor points minimal (Start/Peak/End is enough for most arcs).
  • Success check: the line stops following the cursor immediately after the double-click and becomes a selectable object with a bounding box.
  • If it still fails: press Escape to cancel, then redraw and listen/feel for a clear “click-click” at the final point.
• Q: What stitch density setting is a safe starting point for Brother PE-Design lettering (10–25 mm) to reduce thread breaks on curved satin text?
  A: A practical starting point for standard text is about 4.5 points (0.45 mm), and very small text often needs more spacing.
  • Set density around 4.5 points (0.45 mm) for 10–25 mm text as a baseline.
  • If shrinking below ~8 mm, increase spacing to about 0.5 mm to reduce breaks.
  • Slow the first test run to 600–700 SPM to reduce distortion while you confirm settings.
  • Success check: the machine runs without a rhythmic “thump-thump-thump,” and the satin columns look smooth rather than overstuffed.
  • If it still fails: re-check needle condition and stabilize/hoop more firmly because curved text amplifies fabric movement.
• Q: What stabilizer and needle combination should be used for curved lettering embroidery on T-shirts/hoodies versus woven fabrics when using Brother PE-Design designs?
  A: Curved text pulls in multiple directions, so match stabilizer and needle to fabric type before stitching.
  • Use Cutaway stabilizer (2.5 oz or 3.0 oz) on stretchy knits (T-shirts, hoodies, pique) and avoid tearaway for curved text on knits.
  • Use a 75/11 Ballpoint needle for knits; use a Sharps needle for wovens.
  • Stitch with 40 wt Rayon or Polyester thread as your baseline thread weight.
  • Success check: the arc stays smooth (not wavy) after stitching and the fabric does not tunnel or ripple around the lettering.
  • If it still fails: improve hooping stability (don’t float knits) because shifting fabric is the most common cause of “wave” distortion on curves.
• Q: What safety checks should be done before test-stitching Brother PE-Design curved text to prevent needle plate strikes and thread nests?
  A: Do not run a test stitch until the guide path is confirmed “Not Sewn” and the design is simulated on-screen.
  • Disable or delete the guide line by setting it to Not Sewn and verify in preview/simulator.
  • Run the simulator first to confirm only the lettering stitches will sew.
  • Install a fresh needle before the first real run, and start at 600–700 SPM.
  • Success check: no running-stitch line appears through satin columns in the simulator, and the machine sounds smooth (no sudden grinding or sharp deflections).
  • If it still fails: stop immediately and re-check for any remaining sewn line objects—stitching a guide line through satin can deflect the needle into the plate.
• Q: When curved text placement keeps shifting on caps, backpacks, or thick jackets, how should hooping be upgraded from standard hoops to reduce “hoop burn” and re-hooping time?
  A: Start with technique fixes, then upgrade holding method if the item is physically hard to hoop and keeps moving.
  • Level 1 (Technique): mark center points and stabilize properly; test at slower speed on the first run.
  • Level 2 (Tool): use a magnetic hoop approach to hold thick seams flatter and avoid over-tightening that causes hoop burn.
  • Level 3 (Production): if doing 10+ items, use a hooping station to repeat placement consistently rather than re-hooping each item by eye.
  • Success check: the design center stays aligned with the marked fabric center without the fabric creeping during stitching.
  • If it still fails: treat it as a holding-force problem—if the item cannot be hooped securely, switching from standard screw hoops to a stronger, more even clamping method is often the turning point.
