Production Embroidery Guide: Mastering Multi-Design Layouts in PE-Design

If you run a multi-needle machine for profit, you already know the real enemy isn’t “complex designs”—it’s the downtime between them. It’s wasted hoop space, excessive color stops, and that sinking feeling when fabric shifts right as you hit top speed.

The workflow below (demonstrated in PE-Design) is a classic production manufacturing move: take one “Cheer Elf Dress” file, duplicate it three times, nest the copies tightly inside a 14" x 7 7/8" hoop, and add a manual basting box to control the fleece.

However, the source video ends with a software crash. That isn’t just a blooper; it’s a symptom of overloading the process. This guide reconstructs that workflow with added safety margins, sensory checks, and industrial logic to ensure your next run is profitable, not stressful.

1. Calm the Panic: Establishing the "No-Fly Zone" in Settings

Before you touch the layout, you must lock the file to the correct machine type. If you skip this, you can build a beautiful layout that simply won’t stitch because it violates the physical limits of the machine's pantograph (the moving arm).

The Action:

1. Open Design Settings.
2. Change Machine Type from Single to Multi-needle.
3. Set Hoop Size to 14" x 7 7/8" (or your largest available frame).


Why This Matters (The Science): PE-Design changes its internal "math" based on the machine type. A multi-needle machine centers designs differently than a single-needle domestic machine.

The "Safe Zone" Rule: Just because the software allows you to touch the edge doesn't mean you should.

• Visual Check: Always leave visible white space between your design and the red hoop boundary line.
• Gap Rule: Leave at least 15mm (0.6 inches) between nested designs. If you can’t fit your pinky finger between the embroidered areas, you won't have room to safely cut the fabric later without snipping a stitch.

Warning: Mechanical Risk. When testing tight layouts, keep your hands well clear of the needle bar case. A multi-needle machine moving at 800+ SPM (Stitches Per Minute) shifts instantly. Do not attempt to trim threads while the machine is active.

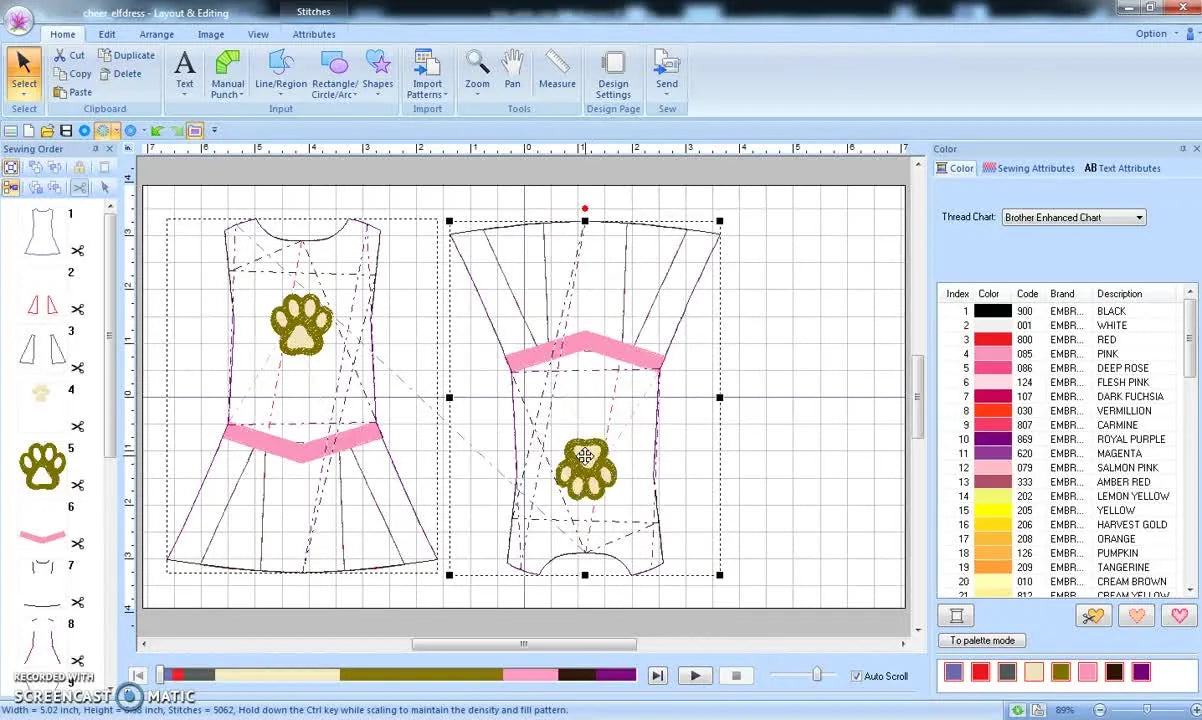

2. Pack the Hoop: The "Tetris" Technique (Flip & Nest)

Maximizing hoop real estate reduces material waste. Here is the core move to fit three dresses into one frame:

1. Select the dress design.
2. Copy / Paste to create two clones (Ctrl+C, Ctrl+V).
3. The Flip: Select the middle dress.
4. Invert: Use Ctrl+H (Flip Horizontal) and Ctrl+J (Flip Vertical) to rotate perfectly.
5. Nudge: Use the arrow keys to slide the middle dress into the empty negative space of the outer dresses.




The Reality Check: The creator notes the total width is 11.396 inches.

• Pro Tip: If you are using terms like large brother embroidery hoop in your shop, verify that your specific hoop model supports this exact printable field. Not all "14-inch" hoops have a full 14 inches of usable travel.

3. The "Hidden" Prep: Stabilization Physics & The Basting Box

The video uses fleece. Fleece is "lofty" (squishy) and prone to shifting. If you rely solely on hoop tension, the fabric will contract as stitches are added, leading to puckering.

Sensory Check (The Touch Test): When hooping fleece with a Cutaway stabilizer (recommended for knits), the fabric should feel taut like a drum skin, not stretched like a trampoline. If you distort the fabric while hooping, it will snap back later and ruin the shape.

The Solution: The Manual Basting Box

A basting box acts as a "security fence," tacking the fabric down before the dense stitching begins.

Step-by-Step Construction:

1. Select the Rectangle Shape Tool.
2. Critical: Set fill to OFF and outline to Running Stitch.
3. The Data: Set Run Pitch to 0.12 inches (approx 3.0mm).
   • Why 3.0mm? Too small (2.0mm) perforates the fabric. Too large (5.0mm) allows fabric to bubble between stitches.
4. Draw the box around all three designs.

Hacking the Sequence: "Sew First"

Drawing the box isn't enough; it must stitch first.

1. Go to the Sewing Order tab.
2. Right-click the Rectangle layer.
3. Select Sew First.


Phase 1 Checklist: Preparation

• Hoop Size: Confirmed as 14" x 7 7/8" in software AND physically available.
• Gap Check: 15mm clearance between designs for scissors.
• Basting: Rectangle is set to Running Stitch (NOT Satin/Fill).
• Sequence: Basting box is at the very top of the stitch order list.
• Consumables: Fresh Organ 75/11 Ballpoint needles installed (essential for Fleece/Knits).

4. Divide by Color: Production Efficiency Logic

This is where you make your money. If you stitch three dresses individually, the machine stops for a color change 3x more often. By grouping colors, you force the machine to stitch "All Red" for Dress 1, 2, and 3 before changing to "All White."

The Process:

1. Select the design groups.
2. Apply Divide by Color (in the Edit menu).
3. Clean Up: The creator deletes redundant placement stitches for the 2nd and 3rd dress because the basting box now serves as the alignment guide.






Commercial Logic: Every thread trim and color change takes approx. 15–20 seconds.

• 3 Designs x 5 Changes x Separate = 15 stops.
• 3 Designs x 5 Changes x Grouped = 5 stops.
• Result: You save time and reduce thread-break risk.

Note: This grouping technique is standard when managing workflows for brother multi needle embroidery machines, as minimizing needle bar movement extends machine life.

5. Troubleshooting & Decision Making

The video shows PE-Design crashing—a common reality when handling complex vector data on limited RAM.

Software Crash Prevention

1. Save in Stages: Save as Draft_Layers.pes before you un-group or color sort.
2. Use "Optimize Entry/Exit Points": Before manually dragging layers, letting the software optimize entry points can reduce data bloat.

The Stabilizer Decision Tree

Don't guess. Use this logic flow to determine if you need the Basting Box or extra tools.

• Is the fabric unstable? (Fleece, Minky, Jersey)
  • YES: MUST use Cutaway Stabilizer + Basting Box.
  • NO (Denim, Twill): Tearaway is acceptable; Basting box optional.
• Is hooping difficult? (Thick seams, buttons, zippers)
  • YES: Stop fighting traditional hoops.
  • SOLUTION: This is the trigger to upgrade to magnetic embroidery hoops.
    • Why: Magnetic hoops hold thick items flat without the "tug-of-war" that causes hoop burn.
    • Efficiency: They reduce hooping time by ~40% on production runs.

Warning: Magnetic Safety. Industrial magnetic hoops use neodymium magnets. They snap together with crushing force.
Pinch Hazard: Keep fingers on the handles*, never between the magnets.
* Medical: distinct safety distance required for pacemaker users.

6. Commercial Tool Upgrades: Solving Physical Pain

If you successfully master the software layout but still find production exhausting, the bottleneck is no longer digital—it is physical.

Scenario A: "My wrists hurt from hooping 50 shirts."

• Diagnosis: Repetitive Strain.
• Solution: An embroidery hooping station. This standardizes placement (no measuring every shirt) and holds the hoop steady, allowing you to use body weight rather than wrist strength.

Scenario B: "I have hoop burn marks on delicate items."

• Diagnosis: Hoop rings are too tight.
• Solution: Magnetic Frames. By clamping from the top rather than wedging inside an inner ring, you eliminate the friction that causes shiny rings (hoop burn) on dark fabrics.

Scenario C: "I'm nesting designs but the machine is too slow."

• Diagnosis: Single-needle speed limits.
• Solution: High-speed equipment. For users growing into a brother pr680w or looking for cost-effective alternatives like SEWTECH multi-needle solutions, the ability to queue these large, sorted files allows you to walk away for 45 minutes while the machine prints money.

7. Your Final Run: The Pre-Flight Check

You are ready to export. The goal is to stitch all three dresses in one pass.

Phase 2 Checklist: Setup & Operation

• Visual Logic: Do the color blocks in the software match the thread cones on the machine?
• Bobbin Check: Is the bobbin full? (Don't start a 20,000-stitch run with a 1/4 bobbin).
• Software Stability: Did you save the final .pes or .dst file separately?
• Consumables (Hidden): Have you applied a light mist of Temporary Spray Adhesive (like 505) to the stabilizer to prevent the fleece from lifting in the center?
• Auditory Check: Start the machine. Listen for a rhythmic thump-thump. A sharp clack-clack or grinding noise means stop immediately—likely a needle hitting the hoop or a tangled thread path.

By following this structured approach—stabilizing the fabric first, optimizing the verified sew order, and upgrading your physical tools when volume demands it—you move from "hoping it works" to professional manufacturing reliability.

FAQ

• Q: How do I set Brother PE-Design machine type to multi-needle and lock the correct 14" x 7 7/8" hoop size before nesting three designs?
  A: Set the file to Multi-needle and the exact 14" x 7 7/8" hoop first, or the layout can stitch outside the real pantograph limits.
  • Open Design Settings and change Machine Type from Single to Multi-needle
  • Select Hoop Size: 14" x 7 7/8" (or the largest frame you will actually run)
  • Leave visible white space between the design and the red hoop boundary (do not ride the line)
  • Success check: The entire layout sits comfortably inside the red boundary with visible margin on all sides
  • If it still fails… Re-verify the physical hoop you plan to use supports the same usable stitch field your software is showing
• Q: What spacing should Brother PE-Design nested layouts keep between three duplicated designs in a 14" x 7 7/8" hoop for safe trimming and fewer cut accidents?
  A: Keep at least 15 mm (0.6") clearance between embroidered areas so trimming is safe and stitches are not accidentally cut.
  • Duplicate with Copy/Paste, then position designs while measuring the gap visually
  • Use the “pinky finger” rule: if a pinky cannot fit between stitched areas, the spacing is too tight
  • Avoid pushing designs to the hoop’s red boundary even if the software allows it
  • Success check: There is a consistent gap you can clearly see (and physically imagine cutting) between all adjacent stitched areas
  • If it still fails… Reduce the number of designs per hoop or choose a larger frame before forcing tighter nesting
• Q: How do I build a manual basting box in Brother PE-Design for fleece using running stitch and a 0.12" (3.0 mm) run pitch, and make it sew first?
  A: Use a running-stitch rectangle at 0.12" (~3.0 mm) and set it to Sew First so the fleece is secured before dense stitching starts.
  • Draw a rectangle around all three designs with the Rectangle Shape Tool
  • Set Fill: OFF and Outline: Running Stitch
  • Set Run Pitch: 0.12 inches (~3.0 mm), then move the rectangle to the top using Sewing Order → Sew First
  • Success check: In the sewing order list, the rectangle layer is at the very top and will stitch before any design elements
  • If it still fails… Confirm the outline is not Satin/Fill and re-check the sewing order after any “Divide by Color” operation
• Q: How should fleece feel when hooping with cutaway stabilizer for multi-needle production embroidery to prevent shifting and puckering?
  A: Hoop fleece so it feels taut like a drum skin, not stretched like a trampoline, and pair it with cutaway stabilizer plus a basting box when the fabric is unstable.
  • Hooping action: Smooth the fleece flat over the stabilizer; avoid pulling/stretching while tightening
  • Choose Cutaway stabilizer for fleece/knits and add a basting box to lock the surface
  • Add a light mist of temporary spray adhesive (like 505) to help prevent center lift on larger layouts
  • Success check: The fabric surface is flat and firm to the touch with no distortion; it does not “snap back” after hooping
  • If it still fails… Treat the fabric as unstable (cutaway + basting is not optional) and re-hoop with less stretch and better surface smoothing
• Q: How does Brother PE-Design “Divide by Color” reduce color-change stops when stitching three duplicated designs on a Brother-style multi-needle workflow?
  A: Use Divide by Color so the machine stitches “all of one color across all copies” before changing threads, dramatically reducing stops and thread-trim risk.
  • Select the design groups and apply Divide by Color from the Edit menu
  • Remove redundant placement stitches for the 2nd and 3rd design copies if the basting box is now the alignment guide
  • Re-check the final color blocks against the thread cones on the machine before exporting
  • Success check: The software shows consolidated color blocks (e.g., all red for all three designs) instead of repeating full designs one-by-one
  • If it still fails… Save a new staged file before regrouping and confirm no critical alignment/placement steps were accidentally deleted
• Q: What should I do to prevent Brother PE-Design from crashing when ungrouping and color-sorting a complex multi-design production layout?
  A: Save in stages and reduce data strain before heavy edits, because crashes often happen during ungrouping and manual layer moves.
  • Save a backup as Draft_Layers.pes before ungrouping or color sorting
  • Use Optimize Entry/Exit Points before manually dragging many objects in the sewing order
  • Export a final file separately after the last major change (do not overwrite the only working version)
  • Success check: The file reopens reliably after each major step (layout → basting → color divide) without freezing or losing stitch order
  • If it still fails… Break the job into fewer copies per hoop or simplify edits by doing one major change at a time with a save between each step
• Q: What multi-needle embroidery safety checks should I follow when testing tight layouts near the hoop boundary at 800+ SPM?
  A: Keep hands clear and stop immediately on abnormal impact sounds, because tight layouts can cause needle strikes or sudden movement hazards.
  • Keep hands away from the needle bar case—do not trim threads while the machine is running
  • Start the run and listen: a rhythmic “thump-thump” is normal; a sharp “clack-clack” or grinding means stop immediately
  • Confirm the hoop size matches software settings before stitching at speed
  • Success check: The machine runs smoothly with no sharp impacts and no visible contact between needle area and hoop
  • If it still fails… Re-check design margins to the hoop boundary and verify the physical hoop’s usable stitch field before re-running
• Q: What magnetic embroidery hoop safety rules should I follow when using industrial neodymium magnetic frames for thick seams and hard-to-hoop items?
  A: Treat magnetic frames as pinch hazards—handle only by the grips and keep fingers out of the magnet closing zone.
  • Grip only the handles when opening/closing the frame; never place fingers between magnet halves
  • Close the frame slowly and deliberately to prevent sudden snap-together crushing force
  • Keep a distinct safety distance for pacemaker users and follow medical-device guidance
  • Success check: The frame closes securely without finger-pinching incidents and the material stays flat without “tug-of-war” hooping force
  • If it still fails… Stop forcing traditional hoops on bulky areas and switch to a magnetic frame workflow where clamping replaces inner-ring wedging
