Finish That UFO on a Brother Luminaire XP1/XP2: Clean Sticky Stabilizer Hooping, Camera-Scan Placement, and My Stitch Monitor Alerts

If you’ve ever bought the blank canvas, the perfect pattern, and the expensive thread… and then quietly shoved the project into a drawer because the thought of hooping it made your stomach churn, you’re in good company. In the sewing world, that’s a "UFO"—an Unfinished Object. One viewer asked what it meant, and the answer is universal: it’s the pile of potential we abandon because we hit a technical wall.

Today, we dismantle that wall.

This guide reconstructs a high-friction workflow—embroidering a pre-made canvas wall-hanging banner—into a manageable, repeatable science. We are analyzing a project done on a Brother Luminaire Innov-is XP1/XP2 using a standard 5x7 hoop and sticky stabilizer. But more importantly, I will expose the "invisible" steps: the sensory checks, the safety margins, and the exact moment when you should stop fighting the materials and upgrade your tools.

The “UFO Panic” Reset: Why a Canvas Banner Feels Harder Than It Looks on a Brother Luminaire XP1/XP2

Canvas seems easy because it’s stable (unlike stretchy knits), but a pre-made banner is a "hostile" object. It has thick hemmed seams, hardware (dowels/strings), and a limited surface area that fights standard hooping methods.

The "Panic Moment" usually happens here: You try to force the thick canvas borders between the inner and outer rings of a standard hoop. You feel resistance. You push harder. The fabric distorts, or the hoop pops open. This is why the creator in our case study reaches for sticky stabilizer—it allows you to "float" the item on top without forcing thick seams into the ring.

However, floating has its own risks: shifting and residue.

The Professional Perspective: If you are doing one banner for a gift, the "float and stick" method is fine. But if you plan to sell these or make a dozen for a team, sticky stabilizer is a slow, messy bottleneck. This is the specific production threshold where I recommend considering magnetic embroidery hoops.

• The Logic: A magnetic hoop uses strong force to clamp thick seams instantly without "hoop burn" (shininess caused by friction) or the need for sticky adhesives.
• The Choice: Stick with the method below for learning; look into magnetic systems if you value your time and wrist health.


The “Hidden” Prep Before You Touch Sticky Stabilizer: Scissors, Orientation, and a No-Mess Plan

Novices start peeling immediately. Experts plan first. The adhesive on sticky stabilizer is unforgiving—once it grabs, it holds. If you haven't visually mapped your "Landing Zone," you will ruin the stabilizer and have to start over.

In the video, the creator uses the "score-and-tear" method. This involves hooping the paper-backed stabilizer first, then cutting a window in the paper to reveal the sticky layer.

Hidden Consumables You Need:

• Pencil/Water-soluble pen: To mark center lines before sticking.
• Placement Ruler: To verify the banner is straight.
• Sharp, small scissors: For scoring the paper (not your fabric shears).

Prep Checklist (Do this BEFORE exposing the adhesive)

1. Dowel Check: Remove any wood, metal rods, or hanging strings. These are "machine killers" if they snag on the embroidery arm.
2. Centerline Fold: Fold the banner in half to create a visible crease. This is your "True North."
3. Orientation Mark: Use a piece of painter's tape or a chalk mark to indicate "TOP." It is painfully easy to embroider a banner upside down.
4. Hardware Clearance: Ensure your embroidery design is at least 1 inch away from the thick top seam to prevent the presser foot from striking the hump.

Warning: The "Scoring" Risk. When using scissors to score the top paper layer of the stabilizer, use feather-light pressure. If you push too hard, you will slice through the stabilizer itself or scratch your hoop. Keep your fingers away from the blade path—this is a common injury point.

Sticky Stabilizer in a Standard 5x7 Hoop: The Score-and-Tear Method (and How to Avoid the “Rips Wrong” Moment)

The struggle shown in the video is real: the backing paper is often thinner than you expect, and the adhesive is aggressive. The creator scores the paper, tries to lift a corner, and it shreds rather than peeling.

The Sensory Technique for a Clean Peel: Standard instructions just say "peel it." Here is how to actually do it without frustration:

1. Hoop Tight: Hoop the stabilizer (paper side up) so it sounds like a drum when tapped. Loose stabilizer creates peeling drag.
2. The "X" Score: Don't just score the perimeter. Score an "X" across the center. This gives you four triangular peel points, which are easier to manage than one giant square.
3. The Sound Check: When peeling, listen for a sharp crackle. If you hear a soft tearing sound, you are ripping the fiber, not the paper. Stop and find the paper edge with a pin.
4. De-trash Immediately: Crumple the sticky paper and throw it away instantly. If it lands on your workspace, it will stick to your banner or threads.

Pro-Tip: If the adhesive is leaving residue on your needle later, it means your machine speed is too high or the needle is getting hot. Rub a little "sewer's aid" (silicone) on the needle, or slow the machine down.

Centering a Pre-Made Canvas Banner on Sticky Stabilizer: The Backwards-Hoop Mistake You Only Make Once

In the video, the creator presses the banner down, only to realize she has mounted it backwards relative to the machine arm. She has to rip it off (distorting the fibers) and re-stick it.

Sticky stabilizer allows repositioning, but it has a "decay rate." Every time you peel and re-stick, the hold gets weaker by about 20%, and the fabric gets fuzzier. You have two attempts max before the stabilizer is trash.

The Alignment Protocol:

1. The Hover: Don't press down yet. Hover the banner over the hoop. Match the folded center line of the banner with the center marks on the hoop frame.
2. The Anchor: Press only the center point down first.
3. The Smooth: Smooth out from the center toward the edges.
4. The Tactile Check: Run your hand over the surface. If you feel a "bubble" or a ripple, peel up that corner gently and smooth it. Canvas must be perfectly flat to avoid needle deflection.

If this step feels like a gamble every time, you are hitting the limit of manual hooping. Professionals use a hooping station for machine embroidery to lock the hoop in place while they align the garment. It turns a "guess" into a mechanical certainty.

The Brother Luminaire Camera Scan Trick: Place a Floral “T” and Bee Exactly Where You Want Them

Once the messy part is done, the technology saves the day. The creator uses the Brother Luminaire's camera scan feature.

Why this matters: Physical grids are theoretical. Real fabric is imperfect. When you turn on the background scan, the machine takes a photo of the actual hooped fabric. You can see:

• Did I hoop it slightly crooked? (Rotate the design on screen to match).
• Is the design hitting the thick hem? (Move it down).

She also tape-marks the boundaries with fluorescent orange thread. Visual Anchor: This bright orange line acts as a "Do Not Cross" barrier on the screen, giving you a high-contrast safety limit.

What the video shows on-screen (so you can match it)

• Initial Design: Letter "T" + Bee motif.
• Dimensions: ~5.46" x 4.47" (Fitting snugly in a 5x7 hoop).
• Color Changes: 7 stops.

Note on Resizing: Canvas is forgiving, but never resize a design more than 20% up or down directly on the machine, or the stitch density will be ruined (too dense = bulletproof vest; too loose = gaps).

Step-by-step: scanning and placement (with checkpoints)

1. Scan: Activate the camera background scan on the Luminaire.
2. Observe: Look at the screen. You will see your canvas banner.
3. Virtual to Physical Match: Drag the pattern (the "T") until it sits exactly in the optical center of your banner image.
4. Micro-Nudge: Use the arrow keys for 0.1mm adjustments.
5. Rotate: If your banner was hooped at a 2-degree slant, rotate the design 2 degrees to match. Do not try to fix the fabric; fix the digital path.


The “Why It Works” Behind Camera-Scan Placement: Reduce Rehoops, Reduce Waste, Keep Edges Clean

The camera scan is a "Sanity Check." In traditional method hooping for embroidery machine projects, you rely on plastic templates and hope. The scan eliminates hope and replaces it with data.

The ROI of Scanning:

• Waste Reduction: Embroidering a logo crooked on a $50 jacket is expensive.
• Time: Scanning takes 30 seconds. Un-picking stitches takes 3 hours.

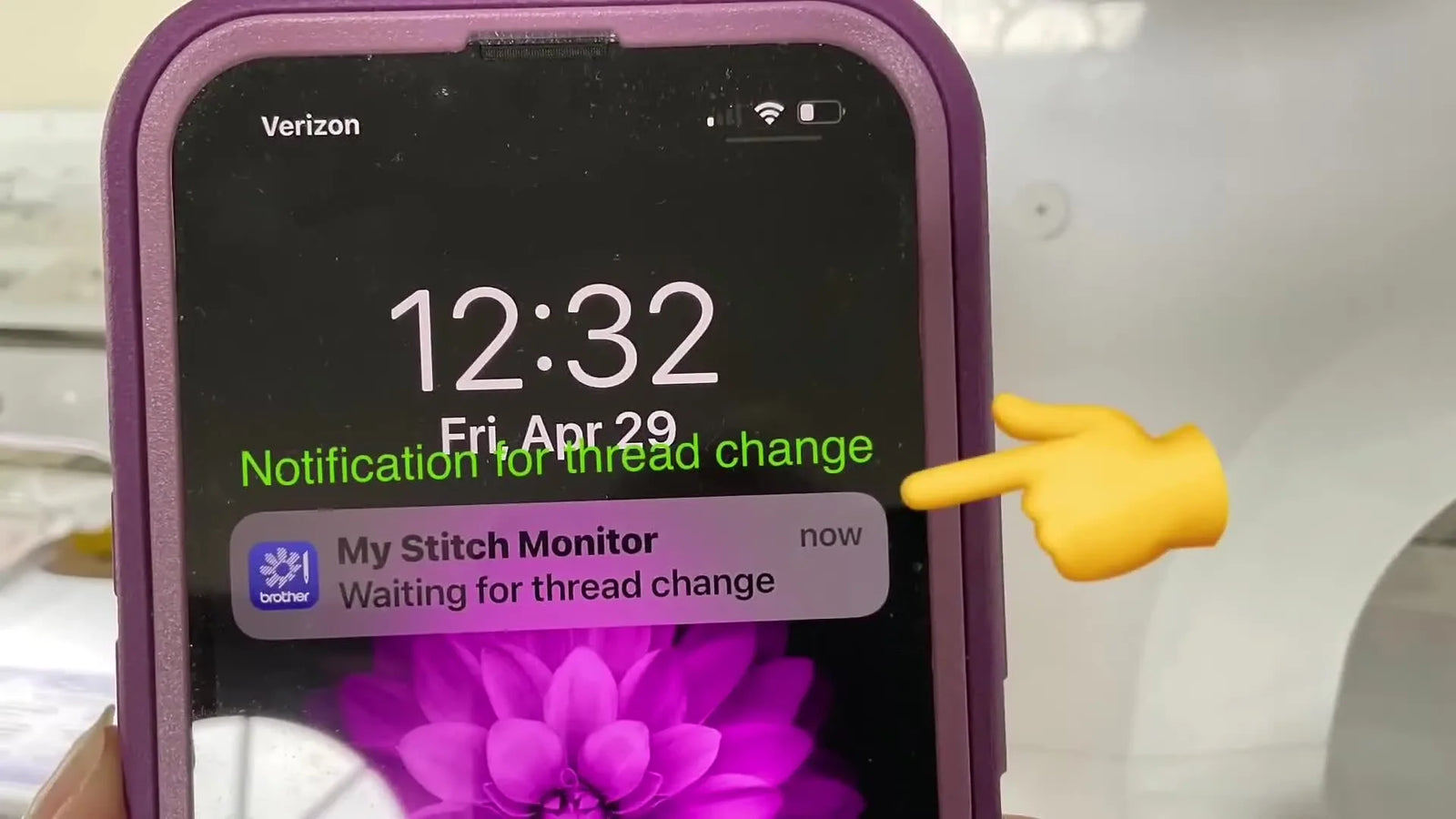

Brother My Stitch Monitor App on iPhone + Apple Watch: The “Don’t Babysit the Machine” Setup

Embroidery is 10% setup and 90% waiting. The creator uses the Brother My Stitch Monitor app to leave the room without anxiety.

Business Context: This feature is crucial for productivity. If you are looking at professional machines, connectivity is a key differentiator. The video mentions the brother pr1055x (10-needle) and brother pr 680w (6-needle). When you move to these multi-needle machines, the ability to monitor 10 threads remotely transforms embroidery from a "hobby" to a "background process" while you do other work.

Setup Checklist (Digital Pre-Flight)

1. Connection: Ensure both the machine and phone are on the same 2.4GHz Wi-Fi network (common error).
2. Notification Permissions: Allow notifications on your phone/watch. A silent alert is useless.
3. Thread Staging: Line up your 7 thread spools in order of use next to the machine.
4. Bobbin Check: Crucial. Check your bobbin level. The app will tell you if the thread breaks, but starting with a full bobbin prevents mid-design interruptions.

Warning: Magnetic Safety. We discussed magnetic hoops earlier as an upgrade. If you use them, be aware they contain high-power Neodymium magnets. Pacemaker users must maintain a 6-inch safety distance. Also, these magnets can pinch skin severely enough to cause blood blisters—handle with respect.

Stitching the Design on the Brother Luminaire: What to Expect During the Run

The screen shows 12,402 stitches and 23 minutes.

The "Standard" Speed vs. "Safe" Speed:

• Default: The machine may default to 1050 SPM (Stitches Per Minute).
• Expert Advice: For this canvas project, especially if using sticky stabilizer which creates drag on the needle: Slow down to 700 SPM.
• Why? High speed generates heat. Heat melts the adhesive on the stabilizer. Melted adhesive gums up the needle eye and causes thread shredding. Stitch slower for a cleaner result.


Finishing Like a Pro: Unhoop, Trim Sticky Stabilizer, and Leave Just Enough for a Flat Banner

Finishing is where amateurs ruin the project. You have a beautiful embroidery, but it's surrounded by sticky paper.

The Tear-Away Technique:

1. Remove Hoop: Take the hoop off the machine. DO NOT try to tear stabilizer while attached to the embroidery arm—you will damage the machine's gears.
2. Support Stitches: Place your thumb on the embroidery stitches to hold them down while you tear the paper away with your other hand. This prevents you from distorting the fresh stitches.
3. The "Island" Strategy: The creator leaves some stabilizer on the back behind the heavy stitching. This is smart. It acts as a permanent interface, keeping the canvas stiff so it hangs flat on the wall.


Operation Checklist (The "Don't Ruin It Now" List)

1. Tail Patrol: Trim all jump threads on the front and back immediately.
2. Residue Check: Check the needle for sticky gunk. Wipe it with alcohol if needed before the next project.
3. Iron Strategy: Press the banner from the back (or use a pressing cloth). Never iron directly on embroidery thread—it will flatten the texture and lose its shine.
4. Hardware Re-install: Put the dowel back in.




Troubleshooting Sticky Stabilizer + Canvas Banners: Symptoms, Causes, Fixes (Straight From the Video)

When things go wrong, use this matrix to diagnose the issue quickly.

A Simple Decision Tree: Sticky Stabilizer vs. Magnetic Hoop for Pre-Made Items

Use this decision logic to choose the right tool for your specific project.

START: What is the nature of your item?

• Scenario A: Flat, Thin Fabric (Quilt block, Shirt back)
  • Recommendation: Standard Hoop + Soft Tearaway/Cutaway.
  • Why: Friction hooping works fine here.
• Scenario B: Thick, Pre-made, or "Un-hoopable" (Canvas Banner, Tote Bag, Onesie)
  • Method: Adhesive. Use Sticky Stabilizer if you are doing 1-5 units and want to save money.
  • Method: Mechanical. Use hoops for brother embroidery machines (specifically magnetic ones) if you are doing 10+ units or encounter "Hoop Burn." Magnetic hoops pay for themselves by saving you 3 minutes per item in setup time.
• Scenario C: High-Volume Production (Team Jerseys, Corporate Gifts)
  • Recommendation: This is the danger zone for single-needle machines. If you are changing thread 7 times for 50 shirts, you are effectively working for free.
  • Upgrade Path: Look into multi-needle machines.

The Upgrade Path That Actually Matches the Pain Point: Faster Hooping, Cleaner Hands, More Output

The video demonstrates a victory: a finished banner. But it also highlights the friction: the sticky mess, the careful peeling, the single-needle waits.

If you find yourself dreading the setup phase, that is your signal to upgrade your tools, not just your skills.

• The Hooping Fix: Many Brother XP1/XP2 owners eventually switch to a brother luminaire magnetic hoop or a standard brother 5x7 magnetic hoop. The "Snap and Go" action creates a joy in the process that peeling sticky paper never will.
• The Workflow Fix: If thread changes are holding you hostage, explore the SEWTECH multi-needle solutions. Moving from a single needle to a 6 or 10-needle machine isn't just about speed; it's about getting your life back while the machine does the work.

Finish this UFO. Hang that banner. But pay attention to what frustrated you—because there is almost certainly a tool designed to fix it.

FAQ

• Q: How do I remove dowels, strings, and other hardware safely before embroidering a pre-made canvas banner on a Brother Luminaire Innov-is XP1/XP2?
  A: Remove every hard part before hooping because dowels/strings can snag the embroidery arm and damage the machine.
  • Uninstall: Pull out the wood/metal dowel and untie/remove hanging strings before the hoop ever goes on the machine.
  • Mark: Add a clear “TOP” marker (painter’s tape or chalk) so the banner orientation stays correct after hardware removal.
  • Clear: Keep the embroidery design at least 1 inch away from the thick top seam so the presser foot doesn’t strike the hump.
  • Success check: Move the hoop by hand (off the machine) and confirm nothing rigid can swing, catch, or protrude into the stitch area.
  • If it still fails: If the presser foot still approaches a thick seam, reposition the design using the Luminaire camera scan rather than forcing the fabric.
• Q: How do I score-and-tear sticky stabilizer cleanly in a standard 5x7 hoop for a Brother Luminaire Innov-is XP1/XP2 without shredding the paper?
  A: Hoop the stabilizer drum-tight and score an “X” so the paper has multiple easy lift points.
  • Hoop: Tighten the stabilizer until it taps like a drum (loose hooping creates drag and causes shredding).
  • Score: Cut a light “X” through only the paper layer, not the stabilizer.
  • Peel: Start from one of the four triangle points; use a pin to find the paper edge if it won’t lift.
  • Success check: Listen for a sharp crackle while peeling; a soft tearing sound means you’re ripping fibers, not separating paper.
  • If it still fails: Grab small sections with tweezers and peel slowly rather than trying to lift the whole window at once.
• Q: How do I stop mounting a pre-made canvas banner backwards or upside down on sticky stabilizer in a 5x7 hoop for Brother Luminaire Innov-is XP1/XP2?
  A: Use a “hover–anchor–smooth” alignment routine and commit only after orientation is confirmed.
  • Mark: Label “TOP” before you touch adhesive so there is no orientation guesswork.
  • Hover: Hold the banner above the hoop and align the banner center crease with the hoop center marks before pressing down.
  • Anchor: Press only the center point first, then smooth outward to the edges.
  • Success check: Run a hand over the canvas; it should feel perfectly flat with no bubbles or ripples that could deflect the needle.
  • If it still fails: Limit peel-and-restick to two attempts—each reposition weakens hold—then replace the sticky stabilizer if adhesion drops.
• Q: What Brother Luminaire Innov-is XP1/XP2 stitching speed helps prevent sticky stabilizer residue on the needle when embroidering canvas banners?
  A: Slow the Brother Luminaire XP1/XP2 down to about 700 SPM to reduce heat that can melt adhesive onto the needle.
  • Set: Reduce speed from the default (often around 1050 SPM) to 700 SPM for canvas + sticky stabilizer.
  • Clean: Wipe needle residue with alcohol if gumming starts; reduce handling of exposed adhesive.
  • Assist: Apply a small amount of silicone (sewer’s aid) to the needle if residue keeps forming.
  • Success check: The needle eye stays clean and thread stops shredding during the run.
  • If it still fails: Pause and inspect for adhesive buildup again; continued shredding may indicate the setup is still running too fast for the adhesive drag.
• Q: How do I use the Brother Luminaire Innov-is XP1/XP2 camera background scan to place a design on a hooped canvas banner that is slightly crooked?
  A: Use the camera scan to match the digital design to the real hooped fabric, then rotate the design instead of fighting the fabric.
  • Scan: Turn on background scan so the screen shows the actual hooped banner.
  • Align: Drag the design to the visual center of the banner image on-screen.
  • Micro-nudge: Use arrow keys for tiny (0.1 mm) adjustments.
  • Rotate: Rotate the design a couple degrees to match the hooped slant; do not rehoop just to correct a small angle.
  • Success check: The on-screen design boundary clearly avoids thick hems and matches the banner’s real edges/markers before stitching starts.
• Q: What scissor and finger safety steps prevent injuries when scoring sticky stabilizer paper in a 5x7 embroidery hoop?
  A: Score with feather-light pressure and keep fingers completely out of the blade path.
  • Switch: Use sharp small scissors for paper scoring (not fabric shears), and control them like a craft knife.
  • Lighten: Apply minimal pressure so only the paper layer is cut—pressing hard can slice stabilizer or scratch the hoop.
  • Position: Hold the hoop steady on a flat surface and keep fingertips away from where the scissors will travel.
  • Success check: The paper layer lifts cleanly while the stabilizer remains intact and taut in the hoop.
  • If it still fails: Stop scoring deeper; use a pin to locate the paper edge rather than forcing the scissors.
• Q: What magnetic hoop safety rules should pacemaker users follow when using magnetic embroidery hoops near a Brother Luminaire Innov-is XP1/XP2?
  A: Keep strong magnets away from medical implants and handle magnets slowly to prevent painful pinches.
  • Distance: Maintain at least a 6-inch safety distance between magnetic hoops and any pacemaker.
  • Control: Separate and join magnetic parts carefully—neodymium magnets can pinch skin hard enough to cause blood blisters.
  • Store: Keep magnetic hoops away from tools and metal items that can snap toward the magnets unexpectedly.
  • Success check: The hoop can be handled without snapping shut or pinching, and it stays well away from the pacemaker zone.
  • If it still fails: Do not use magnetic hoops; choose the float-with-sticky-stabilizer method or consult the medical device guidance first.
• Q: When should a Brother Luminaire Innov-is XP1/XP2 owner switch from sticky stabilizer floating to a magnetic hoop for thick pre-made items like canvas banners and tote bags?
  A: Switch when hooping becomes the bottleneck—especially with hoop burn, messy adhesive, or when production moves beyond a few items.
  • Level 1 (technique): Use sticky stabilizer for 1–5 items; plan alignment before peeling and slow down to reduce adhesive issues.
  • Level 2 (tool): Move to a magnetic hoop when thick seams resist standard hoops, hoop burn appears, or setup time per item is too slow/messy.
  • Level 3 (capacity): If frequent thread changes and waiting time dominate larger batches, consider stepping up to a multi-needle workflow.
  • Success check: Setup time drops, hands stay cleaner, and thick seams clamp securely without shiny hoop marks or repeated re-sticking.
  • If it still fails: Add a hooping station for more consistent alignment when manual placement still feels like a gamble.
