Felt Iron-On Embroidery Patches on a Brother SE425: The Clean-Edge Workflow That Won’t Sink or Shift

If you’ve ever tried to make an embroidery patch and ended up with a wavy edge, stitches that disappear into the felt, or a patch that shifts halfway through… you’re not alone. Patches look simple, but they are a perfect storm of hooping physics, surface texture, and finishing discipline.

As someone who has overseen thousands of patch runs, I can tell you that success isn't about luck—it's about controlling tension and friction. This guide reconstructs a proven workflow for a Brother SE425 (or any comparable single-needle machine), using a free Urban Threads design. We will refine the process with SewWhat-Pro for layout and finish with HeatnBond Ultrahold for that professional iron-on back.

Start Smart on Urban Threads: Download the PES File in the Smallest Size So Your Patch Border Fits

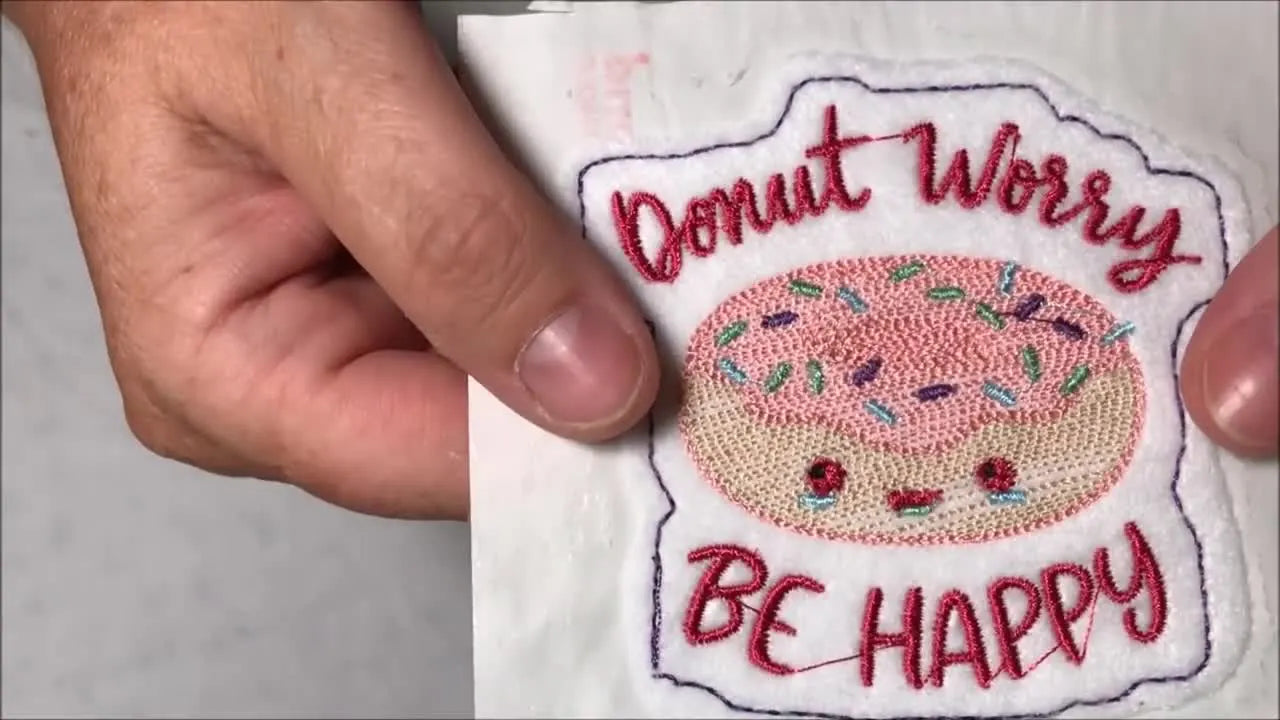

The video uses an Urban Threads freebie (“Donut Worry Be Happy”). The critical first step here is choosing the machine embroidery PES format and selecting the smallest available size option before downloading.

Why this matters (The Expert View): A patch needs a "margin of safety"—a border that acts as a frame. If you download a design that maxes out your 4x4 hoop, you leave zero room for the border.

• The Risk: If you resize a 5-inch design down to 3 inches later, the stitch density increases mathematically. This can cause needle dragging, thread shredding, and a bulletproof-stiff patch.
• The Fix: Always start with the file size closest to (or smaller than) your final target. It is always safer to slightly upscale a small file or leave it as-is than to crush a large file.

In the video, the creator downloads the unzipped version and opens it in SewWhat-Pro to begin the engineering phase.

Pro tip from the comments (common frustration): If your software opens in millimeters (mm) and your brain works in inches, don't guess. Look for the "Options" or "Preferences" menu to switch units. Precision is everything here. If you can't find it, use a converter (25.4mm = 1 inch) and verify the final dimensions in prediction view before you save.

SewWhat-Pro Resizing: Lock Aspect Ratio, Set Height to 3.00 Inches, and Avoid “Skinny Donut Syndrome”

Open the downloaded file in SewWhat-Pro, then resize the design so the height becomes exactly 3.00 inches. The video is very clear about one non-negotiable: keep “Lock Aspect Ratio” checked.

This affects stitch angles. If you stretch a donut into an oval, the satin stitches on the sides become long and loose, while the top becomes short and tight. This imbalance causes puckering.

Sensory Check: When viewing the preview, the design should look "relaxed." If stitch lines look crowded or overlapping in the software preview, they will likely break your needle in reality.

The Patch Edge That Behaves: Add an Auto Border Bean Stitch (Length 2, Offset 25) and Run It First

In SewWhat-Pro, the creator navigates to Add Border Stitches → Auto Border, chooses Bean stitch, and sets the parameters:

• Stitch length: 2 (Standard running stitch is often 2.5–3mm; 2mm is tighter for curves).
• Border distance/offset: 25 (This creates the gap between the design and the cut edge).

Then comes the "secret sauce" that separates amateurs from pros: reorder the thread colors so the border stitch runs first.

Why a Bean Stitch? (The Physics)

A bean stitch is a reinforced running stitch (forward-back-forward).

• On Felt: It sinks slightly into the soft fibers to create a defined trench, but it doesn't perforate the felt like a heavy satin stitch would.
• The Strategy: By running this first, you are using it as a "basting stitch." It locks the floating felt to the stabilizer immediately. If you run the border last, the felt has had 10 minutes to shift, and your border will likely be off-center.

Reader question: “Why not a satin border?” Satin borders are beautiful but unforgiving. They require perfectly stabilized fabric. For beginners using a floating technique, a bean stitch is the "Safe Zone"—it looks stylish (like a sketch) and rarely causes puckering.

The “Hidden” Prep: Tearaway + Felt + Topper + HeatnBond (and Why Each One Has a Job)

Before you power on, gather your "Chemical & Mechanical" team:

• Pellon 806 Stitch-N-Tear (Tearaway stabilizer): The foundation.
• Felt (Polyester craft felt or recycled bottle felt): The body.
• Water-soluble stabilizer film (The "Topper"): The surface tension manager.
• HeatnBond Ultrahold: The adhesive.
• Parchment paper: The safety barrier.






Hidden Consumable: I also highly recommend spray adhesive (like 505) or masking tape to hold the felt in place before that first stitch hits.

Prep Checklist (Do not skip)

• Design Validated: Resized to 3.00 inches, Aspect Ratio Locked.
• Sequence Check: Border stitch is moved to Color Stop #1.
• Material Sizing: Felt is cut at least 1 inch larger than the design on all sides.
• Stabilizer Prep: Tearaway is cut large enough to extend past the hoop edges.
• Iron Prep: Iron is heating; parchment paper is on the board.

Hooping Pellon 806 on a Brother 4x4 Hoop: Keep the Stabilizer Drum-Tight Without Warping It

The video hoops only the tearaway stabilizer in the brother 4x4 embroidery hoop, then places the felt on top (floating).

The Sensory Standard for Hooping:

1. Tighten: Tighten the screw until it feels snug.
2. The Tap Test: Tap the stabilizer with your fingernail. It should sound like a drum or a taut rhythmic thump. If it sounds like paper rustling, it is too loose.
3. The Push Test: Push the center gently. If it sags easily, your design will register poorly.


The Physics of "Floating" vs. Hooping

Felt is thick and spongy. Crushing it into a standard hoop often leaves "hoop burn"—permanent crushing of the fibers. Floating avoids this damage.

However, floating relies entirely on friction. If your stabilizer is loose, the felt rides the waves of the stabilizer, causing the outline to misalign.

When to Upgrade Your Toolkit: If you find yourself constantly fighting hoop burn or your wrists hurt from tightening screws on thick felt, this is the Scenario Trigger for tool migration.

• Level 1 Fix: Use floating (as described here).
• Level 2 Upgrade: Switch to magnetic hoops.
  • For Brother users, a magnetic hoop for brother allows you to clamp thick felt instantly without adjusting screws or forcing the inner ring. The magnets hold the floating material flat and secure, drastically reducing the "shift" risk mentioned in this workflow.
  • Many commercial shops utilize embroidery hoops magnetic exclusively for items like heavy jackets or patches because they provide even tension without the "crush."

Warning: Magnetic frames are powerful industrial tools. Keep magnets away from pacemakers and sensitive electronics. Keep fingers clear when the frame snaps closed—the magnetic force can cause painful pinch injuries.

The First Stitch Is Your Anchor: Run the Border First to Tack Down the Floating Felt

On the Brother SE425, load the design. Because you reordered the border to Step 1, the machine will stitch that outline immediately.

Safety Check: Watch this first minute like a hawk. Keep your hand near the stop button. If the felt bubbles or shifts as the needle penetrates, stop immediately and smooth it out (or add tape).

The “Topper Moment”: Add Water-Soluble Film Before Satin Stitches So They Don’t Sink Into Felt

Midway through stitching, the creator notices the design looks "choppy." This is because felt is a porous, non-woven forest of fibers. Thread sinks into these gaps.

The Fix: She adds Pellon water-soluble stabilizer film on top before the satin stitching begins.

The "Why": The film acts like a frozen lake over the felt. The stitches sit on top of the "ice," remaining high and glossy. Once dissolved/removed, the stitches remain elevated. If you want crisp text on felt, a topper is mandatory, not optional.

Warning: Mechanical Safety. Keep fingers away from the needle bar while placing the topper! Use the "Stop/Start" button to pause the machine completely. Do not try to slide the film under a moving needle.

Clean Removal Without Ripping Stitches: Tear Away Stabilizer, Peel Topper, Then Trim Like a Patch Maker

Once stitched, remove the hoop.

1. Tearaway (Back): Tear this off first. Support the stitches with your thumb so you don't distort the patch.
2. Topper (Front): Peel away the large chunks. Do not wet it yet!
3. Trim: Use sharp embroidery scissors (curved tip preferred) to cut around the bean stitch border. Leave a small 1-2mm edge of felt for that classic patch look.

HeatnBond Ultrahold Done Right: Bumpy Side Down, Parchment Sandwich, Press 8 Seconds

To turn this from a piece of fabric into a usable patch, we apply the adhesive.

• Cut HeatnBond Ultrahold slightly smaller than the patch.
• Place it bumpy side down (adhesive side) against the back of the embroidery.
• The Sandwich: Ironing Board -> Patch (Face Down) -> HeatnBond -> Parchment Paper -> Iron.


Sensory Cue: Press firmly for 8 seconds. You aren't just heating it; you are forcing the adhesive into the fibers.

Cooling, Peeling, and Shipping: The "Dryer Test" Reality

Crucial Step: Let it cool completely. If you peel the paper while hot, the glue will lift with the paper.

In the comments, users discuss durability. The creator notes the patch survived the dryer, though pilling is possible over time (inherent to felt). Regarding shipping: Yes, you can stack these. The HeatnBond is inert until reheated, making storage easy.

Decision Tree: Pick the Right Stabilizer + Topper Combo

Not all felt is created equal. Use this logic flow to avoid wasted materials.

1. What is the Felt Type?

• Stiff/Smooth Craft Felt: Standard Tearaway is sufficient.
• Soft/Fuzzy/Recycled Felt: You must use a Water-Soluble Topper to prevent stitch sinking.

2. What is the Design Density?

• Line Art/Bean Stitch: No topper needed.
• Satin Columns/Text: High risk of sinking. Use Topper.

3. What is the Production Volume?

• Single Gift: Floating method (Standard Hoop) is cost-effective.
• 50+ Patches for a Club: The manual floating method is slow and inconsistent.
  • Upgrade Path: Consider SEWTECH Magnetic Hoops. This allows you to hoop the felt directly and securely fast, eliminating the "float" variance.
  • Upgrade Path: Use a cutaway stabilizer for batches to ensure zero distortion, then heat-seal the edges.

Setup Checklist (Right Before You Press Start)

• Bobbin Check: Is the bobbin full? (Running out mid-patch is a disaster).
• Thread Path: Is the upper thread seated in the tension discs? (Pull test: feels like flossing).
• Needle: Is the needle new? (Sharp needles prevent felt from punching/puckering).
• Hoop: Is the stabilizer "drum tight"?
• Topper: Is the water-soluble film within arm's reach?

Operation Checklist (During the Stitch)

• Step 1 Monitor: Watch the border stitch tackle the felt. Ensure it lays flat.
• Topper Placement: Pause machine before dense satin areas; place film; resume.
• Jump Stitches: Trim long jump stitches as you go (carefully!) so they don't get sewn over.
• Finishing: Check that HeatnBond paper peels clean, leaving a shiny adhesive surface.

The Upgrade Path: When to Move Beyond the SE425

Making one patch is a craft; making 100 is manufacturing. The single-needle hooping for embroidery machine process is valid but physically taxing for volume work.

If you hit the ceiling—meaning you have more orders than time, or your hands ache from manual hooping—look at the Profitability Pivot:

1. Tooling: SEWTECH Magnetic Hoops eliminate hoop burn and reduce hooping time by 50%.
2. Machinery: Moving to a Multi-Needle Machine allows you to set up 6-10 colors at once (no manual thread changes) and stitch onto finished caps and bags much easier than a flatbed single-needle.

Whatever tool you use, the physics remain: stabilize the base, float the texture, and anchor the edges early. Master that, and you master the patch.

FAQ

• Q: On a Brother SE425 patch workflow, why should the Urban Threads PES file be downloaded in the smallest available size before resizing in SewWhat-Pro?
  A: Download the smallest size first to preserve a safe border margin and avoid density problems caused by shrinking a large design.
  • Choose PES format and pick the smallest size option before download.
  • Resize to the target size in SewWhat-Pro only after confirming the design still leaves room for a patch border.
  • Success check: the layout preview shows clear space between the outer stitching and the planned cut edge (not maxed out to the 4x4 limit).
  • If it still fails… and stitches look overly tight after resizing down, start over with a smaller original file instead of crushing a larger one.
• Q: In SewWhat-Pro, how do you resize a Brother SE425 patch design to exactly 3.00 inches without getting “skinny donut syndrome”?
  A: Resize by setting height to 3.00 inches while keeping “Lock Aspect Ratio” enabled so stitch angles and satin behavior stay balanced.
  • Open the downloaded file in SewWhat-Pro and set the design height to 3.00 inches.
  • Keep “Lock Aspect Ratio” checked the entire time (do not stretch height and width independently).
  • Success check: the software preview looks “relaxed,” with stitch lines not crowded or overlapping.
  • If it still fails… and the preview looks dense/overlapping, avoid further shrinking and reconsider the starting file size.
• Q: In SewWhat-Pro for felt patches, how do you add a bean stitch border (length 2, offset 25) and why must the border run first on a Brother SE425?
  A: Add an Auto Border bean stitch with stitch length 2 and offset 25, then reorder colors so the border is Color Stop #1 to anchor the floating felt immediately.
  • Go to Add Border Stitches → Auto Border → choose Bean stitch.
  • Set Stitch length to 2 and Border distance/offset to 25.
  • Reorder thread colors so the border stitches first (Color Stop #1).
  • Success check: the first outline stitches down cleanly and the felt stays flat without drifting as the needle penetrates.
  • If it still fails… stop the machine early, smooth the felt, and secure the felt with spray adhesive or masking tape before restarting.
• Q: When hooping Pellon 806 Stitch-N-Tear in a Brother 4x4 embroidery hoop for floating felt patches, how tight should the stabilizer be?
  A: Hoop only the tearaway stabilizer drum-tight—tight enough to “thump” when tapped, but not warped from over-tightening.
  • Tighten the hoop screw until snug.
  • Tap the hooped stabilizer with a fingernail and listen for a drum-like thump (not a papery rustle).
  • Push the center lightly to confirm it does not sag easily.
  • Success check: the stabilizer surface feels taut and sounds drum-like when tapped.
  • If it still fails… and outlines mis-register, re-hoop the stabilizer and use temporary hold (spray adhesive or tape) to prevent felt riding on a loose base.
• Q: On a felt patch stitched on a Brother SE425, when should water-soluble topper film be added to prevent satin stitches and text from sinking?
  A: Add water-soluble topper right before satin stitches or dense areas start so thread sits on top of the felt instead of disappearing into fibers.
  • Pause the machine completely before placing the film (do not place film while the needle is moving).
  • Lay the water-soluble film over the felt surface, then resume stitching for satin/text sections.
  • Peel off large topper pieces after stitching; do not wet it first during removal.
  • Success check: satin stitches and lettering look raised and glossy instead of choppy or buried.
  • If it still fails… and stitches still look sunken, keep using topper on soft/fuzzy felt and prioritize designs with less dense satin coverage.
• Q: What needle-area safety step should be followed when placing water-soluble topper on a Brother SE425 during embroidery?
  A: Fully stop the machine before hands go near the needle bar, and keep fingers clear when positioning topper film.
  • Press the Stop/Start button to pause completely before reaching in.
  • Place the topper from the sides and keep fingertips away from the needle path.
  • Resume only after confirming the film is flat and not caught under the presser/needle area.
  • Success check: hands never pass under the needle bar while the machine is capable of stitching.
  • If it still fails… and the topper shifts, stop again and reposition rather than trying to “nudge” it mid-motion.
• Q: If floating felt patches in a standard hoop causes hoop burn or frequent shifting on a Brother SE425, when should the workflow move to a magnetic hoop or a multi-needle machine?
  A: Upgrade in layers: first refine floating and anchoring, then move to magnetic hoops for secure clamping, and only then consider a multi-needle machine when volume and fatigue become the limiter.
  • Level 1 (technique): Float felt on hooped tearaway and run the border first as an anchor; add tape/spray adhesive if the first minute shifts.
  • Level 2 (tool): Use a magnetic hoop when hoop burn is persistent or screw-tightening is painful and slow (magnet clamping reduces shift risk).
  • Level 3 (capacity): Move to a multi-needle machine when batch production (e.g., 50+ patches) becomes inconsistent or time-heavy due to repeated hooping and manual thread changes.
  • Success check: patch outlines stay centered run-to-run and hooping time/hand strain drops noticeably.
  • If it still fails… and consistency is still poor, switch stabilizer strategy for batches (often cutaway is used in production) and follow the machine manufacturer guidance for best results.
• Q: What magnetic hoop safety rules should be followed when using magnetic frames for patch work?
  A: Treat magnetic hoops as powerful tools: keep them away from pacemakers/electronics and keep fingers clear when the frame snaps closed.
  • Keep magnets away from pacemakers and sensitive electronics.
  • Position fabric and stabilizer first, then lower magnets carefully—do not let magnets “slam” shut.
  • Keep fingertips out of pinch zones along the magnet edges.
  • Success check: the frame closes under control with no finger contact near the snapping edges.
  • If it still fails… and pinching risk feels hard to manage, revert to the floating method in a standard hoop for safety until comfortable.
