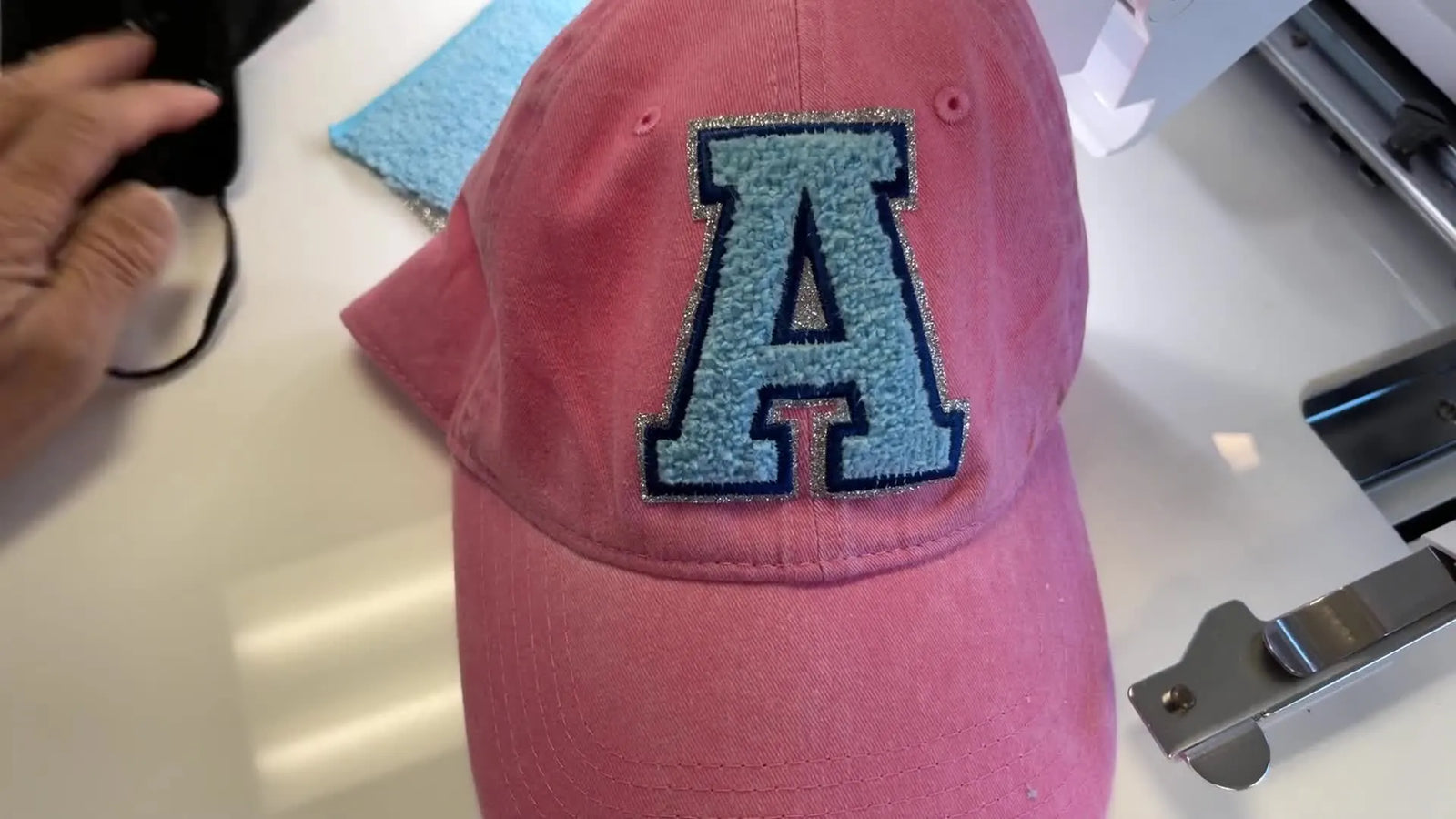

Faux Chenille Letter Patches on a Brother PR1055X: The Microfiber + HTV Trick That Saves Your Hat (and Your Time)

Creating that raised, velvet-textured chenille look usually requires a dedicated machine costing thousands of dollars or a level of patience with hand-trimming that most of us simply don't have. But for those running a brother pr1055x or similar multi-needle workhorse, there is a "shop hack" that bridges the gap between amateur craft and professional production.

This technique delivers the high-end "Letterman Jacket" aesthetic using a surprising consumable: a humble microfiber cleaning cloth. By stitching this lofty material onto Glitter HTV (Heat Transfer Vinyl) and fusing it to a cap, you bypass the single most frustrating part of hat embroidery: the physical struggle of hooping a curved, stiff cap without distortion.

However, machines are binary—they either execute perfectly or fail dramatically. The difference lies in the "physics of the fluff." Microfiber is unstable, shifty, and hungry; it eats standard stitching for breakfast. As someone who has pulled thousands of ruined patches out of hoops, I am going to walk you through the precise cognitive and mechanical steps to tame this material. We will move beyond "hope it works" into "production certainty."

The Calm-Down Truth About Faux Chenille on a Brother PR1055X (Yes, It’s Doable)

Microfiber cleaning cloths offer incredible loft and texture for pennies on the dollar. They mimic the dense pile of wool loop chenille perfectly. But mechanically, they are a nightmare. They stretch in weird directions, they crush under the presser foot, and their "pile" loves to poke through satin stitches, creating a messy, ragged look.

On a precise machine like the brother pr1055x, success comes down to controlling three specific variables. If you ignore these, you will get needle breaks and "hairy" edges. If you control them, you get a retail-ready patch.

1. Structural Rigidity: You must turn the floppy cloth into something that behaves like cardstock.
2. Stitch Physics: You must override the machine's default density logic to prevent the satin column from sinking into the abyss of the fabric pile.
3. Registration Security: You must prevent the "micro-creep" that happens when a blade or needle hits a slippery synthetic surface.

To solve this, we don't just hoop and pray. We use a "Composite Sandwich": backing the microfiber with sticky stabilizer, pre-cutting with digital precision, and stitching onto a stable vinyl base.

The “Hidden Prep” That Makes Microfiber Behave: OESD Stable Stick + Clean Pre-Cutting

Most beginners grab scissors and try to cut the appliqué shape by hand. Stop.

Here is the physics of why that fails: When you squeeze scissors on high-loft microfiber, you compress the top and bottom layers differently. The fabric shifts away from the blade. When it springs back, your edge is jagged. In embroidery, a jagged edge means the satin stitch won't cover it, leaving tufts of fuzz sticking out (the dreaded "hairy halo").

What the video does

• Apply OESD Stable Stick to the back of the microfiber cloth. This transforms the fabric from a shifty rag into a specialized embroidery material.
• Use a Brother ScanNCut with a rotary blade to cut the letter shape cleanly.


Why this works (the part most people skip)

The stabilizer adds necessary drag and stiffness. But the real hero is the Rotary Blade. Unlike a standard drag blade (which drags through material and creates puckers in loose fabric), a rotary blade rolls over the fibers, slicing them without displacing them. It is the difference between sawing wood and laser-cutting it.

Hidden Consumables Checklist:

• Rotary Blade Kit: Essential for the ScanNCut.
• High-Tack Mat: Standard mats often lose grip with microfiber lint.
• Masking Tape: To tape the edges of the cloth to the mat (safety redundancy).
• Lint Roller: To clean your mat immediately after.

Prep Checklist (do this before you touch the machine)

• Check Material: Microfiber cleaning cloth chosen (dense pile is better than loose loop).
• Stabilizer Application: OESD Stable Stick applied to back; smoothed firmly with a brayer or hand pressure (no air pockets).
• Blade Setup: ScanNCut rotary blade installed; test cut performed to ensure it slices the cloth and stabilizer without dragging.
• Safe Margins: Extra fabric left around the capture area to tape down to the mat.
• Base Material: Glitter HTV cut to approx 5" x 5" (or large enough to float over your hoop area).
• Hooping Material: Cutaway stabilizer ready (standard medium weight, 2.0-2.5 oz).

The Patch-Base Move That Saves Hats: Stitch on Glitter HTV Instead of the Cap

We are not going to stitch this patch directly onto the hat. Why? Because caps are curved, and patch outlines are geometric. Fighting the curve introduces distortion. Instead, we stitch onto glitter Heat Transfer Vinyl (HTV). This provides a dimensionally stable, non-fraying base that fuses permanently to the cap later.

What the video does

• Peel off the clear carrier sheet from the glitter HTV before stitching.


Why this matters

This is a critical "Pre-Flight" check. The clear plastic carrier sheet on HTV is designed for heat presses, not embroidery needles. If you stitch through it:

1. Deflection: The needle hits the plastic, flexes slightly, and hits the bobbin hook plate. Snap.
2. Gumming: The friction melts the adhesive, gumming up the needle eye and causing thread breaks.
3. Perforation: It creates a "cookie cutter" effect that weakens the patch structure.

By peeling it first, you are stitching into pure vinyl and glitter—a surprisingly needle-friendly substrate.

Warning: Physical Safety & Machine Health
Vinyl is dense. It generates more friction heat than cotton.
* Listen: If you hear a loud "THUMP-THUMP" sound, your needle is struggling to penetrate.
* Action: Slow your machine down. If stitching at 1000 SPM, drop to 600-700 SPM. This "Sweet Spot" reduces heat buildup and needle deflection.
* Needles: Ensure you are using a fresh needle (Size 75/11 is standard, but a Topstitch needle with a larger eye can reduce friction).
* Eyes: Wear safety glasses. If a needle breaks on thick vinyl, the tip can fly.

On-Screen Setup on the Brother PR1055X: Resize With Stitch Recalculation, Then Push Density to 120%

This is the technical watershed moment. If you use default settings, your patch will fail. Default applique settings assume you are stitching cotton fabric. Microfiber is mostly air. If you don't compact the stitches, the satin column will sink into the fluff, and the raw edges will poke through.

1) Pick the built-in applique font

Michelle uses the machine's native library. In the video, this is Category 2, Item AB (a classic collegiate block font).

2) Resize the letter to exactly 3.00" tall (with stitch recalculation)

She adjusts the size up to 3.00 inches. The original file is roughly 2.68" x 2.41".

Pro tip on 'Stitch Recalculation': On modern machines, when you enlarge a design, the processor adds stitches to maintain density. On older machines, it simply stretches the existing stitches (making them sparse). You must ensure your machine is recalculating. If the stitch count doesn't go up when the size goes up, stop. You need to resize in software.

3) Increase global density to 120% (maximum)

Navigate to the density override setting and crank it to 120%.

The Sensory Check: At 100% density (standard), you can often see the fabric color peeking through a satin stitch if you bend it. At 120%, the thread column should feel like a solid rope or a wire. It should cover the microfiber edge completely. This high density creates a "wall" that holds back the fluff.

4) Needle selection / color stop

Assign the colors. In the video, the navy blue border is assigned to needle #5. Workflow Note: If you usually run black or white in needle 1, keep 5 for your specialty colors. Muscle memory saves mistakes.

The Floating Technique in a 5x7 Hoop: Stable Base, Light Adhesive, Clean Margins

"floating" means hooping only the stabilizer and sticking the fabric on top. For HTV patches, this is superior to hooping because thin vinyl can warp if stretched in a hoop ring.

What the video does

1. Hoop medium-weight cutaway stabilizer in a standard 5x7 hoop.
2. Apply a light mist of temporary spray adhesive (e.g., 505 Spray) to the stabilizer or the back of the HTV.
3. Place the HTV square centered. Key concept: Center Alignment.




Why floating works here (and when it doesn’t)

Floating works here because the HTV is stiff enough to not ripple, and the stitching area is small (3 inches). The adhesive prevents the horizontal slide.

The Production Reality Check: Floating is great for one-offs. But if you have an order for 50 patches, floating becomes a bottleneck. Spraying, sticking, measuring... it hurts your wrists and lungs. This is where professional shops upgrade their tooling.

Professionals searching for efficiency often look into magnetic embroidery hoops. Unlike standard hoops that require hand strength to force rings together (often causing "hoop burn" or marks on delicate items), magnetic frames clamp instantly.

• The Gain: If you use a magnetic frame, you can float faster because the clamp holds the stabilizer flat instantly without screw-tightening.
• The Logic: If you save 2 minutes per hoop up, on 50 patches, you have saved nearly 2 hours of labor.

Setup Checklist (right before you stitch)

• Tension Check: Stabilizer is "drum tight" (flick it; it should sound like a drum).
• Adhesion Check: Corners of the HTV square are tacked down. If they curl up, the presser foot will catch them and wreck the machine. Use painters tape on corners if unsure.
• Applique Piece: The Microfiber 'A' (or letter of choice) is cut and sitting right next to the machine.
• Placement Scan: Use the machine's camera or trace function to ensure the needle won't hit the edge of the HTV.

Cutting Microfiber Without the “Slide-and-Ruin” Moment: Mat Grip, Margin, and Handling

The video highlights the microfiber scrap frame and potential sliding issues. This is the #1 failure point in the prep phase.

The "Slide" Phenomenon: Microfiber has a nap (direction). When the cutting blade hits it, the fabric wants to travel with the blade. If it slides 1mm, your letter is 1mm too narrow, and your satin stitch will miss the edge later.

The Fix:

• High Tack Mat: Don't use a standard tack mat that has lost its stick.
• Tape: Tape the perimeter of the cloth to the mat.
• Speed: Slow the cutter speed down. Speed creates drag force.

If you plan to scale this operation, consistent placement is key. In the embroidery world, tools like a hooping station for machine embroidery are standard for ensuring that every logo lands in the same spot on every shirt. While less critical for floating floating patches, the mindset is the same: Standardize your placement. The more you rely on "eyeballing it," the higher your reject rate.

The Finish That Makes It Sellable: Pop Out, Trim, Then Fuse With a Mini Heat Press

Once the stitching is done, unhoop everything. You now have a sheet of stabilizer with a vinyl patch sewn to it.

What the video does

• Pop Out: Remove from hoop.
• Trim: Cut around the patch. You can use scissors here because you are cutting the vinyl/stabilizer edge, which is stiff and easy to control.
• Fuse: Place on the hat and use a mini heat press to activate the HTV adhesive.


Why this finishing method is so forgiving

Hats are notoriously difficult. They have a center seam that makes needles deflect. They are cylindrical, while machines like flat surfaces. By making a patch, you move the "manufacturing" to the flat hoop and only use the hat for "assembly."

You avoid the dreaded "flagging" (where the cap bounces up and down), and you avoid purchasing expensive, difficult-to-master cap driver systems if you are just starting out.

Warning: Magnetic Field Safety
As you explore advanced tools to speed up this workflow, be aware that industrial magnetic embroidery hoops use potent Neodymium magnets.
* Pinch Hazard: These magnets snap together with enough force to bruise skin or break a finger bone if caught between them. Always slide them apart; never pry them.
* Medical Devices: Keep them at least 6-12 inches away from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and screens.

Decision Tree: Pick the Right Stabilizer + Holding Method for Patches (So You Don’t Re-Do Work)

Don't guess. Use this logic flow to determine your setup for the day.

1. Analyze Your "Fluff" Level:

• Is it Microfiber/Terry Cloth? → YES: You MUST add a fusible backer (Stable Stick) AND use a water-soluble topper if not using the patch method.
• Is it Felt/Twill? → NO: Standard spray adhesive is sufficient; no fusible backer needed.

2. Choose Your Base Strategy:

• Am I making a Patch (Merge on HTV)? → YES: Floating method. Hoop Cutaway stabilizer only. Best for hats/bags.
• Am I stitching Direct-to-Garment? → NO: You must hoop the garment. Floating is risky for dense satin stitches on loosen fabrics.

3. Evaluate Production Volume:

• Is this a 1-off Birthday Gift? → YES: Use standard hoop + spray adhesive. Time is not money here.
• Is this a 50-piece Team Order? → YES: Stop. Your wrists will fail before the machine does. Look into brother 5x7 magnetic hoop solutions to standardize clamping pressure and speed up the reload time between runs.

4. Cap Complexity:

• Does the cap have a thick center seam? → YES: The Patch method is your savior. Stitching directly over a thick seam often breaks needles and ruins registration.

Troubleshooting Faux Chenille Patches: Symptoms, Causes, Fixes (Before You Blame the Machine)

When things go wrong, do not panic. Follow this diagnostic hierarchy (Cheap -> Expensive).

The Upgrade Path: When This Patch Method Turns Into a Real Product Line

This technique is a perfect gateway drug. It starts as a "shop hack" for a single cool hat, but because it looks so premium, customers will ask for bulk orders.

When that happens, your bottleneck shifts. The problem is no longer "how to stitch," but "how to stitch faster."

• The Hoop Bottleneck: If you find yourself dreading the hoop-up process, investigate brother pr1055x hoops options. Magnetic frames effectively remove the physical strain and material "burn" marks from the equation.
• The Cap Bottleneck: If you decide you must stitch directly onto caps (for side logos or non-patch designs), realize that the standard brother pr1055x hat hoop has a learning curve. Many pros skip the struggle and use patches for the front, and direct embroidery only for low-risk areas.
• The Machine Bottleneck: If your single-needle machine is too slow for multicolor patches, or your current multi-needle is tied up, consider dedicated production units like SEWTECH multi-needle machines. They offer the needle capacity to run these complex appliqué sequences without manual thread changes, maximizing your profit-per-hour.

Operation Checklist (The "Don't Ruin It At The Last Minute" List)

• [ ] Height Check: Letter resized to 3.00"?
• [ ] Stitch Count Check: Did stitches increase with size? (Recalculation Active).
• [ ] Density Override: Set to 120%?
• [ ] Carrier Sheet: REMOVED from HTV? (Critical!).
• [ ] Margin: 1 inch of clear vinyl around the needle drop zone?
• [ ] Needle: Correct needle (#5) assigned to the border color?
• [ ] Speed: Limiter set to 600-800 SPM?

By following this protocol, you aren't just "trying a tutorial." You are executing a manufacturing process. The result will be a clean, plush, faux-chenille patch that looks like it came from a high-end factory, not a home experiment. Now, go fuse it.

FAQ

• Q: How do I stop faux chenille microfiber appliqué on a Brother PR1055X from getting “hairy edges” around the satin border?
  A: Use stabilized pre-cutting with a rotary blade instead of scissors so the satin stitch can fully cover a clean edge.
  • Apply OESD Stable Stick to the back of the microfiber and smooth it firmly (no bubbles).
  • Cut the letter with a Brother ScanNCut rotary blade (not a drag blade); use a high-tack mat and tape the perimeter.
  • Increase the Brother PR1055X global density to 120% for the satin border.
  • Success check: the border looks like a solid rope and no microfiber tufts poke through the edge.
  • If it still fails: re-check for cutting “slide” on the mat (even 1 mm of drift can cause exposed edges).
• Q: What are the hidden consumables and prep checks needed to cut microfiber cleanly for faux chenille patches (ScanNCut + rotary blade workflow)?
  A: Treat microfiber like a precision material: high grip, controlled cutting, and immediate lint management are required.
  • Install the rotary blade kit and run a test cut that slices both microfiber and stabilizer without dragging.
  • Use a high-tack cutting mat, tape the cloth edges as a backup, and slow the cutter speed to reduce drag.
  • Keep a lint roller nearby and clean the mat right after cutting to maintain grip.
  • Success check: the cut edge is smooth (not jagged), and the piece lifts without stretching or distortion.
  • If it still fails: replace/refresh the mat grip and increase taping/margins so the fabric cannot travel with the blade.
• Q: What settings on a Brother PR1055X prevent satin stitch from sinking into microfiber faux chenille (especially after resizing a built-in appliqué font)?
  A: Resize with stitch recalculation and then push density to 120% so the satin column “walls off” the fluff.
  • Resize the built-in appliqué letter to 3.00" tall and confirm the stitch count increases when the size increases.
  • Set the Brother PR1055X density override to 120% (maximum in the workflow shown).
  • Assign the border color intentionally (example workflow: navy border on needle #5) to avoid setup mistakes.
  • Success check: when the satin border is bent slightly, the microfiber edge does not peek through.
  • If it still fails: resize in embroidery software instead of on-machine if stitch count is not recalculating.
• Q: Why must the clear carrier sheet be removed from glitter HTV before stitching a faux chenille patch on a Brother PR1055X?
  A: Remove the carrier sheet before embroidery to avoid needle deflection/breaks, adhesive gumming, and weakened “perforated” patch edges.
  • Peel off the clear plastic carrier sheet so the needle penetrates only the vinyl/glitter layer.
  • Slow the machine down if the material sounds heavy under the needle (a common sweet spot is 600–700 SPM in this workflow).
  • Use a fresh needle; a larger-eye topstitch-style needle may reduce friction (check the machine manual for needle guidance).
  • Success check: stitching sounds smooth (no loud “THUMP-THUMP”) and there are no sudden needle or thread breaks.
  • If it still fails: inspect for melted adhesive buildup on the needle and re-check that no carrier film remains under the stitch area.
• Q: How do I correctly “float” glitter HTV on cutaway stabilizer in a 5x7 hoop on a Brother PR1055X without the patch shifting?
  A: Hoop only the cutaway stabilizer drum-tight, then lightly adhere the HTV square so it cannot creep during dense satin stitches.
  • Hoop medium-weight cutaway stabilizer and tighten until it is drum tight.
  • Mist a light layer of temporary adhesive (e.g., 505) and center the HTV square over the stitch field.
  • Tape down curling corners if needed so the presser foot cannot catch an edge.
  • Success check: the HTV stays flat with no corner lift, and the stitched border lands evenly all the way around.
  • If it still fails: refresh adhesive and re-check center alignment/trace so the needle path never runs near an HTV edge.
• Q: What causes mis-aligned faux chenille patch borders on a Brother PR1055X when using microfiber letters, and how do I fix “the slide”?
  A: Misalignment usually comes from microfiber sliding during cutting or the floated HTV shifting during stitching—lock down both stages.
  • Prevent cutting drift: use a high-tack mat, tape the microfiber perimeter, and slow the ScanNCut cutting speed.
  • Prevent hoop-stage drift: apply fresh temporary adhesive and ensure HTV corners cannot lift.
  • Standardize placement rather than “eyeballing” so repeated patches land consistently.
  • Success check: the satin border fully covers the appliqué edge with even margins (no side looks thinner).
  • If it still fails: re-cut the appliqué with more margin/tape and re-run the placement trace before stitching.
• Q: What are the key safety precautions for needle break risk when embroidering dense glitter HTV patches on a Brother PR1055X, and for handling magnetic embroidery hoops?
  A: Slow down on dense vinyl to reduce break risk, and treat magnetic hoops as pinch hazards with strong neodymium magnets.
  • Reduce speed if penetration sounds harsh; thick vinyl can build friction heat and deflect needles.
  • Wear safety glasses when testing thick materials because needle tips can fly if a break occurs.
  • If using magnetic hoops: slide magnets apart (do not pry), keep fingers clear, and keep magnets away from pacemakers/insulin pumps and sensitive electronics.
  • Success check: stitching runs without violent impact sounds, and hooping/unhooping is controlled with no snapping/pinching incidents.
  • If it still fails: stop immediately, inspect for needle damage/adhesive buildup, and switch to a safer, slower test run before resuming production.
