Faux Chenille In-The-Hoop on the Baby Lock Solaris 2: IQ Designer Digitizing, 4-Layer Hooping, and the Slash-and-Bloom Finish

Master Class: Faux Chenille in the Hoop for Baby Lock Solaris 2 & Destiny

If you have ever craved that plush, vintage varsity jacket texture but dreaded the mess of traditional chenille methods, you are in the right place. This guide focuses on a "hack" using IQ Designer that hits the sweet spot of modern embroidery: you construct the "fabric" with precision stitches, then slash and brush it into life—all without the fabric ever leaving the hoop.

However, I know the anxiety that kicks in when you hear "hoop four layers of fabric at once."

You’re not alone if your first thought is, "Is my machine going to gag? Is the fabric going to shift? Will I get the dreaded hoop burn?" As an educator who has overseen thousands of hours of machine run-time, I can tell you: fear stems from a lack of physics control.

This method is entirely doable on the Baby Lock Solaris 2 (and applicable to the Destiny or similar IQ Designer-enabled machines), provided you respect two non-negotiable laws: Layer Control and The Non-Destructive Perimeter.

The Calm-Down Primer: What “Chenille In The Hoop” Actually Is

Let’s strip away the mystery. This project is not a complex, specialty chenille stitch file you have to buy. It is a structural sandwich you engineer directly on your machine's screen.

You are creating two things:

1. A Visual Boundary: A box that tells you where to stop, but never stitches.
2. Structural Channels: Diagonal straight stitches that bind multiple layers of fabric together.

The "magic" is purely mechanical. After stitching, you remove the project, slash the top layers between the stitching lines, and agitate (brush) the raw edges until they bloom.

The Golden Rule:

Do not sew a permanent border line around your chenille block.
If you stitch a closed box around the edges, you trap the fabric. You won’t be able to slash the channels all the way to the end, and your "bloom" will look choked and messy.

Phase 1: The "Hidden" Prep That Prevents Shifting

Before you even touch the screen, we must address the physics of the hoop. Thick stacks of fabric do not behave like a single sheet of cotton. They compress, they rebound, and under the rapid fire of a needle, they love to "creep" (shift micro-millimeters with every stitch).

To get professional results, you need to set up like a production house, not a hobbyist "hoping it holds."

The Material Stack

• Stabilizer: Wet n Gone Tacky (Water Soluble Sticky).
  • The Why: Friction is your friend here. The tacky surface grips the bottom layer, preventing the "skating" effect that ruins alignment.
• Fabric: Four layers of woven cotton, stacked and centered.
  • The Why: Woven cotton (like quilting cotton) has a crisp fray when cut. Four layers provide enough density to stand up when brushed without being too bulky for a standard workspace.
• Needle: Topstitch 90/14 (Highly Recommended).
  • The Expert Adjustment: While a standard 75/11 might work, four layers create drag. A 90/14 creates a slightly larger hole, reducing friction and heat buildup on the thread.

The Tool Kit

• Wired USB Mouse: Plugging this into your machine gives you pixel-perfect control when drawing lines, much better than a finger.
• Small sharp scissors: For the initial snip.
• Ball-point seam ripper: Crucial for safety (more on this later).
• Synthetic dish brush: For the "blooming" phase.

The Bottleneck Reality: If you plan to make these for profit (patches, quilt blocks, coasters), your biggest enemy won’t be stitch speed—it will be hooping time. Wrestling four layers into a standard hoop without wrinkles is physically demanding. This is often where masters differentiate themselves by mastering hooping for embroidery machine mechanics, ensuring the fabric is drum-tight without crushing the fibers.

Prep Checklist: The "Go/No-Go" Confirmation

• Hoop Check: Confirm you have the 9.5" x 14" hoop (or your machine's equivalent large hoop) ready.
• Stabilizer: Wet n Gone Tacky is hooped drum-tight (listen for the sound—it should sound like a dull thud when tapped).
• Fabric: Four layers cut larger than your target square are stacked near the machine.
• Needle: Fresh needle installed (check for burrs by running your fingernail down the tip).
• Controls: Mouse is plugged in and responsive.

Warning: The Finger Hazard
Slashing chenille channels is a blade-risk moment. When using a seam ripper on multiple layers, it requires force. Keep your non-cutting hand behind the direction of the blade. If the tool slips, it should stab empty air, not your palm.

Phase 2: IQ Designer Setup (The Digital Blueprint)

Inside IQ Designer (or My Design Center), we are going to turn your screen into engineering graph paper.

Step 1: Activate the Grid

1. Navigate to your Settings page.
2. Enable the Grid: Select the 3/8 inch (approx 9.5mm) grid option.
3. Background Select: Choose the 9.5" x 14" hoop so the boundaries are visible.

Sensory Check (Visual): Look at the background. You should see a grid overlaid on the screen. If it's too faint, dim your sewing room lights slightly to increase screen contrast. This grid is your ruler; precise placement depends on you seeing these lines clearly.

Step 2: The "No-Sew" Security Fence

This step protects you from the "locked edge" mistake.

1. Select Shapes -> Square.
2. Resize the square to approximately 9.00" x 9.00" (video uses 9.04").
3. Crucial Step: Set the Line Property to "No Sew" (usually a button that looks like a circle with a slash or turns the outline gray).

What just happened? You created a Reference Line. The machine sees this box, but the needle will ignore it. It exists solely to tell you: "Don't draw diagonal lines past this point."

Phase 3: Digitizing the Channels

Now, we build the structure.

1. Select the Line Tool.
2. Choose Straight Stitch (often shows as a specific color like pink or blue depending on settings).
3. The Draw: Draw diagonal lines corner-to-corner, using the 3/8" grid intersections as your guide.

Why Diagonals? Fabric is woven on a grain (warp and weft). When you cut fabric on the bias (45 degrees, diagonal), it frays beautifully and softly. If you cut straight with the grain, it tends to string out and look messy.

Pro Workflow Tip: Drawing 30+ lines by hand is tedious. If your specific firmware allows for copy/paste or array duplication within IQ Designer, use it. This reduction in screen-time is a key efficiency hack. For those looking to optimize their physical workspace as much as their digital one, investigating a hooping station for embroidery can complement this digital efficiency by speeding up the physical layering process.

Step 3: Precise Cleanup

Inevitably, your hand-drawn lines will overshoot the "No Sew" box.

1. Select the Eraser Tool.
2. Choose the Square Tip.
3. Set size to Small/Medium (20–27).
4. Action: Carefully run the eraser along the outside of your gray boundary box.

The Result: Your diagonal lines should end perfectly at the edge of the imaginary square, like a well-mowed lawn stopping at a sidewalk.

Step 4: Stitch Physics (The 2.5mm Sweet Spot)

Now we assign physics to those lines.

1. Go to Properties/Settings.
2. Ensure units are in millimeters (Page 9 of 12 on Solaris settings).
3. Set Run Pitch (Stitch Length) to 2.5 mm.

Why 2.5 mm?

• < 2.0 mm: The needle perforations are so close they might act like a "tear here" strip, cutting your fabric base.
• > 3.0 mm: The toe of your presser foot might catch the long loop, or the layers will gap open too much.
• 2.5 mm: This is the "Goldilocks" zone—tight enough to hold four layers, loose enough to prevent perforation.


Setup Checklist (Pre-Flight)

• Grid: 3/8" active.
• Boundary: "No Sew" gray square is visible.
• Channels: Diagonal straight stitches fill the box.
• Trim: No lines extend beyond the boundary.
• Physics: Run Pitch confirmed at 2.5 mm.

Phase 4: Hooping and Stitching (The Reality Check)

This is where theory meets reality. You have your Wet n Gone Tacky hooped. Now, gently lay your four fabrics centered on top. Smooth them down with your palms—feel for bubbles or wrinkles.

The "Basting Guard" Protocol: You must use your machine’s Basting Stitch function (usually in the Embroidery Edit screen). Do not skip this.

• Without Basting: As the needle moves, the top layer of fabric will push forward like a wave, resulting in a distorted, puckered square.
• With Basting: The perimeter is locked down, unifying the stack into a single board-like object.

A Note on Equipment Evolution: If you find yourself constantly fighting to close the hoop or seeing "hoop burn" (shiny crushed rings) on your fabric, this is a hardware limitation, not a skill failure. Standard plastic hoops rely on friction and pinch force. For thick projects like this, many production embroiderers upgrade to magnetic embroidery hoops. The vertical clamping force of magnets secures thick stacks without the "tug-of-war" distortion of inner/outer rings.

The Trace Verification

Before hitting the green button:

1. Lower the presser foot.
2. Run the Trace/Check function (or use the laser guide).
3. Visual Check: Ensure the needle path is safely within your fabric stack. A thick stack means the needle deflection risk is higher—you don't want to hit the hoop edge.

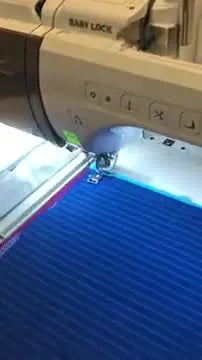

The Stitching Experience

Hit Start.

1. Basting Frame runs first.
2. Diagonal Channels run second.

Sensory Diagnostics (What to listen for):

• Normal: A rhythmic, slightly deeper "thump-thump" than usual. 4 layers dampen the sound.
• Warning: A sharp "snap" or grinding noise. This means the needle is struggling to penetrate.
• Fix: If the machine sounds unhappy, slow down. Drop your speed to 600-700 SPM. Quality beats speed on thick stacks.


Phase 5: Slash and Bloom (The Transformation)

Remove the hoop. Un-hoop the fabric.

1. Remove Basting: Use your seam ripper to remove the perimeter basting stitches.
2. The First Cut: Use small sharp scissors to make the initial snip in a channel—cutting only the top 3 layers.
   • Critical: Leave the bottom layer intact. That is your base.
3. The Glide: Switch to a Ball-Point Seam Ripper. Insert the ball between the 3rd and 4th layer.
4. Action: Slide down the channel. The ball prevents the point from snagging the base fabric. Keep your hand steady.
5. The Agitation: Take your synthetic dish brush and scrub the slashed channels vigorously. You want to agitate the fibers until they "bloom" or fluff up.

Result: Flat strips transform into velvety, dimensional chenille strips.

Troubleshooting Guide: Symptoms & Cures

Warning: Magnetic Safety
If you choose to upgrade to magnetic frames for these thick projects, treat them with respect. These are industrial magnets, significantly stronger than fridge magnets. Keep them away from pacemakers, and watch your fingers—they snap shut with bone-pinching force.

Decision Matrix: Fabric & Stabilizer

Scenario A: The Crisp Varsity Look

• Layers: Woven Cotton (Quilting weight).
• Stabilizer: Sticky Wash-Away.
• Result: Defined channels, clean fray, classic texture.

Scenario B: The Soft "Baby Blanket" Look

• Layers: Flannel.
• Stabilizer: Sticky Wash-Away (Critical here, flannel is stretchy).
• Result: Softer bloom, faster frying, "fuzzier" look.

The Production Upgrade Path: When to Level Up

If you are doing this for a single holiday gift, your current setup is adequate. But if you encounter the following pain points regularly, here is how you solve them professionally:

Pain Point 1: "Hooping takes longer than stitching."

If you spend 10 minutes wrestling thick fabric into a plastic hoop, you are losing money (or patience).

• Solution Level 1: Use temporary spray adhesive (messy, but helps).
• Solution Level 2: SEWTECH Magnetic Hoops.
  • The Logic: You simply lay the stabilizer and fabric on the bottom frame and snap the top frame on. The magnets self-adjust to the thickness of the 4 layers perfectly. No screw tightening, no "hoop burn." For Baby Lock users, searching for babylock magnetic embroidery hoops or generic terms like mighty hoops for babylock will reveal options that dramatically speed up this specific workflow.

Pain Point 2: "I need to make 50 of these for a team."

Single-needle machines require a thread change for every color stop (if your design has them).

• Solution Level 1: batch processing (assembly line style).
• Solution Level 3: Multi-Needle Machine (e.g., SEWTECH / Ricoma / Brother).
  • The Logic: Speed and suspension. Multi-needle machines have a "tubular" arm that handles items like tote bags (perfect for chenille patches) much better than a flatbed.

Pain Point 3: Search Confusion

Beginners often get lost in terminology. You might see professionals discussing magnetic hoops for babylock embroidery machines alongside industrial gear.

• The Clarification: You don't always need the most expensive brand name. Many aftermarket magnetic frames offer the same "snapshot" locking mechanism at a price point that makes sense for a home-based business.


FAQ

• Q: How do I prevent Baby Lock Solaris 2 IQ Designer “faux chenille in the hoop” layers from shifting when stitching four layers of woven cotton?
  A: Use a sticky stabilizer plus a basting stitch so the fabric stack behaves like one board.
  • Hoop Wet n Gone Tacky drum-tight, then lay the four cotton layers centered and smooth them flat.
  • Turn on the machine’s Basting Stitch in Embroidery Edit to lock the perimeter before the diagonal channels stitch.
  • Slow down if needed and avoid tugging the fabric while the machine is running.
  • Success check: The stitched diagonal channels stay square and evenly spaced, with no “creep” or crooked distortion.
  • If it still fails: Re-hoop tighter and confirm the stabilizer is truly tacky; skipping basting is the most common cause of skating.
• Q: In Baby Lock Solaris 2 IQ Designer, how do I set up a “No Sew” boundary box so faux chenille channels can be slashed all the way to the edge?
  A: Create a square shape and set the outline to “No Sew” so the machine shows the edge but never stitches it.
  • Go to Shapes → Square, resize to about 9.00" × 9.00" (approximate is fine as long as it fits inside the hoop area).
  • Change the Line Property to “No Sew” (the boundary should display as a non-stitching/gray reference).
  • Draw diagonal straight-stitch channels inside the box, then trim overshoots with the Eraser outside the boundary.
  • Success check: There is no stitched perimeter frame around the block—only diagonal channel stitches—so the ends are open for slashing.
  • If it still fails: If the edges feel “locked,” a stitchable border was created somewhere; delete it and recreate the boundary as “No Sew.”
• Q: What run pitch (stitch length) should Baby Lock Solaris 2 use for IQ Designer straight-stitch faux chenille channels on four fabric layers?
  A: Set the IQ Designer straight-stitch run pitch to 2.5 mm as the safe “hold without perforation” setting.
  • Switch settings units to millimeters, then locate the Run Pitch (Stitch Length) setting for the straight stitches.
  • Enter 2.5 mm before stitching the diagonal channel set.
  • Avoid making the pitch too short (can perforate like a tear strip) or too long (can gap or catch).
  • Success check: The channels hold all layers firmly, and the base layer stays intact without weakening or tearing along the stitch line.
  • If it still fails: If the base fabric looks weakened, increase stitch length slightly; if channels gap too much, confirm the pitch is actually set to 2.5 mm and the fabric is basted.
• Q: Why does a Baby Lock Solaris 2 needle break or sound like it is grinding when stitching faux chenille channels through four layers, and what is the fastest fix?
  A: Treat it like thick-stack resistance: switch to a Topstitch 90/14 and slow the machine down.
  • Install a fresh Topstitch 90/14 needle to reduce drag and heat buildup through the stack.
  • Reduce speed to around 600–700 SPM when the fabric stack feels dense or the sound turns sharp.
  • Run Trace/Check before stitching to ensure the needle path stays safely inside the fabric area (thick stacks increase deflection risk).
  • Success check: The machine returns to a steady, deeper “thump-thump” sound with no sharp “snap,” and stitches form consistently.
  • If it still fails: Stop immediately and re-check for needle damage/burrs and confirm the fabric stack is flat (no hard wrinkles or bumps).
• Q: What is the safest way to slash faux chenille channels after stitching on a Baby Lock Solaris 2 project so the base layer is not accidentally cut?
  A: Cut only the top three layers, then use a ball-point seam ripper gliding between layers to protect the base.
  • Start the opening with small sharp scissors, cutting only the top three layers and leaving the bottom layer intact.
  • Insert the ball-point seam ripper ball between the 3rd and 4th layer and slide down each channel.
  • Keep the non-cutting hand behind the blade direction so a slip hits empty air, not your palm.
  • Success check: The bottom layer remains uncut and continuous, while every channel opens cleanly end-to-end.
  • If it still fails: If the base layer is getting nicked, re-check layer count and slow down—forcing the tool is when accidents happen.
• Q: How do I fix “hoop burn” (shiny crushed rings) on thick faux chenille fabric stacks when using a Baby Lock Solaris 2 embroidery hoop?
  A: Reduce pinch pressure by changing the holding method; thick stacks often mark easily in standard plastic hoops.
  • Avoid over-tightening or over-compressing thick layers in the hoop; consider floating the fabric stack on hooped stabilizer when appropriate.
  • Always use basting to control shifting so you do not compensate by crushing the hoop tighter.
  • Consider switching to magnetic embroidery hoops/frames for thick stacks because magnets clamp without the same ring-crush pressure.
  • Success check: After unhooping, the fabric surface shows minimal or no shiny ring marks around the hooped area.
  • If it still fails: If hoop burn persists on repeated thick projects, treat it as a hardware limitation of friction-style hoops and move to a magnetic clamping system.
• Q: What magnetic embroidery hoop safety rules should home embroiderers follow when upgrading for thick faux chenille projects?
  A: Treat magnetic hoops as industrial-strength magnets that can pinch fingers and may affect pacemakers.
  • Keep magnetic frames away from pacemakers and medical implants, and follow the machine and hoop manufacturer guidance.
  • Keep fingers clear of the closing path—magnets can snap shut with significant force.
  • Set the hoop down on a stable surface before assembling to avoid sudden jumps or misalignment.
  • Success check: The frame closes in a controlled way without finger pinches, and the fabric stack stays evenly clamped without distortion.
  • If it still fails: If the frame “slams” shut unpredictably, slow down the handling and reposition the fabric stack flatter before bringing the magnetic top frame close.
