Fast, Repeatable Cloth Napkin Embroidery on an SWF Machine: Hoop Master 5.5 Pins + a Magnetic Hoop That Won’t Slip

If you have ever attempted to embroider a napkin order—whether it’s 20 for a boutique client or 100 for a wedding—you are intimately familiar with the specific despair of "The Cotton Drift."

Napkins deceive you. They look square, but they are woven, and often hemming distorts the grain. When you try to hoop them traditionally, the corners pull out of shape, framing marks (hoop burn) ruin the presentation, and maintaining perfect placement consistency across 50 pieces feels impossible for human hands.

The workflow detailed below solves these physical limitations by combining mechanical registration (The Hoop Master 5.5 fixture) with non-destructive clamping (Magnetic Hoops + Adhesive). This method transforms a variable art form into a repeatable manufacturing process.

One viewer commented, "Instead to talk, show it." We agree. This guide is written from the perspective of a floor manager instructing a new operator. We will cover the tactile sensations, the safety zones, and the precise decision logic required to turn a stack of linen into a professional product.

Don’t Panic—Corner Napkin Embroidery Is Hard for a Reason (Cotton Moves, Corners Lie)

Before we touch the machine, understand your material physics. A cotton napkin is essentially a "soft hinge." The fabric is woven, often with a bias stretch that activates the moment you pull on a corner.

The corner you see visually is rarely a perfect 90-degree angle due to sewing tolerances in the hem. If you rely on "eyeballing" the placement, your error margin will compound with every unit. By napkin #20, your placement could drift by 5mm or more—enough to ruin a matched set.

In this workflow, we stop fighting the fabric and start relying on mechanical constraint. We use the fixture pins to force alignment and the magnetic frame to freeze that alignment without crushing the fibers. This removes the variable of "hand tension" from the equation entirely.

The Quiet Prep Pros Don’t Skip: Pressing Cotton Napkin Corners for a Premium Finish

You cannot embroider a lie. If the fabric has a "memory fold" or a wrinkle near the corner, the stabilizer will not grab it evenly, and your needle will push the fabric rather than piercing it, resulting in puckering.

The Action: Use a heat press or a high-steam iron. Focus specifically on the corners where the embroidery will land. You are not just removing wrinkles; you are flattening the hem so it doesn’t act like a speed bump for the hoop.

Sensory Check (Tactile): Run your thumb over the corner. It should feel completely flat and "dead"—meaning when you pick it up and drop it, it falls flat without curling back up. If it springs back, press it again with starch.

Warning (Safety): Keep fingers clear of the heat press platen. Burns happen when you try to "just adjust that one corner" while the plate is descending. Respect the heat zone.

Prep Checklist (Pre-Flight):

• Surface: Napkins are fully pressed; hem corners are dead flat.
• Sorting: Napkins are stacked in the exact same orientation (e.g., all hems facing down).
• Consumables: Fresh 75/11 Sharp needles (for woven cotton) are installed. Ballpoint needles may push the weave and cause distortion.
• Tooling: Scissors, sticky-back stabilizer, and optional extra backing are within arm's reach.


The Sticky-Back-on-the-Frame Trick: Turning a Magnetic Hoop into a Fast “No-Hoop” Hold

Here is the core production mechanic: We are not hooping the napkin. We are hooping the stabilizer, and then sticking the napkin to it.

The Action: Take your magnetic hoop’s bottom frame. Cut a piece of sticky-back tearaway stabilizer larger than the frame. Peel the release paper and stick the adhesive side firmly to the underside of the frame. Flip it over, and you now have a "sticky drum."

Why this matters: This eliminates "hoop burn." Traditional hoops require you to jam the fabric between two rings, which crushes the fibers (leaving a shiny ring) and distorts the grain. With sticky stabilizer on a magnetic frame, the fabric sits on top, held by chemical adhesion (glue) and magnetic downward pressure.

In professional shops, this is the primary reason operators switch to magnetic embroidery hoops. It shifts the workflow from "force and friction" to "contact and clamp," allowing you to handle delicate linens without leaving permanent scars.

Pin-Perfect Registration on the Hoop Master 5.5: Lock the V-Notch Corner So Every Napkin Matches

The Hoop Master station acts as a jig. It removes the need for you to measure or mark every single napkin with a ruler.

The Action:

1. Locate the V-Notch: Look at the bottom of your Hoop Master fixture. You will see a V-shape guide specifically designed for corners.
2. The Slide: Slide the corner of your napkin into that V-notch until it stops.
3. The Alignment: Gently fan the top edges of the napkin out until they rest against the upper alignment pins.

Sensory Check (Visual & Tactile): The napkin should feel "seated." If you tap the napkin lightly, it shouldn't rotate. It is now mechanically locked in X and Y coordinates.

The Commercial logic: If you are doing one napkin, a ruler is fine. If you are doing 50, a hoop master embroidery hooping station transforms you from an artist into a manufacturer. It creates a "zero-decision" workflow where the pins make the placement choice for you, guaranteeing 100% repeatability.

Clamp It Clean: Seating the Magnetic Hoop Without Shifting the Napkin (and Avoiding a Hoop Strike)

This step requires a steady hand. You have the napkin on the pins and the sticky frame in your hand.

The Action: Hold the magnetic top frame (with the sticky backing applied) directly over the fixture using the guide arms. Press straight down. Do not "land and slide."

Sensory Anchor (Auditory): With magnetic hoops, you will hear a distinct CLACK or SNAP as the magnets engage. Once you hear that, the fabric is locked.

Crucial Warning - The Hoop Strike: Because we are working deep into a corner, we must ensure the machine knows where the metal hoop frame is.

Warning (Equipment Safety): ALWAYS running a trace (contour check) is non-negotiable. Napkin corners often place the needle dangerously close to the hoop wall. A purely digital check isn't enough; watch the physical needle bar travel around the border. A collision at 800 SPM can shatter the bobbin case or bend the main shaft.

Setup Checklist (Before pressing Start):

• Adhesion: Rub your hand firmly over the hooped area to bond the fabric to the sticky stabilizer.
• Clearance: Your design is centered, and the trace confirms at least 3mm clearance from the magnetic frame edge.
• Visual: The napkin corner looks visually square relative to the frame edges.


Tearaway vs Cutaway on 100% Cotton Napkins: The Stability Choice That Decides Your Wash Results

This is the most common point of failure for beginners. The video demonstrates using tearaway, which is standard for light/decorative use. However, cotton napkins shrink.

The Physics: When a cotton napkin is washed, the fibers contract. If you used unstable tearaway, the embroidery stitches (which don't shrink) will bubble and warp the fabric—this is called "baconing." Cutaway stabilizer provides a permanent foundation that resists this shrinkage.

Here is the Decision Tree for professional results:

Decision Tree: Stabilizer Selection Strategy

• Scenario A: High Use / Hotel / Restaurant
  • Fabric: 100% Cotton or Poly-Cotton Blend.
  • Wash Cycle: Hot wash, tumble dry.
  • Selection: Meshed Cutaway (Soft).
  • Why: You need permanent structural support to survive shrinkage.
• Scenario B: Wedding / Decorative / Event
  • Fabric: Linen or high-end Cotton.
  • Wash Cycle: Gentle, air dry, or dry clean only.
  • Selection: Sticky Tearaway.
  • Why: The backside aesthetics matter more than long-term durability. We want a clean look.
• Scenario C: The Hybrid (Best of Both)
  • Selection: Sticky Tearaway (Hooped) + Floated Cutaway (Underneath).
  • Why: Gives you the clean hooping of tearaway with the wash-stability of cutaway.

Using a sticky hoop for embroidery machine setup makes Scenario B incredibly fast, but if you are selling to a restaurant, ignore the video’s tearaway advice and use Scenario A (Cutaway).

Floating Extra Backing at the SWF Machine: The “Insurance Policy” for Shifting and Puckering

"Floating" acts as a support beam. If your design is dense (high stitch count), the sticky stabilizer alone might not be enough to prevent the fabric from pulling inward (puckering).

The Action:

1. Place the hooped napkin onto the machine arm.
2. Take a scrap sheet of crisp tearaway or medium cutaway.
3. Slide it under the hoop but over the needle plate.
4. Ensure it covers the entire stitch area.

Sensory Check: Ensure the floated piece is flat. If it bunches up, you will stitch a wrinkle into the back of your napkin.

For operators of an swf machine or any commercial multi-needle equipment, floating is faster than re-hooping. It allows you to adjust stability on the fly without un-clamping the product.

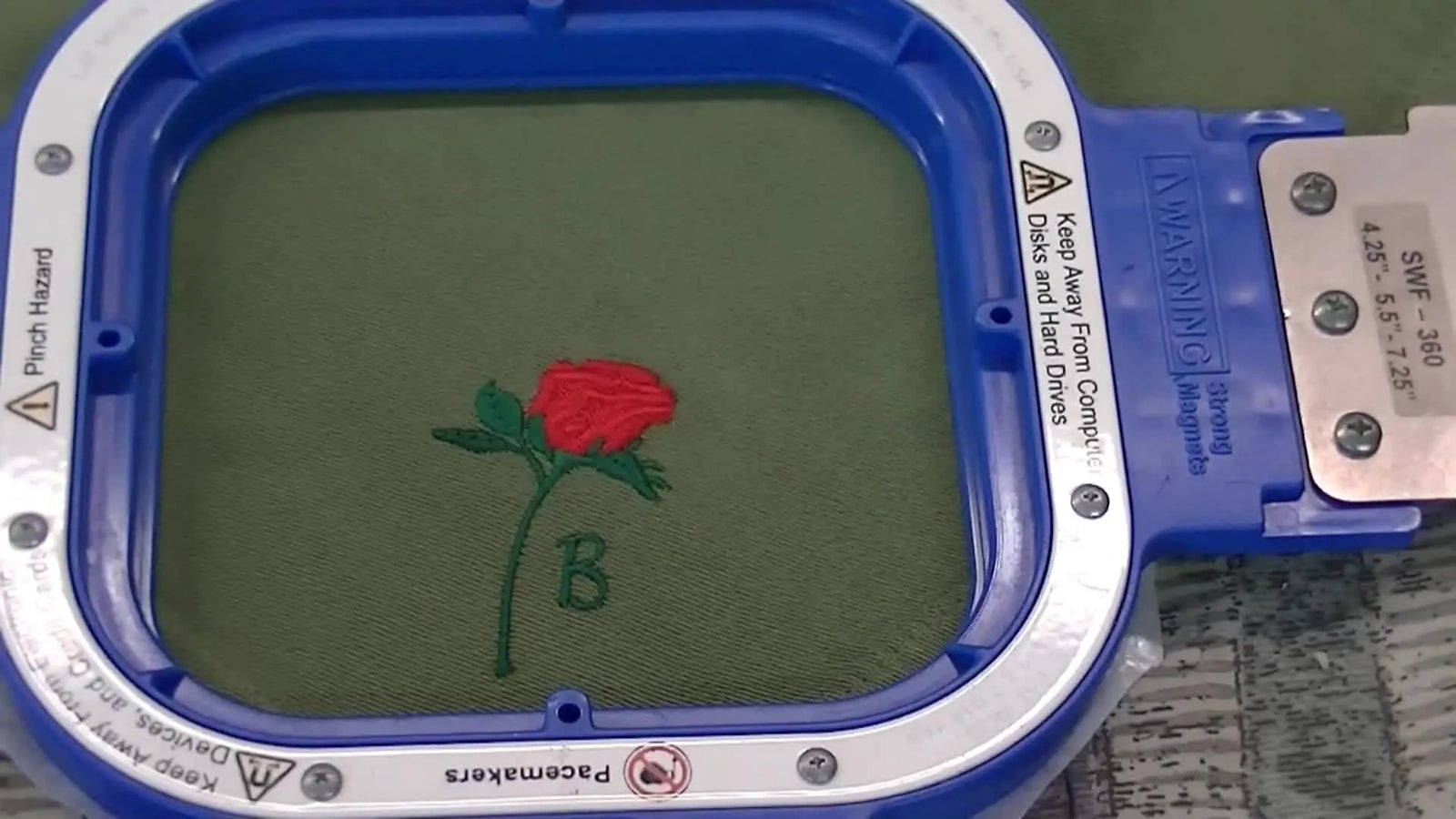

Running the 4,000-Stitch Rose + Monogram: What to Watch During the Stitch-Out (So You Don’t Babysit)

The design described is a ~4,000 stitch floral monogram. This is dense enough to cause issues if not monitored.

Speed Management: While your machine might run at 1000 SPM (Stitches Per Minute), napkin corners are delicate.

• New User Recommendation: Cap your speed at 600-700 SPM.
• Why: High speeds increase vibration, which can shake the fabric loose from the sticky stabilizer. Speed is not efficiency; uninterrupted production is efficiency.

The "Ear" Check: Train your ears. A happy machine makes a rhythmic, mechanical hum-click-hum.

• If you hear a deep thump-thump: Your needle is dull or struggling to penetrate multiple layers.
• If you hear a slapping sound: Your thread tension is loose, or the fabric is "flagging" (lifting up with the needle).
• Immediate Action: Pause and inspect. Press the fabric back down onto the adhesive if it’s lifting.


When Sticky-Back Loses Tack: Refreshing Adhesion with KK100 (Without Making a Mess)

After 3-4 napkins, the sticky backing will collect lint (fuzz) from the cotton, and it will stop holding the fabric securely. You do not need to strip the frame and re-apply fresh stabilizer every time.

The Fix: Use a temporary spray adhesive like KK100 or Gunold 505.

The Technique:

• Do not spray near the machine. Move away to avoid gumming up your rotary hook.
• The "Cloud" Method: Hold the can 12 inches away and spray a quick burst. You want a light mist, not a puddle.
• Patching: If a hole forms in the stabilizer from the previous design, simply slap a small piece of scrap stabilizer over the hole (from the underside), spray the top, and keep running.

This maintenance of tack is critical. If the adhesion fails, the napkin will shift, and your square corner will become a rhombus. Using a magnetic hoop makes this easier because the flat surface is easy to wipe and spray compared to the deep recess of a tubular hoop.

Cotton Shrinkage After Washing: How to Reduce Distortion Without Reworking Your Whole Process

Shrinkage is the silent killer of embroidery quality. A 100% cotton napkin can shrink 3-5% in a hot dryer.

Managing Expectations:

• Pre-washing: Ideal but impractical for volume production.
• Steam Pressing: The initial press (Step 2) helps pre-shrink the fibers slightly using steam.
• Chemistry: Using spray starch (like Best Press) adds stiffness to the fibers, helping them resist distortion during the stitching process.

If you notice "puckering" (ripples around the design) after the first wash, your stitch density handles might be too high for the fabric. Reduce the density in your software by 10-15%, or switch to a polymesh cutaway stabilizer.

Finishing Like a Shop, Not a Hobby: Tearaway Removal, Cutaway Trimming, and a Clean Backside

The back of the napkin is just as important as the front—guests will flip them over.

The Action:

1. Remove the hoop.
2. Tearaway: Support the stitches with your left hand (pressing down) while gently tearing the stabilizer away with your right hand. Do not just yank, or you will distort the delicate edge stitches.
3. Cutaway: Lift the stabilizer and trim with curved embroidery scissors or "duckbill" applique scissors. Leave a consistent 2-3mm margin around the design. Do not cut into the napkin weave.
4. Jump Stitches: Trim all jump stitches flush. A localized flame (lighter) can be used carefully to seal poly-thread ends, but be extremely careful with cotton fabric (fire hazard).


Production Reality Check: Where Hooping Stations Save Hours (and When to Upgrade Your Tools)

We must distinguish between "hobby time" and "business time." If you are crafting for pleasure, manual measuring is fine. If you are charging money, time is your most expensive raw material.

The combination of a fixture station and magnetic frames cuts hooping time from 90 seconds per unit to 15 seconds per unit. That is the difference between profit and loss.

Tool Upgrade Path: When to pull the trigger?

1. The Pain: "I can't get the logo straight on these shirts/napkins."
   • The Solution: You need mechanical help. A magnetic hooping station solves X/Y alignment errors.
2. The Pain: "My wrists hurt from tightening screws," or "I'm leaving hoop marks on velvet/linen."
   • The Solution: You need ergonomic/physics help. Magnetic Hoops eliminate the wrist strain and the friction burn.
3. The Pain: "I have orders for 500 pieces and I can't keep up."
   • The Solution: You need capacity. This is when you upgrade to a multi-head machine or a high-speed SEWTECH multi-needle embroidery machine system that can run while you hoop the next batch.

Warning (Magnet Safety): Commercial magnetic hoops adhere with significant force (often 10-20 lbs of pressure).
1. Pinch Hazard: Never place fingers between the magnets.
2. Medical Device: Keep these magnets at least 6 inches away from pacemakers or insulin pumps.

The “Show It” Workflow Recap: A Clean, Repeatable Run You Can Scale to Wedding Orders

Let's consolidate the entire process into a linear checklist you can tape to your machine.

Operation Checklist (Run Order):

• Prep: Iron napkin corners with steam until dead flat.
• Adhesive: Apply sticky stabilizer to the bottom magnetic frame.
• Register: Slide napkin V-notch into Hoop Master lower pins; align sides to top pins.
• Clamp: Press top magnetic frame straight down. Listen for the SNAP.
• Trace: Run needle trace to verify clearance (No hoop strikes!).
• Float: Slide extra backing under the hoop (if needed for density).
• Stitch: Run design at ~650 SPM. Listen for smooth operation.
• Refresh: Check tackiness. Mist with spray adhesive if the hold feels weak.
• Finish: Tear/Trim stabilizer and trim jump threads.


The Upgrade That Pays for Itself: Faster Hooping, Cleaner Corners, and Fewer Remakes

Embroidery is a game of variables. The machine needle, the thread tension, the humidity, and the fabric grain are all fighting against precision.

Your job is to eliminate as many variables as possible. Using a fixture eliminates placement variables. Using magnetic frames eliminates fabric distortion variables. Using the right stabilizer eliminates shrinkage variables.

Whether you are running a single-needle home machine or a 15-needle commercial beast, the addition of a hoopmaster station kit and professional magnetic hoops is often the single highest ROI investment you can make after the machine itself. It allows you to say "Yes" to the difficult jobs—napkins, slippery performance wear, distinct corners—with the confidence that number 100 will look exactly like number 1.

FAQ

• Q: How do I prevent hoop burn on cotton or linen napkin corners when using a magnetic embroidery hoop with sticky-back stabilizer?
  A: Stop hooping the napkin fabric; hoop only the sticky-back stabilizer on the magnetic frame and stick the napkin on top.
  • Apply: Stick adhesive stabilizer to the bottom magnetic frame to create a flat “sticky drum.”
  • Press: Iron/steam the napkin corner first so the hem is dead flat before sticking.
  • Clamp: Seat the magnetic top frame straight down—do not “land and slide.”
  • Success check: The napkin surface shows no shiny ring marks and the corner stays square without edge distortion.
  • If it still fails: Re-press the corner and refresh the sticky surface with a light mist of temporary spray adhesive away from the machine.
• Q: How do I align every napkin corner consistently using a Hoop Master 5.5 embroidery hooping station V-notch fixture?
  A: Use the V-notch and alignment pins as the “decision maker” so placement is mechanically registered, not eyeballed.
  • Seat: Slide the napkin corner into the Hoop Master V-notch until it stops.
  • Align: Fan both top edges outward until they touch the upper alignment pins.
  • Hold: Keep the napkin flat and seated while bringing the magnetic frame down.
  • Success check: A light tap does not let the napkin rotate, and each piece lands in the same X/Y position.
  • If it still fails: Re-orient the stack so every napkin is loaded the same way (same hem direction) before registering on the fixture.
• Q: How do I avoid a needle-to-hoop collision (hoop strike) when embroidering deep into a napkin corner with a magnetic hoop on a commercial multi-needle machine?
  A: Always run a physical trace/contour check before stitching to confirm real clearance from the metal frame.
  • Trace: Run the machine trace and watch the needle bar travel around the design boundary.
  • Verify: Confirm the design keeps at least 3 mm clearance from the magnetic frame edge.
  • Start: Only press Start after clearance is visually confirmed across the full trace path.
  • Success check: The needle path never approaches the hoop wall during trace, and the stitch-out begins with no contact or abnormal impact sounds.
  • If it still fails: Re-center or slightly resize/reposition the design in the machine so the border is farther from the frame edge.
• Q: Should I use tearaway or cutaway stabilizer for 100% cotton napkins to prevent “baconing” after washing?
  A: For high-wash cotton napkins, choose soft meshed cutaway; sticky tearaway is better for decorative pieces where a clean back matters more.
  • Choose: Use soft meshed cutaway for restaurant/hotel use and hot wash + tumble dry.
  • Choose: Use sticky tearaway for event/wedding use with gentle wash, air dry, or dry clean only.
  • Combine: Use sticky tearaway hooped + floated cutaway underneath when both clean hooping and wash stability are needed.
  • Success check: After washing, the embroidery area stays flat without rippling or bubbling around the stitches.
  • If it still fails: Reduce design density by about 10–15% in software or switch to a polymesh cutaway as a more flexible foundation.
• Q: How do I fix fabric shifting and puckering on a ~4,000-stitch monogram when using sticky-back stabilizer on napkin corners?
  A: Slow the machine down and add “floated” backing under the hoop as an insurance layer when stitch density is high.
  • Set: Cap speed to about 600–700 SPM for delicate napkin corners.
  • Float: Slide a flat sheet of crisp tearaway or medium cutaway under the hoop (over the needle plate) covering the entire design area.
  • Press: Pause if lifting starts and press the napkin back onto the adhesive before continuing.
  • Success check: The fabric stays flat during stitching and finishes with minimal ripples around the design.
  • If it still fails: Refresh adhesion (light mist spray) and confirm the napkin corner was fully pressed “dead flat” before clamping.
• Q: How do I refresh sticky-back stabilizer adhesion after 3–4 napkins when lint reduces tack, using KK100 or Gunold 505 spray adhesive?
  A: Mist a light “cloud” of temporary adhesive away from the machine and patch holes instead of re-hooping new stabilizer every time.
  • Move: Spray away from the embroidery machine to avoid contaminating the rotary hook area.
  • Mist: Hold the can about 12 inches away and apply a quick, light burst (no puddles).
  • Patch: Cover needle holes with a small stabilizer scrap from the underside, then mist the top and continue.
  • Success check: The napkin corner no longer creeps or rotates when rubbed firmly by hand before stitching.
  • If it still fails: Replace the sticky backing sheet entirely and check that the napkin is not shedding excessive lint from heavy starch or loose weave.
• Q: What magnetic hoop safety rules prevent finger pinches and pacemaker risk when clamping embroidery projects?
  A: Treat commercial magnetic hoops as high-force clamps: keep fingers out of the pinch zone and keep magnets away from medical devices.
  • Keep: Never place fingers between the top and bottom magnetic frames during seating.
  • Seat: Press straight down using the frame edges/handles, not near the magnet join line.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop closes with a clean “snap” and no fingers are ever in the closing path.
  • If it still fails: Slow down the clamping motion and reposition hands to hold the outer rim only before bringing the frames together.
