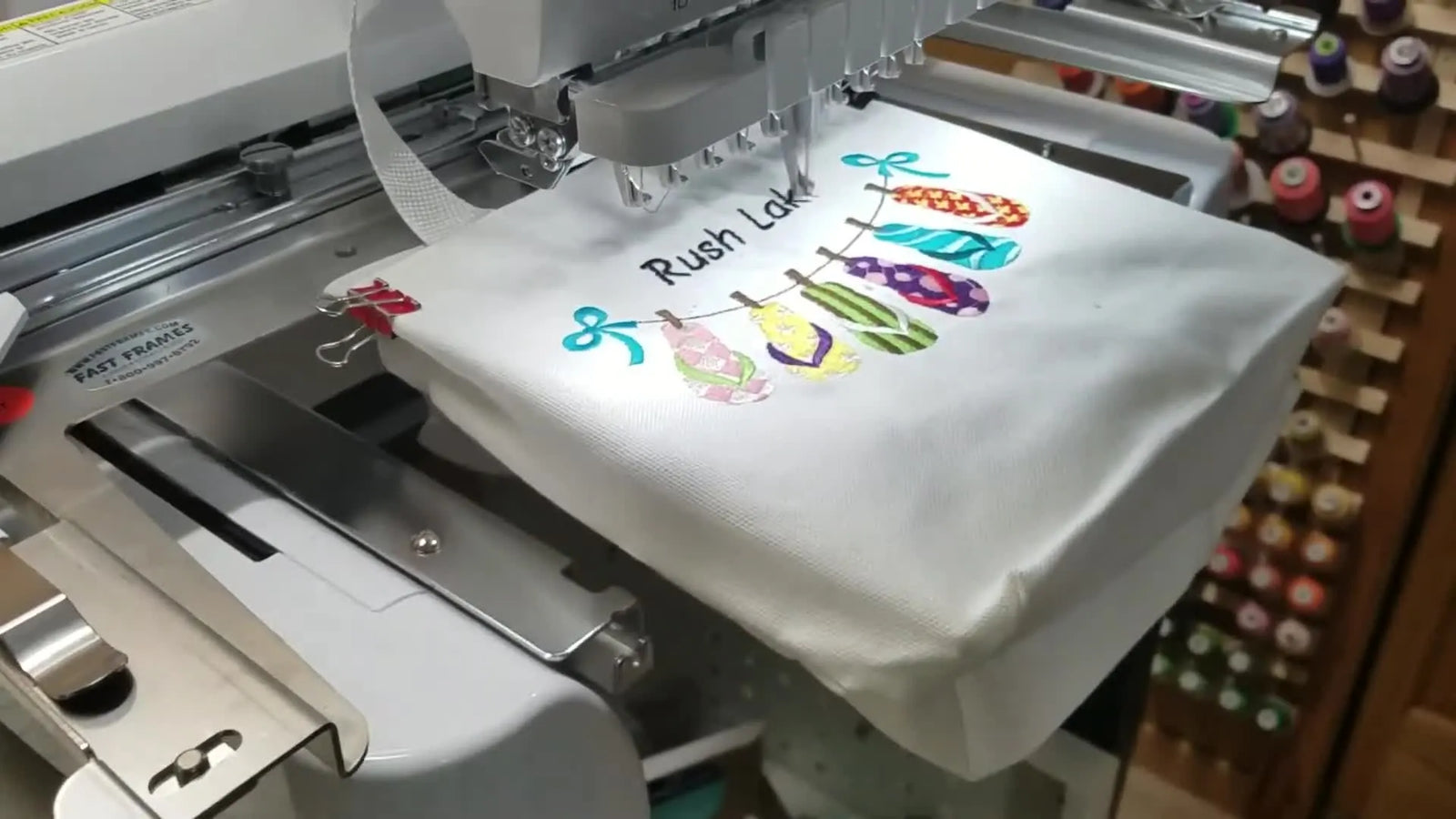

Fast Frames Tote Bag Embroidery on a Brother Multi-Needle: The No-Seam, No-Sticky Method That Saves Needles (and Your Sanity)

The Ultimate Guide to Fast Frames: How to Embroider Tote Bags Without Ripping Seams

If you’ve ever stared at a finished tote bag and thought, “There’s no way I’m ripping that seam open just to hoop it,” you are exactly who Fast Frames were designed for.

Here is the reality of machine embroidery: Physics wins. If you cannot secure the item, the needle will push the fabric, and your design will distort. Fast Frames solve this by allowing you to "float" difficult items, but they introduce a new risk: metal-on-metal collision.

This guide rebuilds the popular "Lori’s method" into a shop-standard workflow. We will move beyond basic instructions and focus on the sensory cues (what it should feel and sound like) and the safety margins that prevent broken needles.

Fast Frames 7-Piece Kit: Why This System Beats “Opening the Seam” on Tote Bags

Fast Frames are an add-on framing system that allows you to slide an “enclosed” item (tote bags, pillow covers, shirt sleeves) onto a metal frame arm instead of forcing the item into a traditional hoop.

Think of it this way: A traditional hoop is a clamp. A Fast Frame is a bridge. It creates a stable platform for the fabric to rest on, supported by adhesive or clips, while the arm connects to the machine.

For new multi-needle owners, this looks intimidating because it involves exposed metal near moving needles. It isn’t complicated—it’s just unfamiliar. Once you establish a safe clearance zone, it is faster than hooping.

Use this term when comparing compatible arm systems: fast frames embroidery.

The Thumb-Screw Assembly on the Fast Frames Large Rectangular Hoop (Do This Before You Touch Stabilizer)

Lori’s assembly sequence is simple, but the tactile feedback is critical for safety.

1. Select the frame: Choose the largest frame that fits inside your tote bag without stretching the fabric seams.
2. Align the arm: Slide the metal frame arm onto the bracket.
3. Secure the screw: Tighten the thumb screw to lock the frame to the mounting arm.

Sensory Check - The "Snug" Point: twist the screw until you feel it stop, then give it one-quarter turn more.

• Too Loose: The frame will pivot during high-speed stitching (600+ SPM), causing registration errors.
• Too Tight: You risk stripping the threads. Do not use pliers; finger-tight is sufficient.

Pro Tip: Assemble this on a flat table, not while leaning over the machine. This ensures the frame is perfectly level.

The “Underneath Stabilizer” Hack: Heavy Tearaway as a Friction Buffer (No Sticky Mess)

Most novices place stabilizer inside the frame or use sticky stabilizer on top. Lori places heavy tearaway stabilizer physically underneath the metal frame.

Why this works (The Physics): When the machine moves the pantograph, drag is your enemy. If the bare metal frame rubs against the machine bed or arm, it creates friction. By placing the stabilizer under the frame, you create a smooth, papery layer that glides effortlessly over the machine bed. It acts as a dry lubricant.

Your Material List:

• Stabilizer: Heavy Tearaway (2.5oz - 3.0oz). Do not use thin/soft backing here; it needs to be rigid.
• Adhesive: Avoid sticky backing. It gums up your needles and leaves residue on the frame.

When shopping for these specific supplies, you are looking for accessories compatible with fast frames embroidery hoops.

Prep Checklist (Do this at the "Hooping Station" table)

• Stabilizer Size: Cut wide enough to extend 1 inch past all frame edges.
• Frame Assembly: Thumb screw is tight; frame does not wiggle on the arm.
• Tool Check: Green clip tool is ready; clips are counted.
• Pre-Flight Inspection: Check the tote bag for hidden pockets or zippers that could obstruct the needle path.
• Consumables: Fresh needle installed (size 75/11 sharp is standard for canvas).

The Green Metal Clip Attachment Tool: How to Load Clips So They Actually Snap On

This is the number one frustration point: "My hands hurt" or "The clips allow the stabilizer to slip."

In the video, Lori uses a green-handled metal clip attachment tool. The mechanical leverage is necessary because tight clips equal stability.

1. Load: Slide a metal clip into the tool mouth.
2. Align: Position the tool over the frame edge and stabilizer.
3. Action: Push down and forward until you hear a sharp CLICK.

The "Pattern" Strategy: Do not place clips randomly. Place them North, South, and East. Leave the West (top/open side) free of clips initially so you can slide the tote bag on without snagging.

If you are using different brands, the tool color may vary, but the mechanics of leverage remain constant. You will see these tools often when searching for durkee fast frames.

Setup Checklist (The "Drum Skin" Standard)

• Position: Stabilizer is strictly under the metal frame.
• Tension: Stabilizer feels taut across the frame, like a drum skin. No ripples.
• Clips: Secured on 3 sides.
• Clearance: Clips are pushed all the way onto the bar, not hanging halfway off.
• Safety: The clip tool is placed away from the machine to prevent it falling into the mechanism.

Warning: Physical Safety
These spring-steel clips snap shut with significant force. Keep your fingertips clear of the "snap zone." Never try to force a clip on with your bare thumbs if you are doing high-volume production; you will develop repetitive strain or pinch blisters.

Machine Mounting on the Brother Entrepreneur Pro X: Slide-In Lock, Then Hands Off

Lori mounts the assembled frame by sliding the Fast Frame arm into the machine’s pantograph bracket (Arm A or B, depending on your machine setup).

The Audio Cue: Slide the arm in until it hits the backstop. You should feel a solid "thud." Then, lock the machine's retention knobs. Once locked, give the frame a gentle vertical tug. It should feel integrated with the machine, with zero play.

If you are operating a powerhouse like the brother entrepreneur pro x pr1055x 10-needle embroidery machine, ensuring the heavy frame is seated correctly prevents wear on your pantograph motors.

The Perimeter Trace on the Brother Screen: The Needle-Saving Ritual Before You Load the Tote

CRITICAL SAFETY STEP: This is the only way to guarantee you won't break a needle or shatter the frame.

Because this is a third-party frame, your machine might believe it has a larger stitch field than it actually does.

1. Load Design: Select your file.
2. Trace Mode:Press the "Trial" or "Trace" button (usually a square icon with arrows).
3. Visual Confirmation: Watch Needle #1. It must travel the perimeter of your design.
   • Pass: The needle stays at least 5mm away from the metal frame edges.
   • Fail: The needle hovers over the metal. STOP. Resize the design or move the center point.

Concept Check: The machine doesn't "know" where the metal clips are. You are the sensor.

Floating the Canvas Tote Bag Over the Frame Arm: Centering Without Opening Seams

Now, perform the "Float." Slide the tote bag opening over the frame arm.

The Physics of floating: Since the fabric isn't clamped in a hoop, it relies on friction and surface area to stay put. Canvas is heavy. If the bag hangs off the machine, gravity will pull the design downward, causing oval circles or gaps in outlines.

This technique of draping the item over a secured stabilizer is the industry standard definition of a floating embroidery hoop method.

Binder Clips as a Tote Bag “Seatbelt”: Stop Shifting Before It Starts

Lori uses standard office binder clips (red in the video) to clamp the excess tote bag fabric to the Fast Frame bar outside the stitch area.

Why this is mandatory: These clips act as seatbelts. They manage the weight of the bag so gravity doesn't drag the fabric while the needle is trying to stitch.

• Placement: Clip the fabric to the metal arm, far away from the needle path.
• Slack Check: The fabric in the center (where the design goes) should be flat, but not stretched so tight that it distorts the weave.


Operation Checklist (The "Green Light" Sequence)

• Center: Design is centered visually on the bag.
• Seatbelts: Binder clips are securing the tote weight to the frame arm.
• Path Clear: Handles and straps are taped back or clipped away from the stitch field.
• Trace Confirmed: You have physically watched the needle trace the perimeter.
• Speed Set: Machine speed lowered to 600-700 SPM (Speed Per Minute) for the first run.

Running the Design: What “Good” Looks Like While the Machine Is Stitching

Lori runs a multi-color design. While it stitches, keep your senses sharp.

The "Sweet Spot" Data:

• Speed: fast frames are heavy. Do not run at 1000 SPM. 600-700 SPM is the sweet spot for quality and safety.
• Sound: You should hear a rhythmic hum-thump-hum. A sharp clack-clack usually means the frame is bouncing against the needle plate—stop immediately and add support or lower speed.


Clean Removal and Clip Recycling: The Fast Frames Teardown That Saves Money

After stitching:

1. Remove binder clips.
2. Slide bag off.
3. Use the reverse end of the green tool to pop the stabilizer clips off.

Shop Practice: Have a magnetic bowl or tray nearby. Clips vanish easily, and buying replacements slows down production.

Troubleshooting Fast Frames Problems: Structured Solutions

If things go wrong, use this hierarchy of repair (Start with the physical, end with the digital).

Stabilizer Decision Tree for Tote Bags

Choosing the right backing prevents puckering.

1. Is the Tote Stretchy?
   • YES: Use Poly-Mesh Cutaway. (Tearaway will cause the design to distort).
   • NO (Standard Canvas): Go to step 2.
2. Is the Design Dense (10,000+ stitches)?
   • YES: Use Heavy Tearaway (3.0oz) + a layer of light tearaway floated under the hoop for support.
   • NO: Standard Heavy Tearaway is sufficient.

When Fast Frames Feel "Too Slow": The Upgrade Path

Fast Frames are great, but they involve thumbscrews, separate clips, and manual alignment. If you are moving from "Hobbyist" to "Production Shop," you will hit a wall where your wrists hurt and setup takes too long.

Here is the professional upgrade logic:

Level 1: The "Quality of Life" Upgrade (Magnetic Hoops)

If you hate the physical struggle of clips and screws, or if you are getting "hoop burn" on delicate items, Magnetic Hoops are the solution.

• Why: They use powerful magnets to clamp fabric instantly. No screws, no force.
• Target: Single-needle users (SEWTECH Magnetic Hoops for Home Machines) and Multi-needle pros (SEWTECH MaggieFrames).
• Result: Hooping time reduced from 3 minutes to 30 seconds.

Warning: Magnetic Field Safety
Magnetic Hoops contain strong industrial magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Level 2: The "Capacity" Upgrade (Multi-Needle Machines)

If you are rejecting orders because you can't thread colors fast enough:

• Why: A single-needle machine requires a manual thread change for every color stop. A SEWTECH Multi-Needle holds 10+ colors ready to fire.
• Result: You press start and walk away. The machine does the work, not you.

When you are ready to professionalize your workflow, researching proper hooping for embroidery machine techniques and upgrading your hardware is the only way to scale.

The “Too Complicated” Comment: How to Make This a 3-Minute Routine

If the checklist above seems long, remember: Safety checks take seconds.

Once you internalize the routine—Stabilizer Under, Clips On, Trace, Float, Stitch—it becomes muscle memory.

To speed this up further, set up a dedicated hooping station for embroidery machine. Create a space where your clips, stabilizer, and frames are always within arm's reach. Order brings speed, and speed brings profit.

Final Takeaway

Lori’s method works because it respects the mechanics of the machine. It separates the stabilizer (which creates the tension) from the fabric (which just floats along for the ride). Master the sensory checks—the click of the clip, the thud of the mount, and the hum of the motor—and you will produce flawless tote bags every time.

FAQ

• Q: How do I tighten the Fast Frames thumb screw on a Fast Frames Large Rectangular Hoop so the frame does not pivot at 600+ SPM?
  A: Tighten the Fast Frames thumb screw to the “snug point,” then add only a quarter-turn—finger-tight only.
  • Assemble the Fast Frames arm and frame on a flat table before going to the machine.
  • Twist the thumb screw until it stops, then turn 1/4 turn more (do not use pliers).
  • Re-check that the frame cannot wiggle or pivot on the mounting arm.
  • Success check: The frame feels level and solid with zero play when you gently try to move it.
  • If it still fails… lower speed and re-seat the arm fully in the machine bracket before stitching.
• Q: When using Durkee Fast Frames on a Brother Entrepreneur Pro X PR1055X, where should heavy tearaway stabilizer go to prevent friction and drag?
  A: Place heavy tearaway stabilizer physically underneath the metal Fast Frame as a friction buffer (not sticky stabilizer on top).
  • Cut heavy tearaway (about 2.5–3.0 oz) so it extends at least 1 inch past all frame edges.
  • Lay the stabilizer under the metal frame so the frame glides on the paper layer.
  • Avoid sticky backing if residue and needle gumming are concerns.
  • Success check: The frame slides smoothly over the machine bed with a “papery glide,” not a dragging scrape.
  • If it still fails… verify the stabilizer is rigid enough (not thin/soft) and is not wrinkled under the frame.
• Q: How do I load Fast Frames spring-steel stabilizer clips with the green metal clip attachment tool so the clips actually snap on and do not slip?
  A: Use the green clip tool for leverage and apply clips in a controlled 3-side pattern instead of random placement.
  • Load one clip into the tool mouth, then align the tool over the frame edge and stabilizer.
  • Push down and forward until a sharp click confirms the clip is fully seated.
  • Clip North, South, and East first; leave the West/top/open side free so the tote can slide on cleanly.
  • Success check: Each clip sits fully on the bar (not halfway off) and the stabilizer feels taut “like a drum skin.”
  • If it still fails… make sure the stabilizer edge is single-layer (not folded thick) where the clip grabs.
• Q: How do I prevent needle strike and needle breakage when using Fast Frames on a Brother Entrepreneur Pro X PR1055X with a third-party frame?
  A: Always run the Brother PR1055X perimeter trace (Trial/Trace) and confirm at least 5 mm clearance from the metal frame before stitching.
  • Load the design, then press Trial/Trace and watch Needle #1 trace the full perimeter.
  • Stop immediately if the needle path hovers over metal; move the design or reduce the design size.
  • Re-check clearance after any design resize or re-centering.
  • Success check: Needle #1 stays visibly inside the safe zone with at least 5 mm from frame edges during the trace.
  • If it still fails… choose a smaller design or reposition the center point rather than “risking one run.”
• Q: How do I stop birdnesting (thread loops) when floating a canvas tote bag on Fast Frames because the tote bag is flagging?
  A: Reduce fabric lifting by securing the tote weight with binder clips and add temporary adhesive to the stabilizer if needed.
  • Clip excess tote fabric to the Fast Frame bar outside the stitch area to act like a “seatbelt” against gravity drag.
  • Keep the design area flat but not stretched tight enough to distort the weave.
  • If flagging continues, apply a light layer of temporary spray adhesive to the stabilizer.
  • Success check: The fabric stays flat during stitching (no visible “lifting” with needle penetrations) and loops do not form underneath.
  • If it still fails… slow down the run and re-check that the stabilizer is taut and fully secured on three sides.
• Q: What Brother Entrepreneur Pro X PR1055X running speed is a safe starting point for Fast Frames to prevent frame bouncing and the “clack-clack” sound?
  A: Start at 600–700 SPM for Fast Frames, and drop to 500 SPM if any bouncing or clacking starts.
  • Set speed to 600–700 SPM for the first run because the Fast Frame assembly is heavy.
  • Stop immediately if you hear sharp clack-clack sounds and lower speed before continuing.
  • Add support under the frame arm (gentle hand support or a table extension) if the frame is not level.
  • Success check: The machine sound stays a steady hum-thump-hum without sharp clacking, and the frame does not visibly bounce.
  • If it still fails… re-check the thumb screw snugness and confirm the arm is fully seated and locked in the pantograph bracket.
• Q: What safety rules should operators follow when using SEWTECH Magnetic Hoops (for home machines or multi-needle MaggieFrames) compared with Fast Frames clips and screws?
  A: Treat SEWTECH Magnetic Hoops as pinch hazards and keep magnets away from medical devices and sensitive electronics.
  • Keep fingers out of the “snap zone” because magnets can clamp together instantly.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Do not place phones or credit cards directly on the magnets.
  • Success check: The hoop closes cleanly without finger pinches, and the work area stays clear of devices that magnets can affect.
  • If it still fails… slow down the handling steps and set magnets down on a clear bench so parts cannot jump together unexpectedly.
