Fast Frames on the Ricoma EM-1010: The 8-in-1 Workflow That Makes Bibs & Burp Cloths Stop Fighting You

If you have ever tried to hoop a thick, multi-layered burp cloth or a tiny baby bib using a standard tubular hoop, you know the specific kind of frustration it brings. You battle the bulk, the seams fight against the inner ring, and the result is often "hoop burn"—permanent friction marks that ruin detailed fabrics. Or worse, the fabric pops out mid-stitch.

The workflow demonstrated in this video using an 8-in-1 Fast Frame on a Ricoma EM-1010 is not just a "hack"; it is a production standard for difficult items. By using a clamping system combined with sticky stabilizer, you eliminate the friction of traditional hooping.

However, machines like the EM-1010 are unforgiving. If your setup is loose, or your alignment is off by a millimeter, you risk a frame strike that can break needles or damage the pantograph.

This guide takes the video’s workflow and subjects it to a "safety stress test." We will break down the mechanics, add the sensory checks experienced operators use to ensure safety, and look at where you might eventually need to upgrade your wider toolkit for efficiency.

When the Ricoma EM-1010 Feels Intimidating: Here’s the Calm, Repeatable Fast Frame Routine

The creator in the video is tackling a common high-margin order: personalized baby gift sets (bibs and burp cloths). She uses a Ricoma EM-1010, a workhorse 10-needle machine. While the video focuses on this specific model, the physics apply to almost any multi-needle machine using a chassis-style frame system.

The Mental Shift: Standard home machines often use gravity and a drop-in bobbin. Commercial multi-needle machines use a vertical rotary hook and a pantograph arm that moves at high speeds (often 800+ stitches per minute).

Two absolute truths to ground you before we start:

1. Hooping is 90% of the battle. If the fabric is not neutral (flat and tension-free), the machine will sew distortions permanently into the fabric.
2. Frames are dumb; you must be smart. The Fast Frame holds the stabilizer. You hold the fabric. If you stick the fabric down crooked, it sews crooked.

If you are currently searching for a proven workflow for your ricoma em 1010 embroidery machine, treating the setup phase as a "flight checklist" rather than a chore is the secret to avoiding needle breaks.

Heat n Bond Applique Prep That Survives Washing (and Doesn’t Bubble Up Later)

Applique on baby items is high-stakes because these items are washed constantly. If the fabric isn't bonded to the base item, it will bubble and wrinkle after the first dryer cycle. The video demonstrates using Heat n Bond Lite, a standard iron-on adhesive.

The Sensory Check (Touch & Sight):

• Touch: Peel the paper backing off the applique fabric. Run your thumb over the back. It should feel smooth and slightly rubbery (that is the adhesive).
• Sight: Look for the shiny side. As the video emphasizes, the shiny side must face down onto your garment.

Hidden Consumable Note: Always keep a dedicated scraping tool or tweezers handy. Sometimes the paper backing tears, and picking it off with fingernails transfers oils to the adhesive.

Why this works mechanically: The embroidery needle perforates the fabric thousands of times. This perforation reduces the structural integrity of the weave. The Heat n Bond acts as a subcommand layer, fusing the applique fibers together so they don't fray when the needle allows the satin stitch to bite into the edge.

The 8-in-1 Fast Frame Parts: Know What You’re Looking At Before You Tighten Anything

The video lays out the Fast Frame system. This is an aftermarket-style attachment that replaces your standard tubular arms. The creator selects a specific window size for the project, noting it measures approximately 7.5 inches wide by 5.5 inches high.

The "Safe Zone" Concept: Just because the metal window is 7.5" wide doesn't mean your design can be 7.5" wide.

• Physical Limit: The metal frame edge.
• Safety Limit: You need at least 10mm (approx 0.5 inch) of clearance between your needle and the metal bar.
• Your Max Design Size: Treat this window as having a max embroidery field of roughly 6.5" x 4.5" to be absolutely safe from striking the frame.


Assemble the 8-in-1 Fast Frame Window the Right Way (Slope Down, Pins Seated, Knob Tight)

This is the most common failure point for beginners using arm-style frames. If this is assembled backward, the height will be wrong, and the needle bar will smash into the hoop mechanism.

The Assembly Ritual:

1. Identify the Slope: Look at the black bracket arm. One side slopes/angles down. The slope must face DOWN.
2. Locate the "Nipples": The silver window frame has two small raised alignment pins.
3. The Click: Mate the window pins into the holes on the bracket. You should feel them seat firmly. There should be zero "wiggle" once the black thumbscrew is tightened.

Sensory Check: Tighten the knob until you feel firm resistance. Then, try to wiggle the silver frame side-to-side. If it moves at all, it is not seated on the pins. Loosen and re-seat.

Mount the Fast Frame on the Ricoma Pantograph Arms Like a Standard Hoop (No Drama)

The assembled arm slides into the machine's pantograph bracket just like your standard tubular hoops.

Critical Alignment Check: When you slide the arm in, listen for the engagement click (depending on your machine model's locking mechanism). Ensure the arm is parallel to the machine bed. If it looks angled upward or downward, pull it out—you likely have the bracket upside down or not seated in the pantograph slot correctly.

The “Hidden” Prep: Sticky Stabilizer Setup That Won’t Block the Screw Holes

Here is a detail that separates professionals from frustrated hobbyists. The video uses sticky tear-away stabilizer (PSA stabilizer).

The Process:

1. Cut a piece of sticky stabilizer about 1 inch larger than the frame on all sides.
2. Peel the paper (score it with a pin to get it started).
3. Stick the stabilizer to the underside of the frame window.
4. The Critical Step: As you fold the excess stabilizer up the sides to secure it, Do not cover the screw holes or the attachment bracket. If you cover these, the frame won't mount flush to the arm.

Warning: Mechanical Safety
Never trim your applique fabric or adjust the frame screws while the embroidery machine is running or ready to run. Always engage the "Emergency Stop" or remove the frame entirely before bringing scissors near the needle bar. One accidental bump of the "Start" button can result in a needle through your finger.

Prep Checklist (Do this BEFORE touching the fabric)

• Adhesive Check: Heat n Bond applied to applique fabric; shiny glue side identified.
• Frame Inspection: Bracket slope is facing down. Alignment pins are seated. Knob is tight.
• Stabilizer Application: Sticky stabilizer applied to the bottom of the frame.
• Clearance Check: Screw holes and mounting slots are free of stabilizer obstruction.
• Consumables Ready: Applique scissors (curved tip), binder clips, and design printout.

If you are building a repeatable workflow around fast frames embroidery hoops, strict adherence to this prep list prevents 90% of mechanical errors.

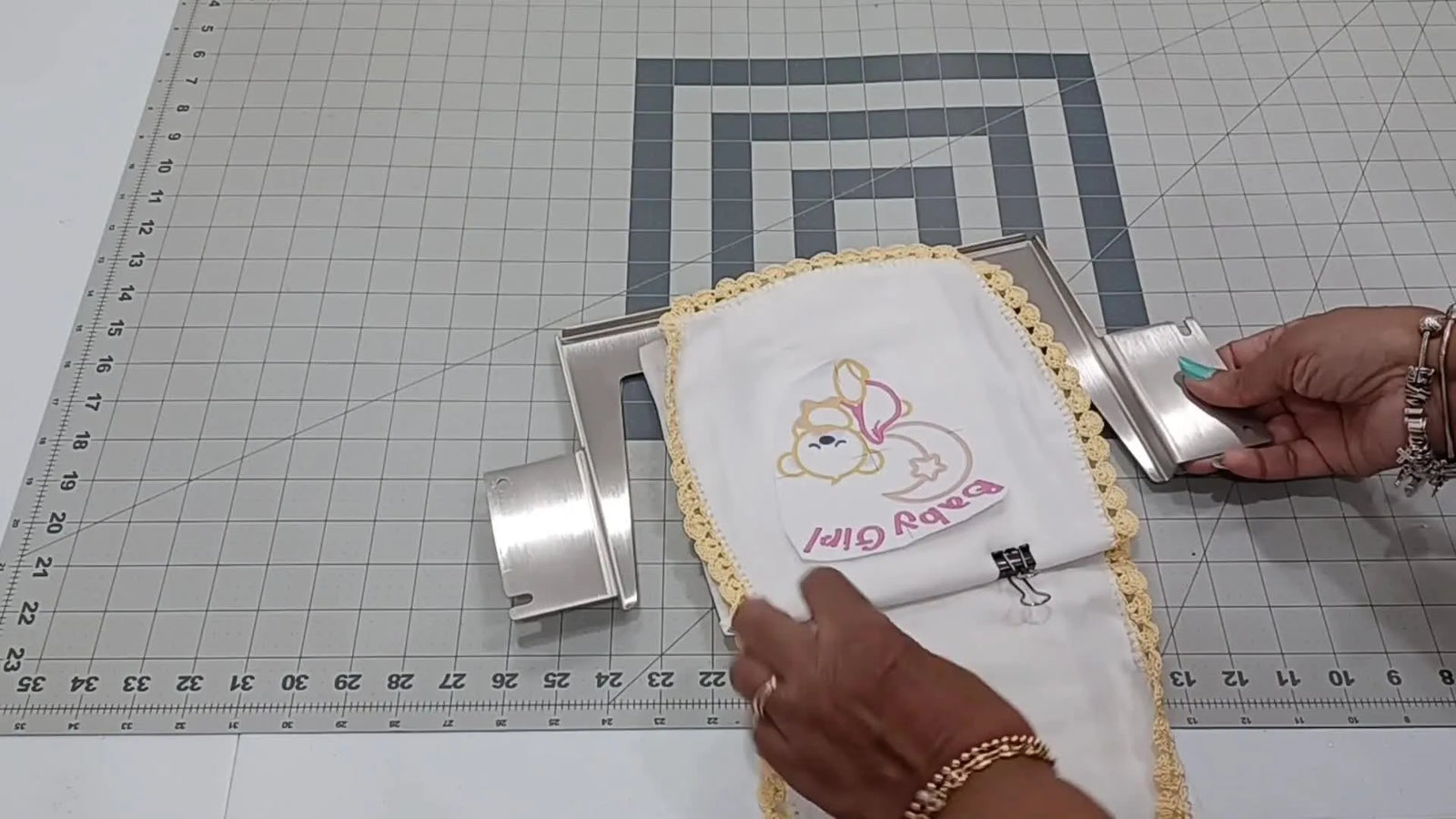

Hooping Burp Cloths on Sticky Stabilizer: The Notch-and-Fold Centering Trick That Actually Works

The creator is using a "cloth diaper" style burp cloth, which features a thick, padded center panel. Hooping this traditionally is a nightmare because the thick center pushes against the thin sides, causing slip.

The "Float" Technique:

1. Find Center: Fold the burp cloth in half (top to bottom) and crease it with your finger or an iron. This visible crease is your Y-axis centerline.
2. Locate the Notch: The Fast Frame has a small triangular notch filed into the top and bottom center of the silver frame.
3. Align & Press: Open the cloth above the frame. Hover it so the folded crease aligns with the metal notches.
4. Press Down: Gently press the fabric onto the sticky stabilizer. Do not smooth it out with force. If you "iron" it down with your hand, you will stretch the fabric. Just pat it down so it sticks.

Verification: Place your printed paper template (from software like Embrilliance) on top to confirm the design lands exactly where you expect.

Use Hat Clips/Binder Clips as a Boundary Marker (and a Lift-Prevention Tool)

In the video, the creator attaches standard black binder clips (often used for hats) to the bottom edge of the frame/stabilizer sandwich.

Functional Benefits:

1. Gravity Management: Heavy items like burp cloths hang off the frame. As the machine moves (Y-axis movement), the weight of the cloth drags on the stabilizer. The clips lock the fabric to the frame, relieving strain on the adhesive.
2. Visual "Do Not Cross" Line: The shiny silver clips act as a visual warning. If your needle bar gets too close to the clips, hit stop immediately.

For those refining their current hooping for embroidery machine technique, clips are the cheapest "insurance policy" you can buy to prevent design registration errors.

Setup Checklist (Right before pressing Start)

• Mounting Security: Frame is clicked into the pantograph arm; no wiggle.
• Surface Check: Fabric is flat on the sticky stabilizer with no wrinkles.
• Safety Clips: Clips attached at the bottom (clear of the stitch path) to support fabric weight.
• Needle Clearance: Manually trace the design (using the machine's "Trace" button). Watch the needle #1 bar. Does it come within 10mm of the metal frame or clips?
• Bobbin Check: Do you have enough bobbin thread for the full run?


The Applique Stitch Sequence on the Ricoma EM-1010: Placement, Cover, Tack-Down, Trim (Repeat)

The video demonstrates the standard machine applique rhythm. Here is how to manage it for quality:

1. Placement Stitch (Run Stitch): The machine sews a single outline.
   • Tip: Lightly spray your applique fabric back with spray adhesive before placing it. This prevents it from shifting before the needle tacks it down.
2. Tack-Down Stitch: The machine sews the fabric down.
   • Pro Spec: If your machine allows it, slow the speed down to 600 SPM for this step. High speed here can push the fabric, creating a "bubble."
3. The Pause & Trim: The machine stops and moves the frame out (if programmed).
   • Technique: Use curved-tip applique scissors (Double Curved specifically). Rest the curve on the fabric and cut. This creates a uniform 1-2mm allowance.

Common Mistake: Trimming while the hooped item is still locked in the machine pantograph. While pros do this, beginners should be very careful. Removing the hoop to trim on a flat table is safer until you build muscle memory.

Hooping a Baby Bib on the Fast Frame: Same Notch Logic, Different Shape Problems

Bibs are awkward. They have neck holes, snaps, and rounded corners. The creator uses the same "Notch Logic" here.

The "Neutral" Hand: When hooping a bib, the neck straps will want to curl or flop into the sewing field.

• Action: Use painter's tape or extra pins to secure the neck straps away from the needle path.
• Alignment: Use the center notch. Trust the notch. Do not eyeball it.

If you are comparing various hoops for ricoma solutions, look for systems that allow you to pin or clamp irregular shapes like these straps out of the way easily.

Sticky Stabilizer Too Aggressive? The Video’s Fix (Regular Tear-Away + Temporary Spray Adhesive)

Sometimes, "Sticky" stabilizer is too sticky. If you are embroidering on delicate terry cloth or loose weaves, ripping the stabilizer off can pull loops of thread out, ruining the towel.

The "Hybrid" Solution Shown:

1. Use standard (non-sticky) tear-away stabilizer.
2. Spray it lightly with a temporary adhesive spray (like KK100 or 505 Spray).
3. Hoop as normal.

This allows you to control the "tack." For delicate items, a light mist is enough to hold it but releases easily without pulling fibers.

Stabilizer Decision Tree for Bibs & Burp Cloths (Fast Frame Friendly)

Use this logic flow to determine your consumable setup.

Start: What is the fabric texture?

1. Smooth / Tight Weave (Standard Bibs, Flat Cotton):
   • Primary Choice: Sticky Tear-Away.
   • Why: Fast workflow, strong hold, leaves no residue on smooth backing.
2. Looped / Fuzzy / Delicate (Terry Cloth, Plush Burp Cloths):
   • Primary Choice: Regular Tear-Away + Light Spray Adhesive.
   • Why: Prevents "loop pulling" (unraveling the towel) when removing stabilizer.
   • Top-side: Consider adding a layer of Water Soluble Topping (Solvy) so stitches don't sink into the pile.
3. Stretchy Knits (Onesies - if you adapt this method):
   • Primary Choice: Sticky Cut-Away.
   • Why: Tear-away will fail on knits; stitches will pop. You need structural support that stays forever.


The “Why” Behind the Notch, the Clips, and the Tear-Away: Physics That Prevents Shifting

Understanding the mechanics removes the fear.

• The Notch: Provides a mechanical zero-point. It ensures that Bib #1 and Bib #50 look identical.
• The Sticky Bond: Replaces "hoop tension." In a normal hoop, friction holds the fabric. Here, chemical adhesion holds the fabric. It eliminates "hoop burn" because there is no outer ring crushing the fibers.
• The Clips: Combat inertia. As the frame jerks back and forth at 800 SPM, the heavy cloth acts like a pendulum. The clips anchor that pendulum to the rigid frame perfectly.

The Progression to Efficiency: The 8-in-1 frame is excellent for "hard-to-hoop" items. However, manually screwing a thumbscrew tight for every single item creates wrist strain over time.

If you find yourself doing production runs of 20+ bibs, this manual tightening becomes the bottleneck. This is where the industry pivots to Magnetic Hoops.

• Magnetic Hoops (like those from SEWTECH) use powerful magnets to clamp fabric instantly without screws.
• They reduce "hooping time" from ~45 seconds to ~10 seconds.
• They eliminate the "thumb pain" of tightening knobs.

Warning: Magnet Safety
Magnetic hoops are industrial tools. They carry a pinch hazard—if your finger is caught between the magnets, it will hurt. Additionally, keep them away from pacemakers and sensitive electronics.

For a practical upgrade path: Standard frames are for learning; magnetic embroidery hoop systems are for earning. When your volume increases, moving to magnetic frames is the logical next step to protect your wrists and speed up your output.

Finishing Like a Pro: Trim, Press, and Pack

The video concludes with a crucial step often skipped by hobbyists: The Final Press.

Why Press?

1. Re-activate Adhesive: Pressing the finished applique ensures the Heat n Bond is permanently set.
2. Remove Hoop Marks: Even with Fast Frames, handling can wrinkle fabric. A steam press returns the grain to neutral.

The "Boutique" Standard: Turn the bib over. Trim any long "jump threads" or "tails" on the back. Customers judge quality by the backside of the embroidery.

Operation Checklist (Post-Run)

• Frame Strike Check: Inspect the metal frame for any needle nicks (signs of near-misses).
• Stability Check: Did the design shift? (If yes, use more clips or fresher sticky stabilizer next time).
• Trim Quality: Applique edges are cut clean (no whiskers).
• Backside Clean: Jump threads trimmed to <3mm.
• Adhesion: Applique pressed and secure.

The Upgrade Conversation: When to Move Beyond Basic Hooping

If you are just starting with your Ricoma, the Fast Frame system included with your machine is a fantastic learning tool. It teaches you about stabilization and placement without the complexity of tubular hooping.

However, as you grow, identify your pain points:

• Pain: "I hate cutting sticky stabilizer every time." -> Solution: Buy pre-cut stabilizer squares.
• Pain: "My hands hurt from tightening the frame." -> Solution: Upgrade to Magnetic Hoops (SEWTECH offers compatible models for Ricoma) to snap fabric in place instantly.
• Pain: "I can't keep up with orders." -> Solution: This is when a second multi-needle machine becomes a viable business expense.

If you are looking for an embroidery hooping system that balances cost and performance, start with the master-level technique shown in this video. master the "Sticky + Clip" method. Once you have that down, any tool upgrade you make will simply be an accelerator for your existing skills.

Quick Troubleshooting: Symptoms & Fixes

Symptom: White thread showing on top of the design.

• Likely Cause: Bobbin tension too loose or top tension too tight.
• Quick Fix: Clean the bobbin case area (lint check).

Symptom: Applique fabric is peeling up at the edges.

• Likely Cause: Heat n Bond wasn't ironed enough, or lack of "Tack Down" stitch density.
• Quick Fix: Re-press with iron. If that fails, run the "Tack Down" stitch again (carefully aligned).

Symptom: Needle keeps breaking.

• Likely Cause: Adhesive buildup on the needle (from the sticky stabilizer/spray).
• Quick Fix: Wipe the needle with rubbing alcohol or change to a Titanium or Non-Stick needle.

Symptom: Sticky stabilizer isn't sticking anymore.

• Likely Cause: Lint buildup from previous bibs.
• Quick Fix: Patch the hole with a scrap piece of sticky stabilizer, or peel it all off and refresh the window.

Symptom: Fabric "flagging" (bouncing) causing skipped stitches.

• Likely Cause: Fabric isn't secured near the sewing area.
• Quick Fix: Use a sticky hoop for embroidery machine method (refresh your adhesive) or add water-soluble topping to clamp the fabric layers down.

Whether you stick with the 8-in-1 frame or upgrade to 8 in 1 hoop ricoma magnetics, the principle remains: Support the fabric, mark your boundaries, and respect the machine's physics. Happy stitching!

FAQ

• Q: How do I prevent a Ricoma EM-1010 frame strike when assembling and mounting an 8-in-1 Fast Frame window?
  A: Treat the 8-in-1 Fast Frame assembly as a safety checklist: correct bracket orientation, pins fully seated, then trace the design before stitching.
  • Identify the bracket slope and install it with the slope facing DOWN before tightening anything.
  • Seat the silver window onto the alignment pins fully, then tighten the knob and re-seat if any wiggle remains.
  • Mount the arm flush and parallel in the pantograph bracket, then run the machine “Trace” and watch needle #1 clearance.
  • Success check: The window has zero side-to-side movement, and the trace path stays at least ~10 mm away from metal bars and clips.
  • If it still fails: Reduce the design size to stay inside a safer field (about 6.5" x 4.5" for a 7.5" x 5.5" window) and re-trace.
• Q: How do I keep sticky stabilizer from blocking Fast Frame screw holes and causing poor mounting on a Ricoma EM-1010?
  A: Apply sticky tear-away stabilizer to the underside, but keep every screw hole and mounting slot completely clear so the frame sits flush.
  • Cut stabilizer about 1 inch larger than the window, peel the paper, and stick it to the BOTTOM of the window.
  • Fold excess stabilizer up the sides for grip, stopping short of screw holes and the attachment bracket area.
  • Inspect the mounting points before sliding the arm into the machine.
  • Success check: The frame mounts flush with no gap/rocking, and the arm locks in without being forced.
  • If it still fails: Peel off and refresh the stabilizer on the window (or patch damaged areas with a scrap of sticky stabilizer).
• Q: How do I center a thick burp cloth on sticky stabilizer using the 8-in-1 Fast Frame notch marks without stretching the fabric?
  A: Use the notch-and-fold method and “pat” the fabric onto the adhesive—do not smooth hard or you may stretch the grain.
  • Fold the burp cloth top-to-bottom to make a visible center crease (Y-axis centerline).
  • Align the crease to the Fast Frame’s top and bottom center notches while hovering above the sticky stabilizer.
  • Press down gently to tack the fabric in place, then verify placement using a printed template.
  • Success check: The crease lines up exactly with both notches, and the fabric lies flat with no ripples or pulled corners.
  • If it still fails: Lift and re-place the fabric (do not drag it), and add binder clips to control fabric weight pull.
• Q: How do binder clips prevent shifting when hooping burp cloths on an 8-in-1 Fast Frame for a Ricoma EM-1010 run?
  A: Binder clips act as a weight-support and boundary marker, reducing fabric drag that can shift the design at high stitch speeds.
  • Clip the bottom edge of the stabilizer/fabric “sandwich” so the hanging cloth weight is anchored to the rigid frame.
  • Position clips clearly outside the stitch path so they never enter the traced area.
  • Use the clips as a visual “do not cross” line during the trace and first stitches.
  • Success check: During tracing, the needle path stays clear of clips, and the fabric does not creep downward as the machine moves.
  • If it still fails: Add more support clips or refresh the sticky stabilizer so adhesion is stronger.
• Q: How do I stop applique fabric from bubbling or peeling after washing when using Heat n Bond Lite on baby bibs and burp cloths?
  A: Confirm Heat n Bond Lite orientation and bonding, then re-press after stitching so the adhesive fully sets for wash durability.
  • Feel the applique back for the smooth, slightly rubbery adhesive layer and visually confirm the shiny side faces DOWN onto the item.
  • Keep tweezers/scraper ready if paper backing tears so oils from fingers don’t contaminate adhesive.
  • After embroidery, press the finished applique to re-activate and lock the bond.
  • Success check: Edges lie flat with no lifting, and the applique surface looks smooth (no bubbles) after pressing.
  • If it still fails: Re-press and consider a second tack-down pass (carefully aligned) to improve edge hold.
• Q: What is the safest way to trim applique during a Ricoma EM-1010 run to avoid needle injuries?
  A: Never trim or adjust frame hardware while the Ricoma EM-1010 is running or ready to run—stop the machine first and create distance from the needle bar.
  • Engage Emergency Stop (or fully stop the run) before bringing scissors near the needle area.
  • If you are new, remove the frame and trim on a flat table until muscle memory is reliable.
  • Use curved-tip (double-curved) applique scissors and cut a consistent 1–2 mm allowance.
  • Success check: Hands and scissors stay completely clear of the needle zone, and trimming is clean without nicking base fabric.
  • If it still fails: Program a safer pause-and-move-out step in the design sequence (if available) or keep removing the frame to trim.
• Q: What should I do if a Ricoma EM-1010 keeps breaking needles when using sticky stabilizer or spray adhesive for bibs and burp cloths?
  A: Address adhesive buildup first—clean or change the needle—because sticky residue often causes drag and breakage.
  • Stop the machine and inspect the needle for gum/residue from sticky stabilizer or spray.
  • Wipe the needle with rubbing alcohol or replace it; a Titanium or Non-Stick needle may help.
  • Re-check the trace path to ensure the needle is not coming close to metal frame bars or binder clips.
  • Success check: The machine runs several color changes without needle heat buildup, squeaking, or repeat breakage.
  • If it still fails: Re-check Fast Frame assembly (pins seated, knob tight, slope down) and confirm stabilizer is not obstructing mounting points.
