Fast Frames on an Avancé: Hoop Sleeves & Pockets Without the Usual Fight (Plus the Bounce Fix Pros Use)

If you’ve ever tried to hoop a finished sleeve, a tight pocket, or a pant leg on a commercial machine, you know the specific kind of panic that sets in. The design itself is simple, but the physical act of forcing a plastic ring inside a tube of fabric feels like wrestling an alligator. This is where production time—and your profit margin—disappears.

Fast Frames are designed for precisely that moment: when a standard hoop physically won't fit, or when hooping would crush a seam, leave "hoop burn" marks, or distort the fabric grain. In the video, the host demonstrates the Fast Frames system on an Avancé commercial embroidery machine.

However, as someone who has managed production floors for two decades, I know that "unboxing" is easy; consistent production is hard. Below, I’ve calibrated this guide with safety margins, sensory checks, and the "why" behind the mechanics to ensure you don't just set it up, but actually make money with it.

Fast Frames 7-in-1 Exchangeable Hoop System: What It Actually Solves (and What It Doesn’t)

Fast Frames are the industry answer for "hard-to-hoop" items. Unlike standard hoops that sandwich fabric between two rings, this is a window system. You adhere the garment to the frame using sticky stabilizer.

In the kit, you’ll see a main metal arm with key interface brackets (the part that mimics your machine's hoop arms), plus multiple interchangeable steel inserts. The host calls the main arm your “best friend,” but I prefer to call it your chassis. Once you understand that the arm provides the stability and the insert provides the shape, the system becomes modular.

The Reality Check: Because this system relies on adhesive—not friction—to hold the fabric, you lose the "drum skin" tension provided by an outer ring. This means you must compensate with better stabilization and slower machine speeds (I recommend starting at 600 SPM until you trust the adhesion).

If you’re researching fast frames embroidery hoops, think of them not as hoops, but as a floating stabilizer platform that prevents you from having to deconstruct a garment to stitch it.

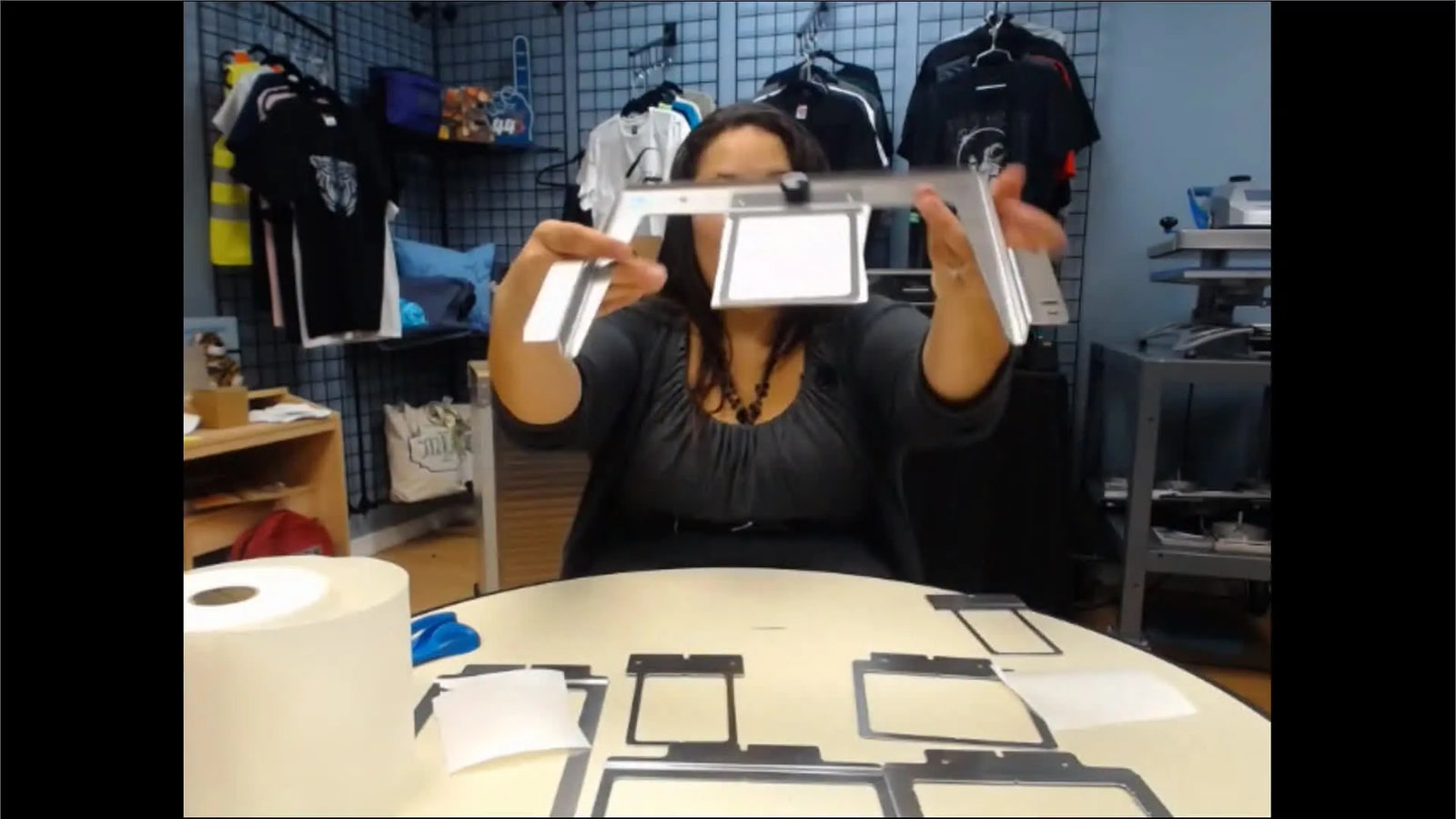

Unboxing Fast Frames: Identify the “Hoop Ears” Arm and Pick the Right Insert Before You Cut Anything

The video starts with standard unboxing, but let's look at this through a machinist's eyes. You should find:

• The Main Arm: The heavy bar with the attachment brackets.
• The Inserts: Various steel frames (sleeves, pockets, bags).
• The Manual: Don't toss this; it contains the specific offset coordinates for your machine.

The "Old Hand" Rules for Selection:

1. Clearance is King: A pocket insert might fit the pocket, but will the metal arm hit the back of your machine? Always check the depth.
2. Inspect for Burrs: Run your finger gently along the edges of the steel inserts. A microscopic metal burr can snag your delicate knits or tear the stabilizer. If you feel a snag, smooth it with fine-grit sandpaper/emery cloth before use.




The 60-Second Assembly: Lock the Fast Frames Insert to the Main Arm Without Cross-Threading

Assembly is mechanical:

1. Unscrew the large thumbscrew on the main arm.
2. Select your target insert (e.g., the sleeve strip).
3. Align the insert’s bolt slot with the arm.
4. Tighten the knob firmly.

The Sensory Check (Crucial): Once tightened, grab the insert and try to wiggle it up and down.

• Bad: You feel a "click" or slight movement. This causes needle breaks.
• Good: It feels like one solid, fused piece of metal.




Warning: Mechanical Safety. When test-fitting the arm to the insert, keep your fingers clear of the pinch points between the steel frames. Always tighten the knob away from the needle bar area to prevent your hand from slipping and striking the sharp needle point.

Setup Checklist (Assembly)

• Insert is selected based on machine clearance, not just design size.
• No metal burrs felt on the insert edges.
• Thumbscrew threads catch smoothly (no grinding/cross-threading).
• Wiggle Test passed: No play between arm and insert.
• Thumbscrew is hand-tightened to maximum friction.

Peel-and-Stick Backing Done Right: The Needle-Scoring Trick That Saves Your Nails (and Your Time)

Fast Frames demand adhesive stabilizer (Sticky Backing). You cannot use standard tear-away or cut-away alone because there is no outer hoop to clamp it.

The host demonstrates using a 5.5-inch roll and recommends two layers.

• Why two layers? Since there is no hoop tension, the first layer holds the fabric, and the second layer adds rigidity to prevent the "trampoline effect" (bouncing) which causes bird-nesting.




The "Score and Peel" Technique

Don't pick at the corners with your fingernails.

1. Lay the stabilizer flat, paper side up.
2. Take a sharp sewing needle and score a gentle "X" or line near the corner on the paper side only.
3. Bend it slightly; the paper pops up, creating an instant tab.




Application Protocol

1. Invert the frame (bolts down).
2. Apply the sticky side to the underside of the window.
3. The Drum Test: Pull it taut. Flick it with your finger. It should sound like a tight drum, not a loose plastic bag.


Comparison Logic: If you are looking for a sticky hoop for embroidery machine, understand that Fast Frames are the industrial version of this concept. The success of the stitch depends 100% on how tightly you apply this sticky paper.

Prep Checklist (Stabilizer)

• Hidden Consumable: Fresh sharp needle available for scoring paper.
• Two layers of sticky backing applied (cross-grain if possible for strength).
• Stabilizer covers past the metal edges of the frame.
• Tactile Check: Surface is drum-tight; no wrinkles or air bubbles visible.
• Exposed adhesive area is sufficient to grip the fabric.

Hooping a Shirt Sleeve on Fast Frames: “Like a Glove,” but Only If You Control Seams and Grain

The process: Insert frame into sleeve -> Align -> Press. Simple, right? Here is where beginners fail.

The Technician's Advice:

1. Seam Awareness: Ideally, rotate the sleeve so the thick joining seam is at the bottom (away from the needle) or perfectly centered. If a thick seam sits on the edge of the metal frame, it acts like a speed bump, causing the frame to tilt.
2. The "Pat Down": Once the fabric touches the glue, do not drag it. Press it straight down. Rub your palm firmly over the area to lock the fibers into the adhesive.

Decision Tree: Stabilizer & Hooping Strategy

Use this logic flow to prevent ruined garments:

• Is the fabric unstable? (e.g., Stretchy Performance Knit)
  • YES:
    • Do you have "Cut-Away" sticky stabilizer?
      • Yes: Use it.
      • No: Use the 2 layers of Tear-Away sticky (as shown), BUT float a piece of regular Cut-Away 2.5oz under the tray before stitching.
  • NO (Standard Cotton/Woven):
    • Two layers of Tear-Away Sticky are sufficient.
• Is the item heavy? (e.g., Carhartt Jacket Sleeve)
  • YES: Adhesive alone may fail. You must support the weight of the jacket with a table or stand so it doesn't drag the frame down.
  • NO: Standard adhesive holds fine.

Mounting Fast Frames on an Avancé: The U-Shape Orientation and the Clearance Test You Can’t Skip

Mounting connects the frame to the machine's pantograph (driver).

• Visual Anchor: For Avancé machines, ensure the U-shape of the main arm is opening to the RIGHT.
• The Sound: When you slide the brackets onto the arms, listen for the snap or click of the retention springs.


The "Pre-Flight" Clearance Trace: Never hit "Start" immediately.

1. Load the design.
2. Run a Trace (Border Check).
3. Watch the bobbin arm: As the frame moves, look underneath. Does the sleeve fabric or the metal frame hit the needle plate or bobbin cover?
4. If you see the fabric bunching against the machine body, stop. You need to re-hoop higher up the sleeve.

If you own an avance 1501c compact embroidery machine, this U-shape orientation is critical geometry. Reversing it will cause a collision.

Operation Checklist (Pre-Start)

• Frame brackets fully seated on driver arms (listen for the click).
• Visual Check: U-Shape is oriented correctly (Right side for Avancé).
• Clearance Trace: Completed with no rubbing or bumping sounds.
• Excess garment (rest of the shirt) is pushed back, clear of the needle bar.
• Machine speed reduced to 600-700 SPM for the first run.

“My Frame Is Bouncing and I’m Getting Thread Nesting”: The Real Causes and the Fixes That Actually Hold

A common complaint with single-point attachment frames is "bouncing" (vibration), which leads to loopies or nests on the back.

Troubleshooting Matrix (Low Cost -> High Cost):

Field Note: Some users suggest using binder clips to hold the fabric. While this works in a pinch, be terrified of clips. If a binder clip hits your needle bar at 800 stitches per minute, you are looking at a $500 repair bill. Keep clips far away from the stitch zone.

Compatibility Questions (Brother, CBL, Melco): What You Can Safely Assume and What You Must Test

"Will this fit my machine?" is the most common question. The Fast Frame arm is specific to the width of your machine's pantograph arms.

• If you are searching for fast frames for brother embroidery machine, you must verify the arm width (e.g., 360mm vs 400mm spacing). It is not universal.
• For melco embroidery machines, the attachment head is often proprietary.

Rule of Thumb: If the brackets don't slide on effortlessly, do not force them. Forcing them bends the driver arms, which ruins your X/Y registration forever.

Hats, Shoes, and Other “Can I Do This?” Items: Where Fast Frames Can Work—and Where You Need a Different Tool

Just because you can stick it, doesn't mean you should.

• Hats: Generally, no. Caps require rotation (270 degrees). Sticking a hat flat usually crushes the crown. Use a cap driver.
• Shoes: Highly risky. The throat of a shoe is rigid. If the needle bar hits the heel of the shoe, the machine breaks.
• Best Use Case: Socks, sleeves, pant legs, tote bag pockets, backpack straps.

The “Hidden” Cost of Sticky Backing: Needle Contamination, Residue, and How to Keep Quality High

Adhesive is the enemy of friction. As the needle passes through sticky backing 10,000 times, it gets gummy.

• Symptom: Thread shredding or "loopies."
• Solution:
  1. Use Titanium Needles (they resist gumming).
  2. Keep a bottle of sewing machine oil or silicone lubricant; a tiny drop on the needle pad helps.
  3. Clean the hook assembly more frequently. Adhesive dust creates a cement-like paste in your bobbin case.

The Upgrade Path: When Magnetic Hoops or a Multi-Needle Machine Pays for Itself

Fast Frames are a "Level 1" solution for difficult items. But what if you are doing 50 sleeves a day? The peeling and sticking will destroy your efficiency (and your wrists).

The Commercial Evolution:

1. The Pain Point: You are tired of "hoop burn" marks on delicate polos, or the residue from sticky backing is ruining inventory.
2. The Solution (Level 2): Magnetic Hoops.
   • SEWTECH Magnetic Hoops clamp the fabric without squeezing it into a ring, eliminating burn marks.
   • They are faster than sticky backing because there is no paper to peel. You just Snap and go.
   • Best for: Production runs of 20+ items where speed is money.

Warning: Magnetic Safety. Magnetic hoops use extremely powerful industrial magnets. Do not use them if you have a pacemaker. Keep them away from credit cards, hard drives, and always keep your fingers clear of the "snap zone" to avoid painful blood blisters.

1. The Solution (Level 3): Multi-Needle Machines.
   • If you are constantly switching between a cap driver, a flat hoop, and a Fast Frame, a single machine bottlenecks you. Adding a SEWTECH multi-needle machine dedicated to tubular items allows you to keep one machine set up for flats and one for awkward items. This is how you double revenue without doubling hours.

The One Habit That Prevents 80% of Fast Frames Problems: Slow Trace Before Stitching

If you take only one thing from this guide: Trust, but Verify. The Fast Frame system relies on clearance.

• Trace every design.
• Watch the gap between the arm and the needle plate.
• Listen for the machine running smoothly.

If you build this verification habit, and perhaps later integrate a hooping station for embroidery to ensure your placement is identical every time, you transform a "tricky" accessory into your shop's most profitable secret weapon.

FAQ

• Q: What consumables and quick self-checks are required before using Fast Frames Exchangeable Hoop System with sticky backing?
  A: Prepare for adhesive hooping like a “clean-room” job: fresh needle for scoring, two layers of sticky backing, and a clean hook area to avoid shredding and nests.
  • Gather: a sharp sewing needle for the score-and-peel tab, sticky backing (plan for two layers), and fine-grit emery cloth in case an insert edge has a burr.
  • Inspect: run a fingertip along Fast Frames steel insert edges and smooth any snag before the garment ever touches the frame.
  • Clean: plan more frequent hook/bobbin-area cleaning when using adhesive stabilizer because residue and dust can build up.
  • Success check: the stabilizer surface is wrinkle-free and “drum-tight” when flicked, and no insert edge snags your finger.
  • If it still fails: switch to titanium needles and increase cleaning frequency if thread starts shredding or loopies appear.
• Q: How do I apply sticky backing to Fast Frames embroidery hoops so the stabilizer stays tight and does not cause bird-nesting?
  A: Use two layers of sticky backing and apply it taut from the underside of the window frame to prevent the “trampoline effect.”
  • Score and peel: mark an “X” on the paper side with a needle near a corner to lift a clean tab instead of picking with fingernails.
  • Apply: invert the frame (bolts down) and press sticky backing onto the underside of the window, pulling it tight as you lay it down.
  • Layer: add a second sticky layer for rigidity (often helps reduce bouncing and nesting when hoop tension is missing).
  • Success check: perform the Drum Test—flick the backing; it should feel and sound tight like a drum, not loose like a bag.
  • If it still fails: add a third stabilizer layer as a quick test, then consider a clamp-style solution (magnetic hoops) if flagging persists.
• Q: How do I assemble Fast Frames inserts onto the Fast Frames main arm without cross-threading or creating frame wobble?
  A: Tighten the thumbscrew so the insert and main arm behave like one fused piece—any play will turn into vibration and needle breaks.
  • Align: match the insert bolt slot to the main arm and start the thumbscrew gently so threads catch smoothly (no grinding).
  • Tighten: hand-tighten firmly; if wobble remains, snug carefully (often a gentle assist is needed, but avoid damaging hardware).
  • Test: grab the insert and perform the Wiggle Test before mounting on the machine.
  • Success check: no “click,” no up/down movement—solid metal-on-metal feel.
  • If it still fails: inspect the insert for bending or worn contact points and replace worn parts rather than running with vibration.
• Q: How do I hoop a shirt sleeve on Fast Frames sleeve insert without seam tilt or fabric distortion?
  A: Control seams and grain first, then press straight down—dragging on adhesive is what ruins alignment.
  • Rotate: position the thick sleeve seam at the bottom (away from the needle) or perfectly centered so it does not sit on the metal edge like a speed bump.
  • Align: insert the sleeve onto the frame, square the grain, then commit to placement.
  • Press: pat down firmly with your palm; do not slide the fabric once it touches the adhesive.
  • Success check: the sleeve lays flat with no “ramp” at the frame edge and the fabric does not shift when lightly tugged.
  • If it still fails: support heavy garments (jackets) so weight does not drag the adhesive bond during stitching.
• Q: How do I mount Fast Frames on an Avancé commercial embroidery machine to avoid clearance collisions during tracing?
  A: On Avancé machines, mount with the Fast Frames main arm U-shape opening to the RIGHT and always run a trace before stitching.
  • Seat: slide brackets onto the driver arms and listen/feel for the retention spring “click.”
  • Orient: confirm the U-shape opening is to the right (Avancé geometry requirement).
  • Trace: run a border check and watch underneath for the bobbin arm area—stop immediately if fabric or metal rubs the needle plate/bobbin cover.
  • Success check: the full trace completes with no rubbing sounds and no visible bunching against the machine body.
  • If it still fails: re-hoop higher up the sleeve and reduce speed to a safe starting point of 600–700 SPM for the first run.
• Q: What causes Fast Frames bouncing and thread nesting during commercial embroidery, and what fixes work first?
  A: Bouncing and nesting are usually loose hardware, flagging, or garment drag—fix stabilization and support before buying anything new.
  • Tighten: check the thumbscrew/knob first; any looseness amplifies vibration (a common cause of visible bouncing).
  • Stabilize: add a third layer of stabilizer as the quickest way to reduce flagging and nesting.
  • Support: keep heavy garments from hanging off the frame; dragging weight can pull the workpiece and lose registration.
  • Success check: frame motion looks steady (no visible vibration) and the stitch underside shows no thread buildup “nest.”
  • If it still fails: move to a clamp-based upgrade (magnetic hoops) for persistent flagging, especially in production runs.
• Q: What safety rules prevent finger pinches, needle strikes, and magnet injuries when using Fast Frames and SEWTECH Magnetic Hoops?
  A: Treat both systems as pinch hazards—Fast Frames can pinch at steel interfaces, and magnetic hoops can snap hard enough to blister fingers.
  • Keep hands clear: avoid pinch points between Fast Frames steel frames during test-fitting and tightening.
  • Tighten safely: turn knobs away from the needle bar area so a slip does not drive your hand into a sharp needle.
  • Use magnetic hoops safely: do not use magnetic hoops if you have a pacemaker, and keep magnets away from credit cards and hard drives.
  • Success check: hands never enter the “snap zone,” and mounting/tightening can be done without fingers between contacting parts.
  • If it still fails: slow down the workflow and reposition the garment/frame so tightening and snapping actions happen in open, unobstructed space.
