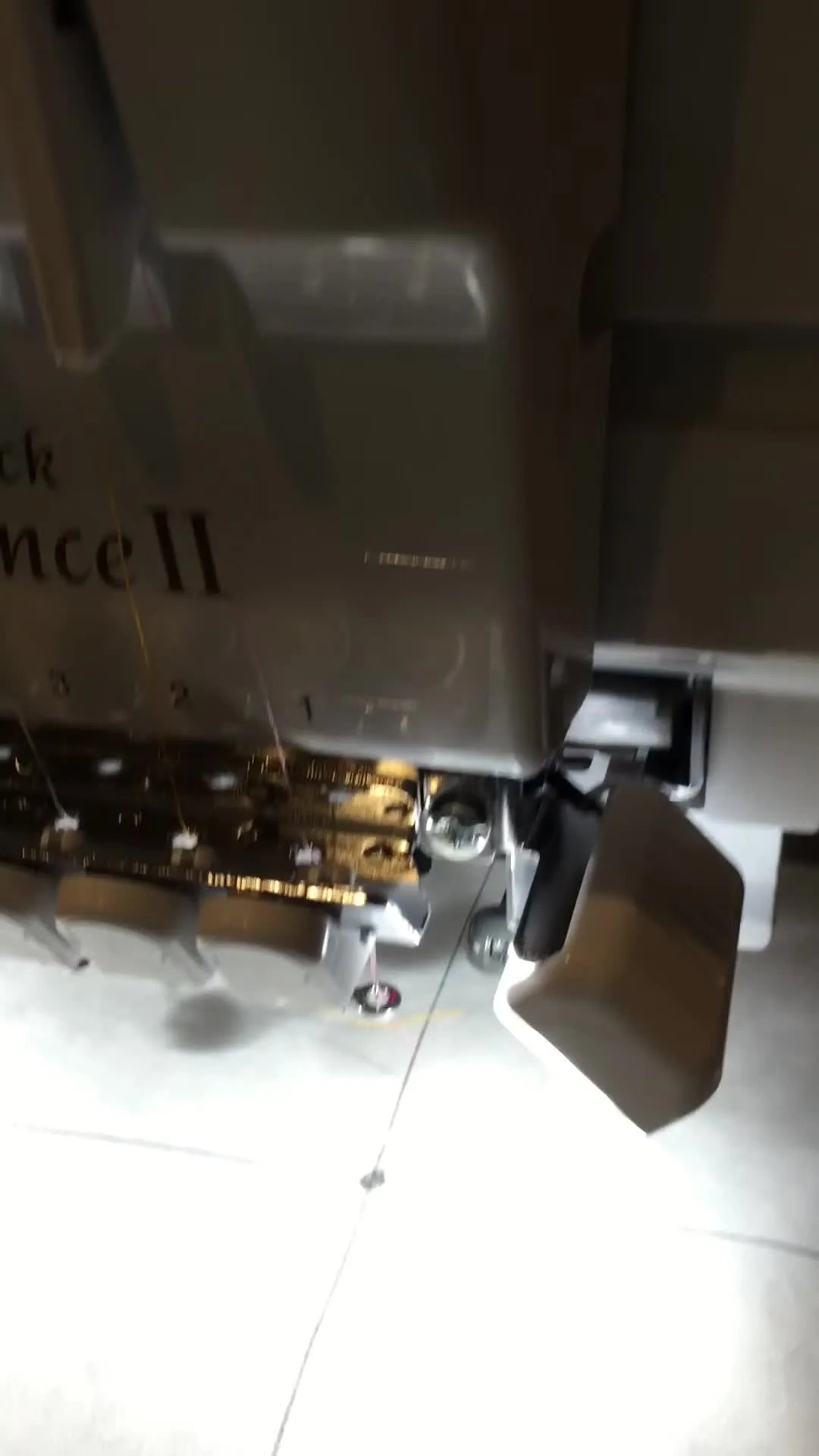

Fast Frames on a Baby Lock Endurance II: Manual Centering with the Red Laser (and the Trace Check That Saves Needles)

If you have ever mounted an aftermarket frame, lined everything up by eye, hit start, and then watched in horror as your design landed ¼" off-center—or worse, heard the sickening crunch of a needle striking metal—you are not alone. This is the "Aftermarket Anxiety" phase every embroiderer goes through.

On the Baby Lock Endurance II (and similar multi-needle machines), the engineering is brilliant, but it is also rigid. The machine is designed to "understand" its own OEM hoops. When you introduce a third-party frame, the machine essentially becomes blind to boundaries.

The method Susan demonstrates is one I have taught in industrial workshops for two decades. It is not just about "centering"; it is about Risk Management. It is a repeatable, sensory-based workflow that prevents the single most expensive mistake in our industry: a needle strike that throws off your timing bars.

Aftermarket Fast Frames on the Baby Lock Endurance II: why your “center” suddenly lies

When you clip on standard OEM hoops, the machine uses sensors to detect the hoop size and automatically restricts the sewing field. However, when you install fast frames embroidery hoops, that communication line is cut. The machine does not know you have changed the hardware.

The result? The machine’s "digital center" (0,0 coordinate) and the "physical center" of your frame are no longer aligned.

The Expert Mindset Shift: Stop trusting the screen. When using aftermarket frames, the screen is a suggestion; the needle is the truth. You must manually override the machine's assumptions. You are no longer asking the machine "Where is center?" You are telling it, "Center is here."

The “Hidden” prep that makes manual centering painless (stabilizer, marks, and a calm workflow)

90% of embroidery failures happen before you touch the LCD screen. If your physical setup is flawed, no amount of digital jogging will save the design.

What Susan does: She has the stabilizer firmly attached to the Fast Frame with a visible crosshair.

The "Why" (Physics of Stabilization): Aftermarket frames often "float" the material. This acts like a drum skin. If your stabilizer is loose, the needle penetration will push the fabric down (flagging), causing registration errors.

The "Hidden" Consumables you need:

• Water-Soluble Pen / Tailor's Chalk: Never use permanent markers on frames.
• Temporary Spray Adhesive or Double-Sided Tape: Vital for preventing the stabilizer from slipping on metal frames.
• Topper (Water Soluble): If your fabric is fluffy (towels, fleece), the laser dot will disappear into the pile. A topper creates a smooth "screen" for the laser to hit.

Expert Tip: Make your crosshair BOLD. A faint line forces you to squint, and squinting leads to "close enough" estimation. In embroidery, "close enough" is where gaps and puckers live.

Prep Checklist (Complete this BEFORE touching the screen):

• Stabilizer Integrity: Stabilizer is drum-tight on the frame with no "hammocking."
• Visual Anchor: A bold, 90-degree crosshair is drawn on the stabilizer (or topper) marking your desired center.
• Clearance Check: You have checked the underside of the frame; no fabric bulk is bunched up that could catch on the machine arm.
• Laser Visibility: The red laser dot is clearly visible on the surface material (use a topper if the fabric absorbs the light).
• Needle Selection: You have identified which needle bar is currently active (usually Needle #1).


Loading the USB design on the Baby Lock Endurance II: check size and rotation before you chase center

Susan loads her design, selects the file, and taps SET. She enters the edit screen, confirms, and exits.

The Data Point that Matters: On-screen, the design size shows as 3.58" x 3.65" and the rotation is 0°.

Why this is critical: If you manually center your frame and then decide to rotate the design 90°, you have just changed the axis of movement. With rectangular aftermarket frames, rotating the design might push the new "width" into the metal sides of the frame.

The "Sweet Spot" Rule: Always ensure your design size leaves at least a 10-15mm safety buffer on all sides relative to the physical frame edges.

Setup Checklist (Complete BEFORE moving the pantograph):

• Design Confirmation: The correct file is loaded and set.
• Orientation Lock: Rotation reads 0° (or your intended angle) before you start centering.
• Dimensions Check: You have verified the design dimensions against your physical frame width.
• Needle Assignment: Colors require no changes; the machine is ready to sew.


The red laser guide on the Baby Lock Endurance II: the centering move that actually works on aftermarket frames

This is the core tactical maneuver. On the sewing screen, the Red Laser Guide (what Susan calls the "little bite/light") represents the needle's plunge point.

The Problem: The machine thinks it is centering the pantograph based on a standard hoop grid. The Fix: You must move the pantograph until the laser aligns with your physical crosshair.

Sensory Execution:

1. Sight: Lock your eyes on the crosshair intersection on your fabric.
2. Touch: Use the directional arrows.
   • Press & Hold: The machine motors will make a higher-pitched sound and the arm will move rapidly ("Jump"). Use this for coarse adjustments.
   • Tap-Tap-Tap: Listen for distinct, rhythmic clicks. This moves the arm in 0.1mm micro-steps. Use this for the final approach.
3. Confirm: The red laser dot should bisect your chalk lines perfectly.








The “why” behind this: hoop tension, fabric drift, and why your mark must be the boss

Even with perfect alignment, "Float" techniques (where fabric sits on top of stabilizer but isn't hooped) rely heavily on friction and adhesive. The needle's drag can shift the fabric slightly.

The Upgrade Path: When to switch tools? If you find yourself constantly fighting fabric slippage or "hoop burn" (the shiny ring left by standard hoops), you have reached a hardware limitation. This is where professionals transition to a magnetic embroidery frame. Unlike clamps or friction frames, magnetic systems sandwich the fabric with uniform vertical pressure. This prevents the "tug-of-war" distortion during stitching and allows for much faster adjustments without re-hooping the entire garment.

Warning: Mechanical Safety
Keep your fingers, scissors, and loose thread tails far away from the needle area while moving the pantograph. The motors are powerful servo-driven units; if you accidentally hit "Start" or a "Frame Move" button while your finger is near the presser foot, the risk of injury is severe.

The Trace function on Baby Lock Endurance II: the 60-second boundary check that prevents a metal strike

Once Susan has the red dot centered, she performs the step that separates amateurs from pros: The Trace.

She opens the Trace menu (icon resembling frame corners) to physically move the needle out to the design's perimeter squares.

The Trace Protocol:

1. Tap Top-Left: Watch the needle bar move. Visual Check: Is there air between the presser foot and the metal frame clamp?
2. Tap Bottom-Right: Watch the movement. Auditory Check: Listen for any straining sounds that suggest the pantograph is hitting its physical limit.
3. The "Pinky Rule": If you can't fit your pinky finger between the needle bar and the frame edge during the trace, you are too close. Shift the design or change the frame.








My shop rule: Trace is mandatory whenever metal is anywhere near the stitch field

In my studio, skipping a Trace is a fireable offense. Why? Because a needle striking a Fast Frame at 1000 SPM (Stitches Per Minute) doesn't just break the needle. It can:

• Shatter the needle (sending metal shards into the bobbin case).
• Burr the hook assembly.
• Throw the machine's timing out, requiring a $300+ service call.

Warning: Impact Hazard
Never assume clearance with an aftermarket metal frame. The machine's software limits do not apply here. You are the only safety system. Always run the Trace function before every single design.

Returning to center and pressing LOCK: the final safety step before you stitch

Susan taps the center icon within the Trace grid to return the needle to the starting position (0,0), exits the menu, and presses LOCK.

This LOCK button is your "Safety On/Safety Off" switch. It engages the motors and prepares the machine for the firing sequence.

Operation Checklist (The "Pre-Flight" Confirmation):

• Center Verification: The red laser dot returned exactly to your crosshair center after the Trace. (If it didn't, your fabric shifted—Stop and re-adhere).
• Clearance Verified: You visually confirmed a safe gap between the needle and the frame at all four corners during the Trace.
• Software Reset: You successfully returned to Center via the icon.
• System Locked: The LOCK button is pressed; the Start/Stop button is now glowing green (or flashing).
• Field Clear: No loose threads, tools, or fingers are in the stitch zone.

Decision tree: choosing stabilizer and clamping strategy when you’re floating a garment on an aftermarket frame

Susan’s "pretend" scenario of floating a garment is the daily reality for most commercial shops. However, "floating" is an unstable variable.

Use this decision matrix to determine your risk level and tool choice:

Speed Recommendation: While your machine can hit 1000 SPM, when using aftermarket frames—especially with heavy items—friction and vibration increase.

• Beginner Safe Zone: 600 - 700 SPM.
• Pro Zone: 800+ SPM (Only after verifying stability).

Comment-driven reality check: “New machine excitement” is real—so build habits that scale

One viewer commented celebrating their new Brother multi-needle purchase. That excitement is dangerous. In aviation, they say "there are old pilots and bold pilots, but no old, bold pilots." The same applies to embroidery machine operators.

Pro Tip: When you are new to a platform like a baby lock 6 needle embroidery machine, do not measure success by speed. Measure it by Process Integrity. The goal is not just to finish the shirt, but to finish it without needing a seam ripper.

Start with the habits Susan demonstrates. Center. Trace. Lock. Every time.

The upgrade path when manual centering becomes your bottleneck (and your wrist starts complaining)

Susan’s manual method is the foundation. You must know how to do it. But if you are scaling a business, manual processes allow for human error.

If you are doing production runs (e.g., 50 left-chest logos), manual centering and tracing every single item will throttle your profit margins. This is when you upgrade your infrastructure.

1. The "Hooping Pain" Solution: If your wrists ache from fighting clamps, or you struggle to hoop thick items (Carhartt jackets, bags), standard hoops are failing you. Switching to magnetic embroidery hoops for babylock solves this by using magnetic force to self-level and clamp thick materials instantly. This eliminates the need for aggressive "floating" and makes alignment naturally straighter.

2. The "Alignment" Solution: If you spend 3 minutes measuring for every 5 minutes of sewing, look into an embroidery hooping station. These ensure your placement is identical on every shirt before you even get to the machine.

3. The "Throughput" Solution: Eventually, one machine isn't enough. If your queue is backed up, high-efficiency equipment like SEWTECH multi-needle machines (often paired with commercial magnetic frames) provides the reliability needed for bulk orders, allowing you to keep your Baby Lock free for specialty customization.

Warning: Magnet Safety
magnetic embroidery frame systems use powerful neodymium magnets.
* Pinch Hazard: They snap together with extreme force—keep fingers clear!
* Medical Safety: Keep magnets away from pacemakers and insulin pumps.
* Electronics: Do not place phones, credit cards, or USB drives directly on the magnets.

The clean takeaway: center with the laser, prove it with Trace, then LOCK like a pro

Susan’s workflow transforms a chaotic guess into a calculated process:

1. Prep: Heavy stabilizer, bold crosshairs, clear workspace.
2. Align: Use the laser guide as your visual truth.
3. Verify: Run the Trace. If the needle gets too close to the metal, stop.
4. Commit: Return to center and Lock.

If you adopt just one habit from this entire guide, let it be this: Trace before you stitch. It is the cheapest insurance policy you will ever buy for your machine.

FAQ

• Q: How do I manually center an aftermarket Fast Frame on a Baby Lock Endurance II using the red laser guide?
  A: Treat the red laser dot as the true needle drop point and jog the pantograph until the dot sits exactly on the physical crosshair you drew.
  • Draw a bold 90° crosshair on the stabilizer (or topper) at the intended center before touching the screen.
  • Press-and-hold arrows for fast “jump” moves, then tap-tap-tap for micro-steps as the dot approaches the crosshair.
  • Keep eyes locked on the crosshair intersection while making the final taps.
  • Success check: the red laser dot cleanly bisects both lines of the crosshair (not “close enough”).
  • If it still fails: stop and re-check stabilizer attachment and fabric drift (spray adhesive/tape may be needed on metal frames).
• Q: What prep supplies prevent stabilizer slip and laser visibility problems when floating fabric on an aftermarket frame on a Baby Lock Endurance II?
  A: Use bold marking plus controlled sticking (spray adhesive or tape), and add a water-soluble topper when the laser dot disappears into high-pile fabric.
  • Mark: use a water-soluble pen or tailor’s chalk (avoid permanent markers).
  • Secure: apply temporary spray adhesive or double-sided tape to prevent stabilizer from sliding on the metal frame.
  • Add: place a water-soluble topper on towels/fleece so the red laser dot is visible and the surface is smooth.
  • Success check: stabilizer is drum-tight with no “hammocking,” and the laser dot is clearly visible on the surface.
  • If it still fails: re-do the hooping so the stabilizer is tighter and the crosshair is darker/bolder.
• Q: What must be checked on the Baby Lock Endurance II design screen before centering when using an aftermarket rectangular frame (size and rotation)?
  A: Confirm the design size and rotation first, because changing rotation after centering can push the stitch field into the metal sides of the frame.
  • Verify: confirm the correct design is loaded and set.
  • Confirm: check rotation is already at the intended angle (for example 0° if sewing unrotated).
  • Compare: ensure the design leaves a safety buffer from the physical frame edges (the blog recommends about 10–15 mm).
  • Success check: the design dimensions and rotation are final before any pantograph jogging begins.
  • If it still fails: choose a smaller design area or a different frame size before attempting to stitch.
• Q: How do I use the Trace function on a Baby Lock Endurance II to avoid a needle strike on an aftermarket Fast Frame?
  A: Run Trace to physically prove clearance at the design perimeter before stitching, because software limits do not protect you with aftermarket metal frames.
  • Open: enter the Trace menu (frame-corner style icon) after you center with the laser.
  • Tap: move to Top-Left, then Bottom-Right (and check the other corners if available) while watching the needle bar path.
  • Check: apply the “pinky rule”—if a pinky finger cannot fit between the needle bar area and frame edge, shift the design or change frames.
  • Success check: during Trace, there is obvious “air gap” clearance and no straining sounds from the pantograph.
  • If it still fails: stop immediately and re-center/resize/reposition the design—do not “try it anyway.”
• Q: What is the correct sequence on a Baby Lock Endurance II after tracing—returning to center and pressing LOCK—before pressing Start?
  A: Return to center via the Trace grid, then press LOCK only after confirming nothing shifted during the trace.
  • Tap: use the center icon in the Trace grid to return to 0,0 (starting position).
  • Verify: confirm the red laser dot returns exactly to the drawn crosshair (drift means the fabric moved).
  • Clear: remove loose threads/tools and keep hands away from the needle zone.
  • Success check: the laser returns to the same crosshair intersection after Trace, and the field is visibly clear before LOCK.
  • If it still fails: re-adhere or re-secure the fabric/stabilizer and repeat center + Trace.
• Q: What machine-safety rule reduces injury risk when moving the pantograph on a Baby Lock Endurance II with aftermarket frames?
  A: Keep fingers, scissors, and loose thread tails completely out of the needle area while jogging or tracing, because the servo motors can move forcefully.
  • Move: use the directional arrows with hands positioned away from the presser foot/needle path.
  • Pause: stop movement before reaching into the stitch field to adjust anything.
  • Verify: check the underside of the frame for bunched fabric that could snag the machine arm before moving.
  • Success check: no body parts or tools enter the stitch zone while the pantograph is moving.
  • If it still fails: power down or fully stop motion before making adjustments, and restart the centering workflow calmly.
• Q: When should a Baby Lock Endurance II user switch from aftermarket Fast Frames to a magnetic embroidery hoop, and when is it time to consider a multi-needle production upgrade?
  A: If fabric slippage, distortion, or hoop burn keeps happening despite good prep and careful centering/trace, upgrade tools in levels: technique first, then magnetic hoops, then higher-throughput equipment when manual steps become the bottleneck.
  • Level 1 (technique): improve prep—drum-tight stabilizer, bold crosshair, adhesive/tape, and mandatory Trace every time.
  • Level 2 (tool): switch to a magnetic hoop when hoop burn or repeated drift/knit stretching makes clamping inconsistent; magnetic pressure is more uniform and re-hooping is faster.
  • Level 3 (capacity): consider a production-focused multi-needle setup when manual centering/tracing time is dominating the job (for example, repeated left-chest runs).
  • Success check: placement becomes repeatable without constant re-centering, and Trace consistently shows safe clearance with minimal rework.
  • If it still fails: slow the machine to a safer range (the blog suggests 600–700 SPM for beginners on aftermarket frames) and reassess stabilizer choice and clamping method.
