Master Class: Zero-Ripple Appliqué on Knit Onesies Using a 6-Needle Machine

Appliqué on a tiny knit onesie using a multi-needle machine often feels like a trap. The garment is too small to hoop comfortably, knit fabrics love to ripple like water, and a powerful 6-needle machine will happily keep stitching right past the moment you desperately needed it to stop for fabric placement.

But here is the truth derived from twenty years of production floor experience: Control is a setting, not a feeling.

Once you lock in a repeatable “Stop–Place–Tack–Trim–Satin” rhythm and understand the physics of stabilizing stretchy fabrics, onesies transform from a frustration into one of the fastest, most profitable items you can stitch.

This guide will deconstruct the process used on machines like the baby lock 6 needle embroidery machine, moving you from "hoping it works" to "knowing it will."

The "Calm-Down" Moment: Precision Control via Reserve Stop

If you are coming from a single-needle background, you are used to the machine stopping automatically at every color change. Multi-needle machines are built for speed and continuous flow—they want to keep going.

For appliqué, you must manually interrupt this flow. In the workflow of the Baby Lock Array (and similar Brother/SEWTECH multi-needle machines), your "control lever" is the Reserve Stop (often indicated by a hand icon).

When set correctly, your multi-needle behaves like a single needle exactly when you need it to:

1. Stop after the placement line.
2. Stop after the tack-down line.
3. Go for the satin finish.

What usually goes wrong isn’t a lack of skill—it’s a lack of timing. The machine stitches the next step before you can place your fabric, or the needle bar moves while your hands are in the danger zone. We will prevent both.

The Hidden Prep: Fusible No-Show Mesh & The "Bonding" Theory

Before you even touch a hoop, you must win the battle against the fabric's stretch. Knits are unstable by definition; they distort under needle penetration.

The Strategy: We do not want to make the onesie "stiff" (which is uncomfortable for a baby); we want to make it "stable."

The Material: Fusible No-Show Mesh (Poly-mesh). Unlike cutaway, it is soft against the skin. Unlike tearaway, it provides permanent structural support that won't disintegrate in the wash.

The Thermal Bonding Process

1. Turn the onesie inside out.
2. Cut a piece of Fusible No-Show Mesh larger than your hoop boundaries.
3. Fuse it to the inside back of the onesie front.
   • Sensory Check: Use an iron setting appropriate for polyester (around 260°F - 300°F). Hold the iron static for 10-15 seconds. You aren't just ironing wrinkles out; you are melting the adhesive.
   • Visual Check: The stabilizer should look smoothly adhered, not bubbly. When you pull the knit lightly, it should resist stretching in the stabilized area.

Warning: Keep your fingers clear of the needle area during any trace or test movement. A multi-needle machine does not have sensors to detect fingers. Always stop the machine completely before reaching in.

Prep Checklist (Do this BEFORE marking)

• Pre-Wash/Press: Press the onesie to remove manufacturer sizing and wrinkles.
• Stabilize: Fuse one layer of fusible no-show mesh to the inside (ensure it is fused, not just tacked).
• Needle Check: Confirm you are using 80/12 Ballpoint Needles. Sharp needles can cut knit fibers, causing runs/holes.
• Fabric Prep: Pre-cut your appliqué fabric pieces slightly larger than the design area plus a 0.5-inch safety margin.
• Iron Settings: Ensure appliqué fabrics are pressed flat; wrinkles here become permanent later.


The “3-Inch Rule”: Placement Logic for 0–3 Month Sizes

Small garments do not forgive guesswork. If a design is off-center on an XL t-shirt, it’s unnoticeable. On a 0-3 month onesie, a half-inch error looks massive.

The Golden Ratio for 0-3M:

1. Find the vertical center of the onesie.
2. Measure exactly 3 inches down from the bottom of the neckline.
3. Mark your crosshairs at that intersection.

Why 3 Inches? This places the design squarely on the baby's chest, avoiding the "bib zone" (too high) and the "diaper zone" (too low). For larger sizes (6-12M), you might adjust to 3.5 or 4 inches, but 3 inches is your safe baseline.

Pro-Tip: Use a disappearing ink pen or water-soluble marker. Avoid chalk on knits as it drags the fabric and distorts your line.

The Mechanics of Hooping: Fast Frames vs. Hoop Burn

Hooping a tiny tube (like a onesie) on a standard ring hoop is a nightmare. It stretches the ribbing and often leaves "hoop burn" (shiny crushed fibers) that ruins the garment.

The Solution: Use an open-window system like Fast Frames or Durkee Frames combined with sticky backing.

The Technique:

1. Turn the onesie inside out. This allows you to see the stabilizer and ensures the "pretty side" isn't getting adhesive residue during the initial stick.
2. Apply Peel-and-Stick Stabilizer to the underside of the Fast Frame (sticky side up).
3. Slide the Frame inside the body of the onesie.
4. Align the Crosshairs: Match the marks on your fabric to the notches on the frame.
5. The Fingernail Test: Before pressing the fabric down firmly, run your fingernail along your drawn center line. It should track perfectly with the frame's center notches. If it looks crooked, lift and reset gently.
6. Smooth Out: Once aligned, press the fabric firmly onto the adhesive.

Terms like hooping for embroidery machine often refer to the standard ring method, but for small tubular items, adhesive frames are the industry standard for preventing distortion.

Note on Physics: The sticky backing holds the knit fibers in their relaxed state. If you stretch the fabric while sticking it down, it will "snap back" after you remove it from the frame, causing puckering. Stick it down relaxed.

The “Trace It 50,000 Times” Rule: Protecting Your Hardware

Fast Frames utilize a metal bracket. Embroidery needles moving at 800 stitches per minute and hardened steel brackets are a catastrophic combination.

The Pre-Flight Trace:

1. Load the frame onto the machine arm.
2. Select the Trace Function (icon typically showing two needles or a square outline).
3. Visual & Tactile Check: As the machine traces the design boundary, place your finger (safely!) near the needle bar housing. You are checking for clearance between the needle drop point and the metal frame edges.
4. The "Pinky Rule": If you can't fit your pinky finger between the needle and the metal frame during the trace, the design is too close. Resize or re-hoop.

If you are new to setups like fast frames embroidery, understand that this step is non-negotiable. A strike breaks needles, ruins garments, and can knock your machine's timing out of alignment.

Programming the "Pause": The Reserve Stop

Here is where the magic happens. You must tell the machine to behave like a human is managing the appliqué steps.

The Action:

1. Open your machine's Thread/Color Menu (icon with thread spools/paper).
2. Locate the Reserve Stop (Hand Icon) or "Appliqué Stop" function.
3. Activate it for:
   • Step 1 (Placement Line) → STOP
   • Step 2 (Tack-down Line) → STOP
4. Do not activate it for the final Satin stitch; let the machine run.

Why this matters: If you don't program this, the machine will sew the placement line and immediately launch into the tack-down stitch—sewing nothing but air because you haven't laid the fabric down yet.

Color Management: The Magic Wand

In the provided example, the design might show 12 color changes, but reality dictates you are only using two threads (Yellow for letters, Green for the pineapple).

Efficiency Hack: Use the Magic Wand (or Color Sort) feature to consolidate needles.

• Assign all "Yellow" steps to Needle 1.
• Assign all "Green" steps to Needle 2.

This prevents the machine from jumping around unnecessarily and creates a "Calm Workflow." You aren't frantically checking which needle is active; you know Needle 1 is the body, Needle 2 is the top.

The Execution Phase: Stop, Place, Tack, Trim

Now we stitch. We recommend slowing your machine speed (SPM) down to 600 SPM for appliqué steps. Precision beats speed here.

Step 1: Placement

• Thread: Match the appliqué fabric color so it blends in.
• Action: Run the placement stitch. The machine stops.

Step 2: Placement

• Open the safety bar.
• Spray Adhesive (Hidden Consumable): Lightly mist the back of your appliqué fabric with temporary adhesive (like 505 Spray). This prevents the fabric from lifting or shifting as the needle approaches.

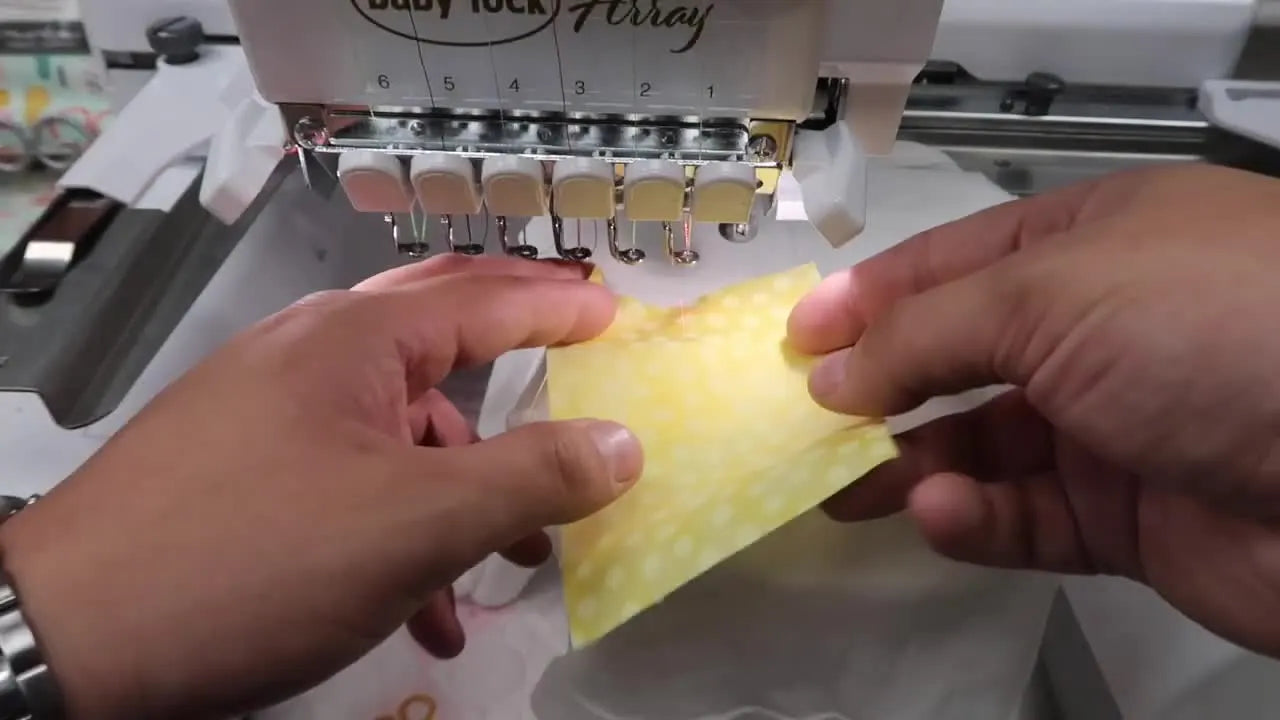

• Place the fabric completely covering the placement line.

Step 3: Tack-Down

• Closer the safety bar. Run the tack-down stitch. The machine stops.


The Trimming Ritual: Flat Surface Only

Never trim while the hoop is attached to the machine. It is awkward, lighting is poor, and you risk torquing the machine arm.

The Technique:

1. Remove the Fast Frame from the machine.
2. Place it on a flat, solid table.
3. The Tool: Use Double-Curved Appliqué Scissors (Duckbill scissors).
4. The Cut: Rest the "bill" of the scissors flat against the stabilizer/fabric. Trim close to the tack-down stitching (about 1-2mm away).
   • Sensory Anchor: You should feel the metal of the scissors gliding on the fabric surface. If you are lifting the fabric up to cut, you will get jagged edges. Rotate the hoop, not your wrist.


The Satin Finish & The Second Layer

Once trimmed, return the hoop to the machine.

Step 4: Satin Stitch

• Press start. The machine will cover the raw edges with a clean satin column.

Repeat: If your design has multiple appliqué layers (like the green pineapple top), repeat the Place-Tack-Trim cycle using the Reserve Stop method.

Operation Checklist (The Rhythm):

• Reserve Stop Active? Verify the Hand Icon is on for placement/tack steps.
• Placement Check: After the first stitch, does the outline look totally complete?
• Fabric Coverage: Does your appliqué patch cover the line by at least 1/4 inch on all sides?
• Trim Check: Is the trim close (1-2mm) but not cutting the tack-down thread?
• Re-Hoop Check: When putting the frame back on, did it "click" securely into the machine arm?


The "Baby-Safe" Finish: Tender Touch

A beautiful onesie is useless if the baby screams because the embroidery is scratchy. The back of an embroidery design is a knotty mess of polyester thread and fused mesh.

The Solution: Fuso-Soft (or Tender Touch/Cloud Cover).

1. Peel: Remove the onesie from the sticky frame. Tear away the excess sticky stabilizer (it should pull away easily).
2. Trim: Cut away the excess Fusible No-Show Mesh around the design (leave about 1/2 inch rounded margin).
3. Seal: Cut a piece of Fuso-Soft larger than the entire embroidery area. Iron it onto the inside of the garment, covering the stitches completely.
   • Result: The baby's skin touches only soft tricot, not scratchy thread.




Decision Tree: Troubleshooting & Options

Use this logic flow to solve problems before they start.

The Onesie Stabilization Decision Tree

Scenario A: Light Knit, Simple Design

• Rx: Fusible No-Show Mesh (1 layer) + Sticky Backing on Frame.

Scenario B: Heavy Stretch, Dense Design

• Rx: Fusible No-Show Mesh (2 layers, cross-hatched) + Slow Speed (600 SPM).

Scenario C: Production Run (50+ Shirts)

• Rx: Time to upgrade tools (See Section Below).

Troubleshooting Table

The Upgrade Path: From Hobby to Production

If you are doing one onesie a week, the sticky frame method works. But if you are doing batches, or if you find hooping tedious and physically painful, it is time to look at tool upgrades.

Level 1: Consumables Upgrade

Keep extra 505 Spray and fresh Titanium Ballpoint Needles in stock. Dull needles are the enemy of knits.

Level 2: The Workflow Upgrade (Magnetic Hoops)

Sticky frames are effective but messy and slow to re-apply. Many professionals switch to magnetic hoops for babylock embroidery machines (like the MaggieFrame types).

• Why? They clamp the quilt/fabric sandwich without "hoop burn" marks because they use magnetic force rather than friction friction.
• The Gain: You can hoop a garment in 10 seconds versus 60 seconds.

Warning - Magnetic Safety: Powerful magnetic hoops can pinch fingers severely. They can also interfere with pacemakers. Handle with extreme care and store them away from computerized machine screens/hard drives.

Level 3: The Scale Upgrade (Multi-Needle + Station)

If you are struggling with thread changes on a single needle, or you need to produce 50 shirts for a local team, you encounter the "Production Wall."

• The Fix: A dedicated machine embroidery hooping station ensures every chest logo is in the exact same spot without measuring every shirt.
• The Ecosystem: Combining a SEWTECH-style multi-needle machine with a magnetic hooping station allows you to prep the next shirt while the machine is stitching the current one. This overlap is how profitable businesses are built.

Many users begin by searching for fast frames embroidery techniques, but eventually graduate to magnetic systems as their volume increases. This natural progression protects your wrists and your profit margins.

Final Operations Checklist

• Hooping: Garment is centered, fused, and relaxed (no stretch).
• Clearance: Trace completed; "Pinky Test" passed.
• Stops: Reserve Stops programmed for Appliqué steps.
• Speed: Machine set to 600-700 SPM for safety.
• Finish: Glue/residue cleaned off hoop; Backing sealed with Fuso-Soft.

By respecting the physics of the fabric and directing the machine with intention, you remove the fear. The result is a soft, professional onesie that parents will love—and a repeatable process that you can profit from.

FAQ

• Q: How do I make a Baby Lock Array (6-needle) stop after the appliqué placement line and tack-down line using the Reserve Stop (Hand Icon)?
  A: Turn on Reserve Stop for the placement step and the tack-down step so the machine pauses exactly when fabric placement and trimming must happen.
  • Open the Thread/Color menu and locate Reserve Stop (Hand Icon) / Appliqué Stop.
  • Activate the Hand Icon for Step 1 (Placement Line) and Step 2 (Tack-down Line), and leave it OFF for the final satin stitch.
  • Slow the machine to about 600 SPM during appliqué so the stops feel controlled, not rushed.
  • Success check: the machine stops immediately after the placement outline, and stops again after the tack-down line—before any satin stitching starts.
  • If it still fails: re-check that the Hand Icon is assigned to the correct steps (some designs have multiple placement/tack sequences for layered appliqué).
• Q: How do I prevent ripples and distortion when hooping a knit baby onesie using Fast Frames or Durkee Frames with sticky backing?
  A: Stick the knit garment down in a fully relaxed state—stretch during sticking is the #1 cause of ripples after stitching.
  • Turn the onesie inside out and apply peel-and-stick stabilizer to the underside of the open-window frame.
  • Slide the frame inside the onesie, align crosshairs to the frame notches, then press the fabric onto the adhesive without pulling.
  • Smooth outward with your hands after alignment instead of “tugging tight” like a standard hoop.
  • Success check: the knit area around the crosshair lies flat with no “bounce-back” curl, and the fabric grain looks straight—not skewed.
  • If it still fails: remove and re-stick (do not “force-correct” by stretching), and consider adding a second fusible no-show mesh layer for heavy-stretch knits.
• Q: What stabilizer setup prevents puckering on knit onesies for appliqué, and how do I confirm fusible no-show mesh is bonded correctly?
  A: Fuse fusible no-show mesh (poly-mesh) to the inside first, then use sticky backing on the frame for holding—this stabilizes without making the onesie board-stiff.
  • Turn the onesie inside out and fuse one layer of fusible no-show mesh larger than the hoop area.
  • Hold the iron still 10–15 seconds at a polyester-safe setting (a safe starting point is about 260°F–300°F; follow the stabilizer and machine guidance).
  • Add sticky backing on the frame for hooping/holding rather than over-stretching the knit in a ring hoop.
  • Success check: the mesh looks smoothly adhered (not bubbly), and a light pull on the knit meets clear resistance in the stabilized area.
  • If it still fails: re-fuse with proper heat/pressure, and for dense designs on heavy-stretch knits, add a second layer of fusible mesh cross-hatched.
• Q: How do I keep an embroidery needle from hitting the metal bracket when using Fast Frames on a multi-needle embroidery machine?
  A: Run the trace function every time and do the “pinky clearance” test before stitching at full speed.
  • Mount the Fast Frame on the machine arm, then select Trace to outline the design boundary.
  • Watch the needle path and check clearance at the closest points to the metal bracket.
  • Use the “Pinky Rule”: if a pinky finger cannot fit between the needle path and the metal frame edge during trace, stop and change the setup.
  • Success check: the full trace completes with obvious clearance all around—no near-misses at corners or along the bracket.
  • If it still fails: resize the design smaller (often 90%) or re-center/re-hoop and trace again before restarting.
• Q: What is the correct needle choice to stop holes and runs around satin stitches on knit onesies with a 6-needle embroidery machine?
  A: Switch immediately to a ballpoint needle (80/12 is the baseline in this workflow) because sharp points can cut knit fibers and create holes.
  • Install an 80/12 ballpoint needle for knit onesies before starting appliqué.
  • If holes appear, change to a fresh #11 or #12 ballpoint needle rather than continuing with the same needle.
  • Slow to about 600 SPM during appliqué steps to reduce fabric stress while testing results.
  • Success check: satin edges lie clean with no pinholes or “laddering” runs forming next to the stitch column.
  • If it still fails: confirm the knit was not stretched during sticking/hooping and increase stabilization (additional fusible no-show mesh may be needed).
• Q: How can I quickly diagnose loose bobbin tension when white bobbin thread shows on top during appliqué satin stitching?
  A: Treat white bobbin showing on top as a tension/maintenance issue first—clean lint, then re-test bobbin case tension before restarting production.
  • Stop the job and inspect the stitch-out: bobbin thread on top usually indicates the bobbin tension is too loose for that setup.
  • Clean lint from the bobbin area and bobbin case before making further changes.
  • Perform a simple pull test on the bobbin thread (it should feel like pulling dental floss, not free-falling).
  • Success check: after adjustments and a small test, the top thread covers the satin cleanly without bobbin “peeking” through.
  • If it still fails: verify the correct needle type for knit (ballpoint) and re-check that the garment was stabilized and not stretched on the sticky frame.
• Q: What are the key safety rules for hands-on appliqué steps on a Baby Lock/Brother-style multi-needle embroidery machine (Reserve Stop workflow)?
  A: Always fully stop the multi-needle machine before reaching near the needle area—multi-needle machines will not detect fingers.
  • Use Reserve Stop so the machine pauses for placement and tack-down, then wait for complete stop before opening the safety bar or placing fabric.
  • Keep fingers out of the needle path during trace/test movement and during any needle-bar motion.
  • Remove the frame to a flat table for trimming—never trim while the hoop/frame is mounted on the machine arm.
  • Success check: fabric placement, trimming, and re-mounting happen only when the machine is motionless and the frame “clicks” securely back into position.
  • If it still fails: slow the machine speed (600–700 SPM is a safe starting point for appliqué) and practice the Stop–Place–Tack–Trim–Satin rhythm on scrap before running a real garment.
• Q: When does it make sense to upgrade from sticky frames to magnetic hoops or to a SEWTECH multi-needle production setup for onesie appliqué?
  A: Upgrade in levels based on the bottleneck: fix consumables first, then reduce hooping time with magnetic hoops, then scale output with a multi-needle + hooping station.
  • Level 1 (technique/consumables): keep fresh ballpoint needles and use light temporary spray adhesive so appliqué fabric does not lift during tack-down.
  • Level 2 (tool upgrade): switch to magnetic hoops when sticky backing feels messy/slow or hooping is physically tiring and inconsistent.
  • Level 3 (production upgrade): add a hooping station and a SEWTECH-style multi-needle workflow when volume requires repeatable placement and reduced downtime between garments.
  • Success check: hooping time drops (often from about a minute to seconds), placement stays consistent across pieces, and rework from ripples/hoop burn declines.
  • If it still fails: revisit stabilization and Reserve Stop programming first—tool upgrades work best after the process is already stable.
