Fast Frame Oven Mitt Embroidery on a Multi-Needle Machine: The No-Collision Setup That Actually Holds

Embroidering a finished oven mitt is the kind of project that looks deceptively simple until you are standing in front of the machine. You are staring at a thick "quilted sandwich," a narrow tubular arm, and a metal frame that will punish you if you skip the clearance check.

In the embroidery world, we call these "high-stakes blanks." If you mess up a t-shirt, you lose $3. If you mess up a heavy quilted mitt, you risk breaking a needle bar or destroying a thick, expensive product.

In the video, a Fast Frame system (a clamping jig) is used to stitch a three-color floral design with text on a standard cotton oven mitt. This method is absolutely workable for small-batch production—if, and only if, you treat stability and collision avoidance like non-negotiables.

Don’t Panic: A Multi-Needle Embroidery Machine Can Stitch Oven Mitts Without Smashing the Frame

If you’ve ever heard that sickening mechanical "clank" of a presser foot kissing a metal hoop, you already know why people get nervous about thick finished goods. The fear is valid, but the solution is structural.

The good news: the workflow here is built around one core safety habit—trace first, stitch second. This is what keeps the machine, the frame, and your sanity intact.

This project is stitched on a multi-needle embroidery machine. Why? Because the "free arm" on an industrial-style machine has open space around it, allowing the mitt to slide on like a glove. The setup uses a Fast Frame with sticky-back tearaway stabilizer (no hoop burn!), plus optional spring clamps.

The Project Specs:

• Design: Approx. 7,000 stitches.
• Dimensions: ~2.5" wide x 3.5" tall.
• Colors: 3 (Green vines, Red flowers, Golden yellow text).
• Speed Recommendation: For quilted items, slow down. I recommend a "Beginner Sweet Spot" of 600–750 SPM (Stitches Per Minute). Speed creates vibration; on thick items, vibration is the enemy.


Warning: Mechanical Safety Hazard. Keep hands, scissors, and loose tools away from the needle area and moving head while the machine is active. Quilted fabrics can sometimes deflect a needle, causing it to shatter. Always wear eye protection when testing new, thick materials.

The “Hidden” Prep That Makes Fast Frame Oven Mitt Embroidery Work (Sticky-Back Tearaway + Light Tack)

The video starts with the part most beginners rush: preparing the insert. In embroidery, preparation is 80% of the job. If the foundation is weak, the house falls down.

You’re shown a metal Fast Frame insert. It has no inner ring. Instead, we use Sticky-Back Tearaway Stabilizer stuck to the underside of the frame, with the sticky side facing up through the window. This effectively turns your frame into a giant distinct sticker.

Why the sticky surface matters more than the clamps

On thick quilted items, you’re fighting two physical forces:

1. Shear Force: As the pantograph moves left and right, the weight of the mitt wants to stay put (inertia).
2. Vertical Loft: The puffy batting inside the mitt makes it "squishy."

Clamps alone create pressure points that can let the fabric pivot. The sticky-back stabilizer creates surface friction across the entire back of the embroidery area. It holds the fabric like 1,000 tiny hands rather than just two clamps.

When to add spray adhesive (The "Tack Refresh")

In the video, the presenter notes: if the sticky-back isn't tacky enough, use a light tack spray adhesive (like 505 spray) to refresh the grip.

Pro Tip: Do not soak it. You want a "Post-it Note" tack, not "Duct Tape" permanence. Heavy spray will:

• Gum up your needles (causing thread shredding).
• Attract lint into your bobbin case.
• Leave a gummy residue on the mitt lining.

Hidden Consumables Checklist:

• Needles: Use a 75/11 Sharp or Topstitch needle. Ballpoint needles struggle to penetrate dense quilting cleanly.
• Topping (Optional): If the mitt is very textured, a layer of water-soluble topping prevents stitches from sinking in.

Prep Checklist (Before the mitt touches the machine)

• Surface Check: Run your finger over the sticky stabilizer. It should grab your skin instantly. If not, spray lightly.
• Frame Security: Ensure the Fast Frame arm is screwed tightly to the machine pantograph. Wiggle it—it should not move.
• Bobbin Check: Start with a full bobbin. Changing bobbins mid-project on a tight mitt is a nightmare.
• Marking: Mark your center point on the mitt using a water-soluble pen or chalk.


Hooping Thick Items on a Tubular Arm: Position the Oven Mitt So It Clears the Frame Every Time

The mitt is slid onto the machine arm. The presenter notes the mitt barely fits and recommends buying the largest oven mitts possible.

This is critical advice. With thick finished goods, "fit" isn't just about getting it onto the arm—it’s about clearance.

The "Tunnel Vision" Danger

When you slide a mitt onto the arm, the excess fabric bunches up near the machine body. You need to ensure:

• The Presser Foot: Cannot hit the metal frame clamp.
• The Needle Bar: Doesn't rub against the thick side seams of the mitt.
• The Throat Plate: Isn't snagging the inner lining.

The Test: Once the mitt is on, slide your hand underneath (carefully!) or use a ruler to smooth the lining. If the lining is bunched, your needle will sew the mitt shut.

The video shows spring clamps positioned on the edges. These act as "belts and suspenders"—safety backups. However, proceed with caution: clamps add height. If your presser foot is too low, it will hit the clamp.

If you struggle with bulky items frequently, this is the stage where many operators start researching hooping for embroidery machine alternatives that offer lower profiles or stronger magnetic grips to avoid these clearance battles.

The Trace Function Ritual: Prevent Presser-Foot Collisions Before the First Stitch

Before determining the starting point, the presenter runs a Trace (some machines call this "Frame Out" or "Border Check").

Do not skip this. This is your primary insurance policy.

How to Trace Like a Pro

Don't just watch the screen. Watch the Presser Foot:

1. Lower the needle bar (manually or via "Needle Down" button) to hover just above the fabric.
2. Run the trace.
3. The Sensory Check: Look for the gap between the foot and the metal frame. You want at least 3mm to 5mm of safety buffer.
4. Listen: If the machine strains or the fabric makes a "zipping" sound against the arm, the mitt is too tight.

In the video, the trace clears just fine. If yours doesn't, nudge the design center or resize the design. It is better to shrink a design by 10% than to shatter a needle bar.

Stitching the 3-Color Oven Mitt Design: What to Watch During Green Vines, Red Flowers, and Yellow Text

Once the trace confirms safety, we hit start. The machine stops automatically for color changes.

Color 1: Green Vines (The Stability Test)

The green border stitches first. This acts as an "underlay" for the whole project.

What I watch as an operator:

• The Sound: A rhythmic thump-thump is normal on quilts. A sharp crack or slap means the fabric is flagging (lifting up with the needle).
• The Movement: Is the mitt shifting? Place a finger lightly on the fabric edge (away from the needle!). You should feel vibration, but no sliding.

Color 2: Red Flowers (The Clamp Problem)

Here comes a real-world lesson from the video. As the machine moves tostitch the red flowers, the spring clamps start vibrating and moving. The presenter removes them mid-print.

Why did this happen? Quilted mitts are spongy. Clamps squeeze the sponge, but they don't grip firmly. The vibration of the machine "walks" the clamps loose. The Fix: If your sticky stabilizer is good, trust it. The clamps often cause more trouble (collisions/snags) than they solve on puffy items.

Thread Break Note: The video mentions a thread break.

• Likely Cause: On quilts, the needle heats up due to friction. Or, the needle flexed slightly, causing the thread to rub against the needle plate hole.
• Solution: Re-thread. If it persists, switch to a larger needle (e.g., from 75/11 to 80/12).

Color 3: Golden Yellow Text (Precision Work)

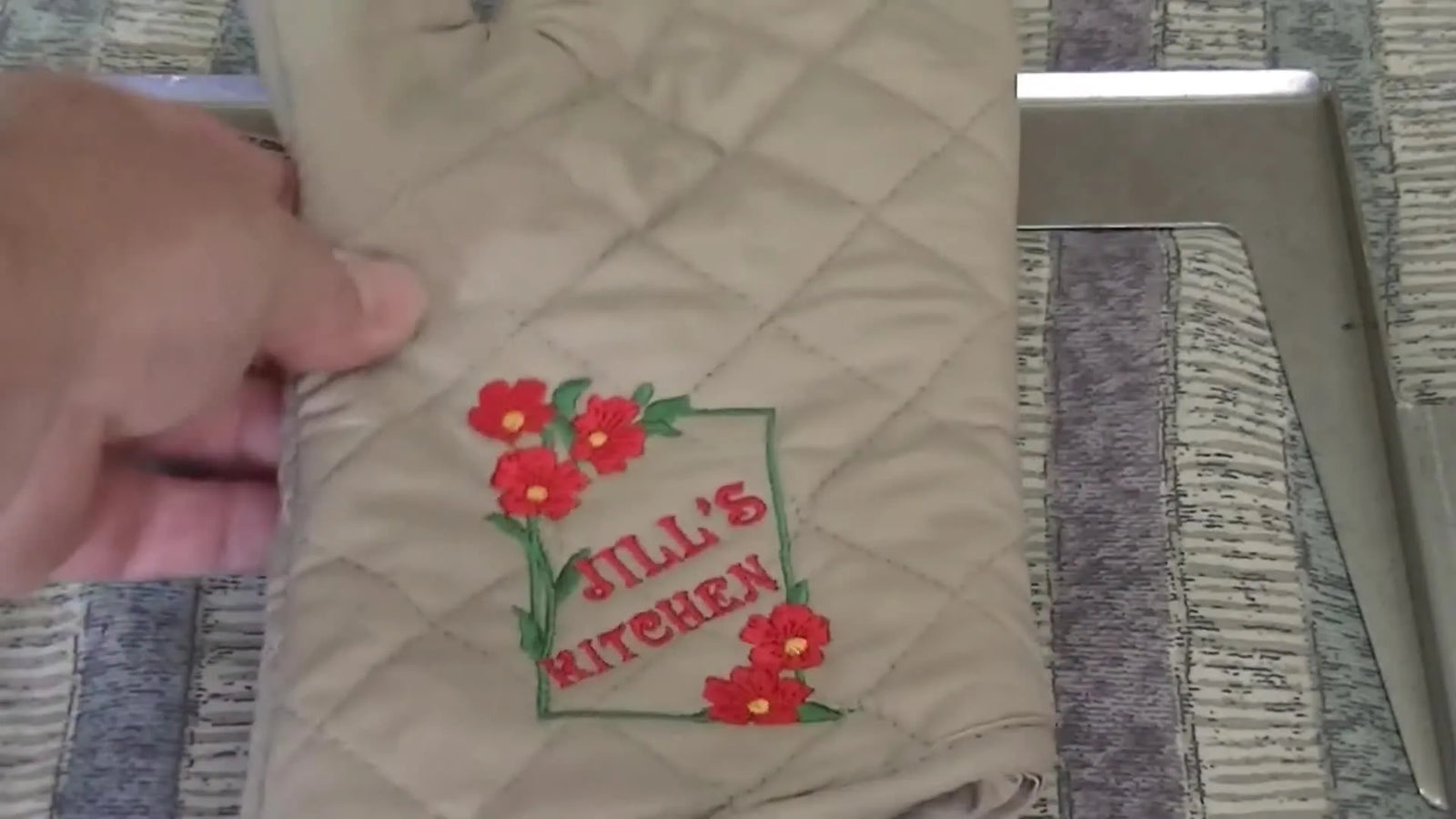

The final color is the "hero" element: the text "Jill’s Kitchen."

Because text is dense and small, any shifting earlier in the process will show up here as misaligned outlines. Since the presenter relied on the sticky back (and removed the loose clamps), the registration remained perfect.

When you are ready to produce these commercially, knowing that your setup is stable enough for text gives you the confidence to sell. This reliability is exactly why shops invest in multi-needle machine embroidery systems—to handle complex registration on difficult 3D items without constant realignment.

Setup Checklist (Right before you press Start)

• Trace Complete: You visually confirmed the foot does not hit the frame.
• Speed Reduced: Machine set to 600-750 SPM.
• Thread Path: Check that the thread isn't caught on the spool pin (common after threading).
• Pocket Check: Ensure the "thumb" of the mitt isn't tucked under the needle area.

Tearaway Stabilizer Reality Check: It Won’t Stop Stitches From Showing Inside the Oven Mitt

A common question in the comments: "Does the stabilizer stop the scratchy stitches from touching my hand inside the mitt?"

The Answer: No. Tearaway stabilizer supports the fabric during stitching. It is not an insulation barrier. The embroidery goes all the way through the layers.

Managing Customer Expectations

If you are selling these:

• Option A (Standard): Trim the backing cleanly. Most users don't mind the texture inside an oven mitt.
• Option B (Premium): Use an iron-on soft backing (like Cloud Cover or Tender Touch) over the stitches inside the mitt if you can reach it. This is difficult on deep mitts but possible on shallow ones.

For those researching sticky hoop for embroidery machine techniques, remember that "sticky" refers to the holding method, not a permanent backing that stays on the product.

Unhooping and Finishing: Remove the Mitt Cleanly, Tear Away Backing, Then Trim Like a Pro

The stitch is done. Now, the finish.

1. Remove: Unscrew the frame from the machine arm first. Don't try to peel the mitt off while it's still attached to the pantograph—you'll wrench the gears.
2. Peel: Gently peel the mitt from the sticky stabilizer. It should sound like ripping Velcro.
3. Tear: Tear the stabilizer away from the back. Support the stitches with your thumb so you don't distort the design.
4. Trim: Use curved snips to trim jump stitches (the connecting threads) flush with the fabric.


Operation Checklist (Post-Production):

• Inside Inspection: Turn the mitt inside out (if possible) or look inside. Are there huge birdnests of thread? (Sign of bad tension).
• Residue Check: Is there sticky residue on the mitt? Use a lint roller or a piece of excess tearaway to dab it off.
• Needle Check: Run your fingernail down the needle tip. Did it get burred by the heavy quilt/metal frame? If yes, trash it immediately.

The “Why It Worked” Breakdown: Hooping Physics, Vibration Control, and Repeatability for Paid Orders

Why did this work when many beginners fail?

1. Friction over Force: Instead of crushing the quilt with a clamp (which makes it bulge), the presenter used surface area (sticky back) to hold it flat.
2. Conservative Sizing: The design (2.5" x 3.5") left a wide margin of error. Don't try to fill the entire mitt face; edges are danger zones.
3. Adaptability: When clamps failed, they were removed. A rigid operator would have taped them down and caused a crash. A smart operator adapts.

This logic is key when adopting systems like fast frames embroidery gadgets. The tool is only as good as the physics you apply to it.

A Simple Decision Tree: Stabilizer + Holding Method for Finished Goods

Use this guide to stop guessing and start stitching.

scenario: You are embroidering a pre-made item (Mitt, Tote, Cap).

1. Is the item flat and easy to access?
   • Yes: Use a standard hoop.
   • No (Tubular/Thick): Go to Step 2.
2. Do you have a Magnetic Hoop that fits?
   • Yes: Use Magnetic Hoop + Cutaway (for stability) or Tearaway. (Best for Speed).
   • No: Use Fast Frame/Sticky Stabilizer method. (Best for difficult shapes).
3. Is the fabric textured/quilted (like an oven mitt)?
   • Yes: Use Sticky Tearaway for hold + Water Soluble Topping on top for stitch definition.
   • No: Sticky Tearaway alone is fine.
4. Is the Machine Speed safe?
   • Yes (600 SPM): Proceed.
   • No (1000 SPM): Slow down immediately.

Troubleshooting Fast Frame Oven Mitt Embroidery: Symptoms, Likely Causes, and Fixes

The Upgrade Path: When Should You Invest in Better Tools?

If you are doing one oven mitt for your grandmother, the method above is perfect. But what if you get an order for 50 custom mitts for a local bakery?

The Pain Points of the "Sticky" Method:

• Residue: Cleaning gum off needles takes time.
• Consumables: Use a lot of stabilizer and spray.
• Time: Peeling and sticking takes 2-3 minutes per item.

Level 1: The "Hooping Station" Solution

To speed up alignment, many professionals use a dedicated fixture. Terms like hooping station for machine embroidery refer to jigs that help you place the mitt in the exact same spot every time, cutting setup time by 50%.

Level 2: The Magnetic Revolution (Safety & Speed)

For thick items like oven mitts, standard mechanical hoops are a struggle. You need hand strength to force them shut, which leads to wrist strain. Magnetic Hoops (Magnetic Frames) vary by machine type (we offer them for both home single-needle and industrial multi-needle machines). They snap shut automatically, adjusting to the thickness of the quilt instantly.

• No hoop burn.
• No hand strain.
• Instant hold.

Warning: Magnetic Safety. Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and sensitive electronics.

Level 3: Production Capacity (SEWTECH Multi-Needle)

If you found that embroidering the "Jill's Kitchen" text required 10 minutes of thread changes on your single-needle machine, imagine doing that 50 times. SEWTECH Multi-Needle Machines allow you to set all colors at once. You press start, walk away, and come back to a finished mitt. Combined with a hoop master embroidery hooping station workflow or magnetic frames, you transform from a "crafter" to a "manufacturer."

The Bottom Line: Master the sticky-back method first—it teaches you the physics of stability. But when the orders pile up, don't just work harder. Upgrade your holding tool (Magnets) or your engine (Multi-needle) to protect your profit margins.

FAQ

• Q: How do I use a Fast Frame clamping system with sticky-back tearaway stabilizer to embroider a finished quilted oven mitt without hoop burn?
  A: Use sticky-back tearaway as the primary hold, and treat clamps as optional backups—not the main grip.
  • Apply: Stick sticky-back tearaway to the underside of the frame with the adhesive facing up through the window.
  • Test: Touch the adhesive—if it does not grab instantly, refresh with a very light mist of temporary tack spray (not a soak).
  • Place: Mark the mitt center, then press the mitt firmly onto the sticky area so the full surface contacts (not just the edges).
  • Success check: The mitt resists sliding when the pantograph moves, and the fabric does not “walk” or pivot during the first stitches.
  • If it still fails: Reduce machine speed and add water-soluble topping to reduce flagging on highly textured quilting.
• Q: What machine speed (SPM) is a safe starting point for embroidering thick quilted oven mitts on a multi-needle embroidery machine?
  A: Slow down to 600–750 SPM to reduce vibration, which is a common cause of shifting on thick quilted items.
  • Set: Start in the 600–750 SPM range before pressing Start.
  • Observe: Listen for steady rhythmic stitching; avoid pushing speed on “puffy” blanks.
  • Stabilize: Make sure the mitt is firmly held by the sticky surface before running the design.
  • Success check: The stitch sound stays consistent (no sharp slap/crack) and the design registration stays clean through the text segment.
  • If it still fails: Stop and re-check clearance with a trace/border check and re-seat the mitt to improve contact.
• Q: How do I run the Trace (Frame Out/Border Check) on a multi-needle embroidery machine to prevent the presser foot from colliding with a Fast Frame when stitching oven mitts?
  A: Always trace first with the presser foot as the main thing you watch, and keep a 3–5 mm clearance buffer.
  • Lower: Bring the needle bar down to hover just above the fabric (using needle down/manual control as available).
  • Run: Start the Trace/Frame Out/Border Check and watch the presser foot path—not only the screen.
  • Confirm: Keep at least 3–5 mm gap between the presser foot and any metal frame/clamp hardware.
  • Success check: The trace completes with no rubbing, straining, or “zipping” sound from the mitt dragging tight on the arm.
  • If it still fails: Nudge the design center or slightly reduce the design size instead of risking a strike.
• Q: Why do spring clamps rattle, creep, or loosen during multi-needle embroidery on thick quilted oven mitts, and what is the safest fix?
  A: This is common on puffy quilts—remove the clamps if the sticky-back hold is good, because clamps can add height and cause collisions.
  • Stop: Pause the machine if clamps begin vibrating or migrating.
  • Remove: Take clamps off if they are walking loose, especially if presser-foot clearance is tight.
  • Rely: Let the sticky-back tearaway provide full-surface friction; refresh tack lightly if needed.
  • Success check: After clamps are removed, the design stitches without any clicking/rattling and the frame path stays clear.
  • If it still fails: Improve adhesion (light tack refresh) and re-press the mitt flat so more surface area contacts the sticky stabilizer.
• Q: What needle type and size should I use for embroidering a quilted oven mitt with sticky-back stabilizer, and how do I respond to repeated thread breaks?
  A: Start with a 75/11 Sharp or Topstitch needle, and move up to 80/12 if thread breaks persist on dense, friction-heavy quilting.
  • Install: Use a 75/11 Sharp or Topstitch needle (ballpoint often struggles to penetrate dense quilting cleanly).
  • Re-thread: If a break happens, re-thread the top path carefully and check for snags at the spool pin.
  • Adjust: If breaks continue, switch to an 80/12 needle; adhesive overspray can also contribute, so keep spray minimal.
  • Success check: Thread runs smoothly without shredding near the needle and color blocks complete without repeated stops.
  • If it still fails: Reduce adhesive use (aim for “Post-it” tack) and inspect/replace the needle if it feels burred after heavy stitching.
• Q: What are the most important safety precautions when embroidering thick finished oven mitts on a multi-needle embroidery machine?
  A: Treat thick quilts as a higher-risk test material: keep hands/tools away while running, wear eye protection, and never ignore unusual sounds.
  • Clear: Keep hands, scissors, and loose tools away from the needle area and moving head during operation.
  • Protect: Wear eye protection when testing new thick materials because needles can deflect and shatter.
  • Listen: Stop immediately if you hear a loud metal “clank” or repeated striking sounds.
  • Success check: The machine runs through trace and stitching without collisions, and the presser foot never contacts metal hardware.
  • If it still fails: Re-run trace, re-check clearance and bunching inside the mitt, and reposition before restarting.
• Q: When should I upgrade from the Fast Frame + sticky-back method to magnetic hoops or a multi-needle embroidery machine for oven mitt production efficiency?
  A: Upgrade when residue cleanup, consumable usage, and per-item setup time start eating profit; improve technique first, then tools, then capacity.
  • Level 1 (Technique): Optimize sticky-back hold, slow speed to 600–750 SPM, and make trace checks non-negotiable.
  • Level 2 (Tool): Move to magnetic hoops when hooping thick items causes hand strain or repeated clearance battles; magnets snap to thickness and help avoid hoop burn.
  • Level 3 (Capacity): Use a multi-needle system when frequent color changes on a single-needle machine slow production and increase alignment mistakes.
  • Success check: Setup time drops, collisions and re-hoops decrease, and small text stays registered reliably across repeated mitts.
  • If it still fails: Add a positioning fixture/hooping station approach to make placement repeatable before scaling order volume.
