Fast, Clean Doctor Coat Name Stitching with a Rectangular Magnetic Hoop (No Hoop Burn, No Guesswork)

Mastering Medical Uniforms: The Zero-Distortion Guide to Magnetic Hooping

Embroidering a name and title onto a finished doctor’s coat sounds simple—until you’re staring at a bulky garment, a pocket area that won’t sit flat, and the very real fear of crooked text or hoop marks. We call this "The Uniform Anxiety": that sinking feeling that one small mistake will ruin an expensive garment that you can't easily replace.

The video you watched is a clean, production-style demo: a commercial single-head machine stitches two lines of white text—“DR. A. SRINIVAS RAJU” and “CONSULTANT CARDIOLOGIST”—onto a dark blue coat using a rectangular magnetic hoop. The big win visible here is speed without wrestling the garment into a traditional force-fit hoop.

But simply buying the tool doesn't guarantee the result. Below is the same workflow rebuilt into a repeatable shop process. We will strip away the "magic" and give you the physics, the sensory checks, and the "why" behind each move so you can avoid the expensive mistakes (misalignment, puckering, and re-dos) that kill profit on uniform orders.

Don’t Panic: Why Rectangular Magnetic Hoops Are the Safest Choice for Coats

A finished uniform is unforgiving. Unlike a t-shirt where you might steam out a hoop mark, a lab coat’s starch and weave hold memory. You cannot hide a crooked name under a seam allowance, and standard hoops often leave "hoop burn" (shiny crushed fibers) that ruins the professional look.

The good news is that a rectangular magnetic hoop clamps the garment between top and bottom frames using vertical force, rather than friction-fitting it inside a ring. You aren't forcing thick layers through a tight circle; you are gently sandwiching them.

In the demo, the operator uses visible chalk guide lines inside the hoop area to confirm the text will stitch level.

That single habit—verify level before stitch—is what separates a calm production run from a day of refunds.

If you’re building a uniform workflow around magnetic hoop embroidery, treat alignment as a physical checkpoint you never skip. Don't just look at it; measure it.

The “Hidden” Prep Pros Do First: Controlling the Chaos

The video shows three key consumables/tools in play: white embroidery thread, a white tear-away stabilizer, and chalk marks for alignment. Those are the visible pieces.

What experienced operators add is control: controlling stretch, controlling bulk, and controlling what can snag.

Prep that matters (and why)

• Choose a stabilizer that matches the fabric behavior. The demo uses white tear-away stabilizer behind the coat.
  • The Physics: Lab coats are usually a stable twill weave (Poly/Cotton). They don't stretch much. Tear-away provides crisp definition for letters without adding permanent bulk inside the jacket.
• Manage garment bulk. A finished coat has significant weight (sleeves, collar, long tails). If the garment hangs off your table, gravity will pull the fabric while it stitches. This causes letters to lean.
• Confirm thread path and needle readiness. The machine in the video runs at high speed. At 800+ stitches per minute (SPM), a microscopic burr on a needle sounds like a tiny "tick-tick" before it shreds your thread.

Warning: Physical Safety
Keep fingers, tools, and loose garment sections (like drawstrings or sleeves) away from the needle area once the machine starts. High-speed needle motion can cause serious puncture injuries. Ensure the coat sleeves are folded back so they don't catch on the pantograph arm.

Stabilizer Decision Tree: The "Safe Zone" for Uniforms

Use this logical flow to choose your backing. When in doubt, "over-stabilize" rather than under-stabilize.

Fabric / Garment Behavior → Stabilizer Choice

1. Stable Lab Coat (Twill/Canvas, Minimal Stretch):
   • Primary Choice: Medium-weight Tear-Away (1.5oz - 2.0oz).
   • Why: Support is sufficient; clean removal looks professional.
2. Scrub Top (Thin Cotton/Poly, Slight Give):
   • Primary Choice: Cutaway (2.0oz) OR Fused Poly-mesh.
   • Why: Scrubs wash frequently and soften; tear-away may disintegrate over time, causing letters to distort.
3. Performance Polo / Knit Panel Uniform:
   • Primary Choice: No-Show Mesh (Cutaway).
   • Why: Knits stretch. Tear-away will punch out and fail, ruining the text.
4. Text near Pockets/Seams:
   • Adjustment: Use a floating layer of tear-away under the hoop to bridge the varying thicknesses.

The "Hidden Consumables" Checklist

Don't start without these three items that beginners often forget:

1. Temporary Adhesive Spray (KK100/505): To lightly tack the backing to the garment if it slips.
2. Tailor’s Chalk / Water Soluble Pen: For the critical alignment lines.
3. Fresh Needles (Size 75/11 Sharp): Ballpoints are for knits; Sharps give crisper text on woven coats.

Prep Checklist (Do this before you touch the hoop)

• Fabric Check: Inspect the coat for pre-existing stains (don't buy a replacement for a stain you didn't cause).
• Backing Sizing: Cut backing at least 1 inch larger than the hoop frame on all sides.
• Thread Color: Verify the white thread is actually white (not cream) against the coat.
• Bobbin Check: Look for the white bobbin thread showing 1/3 in the center (the "I" test).
• Workspace: Ensure the table is clear so the heavy coat doesn't drag on obstacles.

The Chalk-Line Alignment Method: The "Factory Straight" Standard

In the video’s first step, the operator points to horizontal chalk lines drawn on the dark blue fabric inside the magnetic hoop. This is the alignment check that prevents the most common uniform mistake: a name that looks tilted when worn.

How to replicate the alignment check

1. Identify the final placement zone. (Standard: Center of text is 7-9 inches down from the shoulder seam, centered on the pocket or chest panel).
2. Draw the "Crosshairs". Draw one vertical center line and one horizontal base line.
3. Clamp the garment. Sandwich the fabric and backing between the magnetic frames.
4. The Sensory Test. Run your finger along the chalk line relative to the hoop edge. It should be parallel. If the line "dips" or "climbs," un-clamp and reset.

Why this works (The Physics)

Fabric behaves like a fluid solid. It can look flat but hold "latent tension." When you clamp it, the fabric may release that tension and "creep" a few millimeters. Chalk lines give you an immediate truth test: if the line curves after clamping, your fabric is twisted.

To master how to use magnetic embroidery hoop correctly, you must think of the hoop as a neutral holder, not a stretcher. You are not trying to stretch drum-skin tight; you are trying to hold it perfectly neutral and flat.

Clamping the Rectangular Magnetic Hoop: Snap, Click, Secure

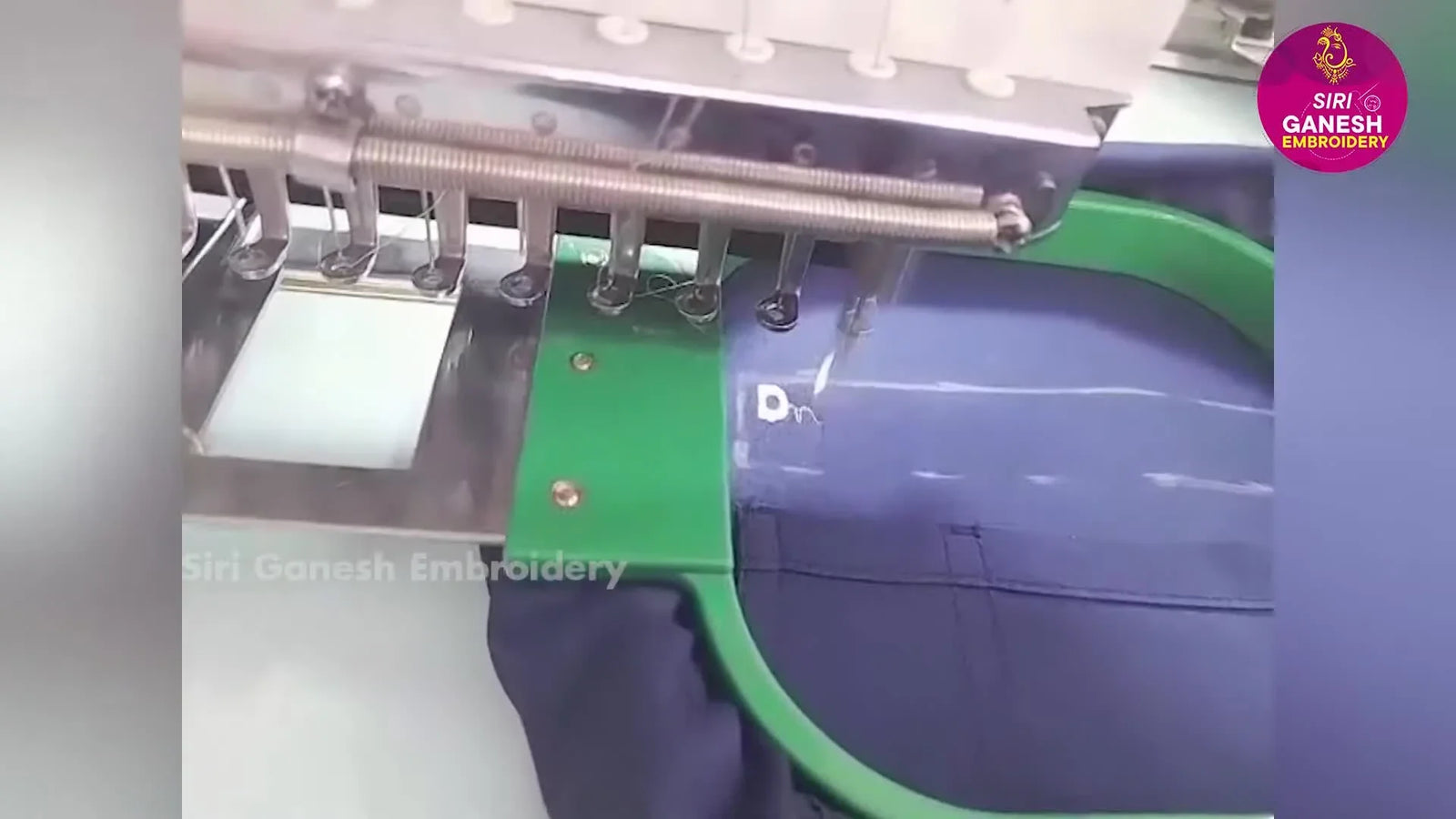

The demo shows a green rectangular magnetic hoop holding the coat securely. The garment is clamped between the top and bottom frames.

Best-practice clamping sequence

1. The "Float": Place the bottom magnetic ring inside the garment.
2. The "Smooth": Smooth the fabric over the bottom ring with your palms. Feel for wrinkles in the backing underneath.
3. The "Anchor": Bring the top magnetic frame down. Do not let it snap uncontrollably. Align one edge first (e.g., the top edge), verify your chalk line, then lower the rest.
4. The "Sound": You should hear a solid thud-click as the magnets engage.

Warning: Magnet Safety
Pinch Hazard: Magnetic hoops use powerful industrial magnets. They can crush fingers if you get caught between the frames. Handle with deliberate care.
Medical Devices: Keep magnetic hoops at least 6 inches away from pacemakers, ICDs, and magnetic storage media.

If you’re considering magnetic embroidery hoops for daily uniform work, establish a "No-Metal-Storage" rule. Don't store them stuck to the side of your machine head, as the magnetic field can occasionally interfere with sensitive electronics.

Starting the Machine: The Calm 10 Seconds

In the video, the operator initiates embroidery from the control panel.

The "Sweet Spot" for Speed

While commercial machines can run 1000+ SPM, speed kills quality on text.

• Beginner Sweet Spot: 600 - 750 SPM.
• Why: Slower speeds reduce vibration on the letters, making small text (like "Dr." or "Md.") much sharper.

The machine shown is a single-head industrial unit with a 12-needle head. The video indicates Needles 4 and 6 are active. This suggests the operator uses specific needles for text (likely thinner 65/9 or 75/11 sharps).

In many professional shops, this capability—having different needles/colors ready instantly—is where commercial embroidery machines justify their cost over single-needle home machines.

Stitching Line 1: Reading the Run

The demo shows the machine stitching "DR. A. SRINIVAS RAJU" in white.

What to Look and Listen For

• Visual - "Flagging": Watch the fabric right where the needle enters. Does it bounce up and down wildly? If yes, your clamping is too loose or the hoop is too large for the design.
• Auditory - The Rhythm: You should hear a consistent hum-taka-taka. A rhythmic thump-thump usually means the hoop is hitting something or the garment is dragging.
• Visual - The Column: The satin stitches should sit on top of the fabric. If they look buried or thin, your top tension is too high.

A rectangular embroidery magnetic hoop excels here because its long, flat sides grip the fabric evenly across the entire width of the name, preventing the puckering common with round hoops.

Dropping to Line 2: The Alignment "Truth Serum"

The machine transitions to "CONSULTANT CARDIOLOGIST." Long horizontal text acts like a ruler; even a 1-degree tilt becomes obvious over a 6-inch span.

Pro Tip for Long Text

If you see the text starting to drift (the letters are getting closer to the bottom hoop edge on the right side), STOP immediately.

• It is better to pick out 3 letters and re-hoop than to stitch the whole line crooked.
• Cause: usually the weight of the coat hanging off the machine pulled the hoop slightly out of alignment during the travel move.

The Finished Look: Inspection Before Un-Hooping

The demo shows the finished embroidery still in the hoop.

Crucial Step: Do not pop the magnet off yet! Rub your thumb over the text.

• Texture Test: Does it feel rough or "loop-y"? (Tension too loose).
• Density Check: Can you see the blue coat fabric through the white stitches? (Density too low).

If you spot an issue, you can still back up the machine and repair it only if the fabric is still clamped. Once you un-hoop, game over.

Why Magnetic Frames Win on Finished Uniforms

Traditional hooping on a finished coat often creates a "Production Bottleneck":

1. Hoop Burn: You spend 5 minutes steaming out ring marks.
2. Fighting Seams: Thick pocket seams prevent the inner ring from locking.
3. Physical Pain: Repetitive strain on wrists from tightening screws.

Magnetic frames solve this by vertical clamping. This is why high-volume shops transition to magnetic frames for embroidery machine—it's not just about speed; it's about reducing damaged goods.

The Upgrade Path: When to Buy What

Do not upgrade just to spend money. Upgrade when the pain points hit a threshold.

• Scenario A: The "Hoop Burn" Struggle.
  • Symptom: You are rejecting garments because of ring marks, or thick Carhartt-style jackets won't fit in your plastic hoops.
  • Solution: Magnetic Hoops (Level 2). This is a hardware fix for a physical problem.
• Scenario B: The "Sunday Night" Panic.
  • Symptom: You have an order for 50 lab coats due Monday. You are spending 10 minutes changing threads on your single-needle machine.
  • Solution: Multi-Needle Machine (Level 3). If you are doing commercial batches, a machine like the SEWTECH multi-needle series changes the math. You set it up, press start, and prep the next garment while it runs.

Real-World Troubleshooting: The "Quick Fix" Table

The Tools That Make This Job Predictable

Uniform personalization is repeat business. Clinics reorder. Staff changes.

Here’s the logic for your toolkit:

1. Process: Use chalk lines. Never guess.
2. Stability: Use Tear-Away for woven coats; Cutaway for scrubs/knits.
3. Hardware: A rectangular magnetic embroidery frame is the industry standard for name-drops because it matches the shape of the text and avoids pocket seams.
4. Capacity: If your volume exceeds 20 garments a week, calculate the ROI of a multi-needle machine to reclaim your time.

Setup Checklist (Right before you press 'Start')

• Chalk Lines: Visible, level, and cross-checked after clamping.
• Clearance: Coat sleeves are folded back; nothing will hit the needle bar.
• Bobbin: Full white bobbin loaded; tail is cut equivalent to the top thread.
• Backing: Spans the entire hoop width, not just the text area.
• File Orientation: Is the text right-side up relative to the coat? (Double check!)

Operation Checklist (While the machine is running)

• Sound Check: Listen for the rhythmic "hum," not a "thud."
• Float Check: Ensure the fabric isn't lifting/flagging with the needle.
• Drift Watch: Watch the baseline of the text relative to the hoop edge.
• Safety: Hands are at least 6 inches away from the moving needle.
• Final Inspect: Check quality before removing the magnet.

FAQ

• Q: How do rectangular magnetic hoops for finished lab coats prevent hoop burn compared with standard screw embroidery hoops?
  A: Use a rectangular magnetic hoop to clamp the coat with vertical pressure instead of force-fitting the fabric into a tight ring, which commonly causes shiny hoop marks on uniform twill.
  • Align the coat and backing between the top and bottom magnetic frames instead of stretching the fabric “drum tight.”
  • Verify level placement with chalk guidelines before stitching so re-hooping is rare.
  • Support the heavy coat so gravity does not pull while the hoop is clamped.
  • Success check: the fabric looks flat and neutral (not stretched), and the coat surface shows no crushed/shiny ring after un-hooping.
  • If it still fails… reduce clamping shock (lower one edge first) and re-check that thick seams/pocket edges are not being forced under the clamp.
• Q: How do chalk crosshair alignment lines help keep name embroidery straight on a finished medical coat when using a rectangular magnetic hoop?
  A: Draw and verify chalk crosshairs inside the hoop area after clamping, because fabric can “creep” a few millimeters and create a visible tilt on long text.
  • Mark one vertical center line and one horizontal baseline at the final placement zone.
  • Clamp the garment and backing, then re-check the chalk line against the hoop edge.
  • Re-clamp immediately if the chalk line dips or climbs after the magnets engage.
  • Success check: the chalk baseline stays parallel to the hoop edge after clamping and smoothing.
  • If it still fails… stop relying on visual guessing and do the finger-run test along the chalk line relative to the hoop edge every time.
• Q: What stabilizer should be used for embroidery on a woven lab coat versus a scrub top or knit uniform panel when hooping with a magnetic frame?
  A: Match stabilizer to garment behavior: tear-away for stable woven lab coats, cutaway (or no-show mesh cutaway) for garments that soften, stretch, or wash heavily.
  • Use medium-weight tear-away for stable twill/canvas lab coats for crisp lettering and clean removal.
  • Use cutaway (or fused poly-mesh) for scrub tops that wash frequently so lettering does not distort over time.
  • Use no-show mesh cutaway for performance polos/knits because tear-away can punch out on stretch fabric.
  • Success check: letters stay crisp without tunneling, and backing removes (tear-away) without pulling stitches or leaving the design unsupported.
  • If it still fails… add a floating layer of tear-away under the hoop near pockets/seams to bridge thickness changes.
• Q: What are the minimum “hidden consumables” to prepare before embroidering names on finished uniforms with a commercial multi-needle embroidery machine and magnetic hoop?
  A: Don’t start without temporary adhesive spray, a marking tool for alignment lines, and fresh sharp needles, because most uniform failures come from slippage, misalignment, or dull needles at speed.
  • Lightly tack backing to the garment with temporary adhesive spray if the layers want to shift.
  • Mark placement using tailor’s chalk or a water-soluble pen before clamping.
  • Install a fresh sharp needle (the blog example uses 75/11 sharp for woven coats) and replace at the first “tick-tick” burr sound.
  • Success check: the fabric does not drift in the hoop, and stitching runs with a consistent hum (no intermittent ticking or shredding).
  • If it still fails… re-thread with the presser foot up and confirm the backing is cut at least 1 inch larger than the hoop on all sides.
• Q: How can embroidery machine birdnesting (tangles underneath the fabric) be stopped during uniform name embroidery runs?
  A: Stop immediately and re-thread the top thread with the presser foot UP, because birdnesting is commonly caused by the top thread not being seated in the tension disks.
  • Cut away the tangled mess cleanly to avoid pulling fabric or bending the needle.
  • Raise the presser foot and re-thread, “flossing” the thread firmly into the tension disks.
  • Restart only after verifying the thread path is correct and the bobbin is properly loaded.
  • Success check: the underside shows controlled bobbin appearance (not a thread wad), and the machine sound returns to a steady rhythm.
  • If it still fails… inspect needle condition and confirm the backing is fully spanning the hoop width, not just the text area.
• Q: What causes embroidered name text to tilt downhill on a heavy lab coat, and what is the fastest fix when the tilt appears mid-run?
  A: Gravity is usually pulling the heavy coat tail and shifting alignment, so stop and fully support/bundle the garment before continuing.
  • Stop as soon as drift is visible—picking out a few letters is easier than restitching a whole line.
  • Support the coat on a table/stand so nothing hangs and tugs during stitching.
  • Clip or bundle excess coat bulk so it cannot drag or catch during hoop travel moves.
  • Success check: the baseline stays consistent relative to the hoop edge across long text (the line reads like a ruler).
  • If it still fails… re-hoop using chalk crosshairs and re-check level after clamping, not before.
• Q: What safety rules should be followed for high-speed needle motion and magnetic hoop pinch hazards during medical uniform embroidery?
  A: Keep hands and loose garment sections away from the needle area once stitching starts, and handle magnetic frames slowly to avoid finger pinch injuries.
  • Fold back sleeves/drawstrings and keep all loose coat sections clear of the pantograph/needle zone before pressing Start.
  • Lower the magnetic top frame in a controlled way—set one edge, verify alignment, then seat the rest (do not let it snap).
  • Keep magnetic hoops away from pacemakers/ICDs and avoid sticking hoops to machine heads or sensitive electronics.
  • Success check: nothing can swing into the needle path during motion, and hands stay at least 6 inches from the moving needle.
  • If it still fails… stop the machine first, then reset garment management and clamping sequence before resuming.
