Embroidery + Sublimation Patches on a Brother PE800: The Clean, Repeatable Workflow (and the Mistakes That Waste a Whole Afternoon)

If you’ve ever wanted patches that look “printed” like a photograph but still possess that premium, raised embroidered edge, this hybrid method is the industry standard for achieving it without investing $10,000 in industrial equipment.

In the professional workflow demonstrated by Alan Wade, the embroidery machine has one specific job: creating a high-precision architectural framework (the border). Then, sublimation handles the heavy lifting of color and detail. The magic lies in the order of operations and the sensory checks that prevent you from wasting expensive blanks.

The Calm-Down Moment: Why This Brother PE800 Patch Method Works (Even If You’re New)

This process often intimidates beginners because it combines two distinct disciplines: digitized needlework and chemical heat transfer. However, by decoupling them, we actually reduce the failure rate of each.

• Embroidery Role: Stitches a simple satin or running stitch outline on 100% white polyester. No complex fills, no density issues.
• Patch Fabrication: Sealing the edge chemicals (Fray Check) and surgical cutting.
• Sublimation Role: Dyes the fabric fibers permanently using heat.

The Expert’s Mindset: You are not "embroidering a patch." You are manufacturing a textile canvas first, then painting it with heat. This shift stops you from obsessing over digitizing complex fill patterns and lets you focus on the physical quality of the border.

The “Hidden” Prep Pros Do First: Polyester + Tearaway + Cutting Strategy That Doesn’t Backfire

Success begins with material science. A common rookie mistake is using a poly-blend shirt fabric or cotton. You need 100% Polyester Twill or Poplin. The tighter the weave, the crisper your image will be.

Alan starts by cutting a piece of fabric large enough to hoop securely, checking the grain to ensure it isn't warped.

Fabric Prep that Prevents Hoop Drama

• The Material: White 100% polyester.
• The Cut: Cut a rectangle/square at least 2 inches wider than your hoop on all sides.
• The Lie: Place the fabric on a flat surface. Stroking it with your hand, you should feel no bumps or folds.

Physics Note: Thin polyester is unstable. If you pull it tight like a guitar string, the weave opens up. When the needle penetrates, it pushes fibers aside. Once un-hooped, the fabric relaxes, and your perfect circle becomes an oval. You want "neutral tension"—flat, taut, but not stretched.

Prep Checklist (Do this BEFORE you touch the machine)

• Fabric: White 100% polyester twill/poplin, cut 2" wider than hoop.
• Stabilizer: Tearaway (Medium weight, ~1.8oz) cut to match fabric size.
• Consumables: Fray Check (ensure the bottle isn't dried out).
• Tools: Curved embroidery scissors or Duckbill scissors.
• Thread: Polyester embroidery thread (Black is used here for contrast).
• File: A simple applique or running stitch shape file (circles/badges).

Hooping on a Standard 5x7 Brother Hoop: Remove Wrinkles Without Stretching the Weave

Hooping is where 80% of embroidery failures occur. Alan layers the polyester on top of tearaway stabilizer, inserts the inner hoop, and tightens the screw.

The Sensory Hooping Technique

1. Loosen the outer hoop screw significantly.
2. Sandwich your stabilizer and fabric.
3. Press the inner hoop down. You should hear a dull thud, not a high-pitched crack.
4. Tactile Check: Run your fingers over the surface. It should feel like a bedsheet tucked in tight—smooth, but not strained.

The "Hoop Burn" Problem: Standard plastic hoops rely on friction and screw tightness. To hold smooth polyester, you often have to over-tighten, which crushes the fabric fibers, leaving a permanent ring known as "hoop burn."

The Upgrade Path: If you find yourself constantly re-hooping to get wrinkles out, or if your wrists ache from tightening screws, this is a hardware limitation.

• Level 1 Fix: Use clips or basting spray.
• Level 2 Solution: Upgrade to a magnetic system. A magnetic hoop for brother pe800 clamps the fabric using vertical magnetic force rather than friction, virtually eliminating hoop burn and allowing you to adjust wrinkles instantly without unscrewing anything.

Stitching Patch Borders on the Brother PE800: Built-In Shapes vs. Hatch Layout (and the 19-Minute Reality)

Alan utilizes the built-in shapes of the Brother PE800. For production efficiency, he organizes multiple circles in one hoop.

The Data: Time is Money

• Throughput: Four circles take roughly 19 minutes at standard speed.
• Speed Note: While the machine can do 650+ SPM (Stitches Per Minute), for crisp satin borders on slip-prone polyester, dialing it down to 500-600 SPM yields sharper edges.

Setup Checklist (The "Pre-Flight" Check)

• Bobbin: Check your bobbin thread level. Running out mid-border destroys the patch.
• Path: Ensure the upper thread isn't caught on the spool pin.
• Clearance: Hoop is cleared of any fabric bunching underneath.
• Design: Confirmed outline-only (no mistakenly active fill stitches).

Machine Constraint Reality: If you are using a smaller machine, the brother se600 hoop (4x4 inch) limits you to one patch per cycle. This creates a massive time bottleneck.

• Production Tip: If you need to make 50 patches, the re-hooping time on a 4x4 hoop will quadruple your labor cost compared to a 5x7 or larger multi-needle setup.

Fray Check Isn’t “Optional Glue”: It’s Your Edge Insurance Before You Cut Close

Once the stitching finishes, do not remove the fabric immediately. Inspect the borders. If they are solid, remove the hoop/fabric. Alan applies Fray Check (a liquid seam sealant) along the exterior perimeter of the stitching.

The Chemistry of the Edge

Fray Check effectively plasticizes the fabric edge. Without it, cutting close to the satin stitch will cause the woven polyester to disintegrate, leading to "hairy" patches that look amateur.

• Application Sensations: You are looking for a consistent wet bead that penetrates the fabric but doesn't flood outward.
• Drying Time: It must be bone dry before cutting. Wet Fray Check gums up scissors.
• Warning: Fray Check is flammable while wet and has a chemical odor. use in a ventilated area.

Cutting the Patch Blanks: How Close Is “Close Enough” Without Nicking the Border

This is the high-stakes moment. Alan peels away the tearaway stabilizer and begins cutting.

The "Surgical" Cut

You must cut close enough that no white fabric "halo" remains, but not so close that you snip the locking stitches of the border.

• Tool: Use distinctively sharp, small-tipped scissors. Duckbill scissors are excellent here as they push the fabric down while cutting.
• Technique: Turn the patch, not the scissors. Keep the scissor blades stationary and rotate the fabric into the cut.

Warning: Sharp Calculation Required. Cutting stiffened fabric requires force. Keep your support hand fingers well away from the cutting path. A slip here ruins the patch and can slice a finger. Never cut toward your body.

Sawgrass Creative Studio + SG500 Print Manager: The Vivid Setting That Makes Logos Pop

The patch blank is ready. Now, the art. Alan uses sawgrass Creative Studio.

Critical Print Settings

Sublimation ink is dull on paper; heat activates the vibrancy. However, settings allow the printer to lay down the correct ink density.

• Paper: TextPrint R (High release).
• Color Mode: Vivid. (Photographic mode is often too subtle for logos; Vivid pumps the saturation).
• Quality: High Quality.


Troubleshooting Dull Prints: If your pressed patch looks washed out, 90% of the time it is not the heat press—it is the printer driver managing colors incorrectly. Ensure you are bypassing the Windows/Mac default color management and using the Sawgrass/Printer utility.

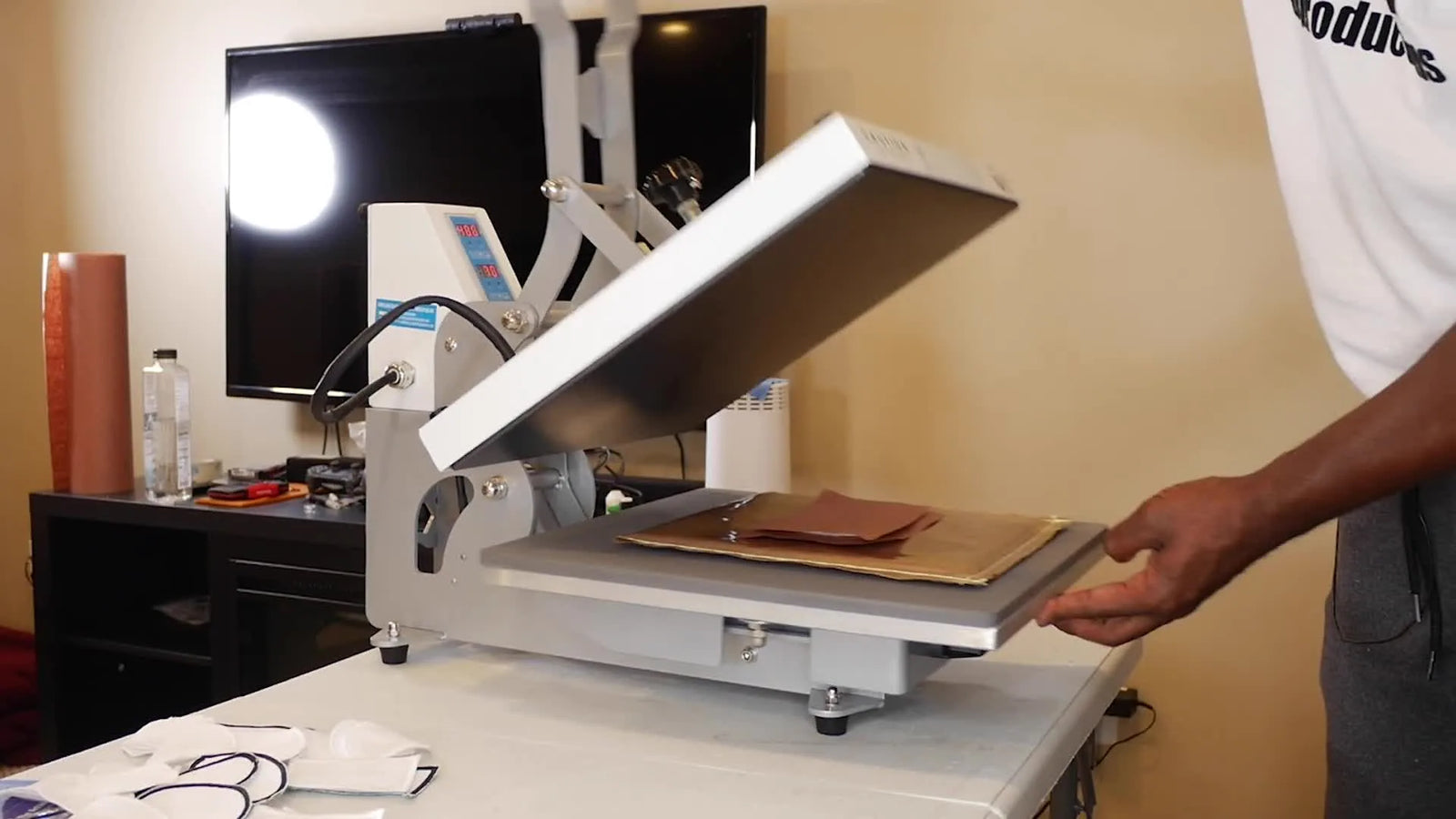

Heat Press Stack-Up for Sublimation Patches: Pillow + Butcher Paper + 65 Seconds at 380°F

The physical stack is crucial because a patch has height. The embroidered border is thicker than the center fabric. If you press on a hard surface, the heat plate will ride on the border, leaving the center with no pressure (and no ink transfer).

The Solution: A Pressing Pillow (foam cushion). This allows the thick border to sink in, ensuring the heat plate makes firm contact with the polyester center.

The Verified Formula

• Temp: 380°F (193°C).
• Time: 65 Seconds.
• Pressure: Medium. (Too light = gas escapes/blur; Too heavy = flat patch).

Warning: Heat Hazard. 380°F allows for instant third-degree burns. Use heat-resistant gloves. Be wary of the "steam burst" when opening the press—keep your face back.

Operation Checklist (The Press Protocol)

• Stack: Bottom Platen -> Pillow -> Butcher Paper -> Patch -> Sublimation Paper (Face Down) -> Butcher Paper -> Top Platen.
• Alignment: Visual check—is the design centered?
• Protection: Butcher paper is fresh (reusing paper risks "ghosting" ink onto new patches).
• Seal: Do NOT use Teflon sheets directly on the ink; use uncoated butcher paper to let moisture escape.

The Size-Mismatch Trap: Fixing “My Design Is Too Big” Before You Waste Prints

Alan demonstrates a common error: the design circle was printed slightly larger than the stitched patch area.

The Fix:

1. Measure Reality: Don't trust the screen size. Measure the actual stitched internal diameter of your patch blank in millimeters.
2. Choke the Art: Size your sublimation artwork 1-2mm smaller than that measurement to create a clean "white gap" or perfectly flush fit, ensuring no ink bleeds onto the black border.

Stabilizer Decision Tree for Patch Blanks: Tearaway vs. “I Need More Support”

While the video uses tearaway, different fabric densities require different foundations. Use this logic to choose:

Decision Tree: Which Stabilizer?

• Scenario A: Standard Patch (Twill/Canvas)
  • Recommendation: Tearaway (2.0 oz).
  • Why: The fabric is stable. The stabilizer just keeps it rigid in the hoop. Clean removal from the back.
• Scenario B: Thin/Slippery Poly (Satin/Silk look)
  • Recommendation: Cutaway or Fusible No-Show Mesh.
  • Why: Thin fabric puckers under satin borders. Cutaway provides permanent structure. You will have to trim the backing manually, but the patch won't ripple.
• Scenario C: High-Stitch Count Border (Very dense/wide)
  • Recommendation: Heavyweight Cutaway + Water Soluble Topper.
  • Why: To prevent the dense stitches from perforating the fabric and creating a "saw tooth" edge.

“Are They Weatherproof?” and Other Real-World Questions From the Comments

Durability: Sublimation dyes the molecule. It will not crack or peel like vinyl. However, polyester thread and fabric can fade with intense UV exposure over years. These are generally machine washable.

Waterproofing: They are not sealed. If you need a waterproof surface (e.g., for rain gear), you would need to apply a waterproofing spray after sublimation, but test first as chemicals can sometimes cause ink migration.

Troubleshooting the Two Fail Points: Wrinkles in the Hoop + Off-Center Transfers

Here is a structured guide to fixing the most common issues without panic.

Scaling This Into a Small Patch Business: Where Time and Consistency Actually Come From

If you implement this workflow, you can produce retail-quality patches. But if you plan to sell them, you will hit a Scalability Wall.

The Bottle Neck: The Hoop

Hooping is a physical action. Doing it 50 times a day leads to fatigue and inconsistency.

• The Pro Move: Professional shops use hooping stations. Searching for terms like hoopmaster hooping station will reveal systems designed to align logos perfectly every time.
• The Magnetic Advantage: For those not ready for industrial stations, simply switching to embroidery hoops magnetic allows you to hoop fabric in 5 seconds without unthreading screws, drastically speeding up batch runs.

Warning: Magnet Safety. Industrial magnetic hoops contain neodymium magnets. They snap together with enough force to pinch skin severely. Keep them away from pacemakers and credit cards.

The Upgrade Path That Makes Sense (Without Buying Everything at Once)

Don't upgrade just to have new toys. Upgrade when the pain demands it.

1. Pain: "My hands hurt and the patches are oval."
   • Solution: Magnetic Hoops. This is an ergonomic and quality upgrade. It solves the distortion issue immediately.
2. Pain: "I spend more time re-hooping than stitching."
   • Solution: Hooping Station + Extra Hoops. Have one hoop running while you load the next one. For Brother users, mastering hooping for embroidery machine efficiency is critical, but eventually, you may need more hoops.
3. Pain: "I have an order for 100 patches due Friday."
   • Solution: Multi-Needle Machine. A single-needle machine puts you in a "babysitting" role (changing threads, single hoop). Multi-needle machines (like SEWTECH’s industrial range) allow for non-stop production.

The Results You’re After: Bright Color, Clean Borders, and a Workflow You Can Repeat

By following Alan’s hybrid method—Polyester Twill + Fray Check + Vivid Sublimation—you bypass the limitations of thread-only embroidery (color blending difficulties) and the limitations of vinyl (peeling).

The Final Success Metric: A professional hybrid patch should feel stiff like a badge, the edge should be sealed and smooth (no fraying), and the colors should be vibrant enough to read from 5 feet away.

Master the hooping tension first. Everything else is just recipes.

FAQ

• Q: How do I hoop 100% polyester twill on a Brother PE800 5x7 hoop without wrinkles or fabric distortion?
  A: Use “neutral tension” (flat and taut, not stretched) and avoid over-tightening the Brother PE800 hoop screw.
  • Loosen the outer hoop screw a lot before inserting the inner hoop.
  • Sandwich medium tearaway stabilizer under the polyester, then press the inner hoop in evenly.
  • Smooth the surface with your hand before tightening—do not pull the fabric like a drum.
  • Success check: The surface feels like a smooth, tightly tucked bedsheet and the inner hoop press-in sounds like a dull “thud,” not a sharp “crack.”
  • If it still fails… Add clips or a light basting spray to reduce re-hooping, or consider a magnetic hoop system to adjust wrinkles without screw tension.
• Q: Why does a Brother PE800 plastic hoop leave “hoop burn” rings on polyester patches, and how do I stop Brother PE800 hoop burn?
  A: Hoop burn on polyester is usually caused by over-tightening a friction-based plastic hoop to control slick fabric.
  • Loosen the hoop screw and re-hoop so the fabric is held by grip, not crushing force.
  • Place a thin fabric scrap as a buffer under the hoop ring if the polyester marks easily.
  • Reduce the need to “crank down” by using clips or basting spray to keep layers from shifting.
  • Success check: After unhooping, there is no permanent white ring or crushed-fiber circle visible on the patch fabric.
  • If it still fails… A magnetic hoop system can reduce hoop burn by clamping vertically instead of relying on friction and extreme screw pressure.
• Q: What stabilizer should I use for Brother PE800 patch borders on polyester: tearaway, cutaway, or no-show mesh?
  A: Match the stabilizer to fabric stability and border density; tearaway is the standard starting point for stable twill/poplin patches.
  • Use medium tearaway for standard polyester twill/poplin patch blanks when you want clean removal.
  • Switch to cutaway or fusible no-show mesh when thin/slippery polyester puckers under satin borders.
  • Use heavyweight cutaway plus a water-soluble topper when the border is very dense/wide and the edge starts to look perforated.
  • Success check: The border stitches sit flat with no rippling/puckering and the patch stays rigid after unhooping.
  • If it still fails… Increase fabric support (step up to a stronger backing choice) before changing speed or redesigning the border.
• Q: What Brother PE800 pre-flight checks prevent ruined patch borders from bobbin run-outs and thread path snags?
  A: Do a quick pre-flight check before stitching outlines, because a bobbin run-out mid-border can destroy the patch.
  • Check bobbin thread level before starting a multi-patch layout.
  • Confirm the upper thread path is clear and not caught on the spool pin.
  • Verify the hoop underside is free of fabric bunching and nothing will snag during travel.
  • Success check: The outline/border runs continuously with no sudden thinning, gaps, or thread breaks partway through a circle.
  • If it still fails… Re-thread both top and bobbin and restart with a fresh bobbin to avoid repeating the same mid-run failure.
• Q: How do I use Fray Check correctly on embroidered patch borders before cutting so polyester patches do not fray?
  A: Apply Fray Check around the exterior perimeter of the stitching and let it dry completely before cutting close.
  • Inspect the stitched borders first; apply only if the border is solid and clean.
  • Lay a consistent wet bead along the outside edge of the stitched border so it penetrates, not floods.
  • Wait until it is bone dry; cutting while wet will gum scissors and drag fibers.
  • Success check: After drying, the edge feels stiffened and cutting produces a clean edge without “hairy” fraying.
  • If it still fails… Apply a slightly more consistent bead (still controlled) and confirm the Fray Check bottle is not dried out.
• Q: How close can I cut to a Brother PE800 satin stitch patch border without snipping the locking stitches or leaving a white halo?
  A: Cut close enough to remove the white halo, but do not cut into the satin stitch’s locking stitches—use controlled “rotate the patch” technique.
  • Use very sharp small-tip scissors; duckbill scissors can help keep fabric down while cutting.
  • Turn the patch with your non-cutting hand and keep the scissor motion small and deliberate.
  • Peel tearaway away cleanly first so the patch edge is visible while trimming.
  • Success check: No visible white ring remains outside the border, and the satin edge stays intact with no gaps or unraveling.
  • If it still fails… Back off slightly (leave a hair more fabric) rather than nicking the border; a tiny halo is easier to accept than a broken satin edge.
• Q: What safety steps prevent finger cuts when trimming stiffened patch blanks and prevent burns when heat pressing at 380°F for 65 seconds?
  A: Treat trimming and pressing as high-risk moments: keep hands out of the cutting path and protect skin from 380°F heat and steam bursts.
  • Cut away from your body and keep support-hand fingers far from the scissors’ travel line when trimming stiffened edges.
  • Use heat-resistant gloves for pressing and keep your face back when opening the press to avoid a steam burst.
  • Use fresh butcher paper layers and a pressing pillow so you do not over-handle or re-press a slipping patch.
  • Success check: Trimming is controlled with no slips, and pressing finishes without scorched paper, sudden shifting, or skin contact with hot surfaces.
  • If it still fails… Slow down the cut/press workflow and re-check the stack-up (pillow + butcher paper) before attempting another patch.
