Embroidery Studio (Stitch & Sew) Basics That Actually Save You: Inches Setup, Zoom Control, and CHE→DST Exports Without Losing Your Master File

If you are brand-new to Embroidery Studio (often labeled as Stitch & Sew or Compucon Stitch&Sew), the first 10 minutes can feel oddly stressful. You open the software, and you are greeted by pop-ups, unfamiliar icons, and that nagging, low-level fear that one wrong "Save" command will ruin your client’s logo forever.

Take a breath. This software is just a tool, not a bomb. It behaves like a typical Windows program, but it requires a specific mindset to master. As an educator who has watched hundreds of beginners struggle with this exact interface, I can tell you that success comes down to locking in three habits: Units, Navigation, and File Discipline.

Once you establish these, you will stop fighting the interface and start producing reliably. This guide will walk you through the setup, the safety checks, and the critical workflows that bridge the gap between a digital file and a physical, embroidered masterpiece.

Calm the “Tip of the Day” Pop-Up in Embroidery Studio—Then Start From the Welcome Screen Like a Pro

When Embroidery Studio launches, the first thing you encounter is a "Tip of the Day" window centered aggressively on your screen. While well-intentioned, this pop-up is essentially cognitive noise when you are trying to orient yourself.

Action: Click Close immediately.

Clearing this window isn't just about housekeeping; it is about establishing a clean mental workspace. Once closed, the Welcome Screen is revealed. This is your "Mission Control." It is your fastest path to real work, allowing you to jump straight into importing an image for digitizing or opening an existing design without hunting through obscure drop-down menus.

Pro Tip (The "Missing Icon" Anxiety): Beginners often panic because their screen doesn't look exactly like the tutorial video. "My icons are greyed out!" or "I'm missing the top bar!"

• Reality Check: If your screen doesn’t match what you see in tutorials, don’t assume you are doing something wrong. Different versions (Standard vs. Plus) and specific licensing setups will change what tools are active. If an icon is greyed out, it usually means you haven't selected an object yet, or your license level doesn't include that specific digitizing feature.

Lock Your Units to Inches in Stitch & Sew System Parameters (So Your Hoops and Sizing Don’t Lie)

This is the single most critical step in your setup. If you skip this, you are setting yourself up for a "physical dimension disconnect" later. The first time you run the program, you must set your measurement units before you open or create anything.

From the Welcome screen, click “Set to work with inches or mm”. This opens the System Parameters dialog.

Inside System Parameters, follow this sensory-check sequence:

1. Locate: Find the Unit system dropdown menu.
2. Verify: It likely defaults to Metric System (1/10mm).
3. Action: Change it to English System (inches) (or Metric if that is your region's standard—just be consistent).
4. Commit: Click OK.




Expected Outcome: All grid lines, hoop sizes, and design dimensions will now display in inches.

Why I Am Obsessed With This: In embroidery, math errors ruin garments. A design that is "100 units" wide means something very different in millimeters versus inches. If your brain thinks in inches but the software speaks metric, you might scale a logo to be 4 inches wide, only to find it is actually 4 centimeters (approx 1.5 inches) when stitched.

Furthermore, if you are planning to stitch on a commercial setup later—for example, a tajima embroidery machine—consistent units make it easier to standardize templates across different operators. You don't want to be doing mental division by 25.4 while a customer is waiting.

Prep Checklist (Do This Before Touching a File)

• OS Check: Confirm you are on a Windows OS computer (this software is not Mac or Mobile native).
• Visual Clearance: Close the "Tip of the Day" to reveal the Welcome options.
• Unit Lock: Decide your shop standard (inches vs. metric) and lock it in via System Parameters.
• Version Note: If your menus look different, note your specific version (e.g., v2.1 vs v3.0) to save time when searching for help later.

Open a .CHE Design the Fast Way: Use “All Embroidery Files” and Trust the Preview Window

Navigating to your file seems simple, but the software has a quirk that trips up new users: file masking.

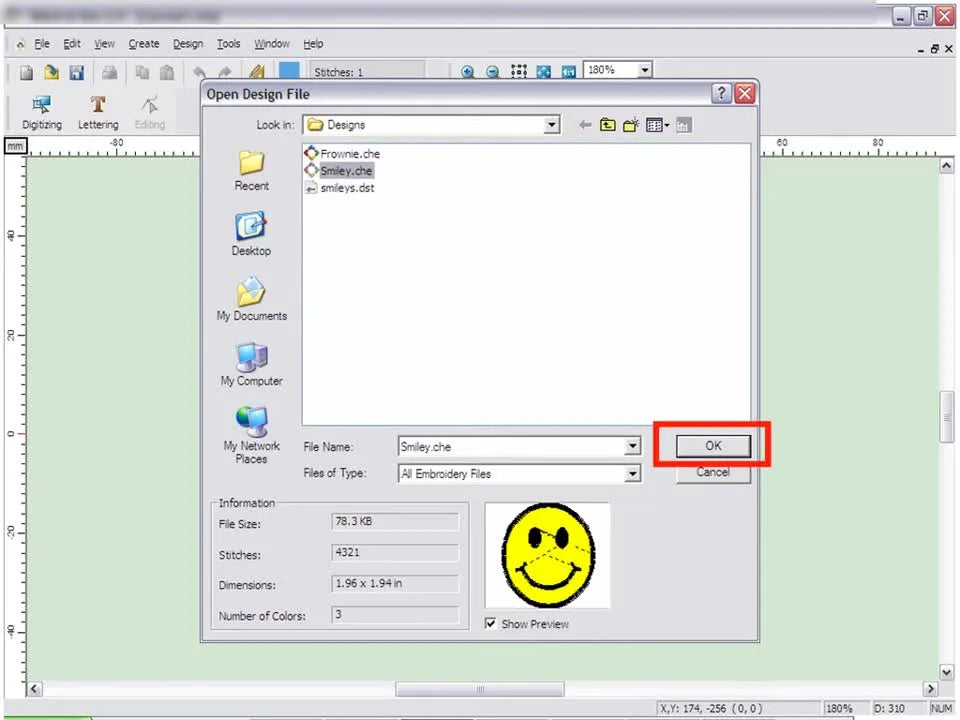

To open an existing design correctly:

1. Click the Open folder icon on the top toolbar.


2. In the Open dialog, use the “Look in” dropdown to navigate to where your designs live.
   • Sensory Check: If you are loading from a USB drive, listen for the Windows "connect" chime before trying to find the drive in this menu.


3. Crucial Step: In the Files of Type box at the bottom, change the selection to All Embroidery Files.
   • Why? By default, the software might only look for one specific format. Selecting "All" ensures you can see .CHE, .DST, .PES, and everything else supported.


4. Select your design (the video example uses Smiley.che) and click OK.

Expected Outcome: The design loads into the main workspace, centered on the grid.

Troubleshooting "The Invisible File": If you know the file is on the USB drive, but the window is empty:

• Cause: The file filter is likely set to ".CHE" but your client sent you a ".DST".
• Fix: Force the dropdown to All Embroidery Files. It reveals everything.

Comment-Based Reality Check: Some users report, "I have the software but it doesn't have what you mention." This is often a version difference. The video’s creator clarified they were using SnS v.2.1 Embroidery Studio Plus. Older v.2 installs or "Lite" versions may have fewer options in the file menu.

Zoom Like You Mean It: Box-Zoom for Detail, Then Reset to 1:1, 100%, or Fit-to-Screen

Novices zoom to admire the pretty colors. Experts zoom to find problems.

Once your design is open, you will constantly switch between "Global View" (composition) and "Micro View" (stitch quality). The video demonstrates the cleanest workflow for this:

1. Click the Zoom icon (magnifying glass).


2. The Box-Zoom: Click and drag a rectangle around a specific detail (like the smiley face's eye).
   • Visual Target: You want to get close enough to see individual needle penetrations.


3. To return to context, use Zoom Out, or reset your view using:
   • 1:1 (Actual Size): Holds a ruler to the screen; it should match reality.
   • Fit to Screen: Great for checking overall placement.
   • Specific Percentage: The video shows selecting 260% from the dropdown.




Expected Outcome: You can inspect stitch detail without losing your place.

Why This Matters for Quality: When you zoom in to 200%+, look for "Density Clumps"—areas where many stitches land on the exact same spot. On screen, this looks like a dark blob. On the machine, this sounds like a loud "THUMP-THUMP-THUMP" and usually results in a broken needle or a bird's nest of thread. Catching this visually saves you from a physical machine jam later.

The File-Saving Habit That Prevents Heartbreak: “Save Design” for Safety, .CHE for Control

In Embroidery Studio, Save and Export are two legally distinct operations. Confusing them is the #1 reason beginners overwrite their source files.

You have two tools:

1. Save Design: Updates the "Master File."
2. Save Design As: Creates a "Production File."

Open the File menu and you’ll see both.

Use “Save Design” while you work (This is your Crash Insurance)

The video is blunt about this for a reason: Power blips happen. Software hangs. To save your working file:

1. Go to File > Save Design.
2. Confirm the file name.
3. Make sure the format is Compucon Stitch&Sew Format (*.CHE).
4. Click OK.


Expected Outcome: Your editable master is preserved. The asterisk next to the filename (indicating unsaved changes) disappears.

Why .CHE is your “Master File” (The Source of Truth)

The .CHE file contains the "DNA" of your design—the vector shapes, the density settings, and the underlay logic.

• Scenario: A client returns six months later and says, "I love the logo, but can we make it 20% smaller for a hat?"
• If you have the .CHE: You simply resize, and the software recalculates the stitch count automatically.
• If you only have the .DST: You cannot easily resize it without ruining the density. You essentially have to start over.

Business Lesson: In a small business, your library of .CHE files is your intellectual property. Protect it.

Setup Checklist (Digital Discipline)

• Folder Structure: Create a dedicated folder on your hard drive named MASTER_CHE. Never save masters to a temporary USB drive.
• Naming Convention: Use ClientName_Design_Date_Master.che.
• Frequency: Hit Ctrl+S (Save) every time you complete a complex segment.
• Consumables Check: While saving, glance at your physical supplies. Do you have enough backing (stabilizer) for this job? Do you have the specific thread colors loaded?

Export Tajima .DST the Safe Way: “Save Design As” Converts Without Overwriting Your .CHE

When you are ready to stitch, you need a language the machine understands. For many commercial machines, this is the .DST format. The video demonstrates the correct method to create this without destroying your master file.

To export:

1. Go to File > Save Design As.


2. In the Save dialog, open the Files of Type dropdown.
3. Scroll the long list of machine formats.
4. Select Tajima (*.DST) (or your machine's native format, like .PES or .JEF).
5. Critical: Rename the file if needed (e.g., Smiley_Hat.dst), then click OK.


Expected Outcome: You now have a DST file ready for the USB drive, but your screen still shows the .CHE file open, ready for more edits.

This skill—knowing how to convert CHE to DST properly—is essential for moving from design to production.

Warning: Converting to a machine format (DST) strips out the "smart" data. It turns shapes into raw coordinates. If you open a DST and try to resize it, the stitch count will not change, leading to gaps (if upscaling) or bullet-proof density (if downscaling). Always keep your .CHE master untouched.

A Quick Note for Home Machines

A commenter asked how to save creations for a Janome 550E. The video demonstrates exporting to Tajima (*.DST), which is the industry standard, but home machines often prefer their own dialect. If you are stitching on a brother embroidery machine (.PES) or a Janome (.JEF), the principle stays the same:

• Master = .CHE
• Export = Save Design As -> Select your specific machine format.
• Always test the exported file on a scrap piece of fabric first.

The “Why It Works” Behind File Formats: Think Master → Output, Not One File for Everything

Most embroidery headaches aren’t software bugs; they are workflow errors.

The mental model I teach is The Funnel:

• Top of Funnel: .CHE (Master). Editable, flexible, holds all object data.
• Bottom of Funnel: .DST/.PES (Output). Fixed, rigid, dumb coordinates for the needle.

That’s why “Save Design” and “Save Design As” both exist. One protects the top of the funnel; the other generates the bottom. If you are running repeat orders, you might export three different DST files from one CHE master: one for a left-chest polo, one for a hat (center-out sequencing), and one for a jacket back.

A Practical Decision Tree: Pick Stabilizer and Hooping Strategy Before You Hit Start on Any Export

Software is only 50% of the battle. The other 50% is physics. You can have a perfect .DST file, but if your hooping is loose, the result will look terrible.

Use this decision tree before you stitch any exported file:

1) What fabric are you stitching?

• Stable Woven (Canvas, Denim, Twill):
  • Stabilizer: Tearaway is usually sufficient, or light Cutaway for density.
  • Experience: Easy to hoop.
• Stretch Knit (Polos, T-shirts, Performance Wear):
  • Stabilizer: Must use Cutaway. (Tearaway will lead to gaps/distortion).
  • Action: Do not pull the fabric "drum tight" or you will stretch the fibers. Lay it flat and neutral.
• Deep Pile (Towels, Fleece):
  • Stabilizer: Cutaway on back + Water Soluble Topping on top (to prevent stitches sinking in).

2) Are you fighting "Hoop Burn" or struggle to hoop straight?

• The Pain Point: Traditional screw-tension hoops require hand strength to tighten, and they often leave a crushed ring ("hoop burn") on delicate fabrics or velvet.
• The Diagnosis: If you are spending more than 2 minutes hooping a shirt, or if your wrists hurt, your tools are the bottleneck.
• The Solution: Consider magnetic embroidery hoops as an upgrade path. These clamp fabric instantly using magnetic force rather than friction, eliminating hoop burn and drastically reducing strain.

3) Are you doing a Production Run (50+ items)?

• One-off: Standard hoops are fine.
• Batches: Experienced shops use a magnetic hooping station or a dedicated hooping station for embroidery. This allows you to "dress" the hoop consistently in the exact same spot for every shirt, ensuring the logo is always level.

Warning (Safety): Magnetic hoops use powerful industrial magnets. Pinch Hazard: Keep your fingers clear of the snapping zone. Medical Safety: Keep magnetic hoops away from pacemakers, ICDs, and magnetic storage media.

Troubleshooting the Real-World Problems People Mention (Without Guessing Beyond the Video)

The video covers software basics, but the comments section reveals where people actually get stuck. Here is a structured troubleshooting guide based on those pain signals.

Symptom: "I lost work" / "The program crashed"

• Likely Cause: Windows instability, power surge, or insufficient RAM.
• Quick Fix: Use the Auto-Save feature if available, but rely on the Ctrl+S habit.
• Prevention: Save versions incrementaly (Logo_v1.che, Logo_v2.che) so a corrupted file doesn't destroy the whole project.

Symptom: "My machine won't read the file"

• Likely Cause: Wrong Logic. You likely put the .CHE file on the USB drive, or the wrong machine format.
• Quick Fix: Go back to Save Design As and select the format your machine manual specifies (usually DST, PES, JEF, or EXP).
• Physical Check: Ensure your USB stick is formatted to FAT32 (many machines cannot read NTFS or large partitions).

Symptom: "I can't see the Appliqué or specific tools"

• Likely Cause: Version mismatch. The tutorial shows "Plus"; you might have "Standard."
• Practical Takeaway: Don't reinstall the software. Check your license dongle or 'About' screen first.

Symptom: "Can I use this on my phone?"

• Reality: No. This is heavy-duty industrial software. It needs a Windows environment to calculate stitch density algorithms.

The Upgrade Path That Actually Makes Sense: Software Discipline First, Then Speed Up Hooping and Production

You are starting a journey that blends digital art with industrial mechanics.

Phase 1: Mastery. Focus on the software habits: Units in Inches, .CHE for Masters, .DST for Export. Get comfortable with the "thump-thump-thump" sound of a happy machine (smooth, rhythmic) versus the "CLICK-chunk" of a problem.

Phase 2: Efficiency. Once your files are clean, your bottleneck will move to the physical setup.

• If you are fighting with alignment or sore wrists, many professionals search for how to use magnetic embroidery hoop videos because upgrading your hooping tech is the fastest way to fix physical inconsistencies.
• If your machine cannot keep up with orders (e.g., you are tired of changing thread colors manually on a single-needle machine), this is the trigger to look at multi-needle solutions like SEWTECH machines. These enhance productivity by holding 10-15 colors at once.

Phase 3: Scale. Consistent files + Magnetic Hooping + Multi-needle capacity = A scalable business.

Operation Checklist (The Final "Pre-Flight")

Before you press the green button:

• File Check: Verify units are correct and the design fits inside the visual hoop boundary on screen.
• Export: Confirmed you exported via Save Design As to the correct format (e.g., .DST).
• Physical Setup:
  • Bobbin thread is full?
  • Needle is sharp and straight? (Run your fingernail down the tip; if it clicks, it's burred—replace it).
  • Stabilizer is correct for the fabric type?
• Safety Zone: Ensure the hoop path is clear of obstructions on the machine arm.
• Test Run: Always stitch a test on scrap fabric first.

Building these habits now will prevent the two most expensive beginner mistakes: overwriting your hard work, and stitching a beautiful design in the wrong place.

FAQ

• Q: In Compucon Embroidery Studio (Stitch & Sew), how do I set the Unit System to inches so hoop sizes and design dimensions display correctly?
  A: Set the Unit System in System Parameters before opening or creating any design to avoid size mismatches.
  • Click “Set to work with inches or mm” on the Welcome screen to open System Parameters.
  • Change Unit system from “Metric System (1/10mm)” to “English System (inches)” (or stay metric—just be consistent).
  • Click OK to commit the change.
  • Success check: Grid lines, hoop sizes, and the design width/height now display in inches (not metric units).
  • If it still fails: Close and relaunch Embroidery Studio and confirm the Unit System again before loading a file.
• Q: In Compucon Embroidery Studio, why are icons greyed out or missing compared with Embroidery Studio Plus tutorial videos?
  A: Greyed-out or missing tools are usually caused by no object being selected or a different license/version (Standard vs Plus), not a mistake.
  • Click the design/object in the workspace to ensure something is selected.
  • Check which edition/version is installed (Standard vs Plus, and the version number) before following a specific tutorial.
  • Expect some menus/tools to differ between “Lite/older” installs and “Plus.”
  • Success check: After selecting an object, related editing icons become active; otherwise, the tool may be unavailable in that license level.
  • If it still fails: Verify the license/dongle or “About” screen and use guidance that matches that exact edition.
• Q: In Compucon Embroidery Studio, why does the Open dialog show an empty folder when the USB drive clearly contains embroidery files like .DST or .PES?
  A: Change “Files of Type” to “All Embroidery Files” because the default filter can hide formats that are present.
  • Click the Open folder icon on the top toolbar.
  • Navigate to the USB drive using the “Look in” dropdown.
  • Set “Files of Type” to “All Embroidery Files” to reveal .CHE, .DST, .PES, and other supported formats.
  • Success check: The missing design filenames appear in the list and show a preview when selected.
  • If it still fails: Confirm you are in the correct USB folder and that the design is not in an unsupported format for that software version.
• Q: In Compucon Embroidery Studio, how do I prevent overwriting the master .CHE file when exporting Tajima .DST for a Tajima embroidery machine?
  A: Keep the editable master as .CHE using “Save Design,” and export production files using “Save Design As” to Tajima (*.DST).
  • Use File > Save Design to preserve the master as Compucon Stitch&Sew Format (*.CHE).
  • Use File > Save Design As, then select Tajima (*.DST) in “Files of Type.”
  • Rename the output file (example: add “_Hat” or “_Production”) so the export is clearly separate.
  • Success check: The .DST file exists as a separate file, and the working design remains the editable .CHE master.
  • If it still fails: Stop exporting from an opened DST; reopen the .CHE master and export again from the master.
• Q: In Compucon Embroidery Studio, how should beginners use Box-Zoom and Fit-to-Screen to spot density clumps before stitching causes needle breaks or birdnesting?
  A: Use Box-Zoom to inspect stitch detail at high magnification, then reset to Fit-to-Screen or 1:1 for placement checks.
  • Click the Zoom (magnifying glass) tool.
  • Drag a box around a problem area (eyes, small text, tight corners) to zoom in close.
  • Reset using Fit to Screen, 1:1 (Actual Size), or a set percentage to regain context.
  • Success check: At 200%+ you can visually spot “dark blob” areas where stitches stack (a common warning sign).
  • If it still fails: Re-check the design areas with the heaviest fill/overlaps and do not proceed to production until the clumps are understood and addressed.
• Q: What is the safest way to test an exported .DST/.PES/.JEF file on fabric to avoid wasting garments due to stabilizer and hooping mistakes?
  A: Always stitch a test run on scrap fabric with the same stabilizer setup before embroidering the real item.
  • Match stabilizer to fabric: stable woven often uses tearaway or light cutaway; stretch knit must use cutaway; towels/fleece often need cutaway plus water-soluble topping.
  • Hoop fabric neutral (especially knits) rather than pulling drum-tight.
  • Run the test stitch-out and inspect before starting production.
  • Success check: The design sits flat without obvious distortion, gaps, or sinking; the machine runs smoothly rather than “click-chunk” or repeated heavy thumping.
  • If it still fails: Revisit stabilizer choice and hooping method first before blaming the exported file format.
• Q: How do I decide between standard screw-tension hoops, magnetic embroidery hoops, and upgrading to a multi-needle SEWTECH embroidery machine when hooping is slow or hoop burn keeps happening?
  A: Use a layered fix: optimize hooping technique first, then upgrade hooping tools, then upgrade production capacity if orders demand it.
  • Level 1 (technique): Stop over-tightening and avoid stretching fabric (especially knits); pick stabilizer based on fabric type before stitching.
  • Level 2 (tool): If hoop burn, wrist strain, or >2 minutes per shirt happens often, magnetic embroidery hoops can clamp faster and reduce crushing on delicate fabrics.
  • Level 3 (capacity): If frequent color changes on single-needle work are limiting throughput, a multi-needle setup (such as SEWTECH) is the next step for scaling.
  • Success check: Hooping time drops, alignment becomes more consistent across items, and rework from placement/distortion decreases.
  • If it still fails: Standardize a repeatable hooping process (often with a hooping station for batches) and confirm exported format matches the target machine.
