Master the "Impossible" Placement: A Field Guide to Embroidering Cargo Shorts

Team shorts, event giveaways, and company uniforms are high-profit items, yet many shops refuse to stitch them. Why? Because the leg of a finished cargo short is a "hostile environment." You are battling heavy seams, side pockets that distort visual centering, and the terrifying physics of a tubular garment spinning at 700+ RPM.

However, experience teaches us that chaos is just a lack of structure. By controlling three variables—tubular loading, structural stabilization, and visual physics—you can turn this nightmare placement into your shop's most profitable repeatable job.

The following guide deconstructs the process used by industry veterans, optimized for safety and scalability.

Don’t Wrestle the Short Leg: Set Up the HoopMaster Freestyle Arm + Magnetic Hoop So the Garment Stays Square

The first battle is gravity. A standard embroidery table is flat; a short leg is a tube. Placing a tube on a flat table requires wrestling the fabric, which leads to "torquing"—where the fabric grain twists inside the hoop. When you unhoop, your perfectly straight logo suddenly looks tilted.

The video demonstrates the antidote: A Freestyle arm station combined with a magnetic frame. This setup mimics the tubular arm of your machine, allowing the short leg to hang naturally during the hooping process.

Why Magnetic Hoops are the "Secret Weapon" for Shorts: Unlike traditional thumbscrew hoops, which require you to pry thick seams apart to fit the rings (often causing "hoop burn" or shiny marks on dark cotton), a generic or branded magnetic hoop clamps down vertically.

• Tactile Check: When you apply the top magnet, you should hear a solid, singular CLACK. If the sound is muffled or the magnet rocks, you are catching a pocket bag or a thick seam allowance. Reset immediately.

If you are building a workflow around a hoop master embroidery hooping station, treat it like a caliper, not just a holder. Lock the fixture dimensions so every left leg is hooped at the exact same vertical height. Consistency here saves you from measuring every single garment later.

The “Hidden” Prep Before You Clamp Anything (What Pros Check in 30 Seconds)

Amateurs hoop immediately. Pros spend 30 seconds "clearing the runway." Shorts are notorious for having hidden internal obstructions—loose liner fabric, pocket bags, and thick side seams.

The "Pinch Test" Protocol: Before bringing the magnet down, slide your hand inside the short leg. Run your fingers between the front panel and the backing board.

1. Feel for Lumps: A cargo pocket often has an internal bag that extends further than you think. You must push this out of the stitch field.
2. Mapping the Danger Zones: Locate the thick bottom hem and the side seam. These are your "No-Fly Zones." Hitting a quadruple-folded denim hem at high speed can snap a needle instantly.
3. Visualizing the Center: Verify you have at least 15mm of clearance from the hoop edge to your actual design.

Prep Checklist (The "Go/No-Go" Standard):

• Obstruction Check: Pocket bags and liners pushed completely aside.
• Surface Check: Leg panel is smooth; no "torquing" or twisting of the grain.
• Placement Landmarks: Hemline and Side Pocket edge are visible and parallel to the hoop grid.
• Hoop Size: Selected frame creates a ~1-inch buffer around the design (Video uses ~5.5").
• Consumables: Ballpoint Needle (75/11) installed to spread fibers rather than cut them.
• Backing: Two sheets of cutaway stabilizer (Weblon/PolyMesh) ready.


The Placement Sweet Spot on Men’s Cargo Shorts: Center the Leg Panel, Then “Respect the Pocket” Near the Hem

Placement on shorts is an optical illusion. If you measure the leg panel mathematically and place the logo in the dead center, it will look "off" when worn. Why? Because the cargo pocket adds visual weight, and the human leg is cylindrical.

The host’s strategy is the industry standard for specific visibility:

1. Vertical Anchor: Place the design low, 1.5 to 2 inches above the hem. This ensures the logo doesn't disappear into the fold of the fabric when the wearer sits down.
2. Horizontal Anchor: Center the design on the visible panel, but cheat slightly away from the cargo pocket.

The "Gravity" of the Cargo Pocket: The cargo pocket is a massive visual element. If your logo is too close to it, the design feels crowded. An experienced operator's mental model is to treat the hem as the floor and the pocket as a wall. You want your furniture (the logo) sitting comfortably on the floor, not smashed against the wall.

• Safety Zone: Keep at least 0.75 to 1 inch of clear fabric between the edge of the embroidery and the bulk of the pocket seam.


Why Shorts Shift Even When They “Don’t Stretch” (and How to Prevent It)

The video notes a critical paradox: these shorts are heavy canvas/cotton (non-stretch), yet they shift during stitching.

The Physics of the Shift:

• Tubular Drag: As the pant leg hangs off the machine arm, its weight creates a pendulum effect. As the frame moves X and Y, the heavy leg drags behind, pulling the fabric slightly out of the clamp.
• Flagging: Even thick canvas creates a "trampoline" effect (flagging) in the hoop, which ruins registration on crisp lettering.

Magnetic hoops mitigate this by providing continuous vertical pressure, but they cannot fight physics alone. You must stabilize the structure from the back.

Weblon Cutaway on Canvas/Cotton Shorts: The Two-Layer Trick That Keeps Lettering Clean

Stabilizer is not just about preventing stretch; it is about providing a foundation for the stitch. In the video, the host uses two layers of thin Weblon (PolyMesh) cutaway.

Why Weblon instead of Heavy Tearaway?

• Comfort: Weblon is soft against the skin (crucial for shorts). Heavy tearaway scratches legs.
• Definition: Canvas has a coarse weave. Text can sink into the texture. Weblon provides a "floating floor" that holds the stitches up, keeping lettering crisp.
• The "Double-Cross" Method: By using two layers of thin mesh, usually rotated 45 degrees from each other, you create a multi-directional stability grid that is stronger than a single piece of thick backing.

Inventory Tip: Ensure you stock both Black and White Weblon.

• Light Shorts: Use White backing.
• Dark Shorts: Use Black backing. Nothing ruins a high-end look faster than white stabilizer fuzz peeking out from black stitches after a wash.


The “Flip It or Regret It” Moment: Rotating the Design 180° for Tubular Loading on the SWF Control Panel

This is the single most common failure point for beginners. To load a pant leg onto a machine arm, you must load it waist-in. This means the garment is mechanically upside down relative to the machine.

If you do not rotate your design file, you will stitch a perfect logo that is upside down when the customer puts the shorts on.

The Protocol:

1. Load the File.
2. Physical Check: Look at the machine screen. Is the top of the letters pointing toward you (the operator)?
3. The "Safety" Rotation: Perform the rotation on the machine panel, not just in the software. This forces you to acknowledge the step.

The video parameters provide a safe benchmark for valid production:

• Stitch Count: ~6,600 stitches.
• Speed: 710 RPM (The Beginner Sweet Spot).
• Orientation: Rotated 180°.

If you operate swf embroidery machines or similar commercial multi-needles, make "Check Orientation" the very last thing you do before pressing the green button. It saves you from buying the customer a new pair of shorts.

Warning: The "Pendulum" Hazard.
When embroidering tubular legs, the hanging fabric will swing wildly during fast travel moves. Ensure the dangling leg does not snag on the machine's table, the control panel, or your coffee mug. Clear a 2-foot radius around the hoop arm.

Magnet Safety Warning:
Magnetic hoops generate immense clamping force. Never place your fingers between the rings. They can pinch severely or crush fingertips. Keep these hoops away from pacemakers and sensitive electronics.

Setup Checklist (The Pre-Flight Ritual)

• Orientation Validated: Design is rotated 180° on screen (Top of design = Bottom of hoop).
• Speed Limit Set: Machine capped at 700-750 RPM. (Do not run shorts at 1000 RPM unless you have specialized clamping).
• Needle Clearance: The presser foot height is adjusted for the thicker canvas material (usually raised 1-2 clicks).
• Bobbin Check: Full bobbin installed. (Running out inside a pant leg is difficult to clear).
• Stabilizer: Two layers of Weblon positioned smooth and flat.

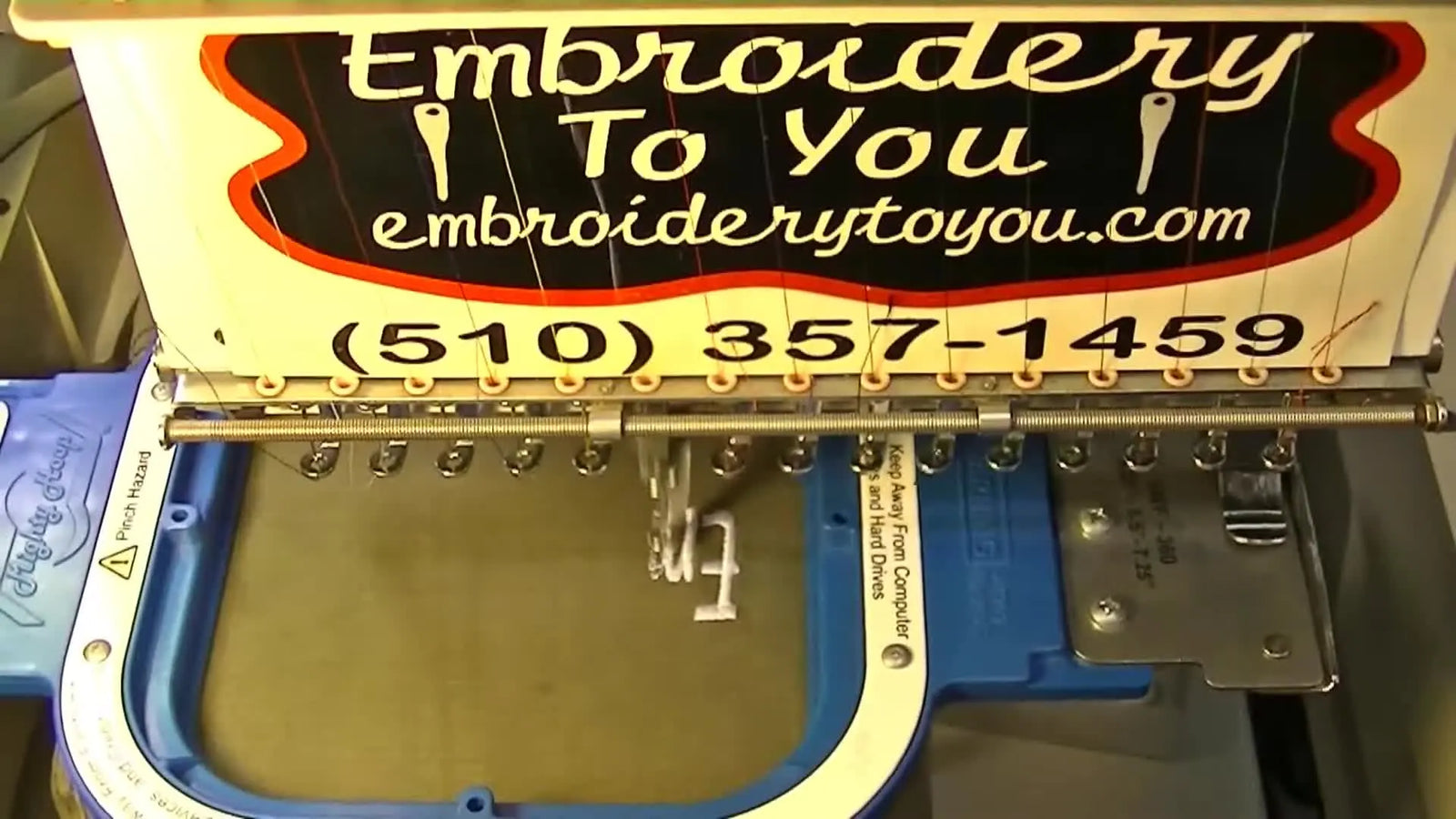

Running the Stitch-Out at 710 RPM: What “Good” Looks Like While the Letters Build

You have pressed start. Do not walk away. The first 30 seconds are critical for diagnosis.

Sensory Diagnostics:

• Listen: You should hear a rhythmic thump-thump, not a sharp slap. A slapping sound means the fabric is bouncing (flagging), indicating your hoop is too loose.
• Watch the Pull: Look at the border of the logo. Is the fabric creating a "wave" in front of the needle? If so, the backing isn't secure enough. Stop and fix it.
• Thread Tension: On canvas, the top thread should sit boldly on top. If it looks sunk or thin, your tension is too tight, or the backing is too soft.

The "Hoop Burn" Reality: If you are using magnetic embroidery hoops, you will notice virtually no hoop burn upon removal. If you are using standard plastic hoops, you may see a "crushed" ring where the fabric was compressed.

• Immediate Fix: Use a steamer or Magic Sizing spray immediately after unhooping to relax the fibers.


Pro Tip: Keep the Logo Square by Managing Tension *Outside* the Hoop (Not Just Inside)

The video highlights a crucial detail: Management of Excess Fabric.

While the machine runs, the rest of the shorts (the waist, the other leg, the pockets) are dead weight. If the waist section hangs off the left side of the machine, it will pull the hoop to the left. This causes registration errors (gaps between outlines and fills).

The Fix: Use "Tube Clips" or simply rest the excess fabric on the machine table to neutralize the weight. The fabric inside the hoop should be under tension; the fabric outside the hoop should be supported and slack.

The Backing Decision Tree for Shorts Legs: Pick Stabilizer by Fabric Behavior, Not by Habit

One size does not fit all. While the video uses Weblon for canvas, you will encounter different shorts materials. Use this logic tree to select the correct stabilizer and tools.

Decision Tree: Stabilizer & Hoop Selection

1. Is the Fabric Stretch or Non-Stretch?
   • Non-Stretch (Canvas/Denim): Use 2 layers of Weblon Cutaway.
   • Stretch (Performance/Gym Shorts): Use 1 layer of No-Show Mesh + 1 layer of Medium Cutaway (floated underneath). You need rigid support to prevent the logo from warping into an oval.
2. Is the Fabric Heat Sensitive (Polyester/Nylon)?
   • Yes: Avoid Iron-on stabilizers. Use temporary adhesive spray (KK100) and magnetic hoops to avoid crushing the delicate fibers.
   • No (Cotton): Standard hooping is acceptable, though magnetic is preferred.
3. Is the Production Run Volume High (50+ units)?
   • Yes: Switch to a Magnetic Hoop. The time saved on screw tightening (approx. 30 seconds per unit) equals 25 minutes of saved labor, plus reduced operator fatigue.


Troubleshooting Shorts Leg Logos: Symptom → Likely Cause → Fix (Based on What This Job Teaches)

A perfect setup can still face issues. Here is how to diagnose common "Shorts Leg" failures using the Low-Cost to High-Cost logic (check physical things before changing software).

1) Symptom: The Logo is slanted or "Diamond" shaped.

• Likely Cause: "Torquing." The fabric was twisted when hooped.
• Fix: Use the Freestyle Arm station. Align the side seam of the shorts with the vertical grid line on the station before placing the hoop.

2) Symptom: White fuzz showing around the edges of dark letters.

• Likely Cause: Wrong backing color or needle cutting the fabric.
• Fix: Switch to Black Weblon. Ensure you handle use a fresh Ballpoint Needle (Sharp needles can cut knit/mesh shorts).

3) Symptom: Thread Breaks only on the left side of the design.

• Likely Cause: The cargo pocket is hitting the presser foot or the hoop edge.
• Fix: Move the design further from the pocket (Safety Zone violation). Or, use spacing tape to tape the pocket flat.

4) Symptom: Gaps between the border and the fill (Registration Loss).

• Likely Cause: Garment drag. The heavy pants pulled the hoop during the fill stitch.
• Fix: Support the excess garment weight on the table. Slow the machine down to 600 RPM.


Hidden Consumable Alert:
Always keep Water Soluble Marking Pens or Tailor’s Chalk nearby. Mark the center point of the leg panel physically before hooping. If the hoop slips, you still have your visual "North Star."

The Finished Look (and the Real Business Win): Shorts Become Walking Advertising

The video concludes with the "Money Shot": the shorts laid flat, logo centered, crisp and clean.

The business lesson here is clear: Shorts are "walking billboards." Unlike a shirt, which might be covered by a jacket, leg embroidery is almost always visible. By mastering this placement, you offer a product that 90% of your competitors are too afraid to touch.

The Upgrade Path When You’re Ready to Produce, Not Just Test

If you are doing one pair of shorts for a friend, a standard prompt and patience works fine. But if you land a contract for a local landscaping company (50 pairs) or a Little League league (200 pairs), your "tools" become your bottleneck.

The Productivity Ladder:

• Level 1 (Technique): optimizing stabilizer (Weblon) and using friction marks. Good for small batches (<10).
• Level 2 (Tool Upgrade): If you struggle with hoop burn or wrist pain, investing in specific magnetic frames solves the physical struggle of clamping thick seams.
• Level 3 (Capacity Upgrade): If you need to run tubular items all day, consider looking into dedicated multi-needle platforms like SEWTECH. Single-needle commercial machines struggle with the clearance required for bulky cargo shorts; a dedicated multi-needle offers the "throat space" and tubular arm geometry to run these jobs without fighting the fabric.

Many professionals start searching for how to use magnetic embroidery hoop specifically when they hit the "Shorts Wall"—that moment when standard plastic hoops just won't hold thick cargo pockets securely. Recognizing when your tools determine your profit margin is the first step to scaling.

Operation Checklist (The Final Inspection)

• Hoop Removal: Magnetic top removed vertically (don't slide it; lift it).
• Backing Trim: Excess Weblon trimmed to 1/8" inch from the stitching. (Do not cut the fabric!).
• Burn Check: Inspect for hoop marks. Steam if necessary.
• Stability Check: Pull the fabric gently. The design should move with the fabric, not separate from it.
• Clean Up: Clip any jump stitches the machine missed.


By following this structured approach—checking constraints, respecting physics, and choosing the right stabilizer—you transform "The Shorts Leg" from a dreaded chore into a predictable, profitable standard operating procedure.

FAQ

• Q: How do I hoop finished men’s cargo shorts on a HoopMaster Freestyle Arm station with a magnetic hoop without twisting the fabric grain (torquing)?
  A: Hoop the cargo short leg while it hangs naturally and lock your fixture height so every leg loads square.
  • Slide your hand inside the leg and push pocket bags/liners completely out of the stitch field before clamping.
  • Align the side seam visually to a straight reference (station grid/fixture) before dropping the top magnet.
  • Clamp straight down and reset immediately if the hoop rocks or feels uneven.
  • Success check: the leg panel looks smooth (no diagonal twist), and the magnet makes one solid “CLACK” with no rocking.
  • If it still fails: switch to a Freestyle-style support method (avoid hooping on a flat table) and re-check for hidden pocket bulk under the ring.
• Q: What is the fastest pre-hooping “pinch test” checklist for cargo shorts leg embroidery to avoid hitting pocket bags or thick hem seams?
  A: Do a 30-second obstruction and clearance check before any clamping to prevent needle strikes and bad placement.
  • Feel for lumps inside the leg (pocket bags/liners) and physically push them away from the design area.
  • Locate the thick bottom hem and side seam and treat them as no-stitch danger zones.
  • Verify at least 15 mm clearance from the hoop edge to the design area before committing.
  • Success check: the hemline and pocket edge are visible/parallel to your hoop reference, and the stitch field feels flat with no hidden layers.
  • If it still fails: choose a different hoop size that leaves about a 1-inch buffer around the design.
• Q: What needle and backing combination is a safe starting point for embroidering heavy canvas/cotton cargo shorts legs with clean lettering?
  A: Use a 75/11 ballpoint needle and two layers of Weblon (PolyMesh) cutaway to keep stitches sitting clean on coarse canvas.
  • Install a 75/11 ballpoint needle to spread fibers rather than cut them.
  • Place two layers of thin Weblon cutaway under the hoop area; rotate layers slightly (often done at an angle) to stabilize in multiple directions.
  • Match backing color to garment (black backing on dark shorts; white on light shorts) to avoid visible fuzz after washing.
  • Success check: lettering edges look crisp (not sinking into the weave) and backing does not show as white halo on dark fills.
  • If it still fails: stop and check for flagging/garment drag before changing the design.
• Q: How do I prevent an upside-down logo when embroidering a tubular cargo short leg on an SWF embroidery machine control panel?
  A: Rotate the design 180° on the machine screen as the final step because the shorts leg is loaded waist-in and is mechanically upside down.
  • Load the design file, then look at the screen and confirm the top of the letters is oriented correctly for the worn position.
  • Perform the 180° rotation on the SWF control panel (not only in software) so the step is physically confirmed at the machine.
  • Make “Check Orientation” the last action before pressing start.
  • Success check: on-screen preview shows the design rotated 180° relative to how the garment is loaded (top of design = bottom of hoop).
  • If it still fails: do a dry “visual sanity check” by holding the hooped leg as it will be worn and re-confirm screen orientation.
• Q: What are the best on-machine warning signs of flagging or poor stabilization when stitching cargo shorts legs at 700–750 RPM?
  A: Stop early if the fabric slaps, waves, or shifts—those are real-time signals the hooping/support is not stable enough.
  • Listen for a sharp “slap” (flagging) instead of a steady rhythmic “thump-thump.”
  • Watch the fabric at the design edge; stop if a visible wave forms in front of the needle.
  • Support excess garment weight on the table or use tube clips so the hanging shorts do not pull the hoop during travel.
  • Success check: sound stays rhythmic (no slapping) and outlines/fills stay aligned without gaps as the letters build.
  • If it still fails: reduce speed toward ~600 RPM and re-check that backing is flat and fully captured.
• Q: What should I do if an embroidered cargo shorts leg logo looks slanted or “diamond” shaped after unhooping (torquing symptom)?
  A: Re-hoop with seam-to-grid alignment and avoid fighting the tube on a flat surface.
  • Re-hoop using a Freestyle arm-style setup so the leg hangs naturally during clamping.
  • Align the shorts side seam to a straight vertical reference before placing the hoop.
  • Re-check that no pocket bag or seam allowance is trapped under the magnetic ring.
  • Success check: the design baseline visually tracks straight with the garment panel (no rotated/diamond appearance).
  • If it still fails: mark the leg panel center with a water-soluble pen or tailor’s chalk before hooping so placement and squareness are repeatable.
• Q: What safety rules should operators follow when embroidering tubular cargo shorts legs with magnetic hoops on multi-needle embroidery machines?
  A: Control swing hazards and protect fingers—tubular legs can whip, and magnetic hoops can pinch hard.
  • Clear a roughly 2-foot radius around the tubular arm so the hanging leg cannot snag the table, control panel, or nearby objects.
  • Keep hands completely out of the ring path; never place fingers between the magnetic hoop rings during clamping.
  • Lift magnetic tops vertically to remove (do not slide) to reduce sudden shifts and pinches.
  • Success check: the hanging leg swings freely without contacting anything, and clamping/unclamping is done with hands safely outside the pinch zone.
  • If it still fails: slow the machine down (stay around 700–750 RPM for a safe starting point) and re-stage excess fabric on the table before restarting.
