Embroidery + Hot-Fix Rhinestones That Actually Line Up: A No-Stretch Hooping and Cold-Peel Workflow for Sparkly, Washable Results

Mastering Mixed Media: The Precision Guide to Embroidery & Rhinestone Alignment

If you have ever attempted to add hot-fix stones to an embroidery design only to end up with a "close enough" outline—or worse, stones that drift completely off the stitches after washing—you are not alone. This is the "Uncanny Valley" of mixed media: close, but visibly wrong.

the good news is that this technique is absolutely repeatable. It is not magic; it is physics. The secret lies in treating the hooping process as a precision engineering step rather than a casual preparation.

In this comprehensive workflow, we will break down the exact method of stitching a design first, then applying a sticky rhinestone/nail-head transfer template designed to match that specific geometry. The entire trick relies on one golden rule: keeping the fabric’s shape unchanged from hooping through heat-pressing. Because the rhinestone template is a fixed sheet of rigid plastic, your fabric must behave like a rigid surface, even if it is a stretchy tank top.

The "Calm-Down" Primer: Why Your Rhinestone Template Only Works If the Fabric Never "Grows"

Let’s look at the physics of the failure before we fix it. In a classic mixed-media setup—like the one John demonstrates with a low-stitch-count rose on a black tank top—you are marrying two incompatible materials:

1. The Tank Top: A knit structure designed to stretch, drape, and move.
2. The Template: A distinct rhinestone sheet that will never stretch.

Here is the part that saves projects: the rhinestone sheet cannot "follow" your fabric. If you stretch the tank top by even 5% while hooping, the embroidery will be stitched into that stretched state. When you unhoop it, the fabric snaps back (relaxes), distorting your beautiful rose into a squashed oval. The template, however, stays a perfect circle. Result? The stones don't match the lines.

If you are practicing hooping for embroidery machine, you must treat mixed media as alignment work, not just decoration.

The "Hidden" Prep Pros Do First: Stabilizer, Surface, and a No-Stretch Game Plan

Before you even touch the hoop, you must set up your environment to prevent wrestling with the garment. Tension in your hands leads to tension in the fabric.

The Material Stack

• The Garment: Black tank top (Cotton/Hemp blend). Note: Natural fibers take heat well; synthetics require lower temperatures, which makes hot-fix stones trickier.
• The Foundation: No-Show Mesh Stabilizer. This is crucial for wearables. It provides the multi-directional stability of a cutaway but feels soft against the skin.
• The Hardware: Tubular hoop on a tubular multi-needle machine. This allows the shirt to hang naturally without bunching, which is critical for distortion control.
• The Consumables: Sticky rhinestone transfer template ("sparkler"), clean pressing cloth, household iron (dry), and a wooden spoon or mallet.

Expert Prep Checklist (Do not skip)

1. Create a Hard Deck: Choose a hard, flat pressing surface for the rhinestone step. A cushioned ironing board is the enemy of hot-fix glue; the cushion absorbs the pressure needed to drive the glue into the fibers.
2. Plan No-Stretch Handling: Once the garment is hooped, you must move it like it is made of glass. Gravity is your enemy—don't let the weight of the shirt pull against the hoop.
3. Pre-Pressing: Iron the tank top before hooping. Removing creases ensures the fabric geometry is neutral before you lock it in.

If you are doing this repeatedly for orders, a consistent workflow matters more than any single trick. That is where a true embroidery hooping system can pay off—because repeatability is what keeps templates lining up across 50 shirts, not just one.

Prep Checklist (Pre-Flight):

• Hard, flat table cleared for hooping (granite, wood, or dense laminate)
• No-show mesh stabilizer cut 2 inches larger than the hoop on all sides
• Correct hoop size selected (smallest hoop that fits the design = best tension)
• Pressing cloth ready (clean cotton, no texture)
• Iron ready on HIGH heat with steam turned OFF
• Wooden spoon/mallet within reach (for the "hot press" technique)


Nail the Tubular Hoop on a Tank Top: Flat, Supported, and Absolutely Not Stretched

Hooping a stretchy rib-knit tank top for a geometric alignment job is the ultimate test of your hands. John’s sequence is simple, but the nuance is where the "Expert" level lives.

The Procedure

1. Visual Placement: Slide the outer hoop inside the garment. Position it where you want the design.
2. Stabilizer Float (Hybrid): Place the no-show mesh stabilizer on top of the bottom hoop, ensuring complete coverage.
3. The "Neutral" Lay: Smooth the fabric over the stabilizer. This is the critical moment. You want the fabric to be flat, but you must not pull it.
4. The Press: Insert the inner hoop. Listen for the click or feel the friction.


Sensory Checkpoints: What "Right" Feels Like

• Tactile: Tap the fabric. It should feel like a thud, not a high-pitched drum. A high-pitched drum means you stretched it. A loose ripple means it's too loose. It should be "taut"—like a bedsheet made with military corners, not a trampoline.
• Visual: Look at the vertical ribs of the tank top. Are they straight parallel lines? If they bow outward like parentheses ( ), you stretched the fabric horizontally.

The Tool Upgrade Path (Level 2)

If you find yourself constantly fighting hoop tension, leaving "hoop burn" (shiny crushed rings), or spending 5 minutes hooping a single shirt, your skill isn't the problem—the tool is. This is the moment to consider magnetic embroidery hoops.

In a production environment, magnetic frames optimize the grip automatically. They sandwich the fabric without the "friction drag" of traditional inner/outer rings, drastically reducing the chance of stretching the knit during the hooping process.

Warning: Magnetic Hazard. Magnetic frames use industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, mechanical watches, and credit cards. Never let the two frames snap together without a buffer layer.

The "Don't Sew It Shut" Ritual: Loading a Tubular Hoop on a Multi-Needle Arm

Once hooped, we slide the assembly onto the machine.

The Sequence

1. Load the design.
2. Slide the hoop onto the arm.
3. The "Underside Sweep": Reach your hand under the hoop and sweep the back of the tank top clear.


Why this matters (The "School of Hard Knocks")

On a tubular setup, gravity pulls the back of the shirt toward the needle plate. If you skip the "Underside Sweep," you will stitch the front of the shirt to the back.

If you are running a shop and considering scaling, this is where machine architecture is crucial. Many decorators move from single-needle flatbeds to brother multi needle embroidery machines or similar SEWTECH multi-needle platforms specifically for this clearance. The "free arm" allows the excess fabric to hang safely away from the needle, a luxury you fight for on a flatbed machine.

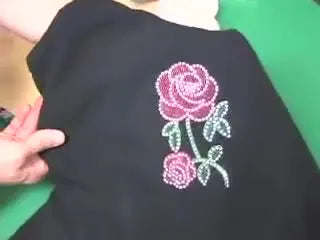

Stitch the Low-Stitch-Count Rose First: Clean Embroidery Makes Clean Sparkle Alignment

John describes the design as low stitch count / low density. This is not an accident; it is an engineering choice.

What you see in the video:

• The machine stitches green leaves first.
• The rose finishes with light, open fills.


Expert Insight: The Physics of Density

Heavy embroidery stitch counts create "push and pull." A dense tatami fill can rip the fabric inward, shrinking the overall size of the design on the shirt. Even if your hooping was perfect, a dense design will distort the fabric during stitching.

• The Rule: For rhinestone overlays, fewer stitches are better. You want the fabric to remain as flat and neutral as possible so the rigid template sits flat.
• The Fix: If your template isn't lining up, check your density. Lighten the stitch count to reduce fabric distortion.

Setup Checklist (The "Green Light"):

• Design loaded; color sequence verified
• Hoop locked onto the pantograph arm
• Underside Check: Hand sweep confirms clear path
• Slack Check: Fabric around the hoop is not caught on the machine body
• Emergency Guard: Finger hovering over the Stop button for the first 100 stitches


Align the "Sparkler" Rhinestone Template: Hover, Peel, and Stick

After embroidery, remove the hoop and unhoop the garment. Lay it on your hard, flat surface.

The Handling Protocol

1. Peel: Separate the clear sticky sheet (with stones) from the white backing.
2. Inspect: Look at the white backing. Did any stones stay behind? Did any glitter/debris stick to the glue? Discard the white backing.
3. The "Hover" Method: Do not lay the sheet down immediately. Hold it 1 inch above the embroidery. Look directly down (bird's eye view).
4. Landmark Alignment: Match the center of the rose and the tip of the furthest leaf leaf.
5. Commit: Lower the sheet straight down. Do not slide it. Sliding risks rolling the stones off their adhesive dots.


Production Tip

If you are doing batches, finding the center every time is exhausting. A machine embroidery hooping station can double as an alignment jig, helping you place the template relative to the hoop marks before you even unhoop (if the station supports it), or ensuring your embroidery lands in the exact same spot so the template placement becomes muscle memory.

The Heat-Set That Makes It Washable: High Heat, No Steam, The "Spoon Seat"

This is where the chemical bond happens. Hot-fix glue needs Heat + Pressure + Time.

The Formula (Video Settings):

• Iron: High Heat (Cotton setting).
• Steam: OFF. (Moisture acts as a barrier to the glue).
• Cloth: Cotton pressing cloth over the template.
• Time: 45 seconds Front / 45 seconds Back.


Step-by-Step Execution:

1. Front Press: Apply pressing cloth. Place iron. Lean into it—add body weight. Hold 45 seconds. Do not wiggle the iron; wiggle shifts stones.
2. Back Press: Flip garment inside out. This brings the heat source closer to the glue (no rhinestones blocking the heat). Press 45 seconds.


Warning: Heat Safety. You are creating temperatures that can melt synthetic fibers or burn skin instantly. Keep the iron stationary. If using a heat press (recommended for pros), reduce time to 15-20 seconds but check your stone manufacturer's specific settings.

The Wooden Spoon Trick: Seating the Glue

Immediately after removing the iron, while the stones are screaming hot, John uses a wooden utensil (spoon or mallet) to press down on the stones.

Why this works: The iron applies heat, but sometimes the "face" of the iron plate isn't perfectly flat, or the stones create uneven height. The wood allows you to apply targeted pressure to "seat" the molten glue into the knits of the fabric. This mechanical interlock is what makes the shirt machine-washable.

Cold-Peel or It Fails: The Discipline of Patience

This is the second most common failure point. Beginners peel while warm to see the result.

• The Chemistry: Hot glue is liquid. If you peel now, the stone slides or lifts. Cool glue is a solid bond.
• The Action: Wait until the plastic feels cool to the back of your hand.
• The Peel: Pull the plastic back at a sharp 180-degree angle, slow and steady.


Removing Hoop Marks & Decision Logic

John mentions removing hoop marks ("hoop burn"). On black cotton, these are compressed fibers.

• The Fix: Steam (lightly) the ring area only, avoiding the stones if they aren't fully set. Or, scratch the mark with your fingernail from the backside to fluff the fibers.

If hoop marks are a constant plague in your shop, that is a data point. It means you are over-tightening to compensate for slippery fabric. This is the primary trigger to upgrade to magnetic hoops for embroidery. The magnetic force is vertical (clamping), not radial (stretching/friction), which eliminates the fiber-crushing friction of standard hoops.

Quick Decision Tree: Fabric vs. Stabilizer vs. Hoop

Use this logic to navigate your setup before you start.

Troubleshooting: The "Why Did It Fail?" Matrix

The Upgrade Path: Moving from Hobby to Production

Once you master the science of one shirt, the challenge becomes doing fifty.

• If alignment is your bottleneck: A dedicated station like the hoop master embroidery hooping station or dime totally tubular hooping station solves the "where does this go?" problem.
• If wrist pain/hoop burn is your bottleneck: Magnetic Hoops are the industry standard for ergonomic, mark-free hooping.
• If machine time is your bottleneck: Stop changing threads by hand. SEWTECH multi-needle machines allow you to pre-load all colors and use the tubular arm for faster, safer garment loading.

Final Operation Checklist (Quality Control):

• Embroidery lies flat (no tunneling/puckering) before stone application.
• Template aligned via "Hover Method"; no sliding.
• Heat pressed on hard surface: 45s Front / 45s Back (No Steam).
• "Spoon Trick" applied while hot.
• Carrier sheet peeled COLD.
• Stretch test: Gently pull fabric; stones should move with the fibers, not pop off.

Mixed media isn't just about sparkle; it's about mastering the tension and thermodynamics of your materials. Respect the geometry, and the bling will follow.

FAQ

• Q: How do I keep a hot-fix rhinestone transfer template aligned with embroidery on a stretchy rib-knit tank top during hooping and pressing?
  A: Keep the fabric geometry unchanged from hooping through heat-setting—do not stretch the knit at any point.
  • Hoop with a “neutral lay”: smooth the tank top flat over no-show mesh stabilizer without pulling.
  • Move the hooped garment like glass: support the weight so gravity does not tug the knit out of shape.
  • Align the template using a hover method: hold the sticky sheet about 1 inch above, line up key landmarks, then drop straight down—do not slide.
  • Success check: the knit ribs stay as straight, parallel lines in the hooped area (no bowing like parentheses).
  • If it still fails: reduce embroidery density (push/pull shrinkage) or switch from a friction hoop to a magnetic embroidery frame to avoid stretch during hooping.
• Q: What stabilizer setup works best for embroidery plus rhinestone overlays on lightweight T-shirts and tank tops when using no-show mesh stabilizer?
  A: Use no-show mesh stabilizer to add multi-directional stability while keeping the garment soft and wearable.
  • Cut no-show mesh at least 2 inches larger than the hoop on all sides for full support.
  • Choose the smallest hoop that fits the design to improve control and repeatability.
  • Pre-press the garment before hooping to remove creases so the fabric locks into a neutral shape.
  • Success check: the hooped area feels “taut like a bedsheet,” not a high-pitched drum and not rippled.
  • If it still fails: confirm the fabric was not stretched during hooping and simplify overly dense designs that can distort the fabric during stitching.
• Q: How can I tell if tubular hooping tension is correct on a stretchy tank top before stitching a rhinestone-alignment embroidery design?
  A: Aim for flat and supported—not stretched—because stretched hooping causes the design to shrink back and miss the rigid template.
  • Tap-test the hooped fabric: adjust until it feels like a low “thud,” not a tight drum.
  • Visually inspect the rib lines: re-hoop if the ribs curve outward, which indicates horizontal stretching.
  • Keep the garment supported when carrying to the machine so the fabric does not “grow” from its own weight.
  • Success check: the fabric surface looks flat, and the garment’s knit pattern remains undistorted inside the hoop.
  • If it still fails: consider magnetic embroidery hoops to clamp vertically with less friction drag and less chance of stretching knits.
• Q: How do I prevent sewing the front of a shirt to the back when using a tubular hoop on a multi-needle embroidery machine?
  A: Always clear the underside of the garment before running stitches so loose fabric cannot get caught under the needle path.
  • Slide the tubular hoop onto the machine arm, then pause before starting.
  • Sweep a hand underneath the hoop to pull the back of the tank top fully away from the needle plate area.
  • Check that surrounding fabric is not snagged on the machine body and can hang freely.
  • Success check: there is a clear open “tunnel” under the hoop with no layers of garment in the stitch zone.
  • If it still fails: stop immediately within the first stitches, remove the hoop, and re-load after redoing the underside sweep.
• Q: Why do hot-fix rhinestones fall off after washing when using a household iron, and how do I fix the heat-setting process?
  A: Use a hard surface, no steam, and real pressure—hot-fix glue needs Heat + Pressure + Time to bond.
  • Press on a hard, flat table (not a padded ironing board) so pressure drives glue into the fibers.
  • Set iron to high heat with steam OFF; press 45 seconds from the front with a pressing cloth, then 45 seconds from the back.
  • Add targeted pressure immediately while hot using a wooden spoon or mallet to seat the glue into the knit.
  • Success check: after cooling, stones feel locked in place and do not shift when the fabric is gently flexed.
  • If it still fails: increase pressure consistency (lean body weight, keep iron stationary) and confirm the surface is truly hard and flat.
• Q: Why do rhinestones lift or shift when peeling the carrier sheet from a hot-fix template, and what is the correct cold-peel method?
  A: Do a true cold peel—peeling warm is a common cause of lifted stones because the glue is still soft.
  • Wait until the plastic carrier feels cool to the back of your hand before peeling.
  • Peel back at a sharp 180-degree angle, slow and steady, without jerking.
  • Avoid sliding the template during placement; commit straight down to prevent rolling stones off adhesive dots.
  • Success check: the carrier releases cleanly and stones stay seated with no corners lifting.
  • If it still fails: re-press (front and back) with steam OFF and re-seat with the wooden spoon while hot, then cool completely again.
• Q: What safety rules should I follow when using industrial magnetic embroidery hoops or magnetic frames for garment hooping?
  A: Treat magnetic frames as pinch hazards and keep them away from sensitive items—strong magnets can injure fingers and affect devices.
  • Keep fingers out of the closing zone and never let the two halves snap together without a buffer layer.
  • Keep magnetic frames away from pacemakers, mechanical watches, and credit cards.
  • Set the frame down deliberately on a stable surface before aligning fabric to avoid sudden snapping.
  • Success check: the frame closes under controlled movement with no sudden slam and no fabric shifting.
  • If it still fails: switch to slower, staged closure (one side at a time) and reassess hoop size so the frame clamps evenly without forcing.
