Embroidering Socks on a Brother PR Machine with 8-in-1 Magnetic Hoops: The No-Bounce Setup That Actually Works

Mastering Sock Embroidery: The Ultimate Guide to Magnetic Hoops & Stability

Machine embroidery on tubular items—specifically socks—is the litmus test for any embroiderer. It combines the three biggest challenges in our craft: restricted access (the tube), unstable material (the knit stretch), and the fear of mechanical error (striking the frame).

If you are trying to turn socks into a sellable product, your goal isn’t just "getting a design onto fabric." The goal is commercial viability: clean top stitching, no "bobbin grin" (where white thread pulls to the top), no needle breaks, and a setup you can repeat 50 times a day without fatigue.

In this white-paper-style guide, we will deconstruct the workflow of using magnetic embroidery hoops on a multi-needle machine. We will rebuild the process from the ground up, adding the sensory checks and safety protocols that professional shops use to prevent wasted inventory.

The Psychology of the "Bounce": Why Socks Fail

Before we touch a hoop, we must understand the enemy. Socks are knit fabrics designed to stretch. When a needle penetrates a sock, the fabric naturally wants to lift up with the needle as it exits. We call this "Flagging."

If you hear a rhythmic thump-thump-thump while stitching, your fabric is flagging. This movement creates slack, causing the top thread to be dragged down loosely or the bobbin thread to be pulled up. The results? Messy text and the dreaded white bobbin loops on your colorful design.

Traditional hoops struggle here because they stretch the sock out, distorting the ribbing. This is where the industry turns to magnetic embroidery hoops. These tools allow us to float the material without aggressive stretching, using powerful magnets to arrest that up-and-down movement.

1. Assembly & Calibration: The "Crash" Prevention Protocol

Many generic "8-in-1" hoop sets arrive as a box of parts with zero documentation. This is the first danger zone. If you assemble the bracket arms incorrectly, the hoop sits too low. A low hoop means the pantograph arm might smash into your machine's needle plate or free arm.

The Correct Assembly Sequence

1. Identify the Carrier: Locate the main U-shaped plastic frame.
2. Bracket Positioning: You must attach the metal arms (that clip into your machine) to the carrier.
3. The Height Rule: In almost all cases for socks, screw the metal brackets to the highest possible mounting holes on the plastic frame. This lowers the center of gravity relative to the arm, providing clearance over the free arm of the machine.

The "Hand-Check" Verification: Before locking any screws, insert the bracket into your machine. Slide the hoop all the way back. Does it hit the back of the machine body? If you hear metal scraping plastic, you must adjust the depth.

Warning: Mechanical Collision Risk. Never trust a new hoop setup blindly. Before pressing start, turn your machine to "Hand Wheel" mode or utilize the "Trace/Baste" function. Watch the hoop move through the entire design field. A collision at 800 SPM (Stitches Per Minute) can bend your main shaft, costing thousands in repairs.

2. The 2x4 Insert: Choosing Your Battleground

Magnetic systems are modular. For socks, we use the 2x4 inch frame insert. While it might be tempting to use a larger window, the 2x4 insert matches the natural width of an ankle sock.

The "Click" Test: Slide the white plastic insert into the carrier. Tighten the black thumb screw at the top. You should feel a hard stop. If you can wiggle the white insert with your fingers, it is too loose. A loose insert is the #1 cause of design registration errors (where the outline doesn't match the fill).

Terms like 8 in 1 embroidery hoop refer to these modular systems. They are powerful, but they are only as stable as their weakest connection point. Tighten that thumb screw.

3. Stabilization: Structure Over Tension

Beginners try to stop flagging by pulling the sock tighter. Stop. Stretching a sock ruins the fit. We stop flagging by using the correct stabilizer.

The video example highlights a common struggle: using scraps and clips. While valid for a prototype, for production, we need predictability.

The "Hidden Consumables" of Success

• Heavy Cutaway Stabilizer (2.5 - 3.0 oz): Do not use tearaway. You need the permanent structure of cutaway to support the stitches of a knit fabric.
• Temporary Spray Adhesive (e.g., KK100) or Double-Sided Tape: Clips can slip. A light mist of spray adhesive holds the stabilizer to the frame, freeing your hands to manipulate the sock.
• Double-Sided Tape Strip: Place a narrow strip of tape on the underside of the frame window. This acts as a "third hand," holding the stabilizer taut before you even load the sock.

Prep Checklist: The "Zero-Friction" Start

• Hardware Check: Bracket arms are mounted at the TOP position; thumb screw is finger-tight + 1/4 turn.
• Stabilizer: Cutaway stabilizer cut 1 inch wider than the frame on all sides.
• Needle Selection: Install a Ballpoint (BP) 75/11 Needle. Sharps can cut the elastic fibers of socks, leading to holes after washing.
• Bobbin: Ensure the bobbin case is clean; a full bobbin is essential to maintain consistent tension on the underside.


4. The Hooping Technique: Center, Don't Stretch

The brilliance of a magnetic frame for embroidery machine is that it clamps vertically. This eliminates "hoop burn"—the ring marks left by traditional inner/outer rings.

The Action-First Protocol:

1. Secure the Stabilizer: Stick or clip your stabilizer to the bottom frame. It should be "drum tight." Tap it. It should sound like paper, not fabric.
2. Load the Sock: Slide the sock opening over the bottom frame.
3. Relax the Knit: Gently manipulate the sock so the ribbing is straight. Do not pull it taut. Let the sock rest naturally against the stabilizer.
4. The Magnetic Snap: Hover the top metal ring over the fabric. Allow the magnets to grab.
5. The Tug Test: Gently tug the edges of the sock. If it slips easily, the sock is too thick for these magnets, or you need to adjust your stabilizer method. The sock should move with the frame, not slide over it.


Warning: High-Gauss Magnet Safety. These magnets are industrial strength. They can pinch skin hard enough to cause blood blisters. Pacemaker/medical device users: Keep these frames at least 6-12 inches away from your chest. Keep them away from credit cards and phone screens.

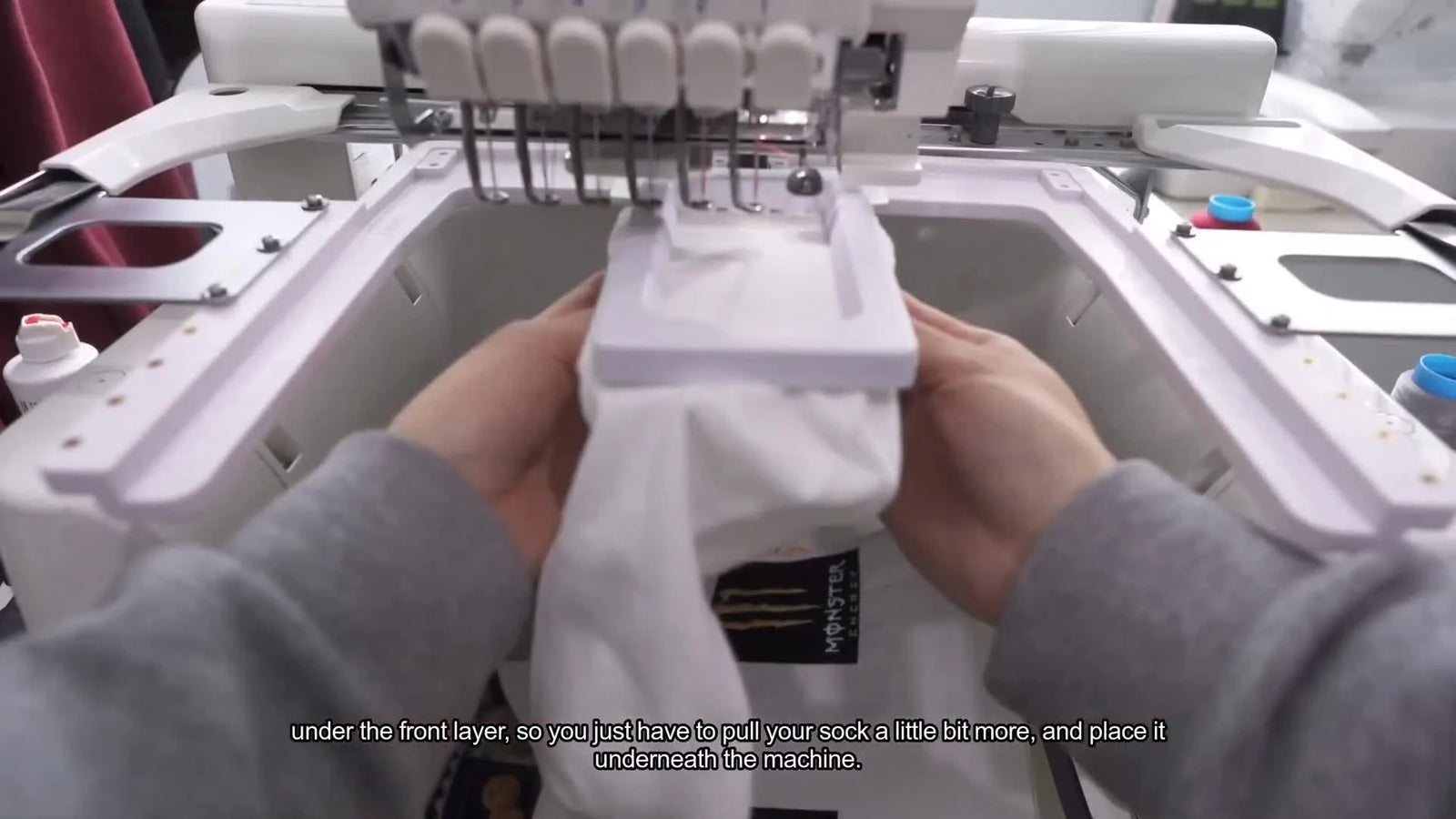

5. Machine Loading: The "Tuck" Maneuver

This is the moment where 90% of sock failures happen. If you load the hoop like a t-shirt, the back layer of the sock will sit directly under the needle plate. You will sew the sock shut, turning it into a useless tube.

The Solution:

1. Slide the hoop arms into the pantograph driver.
2. SENSORY CHECK: Reach under the hoop. Feel the "tube" of the sock.
3. Action: Pull the excess length of the sock down and wrap/tuck it underneath the machine's free arm (cylinder).
4. Visual Confirmation: Crouch down and look. There should be only one layer of fabric between the needle and the needle plate.

Experienced operators using a sock hoop for brother embroidery machine know that managing the "bulk" of the material is just as important as the stitching itself.

6. Operation: Managing the "Bounce" (Flagging)

In the source usage, we saw thin socks "bouncing" violently. This is a physics problem. The sock + stabilizer combo was too light to resist the needle's upward pull on the return stroke.

If you are using a magnetic hoop for brother or similar multi-needle machine, you must increase the rigidity of your "sandwich."

The "Stacking" Fix (and its Professional Equivalent): The video creator solved flagging by stacking three layers of scrap stabilizer. While this works mechanically by adding bulk, it creates a stiff, bulletproof patch on the sock that feels uncomfortable to wear.

The Pro Fix: Instead of three layers of junk stabilizer, use one layer of stiff "Performance Wear" Cutaway combined with a Water Soluble Topper. The topper helps hold the sock fibers down (preventing stitches from sinking) and adds a micro-layer of rigidity during the crucial stitching phase.

7. Decision Tree: The Sock Stabilization Matrix

Stop guessing. Use this logic flow to determine your setup.

START: What is the Sock Type?

• path A: Thin / Dress / Bamboo Rayon
  • Risk: High elasticity, High flagging.
  • Stabilizer: 1 layer Heavy Cutaway + 1 layer Water Soluble Topper (Solvy).
  • Hooping: Use double-sided tape on the frame to prevent slippage.
  • Speed: Reduce machine speed to 600 SPM.
• path B: Thick Cotton / Athletic / Ribbed
  • Risk: Stitch sinking, uneven surface.
  • Stabilizer: 1 layer Medium Cutaway + 1 layer Heavy Water Soluble Topper (to float stitches over loops).
  • Hooping: Ensure magnets are strong enough to clamp through the thickness.
  • Speed: 700-800 SPM.
• Question: Is the design text-heavy or fine detail?
  • YES: You MUST use a Soluble Topper. Without it, small letters will disappear into the knit loops.
  • NO: You might get away without a topper for bold, solid fills.

8. The Final Safety Check: The Trace

Modern machines, including the popular brother pr 680w (and its predecessors), often have a specific sensor system for hoops. However, generic magnetic hoops are "dumb"—the machine does not know they are there.

The Protocol:

1. Load the design.
2. Select "Trace" (or Border check).
3. Watch the needle (or laser pointer) travel the exact perimeter.
4. Criteria: Does the presser foot stay at least 5mm away from the magnetic metal ring at all times?
5. If the foot hits the ring, the magnet will shatter the needle, potentially sending shrapnel toward your eyes. Adjust the design size or position immediately.

9. Finishing Styles

Clean up is critical for socks because they stretch against the skin.

• Trimming: Lift the stabilizer and trim it close to the stitches (1/8th inch). Do not pull. Pulling distorts the knit. Use curved embroidery scissors (duckbill scissors).
• Topper Removal: Tear away the large chunks of water-soluble topper. Use a wet Q-tip or a quick steam to dissolve the tiny remnants. Do not wash the whole sock unless necessary.






10. Structured Troubleshooting: From Symptom to Cure

Setup Checklist (The "Pre-Flight" List)

• Hoop seated: Arms locked into machine driver.
• Sock Tucked: Back layer is wrapped under the cylinder/free arm.
• Speed Set: Machine limited to 600-700 SPM for trial run.
• Trace Complete: Visual confirmation that needle bar clears the metal frame.
• No Snags: Ensure the rest of the sock isn't caught on the table latch or tension knobs.

11. The Upgrade Path: Moving from Hobby to Production

If you are struggling with a single pair of socks, the techniques above will get you through it. But if you are hitting bottlenecks—sore wrists from hooping, inconsistent placement, or just lack of speed—it is time to diagnose your equipment level.

Level 1: Stability Upgrade If you have the machine but poor results, upgrade your consumables. Move from scrap backing to premium cutaway rolls and invest in proper Maderia or comparable poly-neon thread designed for high-speed running.

Level 2: Efficiency Upgrade (The Frame) If you are losing money on time spent hooping, generic hoops are a start, but specifically engineered SEWTECH Magnetic Hoops offer stronger magnets and better machine compatibility, reducing the "bounce" that kills quality.

Level 3: Capacity Upgrade (The Machine) If you are turning away orders because your single-needle machine takes 20 minutes to change colors, or your current multi-needle is too slow, this is the trigger point for a business upgrade. Industrial-grade multi-needle machines (like the SEWTECH series) are built with higher torque to push needles through thick athletic socks without flagging, turning a frustrating hobby into a profitable production line.

FAQ

• Q: How do I prevent a multi-needle embroidery machine crash when installing a generic magnetic sock hoop bracket system?
  A: Mount the bracket arms in the highest mounting holes and run a full trace/hand-wheel test before stitching.
  • Install: Attach the metal bracket arms to the carrier using the top-most hole positions.
  • Verify: Insert the bracket into the machine, slide the hoop fully back, and listen/feel for any scraping or contact.
  • Test: Use Hand Wheel mode or the machine’s Trace/Border Check to run the hoop through the entire design field before pressing Start.
  • Success check: The hoop completes the full trace with no grinding sounds and the presser foot stays clear of the magnetic ring.
  • If it still fails: Reduce the design size/position or re-check bracket depth so the hoop does not hit the machine body.
• Q: What is the correct stabilizer setup for sock embroidery to reduce flagging and bobbin thread showing on top when using a magnetic embroidery hoop on a multi-needle machine?
  A: Stop stretching the sock and build structure with cutaway stabilizer plus a water-soluble topper when needed.
  • Use: Apply heavy cutaway stabilizer (about 2.5–3.0 oz) for knit socks; avoid tearaway for production stability.
  • Add: Place a water-soluble topper on top of the sock for thin socks, fine text, or when stitches sink into loops.
  • Secure: Use temporary spray adhesive or double-sided tape to keep stabilizer from shifting during sewing.
  • Success check: Stitching sounds smooth (no rhythmic thump-thump) and the top surface shows clean color with minimal/no white bobbin loops.
  • If it still fails: Slow the machine (a safe starting point is 600 SPM for thin socks) and upgrade to a stiffer “performance wear” cutaway instead of stacking scrap layers.
• Q: How do I know the 2x4 insert on an 8-in-1 modular magnetic hoop system is tight enough to avoid design registration errors on socks?
  A: Lock the insert until it hard-stops and cannot wiggle—loose inserts are a primary cause of misalignment.
  • Slide: Push the 2x4 insert fully into the carrier.
  • Tighten: Turn the thumb screw finger-tight, then add a small extra snug turn (do not force).
  • Check: Try to wiggle the insert with your fingers and re-tighten if there is any play.
  • Success check: The insert does not shift by hand and outlines match fills during sewing.
  • If it still fails: Add light spray adhesive to stabilize the backing and re-check that the sock is not slipping under the magnets.
• Q: How do I avoid stitching a sock shut when loading a sock hoop on a Brother-style free-arm (cylinder) multi-needle embroidery machine?
  A: Always do the “tuck” maneuver so only one sock layer sits under the needle plate.
  • Load: Slide the hoop arms into the pantograph driver normally.
  • Feel: Reach under the hoop and locate the sock tube with your fingers.
  • Tuck: Pull the excess sock length down and wrap/tuck it underneath the machine’s free arm (cylinder).
  • Success check: From a low viewing angle, only one fabric layer is visible between the needle and the needle plate.
  • If it still fails: Stop immediately and re-load; seam ripping is possible but prevention is faster than repair.
• Q: What needle type should be used for sock embroidery on knit socks to reduce holes and fiber damage on a multi-needle embroidery machine?
  A: Use a 75/11 ballpoint needle as the default choice for knit socks.
  • Install: Switch to a Ballpoint (BP) 75/11 before running socks.
  • Inspect: Confirm the needle is new or not burred, especially after any strike or thread breaks.
  • Pair: Combine correct needle choice with cutaway stabilizer to reduce stress on elastic fibers.
  • Success check: The sock shows no cut yarns or new holes around stitches after stitching and gentle stretching.
  • If it still fails: Re-check hoop clearance with Trace (a needle strike can damage needles fast) and consider reducing speed for thin, high-stretch socks.
• Q: What is the safe clearance rule when running Trace/Border Check with a generic magnetic embroidery hoop on a Brother PR 680W-style machine to prevent needle-to-ring hits?
  A: Run Trace and confirm the presser foot stays at least 5 mm away from the magnetic metal ring everywhere.
  • Select: Load the design and run Trace/Border Check before stitching.
  • Watch: Follow the full perimeter travel, not just one corner.
  • Adjust: Reposition or resize the design immediately if any point comes too close to the ring.
  • Success check: The trace completes with a consistent gap (≥ 5 mm) between presser foot and the metal ring.
  • If it still fails: Do not sew—change hoop setup/positioning, because a strike can shatter a needle and cause injury.
• Q: When should a sock embroidery workflow upgrade from technique tweaks to stronger magnetic hoops or a multi-needle SEWTECH embroidery machine for commercial sock production?
  A: Upgrade in levels based on the bottleneck: quality instability first, hooping time second, machine capacity third.
  • Level 1 (consumables): Switch from scrap backing to premium cutaway rolls and production-grade thread to stabilize results.
  • Level 2 (frame): Move to stronger, better-matched magnetic hoops if hooping is slow, placement is inconsistent, or bounce persists despite correct stabilizers.
  • Level 3 (machine): Consider a multi-needle SEWTECH machine if color changes and torque limits are blocking throughput or thick athletic socks keep causing production stops.
  • Success check: The setup can be repeated many times per day with consistent placement and fewer stops/needle breaks.
  • If it still fails: Audit the pre-flight checklist (tuck, trace, speed limit, insert tightness, bobbin cleanliness) before changing hardware.
