Embroidering a Puffy Coat on a Bernina artista 630: The Floating Method That Stops Buckling (and Keeps Your Fingers Safe)

If you’ve ever tried to embroider a puffer vest and felt that little surge of panic—"This is too thick, is it going to buckle under the foot?"—you’re not being dramatic. You are listening to physics. Puffy outerwear fights embroidery stitches because it is compressible. It’s springy, slippery, and full of air that wants to rebound the second stitch pressure is released.

In the analyzed workflow, the host successfully stitches names onto a thick silver puffy vest using a Bernina single-needle machine. She uses the floating method: sticking the garment onto hooped adhesive stabilizer rather than clamping it into the rings.

As your Education Officer, I’m going to rebuild that exact workflow but add the industrial safety protocols and sensory checks necessary to guarantee success and protect your machine.

The Physics of "Puff": Why Standard Hooping Fails

Standard hoops work by friction and compression. If you clamp a puffer vest like a t-shirt, you crush the loft unevenly. When you release it later, the fabric expands, and your beautiful lettering distorts.

The solution is floating. By securing the garment to a sticky surface without clamping it, you maintain the fabric's natural loft. If you’re currently relying on a sticky hoop for embroidery machine or just sticky paper in a standard hoop, you are choosing control over compression.

Phase 1: The "Hidden" Prep (Critical Pre-Flight)

The video shows placing a pin by eye. For professional results, we need more precision. Puffy fabric is unforgiving; if you start crooked, the loft shadows make it look even worse.

1. The Anchoring Pin

1. Surface Check: Lay the vest on a hard, flat table.
2. Estimation: Visually center the chest placement.
3. Physical Anchor: Insert one pin vertically to mark your center point.


prep Checklist: The "Don't Ruin It" Scan

Before you touch any spray adhesive, verify these points.

• Zipper Hazard: Is the main zipper zipped up or taped down? (Loose metal zipper pulls can shatter needles).
• Pocket Check: Are pockets empty? (Stitching through a forgotten receipt or ChapStick is a common disaster).
• Surface: Is your table free of lint?
• Consumables Ready: Do you have your Odif 505 spray, a 75/11 Topstitch Needle (best for piercing nylon shells), and White Marking Pencil?


Phase 2: Structural Integrity (The Inside Job)

The video host adds a stabilizer patch inside the vest. This is the difference between amateur and pro work. Puffy fabric is unstable; without this inner "spine," stitches will sink into the abyss.

The Stabilizer Sandwich

• The Layer: A loose rectangle of Cutaway Stabilizer (approx. 4 x 6 inches). Do not use tearaway here; the stitches will slice it.
• The Bond: Odif 505 Temporary Adhesive Spray.

Action Steps

1. Isolation: Take the stabilizer patch to a sink or cardboard box (spray adhesive travels everywhere).
2. Application: Lightly mist one side. Sensory Check: It should feel tacky like a Post-it note, not wet or gummy.
3. Insertion: Slide the patch inside the vest, centering it behind your marking pin.
4. Bonding: Smooth it from the inside. This creates a firm foundation for the needle.


Warning: Adhesive Safety. Adhesive spray is airborne glue. Never spray near your machine. If gum builds up on your sewing hook or needle bar, it can cause timing issues that cost hundreds to repair.

Phase 3: Precision Marking (The Crosshair)

On shiny fabrics like silver nylon, light reflection plays tricks on your eyes. You cannot eyeball straightness.

The Visual Anchor

1. Leave the pin in as center.
2. Horizontal Axis: Use a ruler to draw a line through the pin.
3. Vertical Axis: Draw a perpendicular line.


Pro Tip: Use a water-soluble white pencil or chalk. Avoid air-erase pens on treated nylon shells, as the chemical coating sometimes reacts with the ink, making it permanent.

Phase 4: Hooping the Sticky Foundation

We are not hooping the vest. We are creating a "sticky trap" to catch the vest.

The Sticky Setup

1. Hoop the Paper: Hoop a sheet of adhesive-backed tearaway stabilizer with the glossy paper side up.
2. Tension Check: Sensory Check: Tap the paper. It should sound like a dull drum (thump-thump). If it feels loose or ripples, re-hoop.
3. Expose: Score the paper lightly with a pin (don't slice the stabilizer) and peel the skin to reveal the sticky surface.
4. Patching (Optional): The host demonstrates patching a hole from a previous run. While acceptable for hobby work, for professional orders, always start with fresh stabilizer to ensure maximum grip.




If you are frustrated by the constant waste of paper and residue build-up, this is usually the point where professionals research a floating embroidery hoop system or magnetic frames to streamline production.

Phase 5: Floating & Alignment

This is the moment of truth. You must adhere the vest without stretching it.

The Alignment Move

1. Hover: Hold the vest over the hoop, matching your chalk crosshairs to the hoop's center marks.
2. Land: Press the straight lines down first.
3. Smooth: Gently smooth from the center out.
4. The "Grip" Test: Lightly tug the vest edge. You should feel the stabilizer trying to hold on. If it slides easily, your adhesive is dead—apply a light mist of spray or start over.




Phase 6: Mechanical Security (Pinning vs. Clamping)

Here is the friction point. The adhesive holds the fabric flat, but the weight of a heavy jacket can pull it loose. The video uses pins to lock the perimeter.

The Pinning Protocol (High Risk/High Reward)

1. Perimeter Only: Insert pins at the very edge of the hoop, far away from the stitch field.
2. Angle: Enter through fabric, catch stabilizer, and exit back up through fabric.
3. Visibility: Ensure the heads and points are visible on top.




Warning: Needle Strike Hazard. Using pins on a single-needle machine is risky. If the embroidery foot strikes a pin, it can shatter the needle, sending metal shards towards your eyes. Always wear glasses and keep pins at least 1 inch outside the design area.

The "Tool Upgrade" Analysis

This pinning stage is where production slows down and fingers get pricked. If this feels dangerous or slow to you, this is the trigger to consider magnetic embroidery hoops.

• Why optimize? Instead of sticky paper and dangerous pins, a magnetic hoop uses strong magnets to clamp the jacket instantly. It holds thick layers securely without crushing the loft as much as a screw hoop, and zero pins are required.
• Safety Note: When using commercial magnets like the mighty hoop, always be aware of the "pinch hazard" and keep them away from pacemakers.

Phase 7: The Final Clearance & Stitch

Before you press start, you must prevent disaster.

Pre-Run Clearance Check

1. Mount: Attach hoop to machine.
2. Trace: Run the "Trace" or "Check Size" function.
3. Watch: Keep your finger near the stop button. Watch the foot. Does it come within 10mm of any pin? If yes, move the pin.




Machine Settings for Puffy Items

• Speed: Beginner Sweet Spot: 600 SPM (Stitches Per Minute). Do not run at 1000. Friction is high, and slower speeds prevent thread breakage.
• Foot Height: If your machine allows (like on multi-needle machines), raise the presser foot height by 1-2mm to glide over the puff.


Results & Post-Op

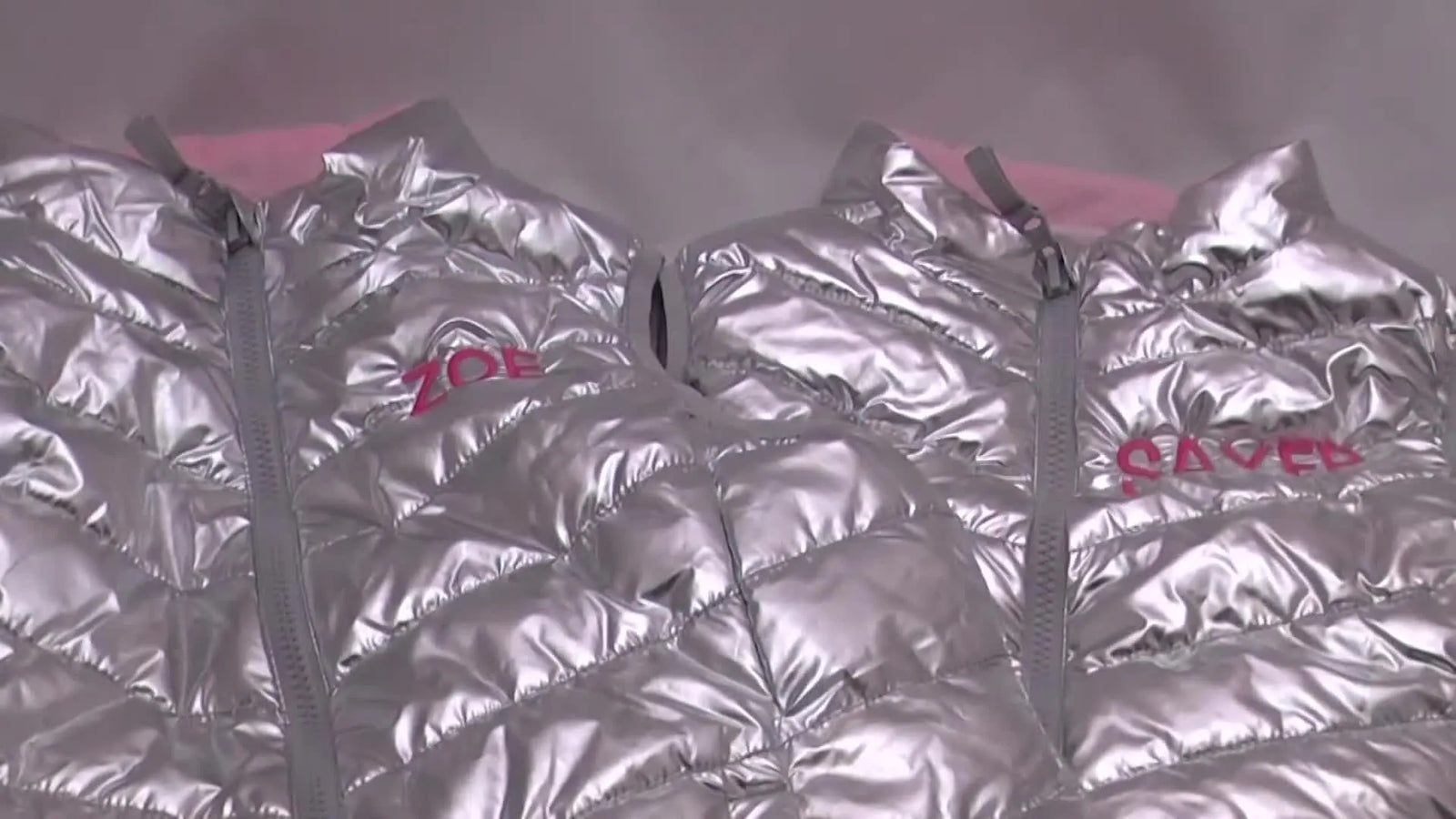

The result should be clean lettering that sits on top of the fabric, not buried in a trench.

Why this worked:

1. Cutaway Spine: Prevented distortion.
2. Floating: Preserved loft.
3. Pinning: Prevented heavy drag.

The Stabilizer Decision Tree

Not sure if you should pin, float, or clamp? Use this logic flow.

Decision Tree: Stabilizing Heavy Garments

1. Is the item hollow (tubular) or flat?
   • Flat: Go to step 2.
   • Tubular (Sleeve/Leg): You need a Free Arm machine or to open the seam.
2. Can you hoop it without forcing the screw?
   • Yes: Hoop with Cutaway.
   • No (Too Thick): Go to Step 3.
3. Do you have a Magnetic Hoop?
   • Yes: Best Option. Float Cutaway under the hoop, clamp the jacket. No adhesive needed.
   • No: Use Video Method. Sticky Stabilizer + Floating + Pinning.
4. Are you doing production (10+ items)?
   • Yes: Invest in a magnetic hooping station. It standardizes placement so every logo is in the exact same spot.
   • No: Hand measuring is fine.

Troubleshooting: The "Why is this happening?" Guide

The Upgrade Path: Moving from Hobby to Pro

The method shown in the video works perfectly for one-off gifts. However, if you find yourself sweating during the pinning phase or struggling with placement consistency, your tools are the bottleneck, not your skill.

• For Speed & Safety: Professionals move away from pins and sticky residue by adopting magnetic hoops. They grip instantly and firmly, removing the "fear factor" of thick garments.
• For Consistency: A hooping station for embroidery machine allows you to align the garment on a board before the hoop ever touches it, guaranteeing straightness.
• For Volume: If you are embroidering puffers daily, a SEWTECH Multi-Needle Machine offers the clearance and open arm structure designed specifically for bulky outerwear, where single-needle household machines struggle.

Setup Checklist (Do Not Skip)

• Inner Cutaway patch is fused/held inside.
• Crosshairs on garment line up with hoop marks.
• Garment is pressed firmly to sticky surface.
• Pins are secured outside the stitching field.
• Machine Speed reduced to 600 SPM.

Operation Checklist

• Excess jacket fabric is resting on table/lap (not dragging hoop).
• "Trace" function completed perfectly.
• Listen for the rhythmic stitching sound (no grinding).
• Watch the first 100 stitches for lifting.

By respecting the physics of the fabric and following these safety protocols, you turn a "scary" project into a routine success. Happy stitching.

FAQ

• Q: How do I float-embroider a thick puffer vest on a Bernina single-needle embroidery machine without crushing the loft?
  A: Use the floating method by sticking the vest to hooped adhesive stabilizer instead of clamping the puffer in the hoop.
  • Hoop adhesive-backed tearaway with the glossy paper side up, then peel to expose the sticky surface.
  • Align garment crosshairs to the hoop center marks, then press straight lines down first and smooth from the center outward.
  • Support the heavy jacket weight on a table/lap so it does not drag the hoop during stitching.
  • Success check: The garment feels “held” when lightly tugged, and the surface stays smooth (no shifting or rippling).
  • If it still fails: Refresh the sticky surface with a light mist of temporary adhesive spray or restart with fresh adhesive stabilizer for maximum grip.
• Q: What is the safest way to use Odif 505 temporary adhesive spray for puffer-vest embroidery without damaging an embroidery machine hook area?
  A: Never spray Odif 505 near the embroidery machine—spray away from the machine to prevent airborne glue from contaminating the hook/needle bar.
  • Move to a sink area or a cardboard box before spraying.
  • Mist lightly so the stabilizer feels tacky like a Post-it note, not wet or gummy.
  • Apply the sprayed cutaway patch inside the vest, then smooth from the inside to bond firmly.
  • Success check: The stabilizer patch stays in place inside the vest when handled, with no wet residue transferring to fingers.
  • If it still fails: Reduce spray amount and reapply with a lighter mist; if overspray reached the machine area, stop and clean before continuing.
• Q: Which stabilizer combination works best for stitching names on a thick puffer vest on a Bernina single-needle embroidery machine?
  A: Use an inside cutaway stabilizer patch as the “spine,” plus hooped adhesive-backed tearaway as the sticky floating base; add water-soluble topping if stitches sink.
  • Place a 4 x 6 inch (approx.) cutaway patch inside the vest and secure it with temporary adhesive spray.
  • Hoop adhesive-backed tearaway, expose the sticky surface, and float the vest on top without stretching.
  • Add water-soluble topping on top when letters tend to sink into the loft.
  • Success check: Lettering sits on top of the fabric (not buried), and the area feels supported rather than spongy under the stitches.
  • If it still fails: Re-check that cutaway (not tearaway) is used inside; increase hold by improving adhesion or consider clamping with a magnetic hoop.
• Q: How do I know the hooped adhesive stabilizer is tight enough for floating a puffer vest on a Bernina embroidery hoop?
  A: Re-hoop until the stabilizer behaves like a “dull drum” so the sticky base does not ripple under the garment.
  • Tap the hooped paper/stabilizer after hooping; re-hoop if it feels loose or shows waves.
  • Score the paper lightly with a pin and peel cleanly to expose an even sticky surface.
  • Avoid patching old holes for professional consistency; start fresh when grip matters.
  • Success check: Tapping produces a consistent thump-thump sound and the surface stays flat when pressed.
  • If it still fails: Start with fresh adhesive-backed stabilizer (old adhesive often “dies” and allows sliding).
• Q: How can I pin a puffer vest safely when floating on a Bernina single-needle embroidery machine to prevent needle strikes?
  A: Pin only at the hoop perimeter and keep every pin at least 1 inch outside the design area to reduce the chance of the embroidery foot hitting a pin.
  • Insert pins at the very edge of the hoop, away from the stitch field, with heads/points visible on top.
  • Angle the pin through fabric, catch stabilizer, and exit back up through fabric to lock the perimeter.
  • Run the machine “Trace/Check Size” function and watch foot clearance before stitching.
  • Success check: During trace, the presser foot stays at least 10 mm away from every pin path.
  • If it still fails: Remove/reposition pins immediately; if pinning feels risky or slow, switch to a magnetic hoop clamping method instead of pins.
• Q: What speed and clearance settings are a safe starting point for embroidering a thick puffer vest on a Bernina single-needle embroidery machine?
  A: Slow down and prioritize clearance—600 SPM is a beginner-friendly starting point for thick puffy items.
  • Set speed around 600 stitches per minute instead of running near maximum speed.
  • Use the machine’s trace/check-size function before pressing start and keep a finger near stop for the first stitches.
  • If the machine allows presser-foot height adjustment (more common on multi-needle machines), raise by 1–2 mm to glide over loft (follow the machine manual).
  • Success check: The first 100 stitches run with a steady rhythmic sound and no lifting, grinding, or sudden thread stress.
  • If it still fails: Drop speed further (e.g., toward 500 SPM) and verify no thick seams/pins are in the stitch path.
• Q: When should puffer-vest embroidery switch from sticky stabilizer + pinning to magnetic embroidery hoops or a SEWTECH multi-needle machine for safer production?
  A: Upgrade when pinning and sticky residue become the bottleneck or safety risk, especially for repeated jobs or heavy garments.
  • Level 1 (Technique): Improve floating alignment, add inside cutaway “spine,” support garment weight, and slow speed.
  • Level 2 (Tool): Use magnetic embroidery hoops to clamp thick layers securely without pins and reduce adhesive waste/residue.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when bulky outerwear volume demands more clearance and faster, repeatable workflow.
  • Success check: Hooping becomes fast and consistent, with reduced shifting and no “pin anxiety” before pressing start.
  • If it still fails: Add a hooping station to standardize placement so every logo lands in the same spot, job after job.
