Mastering the PowerCap LED Beanie: A Production Guide to Wiring, Stabilization, and Safety

If you’ve ever had a customer drop off a “simple beanie” only for you to discover it has a battery pack, hidden wires, and a hard plastic LED housing, your stomach likely did that little flip. That reaction—the fear of the "crunch" sound of a needle hitting electronics—is normal. It is your instinct protecting your machine.

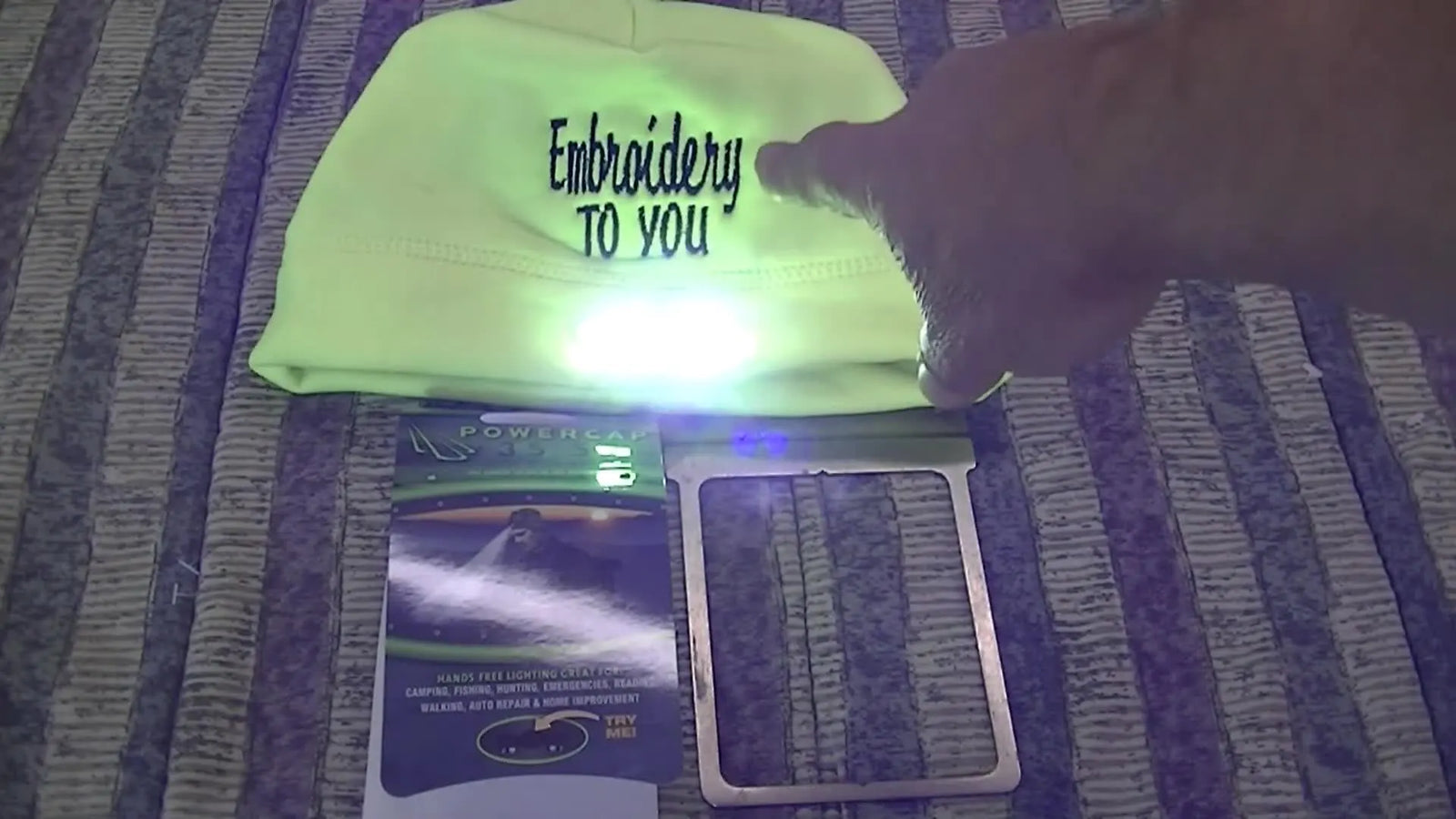

The good news: this PowerCap LED compression fleece beanie can be embroidered cleanly and safely. However, you cannot treat this like a standard knit cap. You must treat it like an electronics assembly job.

In this detailed guide, we will deconstruct the workflow, apply industrial safety margins, and provide the tactile experience you need to navigate this high-risk garment without breaking a needle—or the hat.

Anatomy of a High-Stakes Garment: Mapping the "No-Go" Zones

This isn’t a standard beanie. The PowerCap fleece beanie features a brim-integrated switch that activates LED lights. This assembly creates two Critical Failure Points (CFPs) that you must respect before you even look at a hoop:

1. Hidden wiring: A conductive ribbon or wire runs down one side of the hat (typically the wearer's left side).
2. Hard plastic housing: A rigid mechanism in the brim that will shatter a needle and potentially throw timing off if struck.

The Tactile Mapping Technique

Your eyes can deceive you; your fingers won’t. Before hooping, perform this "blind" check:

1. Turn the lights on: This gives you an immediate visual confirmation of the LED location.
2. The "Pinch Test": Run your thumb and forefinger along the brim seam. You will feel a hard, unyielding ridge of plastic. Mark the edge of this ridge with a piece of tailors' chalk or a pin.
3. Trace the Vein: Squeeze the side panels of the fleece. You are looking for the wire path, which feels like a stiff ribbon inside the layers.

Intelligent Placement Strategy

The source video places a small logo on the front, positioned strictly above the lights. Alternatively, you can place a larger logo on the side—but only the side opposite the wiring.

Warning: Mechanical Hazard
Treat this garment like a landmine field. Never assume the wire path is consistent between different batches of hats. Check every single unit. striking the hard plastic housing can cause a needle bar jam, requiring a technician's service. Always leave a 15mm (0.5 inch) safety buffer between your design bottom and the LED housing.

The "Placement Reality Check"

Before committing:

1. Hold the beanie upright.
2. Visually lock onto the seam line near the LED housing.
3. Visual Anchor: If your design is 1 inch tall, ensure you have at least 1.5 inches of clear fabric above that hard plastic ridge. That 0.5-inch gap is your insurance policy against fabric shift.


The Physics of Compression Fleece: Why Standard Hoops Fail

The beanie in question is compression fleece—a blend of 90% polyester and 10% spandex. This material introduces a specific headache for embroiderers: Elastic Rebound.

The Problem with "Drum Tight"

New embroiderers are taught to hoop fabric "tight as a drum." If you do this with compression fleece using a standard round hoop, you stretch the fibers open. You stitch the logo, unhoop the hat, and the fibers snap back to their original size. The result? Your logo puckers, distorts, and looks like a raisin.

The Problem with Hoop Burn

Thick fleece crushes easily. Standard inner/outer rings require immense pressure to hold this fabric, often leaving permanent "halos" or shiny crushed rings (hoop burn).

If you are researching hooping for embroidery machine setups for thick gear, you will find that professionals rarely use standard clamp hoops for these. They use systems that provide stability without strangulation. This is why the host in the video opts for an open-face "Fast Frame" system rather than a standard tubular hoop.

The Production Upgrade Path

If you are struggling with hoop burn on sensitive fabrics, this is the trigger point to upgrade your tooling.

• Level 1 (Technique): Use "floating" techniques (described below) to avoid crushing the nap.
• Level 2 (Tooling): Switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction to hold the fabric. They are the industry standard for preventing hoop burn on performance wear like this beanie.


Field of View: The Fast Frames 2.75" Safety Rule

The video utilizes a Fast Frames 7-in-1 system. While the metal window looks spacious (nearly 4 inches wide), that is a trap.

The "Sweet Spot" Calculation

The host sets a safe working width of 2.75 inches. Why so narrow?

• Beanie curvature: As the beanie stretches over the flat frame, the sides curve downward.
• Needle Clearance: Embroidering too close to the heavy metal side clamps is a recipe for a fractured needle or a scratched presser foot.

Your Action: In your digitizing software, set a hard constraint box of 2.75 inches wide. Do not let even a single underlay stitch cross this line.

If you are comparing systems like fast frames embroidery or durkee fast frames, look for clear documentation on "sewable fields" versus "physical dimensions." They are rarely the same.

The "Sandwich" Strategy: Sticky Back + Floating Poly Mesh

Stabilization is where 80% of embroidery failures happen. For this stretchy, thick beanie, we use a hybrid approach.

Layer 1: The Anchor (Sticky Back Tearaway)

Applied to the underside of the metal frame.

• Function: Prevents the beanie from sliding around.
• Sensory Check: When you touch the sticky surface, it should be tacky enough to lift the frame slightly if you pull your finger away.

Layer 2: The Structure (Floating Black Poly Mesh)

Placed inside the hat, floating between the beanie and the needle plate.

• Function: This is a "No-Show" cutaway stabilizer. It provides the permanent structural integrity needed to keep stitches from sinking into the fleece valley.
• Why Poly Mesh? It is soft against the forehead (unlike stiff tearaway) and, being black, matches the interior liner.


Hidden Consumables Checklist

Before you start, ensure you have these often-overlooked items:

• Needles: Use a 75/11 Ballpoint. The ballpoint pushes the spandex fibers aside rather than piercing (and cutting) them.
• Cleaning Agent: Isopropyl alcohol or adhesive remover. Sticky backing will gum up your needle.
• Tape: Painters tape or embroidery tape to secure excess beanie fabric out of the way.

Warning: Physical Safety
When working with specialty constraints, keep your hands clear. Never try to adjust the beanie while the machine is running. If you are using magnetic embroidery hoops, be aware they carry a pinch hazard. Keep magnets away from pacemakers and sensitive electronics.

The Setup Procedure: Precision Over Speed

The video’s hooping strategy relies on a specific sequence to maintain tension without stretching.

Step 1: Prepare the Frame

Apply the sticky backing (tearaway) to the underside of the frame window. Score the paper with a pin—drag it gently until you feel the paper scratch but not the stabilizer—and peel the paper away to reveal the adhesive.

Step 2: Establish the Safe Zone

Visualize the 2.75-inch center column. The host emphasizes this repeatedly because once the beanie is stuck down, you cannot shift it easily.

Step 3: float the Poly Mesh

Insert the pre-cut black poly mesh (Weblon) inside the beanie. Ensure it covers the entire design area behind the front face of the hat.

Setup Checklist (The "Pre-Flight" Check)

• Lights On: Confirm LED location one last time.
• Tactile Scan: Feel for the wire path; confirm it is outside the hoop area.
• Adhesion: The beanie is pressed firmly onto the sticky backing with no wrinkles.
• Structure: The Poly Mesh is floating flat inside the hat.
• Clearance: Most of the beanie excess is pushed back, clearing the pantograph movement.

Production Insight: When to Upgrade

If you are doing one beanie, this manual "stick and press" method is fine. If you have an order for 50, your thumbs will ache, and your alignment will drift. High-volume shops solve this by moving to SEWTECH Multi-Needle Machines paired with Magnetic Hoops. The magnets auto-align the fabric and hold thick fleece instantly without the need for sticky residue, significantly increasing per-hour output.

The Inverted Coordinates: The 180° Flip

Because the beanie is loaded onto the frame with the brim facing the machine body (away from you), it is effectively upside down relative to the needle driver.

The Golden Rule: You must rotate your design 180 degrees in the machine's control panel.

Cognitive Trick: Look at the text on your machine screen. If the beanie brim is at the "top" of the hoop on the machine arm, the text on screen should look upside down.

If you are setting this up on a specific brand and searching for fast frames for brother embroidery machine, remember that the frame geometry is dumb; it relies on you to tell the machine the garment is inverted.

The Stitch Run: Managing Sticky Friction

Once the machine starts, do not walk away. This is an "attended run."

The "Gumming" Phenomenon

Stitching through sticky stabilizer + synthetic fleece creates friction heat. This heat melts the adhesive, which travels up the needle groove.

• Visual Cue: You will see a small gray or white glob forming on the needle shaft just above the eye.
• Auditory Cue: The sound of the machine changes from a crisp chick-chick-chick to a duller thud-thud-thud or a shredding sound as the thread fights the glue.

The Fix:

1. Pause the machine.
2. Take a cotton swab dipped in rubbing alcohol.
3. Wipe the needle shaft down.
4. Resume.

Speed Recommendation: Do not run this at 1000 SPM (Stitches Per Minute). For beginners on this material, the Sweet Spot is 600-700 SPM. This reduces heat build-up and keeps the adhesive manageable.

Operation Checklist (During Run)

• Listen: Monitor for the "shredding" sound of a gummed needle.
• Watch: Ensure the bulky top of the beanie doesn't get caught under the needle bar.
• Verify: Check that the fabric isn't "flagging" (bouncing up and down) excessively.


Final QC: Verify Function and Clearance

The job isn't done when the machine stops. You must verify you haven't killed the product.

The Survival Test

1. Function Check: Press the button on the brim. Do the LEDs turn on? If yes, you missed the wires. Success.
2. Gap Check: Measure the distance between the bottom of your embroidery and the LED housing seam. A clean gap looks professional; touching the seam looks like a mistake.
3. Interior Check: Trim the floating poly mesh close to the stitches. Inspect the liner to ensure no wire insulation was grazed.


Advanced Troubleshooting & Decision Matrix

If you plan to offer this service regularly, use this decision tree to select the right tools and consumables.

Decision Tree: Stretchy Electronic Headwear

From Hobbyist to Professional

The workflow shown in the video—sticky hoops and careful manual labor—is excellent for custom one-offs. However, as you scale, "time per hoop" becomes your profit killer.

• To solve Hoop Burn & Alignment: Consider investing in magnetic embroidery hoops. They allow you to "float" items securely without the sticky mess or clamp marks.
• To solve Capacity: If you are fighting with a single-needle machine to get hats done, this is the sign to look at a multi-needle solution like those from SEWTECH, which offer open-arm architecture specifically designed for tubular items like beanies and caps.

Final Thoughts

Embroidering a PowerCap LED beanie is 20% stitching and 80% preparation. If you respect the wires, stabilize the stretch, and keep your needle clean, you turn a terrifying job into a premium, high-margin service.

If you are currently relying on a sticky hoop for embroidery machine hack for every difficult item, consider this your invitation to explore proper production framing. The right tool doesn't just save time; it saves you from the silence of a broken LED light.

FAQ

• Q: How can embroidery shops safely embroider a PowerCap LED compression fleece beanie without hitting hidden wires or the hard plastic LED housing?
  A: Map the electronics by touch and keep a fixed safety buffer before any hooping or stitching.
  • Turn on the LEDs, then pinch along the brim seam to feel the hard plastic ridge and mark its edge.
  • Trace the wire path by squeezing the side panels to find the stiff ribbon-like wiring and keep the design off that side.
  • Place the logo strictly above the LED area (or on the side opposite the wiring) and keep a 15 mm (0.5 inch) clearance from the housing.
  • Success check: Fingers can clearly feel the plastic ridge and wire path outside the design zone, and the design boundary sits visibly above the ridge with a measurable gap.
  • If it still fails: Re-check every single beanie unit—wire routing may vary between batches—then reduce the design size or change placement to the opposite side.
• Q: Why does embroidery pucker or distort on a 90% polyester / 10% spandex compression fleece beanie when using a standard round hoop “drum tight”?
  A: Avoid stretching compression fleece in a tight standard hoop; use a floating approach so the fabric doesn’t rebound and pucker.
  • Float the beanie onto support instead of clamping it drum-tight, so the knit isn’t stretched open during stitching.
  • Use stabilization that supports stretch (poly mesh cutaway) rather than relying on hoop pressure to control movement.
  • Keep placement conservative and avoid forcing the curved beanie to behave like flat fabric.
  • Success check: After unhooping, the logo stays flat without “raisin-like” puckering as the fabric relaxes.
  • If it still fails: Increase structural support (poly mesh coverage and lay-flat setup) and consider switching to magnetic hoops to hold fabric without over-compressing it.
• Q: What is the correct stabilizer “sandwich” setup for embroidering a PowerCap LED compression fleece beanie using Fast Frames-style open frames?
  A: Use sticky-back tearaway as the anchor on the frame and float black poly mesh cutaway inside the beanie for permanent structure.
  • Apply sticky-back tearaway to the underside of the frame window and peel the paper to expose adhesive.
  • Press the beanie firmly onto the adhesive with no wrinkles, then insert pre-cut black poly mesh inside the beanie covering the entire design area.
  • Tape or secure excess beanie fabric out of the way to prevent snagging during pantograph movement.
  • Success check: The sticky surface holds the beanie from sliding, and the poly mesh lies flat inside with full coverage behind the stitching area.
  • If it still fails: Watch for fabric flagging or shifting—re-press adhesion, re-float the poly mesh flatter, and slow the run speed to reduce movement.
• Q: How can embroidery operators prevent needle gumming and thread shredding when stitching through sticky backing on synthetic fleece beanies?
  A: Run slower and clean the needle as soon as adhesive build-up appears.
  • Reduce speed to a safer starting point of 600–700 SPM to limit friction heat and adhesive melt.
  • Pause immediately if a gray/white glob forms on the needle shaft or the sound turns from crisp to dull/shredding.
  • Wipe the needle shaft with a cotton swab and rubbing alcohol, then resume.
  • Success check: The machine sound returns to a clean, consistent stitch rhythm and thread stops shredding after cleaning.
  • If it still fails: Re-check adhesive exposure and handling—excess stickiness can increase build-up—then monitor more frequently during the run.
• Q: Which embroidery needle type is recommended for a polyester/spandex compression fleece beanie, and what problem does it prevent?
  A: Use a 75/11 ballpoint needle to push fibers aside instead of cutting them.
  • Install a 75/11 ballpoint needle before starting the beanie job.
  • Monitor stitch formation closely on the first run, especially around dense areas and edges of the design.
  • Keep needle-cleaning supplies ready because sticky backing can still cause residue even with the right needle.
  • Success check: Stitches form cleanly without excessive fiber damage symptoms (snags or rough penetration feel) and the run sounds steady.
  • If it still fails: Stop and inspect for adhesive gumming or contact risk near hard plastic parts, then re-verify the safe zone and speed.
• Q: Why must the design be rotated 180 degrees on the embroidery machine control panel when embroidering a PowerCap LED beanie loaded brim-first on a frame?
  A: The beanie loads inverted relative to the needle driver, so rotating 180° prevents upside-down embroidery.
  • Confirm the beanie orientation on the machine arm (brim facing the machine body/away from the operator).
  • Rotate the design 180° in the machine’s control panel before stitching.
  • Use the screen-orientation trick: the on-screen text should look upside down relative to your viewpoint when the beanie is physically inverted.
  • Success check: A quick trace/preview shows the design reading correctly on the beanie face once stitched, not mirrored or upside down.
  • If it still fails: Stop before stitching and re-check hoop loading orientation—frame geometry won’t correct inversion automatically.
• Q: What are the key safety rules when embroidering a PowerCap LED beanie to avoid needle strikes, needle bar jams, and magnetic hoop pinch hazards?
  A: Treat the beanie like an electronics assembly and keep hands and magnets managed like a safety-critical tool.
  • Keep a strict 15 mm (0.5 inch) buffer between the design bottom and the hard plastic LED housing to avoid strikes and potential needle bar jams.
  • Never adjust the beanie while the machine is running; keep hands clear during constrained stitching.
  • If using magnetic hoops, handle magnets deliberately to avoid pinch injuries and keep them away from pacemakers and sensitive electronics.
  • Success check: The stitch run completes without needle contact events, and the beanie still functions (LEDs turn on after embroidery).
  • If it still fails: Stop immediately, re-map the plastic ridge and wire path, then reduce design size or move placement to a safer area.
• Q: When should an embroidery shop upgrade from sticky-back “stick and press” framing to magnetic hoops or a multi-needle SEWTECH machine for LED fleece beanie production?
  A: Upgrade when hooping time, thumb fatigue, alignment drift, or hoop burn becomes the recurring bottleneck.
  • Start with technique fixes for small runs: sticky-back anchoring, floating poly mesh, slower speed, and strict safe-zone placement.
  • Move to magnetic hoops when hoop burn marks appear or when repeated sticky hooping causes slowdowns and messy adhesive management.
  • Consider a multi-needle SEWTECH machine when order volume grows (especially larger batches) and “time per hoop” is cutting into output consistency.
  • Success check: Hooping becomes repeatable with less rework, fewer visible clamp marks, and more stable alignment across multiple units.
  • If it still fails: Re-evaluate placement constraints (curvature and clamp clearance) and standardize a fixed sizing box so digitizing never crosses unsafe sewable areas.
