Embroidering a Canvas Shoe Tongue Without Ruining the Shoe: The Clamp Method That Actually Holds

The Sneaker Tongue Masterclass: From "Impossible to Hoop" to Profitable Production

By the Chief Embroidery Education Officer

If you have ever held a finished Converse-style sneaker in your hands, looked at your standard embroidery hoops, and felt a cold knot of panic in your stomach, you are not alone. You are experiencing the "Geometry Trap."

A finished shoe tongue is one of the most hostile environments for a needle. It is narrow, attached to a heavy object that fights gravity, and made of canvas that is deceptively stretchy. Newcomers often try to force this into a standard hoop, resulting in "hoop burn," crooked designs, or—worst of all—a needle striking the rubber sole.

But here is the truth experienced pros know: We don't "hoop" finished shoes. We clamp them.

This guide is your operational blueprint. We will dismantle the fear, replace it with physics, and provide you with a repeatable, safe workflow that turns nightmare projects into profitable gifts for back-to-school season, teams, and weddings.

The Business Case: Why Struggle with Sneakers?

Before we touch the machine, let's define why we do this. Custom sneakers trigger high emotional value.

• High Margin: A $40 pair of shoes becomes an $80 custom gift with 10 minutes of machine time.
• Low Stitch Count: Tongue designs are usually small names, monograms, or simple logos (under 5,000 stitches).
• Viral Appeal: These "impossible" items impress customers more than a standard polo shirt.

However, the profit only exists if you have repeatability. If you ruin one shoe in a pair, you have bought the pair. The method below is designed to eliminate that risk.

The Physics of Failure: Why Standard Hoops Don't Work

Understanding why standard hoops fail prevents you from wasting time trying to make them work. Standard hoops rely on concentric friction—an inner ring pressing fabric against an outer ring equidistantly.

A finished sneaker makes this impossible because:

1. Obstruction: The rubber sole and heel counter physically block the outer ring.
2. Gravity: The heavy shoe body pulls down, creating uneven tension (drag) on the fabric.
3. Thickness: The tongue assembly is often too thick for magnetic or standard clips to secure without popping off.

If you are searching for hooping for embroidery machine techniques specifically for shoes, realize that the answer isn't a hoop—it's a clamp.

The Solution: The Small-Window Embroidery Clamp

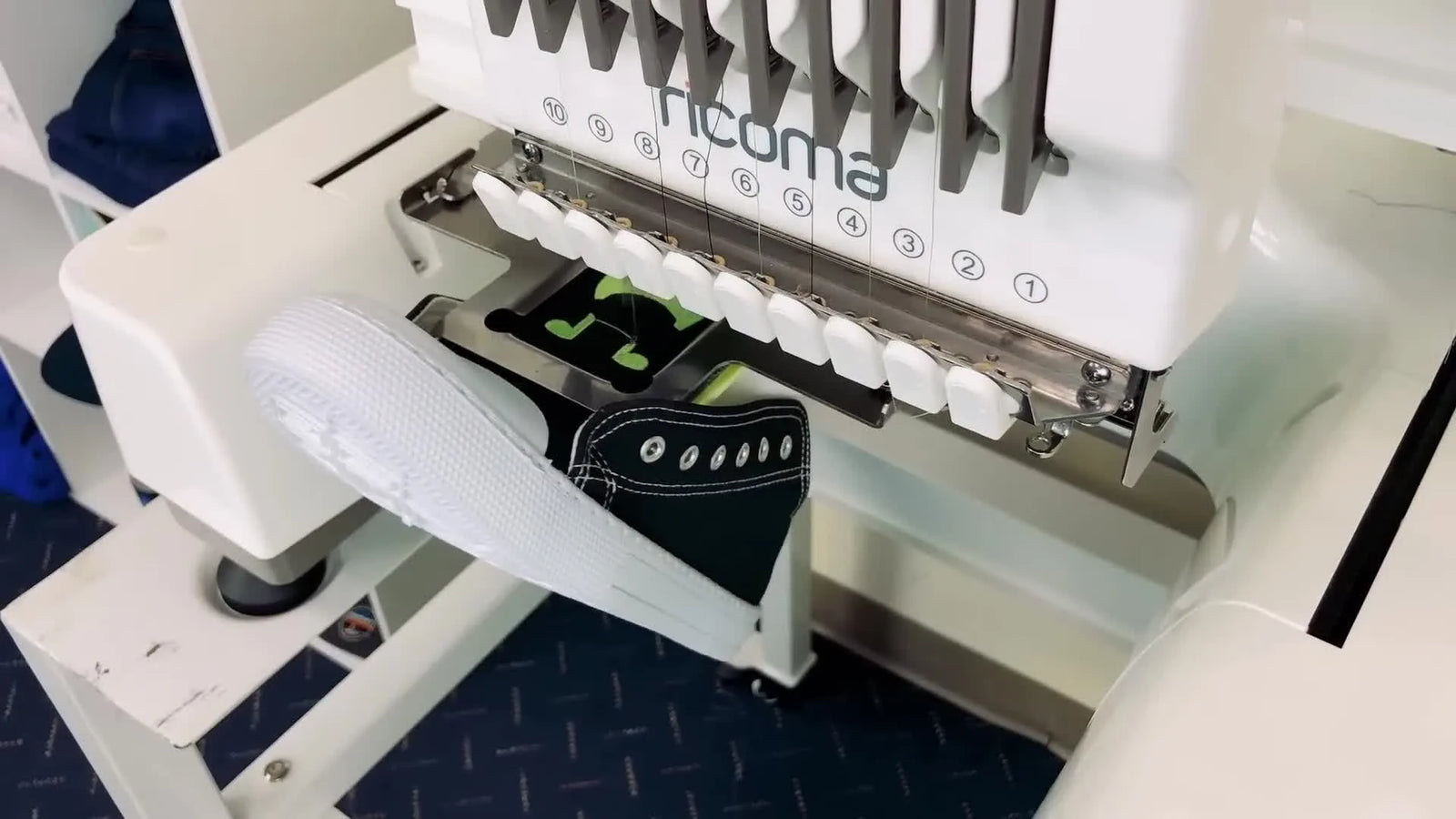

The video demonstrates the industry-standard solution: a Spring-Loaded Embroidery Clamp (often called a "Robot Frame" or "Clamp Frame").

How it works:

• High-Pressure Jaws: Unlike a hoop that relies on friction, clamps use direct vertical pressure.
• The Window: A small, open window isolates only the tongue.
• Free-Arm Clearance: It allows the rest of the shoe to hang completely free of the machine bed.


Phase 1: Preparation (The Hidden Work)

Crucial Concept: 90% of embroidery failures happen at the prep table, not the needle. For canvas shoes, we must manage Stretch and Adhesion.

Step 1: Dismantle

Completely unlace the shoe. Do not just loosen them. You need the tongue to flop forward 180 degrees if possible.

Step 2: Stabilize (The "Teeth" of the Operation)

Canvas looks sturdy, but it is a woven fabric on the bias—it stretches.

• The Strategy: We use specific consumables to glue the tongue to a stable foundation.
• The Recipe: 2.5oz Cutaway Stabilizer + Temporary Adhesive Spray (e.g., 505 or vaguely similar).

Sensory Check - The "Post-It" Test: Spray your stabilizer lightly. Touch it with your knuckle. It should feel tacky like a Post-It note, not wet or gummy. If it's wet, you sprayed too much and risk gumming up your needle.

Prep Checklist: The "Go/No-Go" Inspection

• Laces Removed: Shoe tongue is completely free.
• Stabilizer Cut: Piece is larger than the clamp window (approx. 6x6 inches minimum).
• Adhesion Check: Stabilizer is adhered to the back of the tongue. Smooth it with your thumb to remove air pockets.
• Tactile Check: Rub the tongue surface. Do you feel lumps? If there is a label inside the canvas, avoid stitching directly over its thickest seam if possible.
• Consumable Check: Do you have a new 75/11 Sharp Needle installed? (Ballpoints can struggle to penetrate thick canvas cleanly).


Phase 2: Material Intelligence (Decision Tree)

Do not guess. Use this logic flow to choose your backing.

Decision Tree: Stabilizer Selection for Shoes

1. Is the tongue material padded, thick, or spongy (like a skate shoe)?
   • Yes: Use Cutaway (Medium Weight). The foam inside will distort without it.
   • No: Proceed to 2.
2. Is the tongue single-layer canvas (Converse style)?
   • Yes: Use Cutaway. Canvas bias stretch leads to "puckering" circles around letters.
3. Is it a rare, stiff leather dress shoe tongue?
   • Yes: You might get away with Tearaway, but Cutaway remains the safer insurance policy against ruined leather.

Expert verdict: Just use Cutaway. The "mess" of trimming it is better than the cost of replacing a shoe.

Phase 3: The Clamp Setup (The Danger Zone)

This is where physical injury—to you or the machine—is most likely.

The Maneuver

1. Open the Jaws: Squeeze the clamp lever.
2. Insert: Slide the tongue (with stabilizer glued to the back) into the window.
3. Align: Ensure the target area is centered.
4. Isolate: Critically Important—Run your finger under the clamp window. Ensure only the tongue and stabilizer are in the jaws. If you catch the side of the shoe, you will crush it.

Warning: Pinch Hazard
Embroidery clamps use strong springs or cam-locks. Keep your fingertips clear of the "bite zone" when releasing the lever. They snap shut faster than you can react.

Setup Checklist: Pre-Flight

• Clearance: The shoe body is hanging underneath, not resting on the machine arm.
• Tension: Tap the tongue inside the window. It should sound like a dull drum—taut, but not stretched to the tearing point.
• Obstruction: Move the machine arm manually (or use the trace function). Does the hanging shoe bump the machine body?
• Needle Clearance: Ensure the needle bar will not hit the clamp frame itself (the metal border).


Phase 4: The Stitching Run (Operation)

Now we sew. But we do not just press "Start" and walk away.

Speed Settings: The "Sweet Spot"

Ignore the 1200 stitches-per-minute (SPM) capability of your machine. A heavy shoe swinging around creates kinetic energy.

• Beginner Safe Zone: 400 - 600 SPM.
• Pro Zone: 700 - 800 SPM (Only if the shoe is supported).

Why slow down? If the shoe swings violently, it pulls the tongue. This micro-movement causes registration errors (outlines not matching fills).

Monitoring: The Sensory Watch

• Listen: A rhythmic "thump... thump" usually means the heavy heel of the shoe is hitting the machine bed. STOP. You need to support the shoe/lift it slightly with your hand (safely) or adjust the height.
• Watch: Look for "flagging"—entire tongue lifting up and down with the needle. If you see this, your clamp isn't tight enough, or your needle is dull.

If you plan to do this regularly, looking into dedicated equipment like mighty hoops for ricoma em 1010 or other clamp adapters for your specific machine model (Brother, Janome, Tajima) is vital to ensure you have the right "geometry" for the clearance.

Operation Checklist: During the Run

• Trace Complete: The laser/needle walked the perimeter without hitting metal.
• Lids/Laces Tucked: No shoelaces are dangling near the moving pantograph.
• First 100 Stitches: Watch the first color lay down. If the canvas is pulling, stop and add a layer of adhesive or re-clamp.


Troubleshooting: The "Doctor’s Chart"

When things go wrong, do not panic. Consult this chart.

Phase 5: The Upgrade Path - Scaling Your Business

You have mastered the technique. Now, you are getting orders for 50 pairs of team shoes. The "Single Needle Clamp" method will hurt your wrists and kill your profit margin.

It is time to look at the Tool Upgrade Path:

1. Level 1: Stability (The Magnetic Shift)
   For your standard garment work (which often funds the shoe projects), traditional screw-hoops are the enemy of speed. Most professionals eventually migrate to magnetic embroidery hoops. They eliminate the "screw-tightening" fatigue and prevent hoop burn.
2. Level 2: Specialization (The Frame Ecosystem)
   If you are running a Ricoma EM-1010 or similar prosumer machine, do not just use the stock hoops. Search for a magnetic frame for embroidery machine compatible with your arm width. This allows you to hoop thick items (like Carhartt jackets or heavy bags) that accompany shoe orders.
3. Level 3: Production (The Machine)
   If you are consistently turning away orders because you can't stitch fast enough, or the color changes on a single-needle machine are driving you mad, consider the ROI of a multi-needle machine like the SEWTECH series. Combined with a professional hooping station for embroidery machine, one operator can keep four machines running continuously.

Warning: Magnet Safety
When upgrading to magnetic hoops (like Mighty Hoops or SEWTECH Magnetics), be aware they use Neodymium industrial magnets.
* Pacemakers: Keep at least 12 inches away.
* Pinch Hazard: Do not place fingers between the rings. They slam shut with enough force to bruise or break skin.

Final Inspection: The "Retail Ready" Look

You are done stitching.

1. Release: Carefully open the clamp.
2. Trim: Flip the tongue over. Use curved appliqué scissors to trim the Cutaway stabilizer close to the stitches (about 1/8 to 1/4 inch). Do not cut the laces or the shoe lining.
3. Clean: Use a lint roller to remove loose thread snippets.
4. Erase: If you used a water-soluble pen, dab it with a wet Q-tip (don't soak the whole shoe).

You have now conquered the most dreaded item in the embroidery shop. Lace them up, take a photo, and post it. You earned it.

FAQ

• Q: Why do standard concentric embroidery hoops fail on finished Converse-style sneaker tongues during hooping for embroidery machine workflows?
  A: Standard hoops usually fail on finished sneakers because the rubber sole blocks the outer ring and the shoe weight creates uneven tension—use a spring-loaded embroidery clamp instead of forcing a hoop.
  • Switch: Use a clamp/robot frame that isolates only the tongue in a small window.
  • Prepare: Fully unlace the shoe so the tongue can fold forward and sit flat in the clamp window.
  • Verify: Finger-check under the window so only tongue + stabilizer are in the jaws (no sidewall or vamp).
  • Success check: The tongue taps like a dull drum—taut but not overstretched, and the shoe body hangs free.
  • If it still fails… Re-check clearance; if the shoe body bumps the machine during tracing, reposition or support the shoe weight.
• Q: What stabilizer and adhesive recipe prevents puckering on single-layer canvas sneaker tongues when using a spring-loaded embroidery clamp?
  A: A safe, repeatable setup for canvas sneaker tongues is 2.5oz cutaway stabilizer bonded with light temporary adhesive spray to control bias stretch.
  • Spray: Apply adhesive lightly to the stabilizer (not soaking); aim for a “Post-It tacky” feel.
  • Bond: Smooth stabilizer onto the back of the tongue with your thumb to remove air pockets.
  • Avoid: Do not over-spray—wet/gummy adhesive often leads to needle gumming and thread issues.
  • Success check: The stabilizer feels evenly stuck with no bubbles, and the tongue surface feels smooth (no hidden lump seams under the stitch area).
  • If it still fails… Stop and add a bit more adhesion or re-clamp; persistent distortion usually means the tongue is still moving in the window.
• Q: How do you choose cutaway vs tearaway stabilizer for padded skate-shoe tongues, Converse-style canvas tongues, and stiff leather dress-shoe tongues?
  A: When embroidering finished shoe tongues, cutaway is the safest default because padding and canvas stretch distort easily under stitching.
  • Choose: Use medium cutaway for padded/spongy tongues to resist distortion.
  • Choose: Use cutaway for single-layer canvas tongues to prevent puckering around letters.
  • Consider: Tearaway may work on rare stiff leather, but cutaway is still safer insurance against a ruined shoe.
  • Success check: After stitching, the tongue stays flat without “puckering circles” around text.
  • If it still fails… Reduce movement by improving adhesion and clamp tension rather than downgrading stabilizer.
• Q: What needle type and size should be installed for embroidering canvas sneaker tongues in a clamp, and why do ballpoint needles struggle?
  A: For thick canvas sneaker tongues, start with a fresh 75/11 sharp needle; ballpoints often struggle to penetrate dense canvas cleanly.
  • Replace: Install a new 75/11 sharp needle before starting the pair.
  • Avoid: Do not start with a ballpoint on heavy canvas if penetration looks inconsistent.
  • Position: Keep the design away from the thickest hems and seams when possible.
  • Success check: The first stitches form cleanly without excessive flagging or skipped-looking penetrations.
  • If it still fails… If needle breakage happens near seams, move the design about 5 mm away from the edge or switch to a Titanium 75/11 needle.
• Q: What clamp setup checks prevent needle strikes, shoe crushing, and machine collisions when using a spring-loaded embroidery clamp on finished sneakers?
  A: Most safety issues come from trapped shoe parts and poor clearance—isolate only the tongue in the jaws and always trace the design before stitching.
  • Finger-check: Run a finger under the clamp window to confirm only tongue + stabilizer are clamped.
  • Clearance-check: Ensure the shoe body hangs free and is not resting on the machine arm/bed.
  • Trace: Use the machine trace/manual movement to confirm the frame and shoe do not hit the needle bar, clamp border, or machine body.
  • Success check: The trace completes with no contact, and there is no “thump… thump” from the heel hitting the bed.
  • If it still fails… Stop immediately and reposition/support the shoe; do not “power through” impacts—this is how needles and parts get damaged.
• Q: What embroidery speed range reduces registration errors when stitching finished sneaker tongues, and what does “thump… thump” indicate during the run?
  A: Slow down to control swing—400–600 SPM is a beginner-safe zone, and 700–800 SPM is usually for supported shoes; “thump… thump” means the heel is hitting the machine bed.
  • Set: Start at 400–600 SPM for stability; increase only if the shoe is physically supported.
  • Watch: Look for flagging (tongue lifting with the needle); it signals poor clamp tightness or a dull needle.
  • Listen: Stop if you hear rhythmic thumping and adjust support/height so the shoe cannot strike the bed.
  • Success check: Outlines stay registered to fills and the tongue does not visibly bounce with each penetration.
  • If it still fails… Re-clamp for tighter hold, confirm the shoe is hanging free, and re-check needle condition.
• Q: When should a shop upgrade from screw hoops to magnetic hoops and eventually to a SEWTECH multi-needle machine for repeat sneaker and thick-item orders?
  A: Upgrade based on pain points: optimize technique first, move to magnetic hoops to reduce hooping fatigue/hoop burn on regular work, and move to multi-needle production when order volume and color changes limit throughput.
  • Level 1: Improve workflow (adhesion, cutaway, clamp isolation, slower speed) to reduce failures on shoes.
  • Level 2: Use magnetic hoops for standard garments to speed hooping and reduce screw fatigue and hoop burn.
  • Level 3: Consider a SEWTECH multi-needle machine when frequent orders (e.g., team runs) make single-needle color changes and slow output the bottleneck.
  • Success check: The operator can run jobs with repeatable placement and fewer restarts, and daily output is no longer limited by hooping time or manual color changes.
  • If it still fails… If thick items still pop loose or distort, review frame/arm clearance compatibility and confirm safe handling—strong magnets and clamps both have pinch hazards and require careful setup.
