Embroider a Baseball Cap on a Janome Multi-Needle Machine—Without the Usual Hooping Headache (Magnetic Hoop Workflow)

Hat embroidery is notoriously intimidating. It is the "final boss" for many hobbyists—a task where a curved, structured 3D object fights against a flat, 2D machine. Beating this boss requires more than just hope; it requires a strategy rooted in physics and the right tools.

If you have ever thought, "I can stitch shirts all day, but hats make me nervous because of the center seam," you are not alone. The fear of needle deflection (breaking a needle on the thick seam) or the hat shifting mid-stitch is real.

However, the workflow demonstrated by Maryrose is calm, repeatable, and surprisingly forgiving. Why? Because she leverages magnetic stabilization rather than brute-force mechanical clamping. By using a SEWTECH-style magnetic hoop combined with sticky stabilizer, she removes the friction that usually causes errors.

This guide will deconstruct her method into an industry-standard Standard Operating Procedure (SOP), optimized for both safety and quality.

Prep the rectangular magnetic hoop + Sulky Sticky Stabilizer so the cap can’t creep mid-stitch

Maryrose starts with the absolute foundation of successful cap embroidery: the "floating" technique using Sulky Sticky Stabilizer (or a similar adhesive tear-away).

Instead of hooping the hat between two rings (which leaves "hoop burn" marks and struggles with thick bills), she applies the stabilizer directly to the bottom metal plate of the magnetic hoop system.

Why this works (The Physics): Caps are under tension. They want to spring back into a curve.

• Without Sticky Stabilizer: The hat is only held at the edges. The center floats, allowing the fabric to push cleanly ahead of the needle, causing "flagging" (bouncing fabric) and birdnesting.
• With Sticky Stabilizer: You create an "anchor field." The adhesive grabs the fabric fibers across the entire 4x4 inch area.

Sensory Check:

• Touch: When you peel the release paper, the surface should feel aggressively tacky, like a freshlint roller.
• Visual: Press it onto the metal frame until you see the texture of the stabilizer smooth out. Any air bubbles are failure points—push them out.


The hidden prep most people skip (and then blame the machine)

Before you touch the hat, you must perform a "Pre-Flight Reality Check."

Structured caps (the ones with the stiff buckram mesh inside the front) have a "memory." They fight to stay round. The center seam creates a ridge that can deflect a needle if it hits at high speed. Maryrose’s method works because she creates a flat embroidery plane before she even considers centering the design.

For those looking to scale this process, a magnetic hooping station is often the upgrade that bridges the gap between frustration and production. It holds the bottom frame static, allowing you to use both hands to manipulate the hat.

Prep Checklist (The "Save Your Sanity" List):

1. Hoop Integrity: Inspect your magnetic frame. Are the magnets clean? A stray metal fragment can weaken the hold.
2. Stabilizer Bond: Apply the sticky stabilizer to the bottom frame. Rub it down hard. If it lifts, your design shifts.
3. Sweatband Management: Fold the sweatband out. If you stitch it to the forehead of the cap, the hat is ruined.
4. Needle Selection: Switch to a 75/11 Sharp or an 80/12 Titanium needle. Standard ballpoints struggle to penetrate the thick center seam cleanly.
5. Thread Reserve: Check your bobbin. Running out of bobbin thread in the middle of a hat center seam is a nightmare to fix.

Warning: The Needle Strike Zone. Keep your fingers, loose tools, and the sweatband fabric strictly away from the needle area during layout. A multi-needle machine moves the X/Y pantograph rapidly. Never “hold” the hat during the actual stitching unless you are an expert using a specialized wand tool.

Flatten the cap crown on the hooping jig—because hoop tension is really fabric physics

Maryrose manually manipulates the cap to force the embroidery area flat. She tucks the sweatband back and presses the front panel down onto the adhesive.

This is not just aesthetic; it is structural.

The "Spring Energy" Concept: A cap crown is a pre-formed arch. When you press it flat, potential energy is stored in the fabric—it wants to pop back up. If your hooping method relies only on edge tension (standard plastic hoops), the center of the hat will eventually "dome" upwards during stitching.

This doming causes:

• Registration Loss: The outline doesn’t match the fill.
• Wavy Text: Straight lines of text look curved.
• Needle Deflection: The needle hits the seam at a glancing angle rather than 90 degrees.

By pressing the cap onto the sticky stabilizer before clamping, you are using the adhesive to neutralize that spring energy.

Mark the center on a black cap with a white pencil—so your logo lands above the bill, not in the “danger zone”

Maryrose uses a white marking pencil to draw a crosshair on the black fabric.

Where is the "Danger Zone"? Novices center their design mathematically. Experts center their design visually and safely.

• The Rule of Thumb: Place the bottom of your design at least 15mm to 20mm (approx. 0.75 inches) up from the bill seam.
• If you stitch closer, the presser foot may collide with the bill/brim of the hat. This collision will ruin the machine's alignment or break the foot.

Sensory Anchor:

• Visual: The crosshair must be perpendicular to the bill. Don't trust the seam! Cap seams are often crooked. Trust your eye and your ruler.

If you are doing this for paid customers, treat marking as a science. Use a template.

Clamp the cap with the top magnetic frame and press the bill flat—this is where most hooping fails

Maryrose aligns the top metal magnetic frame over the marked area and snaps it down. She then uses firm palm pressure to flatten the bill against the frame edge.

The Magnetic Advantage: This is the specific scenario where a magnetic embroidery hoop pays for itself.

1. Zero Hoop Burn: Traditional hoops require you to jam an inner ring into an outer ring, crushing the hat fibers (often permanently on dark hats). Magnetic hoops float on top, leaving no marks.
2. Vertical Clamping: Instead of pulling the fabric sideways (distortion), magnets clamp straight down. This preserves the straightness of your vertical center seam.
3. Adjustability: If you miss the center mark, you just lift the magnet and slide. On a traditional hoop, you have to un-hoop and start over.

Upgrade Insight: If you find yourself avoiding hat orders because your wrists hurt from wrestling standard hoops, this is your trigger to upgrade to a magnetic system (like those from SEWTECH). The reduction in physical strain allows you to hoop a hat in seconds rather than minutes.

Warning: Magnetic Pinch Hazard. High-quality magnetic hoops (like MaggieFrame or Sew Tech) use industrial-grade magnets. They snap together with enough force to pinch skin bloodily. Always hold the top frame by the handles/edges, never with fingers underneath. Keep them away from pacemakers.

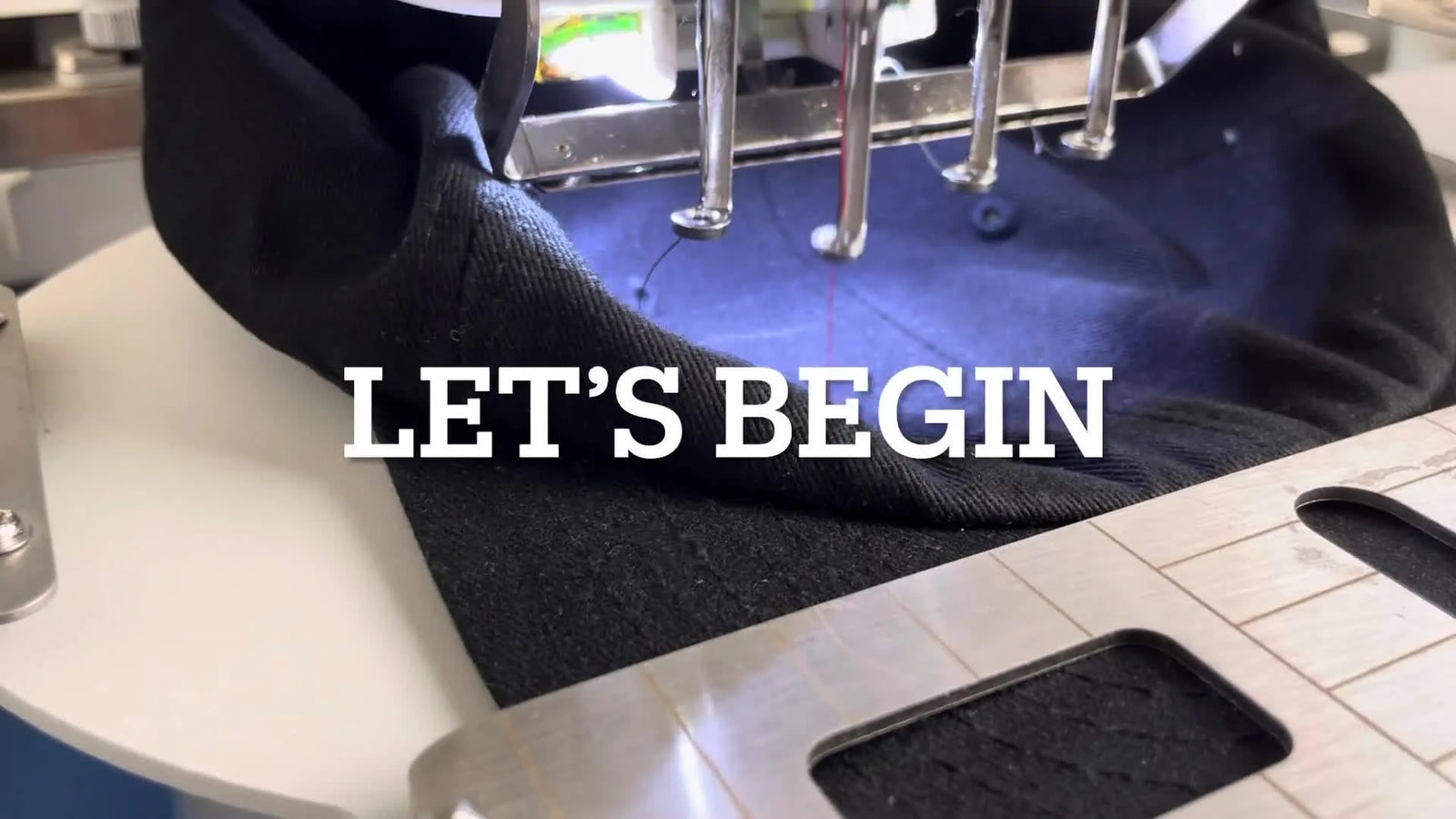

Load the hoop on the Janome multi-needle embroidery machine and do the “hand-under-needles” clearance check

Maryrose slides the hoop into the machine arm. Before hitting start, she performs the "Hand Sweep."

The Hand Sweep Protocol: Slide your hand carefully under the needles (while the machine is stopped!) to verify:

1. Technical Flatness: Is the fabric touching the needle plate? It should not be "trampolining" (floating above the plate).
2. Obstruction Check: Is the sweatband tucked away? Is the bill clear of the presser foot path?

Whether you are using a commercial giant or a janome embroidery machine (like the MB-4 or MB-7), this step saves more hats than any other.

The Trace Function (The Final Audition): Always run the "Trace" or "Design Outline" function.

• Listen: Do you hear the presser foot rubbing against the plastic of the bill? Scrape... scrape...?
• Action: If you hear that sound, stop. Move the design up 5mm. A rubbing foot will drag the hat and distort the stitch.


Stitch the logo and don’t panic at the center seam—magnetic pressure makes “over-the-seam” behave

Maryrose stitches the red lettering. She notes the machine handles the thick center seam without issue.

Stitching Strategy for Center Seams: The seam is the enemy. It is a bump. If the needle hits the side of the bump, it slides off and bends.

• Speed Control: Do not run your machine at 1000 stitches per minute (SPM). Slow down to 600-700 SPM.
• Why? Slower speeds give the needle bar more torque and time to penetrate straight down.
• Density: Make sure your digitizing isn't too dense over the seam. A "standard" satin stitch is fine; a quadrupled-density 3D puff stitch needs expert digitizing.

In the video, Maryrose occasionally places a finger near the hoop (safely away from needles) to stabilize the brim. While acceptable for veterans, I recommend using painter's tape or masking tape to tape the bill down to the hoop edge if it is vibrating too much.

If you are shopping for magnetic hoops for janome embroidery machines, look for models with strong "pull force." Weak magnets will allow the hat to pull out of the hoop when the needle penetrates the thick seam.

Comment-based reality check: structured vs unstructured hats

Maryrose adds a vital note: she recommends unstructured hats (soft front, "dad hats") for this 4x4 hoop method. She notes a structured "trucker style" hat didn't go well previously.

This is honest and crucial data.

The "Structure" Spectrum:

• Level 1 (Easy): Unstructured Dad Hat. Soft cotton. Flattens like a pancake. Perfect for this method.
• Level 2 (Medium): Structured Bio-Washed Cap. Has buckram but is flexible. Doable with magnetic hoops + sticky stabilizer.
• Level 3 (Hard): Trucker Hat / Richardson 112. Very stiff mesh, high crown. Very difficult on a flat 4x4 hoop.

The Professional Pivot: If you must do Level 3 hats (Truckers) in volume, a flat magnetic hoop fights physics too much. This is where you eventually upgrade to a dedicated Cap Driver System (cylindrical attachment) found on machines like the specialized multi-needles. But for Level 1 and 2, the magnetic flat hoop is king.

Setup Checklist (The "Green Light" Sequence):

1. Center Mark: Visible and aligned?
2. Sweatband: Tucked back and taped/pinned if necessary?
3. Bill Clearance: Two-finger gap between design bottom and bill?
4. Trace Test: Silent? (No scraping sounds).
5. Speed: Reduced to ~600 SPM?


Clean up like a pro: unhoop, tear away stabilizer, and remove pencil marks without damaging stitches

Post-processing is where "homemade" becomes "professional."

The Review:

1. Unhoop: Slide the frame off. Lift the top magnet.
2. Peel: Gently peel the hat off the sticky stabilizer.
   • Sensory: It should sound like peeling aggressive tape (zzzzzzp). If it comes off too easily, your stabilizer wasn't sticky enough (risk of shifting).
3. Tear: Support the stitches with your thumb while tearing the stabilizer away. Do not yank! Yanking can distort your beautiful satin stitches.
4. Clean: If you used a wax-based pencil, a little heat or a damp cloth removes it. If you use water-soluble pens, a dab of water works.

Quality Control (QC): Look at the back. Is the bobbin thread roughly 1/3 of the width of the satin column (white strip in the middle)? If you see loops or birdnesting, your tension was too loose or the hat flagged.

Why this magnetic hoop method works (and when it doesn’t): the tension + stabilization equation

Let's look under the hood. Why did this work when standard hoops fail?

The Equation of Stability: $$Success = (Adhesion \times Friction) + (Vertical Clamp Force)$$

• Standard Hoop: Relies on friction on the sides of the hat. The center is loose.
• Maryrose's Method: Relies on Adhesion (Sticky Stabilizer) holding the entire 4x4 area, plus Vertical Clamp Force (Magnets) locking it down.

When it fails: It fails if the hat is too stiff to flatten (adhesion breaks matches mechanical resistance). In that scenario, you are fighting physics. You either need a massive industrial clamp or a different hat style.

Troubleshooting hat embroidery on a center seam: symptoms → likely cause → fix you can do today

Here is your "Emergency Room" triage chart for hat disasters.

Decision tree: pick the right cap + stabilization combo before you waste a blank

Stop guessing. precise decision-making saves money.

Step 1: The Squeeze Test Grab the front of the hat. Squeeze it.

• Soft/Floppy? -> Unstructured. Proceed with Magnetic Flat Hoop + Sticky Stabilizer.
• Stiff/Crinkly? -> Structured. Proceed with CAUTION. Test on a scrap first.

Step 2: The Height Check Measure the front panel height.

• High Profile (Trucker)? -> You have lots of room, but flattening is hard. Center design high.
• Low Profile (Dad Hat)? -> You have limited vertical space. Max design height should be 2.0 - 2.25 inches. Do not push it to 2.5 inches or you will hit the bill.

Step 3: The Toolkit

• Doing 1 hat? -> Use painter's tape and patience.
• Doing 50 hats? -> You need a magnetic hoop and a hooping station.


The upgrade path that actually saves time: when to move from “hobby workflow” to production workflow

There comes a point where "making do" costs you more money than upgrading.

If you are spending 5 minutes hooping a hat and only 5 minutes stitching it, your Unit Economics are broken.

The Trigger for Upgrading:

• Physical Pain: Sore wrists/fingers from tightening screws.
• Rejection Rate: Throwing away 1 in 10 hats due to crookedness.
• Volume: Consistently getting orders for 12+ hats.

The Solution Ladder:

1. Level 1 (Consumables): Buy bulk Sulky Sticky Stabilizer and Titanium needles to reduce breaks.
2. Level 2 (Efficiency): Invest in SEWTECH Magnetic Hoops. This cuts hooping time by 50% and eliminates hoop burn. It makes the hooping for embroidery machine process fluid rather than a fight.
3. Level 3 (Scale): If you are consistently bottling-necking on speed, move to a multi-needle machine that allows you to hoop the next hat while the current one stitches.


A few final “old hand” habits that keep hat embroidery predictable

Experience is just a collection of mistakes you stopped making. Here are three rules to live by:

1. The "Bill Tape" Trick: If the bill keeps popping up and blocking the needle bar, use a piece of blue painter's tape to tape the bill down to the outer edge of the hoop. It looks ugly, but it saves the hat.
2. Clean the Hook: Hats shed. The heavy buckram and cotton dust will clog your bobbin hook faster than dress shirts. excessive lint = birdnesting. Blow it out every 5 hats.
3. Don't Rush the Release: When removing the hat, if you rip it off the sticky stabilizer too fast, you can warp the weave of lighter cotton hats. Be gentle.

Operation Checklist (Post-Stitch):

• Full Stop: Wait for the needle to stop moving completely.
• Magnetic Release: Lift the top frame straight up (don't slide it).
• Gentle Peel: Remove hat from sticky backing.
• De-Lint: Check bobbin area for hat fuzz.
• Admire: Check that crisp center seam alignment.


If you follow Maryrose’s verified sequence—Sticky Stabilizer Base + Magnetic Downward Pressure + Clearance Check + Reduced Speed—you strip the uncertainty out of the process.

Hats are high-margin items. Once you master the center seam using these tools, you unlock one of the most profitable services in the embroidery world. Don't let the curve scare you; let the magnets do the work.

FAQ

• Q: How do I hoop an unstructured dad hat for flat embroidery using a SEWTECH-style magnetic hoop and Sulky Sticky Stabilizer without the cap shifting?
  A: Use sticky stabilizer on the bottom metal plate first, then press the cap crown flat onto the adhesive before snapping the top magnetic frame down.
  • Apply: Rub Sulky Sticky Stabilizer firmly onto the bottom frame and push out any air bubbles.
  • Manage: Fold the sweatband out of the stitching area before positioning the cap.
  • Press: Force the front panel flat onto the adhesive, then clamp straight down with the magnetic top frame.
  • Success check: The cap should feel “stuck” across the whole 4x4 area and not creep when you tug gently at the edges.
  • If it still fails: Re-apply stabilizer (poor bond) or switch to a softer/unstructured hat style that can flatten more easily.
• Q: What needle should I use for hat embroidery over a center seam on a Janome multi-needle embroidery machine to reduce needle deflection and needle breaks?
  A: Start with a 75/11 Sharp or an 80/12 Titanium needle and slow the machine down before stitching the center seam.
  • Switch: Install a 75/11 Sharp or 80/12 Titanium needle (ballpoints often struggle on thick seams).
  • Reduce: Run hats slower (about 600–700 SPM) instead of high speed.
  • Verify: Check the bobbin before starting so the seam area isn’t interrupted mid-design.
  • Success check: The needle penetrates the seam cleanly without “ticking,” bending, or breaking as it crosses the ridge.
  • If it still fails: Re-check that the cap is pressed flat onto sticky stabilizer so the seam is struck closer to 90° (less glancing impact).
• Q: How far above the bill seam should a hat logo be placed on a cap to avoid presser foot collisions on a Janome embroidery machine?
  A: Keep the bottom of the design about 15–20 mm (around 0.75 in) above the bill seam and confirm clearance with a trace/run outline test.
  • Mark: Draw a crosshair with a white pencil and align it visually—do not trust a crooked center seam.
  • Position: Move the design upward if the bill is close to the presser foot path.
  • Trace: Run the machine’s Trace/Design Outline function before stitching.
  • Success check: The trace runs silently with no scraping sound from the presser foot rubbing the bill.
  • If it still fails: Move the design up ~5 mm and re-trace until the rubbing stops.
• Q: How do I do the “hand-under-needles” clearance check on a Janome multi-needle embroidery machine when stitching a hat in a magnetic hoop?
  A: With the machine stopped, sweep a hand under the needles to confirm the hat is flat on the needle plate and nothing (sweatband/bill) is in the presser foot path.
  • Stop: Ensure the machine is fully stopped before placing a hand near the needle area.
  • Check: Feel for “trampolining”—the fabric should not be floating above the needle plate.
  • Inspect: Confirm the sweatband is tucked away and the bill clears the presser foot path.
  • Success check: The cap embroidery area sits flat and the trace/outline completes without contact or dragging.
  • If it still fails: Re-hoop by pressing the cap more firmly onto the sticky stabilizer before clamping with the magnetic frame.
• Q: How do I prevent birdnesting and “flagging” when embroidering a cap on a flat 4x4 magnetic hoop with sticky stabilizer?
  A: Increase stabilization contact by pressing the cap firmly into the sticky stabilizer “anchor field” and make sure the stabilizer bond is aggressive.
  • Press: Smooth the stabilizer onto the bottom frame until it is fully bonded (no bubbles).
  • Anchor: Press the cap crown flat into the adhesive before clamping with the top magnetic frame.
  • Maintain: Keep the sweatband folded out so extra layers don’t lift the cap during stitching.
  • Success check: The fabric doesn’t bounce near the needle; the stitchout stays stable without loops forming underneath.
  • If it still fails: Clean lint from the hook area (hats shed heavily) and re-check that the stabilizer is truly tacky, not dried out.
• Q: How do I troubleshoot needle breakage on a hat center seam when using a Janome multi-needle embroidery machine and a magnetic hoop?
  A: Treat needle breakage as a seam-impact problem: use a sharper/stronger needle and reduce speed so the needle penetrates straight down.
  • Replace: Install a Titanium 75/11 or 80/12 needle if breaks are happening at the seam.
  • Slow: Drop speed to roughly 600–700 SPM for the seam zone.
  • Confirm: Keep the cap flat (no doming) by pressing it firmly onto sticky stabilizer before clamping.
  • Success check: The seam stitches without repeated breaks or needle “walking” off the ridge.
  • If it still fails: Review the design for excessive density over the seam and test on a different (less stiff) cap style.
• Q: What safety precautions should be followed when using industrial-strength magnetic embroidery hoops for hat hooping to avoid pinch injuries and machine hazards?
  A: Handle magnetic hoops by the handles/edges and keep hands, tools, and loose fabric away from the needle strike zone during layout and stitching.
  • Grip: Lower the top magnetic frame using the handles/outer edges—never place fingers underneath where magnets snap shut.
  • Clear: Keep sweatband fabric, clips, and tools out of the X/Y movement area of the pantograph.
  • Avoid: Do not “hold” the hat during stitching unless highly experienced; use painter’s tape to tame a vibrating bill instead.
  • Success check: The hoop clamps without pinching, and the machine can trace and stitch without anything entering the needle path.
  • If it still fails: Pause and re-stage the setup—most injuries and collisions happen during rushed positioning, not during normal stitching.
