Embroider a Baseball Cap on a Brother PE800 (No Cap Driver): The Floating Method That Actually Works—and the Brim-Collision Trap to Avoid

If you’ve ever stared at a structured baseball cap and thought, “My Brother PE800 is a flatbed machine—how on earth am I supposed to embroider that without breaking a needle?” you are not alone. Hats are the "Holy Grail" of home embroidery: they are the most requested item by friends and customers, yet they are the fastest way to ruin a project (and your confidence) if you don't respect the physics involved.

Here is the reality of the situation:

1. The Physics: A cap is curved, thick, often reinforced with buckram (stiff mesh), and wants to spring back to its original shape.
2. The Constraint: Your single-needle machine has a flat bed and a presser foot that needs clearance—often more than you think.

This guide rebuilds a proven “float the hat” workflow on a Brother PE800 using a standard 5x7 hoop. We will use tearaway stabilizer, temporary adhesive spray, and the secret weapon of quilters: curved safety pins. More importantly, I will identify the exact millisecond most beginners fail: the "brim collision" that distorts lettering and grinds your stepper motors to a halt.

Calm the Panic: What a Brother PE800 *Can* Do on a Baseball Cap (and What It Can’t)

First, let’s manage your expectations. A Brother PE800 can stitch a cap design without a dedicated cylindrical cap driver (the expensive rotatable attachment found on industrial machines), but you are trading convenience for hyper-vigilance.

Because the cap is not mechanically clamped inside the hoop rings, you are relying entirely on Adhesion + Pinning + Gravity to keep the fabric stable. This is often referred to as the "floating" technique.

When to use this method:

• Simple Text: Like a name or short phrase (similar to the built-in font used in the example).
• Small Footprint: Designs under 2.5 to 3 inches tall.
• Soft/Unstructured Crowns: Dad hats or soft cotton caps are easier than stiff, high-profile snapbacks.

The Risk Factor: This is not a "set it and forget it" operation. You must babysit the machine. If the cap lifts due to the "flagging" effect (bouncing up and down with the needle), or if the heavy brim vibrates into the needle bar path, the machine won’t politely beep. It will ruin the registration or snap the needle.

If you are using a floating embroidery hoop approach like this, your success depends less on your artistic talent and entirely on your ability to mechanically restrict movement before you press the green button.

The “Hidden” Prep Pros Do First: Stabilizer Tension, Marking, and a Clean Spray Zone

The video source for this guide starts with a detail that separates the pros from the frustrated amateurs: Hooping the stabilizer propery.

In this workflow, the hat never goes between the hoop rings. Only the stabilizer does. This means your stabilizer is the foundation for the entire project.

1) Hoop the tearaway stabilizer (stabilizer only)

• Material: Use a medium-weight (1.5 oz to 2.0 oz) tearaway stabilizer. Cut a piece large enough to extend at least 1 inch past the hoop edges on all sides.
• Action: Hoop it tightly.
• Sensory Check (Tactile & Auditory): Tighten the screw and pull the stabilizer edges gently. When you tap on the stabilizer with your fingernail, it should sound like a tight drum skin. If it sounds like paper or feels soft, re-hoop it. A loose stabilizer equals a crooked design.

2) Draw grid lines for alignment

You cannot rely on the machine's laser or screen grid alone because the surface is uneven.

• Tool: Use a ruler and an air-soluble or water-soluble pen.
• Action: Draw a bold Crosshair (+) directly on the stabilizer.
• Why: This crosshair is your "True North." You will align the center seam of the cap to this line physically.


3) Tape the hoop edges before spraying

• Action: Cover the plastic frame of your hoop with blue painter’s tape or masking tape.
• Why: Temporary adhesive spray is essentially airborne glue. If it builds up on your outer hoop, it creates friction and "drag" against the machine arm later, which causes registration errors. Keep your tools clean to keep your stitching clean.


4) Make a DIY spray booth

• Hack: Use a paper grocery bag with a hole cut in the bottom slightly smaller than your hoop's inner area.
• Benefit: This prevents the "sticky dust" of adhesive spray from coating your worktable, your floor, and your lungs.


5) Spray adhesive onto the stabilizer

• Product: Use a reputable temporary spray adhesive (like Odif 505 or AlbaChem).
• Action: Place the hoop inside the bag and apply a light, even mist.
• Sensory Check (Tactile): Wait 30 seconds. Touch it with your knuckle. It should feel tacky (like a Post-it note), not wet or slimy. If it's wet, it will gum up your needle.


Warning: Temporary adhesive sprays are flammable aerosols. Always spray in a well-ventilated area/room, away from any heat sources or open flames. Never spray near your embroidery machine—the airborne particles can settle on sensors and belts, causing expensive internal damage over time.

Prep Checklist (before the cap touches the hoop)

• Tearaway stabilizer is drum-tight (tap test passed).
• Crosshair/grid lines are drawn clearly on the stabilizer.
• Plastic hoop edges are masked off with painter’s tape.
• Spray shield (box or bag) is in place.
• Adhesive applied evenly; surface feels tacky, not wet.


The Alignment Moment That Makes or Breaks It: Center Seam + Grid Lines on the 5x7 Hoop

Once the stabilizer is sticky, remove the protective tape (carefully) and bring the hoop to a flat surface. This is the moment of truth.

The Center Seam Doctrine

• Action: Flatten the bill of the cap and the front crown as much as the fabric allows. Press the back of the cap down firmly onto the sticky stabilizer.
• Visual Check: The center seam of the hat must lie perfectly on top of the vertical line you drew.
• Why: The center seam is your only reliable anchor. The bill might be crooked, the panels might be wonky, but the seam is the spine of the hat.

If you are working with a brother 5x7 hoop, utilizing the grid-line habit is what prevents the dreaded "slant effect," where the text looks fine on screen but comes out tilted on the forehead.

Clearance mindset (the part most people learn the hard way)

You must respect the "No Fly Zone." The brim is a solid object that cannot pass under the needle bar case.

The One-Inch/Two-Thumb Rule:

• Generally, keep the bottom of your design at least 1 inch (or two thumb widths) up from the brim.
• If you try to stitch closer, the presser foot will hit the brim as the hoop moves backward. This collision causes the motor to slip, ruining the design instantly.


Pinning a Baseball Cap Without Tears: Why Curved Safety Pins Beat Straight Pins

Adhesive alone is not enough. The hat has "memory"—it wants to curl back into a ball. As you stitch, the fabric will pull away from the stabilizer. You must mechanically lock it down.

Why Straight Pins Fail

The video highlights a common struggle: trying to push a standard straight pin through stiff buckram and stabilizer is brutal. You have to bend the hoop to get the angle, often popping the stabilizer loose.

The Solution: Curved Safety Pins (Size 2)

• Tool: Use curved quilting safety pins (typically 1.5 inch / Size 2). The curve allows the pin to scoop down and back up without distorting the fabric.
• Action: Place pins at the four corners of your design area (outside the stitch path!).
• Sensory Anchor: You should feel significant resistance. It’s like pushing a needle through denim. Ensure the pin creates a secure "bite" of fabric.


The critical safety detail: tape over the pins

Do not skip this step. The metal heads of safety pins are snag hazards.

• Action: Place a strip of painter’s tape over the metal head/coil of every pin.
• Why: If the embroidery foot travels near a pin and catches a loop, it will rip the stabilizer or break the foot. Taping creates a smooth ramp for the foot to glide over if it gets too close.


Warning: SHARP OBJECT HAZARD. Pins and needles are a genuine injury risk, especially when you are reaching inside the dome of a cap. Keep your fingers well clear of the needle path during operation. Ensure no pin heads are inside the embroidery field where the needle could strike them—a needle striking a metal pin can shatter, sending metal shards towards your eyes. Safety glasses are recommended.

Why pinning is harder than it looks (expert insight)

A cap crown is under tension when flattened. If you notice the cap "lifting" or bubbling in the center after pinning, the tension is unbalanced. You may need to un-stick and re-smooth it. If the bubble remains, the needle will push the fabric down before penetrating, causing loops and messy text.

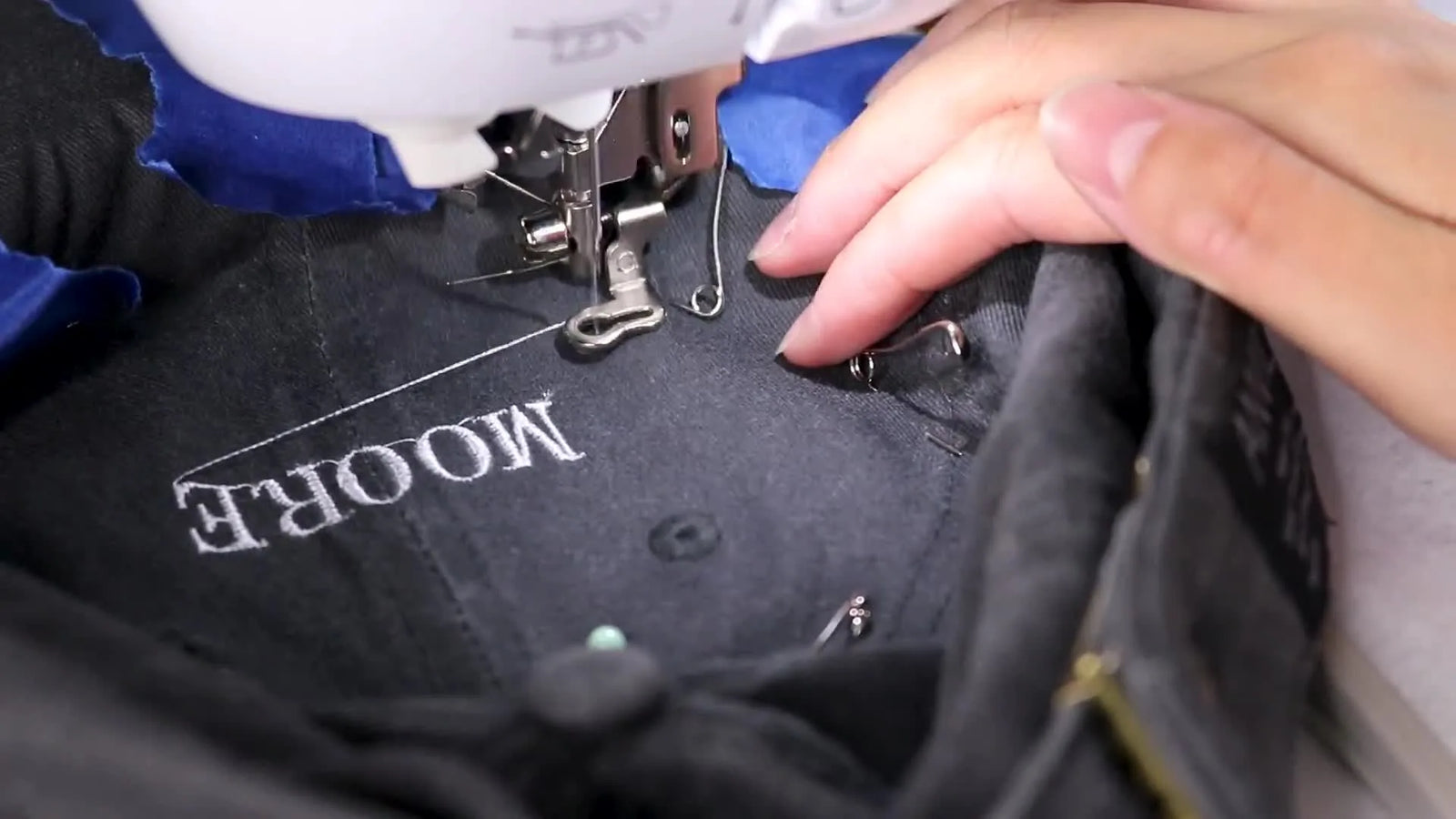

Stitch Like You Mean It: Running the Brother PE800 Slowly and Watching the Brim

Now that the cap is mounted, careful execution is required. Be prepared to act as a "human pause button."

What to do at the machine

1. Load Design: Choose your text or logo.
2. Trace/Check: Run the design trace function. Do not look at the screen. Look at the needle bar and the presser foot relative to the brim of the hat. Does it get uncomfortably close? If yes, move the design up.
3. Speed Down: Reduce your stitching speed.
   • Standard Speed: 650 SPM (Stitches Per Minute).
   • Cap Speed: 350 - 400 SPM.

If you are doing hooping for embroidery machine projects involving thick items like caps, speed is your enemy. Slower speeds reduce the "flagging" (bouncing) of the cap, resulting in sharper text and fewer thread breaks.

The collision trap (what it looks like in real life)

In the source video, the design stitched beautifully until the letter “A” near the brim. Because the clearance was too tight, the presser foot rubbed against the thick seam where the brim meets the crown.

When a collision happens:

• Auditory Cue: You will hear a grinding noise (the stepper motors skipping).
• Visual Cue: The letters will suddenly look "squashed" or shifted to the side.
• Fix: There is no fix mid-stitch. You usually have to scrap the hat. Prevention is the only cure.

Setup Checklist (right before you press Start)

• Cap center seam matches the grid line perfectly.
• Curved safety pins are secured outside the stitch field.
• Painter’s tape is applied over all pin heads.
• Clearance Check: Design is at least 1 inch above the brim.
• Speed Check: Machine speed reduced to ~350-400 SPM.


Clean-Up That Looks Professional: Tearaway Removal, Jump Threads, and the “No-Fuzz” Finish

The stitching is done, but the job isn't. The finishing adds the value.

1. Remove: Take the hoop off the machine. Un-pin the tape and pins carefully.
2. Tear: Gently tear the stabilizer away from the back. Since the cap was floated, the stabilizer remains one solid sheet with a hole in it (which you can sometimes patch and reuse for small tests!).


3. Trim: Use curved embroidery scissors (snips) or precise appliqué scissors to trim jump threads.
4. Burn (Optional but Pro): If using polyester thread, you can briefly pass a heat tool or lighter near (not touching!) any fuzzy thread ends to seal them. Beware: do not scorch the cap!


A professional finish means no "spiderwebs" of thread connecting the letters.

Operation Checklist (after the stitch-out)

• Pins removed and counted (make sure none are left in the hat!).
• Tearaway stabilizer removed cleanly from the back.
• Jump threads trimmed flush with the fabric using curved snips.
• Interior checked: Ensure no sticky residue is left on the brim (use an alcohol wipe if needed).
• Final inspection for distortion near the brim.

Fix the Three Problems Everyone Hits: Pins, Brim Collisions, and Tension Weirdness

Even with this guide, variables happen. Here is your quick troubleshooting table.

The Decision Tree I Use in Real Shops: Stabilizer Choice for Caps (Fast, Safe, Repeatable)

To avoid guessing, follow this logic path for every cap project on a flatbed machine.

Decision Tree: Stabilizer & method selection for Caps

1. Is the cap "structured" (hard front panel/buckram)?
   • YES: Use Tearaway (2.0 oz) + Spray Adhesive. The cap supports itself; the stabilizer just anchors it.
   • NO (Floppy Dad Hat/Beanie): Use Cutaway Stabilizer + Spray. Soft hats need the permanent structure of Cutaway to prevent distortion.
2. Does the design have heavy fill stitches (solid blocks)?
   • YES: Danger Zone. Heavy fill pulls the fabric hard. Use Fusible Cutaway (iron-on) on the inside of the cap first, then float on Tearaway.
   • NO (Text/Outlines): Standard Tearaway + Spray is sufficient.
3. Are you in a rush (production run)?
   • YES: Floating usually is faster than hooping, but magnetic frames are faster than floating. (See below).

When the “Hack” Becomes a Bottleneck: Upgrading Your Hooping Workflow for Speed and Consistency

Floating a cap works—it gets the job done for a birthday gift or a hobby project. But let's be honest: it is labor-intensive.

• Taping the hoop.
• Building a spray booth.
• Wrestling with safety pins.
• Watching the machine like a hawk.

If you find yourself doing this for 10, 20, or 50 hats, this method will hurt your hands and kill your profit margin.

The Upgrade Path: Solving the Friction

Phase 1: The Frustration (Trigger) You are tired of "hoop burn" (shiny rings left on fabric), sticky residue on your equipment, and the risk of pins stabbing your fingers. You want to place a hat and stitch it in 10 seconds, not 10 minutes.

Phase 2: The Solution (Tooling Up) This is where professionals switch to Magnetic Hoops. If you search for a magnetic hoop for brother pe800, you will find frames that use powerful magnets to clamp fabric instantly.

• Why it helps: No inner/outer ring friction. The magnets clamp over seams, zippers, and thick cap brims without forcing them. This eliminates the need for spray adhesive and safety pins in many cases.
• Efficiency: You simply slide the stabilizer and cap on, and snap—it's locked.

Magnet Safety Warning: Industrial-strength magnetic hoops are essentially power tools. They can pinch fingers severely. Keep them away from pacemakers, medical devices, and magnetic storage media. Do not let children handle them.

Phase 3: The Production Leap (Scaling) If you are consistently dealing with orders for team caps, looking for a generic brother pe800 magnetic hoop is a good step, but eventually, the flatbed physics will hold you back. The ultimate upgrade is a SEWTECH multi-needle machine with a cylindrical arm. These machines spin the hat around the mechanism, allowing you to stitch "ear to ear" (270 degrees) at full speed (1000 SPM) without ever worrying about a brim collision.

The Result You’re After: A Clean Hat Today—and a Repeatable Process Tomorrow

The finished cap in the video example looks great, despite the minor "learning moment" near the brim. That is the takeaway: Floating works, but it demands respect.

If you want the best odds of success on your next cap:

1. Prep: Hoop the stabilizer drum-tight and mark your center line.
2. Secure: Use adhesive + curved pins (taped for safety).
3. Execute: Stitch slowly (350 SPM) and keep the design high on the forehead.

If you plan to turn this into a side hustle, consider building a dedicated hooping station for embroidery. Having a clean area with your pre-cut stabilizer, alignment grids, and magnetic tools will not only save your sanity—it will make your embroidery look consistent, professional, and profitable.

FAQ

• Q: How can a Brother PE800 embroider a structured baseball cap without a cap driver using a 5x7 hoop?
  A: Use the “float the cap” method by hooping only tearaway stabilizer, then securing the cap with temporary spray adhesive plus curved safety pins.
  • Hoop: Hoop medium-weight tearaway stabilizer drum-tight, then draw a bold crosshair for alignment.
  • Secure: Lightly spray adhesive on the stabilizer (not the cap), then press the cap down and pin the corners outside the stitch path.
  • Execute: Run a trace and stitch slowly to reduce cap “flagging” and avoid brim contact.
  • Success check: The stabilizer taps like a tight drum and the cap front stays flat without lifting while the hoop moves.
  • If it still fails: Move the design higher on the crown and add/adjust curved safety pins to prevent shifting.
• Q: How do I know the tearaway stabilizer is hooped tight enough for floating a baseball cap on a Brother PE800?
  A: A properly hooped tearaway stabilizer should pass the “drum-tight tap test” before any adhesive or pinning happens.
  • Tighten: Tighten the hoop screw and gently pull the stabilizer edges to remove slack.
  • Tap: Tap the hooped stabilizer with a fingernail to check tension.
  • Re-hoop: Re-hoop immediately if it sounds papery or feels soft.
  • Success check: The stabilizer sounds like a tight drum skin and does not ripple when tugged lightly.
  • If it still fails: Cut a larger piece (at least 1 inch beyond hoop edges) and re-hoop to maintain even tension.
• Q: How do I prevent brim collision on a Brother PE800 when embroidering text on a baseball cap with a 5x7 hoop?
  A: Keep the design at least 1 inch (two thumb widths) above the brim and confirm clearance by watching the presser foot during the trace.
  • Position: Move the design upward so the bottom of the lettering sits safely above the brim line.
  • Trace: Run the trace function while watching the needle bar/presser foot path near the brim (not just the screen).
  • Slow down: Reduce speed to about 350–400 SPM to lower vibration and control movement.
  • Success check: During trace and early stitches, the presser foot never rubs or bumps the brim area.
  • If it still fails: Stop and reposition the design higher; once a collision causes shifting/grinding, the stitch-out usually cannot be salvaged.
• Q: Why does a Brother PE800 cap embroidery design tilt or stitch crooked when using the floating method on a baseball cap?
  A: Crooked cap embroidery usually comes from misalignment at setup—align the cap center seam exactly to a drawn stabilizer grid line before stitching.
  • Mark: Draw a bold crosshair (+) on the hooped stabilizer as a physical alignment reference.
  • Align: Place the cap so the center seam sits perfectly on the vertical grid line.
  • Press: Flatten the crown as much as the fabric allows and press firmly into the tacky stabilizer before pinning.
  • Success check: The center seam tracks straight on the line and the cap does not “creep” when gently nudged.
  • If it still fails: Unstick and re-smooth the cap before stitching; do not try to “correct” tilt after the design starts.
• Q: What should I do if I cannot push straight pins through a structured baseball cap when floating it for Brother PE800 embroidery?
  A: Use curved quilting safety pins (Size 2) because the curve lets the pin scoop through buckram and stabilizer with less distortion.
  • Swap: Replace straight pins with curved safety pins (about 1.5 inch / Size 2).
  • Place: Pin at four corners around the design area, staying outside the stitch field.
  • Tape: Cover each pin head/coil with painter’s tape to prevent the embroidery foot from snagging.
  • Success check: The cap stays flat and secured, and the pins feel firmly “biting” through the layers without popping the stabilizer loose.
  • If it still fails: Reposition pins farther from high-tension areas and re-smooth the crown to eliminate bubbles that cause lifting.
• Q: What does a Brother PE800 brim collision sound and look like during baseball cap embroidery, and what should I do immediately?
  A: A brim collision often sounds like grinding (stepper motors skipping) and shows as suddenly squashed or shifted letters—stop and prevent it on the next attempt.
  • Listen: Watch for an unexpected grinding/skipping sound as the hoop moves near the brim.
  • Inspect: Look for abrupt registration shift or “squashed” lettering near the brim area.
  • Prevent: On the next setup, raise the design and re-run trace while watching the presser foot clearance.
  • Success check: No grinding occurs and the lettering remains consistently shaped and aligned throughout the stitch-out.
  • If it still fails: Treat the project as a clearance problem first (design placement), then reduce speed further within safe operation and re-check cap stability.
• Q: When should Brother PE800 users upgrade from floating a baseball cap to using a magnetic hoop or a multi-needle machine for efficiency?
  A: Upgrade when floating becomes a bottleneck—first improve technique, then consider magnetic hoops for faster clamping, and move to a multi-needle cylindrical-arm machine when flatbed clearance limits production.
  • Level 1 (Technique): Standardize the prep checklist (drum-tight stabilizer, crosshair alignment, slow speed, 1-inch brim clearance).
  • Level 2 (Tool): Consider a magnetic hoop when spray, taping, and pinning are slowing work or causing hoop burn/sticky residue.
  • Level 3 (Capacity): Consider a multi-needle cylindrical-arm machine when frequent cap orders demand higher speed and reduced brim-collision risk.
  • Success check: Setup time drops consistently and stitch-outs stop failing from cap lift or brim contact.
  • If it still fails: Re-check safety and handling—magnetic hoops can pinch fingers and must be kept away from pacemakers and sensitive devices.
