Embrilliance Utility Menu Power Moves: Instant Repeat, Mirror x4, Carousel & Scatter (Without the Usual Headaches)

If you have ever stared at a single, lonely motif in your software and thought, “How do professionals turn this one element into a complex, sellable layout so quickly?”—you are asking the right question. The difference between a hobbyist and a production embroiderer isn't just creativity; it is efficiency.

However, there is a dangerous gap between software perfection and physical reality. A grid layout that looks pristine on a glowing screen can easily turn into a puckered, misaligned disaster on actual fabric if you don't account for the "physics of stitching"—pull compensation, hoop tension, and density buildup.

In this guide, we will bridge that gap. We will take a simple balloon design and use Embrilliance Utility features to build grids, borders, wreaths, and randomized fills. More importantly, we will apply 20 years of floor experience to ensure these layouts stitch out safely, cleanly, and profitably.

The Calm-Down Primer: What the Embrilliance Utility Menu Actually Does (and Why It Feels Like “Magic”)

Embrilliance’s Utility menu is a logic engine. It generates structured duplication—copies that are spaced, mirrored, rotated, or randomized based on mathematical rules. It allows you to create a layout that looks like you spent hours digitizing, when you really started with one clean element.

The Cognitive Shift: You must understand that the software preview is a composition preview, not a physics simulation. In production, repeated elements amplify small problems. A slightly too-dense outline, when repeated 20 times in a grid, becomes a "bulletproof vest" patch that creates needle drag and thread breaks.

If you are building layouts for actual stitching (striving for the "perfect drum sound" of a well-sewn design), treat these utilities as drafting tools, but apply engineering logic before you export.

The “Hidden” Prep Pros Do First: Hoop Boundary, Base Design Choice, and a No-Distortion Resize

Before you touch the Utility tools, you must establish a "Safe State." Most beginners skip this and pay for it with broken needles later.

1) Confirm your hoop boundary and physical workspace

The video demonstrates a layout using a large hoop grid (visually similar to a 200×300mm field). Your utilities will “respect” that boundary.

• Empirical Rule: Always leave a 10mm to 15mm safety buffer between your design edge and the physical hoop inner ring. If you hear the sickening clank-clank of the presser foot hitting the plastic frame, you have ignored this buffer.


2) Pick a simple base design (The stress test)

Sue chooses a simple balloon outline. This is critical. Complex designs with 30,000 stitches are poor candidates for array tools because the stitch count explodes.

• Action: Choose low-density motifs (under 4,000 stitches) for grids and patterns to keep the fabric drapeable.

3) Resize without warping the motif

In the video, the balloon briefly changes shape—a classic mouse slip.

• The Fix: If you see visual distortion, stop. Hit Undo. Grab a corner handle.
• Hidden Consumable: Always have a fresh 75/11 needle ready. Resizing designs often changes density; a sharp needle helps punch through potentially tighter areas without bird-nesting.

Warning (Mechanical Safety): Keep fingers clear of the needle bar and trimming blades. When testing new software layouts, users often stare at the screen instead of the machine. Never take your eyes off the needle during the first 1,000 stitches of a new layout.

Prep Checklist (The "Pre-Flight" Safety Check)

1. Hoop Verification: Does the software hoop match the exact physical hoop you are clipping onto the machine?
2. Base Integrity: Is the base design clean? (No hidden jump stitches or tiny 1mm artifacts).
3. Proportional Lock: Did you resize using a corner handle to maintain aspect ratio?
4. Centering: Is the design roughly in the "center of logic"? (Mirror tools calculate from the center outward).
5. Goal Setting: Are you making a border (needs edge precision) or a fill (needs random variance)?


Instant Repeat in Embrilliance: Build a Grid Layout Fast (and Make It Look “Designed,” Not Copied)

Instant Repeat is your path to volume. It allows you to create "fabric" out of motifs.

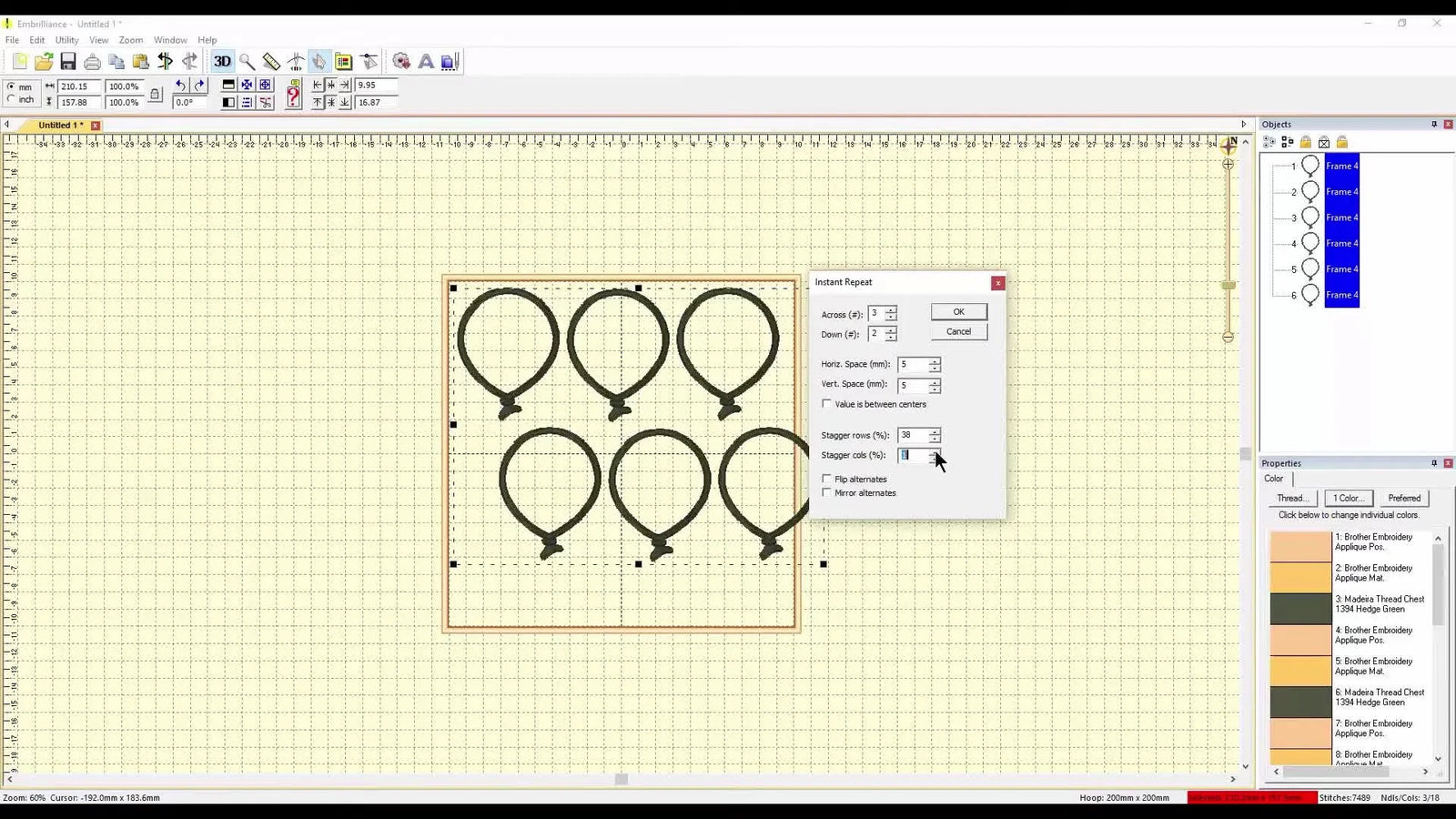

What Sue sets in the video

• Grid Logic: She sets a "three across" grid.
• Terminology Anchor:
  • Horizontal = Horizon (Left/Right).
  • Vertical = Vertebrae/Spine (Up/Down).
• Stagger: She uses the stagger slider to shift rows, preventing the stiff "soldier" look.
• Flip Alternate: This mirrors every other balloon, creating seamless, organic flow.


The expert “why” (Preventing the "Cardboard Effect")

A grid layout stitches differently than a single motif.

1. The Drag Effect: As the machine stitches the 10th repeat, the fabric has already been pulled by the previous 9. This causes "pattern drift."
2. The Solution: Use strong stabilization. For a dense grid on knit fabric, a single layer of tearaway is insufficient. Use a fusible no-show mesh (cutaway) to lock the fabric fibers.

The Hooping Bottleneck: If you are producing repeated grids for team shirts, your enemy is alignment time. Traditional hoop screws hurt your wrists and often leave "hoop burn" (shiny rings) on the fabric. This is where hardware upgrades solve software problems. Many volume shops use magnetic embroidery hoops to clamp fabric instantly without the "unscrew-push-tighten" fatigue. This keeps the fabric grain straight, which is essential for grid layouts.

Setup Checklist (Instant Repeat Logic)

1. Count Constraint: Does the repeat count actually fit inside the safety buffer (10mm from edge)?
2. Spacing Check: is there at least 3mm-5mm of negative space between elements? (Zero gap = overlapping satin stitches = broken needles).
3. Visual Flow: Did you use Flip Alternate to break visual monotony?
4. Overlap Audit: Zoom to 400% on the junction points. If stitches overlap, move them apart.


Mirror x4 in Embrilliance: The Corner-Border Trick That Only Works If You Center First

Mirror x4 is a geometry tool. It pushes your design into the four corners of the hoop.

What happens in the video

• Sue selects the design and chooses Mirror x4.
• The software calculates the four furthest points in the hoop boundary.
• She adjusts the Angle slider to tilt the balloons inward for a framing effect.


The “why” that saves you time

Mirrored corners are the supreme test of your hooping technique.

• The Risk: Corners are the least stable part of a standard hoop. Fabric tension is often "spongy" there. If your tension isn't creating a "drum skin" sound when tapped, the corner designs will distort.
• The Troubleshooting Tip: If you can't find these icons, you are likely in the "Create" tab. Switch to the standard mode. Look for the small alignment buttons near the rotate arrows.

Solving Edge Stability: If you struggle to clamp thick items (like towels or canvas) near the corners, standard hoops often pop open. This is a primary scenario where magnetic embroidery hoops excel. Their continuous magnetic force holds the corners as firmly as the center, preventing the dreaded "flagging" (fabric bouncing) that ruins corner registration.

Carousel in Embrilliance: Make a Wreath Layout That Frames Text Without Guesswork

Carousel creates circular arrays—ideal for logos, patches, and monograms.

What Sue demonstrates

• Tool: Carousel (Utility menu).
• Constraint: She adjusts the oval handle to tighten the circle.
• Orientation: She uses Auto Rotate so the balloons point toward the center (radial alignment).


Pro-level caution: The "Donut" Distortion

Circles are notorious for causing fabric puckering in the center. As you stitch the perimeter, you push a wave of fabric toward the middle.

• The Symptom: You stitch the wreath, then stitch text in the center, and the text looks warped or bubbly.
• The Fix:
  1. Stabilizer: Use a solid Cutaway backing.
  2. Sequence: If possible, stitch the center text first, then the outer wreath (Drafting -> Center -> Out).
  3. Density Management: Do not let the balloons touch. Keep a 2mm air gap between wreath elements to allow the fabric to breathe.

Sue mentions putting "Happy Birthday" in the center. If you do this, ensure the inner diameter of your wreath leaves at least 15mm of clearance around the text to avoid visual overcrowding.

Scatter in Embrilliance: The Fastest Background Filler (If You Control Size and the Box)

Scatter generates randomized texture. It breaks creative blocks instantly but introduces physical chaos.

What Sue sets in the video

• Parameters: Width/Height (The "Sandbox"), Min/Max Size (The Scale).
• Generation: She clicks New Pattern to roll the dice on layout.


The expert “why” (Preventing Bird Nests)

The danger with Scatter is scaling down too far.

• The Physics: A satin stitch column narrower than 1.5mm is difficult for thread to cover cleanly. If Scatter shrinks a balloon to 50% size, your nice satin border might become a microscopic knot that jams the bobbin.
• The Rule: Set your "Minimum Size" no lower than 75% of the original, or ensure the original is digitized to survive down-scaling (e.g., uses running stitches instead of satins).

Efficiency Note: Scatter patterns have many trims. The machine will stitch -> trim -> jump -> stitch. On a home machine, this takes forever. On a commercial machine, it's faster. If you are doing this frequently, recognize that production capacity (stitches per minute) becomes your limiting factor.

A Simple Decision Tree: Match Your Fabric + Layout Style to Stabilizer and Hooping Strategy

Do not guess. Use this logic flow to determine your setup.

START: What is your Fabric?

• A) Stretchy/Knit (T-shirt, Polo, Hoodie)
  • Solution: Cutaway Stabilizer (2.5oz) + Spray Adhesive.
  • Hooping: Do not stretch the fabric. If hoop burn is an issue, research how to use magnetic embroidery hoop videos to see how to hold knits gently but firmly.
• B) Stable Woven (Denim, Canvas, Twill)
  • Solution: Tearaway Stabilizer (Medium).
  • Hooping: Tighten until "drum tight."
  • Layout Note: Safe for dense grids (Instant Repeat) and Wreaths (Carousel).
• C) Delicate/Slippery (Silk, Satin, Rayon)
  • Solution: No-Show Mesh (Fusible) + Water Soluble Topping (to keep stitches elevated).
  • Hooping: Wrap the hoop inner ring with bias binding or use a magnetic frame to prevent crushing the delicate fibers.

Warning (Magnet Safety): High-quality magnetic frames use industrial neodymium magnets. They are powerful. Keep them away from pacemakers. Do not get your skin pinched between the magnets—it will cause blood blisters. Slide them off; don't pry them apart.

“I Don’t Have Those Options”: Fixing Missing Utility Features and Confusing Tabs

If your screen doesn't look like Sue's, don't panic. You likely aren't "missing" the feature; you are just in the wrong context.

• Check 1: Are you in the Create tab (digitizing mode)? You need to be in the standard selection mode to see Utility menus.
• Check 2: Look for the small gear or arrow icons near the rotation handle.
• Check 3: Verify your software level. Some "Scatter" features are specific to Enthusiast or higher levels, while Essentials covers the basics.

Management Tip: If you run a shop, create a "Cheat Sheet" screenshot of your specific screen layout for your staff. Memory is unreliable; checklists are not.

Troubleshooting the Consumer-to-Pro Gap

When software designs fail in the real world, use this diagnostic table.

The Upgrade Path: Turn Fast Software Layouts into Fast, Consistent Stitching Output

Embrilliance Utilities solve the "Design Speed" problem. But once you export that file, you hit the "Production Speed" wall.

If you find yourself using Instant Repeat to print 12 patches at a time, or Scatter to fill large jacket backs, your single-needle machine will struggle. The frequent thread trims and color changes will eat your profit margins.

When to upgrade tools:

1. The Hooping bottleneck: If you spend more time hooping than stitching, look into a hooping station for machine embroidery combined with magnetic frames. This standardizes your placement.
2. The Needle bottleneck: If you are running complex Carousel or Scatter designs with multiple colors, a multi-needle machine (like the SEWTECH commercial line) eliminates thread-change downtime.
3. The Stability bottleneck: If you can't get clean borders on grids, upgrade your stabilizer to commercial-grade backings and ensure your hooping surface is rock solid.

Let the software do the math, but let professional-grade hardware handle the physics.

Operation Checklist (The Final "Go" Button)

• Visual Scan: Zoom to 100%. Are there gaps between all motifs?
• Boundary Scan: Is the entire layout 100% inside the blue hoop line?
• Hardware Prep: Is the correct hoop attached? Is the bobbin full? (Scatter designs eat bobbins).
• Consumable Check: Do you have scissors, spare needles, and your thread colors lined up?
• Test Drive: Always run a test stitch on a scrap of similar fabric before ruining the final garment.


FAQ

• Q: In Embrilliance Essentials/Enthusiast, how much safety buffer should an embroidery layout leave inside a 200×300mm hoop to avoid presser-foot or hoop collisions?
  A: Leave a 10–15mm buffer between the design edge and the physical inner ring to prevent frame strikes.
  • Confirm the selected software hoop matches the exact hoop you will clip onto the machine.
  • Re-center the full layout before using mirror/corner tools so the math stays inside the boundary.
  • Reduce repeats or spacing until the entire layout sits well inside the hoop line.
  • Success check: The stitch path stays clear of the hoop, with no “clank-clank” contact during the first stitches.
  • If it still fails: Re-check the physical hoop size and orientation, then re-export after shrinking the overall layout.
• Q: In Embrilliance Utility Instant Repeat, what spacing should be left between repeated motifs to prevent overlapping satin stitches and broken needles?
  A: Keep at least 3–5mm of negative space between repeated elements so stitches do not stack.
  • Increase horizontal/vertical spacing before adding stagger or Flip Alternate.
  • Zoom to 400% and inspect every junction where motifs come closest.
  • Move elements apart if any outlines touch or cross (especially satins).
  • Success check: At high zoom, there is visible fabric gap between motifs, not shared stitch lines.
  • If it still fails: Simplify the base motif or reduce the repeat count to avoid dense intersections.
• Q: In Embrilliance Utility Scatter, what minimum size setting helps prevent bird nesting caused by tiny satin columns?
  A: Keep Scatter “Minimum Size” no lower than 75% of the original motif to avoid satins becoming too narrow.
  • Set the Scatter box (Width/Height) first, then set Min/Max Size before clicking New Pattern.
  • Avoid shrinking any satin-column details to under ~1.5mm wide, because coverage becomes unstable.
  • Reduce the number of scattered elements if trims/jumps are exploding and stressing the stitchout.
  • Success check: Small scattered motifs still have clean satin coverage without thread knots forming underneath.
  • If it still fails: Replace satin-heavy motifs with running-stitch-based motifs or increase the minimum size further.
• Q: On knit T-shirts and hoodies, what stabilizer and hooping method prevents grid drift when stitching Embrilliance Instant Repeat layouts?
  A: Use cutaway stabilizer (2.5oz) plus spray adhesive, and hoop without stretching the knit to reduce pattern drift.
  • Apply the cutaway backing smoothly and use spray adhesive to prevent fabric creep.
  • Hoop the garment “flat and relaxed,” not pulled tight like a woven.
  • Run a small test section before committing to a full-grid production run.
  • Success check: Rows stay visually straight (no downward slope by the 3rd row) and the knit surface stays smooth.
  • If it still fails: Upgrade stabilization (generally adding firmness helps) and verify fabric grain is aligned before clamping.
• Q: When using Embrilliance Utility Mirror x4 for corner borders, what hooping success standard prevents corner distortion and spongy tension?
  A: Hoop to a firm “drum-skin” tension because corners are the least stable area and distort first.
  • Tap the hooped fabric and adjust until it feels uniformly tight across the whole field.
  • Center the design before applying Mirror x4 so placement calculates correctly from the center outward.
  • Avoid pushing dense corner elements too close to the hoop edge; maintain the 10–15mm buffer.
  • Success check: Corner motifs stitch without shifting, and the fabric does not bounce (“flag”) near the edges.
  • If it still fails: Try a firmer stabilizer choice and re-check that the fabric is not loosening at the corners during stitching.
• Q: What needle and first-run procedure should be used when test-stitching new Embrilliance Utility layouts to reduce nesting and prevent needle-area accidents?
  A: Start with a fresh 75/11 needle and watch the needle area closely for the first 1,000 stitches.
  • Install a new 75/11 needle before testing resized or layout-heavy files, because density may effectively increase.
  • Hold the top thread tail for the first 3 stitches and confirm the presser foot is DOWN to prevent start-of-design nesting.
  • Keep fingers clear of the needle bar and trimming blades, especially while you are tempted to look at the screen.
  • Success check: The first stitches lock cleanly with no thread balling under the throat plate, and the needle path remains unobstructed.
  • If it still fails: Stop immediately, remove the nest, re-thread, and re-check tension and thread tail handling before restarting.
• Q: What magnet safety rules should be followed when using neodymium magnetic embroidery hoops/frames in a production shop?
  A: Treat neodymium magnetic embroidery hoops/frames as pinch hazards and keep them away from pacemakers.
  • Slide magnets apart—do not pry—so fingers do not get trapped and blistered.
  • Keep magnetic frames away from anyone with a pacemaker and away from sensitive medical devices.
  • Clamp deliberately and keep skin out of the closing path when seating the magnetic ring.
  • Success check: The frame closes smoothly without pinching, and the fabric is held evenly without over-tightening marks.
  • If it still fails: Pause and re-train the handling method; rushed magnet handling is a common cause of injuries.
• Q: When Embrilliance Utility layouts stitch perfectly in software but fail on fabric with hoop burn, grid misalignment, or slow trim-heavy runs, what upgrade path fixes the real bottleneck?
  A: Diagnose the bottleneck first, then apply a staged fix: technique → magnetic hooping → production machine capacity.
  • Level 1 (Technique): Increase stabilization, enforce 10–15mm hoop buffer, and verify spacing/overlaps at 400% zoom.
  • Level 2 (Tooling): Use magnetic frames when hoop burn, wrist fatigue, or corner clamping instability is slowing alignment.
  • Level 3 (Capacity): Consider a multi-needle machine when trim-heavy Scatter/large repeats make thread changes and stops the profit limiter.
  • Success check: Hooping time drops, layouts stay registered across repeats, and the stitch run completes with fewer stops.
  • If it still fails: Run a controlled test on scrap fabric and isolate whether the failure is hooping, stabilization, or design density before scaling production.
