Embrilliance StitchArtist Clipart Tracing That Actually Stitches Well: Import, Fix “Missing Image,” and Place Cleaner Nodes

If you have ever imported clipart into Embrilliance StitchArtist, blinked, and suddenly seen your image “vanish,” you are not alone—and your software is not broken. As someone who has spent two decades watching new digitizers navigate this interface, I recognize the panic. You start clicking faster, hoping to find the lost image, and accidentally hide even more tools.

Embrilliance is a powerful tool, but like an industrial embroidery machine, it demands a calm, sequence-driven approach. This guide rebuilds the workflow into a safe, repeatable routine. We will not just cover where to click; we will cover why it matters, ensuring your digital design translates into a flawless physical stitch-out.

Hit “Create” in Embrilliance StitchArtist and Stop Fighting the Wrong Screen

The first victory is simply orientation. In the tutorial video, the instructor begins by ensuring the software is in the digitizing module—specifically the area labeled Create. If you remain in the standard embroidery view, you can stare at the screen all day and never find the vector tools you need.

A common frustration I hear is: “My Embrilliance is missing tools like Image and Create—what is wrong?” In 99% of cases, your installation is fine. The issue is that StitchArtist (the digitizing module) is not active in your current workspace view, or you have not physically clicked the Create button to switch modes.

Pro tip from the field: If you do not see the “Image” or “Vector” buttons, stop. Do not reinstall. Look at the top compass-style buttons. Click the one labeled Create. The toolbar will change instantly.

Prep Checklist (Do This Before Importing)

• Mode Check: Confirm you are in Create mode (look for the vector tools on the left).
• Workspace Clear: Close extra panels so you have a clear view of the left toolbar and top toggles.
• Asset Location: Locate your clipart file folder beforehand to avoid frantic searching.
• Goal Definition: Decide: Are you creating a simple outline (Redwork) or a complex fill? This determines your tracing strategy.
• Consumable Check: Ensure you have your physical tools ready—water-soluble pens for marking fabric and temporary spray adhesive for later stabilization.

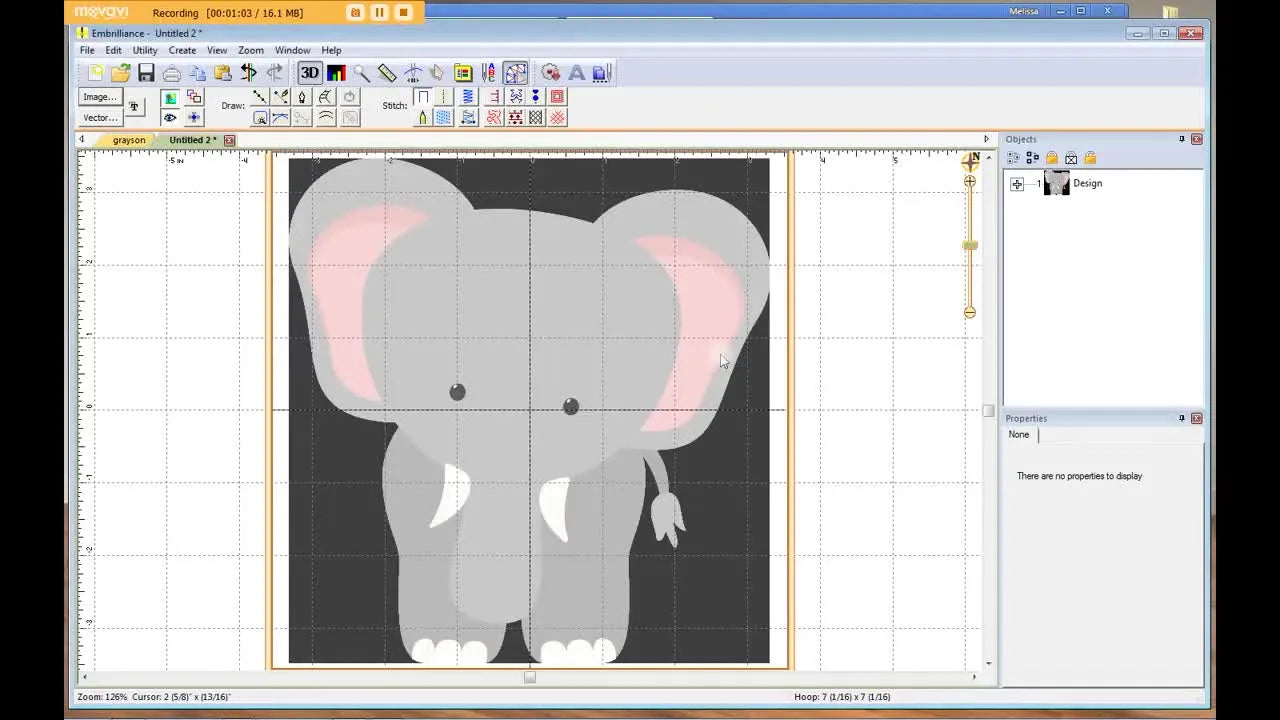

Import Clipart with the “Image” Tool—Then Size It Like You Mean It

The workflow is deceptive in its simplicity, but the nuance lies in the sizing.

1. Go to the left toolbar and click Image.
2. Select Add an image to the design.
3. Browse and select your clipart (the instructor uses an elephant).

Once loaded, you will see selection handles. Use the corner squares to resize, and the green center button to move the image.

The Empirical Rule of Sizing: Resizing here is your primary defense against density issues. If you trace a 1-inch clipart and later scale the embroidery file up to 6 inches, your stitch density will not recalculate correctly in all formats, leading to gaps or bulletproof stiffness.

Sensory Check: When resizing, trust your eyes but verify with the grid. If one grid square equals 10mm (1cm), does your elephant fit the hoop you plan to use? If you are stitching on a 4x4 hoop, resize the artwork now to fit within that 100mm boundary.

Setup Checklist (So Tracing Stays Predictable)

• Resize: Use corner handles to match your intended final embroidery size.
• Position: Use the green center button to center the art on the grid.
• Visibility: Ensure the clipart is large enough to see details; zoom in using the mouse wheel.
• Simplification: If the clipart has tiny specs (smaller than 2mm), ignore them. They will become messy "thread knots" in the final product.

The “My Elephant Disappeared” Moment: Fix the Background Image Toggle in StitchArtist

This specific frustration causes more support tickets than any bug. The instructor demonstrates that the background image can vanish if the Show or hide background image toggle is clicked off.

When this happens, the screen goes white. You haven't lost your file; you have just turned off the light switch.

Recovery Protocol:

1. Look at the top toolbar for the View section.
2. Find the icon that looks like a small picture frame.
3. Click it. Your elephant should reappear instantly.


There is a second toggle right below it: Show or hide stitches. If you digitize a masterpiece but see nothing, check this toggle.

Psychological Safety: Do not panic if things disappear. The software remembers your data. It is almost always a view setting. Slow down, check the icons, and breathe.

Trace Cleaner Shapes with “Draw with Points”—Less Nodes, Better Stitching

Once the art is visible, select Draw with Points and begin tracing.

The Golden Rule of Nodes: Place points only where the shape physically changes direction—cusps, sharp corners, and the peaks of curves. Do not “machine-gun” points along a straight or gently curved line.

The Expert "Why": Every node you place is a coordinate the machine must calculate.

• Too many nodes: The machine slows down, the edge becomes jagged, and the thread tension becomes erratic.
• Optimized nodes: The machine runs smoothly (maintain a "sweet spot" speed of 600-700 SPM for detail work), and the curves look organic.

Sensory Analogy: Think of digitizing like driving a car. You don't jerk the steering wheel every 5 feet on a highway (too many nodes). You hold it steady and only turn when the road curves.

Close the Outline in StitchArtist Without Weird Gaps or Open Ends

After tracing, you must close the shape to create a valid object.

1. Click the starting point to complete the loop.
2. Right-click to end the drawing mode.
3. Click Close Outline in the toolbar.


If the shape does not close, do not force it with extra manual points. Zoom in to 600% and ensure your start and end points are truly connected.

Warning: Physical Safety Protocol
While focusing on the screen, do not neglect your physical environment. We often keep embroidery scissors, seam rippers, and fine needles on the desk. When frustration hits or you rush to test a design, it is easy to knock these sharp tools onto your lap or foot. Keep your physical workspace deeply organized to prevent injury during specific "creative chaos" moments.

Edit Nodes Like a Pro: Delete, Add, Move, and Switch to Cusp for Sharp Turns

Tracing is just the rough draft. Node editing is where the design becomes stitchable.

1. Delete: Double-click a point to remove it. (Simplify!)
2. Add: Hover until the cursor changes, then double-click. (Only if necessary).
3. Cusp: Right-click a node and select Cusp for sharp corners.






The Physics of Pull Compensation: When you see a sharp corner on screen, remember that thread has tension. It wants to pull that corner inward. By setting a node to Cusp, you tell the software: "This is a hard stop." This allows the software to calculate the stitch angles correctly so the corner remains sharp on the fabric, rather than rounding off into a blob.

Visual Check: Look at your curves. Are they smooth like a vector illustration, or bumpy? If they are bumpy, delete nodes until they smooth out.

Start as “Artwork with No Stitches” to Avoid the Satin Trap (Then Test Stitch Types Early)

The video suggests a workflow I strictly endorse: Keep your object as Artwork (no stitches) until the shape is perfect. only then apply stitch properties.

However, there is a caveat for details. Satin stitches have physical width (usually 1.5mm to 4mm). A line that looks delicate as artwork might become a clumsy, thick bar when converted to Satin.

The "Satin Trap": If you have a detail narrower than 1mm, a standard Satin stitch will struggle. The needle penetrations will effectively be in the same hole, leading to thread breaks or holes in the fabric.

• Solution: For lines under 1mm, use a Running Stitch (Bean Stitch) instead of Satin.
• Test: Apply the stitch type early on risky areas (tiny text, thin tails) to see if they hold up.

When the Stitch Simulator Lies: The Real Reasons Stitch-Outs Go Wrong

A commenter notes: "Looks good during a stitch simulator but then it actually stitches out terrible."

This is the fundamental truth of machine embroidery. The simulator confirms the sequence, but it cannot simulate Physics. It does not know if you are stitching on silk or burlap.

Reality Check Parameters:

• Tension: Before blaming the file, check your machine. Pull the top thread—it should feel like flossing your teeth (slight resistance).
• Bobbin: Check your bobbin case. Is the tension consistent? Look for the "1/3 white rule" on the back of a satin column.
• Stabilizer: This is the #1 failure point.

Decision Tree: Fabric vs. Stabilizer Strategy

Do not verify this with software; verify it with your hands.

1. Is the fabric stretchy (T-shirt, Hoodie, Knit)?
   • Yes: You MUST use Cutaway Stabilizer. No exceptions for beginners. Tearaway will eventually distort, and the design will warp.
   • No: Go to step 2.
2. Is the fabric unstable/sheer (Silk, Rayon)?
   • Yes: Use No-Show Mesh (PolyMesh). It provides support without bulk.
   • No: Go to step 3.
3. Is the fabric lofty/textured (Towel, Fleece)?
   • Yes: Use Cutaway/Tearaway on bottom AND a Water Soluble Topper (Solvy) on top. The topper prevents stitches from sinking into the pile.

Tool Upgrade Path (Scenario Trigger): If your design creates a "crater" in the fabric or puckers badly around the edges, this is often "Hoop Burn" or poor stabilization tension. If you are struggling to hoop a thick hoodie tight enough without stretching it, this is where magnetic embroidery hoops solve the physical problem. They hold thick fabric firmly without the "friction burn" of traditional inner rings.

Clipart, “Design Hoarding,” and the Real Path to Selling Work Without Burning Out

The instructor jokes about "clipart hoarding." In the industry, we call this "Asset Management." There is no shame in buying designs or clipart. The skill lies in adapting them.

If you are running a business (Etsy, local uniform shop), your critical resource is Time.

• Digitizing a complex animal from scratch: 3–5 Hours.
• Buying a licensed vector and auto-digitizing with cleanup: 30 Initial Minutes + 15 Minutes Refinement.

Efficiency Trigger: If you find yourself spending 20 minutes just to hoop a shirt straight, you are losing money. Standardizing your placement is key. Many shops adopt a hooping station for machine embroidery to guarantee that every left-chest logo lands in exactly the same spot, regardless of shirt size.

For shops using specific ecosystems, finding a dedicated hooping station for brother embroidery machine or similar brand-compatible tools can cut setup time by 50%.

“Can I Drop in an Already Digitized Design?” and Other Comment-Section Reality Checks

Common question: "Can I combine a PES file with my new drawing?"

• Short Answer: Yes, but be careful.
• Long Answer: A stitch file (PES/DST) is just machine coordinates. It is not a vector. You cannot easily resize it more than 10-20% without ruining the density.

Best Practice: Treat imported stitch files as "Foundational Rocks"—do not try to reshape them. Build your new vector elements around them. If you need to resize a logo drastically, you are better off re-digitizing it from the source image than trying to shrink a DST file.

Production Reality: Hooping Speed, Hoop Burn, and Why Magnetic Hoops Change the Game

We must address the physical reality of embroidery. You can have the perfect file, but if the hooping is loose, the registration will drift.

The "Drum Skin" Standard: When hooped, the fabric should be taut (like a drum skin) but not stretched (distorted). With traditional screw-hoops, achieving this on thick items like Carhartt jackets or canvas bags is physically exhausting and often painful.

This pain point drives many professionals toward magnetic solutions.

• The Issue: Traditional hoops require significant hand strength and can leave "hoop burn" (shiny crushed rings) on velvet or delicate knits.
• The Solution: Using magnetic hoops for embroidery machines allows the fabric to be gripped by magnetic force rather than friction. This eliminates the "crushing" effect and makes hooping thick seams possible.

Terms like hoopmaster and hoopmaster hooping station frequently appear in professional circles because they represent the next level of precision—aligning the magnetic frame to the garment instantly.

Warning: Magnet Safety
Magnetic Hoops involve powerful neodymium magnets.
* Pinch Hazard: These magnets snap together with extreme force. Keep fingers clear of the contact zone.
* Medical Devices: Maintain a safe distance from pacemakers and other implanted medical devices.
* Electronics: Do not place magnetic hoops directly on top of your laptop, phone, or computerized machine screen.

If you are new to this gear, I highly recommend watching tutorials on how to use magnetic embroidery hoop systems safely. The efficiency gain is massive, but respect the tool.

The “Do This Every Time” Operation Routine (So Your Next Trace Is Faster)

Consistency cures anxiety. Follow this routine for every new project.

1. Mode: Click Create.
2. Import: Image -> Add.
3. Size: Resize art to actual hoop size.
4. Confirm: Check visibility toggles (Background & Stitches).
5. Trace: Draw with Points (Sweet spot: fewer nodes).
6. Close: specific click on start point -> Close Outline.
7. Edit: Refine nodes (Delete extra, Cusp for corners).
8. Convert: Change Artwork to Stitch (Run/Satin/Fill).

Operation Checklist (The "No Panic" Protocol)

• View Check: Is the background image toggle ON?
• Stitch Check: Is the stitch view toggle ON?
• Node Hygiene: Did I remove the "machine gun" points on straight lines?
• Closure: Is the outline physically closed (no gaps)?
• Fabric Match: Have I selected the correct stabilizer for this fabric (Cutaway for knits)?
• Physical Safety: Are my scissors and magnets in their safe zones?

Digitizing is a conversation between your computer and your machine. The software speaks math; the machine speaks physics. By mastering this clean workflow, you become the translator that makes them understand each other perfectly.

FAQ

• Q: Why are the Image and Vector tools missing in Embrilliance StitchArtist, even though StitchArtist is installed?
  A: This is usually a mode issue—switch the workspace to Create mode to reveal the digitizing tools.
  • Click Create on the top compass-style buttons to enter the StitchArtist digitizing workspace.
  • Close extra panels so the left toolbar is fully visible.
  • Avoid reinstalling first; missing tools are commonly just the wrong screen/view.
  • Success check: The left toolbar immediately shows Image and vector/drawing tools after clicking Create.
  • If it still fails… restart Embrilliance and confirm the StitchArtist module is actually active in your workspace.
• Q: How do I restore a clipart image that “disappeared” after importing it in Embrilliance StitchArtist?
  A: The clipart is usually still there—the Show or hide background image view toggle was turned off.
  • Look in the top toolbar View area for the icon that looks like a small picture frame.
  • Click the Show or hide background image icon to turn the background image back on.
  • Also check the nearby Show or hide stitches toggle if stitched objects seem to vanish.
  • Success check: The background image (for example, the imported elephant) reappears instantly without re-importing.
  • If it still fails… zoom out and click on the design area to confirm the image wasn’t moved off-screen.
• Q: How should clipart be sized in Embrilliance StitchArtist before tracing to prevent density problems later?
  A: Size the clipart to the final intended hoop size before tracing, because later scaling can cause density and coverage issues.
  • Resize using the corner handles and position using the green center button on the image.
  • Verify size against the grid (for example, if one grid square equals 10 mm, confirm the art fits your hoop boundary such as a 100 mm area for a 4x4 hoop).
  • Ignore tiny specs under about 2 mm because they often stitch like messy knots.
  • Success check: The artwork clearly fits inside the hoop area on the grid at the exact final size you plan to stitch.
  • If it still fails… simplify the artwork (remove micro-details) and re-trace at the correct final size instead of scaling the stitch file afterward.
• Q: How do I prevent jagged edges and tension problems caused by too many nodes when using “Draw with Points” in Embrilliance StitchArtist?
  A: Use fewer nodes—place points only where the shape truly changes direction.
  • Place nodes at corners, cusps, and curve peaks; avoid “machine-gun” clicking along straight or gentle curves.
  • Edit immediately: delete extra nodes to smooth the path before converting to stitches.
  • Keep detail work at a controlled machine pace (the guide notes 600–700 SPM is a sweet spot for detail work).
  • Success check: The outline looks smooth (not bumpy) and the stitch-out edges look cleaner with fewer micro-wiggles.
  • If it still fails… zoom in and continue deleting nodes until the curve becomes visually smooth, then re-test the stitch type on a small sample.
• Q: How do I close an outline in Embrilliance StitchArtist without gaps or open ends after tracing?
  A: Close the shape deliberately—connect back to the start point, end drawing, then use Close Outline.
  • Click the starting point to complete the loop, then right-click to end drawing mode.
  • Click Close Outline in the toolbar to make the object valid.
  • Zoom in heavily (for example, around 600%) to confirm the start and end points truly meet before adding more points.
  • Success check: The outline becomes a clean closed object with no visible gap when zoomed in.
  • If it still fails… do not force closure with extra points; instead, reposition the end node onto the start node at high zoom and try Close Outline again.
• Q: What stitch type should I use in Embrilliance StitchArtist when satin stitches look too thick or cause breaks on very thin details?
  A: For details under about 1 mm, avoid satin and use a running/bean stitch instead.
  • Keep the object as Artwork with no stitches until the shape is clean, then test stitch types early on risky thin areas.
  • Switch thin lines (tiny text, narrow tails) to Running Stitch (Bean Stitch) instead of satin.
  • Test those risky areas early so the stitch width doesn’t “bully” the detail into a bar.
  • Success check: Thin details stitch without repeated needle penetrations in the same hole, and the line stays readable instead of punching through.
  • If it still fails… enlarge the detail in the artwork stage or simplify/remove ultra-thin elements before converting to stitches.
• Q: Why does an embroidery design look good in a stitch simulator but stitch out poorly on fabric, and what should be checked first?
  A: Simulators confirm sequence, not fabric physics—check thread tension, bobbin result, and stabilizer choice first.
  • Check top tension by feel: the thread should have slight resistance (like flossing teeth), not free-spooling.
  • Inspect bobbin results on satin: look for the “1/3 white rule” on the back as a visual balance cue.
  • Match stabilizer to fabric: knits need cutaway; sheer fabrics often need no-show mesh; towels/fleece often need topper plus bottom stabilizer.
  • Success check: Puckering reduces, edges stay stable, and the backside tension balance looks consistent across satin areas.
  • If it still fails… re-hoop to the “drum skin” standard (taut but not stretched) and re-test on a scrap with the same fabric and stabilizer stack.
• Q: What are the key safety precautions for magnetic embroidery hoops and desk tools during digitizing and stitching?
  A: Treat magnets and sharp tools as real hazards—organize the workspace and keep fingers out of pinch zones.
  • Keep scissors, seam rippers, and needles in a fixed safe area so frustration doesn’t knock them into your lap or onto the floor.
  • Handle magnetic hoops as pinch hazards: keep fingers clear where magnets snap together.
  • Keep magnetic hoops away from pacemakers/implanted medical devices and away from sensitive electronics like phones and laptops.
  • Success check: Hooping feels controlled with no “snap surprises,” and the work area stays clear enough that nothing sharp can fall during a rushed test stitch.
  • If it still fails… slow down and reset the station layout (tools parked, magnets separated) before continuing the project.
