Embrilliance Script Fonts That Actually Stitch Clean: Fix Word Spacing, Build “Bold” Bean Stitch, and Nail the Ribbon Candy Effect

Master Class: Controlling Script Fonts in Embrilliance (From Hobby Frustration to Production Precision)

If you’ve ever stared at a script font on-screen thinking, “This is adorable… but why won’t it space like normal text?” you are encountering the fundamental difference between graphic design and embroidery engineering. In Embrilliance, lettering acts like a physical object—a collection of stitch coordinates—not a word processor character. Hammering the spacebar doesn't generate pixels; it generates empty instructions that the software often optimizes away.

In this deep-dive tutorial, we will reconstruct Lisa Shaw’s industry-standard lesson on using the Romance Bean Script font. But we’re going deeper. We’re going to add the "shop floor" physics—the density management, the safety checks, and the stabilization logic—that ensures your machine doesn't eat the fabric when you try these layering tricks.

Calm the Panic: Why Embrilliance Lettering Won’t Behave Like a Typewriter (Lettering Tool “A” Icon)

Embrilliance’s Lettering Tool is powerful, but it causes cognitive friction for anyone used to Microsoft Word. When you click the big A icon, you aren't typing; you are programming needle penetrations.

The software is designed to prevent "unnecessary" jumps. When you hit the spacebar five times in Single Line Mode, the software interprets that as "User wants a break here," but it lacks a defined variable for how wide that stitch-free break should be, so it often defaults to a standard minimum.

The Mindset Shift: Stop trying to force the keyboard to do the work. The specialized tools in the software panel are your "virtual wrench" and "virtual hammer."

Pick the Right Script Font First: Romance Bean Script 5 (and What the “5” Really Means)

Lisa starts by selecting a script font from the Romance collection. A fast way to jump there is typing “Ro” in the font search box, then choosing Romance Bean Script 5.

Crucial Production Detail: That “5” is not a version number; it indicates five bean-stitch passes.

• Standard Run Stitch: Needle goes A -> B. (1 pass)
• Bean Stitch: Needle goes Forward -> Back -> Forward. (3 passes is standard)
• 5-Pass Bean: The needle is penetrating the exact same hole 5 times per step.

Why this matters: This creates a thick, hand-embroidered look that is beautiful and highly visible. However, it puts significant stress on your thread and fabric.

• Sensory Check: If you hear a loud "thump-thump-thump" or shredding sound, your needle is struggling to clear the thread build-up.
• Stabilizer Requirement: You must use a solid Cutaway stabilizer. Using Tearaway with a 5-pass bean stitch is a recipe for the design literally perforating and falling out of the shirt.


The Spacebar Trap: Why Single-Line Text Won’t Add Extra Word Gaps (and the Fastest Escape)

In Single Line text, you can type “Happy Holidays!” and it looks fine—but when you try to add extra spaces between the words to separate them on a shirt front, nothing remains.

The Logic: In Single Line mode, the software calculates the glyphs relative to each other based on the font designer's kerning map. It doesn't "see" the empty ASCII space codes as stitch instructions.

Update Note: While some newer updates of Embrilliance allow for handle manipulation in single-line mode, relying on "update-dependent" features is risky for production consistency. The workflow below is the "bulletproof" method that works on every version, every time.

The “Green Triangle” Move: Manual Kerning in Single-Line Text (Fast for Two Words, Painful for Paragraphs)

If you only need to separate two words for a quick one-off gift, Lisa demonstrates the manual override:

1. Select the anchor: In Single Line text, click the second word’s first letter (e.g., the H in “Holidays”).
2. Locate the Handle: Look for the small green triangle at the bottom center of that letter.
3. The Action: Drag it to the right.

This moves the selected letter and everything after it.

Warning: The Drift Hazard.
The green handle moves in X (left/right) AND Y (up/down). It is dangerously easy to accidentally drag the text 2mm down while moving it right.
* The Consequence: Your text looks "drunk" or misaligned on the final garment.
* The Fix: Zoom in to 400% before dragging, or hold the Shift key (if your OS supports the constraint) to lock the axis.

Flip One Switch, Save 20 Minutes: Multi-line Text + Word Spacing Slider in Embrilliance

For professional results, stop manual dragging. Switch the mode to Multi-line text, even for single lines.

When you engage Multi-line text, you unlock the Word Spacing slider.

• The Action: Drag the slider to the right.
• The Result: The software mathematically pushes every word apart by an equal, perfectly horizontal increment. No vertical drift, no human error.

This is your "Safety First" setting for production runs.

Prep Checklist (Before You Touch Spacing or Layering)

Before you start complex edits, ensure your digital workspace is safe.

• Mode Check: Are you in the Lettering Tool (A icon)?
• Density Awareness: Acknowledge you are using a 5-pass bean stitch. Do you have Cutaway stabilizer and a 75/11 Ballpoint needle (for knits) or 75/11 Sharp (for wovens) ready?
• Version Check: If your screen looks different, switch to Multi-line mode immediately for predictable results.
• Hoop Check: Are you using a standard hoop or a magnetic one? (Magnetic hoops are preferred for re-adjustment later).


Multi-line Text That Feels Like a Real Layout: Set Button, Line Breaks, and the Word/Line Spacing Combo

In Multi-line text, pressing Enter/Return behaves like a carriage return.

The Invisible Step: Unlike Word, what you type in the box doesn’t appear on the canvas until you click Set. Beginners often panic here—Click Set.

Lisa demonstrates a layout:

• Happy
• Holidays
• Wishes To You!

The Production Sliders:

• Word Spacing: Spreads "Happy" from "Holidays" (horizontal).
• Line Spacing: Opens the vertical gap between lines. Tip: For script fonts, ensure the descenders (g, y, j) of the top line do not touch the ascenders (t, h, l) of the bottom line.


Justification That Saves Your Sanity: Left/Center/Right Alignment in Multi-line Text

Multi-line text also unlocks justification controls. Lisa points out the default is Center, but you can switch to Left or Right.

Commercial Context: If you are embroidering on a pocket or the side of a cap, Center Justification is risky because different lines have different widths.

• Strategy: For Left Chest logos/text, Center is usually safe. For text aligning to a placket or zipper, Left justification is safer.

Tech Upgrade: If you find yourself constantly re-measuring and failing to get text straight on actual fabric, this is rarely a software issue—it's a hooping issue. Investing in a hooping station (like the ones compatible with SEWTECH products) ensures your fabric is square before it ever hits the machine.

Make Bean Stitch Look “Bold” Without Turning It Into a Brick: Copy/Paste + 1 mm Offset

Now we enter the danger zone of "Faux Bolding." You can't just press "Bold" on a stitch file.

Lisa’s method for visual weight:

1. Select the text object.
2. Copy and Paste. (The copy sits perfectly on top).
3. Offset: Tap the Right Arrow key once to nudge the top layer 1.0 mm to the right.

The Physics: You are placing a second 5-pass stitch next to the first.

• Visual: "Ghost" or double-vision effect that reads as thicker from a distance.
• Tactile: The embroidery will feel significantly stiffer.

Warning: The Needle Break Zone.
Never leave the copy directly on top of the original (0mm offset).
* The Math: 5 passes + 5 passes = 10 penetrations in the exact same micron of fabric.
* The Result: Birdnesting (thread vomit) under the throat plate, broken needles, or a hole in the shirt.
* Always verify you see the "shadow" on screen before stitching.

If you are using certain machine embroidery hoops that grasp the fabric too tightly on the bias, this heavy stitch count can cause "draw-in" (puckering matches the shape of the hoop). Use a stable hoop like a magnetic frame to allow the fabric fibers to relax.

Precision Nudging That Separates Hobby Results from Pro Results: 0.1 mm Micro-Moves (Mac vs Windows)

Standard nudging (1.0 mm) is a blunt instrument. For true professional bolding, you want Micro Nudging (0.1 mm).

The Shortcuts:

• Mac: Hold Shift + Arrow key.
• Windows: Hold Ctrl + Arrow key.

Expert Use:

• For Bolding: A 0.3mm to 0.4mm offset is usually sufficient to thicken the text without looking like a mistake. 1.0mm is a stylistic choice (drop shadow).
• For Correction: If a specific letter looks weirdly spaced because of a poor font digitization, select just that letter node and micro-nudge it into visual harmony of the layout.

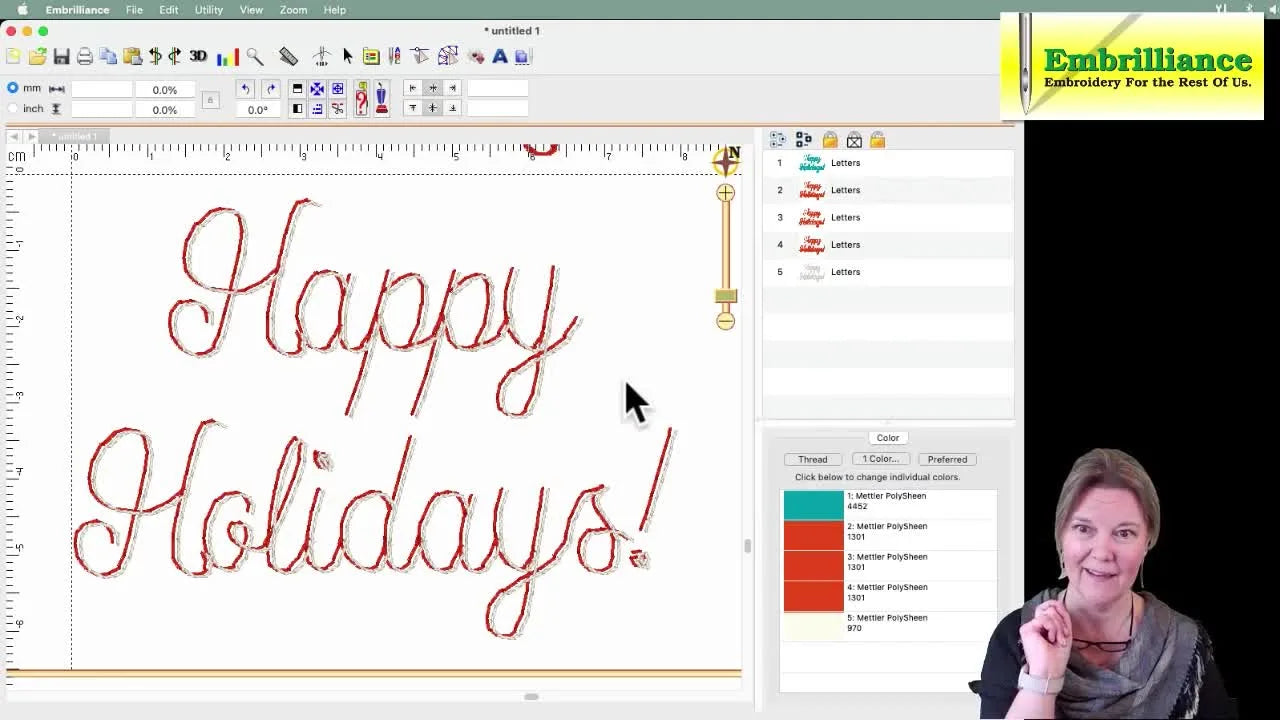

The Ribbon/Candy Cane Effect in Embrilliance: Three Layers, Two Offsets, One Rule You Must Not Break

Lisa’s "Candy Cane" ribbon effect is a precise recipe. It relies on your eye blending the colors.

1. Base Layer: Original Text (Red).
2. Layer 2: Copy > Paste > Nudge 7 clicks right (0.7mm) and 3 clicks down (0.3mm) using Micro Nudge. Change to White.
3. Layer 3: Copy > Paste > Nudge Layer 2 by another 7 right / 3 down. Change to Red.

The Stack:

• Top: Red
• Middle: White
• Bottom: Red

Total Density Alert: You now have 3 layers. Even with offsets, the intersections are dense. Do NOT try this on flimsy t-shirt fabric without Cutaway stabilizer and spray adhesive (Temp spray).

The One Click That Ruins the Whole Look: Don’t Color Sort This Ribbon Text

The Trap: Most embroiderers are trained to "Color Sort" to save thread changes.

• Default Habit: "I want all the Reds to sew at once."

The Reality: If you color sort this design, the machine will sew Layer 1 (Red) and Layer 3 (Red) at the same time. Then it will sew Layer 2 (White) on top of them.

• The Failure: You lose the "over-under" ribbon illusion. The White must be sandwiched physically between the red layers.

Production Pain Point: Yes, this means your single-needle machine will stop for a thread change: Red -> Stop -> Switch to White -> Stop -> Switch to Red.

• Trigger: If you are making 50 of these for a team, those thread changes will cost you hours of labor.
• Solution: This is the specific moment where upgrading to a multi-needle machine (like SEWTECH compatible multi-needle setups or brands like Brother/Ricoma) pays for itself. A multi-needle machine handles the Red-White-Red sequence automatically without stopping.


Setup Checklist (Before You Export and Stitch)

• Mode: Text is in Multi-line format for safety.
• Offset Check: Did you use micro-nudge (Ctrl/Shift) or macro-nudge? Ribbon: 0.7mm Right / 0.3mm Down.
• Color Sequence: Verify the list is Red -> White -> Red. DO NOT COLOR SORT.
• Consumables: Do you have Spray Adhesive (to bond fabric to stabilizer) and sharp Snips (to trim jump threads)?
• Master Save: Save the .BE working file before exporting the .DST/.PES stitch file.

The “Why It Works” (So You Can Avoid the Ugly Stitch-Out): Layering Physics, Density, and Fabric Reality

On-screen, layering looks like flat vector art. On fabric, you are displacing physical material.

The Physics of Failure:

1. The Push/Pull effect: Bean stitches pull the fabric inward.
2. The Tunneling: If you stack 3 layers of bean stitches, the fabric between them will try to "tunnel" or rise up.
3. The Fix: You need Hoop Tension.

Hooping Strategy for Heavy Lettering:

• Standard Hoops: You must tighten the screw until the fabric sounds like a drum (thump-thump), but do not stretch the fabric while tightening, or it will pucker later.
• Magnetic Hoops: For this type of design, magnetic embroidery hoops are superior. They slap down and hold the fabric flat with even pressure across the entire perimeter, reducing the "pull" distortion that ruins layered script fonts.

If you’re doing repeated name personalization or holiday batches, a workflow upgrade like a hooping station can reduce handling time and help you keep placement consistent from item to item.

A Simple Decision Tree: When to Use Which Spacing/Layering Method (and What to Test)

Use this logic gate before designing:

Test Protocol: Always run a test on scrap fabric similar to your final garment. If the test "cups" or feels like a bulletproof vest, delete one layer or increase the offset.

Troubleshooting the Three Most Common “Why Is This Happening?” Moments in Embrilliance Lettering

Symptom: "The spacebar does nothing."

• Likely Cause: Single Line mode ignores trailing ASCII spaces.
• Quick Fix: Switch to Multi-line mode and use the slider.

Symptom: "My ribbon text looks like a candy cane that melted (colors mixed)."

• Likely Cause: You color-sorted the design, or your stabilizer was too weak, causing registration shift.
• Quick Fix: Uncheck "Color Sort" on export. Use a heavier Cutaway stabilizer.

Symptom: "My machine is shredding thread / birdnesting."

• Likely Cause: Zero Offset. You stacked 5-pass bean stitches directly on top of each other.
• Quick Fix: Delete the top layers. Re-paste and ensure you click the arrow keys for offset before deselecting.

Turning a Cute Trick Into a Repeatable Product: Speed, Consistency, and Smart Tool Upgrades

These software tricks are fun for one stocking, but they are stressful for 20 team shirts.

The Production Reality:

• Hobbyist: "I can fix this spacing manually."
• Professional: "I need a system that works the same way every time."

The Upgrade Path:

1. First Bottleneck (Hoop Burn): You are spending too much time ironing out hoop rings on velvet or performance wear.
   • Solution: SEWTECH Magnetic Hoops. They leave zero residue and clamp faster.
2. Second Bottleneck (Alignment): Your text is crooked on 1 out of 5 shirts.
   • Solution: An Embroidery Hooping Station. Consistency equals profit.
3. Third Bottleneck (Color Changes): The Ribbon Effect takes 15 minutes because you are swapping threads by hand.
   • Solution: If you love doing multi-color layering, compatible multi-needle machines (like those from brother or brands supported by SEWTECH parts) are the only way to scale without losing your mind.

If you are currently using a brother embroidery machine or similar home unit, these Embrilliance skills maximize your specialized output. Just remember: Software starts the quality, but your hoop and stabilizer finish it.

Warning: Magnetic Safety.
High-quality magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They can snap assume with surprising force—watch your fingers.
* Medical Safety: Keep them away from pacemakers and insulin pumps.

Operation Checklist (Right Before You Hit “Stitch”)

• Visual Check: Is the "Ghosting" (offset) visible on screen? If it looks like one clean line, you forgot the offset—DO NOT SEW.
• Bobbin Check: Do you have a full bobbin? Running out in the middle of a layered bean stitch is a nightmare to repair.
• Needle: Is it fresh? A burred needle will cut the thread of the previous layer.
• Hoop Tension: Tap the fabric. It should sound taut, not flabby.
• Safety: Keep fingers clear of the needle bar when sewing these high-speed jumps.
• Magnets: If using magnetic frames, ensure the magnets are seated fully to prevent hoop-pop during high-speed travel. Learn how to use magnetic embroidery hoop correctly to avoid frame shifts.

FAQ

• Q: Why does the Embrilliance Lettering Tool (A icon) ignore extra spaces when using Single Line text for Romance Bean Script 5?
  A: Switch the Embrilliance Lettering Tool to Multi-line text and use the Word Spacing slider instead of the spacebar—this is common and not a bug.
  • Change mode: Select the text object, switch to Multi-line even if the layout is only one line
  • Adjust spacing: Drag Word Spacing to the right until the gap looks correct
  • Click Set to push the edited text from the box onto the canvas
  • Success check: Word gaps increase evenly and stay perfectly horizontal with no “drunk” vertical drift
  • If it still fails: Recreate the lettering object in Multi-line from the start (older versions can behave inconsistently with Single Line handles)
• Q: How do I use the green triangle handle in Embrilliance Single Line text without misaligning script lettering vertically?
  A: Zoom in and drag the green triangle handle carefully; the handle can move in X and Y, so accidental vertical drift is the main risk.
  • Select anchor: Click the first letter of the second word (example: the “H” in “Holidays”)
  • Zoom: Increase zoom (a high zoom like “very close-up” viewing) before dragging
  • Drag: Pull the small green triangle to the right in a controlled motion
  • Success check: Baseline stays level—letters do not step down/up after the moved point
  • If it still fails: Stop manual kerning and switch to Multi-line + Word Spacing for production-safe alignment
• Q: What stabilizer and needle should be used for Embrilliance Romance Bean Script 5 (5-pass bean stitch) to avoid fabric damage?
  A: Use a solid Cutaway stabilizer and match the needle to fabric type, because 5-pass bean stitches stress both fabric and thread.
  • Choose stabilizer: Use Cutaway (avoid Tearaway for this heavy stitch style)
  • Choose needle: Use 75/11 Ballpoint for knits or 75/11 Sharp for wovens
  • Listen during sew-out: Pay attention for loud “thump-thump-thump” or shredding sounds
  • Success check: Stitching sounds clean and consistent, with no tearing/perforation around the letters
  • If it still fails: Reduce layering (remove a copy layer) and re-test on similar scrap fabric before sewing the final garment
• Q: How do I prevent birdnesting and needle breaks when faux-bolding Romance Bean Script 5 in Embrilliance using copy/paste layers?
  A: Never leave the copied 5-pass bean stitch directly on top of the original—apply a visible offset before stitching.
  • Copy/Paste: Duplicate the text so the copy sits on top of the original
  • Offset immediately: Tap an arrow key to nudge the top layer (micro-nudge for small offsets if available on the OS)
  • Verify visually: Ensure a “shadow/ghost” is visible on-screen before exporting
  • Success check: Two separate stitch paths are visible on the canvas (not one perfectly overlapped line)
  • If it still fails: Delete the top layers and rebuild—stacked penetrations can still shred thread even if the file “looks fine” at first glance
• Q: Why does Embrilliance ribbon/candy cane script lettering lose the over-under look after export when Color Sort is enabled?
  A: Do not Color Sort ribbon text; the stitch order must remain Red → White → Red so the white layer stays physically sandwiched.
  • Keep sequence: Confirm the object/color list is Red, then White, then Red
  • Export carefully: Ensure “Color Sort” is unchecked/disabled at export
  • Stabilize: Use Cutaway stabilizer (and spray adhesive if needed) because layered registration is sensitive to shifting
  • Success check: White appears between the two reds (not sitting on top of both), creating the ribbon illusion
  • If it still fails: Recheck that the middle white layer was not stitched last and strengthen stabilization to reduce registration shift
• Q: What is the safest hooping method for dense layered bean-stitch script lettering to reduce puckering and push/pull distortion?
  A: Use even, stable hoop tension; magnetic hoops are often the easiest way to keep fabric flat and consistent on dense lettering.
  • Standard hoop method: Tighten until fabric is taut like a drum, but do not stretch fabric while tightening
  • Magnetic hoop method: Clamp evenly around the perimeter to reduce localized distortion during heavy stitch pull
  • Support layers: Bond fabric to stabilizer (spray adhesive is commonly used for this workflow) to limit shifting
  • Success check: Fabric stays flat during sewing and the finished lettering does not “draw-in” into a hoop-shaped pucker
  • If it still fails: Step down one level—reduce layers/offset density first; if placement consistency is the real issue, consider adding a hooping station for repeatability
• Q: What safety checks should be done before stitching multi-layer Embrilliance script lettering (needle, bobbin, magnets) to avoid accidents and ruined garments?
  A: Run a quick pre-stitch safety checklist—layered bean-stitch text is unforgiving if anything is marginal.
  • Confirm offset: Ensure the “ghosting” offset is visible on-screen; if it looks like one line, do not sew
  • Check bobbin: Start with a full bobbin to avoid mid-layer runouts that are hard to repair
  • Inspect needle: Use a fresh needle; a burred needle can cut thread from previous layers
  • Magnetic safety (if used): Keep fingers clear when magnets snap together; keep strong magnets away from pacemakers/insulin pumps and ensure magnets are fully seated to prevent hoop-pop
  • Success check: Machine runs without sudden snaps, frame shifts, or thread shredding sounds during the dense sections
  • If it still fails: Stop immediately, remove top layers from the design plan, and re-test on scrap before committing to a production run
