Embrilliance Lettering That Actually Stitches Well: Slant, Spacing, and a Clean “Text on a Circle” Arc Around Any Design

Lettering Mastery in Embrilliance: From On-Screen Design to Bulletproof Stitch-Outs

Lettering is the fastest way to make an embroidery design feel “custom.” It is also the fastest way to make a garment look “homemade” (in the worst way) if the spacing, curve, or stitch density is off. In this Embrilliance quick tip, Sue (OML Embroidery) demonstrates the core lettering controls—font choice, slant, spacing, and the Text on a Circle layout—using the phrase “ANCHORS AWAY.”

As your Chief Embroidery Education Officer, I’m going to take this a step further. I will rebuild her workflow into a production-ready process you can repeat on real garments. We move beyond "clicking buttons" to understanding the physics of thread on fabric, adding the practical parameters and safety checks that prevent the classic curved-lettering disasters: puckering, unreadable text, and the dreaded "hoop burn."

Don’t Panic—Embrilliance Is Friendly, But Physics Is Strict

If you’ve ever fought with lettering in other programs, you’re not imagining it—text is often the most finicky part of embroidery layout because small errors are instantly readable to the human eye. Embrilliance allows you to adjust in real-time, but we need to shift your mindset from "Graphic Design" to "Fiber Engineering."

Here are the two rules I teach every apprentice:

1. Screen $\neq$ Reality: On screen, letters are perfect pixels. On fabric, thread has thickness, and stitches pull the fabric inward.
2. Micro-Moves Win: Most "ugly" lettering comes from over-slanting or over-curving. Small slider adjustments usually yield better results than dramatic ones.

If you are building designs for actual garments, remember: the software creates the map, but your hooping and stabilization determine the terrain. A poor hooping for embroidery machine workflow will distort even the most perfect digital arc.

The "Hidden" Prep: Physical Checks Before Digital Clicks

Sue starts with a simple anchor graphic. Before you click the "Text" tool, you must minimize your cognitive friction and physical risk. Do these three checks to prevent 80% of failures.

1) The Spelling Protocol (The $500 Mistake Saver)

A few viewers noticed the spelling of “Anchors.” In a commercial shop, a typo on a batch of 20 jackets is a disaster.

• Action: Zoom in to 200%. Read the text backwards letter by letter. This breaks your brain's auto-correct mode and helps you spot errors.

2) Font Physics: Digitized vs. TrueType

Sue uses "Jazz" and "Stencil"—both are likely pre-digitized embroidery fonts.

• The Difference: Digitized fonts have underlay and pull compensation built-in. Converting a standard TrueType font from your computer often results in stitches that are too dense or satin columns that are too thin.
• The Rule: For text smaller than 0.5 inches (12mm), always use pre-digitized embroidery fonts to avoid needle breaks and thread shredding.

3) The Deployment Strategy

Where is this going? A "Text on Circle" layout behaves differently on a flat tote bag versus a stretchy t-shirt chest.

• The Friction Point: If you are doing a neckline arc, your hooping must be perfectly centered. If you are struggling to get shirts straight, professional shops utilize hooping stations to ensure every garment loads identically, removing the "human wobble" factor.

Prep Checklist: The "Go/No-Go" Flight Check

• Spelling Verified: Read backwards.
• Font Selected: Is it bold enough for the fabric texture? (Avoid thin serifs on towels).
• Space Planned: Is there 1 inch of clearance from the hoop edge?
• Needle Check: Is the needle fresh? (Burred needles ruin small text).
• Bobbin Check: Listen for the click when inserting the bobbin case.


step 1: Creating Letters (The "Set" Button Trap)

Sue’s first step is deceptive in its simplicity: click Create Letters (the ABC icon), type, and click Set.

The Cognitive Chunking of "Input"

1. Click Create Letters (ABC icon).
2. Type “ANCHORS AWAY” in the text box.
3. Click “Set.”

The Trap: Beginners often type and wait. Nothing happens. You must click Set to render the stitches. Think of "Set" as the "Calculate Physics" button. Until you click it, the machine instructions do not exist.

Step 2: Font Selection & Material Engineering

Sue chooses the Jazz font. Later she swaps to Stencil.

The "Sweet Spot" for Stitching

Not every font works on every curve.

• Open Fonts (Good): Fonts with wide loops (like the 'e' or 'o') survive the curving process.
• Tight Fonts (Risk): Condensed fonts or complex scripts often close up when curved, creating a "blob" of thread.

Expert Parameter: For curved text on knit fabrics (t-shirts/polos), ensure your satin columns are at least 1.5mm to 2mm wide. Anything narrower may sink into the fabric pile, making the text unreadable.

Step 3: Slant, Spacing, and Word Spacing

These are your fine-tuning knobs. Sue demonstrates Slant, Space (kerning), and Word Spc.

Slant: The "Wind Blown" Effect

Sue uses a heavy slant. Visually, this creates motion. Physically, it changes the bias of the stitches.

• The Risk: Heavy slanting on stretchy fabric can cause "flagging" (fabric waving) if not stabilized properly.
• The Fix: If you slant heavily (>15 degrees), switch to a Cutaway Stabilizer to lock the fabric fibers in place.


Word Spc: The Professional's Secret

Beginners try to fix gaps by moving individual letters. Pros use Word Spc first.

• Visual Anchor: Look at the gap between logical words. It should be roughly the width of a lowercase 'n' in that font.
• Production Context: If you are manually fighting spacing on every single shirt because the fabric is shifting, stop. This is a symptom of poor hooping. A dedicated hooping station for embroidery keeps the fabric tension neutral, so the spacing you see on screen is the spacing you get on the shirt.


Step 4: Multi-Line Text & "Line Spc"

Sue creates a second line (“YOHOHO”) and uses Line Spc.

The Vertical Reality

When stacking text, you must account for "Fabric Push." As you stitch the top line, the fabric pushes down slightly.

• The Fix: Add slightly more line spacing than you think looks perfect on screen (add roughly 1-2mm extra). This compensates for the fabric settling between lines.

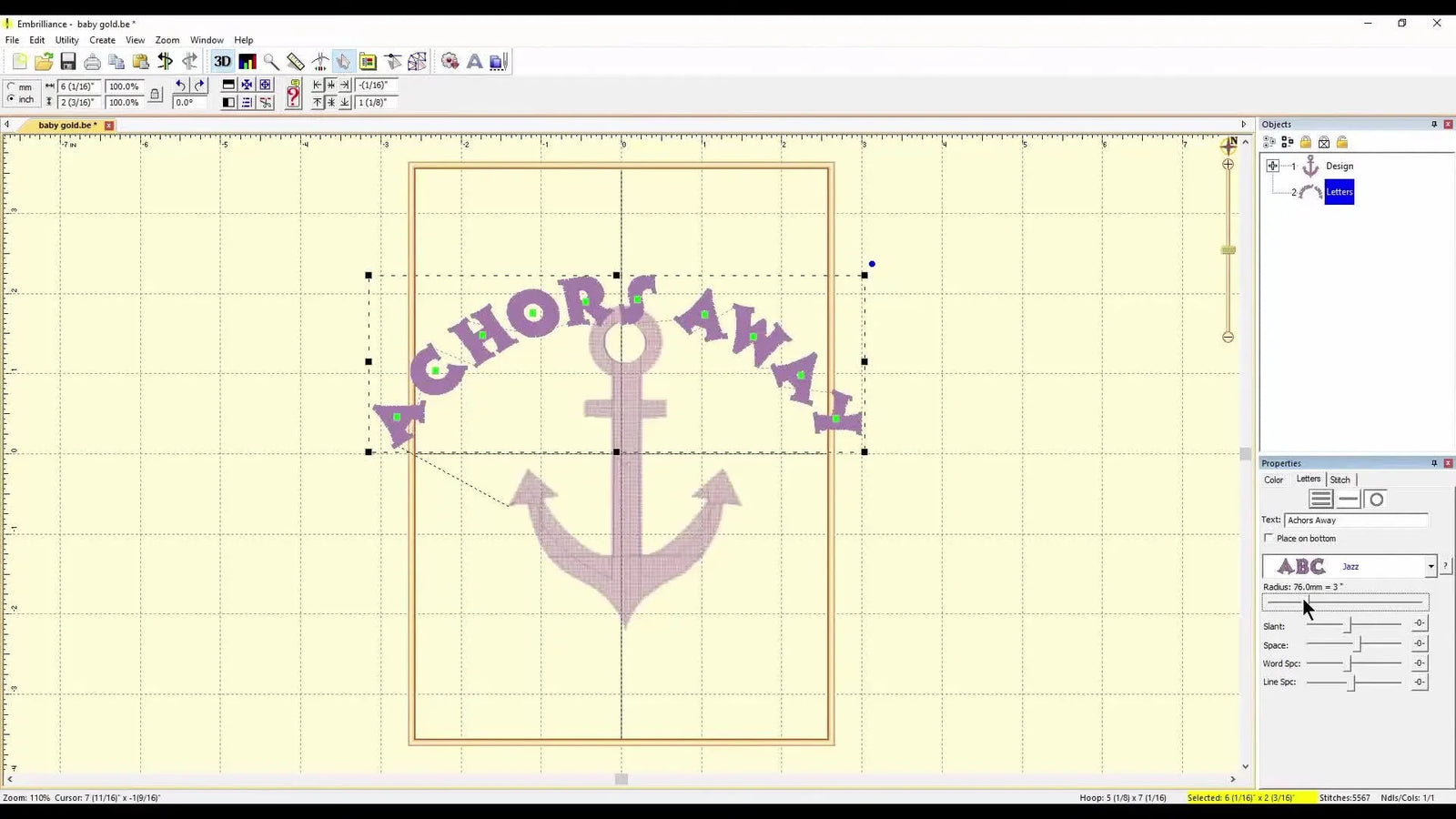

Step 5: Text on a Circle (The "Top Arc" Technique)

Sue selects the text and chooses the Text on a Circle icon. This is the industry standard for logos.

Crucial Distinction: This tool places text on a radius (an arc), not necessarily a full 360-degree circle. This is exactly what you need for "Over-the-Logo" headers.

The "Bottom Arc" Challenge

Viewers asked about text under the anchor.

• The Method: Use the "Place on Bottom" checkbox.
• The Warning: Bottom arcs are physically harder to stitch on finished garments because they sit lower on the chest, often conflicting with pockets or thick seams.

Warning: Stitching too close to a pocket seam or zipper can deflect the needle, causing it to shatter. Establish a "Safety Zone" of at least 15mm from any thick seam.

Step 6: Radius and Spacing (The Final Polish)

Sue adjusts Radius (curve tightness) and Spacing (letter spread).

The Sensory Check for Spacing

• Radius: Does the text curve mirror the shape of the anchor? It should run parallel.
• Spacing Density: When you curve text, the inner edges of the letters squeeze together.
  • Check: Zoom in. Are the satin stitches overlapping?
  • Fix: Increase Spacing until you see clear fabric between the letters. If the stitches touch, you will get a thread nest.


Decision Tree: Stabilizer & Tooling for Curved Text

Your software settings are done. Now, how do we translate this to physical reality without ruining the shirt? Use this logic flow:

1. Is the fabric stretchy (Performance wear, T-shirts)?
   • YES: Use Fusible Mesh or Cutaway Stabilizer. Do NOT use Tearaway (it will distort the curve).
   • NO: Go to step 2.
2. Is the fabric thick or delicate (Velvet, Leather, Thick Jackets)?
   • YES: Traditional inner/outer rings will leave "hoop burn" (permanent crush marks).
   • SOLUTION: Upgrade to magnetic embroidery hoops. These hold strong without crushing the fibers and allow for faster adjustments if the text looks slightly crooked.
3. Are you stitching more than 10 items?
   • YES: Time is money. Ensure your hooping is repeatable.
   • NO: Take your time, float the stabilizer if necessary.

Warning (Magnetic Safety): Magnetic hoops are incredibly strong tools for production speed. Always keep fingers clear of the snapping zone, and keep them away from pacemakers or sensitive electronics.

Troubleshooting: The "Why is it Ugly?" Guide

If your result looks bad, don't guess. Diagnose.

Leveling Up: From Hobbyist to Production

Sue encourages you to "play" with fonts (swapping Jazz for Stencil), and she is right—experimentation builds intuition. However, once you move to "production" (stitching for custom orders), predictability is king.

If you find yourself constantly fighting hoop marks, re-hooping crooked shirts, or dreading multi-color text because of the thread changes:

1. The Interface Problem: If hoop burn scares you, a magnetic embroidery hoop solves the mechanical crushing issue immediately.
2. The Scale Problem: If you are changing threads 12 times for a complex logo, look at productivity upgrades like SEWTECH multi-needle machines or organizers.

Final Operation Checklist

• "Set" Clicked: Screen matches intent.
• Curve Check: No letters are touching/overlapping.
• Hoop Tension: Fabric is taut (drum skin), not stretched (distorted).
• Speed Limit: For small curved text, reduce machine speed to 600-700 SPM for sharper definition.
• Safety: Hands clear, start button ready.

By combining Embrilliance's visual tools with these physical safeguards, you turn "fingers crossed" embroidery into a repeatable science.

FAQ

• Q: In Embrilliance Essentials, why does the text not appear after typing “ANCHORS AWAY” in Create Letters (ABC icon)?
  A: Click Set to render the stitches—until Embrilliance calculates with Set, the lettering object does not exist.
  • Click Create Letters (ABC), type the text, then click Set (do not just close the box).
  • Zoom in and confirm the lettering has stitch outlines, not only editable text.
  • Success check: the lettering can be selected as an embroidery object and you can see stitch angles/columns.
  • If it still fails: re-open Create Letters and repeat the sequence, then verify the correct font is selected (digitized embroidery font vs. TrueType).
• Q: In Embrilliance, what is the safest font choice for embroidery text smaller than 0.5 inches (12 mm) to avoid thread shredding and needle breaks?
  A: Use a pre-digitized embroidery font for text under 0.5 in (12 mm); converting standard TrueType fonts often makes stitches too dense or satin columns too thin.
  • Choose known digitized embroidery fonts (like the pre-set styles shown in the software) before adjusting slant/spacing.
  • Avoid thin, delicate styles on textured fabrics (for example, thin serifs on towels).
  • Success check: small letters stay open (counters in “e/o/a” are visible) and the machine runs without repeated thread shredding.
  • If it still fails: increase letter size or switch to a bolder digitized font rather than forcing density on a tiny TrueType conversion.
• Q: For Embrilliance “Text on a Circle” on knit polos or t-shirts, what satin column width helps prevent curved lettering from sinking in and becoming unreadable?
  A: Keep satin columns about 1.5–2.0 mm wide for curved text on knits so the stitches sit on top of the fabric instead of disappearing into the knit texture.
  • Select a font that produces wider satin columns (avoid very condensed or overly complex scripts on tight curves).
  • Reduce aggressive slant/curve changes and make small adjustments instead of big slider jumps.
  • Success check: curved letters remain readable at normal viewing distance, with clear shapes in small loops like “e” and “o.”
  • If it still fails: change to a more open font or slightly increase text size before changing machine settings.
• Q: When using Embrilliance Slant above 15 degrees on stretchy fabric, what stabilizer choice helps prevent “flagging” and distorted curved text?
  A: Switch to cutaway stabilizer when slanting heavily (>15°) on stretchy fabrics to lock the fibers and reduce flagging.
  • Re-hoop with neutral tension (taut, not stretched) before stitching the slanted arc.
  • Stitch a quick sample if possible before running the final garment.
  • Success check: fabric does not wave under the needle, and the slanted lettering keeps consistent width without “pulling” off the curve.
  • If it still fails: reduce slant slightly and re-check hooping tension and stabilizer coverage under the entire design.
• Q: In Embrilliance multi-line lettering, how much extra Line Spc helps prevent stacked text from crowding after stitch-out?
  A: Add about 1–2 mm more Line Spc than looks perfect on screen to compensate for fabric push as the first line stitches.
  • Set Line Spc with the expectation that fabric will settle downward during stitching.
  • Run a quick visual preview at high zoom to ensure lines are not visually “kissing” before you stitch.
  • Success check: after stitch-out, the gap between lines still looks intentional and the lower line is not partially covered by the top line’s pull.
  • If it still fails: add a little more line spacing and re-check stabilization, especially on knits.
• Q: On an embroidery machine, how can hooping tension be checked to stop gaps in curved Embrilliance lettering on garments?
  A: Re-hoop until the fabric is taut like a drum skin when tapped—loose hooping is a top cause of gaps and puckering around letters.
  • Tap the hooped area; aim for a tight, even “drum” feel without stretching the garment out of shape.
  • Keep at least 1 inch clearance from the hoop edge to reduce distortion near the ring.
  • Success check: fabric looks smooth (not rippled) around the lettering area before stitching, and the stitched text shows even spacing without unexpected gaps.
  • If it still fails: reassess stabilizer choice (knits typically need cutaway/fusible mesh rather than tearaway) and re-check that curved letters are not overlapping on-screen.
• Q: During embroidery, how can birdnesting under the hoop be stopped when the machine makes a “thump-thump” sound?
  A: Stop immediately and rethread completely, making sure the presser foot is UP while threading to seat the thread correctly in the tension system.
  • Remove the nest carefully and check for trapped thread around the bobbin area before restarting.
  • Reinsert the bobbin case and listen for the click when it seats correctly.
  • Success check: the machine sound returns to normal and the underside shows clean, controlled bobbin stitches instead of a wad.
  • If it still fails: inspect the thread path for missed guides and confirm the design is not causing overlapping stitches from overly tight curved spacing.
• Q: When stitching Embrilliance curved text near pockets or zippers, what safety distance helps reduce needle deflection and needle shattering risk?
  A: Keep a 15 mm safety zone away from thick seams like pocket edges and zippers to avoid needle deflection that can shatter a needle.
  • Reposition the design higher or adjust the arc so the needle path never crosses bulky seam transitions.
  • Slow the machine for small curved text (a safe starting point is 600–700 SPM) for cleaner control.
  • Success check: the needle runs smoothly without striking a hard ridge, and stitch formation remains consistent through the entire arc.
  • If it still fails: stop and re-hoop/reposition—do not “push through” seam impact, and replace the needle if there is any doubt it hit metal or dense hardware.
