Embrilliance Essentials Tour (Part 2): Preview, Calibrate, Simulate—and Stop “Bad Hoop Days” Before They Start

If you’ve ever stitched a design that looked fine on screen—only to watch in horror as it landed crooked, crowded the hoop edge, or chewed up your favorite sweatshirt with a dense "bulletproof" patch—you already know the truth: The "real work" of embroidery happens long before you press the green button.

To the rookie, software is just a way to view files. To the veteran, software is a flight simulator. It is where we crash the plane digitally so we don’t crash it physically.

This guide isn't just about clicking buttons in Embrilliance Essentials. It is a 20-year field manual on building a calm, repeatable "pre-flight" routine. We will cover how to verify true size, inspect stitch structure like a structural engineer, and create a placement template you can trust with your eyes closed.

Get Comfortable in the Cockpit: Organizing the Workspace

When you first open Embrilliance Essentials, you’re looking at an empty design space surrounded by toolbars. To a beginner, this is just a menu. To a pro, this is the dashboard where we spot red flags.

The three instruments that will save you the most physical headaches are:

• Objects Panel (Top Right): This is your X-Ray. It lets you expand a design to see the skeleton (individual color stops and objects).
• Properties Panel (Bottom Right): This is your Control Center. It changes based on what you select (density, underlay, fonts).
• Status Bar (Very Bottom): The "Heads Up Display." It gives you immediate readouts on size and stitch count.

If you are working on a laptop, the screen can feel cramped. The video demonstrates how to use the View menu to uncheck Object View or Properties View to gain canvas space.

Experience Note: While hiding panels feels spacious, don't stitch blind. My rule for students is: "Reset Views" before you save. I have seen seasoned operators ruin a run because they hid the Status Bar and didn't notice the design was 2mm too wide for their hoop.

Open Files the "Safe Way": The Pre-Commitment Scan

Navigate to File > Open. Before you double-click to load the file, pause.

The Open dialog box provides a "Preview Pane" with critical stats: stitch count, color stops, and dimensions (in inches and mm).

Why this matters: This is your first line of defense against "File Blindness."

• Size Check: Is the file 100mm or 105mm? If you are using a 100x100 hoop, that 5mm difference is the sound of your needle hitting the plastic frame—a loud, expensive crack.
• Density Check: Does a small 3-inch pocket design have 25,000 stitches? That is a red flag. It will likely perforate the fabric, creating a "cookie cutter" effect where the logo falls right out of the shirt.




The 5 cm Calibration: Making "Actual Size" Real

The host explains a feature that most beginners skip, yet it is the secret to visual judgment: Monitor Calibration.

If you zoom to "1:1" on an uncalibrated screen, you are lying to your eyes. Here is the physical workflow:

1. Open Preferences.
2. Choose Calibrate Screen.
3. Physical Action: Hold a real plastic ruler against your monitor.
4. Drag the slider until the on-screen line matches exactly 50mm (5 cm) on your ruler.

Once calibrated, "1:1 Zoom" becomes a powerful reality check. You can hold your actual garment—a pocket, a baby onesie, a cap—up to the screen to visualize scale.

Warning: Be gentle when pressing rulers against LCD/LED screens. Use light contact to avoid "bruising" the pixels or cracking the display.

Use 3D View as a Structural Inspector

The video demonstrates toggling "Draw Stitches in 3D."

• 3D ON: Shows you the "pretty" preview (what the client sees).
• 3D OFF: Shows you the "architectural" view (what the machine sees).

The Expert Move: Turn 3D OFF and zoom in. Look for the "Underlay"—the foundational stitches that happen before the visible top thread.

• Zig-Zag Underlay: Essential for satins (text) to stand up and have crisp edges.
• Tatami/Cross-Hatch Underlay: Critical for large fills to prevent fabric shifting.

Sensory Anchor: If the design looks "hollow" or lacks these foundation lines in 2D view, the final stitch-out will likely feel "mushy" to the touch and sunk into the fabric. Good embroidery feels structured; bad embroidery feels limp.

Two Keyboard Shortcuts for Safety: "G" and "H"

Memorize these. They are your safety goggles.

• "G" (Grid): Toggles the background grid. Use this for alignment logic.
• "H" (Hoop): Toggles the visual hoop boundary.

The "Safe Zone" Concept: Never let your design touch the "H" line. In the physical world, hoops have thickness. If your needle travels to the absolute electrical limit of the machine, the foot often rubs against the inner wall of the hoop.

• Listen: If you hear a rhythmic scuff-scuff-scuff sound during stitching, your design is too close to the edge.
• Fix: Ensure you have at least a 5mm visual buffer between your design and the "H" line on screen.


Reading the "Cost" of a Design: Size, Stitches, and Stops

The bottom status bar gives you three numbers that dictate your afternoon: Size, Stitches, and Color Stops.

• Design Size: 128.5 mm x 123.6 mm.
• Stitch Count: 18,345.
• Color Stops: 16.

The "Single-Needle" Tax: If you are stitching on a single-needle home machine, 16 color stops means you will walk to the machine, cut thread, unthread, rethread, and restart 16 times.

• Time Calculation: A 16-stop design on a single-needle machine isn't a "quick run." It’s an hour of babysitting.
• Business Insight: If you plan to sell this item, a 16-stop design is unprofitable on a single-needle machine. This is the "Trigger Point" where pros upgrade to multi-needle machines (like the SEWTECH commercial line) to automate those colors.

For those getting started with brother embroidery hoops, verifying these constraints ensures you don't load a file that the machine simply refuses to stitch because it exceeds the writable area.

The Objects Panel: Solving the "Hidden Appliqué" Puzzle

The video expands the Objects Panel to reveal the sequence. This is vital for Appliqué.

An Appliqué file usually has three steps per shape:

1. Placement Line: Shows you where to put the fabric.
2. Tackdown: Stitches the fabric down (so you can trim).
3. Satin Cover: The final pretty edge.

Common Rookie Error: In the thumbnail view, steps 1 and 2 look identical (just cramping lines). If you don't expand the panel, you might miss the "Stop" command. The machine will keep sewing the tackdown while your hands are still trying to place the fabric—a recipe for stitched fingers or ruined garments.

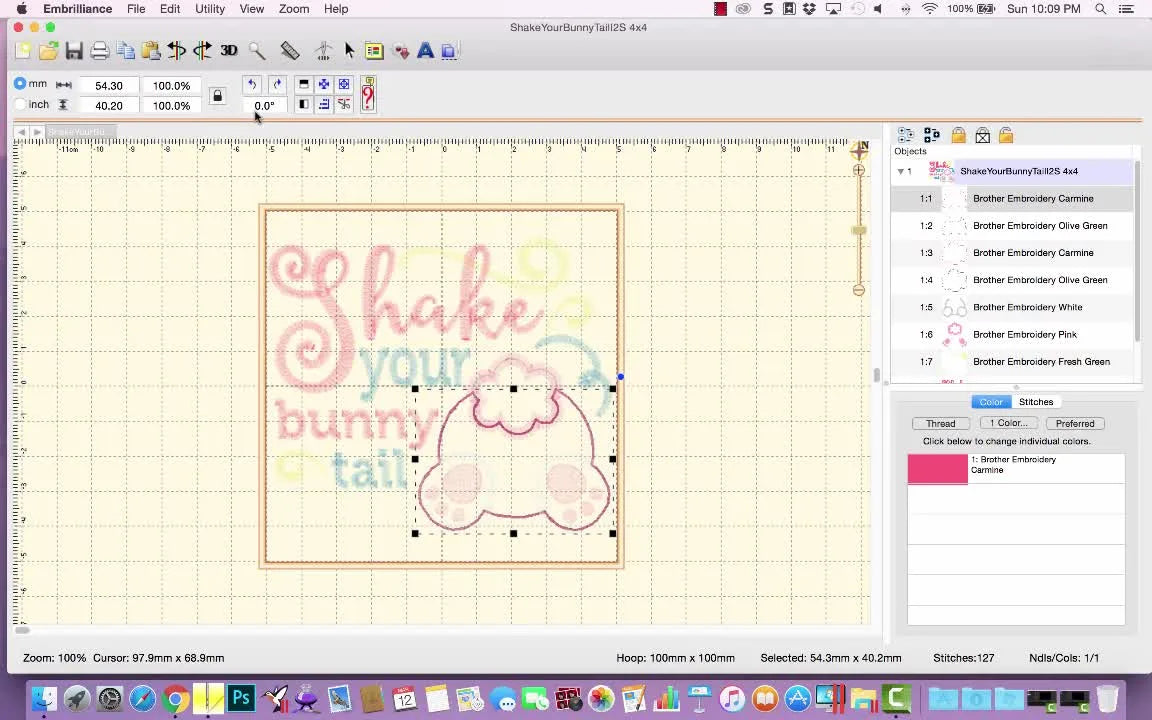

Ghost Mode: Your Digital X-Ray

Ghost Mode is a view setting where the selected object stays bright, and everything else fades to gray.

• Preferences: You can adjust the intensity. The host suggests 35% opacity for high contrast.

Why use it? If you are working with complex layers, Ghost Mode allows you to see exactly which part of the design is the "Placement" and which is the "Tackdown." Also, if you are using specific machine embroidery hoops and need to ensure a logo is perfectly centered, Ghost Mode lets you isolate that specific logo element to check its distance from the center point without the distraction of the background swirls.

Stitch Simulator: The Dress Rehearsal

The Stitch Simulator (compass icon) allows you to scrub through the design stitch-by-stitch.

What to look for (The Prevention Protocol):

1. Jump Stitches: Do you see long lines of thread connecting distant objects? If your machine doesn't have automatic trimmers, you will have to cut these by hand.
2. Sew Sequence: Does the machine jump from the left side to the right side and back again? This is "inefficient pathing." It increases the risk of the hoop shifting and registration errors (gaps).

The "Sweet Spot" Speed: When physically stitching the first time, I recommend capping your machine speed at 600 SPM (Stitches Per Minute). Expert users go faster, but 600 SPM is the "learning speed" where you can hear a problem developing before it breaks a needle.

The Ultimate Weapon: Printed Templates

The video shows how to File > Print a template at 100% scale with crosshairs.

This is the bridge between software and reality. You cannot "eyeball" a center chest logo. You must measure it.

• The Workflow: Print the page. Cut it out. Tape it to the shirt.
• The Anchor: Stand in front of a mirror holding the template on the shirt. Does it look too low? (It usually is—rule of thumb is higher than you think).

For those mastering hooping for embroidery machine, the paper template is the single most valuable tool for muscle memory. It teaches you where "Center" actually lives on a 3D body versus a 2D screen.

20-Year Insight: The Physical "Pre-Flight" Routine

The software is perfectly logical. The physical world is messy. To bridge the gap, you need a disciplined routine. Use these checklists and tools to ensure the design on the screen matches the design on the shirt.

1. The Pre-Flight Checklist (Do this BEFORE threading)

• Opening Check: Did I check the "Status Bar" for stitch count and size?
• Hoop Check: Is the design at least 5mm away from the "H" boundary on all sides?
• Structure Check: Did I turn 3D View OFF to inspect underlay?
• Appliqué Check: Did I use "Ghost Mode" to verify the Placement vs. Tackdown order?
• Simulation: Did I run the simulator to spot long jump stitches?
• Template: Is the paper template printed at 100%?

2. Decision Tree: Fabric, Stabilizer, and Hoops

A commenter asked about stabilizers. This is the "Chemistry" of embroidery. A mismatch here causes puckering (wrinkles around the design).

The "Hoop Burn" Problem: Standard hoops require you to jam an inner ring into an outer ring. On delicate fabrics or thick hoodies, this leaves a permanent "ring" mark (Hoop Burn) or causes hand strain.

• The Upgrade: Many professionals switch to generic magnetic embroidery hoops compatible with their machine. They use magnets to sandwich the fabric without friction, eliminating hoop burn and saving your wrists.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength neodymium magnets. They are powerful enough to pinch fingers severely. Do not use if you have a pacemaker, and keep them away from credit cards and hard drives.

3. Setup Moves: Landing the Template

Printing the template is step one. Landing it is step two.

1. Mark the Center: Use a water-soluble pen or chalk. Mark a vertical line (center front) and a horizontal line (height of design).
2. Align the Template: Match the paper crosshairs to your chalk lines.
3. Hooping: This is the hardest skill to learn. You must align the hoop's plastic marks with your chalk lines while keeping the fabric taut but not stretched.
   • Tactile Check: The fabric should feel like a "tight drum skin." If you tap it, it should make a dull thud.
   • Visual Check: Look at the grain of the fabric. Are the vertical knit lines curved looking like a banana? If so, you pulled too hard. Undo and re-hoop.

If you struggle with alignment or if your hands hurt from tightening screws, this is often the trigger to look into "Hooping Stations" (like the hoopmaster hooping station or similar aids). These hold the hoop for you, ensuring perfect placement every time.

4. Setup Troubleshooting: "It looked fine on screen, but..."

Even with perfect software prep, things go wrong. Here is your tiered troubleshooting guide.

Symptom: The needle broke immediately.

• Cause: The design was too close to the hoop edge (didn't check "H" key).
• Fix: Re-center in software. Check physical hoop clearance.

Symptom: There are white loops showing on top.

• Cause: Top tension is too tight, or bobbin is too loose.
• Fix: Re-thread the top. Ensure the thread is "flossing" through the tension discs. You should feel a slight resistance when pulling the thread, like dragging a key across a table.

Symptom: The fabric is puckering (wrinkling) around the letters.

• Likely Cause: Not enough stabilizer, or your how to use magnetic embroidery hoop technique wasn't secure enough for the stitch density.
• Prescription: Use a heavier Cutaway stabilizer next time. Simplify the design density in the Properties panel.

The Upgrade Path: When to Scale

As you master the software, you will eventually hit a ceiling: Production Speed.

• Level 1 (Technique): You use the Simulator and Templates to stop making mistakes. Quality goes up.
• Level 2 (Tools): You switch to Magnetic Hoops (like those from SEWTECH) to stop hoop burn and hoop faster. Comfort goes up.
• Level 3 (Capacity): You realize stitching one color at a time on hoops for brother embroidery machines (single needle) is killing your profit. You upgrade to a Multi-Needle Machine (like SEWTECH’s commercial models) to automate color changes. Profit goes up.

Embroidery is a journey from "Software Preview" to "Physical Product." Respect the pre-flight routine, and the machine will respect you.

FAQ

• Q: How do I prevent an Embrilliance Essentials design from stitching too close to the hoop edge and breaking a needle on a Brother embroidery machine hoop?
  A: Keep the design at least 5 mm inside the on-screen hoop boundary before stitching.
  • Toggle the hoop boundary with the H key and re-center/resize the design to create a clear margin.
  • Verify the exact design dimensions in the Open dialog preview and in the Status Bar before committing.
  • Slow the first run to a safe starting point like 600 SPM so problems are audible before damage happens.
  • Success check: No rhythmic “scuff-scuff-scuff” rubbing sound during stitching near the hoop wall.
  • If it still fails: Re-check that the saved file matches the last on-screen position and that the hoop size selected on the machine matches the physical hoop.
• Q: How do I calibrate Embrilliance Essentials so 1:1 zoom shows true size using the 5 cm (50 mm) screen calibration method?
  A: Calibrate the monitor so the on-screen 50 mm line matches a real ruler exactly.
  • Open Preferences and select Calibrate Screen.
  • Hold a real ruler to the screen and drag the slider until the line measures 50 mm (5 cm).
  • Use 1:1 Zoom to compare the design against the actual garment area (pocket, onesie, cap) before printing.
  • Success check: The on-screen calibration line measures exactly 50 mm on the physical ruler.
  • If it still fails: Re-run calibration after changing displays, resolution scaling, or switching between laptop/external monitors.
• Q: How can Embrilliance Essentials 3D View ON vs OFF help diagnose missing underlay that causes satin letters to look mushy or sink into fabric?
  A: Turn Draw Stitches in 3D OFF to inspect structure (including underlay) instead of only the “pretty” preview.
  • Toggle 3D so the stitch architecture is visible and zoom in on satin columns and large fills.
  • Look for clear underlay lines (zig-zag underlay under satins; tatami/cross-hatch underlay under large fills).
  • Use this check before stitching dense designs that may perforate fabric or feel “bulletproof.”
  • Success check: In 2D/3D-OFF view, foundation underlay stitches are clearly present under the top stitching.
  • If it still fails: Reduce density in the Properties panel (safe starting point: make small changes) or choose a stronger stabilizer strategy for the fabric.
• Q: What is the fastest way to stop appliqué placement mistakes in Embrilliance Essentials using the Objects Panel and Ghost Mode?
  A: Expand the Objects Panel and use Ghost Mode so placement, tackdown, and satin steps are unmistakable before stitching.
  • Expand the Objects Panel to confirm the appliqué sequence: placement line → tackdown → satin cover.
  • Enable Ghost Mode (often around 35% opacity is a clear starting point) to isolate the active step from the rest.
  • Pause at the correct “Stop” moment so hands are never under the needle during tackdown.
  • Success check: The machine stops after the placement line and before tackdown, giving time to place fabric safely.
  • If it still fails: Run the Stitch Simulator to confirm the stop points and stitch order match the intended appliqué workflow.
• Q: How do I use the Embrilliance Essentials Stitch Simulator to prevent long jump stitches and inefficient sewing paths that cause registration gaps?
  A: Scrub through the design stitch-by-stitch and fix problem travel before the first physical run.
  • Open the Stitch Simulator (compass icon) and step through the sequence to spot long connecting jump stitches.
  • Watch for left-right-left bouncing that increases movement and raises the chance of hoop shift and gaps.
  • Plan thread trimming if the machine does not have automatic trimmers (generally, manual trimming is required on many setups).
  • Success check: The simulated stitch path progresses logically with minimal long travel lines between distant objects.
  • If it still fails: Re-sequence objects where possible in software or reduce unnecessary separate elements that force long travel.
• Q: How do I stop embroidery fabric puckering around letters on knit shirts using the correct stabilizer and hooping strategy (including magnetic embroidery hoops)?
  A: Use cutaway stabilizer for knits and avoid stretching the fabric during hooping.
  • Switch to cutaway (non-negotiable for knits in many cases) and use enough support for the design density.
  • Hoop without stretching: keep the knit relaxed; float if needed or use magnetic hoops to clamp without distortion.
  • Print a 100% template and align crosshairs to center marks so re-hooping does not shift placement.
  • Success check: After stitching, the area around letters lays flat with no “wrinkle ring” or distortion when the garment relaxes.
  • If it still fails: Choose a heavier cutaway next time and consider reducing density in the design properties.
• Q: What magnetic embroidery hoop safety rules should operators follow when using neodymium magnetic hoops for machine embroidery?
  A: Treat magnetic hoops like a pinch hazard and keep them away from medical devices and sensitive items.
  • Keep fingers clear when seating magnets; the pull force can pinch severely.
  • Do not use magnetic hoops if the operator has a pacemaker, and keep magnets away from credit cards and hard drives.
  • Set magnets down in a controlled way—do not let magnets snap together uncontrolled near the hoop.
  • Success check: Magnets seat smoothly without finger pinches and the fabric is clamped evenly without hoop burn marks.
  • If it still fails: Switch to a standard hoop for that job or use a hooping aid to improve control and consistency.
• Q: When does a high color-stop Embrilliance Essentials design become inefficient on a single-needle home embroidery machine, and what is the upgrade path?
  A: When color stops are high (for example, 16 stops), single-needle stitching becomes a time-and-attention drain, so upgrade in tiers.
  • Level 1 (Technique): Reduce mistakes by using the Status Bar, H hoop boundary buffer, simulator, and printed templates.
  • Level 2 (Tools): Use magnetic hoops to reduce hoop burn and speed up hooping, especially on knits and thick garments.
  • Level 3 (Capacity): Move to a multi-needle machine to automate color changes when frequent multi-color jobs make single-needle runs unprofitable.
  • Success check: Total handling time drops (fewer re-hoops, fewer restarts, fewer manual rethreads) while placement remains consistent.
  • If it still fails: Re-evaluate design stitch count and density before blaming the machine—small designs with very high stitches are a red flag for fabric damage and slow runs.
