The "Zero-Panic" Guide to Embrilliance Essentials on Mac: Master Your Setup, Fonts, and Workflow

If you are new to embroidery software, specifically Embrilliance Essentials on a Mac, you are likely experiencing what I call "Digital Paralysis." You have the machine, you have the ideas, but the screen looks wrong, the grid doesn't match your hoop, and your fonts are nowhere to be found.

As someone who has spent two decades bridging the gap between digital design and physical stitching, I can tell you this: The software is just the map; your machine is the terrain. If the map doesn't match the terrain, you will crash.

This guide reconstructs a popular expert workflow into a "white paper" level standard operating procedure. We will lock in your machine format (PES for Brother), calibrate your digital hoop to physical reality, and master the BX font system. More importantly, we will discuss why these settings matter for your physical production and when it’s time to upgrade your tools to match your ambition.

The Calm-Down Check: Establishing Your "Digital Twin"

When you first launch Embrilliance, it feels generic. It doesn't know you own a specific machine, and it doesn't know what hoop you are holding.

Most "Mac issues" beginners report—like designs not centering or colors changing—are actually mismatches between the digital workspace and the physical machine.

If you are operating a brother embroidery machine, the software defaults are likely wrong for you. We need to create a "Digital Twin" of your setup. If we don't do this, you risk the most common beginner failure: The "Hoop Strike"—where the needle slams into the plastic frame because the software thought the hoop was bigger than it actually is.

Step 1: The "Digital Handshake" – Setting the PES Format

Your computer speaks binary; your machine speaks stitch coordinates. For Brother users, that language is PES. If you leave this on the wrong setting, your machine might simply refuse to read the file, or worse, interpret the colors incorrectly.

In the video workflow, the host sets this immediately. Here is the Master Protocol:

Action Sequence:

1. Launch Embrilliance Essentials.
2. Locate the Preferences icon (visually, this looks like a yellow folder with a gear) in the top toolbar. Click it.
3. Select the Hoops tab in the window that appears.
4. Target the File Format dropdown menu correctly. Warning: Do not guess.
5. Select PES (for Brother/Babylock).

Sensory Verification (The "Click" Check):

• Visual: Look at the dropdown. Does it explicitly say PES?
• Logical: This setting tells the software: "Limit my color palette and trim commands to what a Brother machine understands."

Warning: Never assume "all formats are the same." Exporting in DST (industrial) instead of PES (home) can strip out color data, leaving you to guess which thread goes where at the machine. Always match the format to your specific machine manual.

Step 2: Hoop Calibration – From Millimeters to Real Life

This is the single biggest friction point for US-based users. Embroidery machines "think" in metric (millimeters), but we measure in inches. If you select a hoop based on a guess, your grid will lie to you.

The "Inches Hint" Technique:

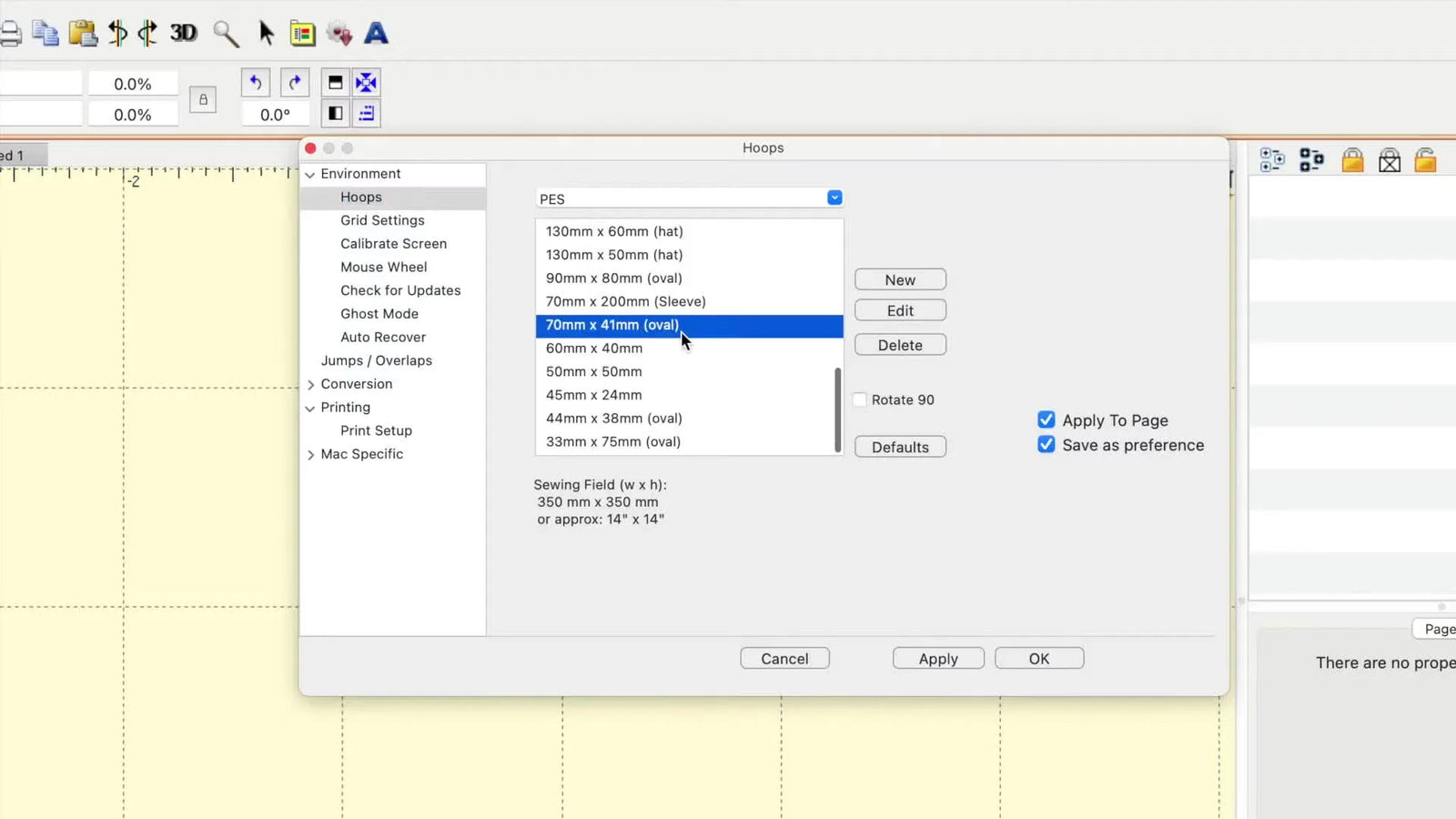

1. Remain in the Preferences → Hoops window.
2. Scroll through the hoop list. It will look intimidatingly long.
3. Click a hoop that looks familiar (e.g., 100 x 100).
4. Look Down: The text below the list displays the Inch Conversion.
5. Confirm:
   • 100 mm x 100 mm = 4" x 4" (Standard beginner hoop).
   • 130 mm x 180 mm = 5" x 7" (The most versatile intermediate size).
6. Execute: Click Apply, then OK.

Why This Matters (The Commercial Reality): In a professional shop, we care about "Safe Zones." If your software thinks you have a 5x7 inch space, but you physically attach a 4x4 hoop, you will break a needle.

If you find yourself constantly battling to fit designs into a standard plastic 4x4 hoop, or if you are struggling with "hoop burn" (those ring marks left on fabric), this is a Trigger Moment. It usually means your skills are outpacing your hardware.

This is when professionals stop fighting the plastic rings and look for a brother 4x4 embroidery hoop alternative, specifically distinct upgrading options like Magnetic Hoops. Digital settings are free to change; physical struggles require better tools.

Setup Checklist: The "Pre-Flight" Safety Check

Do not proceed until all boxes are checked. This prevents 90% of startup errors.

• Preferences Opened: Yellow gear folder icon clicked.
• Tab Selected: "Hoops" tab is active.
• Format Locked: File format is set to PES (or your specific machine brand).
• Hoop Selected: You have clicked the specific mm size.
• Translation Verified: You verified the inch conversion (e.g., 5" x 7") in the text description.
• Grid Confirmed: You clicked Apply, and the onscreen grid changed shape to match your selection.

Step 3: The Asset Pipeline – Sourcing BX Fonts Correctly

The video highlights a crucial distinction: Stitch Files vs. Keyboard Fonts.

Novices download generic alphabets that are just 26 separate design files. Pros use BX Fonts. A BX font allows you to type on the keyboard inside Embrilliance. The host demonstrates downloading free fonts ("Almost Fancy", "Blockish", "Textured").

The Expert Sourcing Protocol:

1. Navigate to the Embrilliance website (or a reputable digitizer).
2. Search for keywords like "BX" or "Keyboard Font."
3. Download the Zip file.
4. Extract: Crucial Step. You cannot install a Zip file. You must double-click the Zip to reveal the folder containing the .BX file.

Commercial Context: Time is money. Dragging 26 individual letters into a design takes 15 minutes. Typing a name with a BX font takes 15 seconds. If you are planning to sell personalized items (Christmas stockings, team gear), BX fonts are mandatory for profitability.

Step 4: Installation – The Drag-and-Drop Method

This is the "Magic Moment" for Mac users.

Action Sequence:

1. Open Finder and locate your extracted .BX file.
2. Arrange your windows so you can see both Finder and the Embrilliance workspace (the grid).
3. Click and Hold the BX file.
4. Drag it physically over the embroidery grid.
5. Release.

Sensory Verification:

• Visual: A popup window appears instantly.
• Confirmation: It states, "The font [Font Name] has been installed."
• Action: Click OK.




Prep Checklist: The Asset Verification

• File Type Check: The file ends in .BX (Not .PES, not .DST, not .ZIP).
• Software State: Embrilliance Essentials is open and visible.
• Action: You dragged the file onto the whitespace of the canvas.
• Feedback: You received the "Installed" confirmation popup.

Step 5: Troubleshooting Visibility – "Where is my Font?"

You installed it. You clicked OK. You go to the font list, and it’s not there. Don't Panic.

The Problem: The font list caches (saves) its data when you first click it. If you had the text tool open before you installed the font, the list is stale.

The Fix (The "Force Refresh"):

1. Click the Create Letters tool icon (the Capital 'A') again.
2. This forces the software to re-read the font database.
3. Select the new font from the list.






Operation Checklist: Font Functionality

• Tool Activation: Clicked the 'A' (Create Letters) icon.
• Selection: Found the new font name in the Properties pane.
• Typing Test: Typed "Test" and pressed Enter.
• Visual Check: The letters appeared on the grid as stitches, not just outlines.

Step 6: Digital Hygiene – Deleting Unwanted Fonts on Mac

Nothing slows down production like scrolling through 50 ugly fonts to find the one you need. The video demonstrates a "surgical strike" to remove fonts, which is slightly hidden on macOS.

The "Deep Clean" Protocol:

1. Terminate the software: Command+Q to Quit Embrilliance (Closing the window is not enough; the app must quit).
2. Engage Finder: Click the desktop.
3. Navigate: Click Go in the top menu bar -> Go to Folder.
4. Input Path: Paste this exact path:
   ~/Library/Containers/com.britonleap.Embrilliance/Data/Library/Application Support/Embrilliance/Fonts/Imported
5. Identify: Find the folder with the font name you hate.
6. Eliminate: Drag that folder to the Trash.
7. Restart: Open Embrilliance. The font is gone.








The "Why" – From Passion to Production

Why stress over these details? Because in embroidery, friction kills creativity.

If you spend 20 minutes fighting your software setup every time you want to sew, you will stop sewing. By locking in your PES format, standardizing your hoop sizes, and curating your fonts, you remove the friction.

However, software is only half the battle. As you move from "testing" to "production," you will notice physical friction points.

The "Golden Ratio" Decision Tree: Fabric, Hoop, and Stabilizer

Use this logic flow to make safe decisions for every project.

1. The Fabric Test (Touch it)

• Is it Stretchy? (T-Shirt/Jersey) -> Action: Must use Cut-Away stabilizer. Tear-away will result in distorted text.
• Is it Fuzzy? (Towel/Fleece) -> Action: Must use Water Soluble Topping so stitches don't sink.
• Is it Stable? (Denim/Canvas) -> Action: Tear-Away is acceptable here.

2. The Hooping Standard (The Physical Grip)

• Scenario A: Flat, thin cotton.
  • Tool: Standard plastic hoop.
  • Technique: "Drum tight" tension. Tap it; it should sound like a drum.
• Scenario B: Thick towels, zippers, or delicate velvet.
  • Problem: Standard hoops pop open or leave "hoop burn" (permanent crush marks).
  • The "Pro" Solution: This is where efficient shops switch to a magnetic embroidery hoop.
  • Why: Magentic hoops hold thick items without forcing them into a plastic ring, preventing distortion and burn marks.

Warning: Magnetic Force Hazard
Magnetic hoops use industrial-strength magnets (Neodymium). They are not fridge magnets.
* Pinch Hazard: Keep fingers clear when snapping them together.
* Medical Safety: Keep away from pacemakers.
* Electronics: Do not place directly on laptops or screens.

Commercial Scaling: Recognizing the "Upgrade Point"

A major part of mastering embroidery is knowing when you are the limitation versus when your tools are the limitation.

If you have mastered the Embrilliance workflow above but are still struggling with production speed, look at your hardware:

• Struggle: "I hate re-hooping for every single shirt." -> Solution: hooping station for machine embroidery to ensure perfect placement every time.
• Struggle: "My wrist hurts from tightening screws." -> Solution: Magnetic frames.
• Struggle: "Changing threads 10 times for one logo is taking forever." -> Solution: This is the hard limit of a single-needle machine. This is the criteria for moving to a multi-needle platform (like SEWTECH systems), which hold 10+ colors simultaneously.

Hidden Consumables List (What Beginners Forget)

Software setup is free, but keeping your machine running requires a stash of "Hidden" items. Do not start a weekend project without these:

1. The "Oh No" Scissors: Double-curved applique scissors for trimming jump stitches close to the fabric.
2. Spare Needles: 75/11 for detail, 90/14 for denim. Needles dull every 8 hours of stitching.
3. Temporary Spray Adhesive (505): Essential for floating fabric that won't fit in the hoop.
4. USB Drive (<= 8GB): Many older Brother machines cannot read large, modern USB drives. Keep a small, dedicated drive formatted to FAT32.

Troubleshooting Map: Symptom -> Cure

Use this table when things go wrong. Start at the top (Physical) before moving to the bottom (Digital).

By following this guide, you aren't just "using software"—you are building a scalable, professional embroidery workflow. Lock in your settings, respect the physics of your hoop, and simpler, cleaner stitching will follow.

Many users find themselves confused by the variety of machine embroidery hoops available online; stick to the sizes explicitly supported by your machine model first, then expand to specialty magnetic options as your skills grow. Or, if you need specific guidance on sizing, searching for brother embroidery hoops sizes will often yield charts compatible with your specific model.

FAQ

• Q: How do I set the correct Embrilliance Essentials file format on Mac for a Brother or Babylock embroidery machine so the machine will read the design?
  A: Set the Embrilliance Essentials file format to PES in Preferences before saving/exporting.
  • Open Embrilliance Essentials and click the Preferences icon (yellow folder with a gear).
  • Select the Hoops tab and locate the File Format dropdown.
  • Choose PES (for Brother/Babylock), then click Apply and OK.
  • Success check: the dropdown explicitly shows “PES” (not DST or another format).
  • If it still fails: re-save the design after changing the format, and double-check the USB drive size/compatibility with the Brother embroidery machine.
• Q: How do I prevent a Brother embroidery machine hoop strike caused by the wrong hoop size selected in Embrilliance Essentials on Mac?
  A: Select the exact physical hoop size in Embrilliance Essentials (in millimeters) so the on-screen grid matches the real hoop.
  • Go to Preferences → Hoops and scroll the hoop list.
  • Click the hoop size you actually attached (example conversions shown in the software: 100×100 mm = 4"×4", 130×180 mm = 5"×7").
  • Click Apply, then OK to update the workspace.
  • Success check: the on-screen grid changes shape to match the selected hoop.
  • If it still fails: stop stitching immediately and re-confirm the hoop attached to the machine is the same size selected in Preferences.
• Q: How do I install a BX keyboard font in Embrilliance Essentials on Mac when the download is a ZIP file?
  A: Extract the ZIP first, then drag-and-drop the .BX file onto the Embrilliance workspace.
  • Double-click the ZIP file to reveal the folder and locate the .BX file (not .PES, not .DST, not the ZIP itself).
  • Keep Embrilliance Essentials open and visible.
  • Drag the .BX file from Finder onto the blank area of the Embrilliance grid and release.
  • Success check: an “installed” confirmation popup appears immediately and you click OK.
  • If it still fails: re-check that the file extension is exactly .BX and repeat the drag onto the workspace (not onto a toolbar or another window).
• Q: Why is a newly installed BX font not showing in the Embrilliance Essentials font list on Mac after clicking OK?
  A: Refresh the cached font list by re-clicking the Create Letters tool after installing the BX font.
  • Click the Create Letters tool (the capital “A”) again to force a refresh.
  • Look in the Properties pane and select the new font by name.
  • Type a small test word and press Enter.
  • Success check: the letters appear on the grid as stitch-based lettering (not just a missing entry).
  • If it still fails: quit Embrilliance completely (Command+Q) and reopen the software, then check again.
• Q: How do I delete unwanted imported fonts in Embrilliance Essentials on Mac so the font list is not cluttered?
  A: Quit Embrilliance fully, then delete the font’s folder from the Imported fonts directory in your user Library.
  • Quit Embrilliance using Command+Q (closing the window is not enough).
  • In Finder, use Go → Go to Folder and paste: ~/Library/Containers/com.britonleap.Embrilliance/Data/Library/Application Support/Embrilliance/Fonts/Imported
  • Find the folder matching the unwanted font name and move that folder to Trash.
  • Relaunch Embrilliance.
  • Success check: the font no longer appears in the Create Letters font list.
  • If it still fails: confirm Embrilliance was fully quit before deleting, then restart the Mac if the font list still looks unchanged.
• Q: What magnetic embroidery hoop safety rules should beginners follow when using a magnetic embroidery hoop for thick towels, zippers, or delicate velvet?
  A: Treat magnetic embroidery hoops as industrial-strength magnets and keep fingers, medical devices, and electronics safe.
  • Keep fingers clear when snapping the magnets together to avoid pinch injuries.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Do not place magnetic hoops directly on laptops, screens, or sensitive electronics.
  • Success check: the hoop closes without finger pinches, and the fabric is held securely without crushing marks.
  • If it still fails: switch back to a standard hoop for that job and reassess hooping method and fabric/stabilizer choice.
• Q: What should I upgrade first when hoop burn and constant re-hooping slow down embroidery production—technique, magnetic hoops, or a multi-needle embroidery machine?
  A: Start with technique and setup fixes, then upgrade to magnetic hoops for grip/hoop burn, and consider a multi-needle machine when thread-change time becomes the bottleneck.
  • Level 1 (technique): Standardize the correct hoop size in software and match stabilizer to fabric (stretchy needs cut-away; fuzzy needs water-soluble topping).
  • Level 2 (tool): Use a magnetic embroidery hoop when thick/delicate items pop out of plastic hoops or show hoop burn from ring pressure.
  • Level 3 (capacity): Move to a multi-needle platform when repeated thread changes on a single-needle machine dominate your production time.
  • Success check: you spend less time re-hooping and correcting distortions, and more time stitching clean results.
  • If it still fails: document the exact symptom (off-center, looping text, needle breaks, file won’t read) and troubleshoot from physical causes first (hoop grip, fabric stability, USB size) before changing software settings again.
