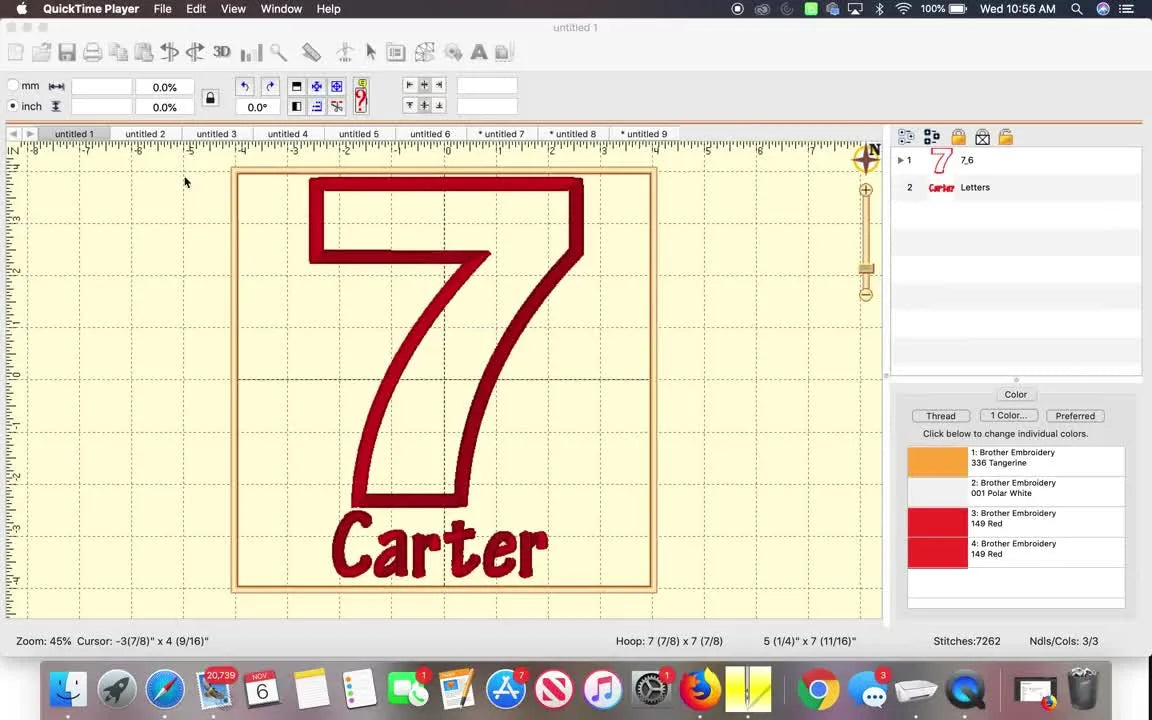

Embrilliance Essentials on a Brother PE800: The Calm, Click-by-Click Workflow for Lettering, BX Fonts, and Clean Layering

If you’re brand new to machine embroidery software like Embrilliance Essentials, and you felt like the tutorial video moved at the speed of light—take a deep breath. You are not alone. Embroidery software is notorious for "Cognitive Overload." One missed click can snowball into a specific kind of agony: staring at your machine for an hour wondering, "Why is the name stitching on top of the flamingo's head?"

As an embroidery educator, I see this daily. Beginners treat software like a video game they can just "figure out." Don't do that. Embroidery is an engineering discipline disguised as art. It requires specific inputs to get safe outputs.

This guide slows the workflow down into a "Safety-First" Routine. We will cover the software steps, but I will also add the physical checkpoints the software doesn't tell you about—the ones that prevent broken needles, ruined toddler shirts, and the dreaded "bird's nest" of thread under the throat plate.

Set the Brother PE800 5x7 Hoop Preferences Once—So Every New Page Starts Correct

The very first win in Embrilliance Essentials is getting your "digital reality" to match your "physical reality." If these don't match, you run the risk of the machine arm slamming into the side of the hoop—a terrifying sound known as a "hoop strike."

In the video, the instructor opens the Preferences window and chooses the 130mm x 180mm (5x7) hoop. She then uses the Rotate 90 degrees option. This is critical for Brother PE800 users (and similar single-needle machines) because the attachment arm is on the right, meaning your hoop loads horizontally.

What you should do (The Safe Setup):

1. Open Preferences: Go to the menu bar.
2. Select Hoop: Choose 130mm x 180mm.
3. Visual Orient Check: Toggle Rotate 90 degrees. Look at your physical machine. Is the long side of your hoop running left-to-right? Make the screen match that.
4. Verify Readout: Look at the bottom status bar of the window. It should explicitly say "130 x 180".

Sensory Checkpoint (The "Reality" Test): When you toggle rotation, does the on-screen rectangle flip? Visual: It should look like a landscape painting, not a portrait. If your screen shows a vertical hoop but your machine holds it horizontally, your text will stitch sideways.

Warning: Never "Force-Fit" a design. If you see a red boundary line or a warning that the design doesn't fit, stop. Do not try to shrink a dense design by 20% to make it fit; you will increase the density to the point where the needle may deflect and break.

Prep Checklist (The "Pre-Flight" Routine)

Digital Checks:

• Format Safety: Is the file export set to .PES (for Brother)?
• Hoop Match: Does the screen hoop match the hoop you are physically holding (e.g., 5x7)?
• Orientation: Is the "Top" of the screen actually the "Top" of your physical hoop?

Physical Bench Checks (Hidden Consumables):

• Needle Health: Run your fingernail down the needle tip. If you feel a snag/burr, change it immediately.
• Bobbin: Do you have a full white bobbin loaded? (Running out mid-name is a nightmare).
• Scissors: Do you have your curved snips ready for jump stitches?

Centering in Embrilliance Essentials: The One Click That Prevents Crooked Names

There is nothing more heartbreaking than stitching a perfect design, taking the shirt off the machine, and realizing it is 2 inches to the left. Beginners often try to "eyeball" the center. Stop eyeing it. Trust the math.

In the video, the instructor loads a design (“Young Wild & Three”) and uses the Center Design in Hoop button.

What you should do:

1. Click the design element to select it.
2. Locate the "Compass" icon or "Target" icon on the toolbar (Center Design).
3. Click it once.

Checkpoint (Expected Outcome): The design will instantly snap to the exact mathematical center of the grid crosshairs. This gives you a "Zero Point." From here, any movement is a deliberate choice, not an accident.

Lettering in Embrilliance Essentials: Fix Awkward Spacing with the Green Handles (Kerning)

Standard fonts are designed for paper, not thread. When you type "Lily" in embroidery software, the gap between the "L" and the "i" is often too wide properly connect or look cohesive. This process of fixing gaps is called Kerning.

Angela demonstrates clicking the A (Create Letters) tool and using the green handle dots (center of the letter) to shift them.

What you should do:

1. Type: Use the A tool to type your name.
2. Select: Click the text object. You will see green, triangular handles above the letters and center dots.
3. The "Visual Balance" Move: Hold Command (Mac) or Ctrl (PC) and click a specific center green dot. Drag that single letter closer to its neighbor.

Sensory Instructional Tip: Imagine the letters are magnetic. You want them close enough to feel like a "family," but not touching (unless it's script). Visually, the white space between letters should feel equal, even if the distance isn't mathematically equal.

Common Beginner Trap: If you move letters and your design goes off-center, do not drag it back manually. Use the Alignment tool mentioned in the previous section to re-center the entire group.

Thread Color Changes Without Panic: Use the Color Tab, Then Fix “Wrong Brand Palette” Confusion

Here is a hard truth: The screen is a liar.

Angela shows how to change colors in the Color tab. She also hits a common friction point: the design was digitized using a Bernina palette, but you are likely using Brother or Madeira threads. The colors on screen might look neon or washed out compared to your spools.

What you should do:

1. Select the object.
2. Click the Color tab (usually a spool icon).
3. The "Translation" Step: If the colors look wrong (e.g., "Bernina Pink" looks purple on your screen), click Preferred or change the catalog to a standard like "Madeira Polyneon" or "Brother Country."
4. Physical Match: Ignore the screen name "Light Salmon." Hold your physical spool of thread up to the screen. Does the vibe match? That is what matters.

Expert Insight: Color decisions should happen with physical cones in your hand. Use the software only to separate the blocks (e.g., "Stop 1 is the flower, Stop 2 is the stem"). Do not obsess over getting the hex code #FF00XX perfect on screen.

The Comp Setting at 2: Make Thin Fonts Read Better on Shirts (Without Redigitizing)

This is the most important technical tip in the entire article.

When a needle penetrates fabric, the thread pulls the fabric tight. This causes the stitch column to shrink slightly. A font that looks 2mm wide on screen might stitch out at 1.5mm, disappearing into the fluff of a cotton t-shirt. This is called "Pull."

To fight "Pull," we use Compensation (Comp). Angela sets her Comp to 2.

What you should do:

1. Select your text.
2. Look at the Properties pane. Find the slider labeled Comp.
3. The Sweet Spot: Move the slider to 2.
4. Visual Check: Watch the letters on screen slightly "plump up."

Why this matters for your specific gear: If you are working with a brother 4x4 embroidery hoop, you are likely scaling text down to fit small areas. When you scale text down, it gets thinner. Increasing Comp to 2 restores the boldness and ensures the letters are readable, not just a line of thread.

Setup Checklist (Before Merging Designs)

• Center: Is the main design anchored in the middle?
• Kerning: Are the gaps between letters visually balanced?
• Comp: Is Comp set to at least 1 or 2 for knit fabrics?
• Boundary: Is everything strictly inside the red safety lines?

BX Fonts vs. Stitch Files: Stop Dragging Letters One-by-One (Install BX by Drag-and-Drop)

Before BX fonts, embroiderers had to import "A.pes," then "B.pes," then line them up manually. It was torture. BX fonts map embroidery files to your keyboard so you can type them.

What you should do:

1. Download: Get the font file (ensure it says BX format).
2. The Magic Move: Open Embrilliance. Open your file folder. Drag the BX icon and Drop it right onto the white canvas.
3. Confirmation: You should see a pop-up: "Font Installed."

Checkpoint: Go to your lettering tool and look at the font list. The new font usually appears at the bottom of the list or under the digitizer's name.

Merge Stitch File in Embrilliance Essentials: Bring a Flamingo .PES into the Same Canvas

You have a name. Now you need a flamingo. This is called "Composing."

What you should do:

1. Click the Merge Stitch File icon (often a folder with a needle).
2. Select your Flamingo .PES file.
3. It will drop the flamingo onto your existing page.

Process Note for Large Projects: If you are planning a layout that is larger than your stitch area and using a repositionable embroidery hoop, this merging step is where you align the segments. Ensure you have the "Multi-Position" hoop selected in Preferences so the software knows to split the file for you later.

Edit One Stitch Step at a Time: Change the Flamingo Outline from Yellow to Deep Rose

Sometimes you want the flamingo, but you hate the yellow outline. You don't need to accept the digitizer's choices.

Angela uses the Object Pane (the list on the right side) to surgically alter one step.

What you should do:

1. Expand the Tree: Click the + or arrow next to the Flamingo design in the Object Pane to see the individual color stops.
2. Isolate: Click only the specific step (e.g., Step 4: Outline).
3. Change: Click the color swatch. Select "Deep Rose."

Visual Check: Did the whole bird turn pink? If yes, you clicked the parent object. Undo (Ctrl/Cmd+Z). Click only the child object (the single line in the list) and try again.

Reorder Stitch Sequence: Make the Number Stitch First, Then the Character for Cleaner Overlaps

Embroidery has a "Z-axis"—what stitches on top of what. Angela notices the Flamingo is listed before the Number. If stitched this way, the Flamingo legs might get buried under the satin stitches of the Number 1.

The Logic: Backgrounds go first. Foregrounds go last.

What you should do:

1. Locate the "Number 1" in the Object Pane.
2. Click and Drag: Pull it simply above the Flamingo object.
3. Release: The Flamingo will now clearly sit "on top" of the number visually on screen.




The “Hidden” Shirt Prep Nobody Mentions: Hooping, Stabilizer, and Why Your Software Work Can Still Fail

The video ends with software, but your project doesn't. You can have perfect "Comp 2" settings in software, but if your shirt is loose in the hoop, the fabric will "flag" (bounce up and down), causing bird nesting and misaligned outlines.

Symptoms of a Hooping Failure:

• Hoop Burn: White rings left on the fabric that won't wash out.
• Pucker: Stress wrinkles around the letters.
• Shift: The outline doesn't match the fill.

The "Instrument" Solution: Standard plastic hoops require significant hand strength to tighten properly, and they often pinch fabric unevenly. If you are struggling with this, consider upgrading to a magnetic hoop for brother pe800.

Unlike screw-tightened hoops, magnetic frames clamp the fabric and stabilizer sandwich instantly with even pressure. This prevents the "tug of war" that distorts t-shirt collars. If you find standard hoops difficult due to wrist pain or just poor results, searching for a brother 5x7 magnetic hoop or the specific brother pe800 magnetic hoop compatible with your machine is the industry-standard fix for production consistency.

Warning (High Magnetic Force): Magnetic hoops are industrial tools. They snap together with enough force to pinch fingers severely. Never place them near pacemakers. Store them with the provided spacers.

Decision Tree: Fabric → Stabilizer Strategy

Do not guess. Follow this physics-based logic.

1. Is the fabric Stretchy? (T-shirt, Onesie, Jersey)
   • Yes: YOU MUST USE CUTAWAY STABILIZER. Tearaway will fail; the stitches will break the paper, and the design will distort.
   • Pro Tip: Use a light layer of spray adhesive (like 505) to bond the shirt to the Cutaway.
2. Is it a Terry Towel or Fuzzy Fleece?
   • Yes: You need a "Sandwich."
   • Bottom: Tearaway or Cutaway.
   • Top: Water Soluble Topper (Solvy). This prevents the stitches from sinking into the pile (disappearing).
3. Is it a Woven Button-down (No stretch)?
   • Yes: Tearaway is acceptable here.

Turning This Workflow into a Small-Shop Routine

If you want to move from "Sold one shirt to my neighbor" to "Taking orders for a birthday party," you need speed.

The Batching Routine:

1. Template: Create your "Master File" with the number and design centered. Save it as Master_Bday.BE.
2. Variable: Open Master, add the name "Liam," Save As Liam_Order.PES. Undo name. Add "Emma," Save As Emma_Order.PES.
3. Production:
   • Preparation is key. If you are hooping 10 shirts, standard hoops will slow you down. A magnetic embroidery hoops for brother setup allows you to hoop a shirt in about 10 seconds versus 60 seconds.
   • Consistency is profit. By eliminating the variable of "How tight did I screw the hoop this time?", you ensure Liam's shirt looks identical to Emma's shirt.

Eventually, if you outgrow the single-needle pace (where you are changing thread 15 times per shirt), look at the SEWTECH multi-needle ecosystem for the next leap in productivity.

Comment-Driven Fixes: The Problems Beginners Keep Running Into

Here is the "Emergency Room" data from users who tried this and failed, and how you can avoid their fate.

1. "My design isn't saving! It says 'Demo Mode'!"

The Fix: Embrilliance has a free "Express" mode (for BX fonts) but if you use features like Merging or Density adjustment, you are using "Essentials" features. If you haven't bought the license, you cannot save the stitch file. This isn't a bug; it's a license check.

2. "The letters look super thin on the shirt."

The Fix: You skipped the Comp step. Go back to Lettering Properties and set Comp to 2. If it's a sweatshirt, try 3.

3. "I have hoop marks that won't come out."

The Fix: This is "Hoop Burn," caused by friction from the inner plastic ring.

• Immediate: Rub the mark with water/steam (unless it's silk).
• Prevention: Use a "Hoopless" method (float the stabilizer and stick the shirt to it) or switch to a mighty hoop for brother pe800 style magnetic frame which uses vertical magnetic pressure rather than friction, eliminating hoop burn entirely.

4. "My color palette is weird."

The Fix: Click Preferred in the thread window. This forces the software to look at the palette you own, rather than the digitizer's palette.

The Upgrade Path That Actually Makes Sense

Start simple, but know when your tools are holding you back.

1. Level 1 (The Learner): Brother PE800 + Standard Hoops + Embrilliance Essentials. focus on learning tension and stabilizers.
2. Level 2 (The Hobbyist): Add Magnetic Hoops to save time and fabric. Add Cutaway stabilizer bulk rolls.
3. Level 3 (The Pro): When you are rejecting orders because you can't stitch fast enough, look at multi-needle machines.


Operation Checklist (The Final "Go" Button)

• Hoop Ref: Preferences confirmed (Size & Rotation).
• Center: Design is centered (Crosshairs check).
• Physics: Stabilizer matches fabric (e.g., Cutaway for Tees).
• Mechanics: Needle is fresh; Bobbin is full.
• Safety: Clearance check—ensure the hoop can move freely without hitting the wall or your coffee cup.

By following this script, you stop "hoping" it works and start "knowing" it will. Happy stitching!

FAQ

• Q: How do I set the correct Brother PE800 5x7 (130mm x 180mm) hoop in Embrilliance Essentials to avoid a hoop strike?
  A: Set Embrilliance Essentials Preferences to 130mm x 180mm and match the on-screen rotation to the Brother PE800’s physical hoop orientation before placing any design.
  • Open Preferences and select 130mm x 180mm (5x7).
  • Toggle Rotate 90 degrees until the on-screen hoop matches how the Brother PE800 hoop loads (long side left-to-right).
  • Verify the bottom status bar explicitly reads “130 x 180”.
  • Success check: The hoop on screen looks like a landscape rectangle and matches the hoop in your hands; no “force-fit” warnings appear.
  • If it still fails: Stop if a red boundary line appears—do not shrink a dense design heavily; re-check hoop size/rotation instead.
• Q: What is the fastest pre-flight checklist for Brother PE800 embroidery to prevent broken needles and bobbin run-outs before pressing start?
  A: Run a quick digital-and-physical pre-flight check every time; it prevents the most common “everything was fine until it wasn’t” failures.
  • Confirm export format is .PES and the on-screen hoop matches the physical hoop size and orientation.
  • Inspect needle by running a fingernail down the tip and replace immediately if a snag/burr is felt.
  • Load a full bobbin (white bobbin recommended in the workflow) and keep curved snips ready for jump stitches.
  • Success check: No needle burr is felt, bobbin thread pulls smoothly, and the file is ready in .PES with the correct hoop shown.
  • If it still fails: If stitches start acting unstable mid-run, stop and re-check needle condition and bobbin fullness first.
• Q: How do I center a name accurately in Embrilliance Essentials so the Brother PE800 stitches the lettering straight instead of 2 inches off?
  A: Use Center Design in Hoop once to create a true mathematical center point before doing any manual positioning.
  • Click the lettering (or design) to select the object.
  • Click the Center Design in Hoop button (target/compass icon) one time.
  • Make any intentional moves only after the design snaps to center.
  • Success check: The design snaps directly onto the grid crosshairs with no “eyeballing” needed.
  • If it still fails: If the design ends up crooked after edits, re-center the entire group instead of dragging it back by hand.
• Q: How do I fix thin lettering on a cotton t-shirt in Embrilliance Essentials using the Comp setting at 2 (without re-digitizing)?
  A: Set the text Comp to 2 to counter pull so small lettering stays readable on shirts.
  • Select the text object and open the Properties pane.
  • Find Comp and move the slider to 2.
  • Re-check that the design still stays inside the hoop boundary lines.
  • Success check: Letters look slightly “plumper” on screen and stitch as readable columns instead of hairline thread.
  • If it still fails: If the fabric is thicker (like a sweatshirt), Comp may need to be increased (a safe starting point is trying higher), but confirm with the machine/manual and test stitch first.
• Q: How do I prevent hoop burn, puckering, and outline shift on t-shirts when using a Brother PE800 hooping method?
  A: Treat hooping as a physics step: use the correct stabilizer for knit shirts and avoid uneven hoop pressure that causes fabric distortion.
  • Use cutaway stabilizer for stretchy fabrics (t-shirts/onesies/jersey); tearaway often fails on knits.
  • Add a light layer of spray adhesive (like 505) to bond the shirt to the cutaway for stability.
  • Avoid over-friction hooping that leaves rings; consider a hoopless/float method if hoop burn is frequent.
  • Success check: The fabric does not bounce/“flag,” outlines align with fills, and there are no permanent white rings after unhooping.
  • If it still fails: Upgrade the hooping method—uneven clamping is a common root cause even when software settings are perfect.
• Q: What magnetic hoop safety rules should be followed when using a magnetic hoop for Brother PE800 embroidery?
  A: Magnetic hoops clamp fast and hard—handle them like industrial tools to prevent finger injuries and medical-device risk.
  • Keep fingers clear of the closing gap; let the frame snap together only when positioned.
  • Keep magnetic hoops away from pacemakers and follow the provided storage method (use spacers).
  • Set the hoop down flat and control the top ring during placement to avoid sudden snap.
  • Success check: The frame closes without pinching, the fabric/stabilizer sandwich is evenly clamped, and the hoop stays stable without re-tightening.
  • If it still fails: If clamping feels uneven or the fabric distorts, reposition and re-clamp rather than forcing the frame.
• Q: When should a Brother PE800 user upgrade from standard hoops to magnetic hoops, and when is it time to move up to a SEWTECH multi-needle machine?
  A: Use a tiered decision: fix technique first, upgrade hooping for consistency next, then upgrade machines only when speed limits the business.
  • Level 1 (Technique): Re-check hoop size/rotation, centering, kerning, Comp, and stabilizer choice before buying anything.
  • Level 2 (Tooling): If hooping is slow, inconsistent, causes hoop burn, or hurts hands/wrists, magnetic hoops are the practical consistency upgrade.
  • Level 3 (Capacity): If single-needle thread changes and slow output cause order backlogs, a multi-needle platform becomes the next logical step.
  • Success check: You can hoop consistently, stitch multiple garments with repeatable placement, and produce identical results across names/orders.
  • If it still fails: If quality is inconsistent even after stabilizer and hooping upgrades, slow down and run a controlled test stitch to isolate whether the issue is hooping, needle/bobbin, or design density.
